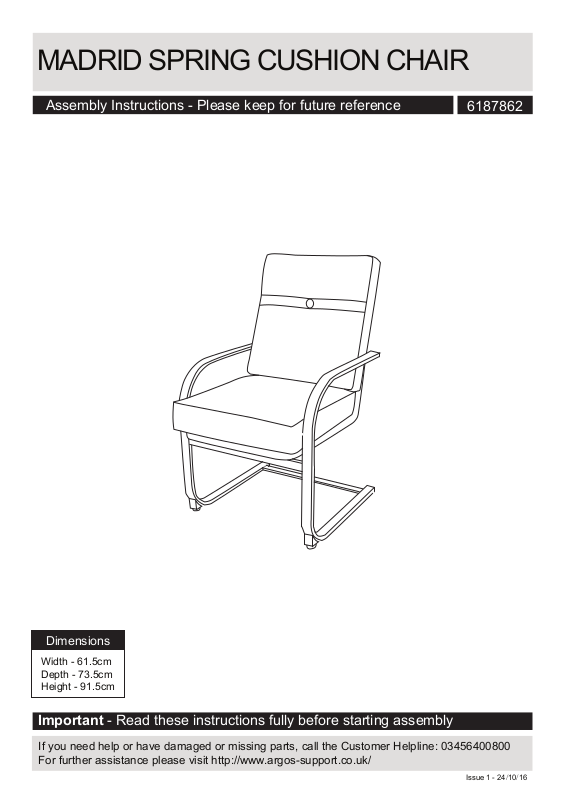

Page 1
MADRID SPRING CUSHION CHAIR
Assembly Instructions - Please keep for future reference
6187862
Dimensions
Width - 61.5cm
Depth - 73.5cm
Height - 91.5cm
Important - Read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
For further assistance please visit http://www.argos-support.co.uk/
Issue 1 - 24/10/16
Page 2
!
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
Care and maintenance
• Wash frame parts with mild
soap and water, rinse thoroughly,
and dry completely. Do not use
bleach, acid, or other solvents
on the frame parts.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the components during assembly,
this could cause damage.
• Assembly on a soft level surface
to avoid damaging the unit or your
floor.
• Parts of the assembly will be
easier with 2 people.
• Inspect and tighten all bolts
and fasteners on a regular basis
to ensure the proper performance
and safety of your chair.
• Dispose of all packaging carefully
and responsibly.
• Do not stand on this chair.
• Warning: The unit weighs
approximately 6 kgs. Please lift
with care.
• In order to prolong the life and
beauty of your chair, we
recommend that it be stored in a
dry and protected area when not
in use .
• We recommend the use of
furniture covers when not in use.
1
Page 3
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly.
A
D
d6.5 x D13 x 1.0 Washer x 2
B C
M6 x 15mm Bolt x 4M6 x 10mm Bolt x 2 M6 x 35mm Bolt x 6
E
E
d6.5 x D10 x 1.6 Washer x 12
Components - Parts
Please check you have all the parts listed below
F
M6x1.0 Jam nut x 2
3
1 2
Back Assembly x 1
5
Rear Support Brace x 1
Seat Assembly x 1
6
Front Support Brace x 1
Right Leg x 1
7
Back Cushion x 1
Tools required
4mm Hex Key Nut Wrench 10&13MM
Ruler - Use this ruler to help correctly identify the screws
4
Left Leg x 1
8
Seat Cushion x 1
10
2
Page 4
Assembly Instructions
Step 1
Insert the legs ( and ) to the
rear support brace , fix them by
using bolts and washers . Keep
the bolts loose.
Note:
The labels marked “L” and “R” on
3 4
legs and should coincide
with Step 1 to ensure proper assembly.
3
4
5
A
E
L
4
R
3
5
E
A
Step 2
Fix the front support brace to the
legs ( and ) by using bolts
3 4
and washers . Keep the bolts loose.
E
6
B
4
E
6
B
3
E
B
3
Page 5
Assembly Instructions
Step 3
Insert the seat assembly into the
back assembly . Make sure align
the holes of them. Fix the them
together by using bolts , washers
and , and plastic nuts .
D E
1
2
C
F
1
DE
D
E
C
2
Step 4
Position the assemblys ( and
) onto the legs ( and ) and
front support brace .
3
1
4
6
2
1
2
3
6
4
4
Page 6
Assembly Instructions
Step 5
Fix the assemblys ( and ) to
the legs ( and ) by using bolts
and washers . Make sure that
C
all of the bolts have been tightened
completely.
3
1
2
4
E
1
Step 6
Place the cushions ( and )
onto the chair. Secure the cushions
to the chair by using the plastic
clamps. You can adjust the leveler on
the legs ( and ) to keep the
chair even when it is not stable.
3
7
8
4
E
C
E
2
C
3
4
7
8
3
4
Assembly is completed.
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW
