Argos 6185709 ASSEMBLY INSTRUCTIONS

Assembly Instructions – Please keep for future reference
Important – Please read these instructions fully before starting assembly
Dimensions (4'6')
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Eros 4'6, 5'and 6' Ottoman Beds
Dimensions (5')
Dimensions (6')
hygena
750/7269
742/9031
745/1731
Length - 203cm
Width - 144.5cm
Height - 96cm
Length - 214cm
Width - 159.5cm
Height - 96cm
Length - 214cm
Width - 189.5cm
Height - 96cm
Safety and Care Advice
Check you have all the components and tools listed on pages 2 and 3.
Remove all fittings from the plastic bags and separate them into their groups.
Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to layout the parts before starting.
Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
Assemble the item as close to its final position (in the same
room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
Assembly requires 2 people.
Do not fully tighten bolts until the
whole bed is assembled. Do not overtihgten the nuts to avoid causing damage to the threads.
From time to time check that there are no loose screws on this unit.
We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers and
Allen keys.
Dispose of all packaging carefully and responsibly.
This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Important Ottoman Safety Warnings
· Caution.This bed uses a pressurised mechanism.
· Use caution when operating - Always use two hands at arm’s length, and only where illustrated on the product.
· You must ensure the mattress is on the bed frame before lifting the mechanism - Failure to do so may result in injury.
· Please ensure Children and pets are kept away from the bed when operating the bed mechanism.
· If removing the mattress, make sure that the frame is secured as it could flip open.
· Only use the storage compartment when when the frame is fully raised in the ‘up’ position.
· No children or animals are left unattended when the frame is in the ‘up’ position.
· Do not remain on the bed whilst the lifting mechanism is in use.
· Beware of Entrapment - Keep both hands clear of mechanism when operating the mechanism.
· When lifting the bed remove all bedding - Except the fitted sheet.
1
2
0345 6400 800
INSIDE
Right side rail (4.6'-1930 × 310mm)(5'/6'-2030 × 310mm)
INSIDE
FRONT
Left side rail (4.6'-1930 × 310mm)(5'/6'-2030 × 310mm) Headboard (4.6'-1445 × 920mm)
(5'-1600 × 920mm) (6'-1890 × 920mm)
INSIDE
Footboard (4.6'-1445 × 310mm) (5'-1600 × 310mm)(6'-1890 × 310mm)
Base panel x2 (4/6-1377 × 600mm) (5'-1527 × 600mm) (6'-1827 × 600mm)
Long support leg x 2 (Ø25 × 187mm)
Hinges x 2 (750 x 115mm)
Base panel x1
(4/6-1377 × 724mm) (5'-1527 × 824mm) (6'-1827 × 824mm)
Ottoman end frame (Headboard) x 1 (4/6-1370 × 118mm)(5'-1520 ×118mm) (6'-1820 × 118mm)
Piston x 2 (420mm)
Feet x 4 (62 x 33 x 41.6mm)
Ottoman end frame (Footboard) x 1 (4/6-1370 × 118mm)(5'-1520 ×118mm) (6'-1820 × 118mm) (Note: Chamfered corners)
Components - Parts
Please check you have all the parts listed below
3
If you have damaged or missing components,
call the Customer Helpline: 0345 6400 800
13
Ottoman frame (Sides) x 2
(4'6-1822*30mm)(5'/6'-1925*30mm)
15
Bentwood slats x28(4'6-675*9*53mm) Bentwood slats x30(5'/6'-750*9*53mm)
Ottoman frame centre rail x 1 (4'6-1822*30mm)(5'/6'-1925*30mm)
14
Base support x 4 (120 x 20mm)
17
Central support x 1
(4'6-1930*80mm) (5'/6'-2030*80mm)
16
Short support leg x 2
(Ø25*36mm)
19
Wooden support rail x 2 (4'6-1379*60mm) (5'-1529*60mm) (6'-1829*60mm)
18
Double slat caps x 14 (4'6-5.5mm) Double slat caps x 15 (5'/6'-5.5mm)
20
Single slat caps x 28 (4'6-5.5mm) Single slat caps x 30 (5'/6'-5.5mm)
21 22
Ottoman frame support x 1
(100 × 30mm)
23
Corner bracket x 4 (120 × 80mm)
24
Components - Parts
Mattress support
bracket x 2 (Ø6*78mm)
Spanner x 1

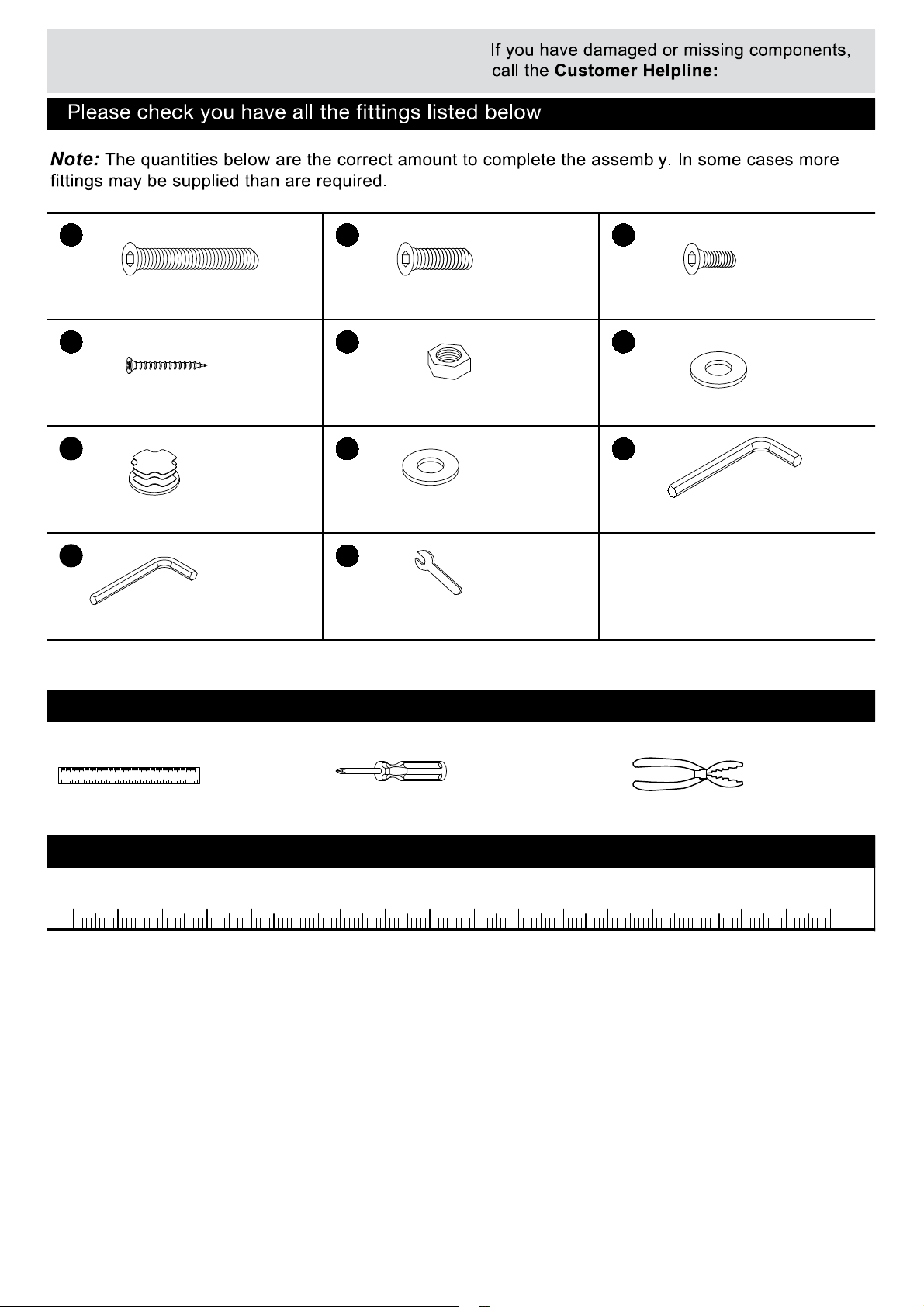

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
Nut x 4
If you have damaged or missing components,
call the Customer Helpline: 0345 6400 800
B C
D E F
4
19mm Flat washer x 1435mm M4 Wood screw x 28
A
F
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Tools required
Components - Fittings
G
45mm M8 Bolt x 2
25mm M8 Bolt x 20 15mm M6 Bolt x 32
H
5mm Allen key x 1
FJ
L
14mm Flat washer x 4
Plastic cap x 2
4mm Allen key x 1
K
0
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150
1 2 3 4 5 6
Ruler/tape measure
Phillips screwdriver (Not supplied)
PLIERS (Not supplied)

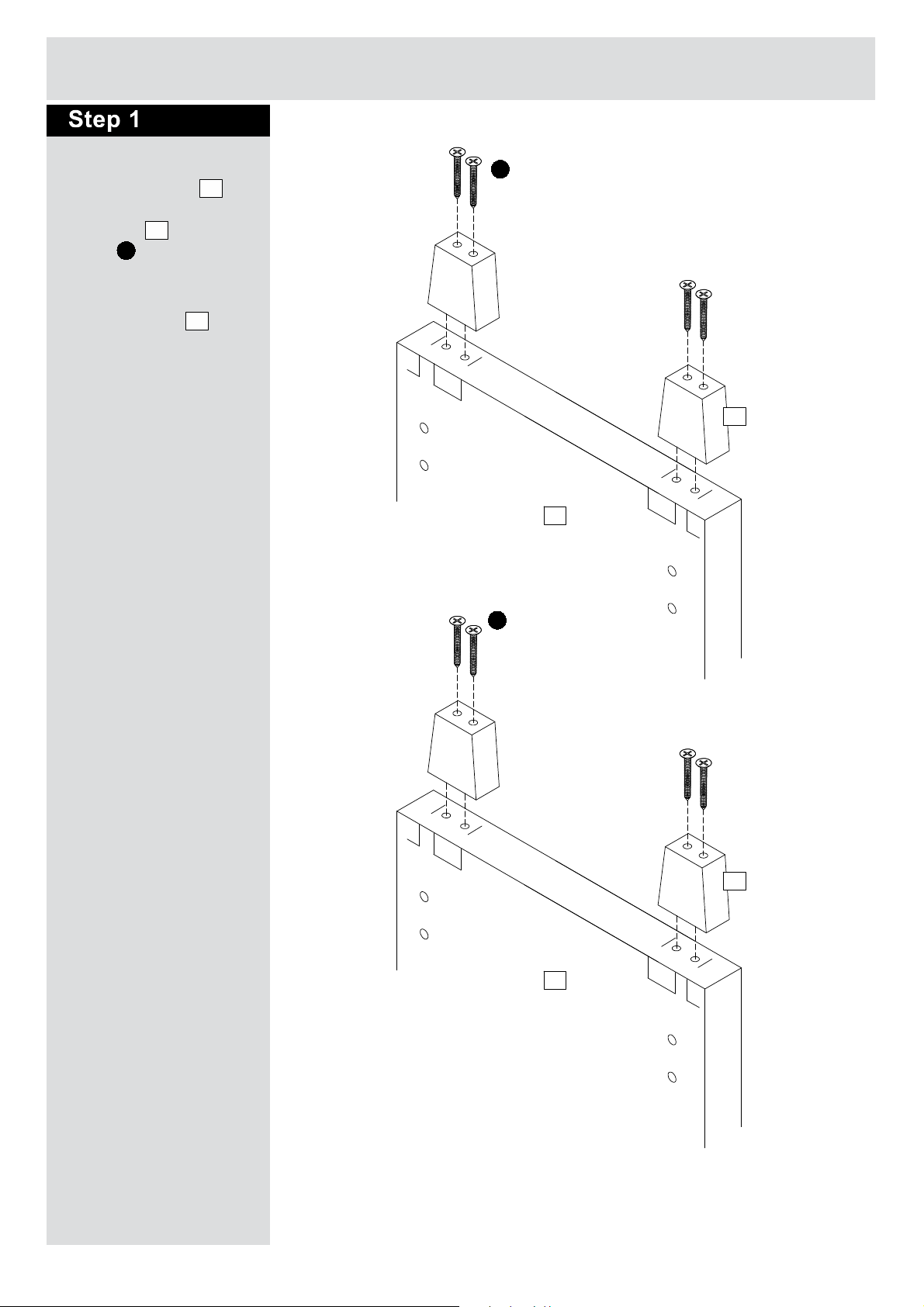

Step 1
Assembly Instructions
5
Attaching feet
a: Attach 2 x Feet to the underside of the headboard using screws as shown.
Repeat on the underside
of the footboard .
Note: The position is
outlined.
3
9
D
4
9
9
3
D
4
D
Step 2
6
Preparing footboard
Attach the ottoman frame
support to the
footboard using fixings and as
shown.
23
4
A F
Step 3
Preparing footboard and headboard
With help, carefully place
headboard and
footboard flat onto the floor with the fixing holes facing up as shown.
Note: Ensure the floor is suitably clean and protected to prevent any damage to the headboard and footboard.
4
23
A
F
Assembly Instructions
Attach base supports
to the footboard and headboard as shown using screws .
Note: The positions should be outlined.
D
17
4
3
3
4
3
D
4
D
17
17
Step 4
7
Attaching side rails
a: Loosely fit bolts into
headboard and
footboard as shown.
b: With help, raise
headboard into the standing position.
Hang the metal brackets on the end of the side rails and , over the bolts in the headboard
.
Note: Ensure the 4
holes on the inside of each side rail are located at the headboard end as shown.
Note: Do not fully
tighten bolts at this stage.
Finger tighten only.
Repeat to assemble
footboard .
B
3
4
a:
b:
2
3
1
3
1
2
3
4
B
Assembly Instructions
3
2
B
3
B
4
B
Holes at headboard end
4
Step 5
8
Preparing base
a: Attach the short
support legs to the underside of the central support using bolts
.
Fit plastic caps into support legs .
b: Assemble central
support in between headboard and footboard using fixings and at both ends.
c: Assemble wooden
support rails in between side rails and
using screws .
Finally, fully tighten all other fixing points from previous step 4 .
d: Assemble corner
brackets in each corner using screws .
Note: Ensure these are
at the same height as all other metal support bars.
The positions should be
outlined.
c:
19
16
C
19
G
16
3
4
C
H
D
24
18
1
2
C
Assembly Instructions
D
d:
24
C
1
18
18
18
1
2
3
24
1
b:
16
C
H
a:
G
C
19
16
Upside down
3
3
4
16
Step 6
9
Step 7
Attaching folding hinges
Assembly Instructions
1
2
5
5
a:
7
a: Secure hinges to
side rails & using bolts as shown.
Note: Ensure the hinges
are fitted the correct way around as shown.
b: Locate pistons onto
hinges as shown.
Note: Ensure the "smaller"
tube is facing down as shown.
Secure the pistons using nuts at both ends.
Note: Use Spanner to
tighten nuts . The nuts must be securely tightened.
5
1
2
C
6
5
E
b:
E
up
down
E
6
5
up
down
L
8
7
7
8
C
Completing base
With help, carefully slide
base panels and
inside the bed frame as
shown.
Step 8
10
Assembling ottoman
frame
a: Assemble long support
legs to the underside
of centre rail and end
frame using screws .
b: Assemble ottoman
frame components ,
, and together
as shown.
Note: Secure the
assembly using fixings
and as shown.
Important
Do not fully tighten
screws at this stage. Finger tighten only.
c: With help, carefully
turn the frame over.
Note: The frame is heavy,
lift with care.
Assemble mattress
support brackets to
end frame using
screws .
Assembly Instructions
10
14
11
C
B
11
12
13
14
B
F
22
11
C
11
14
10
13
14
13
11
12
a:
b:
C:
C
11
22
10
C
C
Upside down
B
F
Headboard end
Headboard end
Step 9
11
Locating ottoman frame
With help, lift the ottoman frame into position onto the top of hinges .
Note: The frame is heavy,
lift with care.
Secure on both sides using screws .
Once assembly is complete, fully tighten all screws around the ottoman frame.
Assembly Instructions
5
C
C
C
13
5
13
5
Step 10
12
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW
Assembly is complete.
Assembly Instructions
Attaching single slat
caps
Assemble single slat
caps onto one end of
bentwood slats .
21
15
Step 11
Attaching slats
a: Fit bentwood slats
into the ottoman frame
(sides) by locating
single slat caps
into the holes.
b: Fit bentwood slats
into both sides of double slat caps , before pushing caps into the holes in central support
.
15
13
21
15
20
20
14
15
21
20
15
15
21
a:
b:
14
13
13
14
15
15
21
20
21
