Page 1

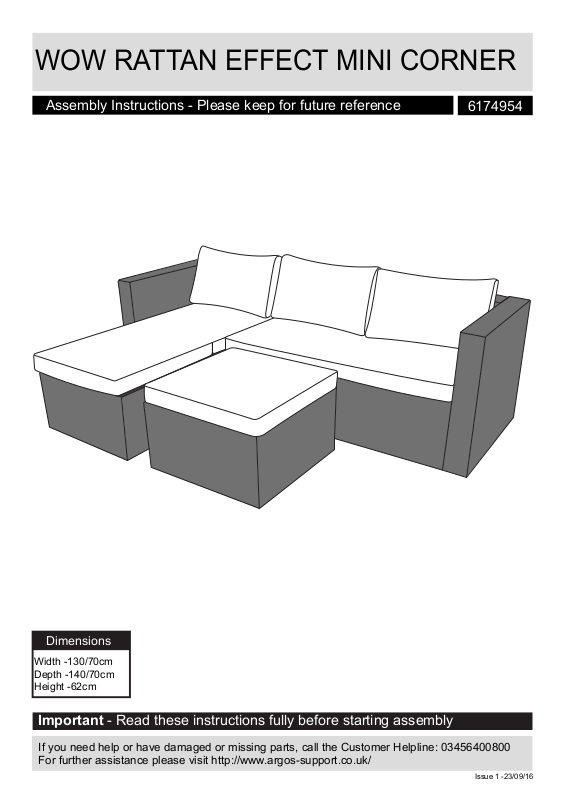

WOW RATTAN EFFECT MINI CORNER
Assembly Instructions - Please keep for future reference
6174954
Dimensions
Width -130/70cm
Depth -140/70cm
Height -62cm
Important - Read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
For further assistance please visit http://www.argos-support.co.uk/
Issue 1 -23/09/16
Page 2
!
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2 & 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the components during assembly,
this could cause damage.
• Assembly on a soft level surface
to avoid damaging the unit or your
floor.
• Parts of the assembly will be
easier with 2 people.
• Dispose of all packaging carefully
and responsibly.
• Do not stand on this sofa.
• Warning: The unit weighs
approximately 41.9 kgs. Please lift
with care.
Care and maintenance
• Wash frame parts with mild
soap and water, rinse thoroughly,
and dry completely. Do not use
bleach, acid, or other solvents
on the frame parts.
• We recommend the use of
furniture covers when not in use.
• Inspect and tighten all bolts
and fasteners on a regular basis
to ensure the proper performance
and safety of your sofa.
• In order to prolong the life and
beauty of your sofa, we
recommend that it be stored in a
dry and protected area when not
in use .
1
Page 3
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly.
A
M6 x 30mm Bolt x 18
Tools required
4mm Hex Key
10mm Hex Key
Ruler - Use this ruler to help correctly identify the screws
30
2
Page 4
Components - Parts
Please check you have all the parts listed below
1
1
4
4 5
2
2
Arm Assembly 1 x 2Back Assembly x 1
3
Seat Assembly 1 x 1
3
5 6
Arm Assembly 2 x 1Seat Assembly 2 x 1
6
Ottoman x 1
7
Seat Cushion x 1
9
Ottoman Cushion x 1
3
8
Right Seat Cushion x 1
10
Back Cushion x 3
Page 5
Assembly Instructions
Step 1
Place the back assembly
onto a non-abrasive surface,
such as a carpet, with its
underside facing upwards.
Fix the seat assembly 1
to the back assembly by
using bolts . Keep the bolts
loose.
Note:
A
Please build this set in a
well-lit area and on a raised
surface if possible.
1
3
3
3
1
1
1
A
Step 2
Fix the seat assembly 1 to
the back assembly by
using bolts . Keep the bolts
loose.
A
3
1
3
3
1
A
A
1
4
Page 6
Assembly Instructions
Step 3
Fix the back assembly to
the arm assembly 1 by
using bolts . Keep the bolts
loose.
A
1
2
Step 4
A
1
1
A
2
2
Fix the seat assembly 1 to
the arm assembly 1 by
using bolts . Make sure
that all of the bolts have been
tightened completely.
A
3
2
3
3
A
A
2
2
5
Page 7
Assembly Instructions
Step 5
Turn the chair to its upright
position. Place the seat
cushion and back
cushions onto the chair.
Step 6
7
10
10
10
7
Place the arm assembly 1
onto a non-abrasive surface,
such as a carpet, with its
underside facing upwards.
Fix the arm assembly 2
to the arm assembly 1 by
using bolts . Keep the bolts
loose.
A
2
5
2
5
5
2
2
A
A
6
Page 8
Assembly Instructions
Step 7
Fix the seat assembly 2
to the arm assembly 2 by
using bolts .
A
4
5
4
4
A
5
5
Step 8
Fix the seat assembly 2
to the arm assembly 2 and
the arm assembly 1 by
using bolts . Make sure
that all of the bolts have been
tightened completely.
A
4
5
2
A
A
4
4
2
2
5
5
A
A
7
Page 9
Assembly Instructions
Step 9
Turn the chair to its upright
position. Place the right seat
cushion and back cushion
10
onto the chair.
8
10
8
Step 10
Place all the sections together
as shown, to complete your
set.
10
10
10
8
7
9
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
For further assistance please visit http://www.argos-support.co.uk/
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW
8
