Argos 6109541 ASSEMBLY INSTRUCTIONS

2 Drawers/Tall/Wide/Extra Deep Bookcase
Assembly Instructions
-
Please keep for future reference
609/5741
610/9541
Dimensions
Width - 78cm
Depth - 29cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version 2 Date: 25/04/13
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all ttings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Make sure you have enough space to layout the parts before starting.
• Do not use this item if any components are missing or damaged.
• Do not stand on the product, this could cause damage.
• Assemble the item as close to its nal position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your oor.
• Parts of the assembly will be easier with 2 people.
as this could damage the unit. Only use hand screwdrivers.
• Dispose of all packaging carefully and responsibly.
Note: Only apply the glue once you are sure of the assembly.
Glue safety - Take care when using glue, please follow the advice below
Skin contact: Remove
contamination by washing with soap and water. This procedure should also be followed prior to eating and drinking.
Eye contact: Rinse immediately with clean water for 15 minutes and seek medical advice.
If swallowed: Seek medical advice immediately.
We do not recommend the use of power drill/drivers for
inserting screws,
Care and maintenance
• Only clean using a damp cloth and mild detergent, do not use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: if required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
1
Components - Panels
Please check you have all the panels listed below
Drawer front panel x 2
7
(74.4 x 17cm)
Fixed panel x 2 (74.9 x 28.4cm)
1
Drawer back panel x 2
8
(71.7 x 10.6cm)
If you have damaged or missing components, call the Customer Helpline: 08456 400800
Middle panel
2
Shelf x 3
3
Drawer bottom panel x 2
4
(72.6 x 23.6cm)
(74.9 x 28.4cm)
(74.9 x 28.4cm)
Front panel
9
Bottom panel
10
Back support
11
(74.9 x 5.9cm)
(74.9 x 8.9cm)
(74.9 x 8.9cm)
Pilot holes for guidance only
12
Top back panel
(76.7 x 79.8cm)
Middle back panel
13
(76.7 x 56.8cm)
Left side panel
5
Right side panel
6
(180 x 28.6cm)
(180 x 28.6cm)
Finished front edge
Pilot holes for guidance only
Bottom back panel
14
(76.7 x 37cm)
Drawer right side panel x 2
15
(24 x 10.6cm)
Drawer left side panel x 2
16
(24 x 10.6cm)
2
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required.
A
Glue x 1
D
50mm Screw x 12
G
30mm Dowel x 23
J
Runner x 4
M
Handle x 4
P
Wall plug x 1
B
14mm Screw x 1
E
Support cover x 12
H
12mm Locking nut x 4
K
(This screw is included in the bag of runner)
12mm Screw x 12
N
Screw cover x 12
Q
Nail x 54
C
30mm Screw x 12
F
Shelf support x 12
I
34mm Locking pin x 4
L
12mm Screw x 4
O
Wall strap x 1
(This screw is included in the bag of wall strap)
x 1
Tools required
Phillips screwdriver (medium & large)
Bradawl (or sharp point)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
Small hammer
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape measure
Eye protection (when using a hammer or glue)
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Assembly Instructions

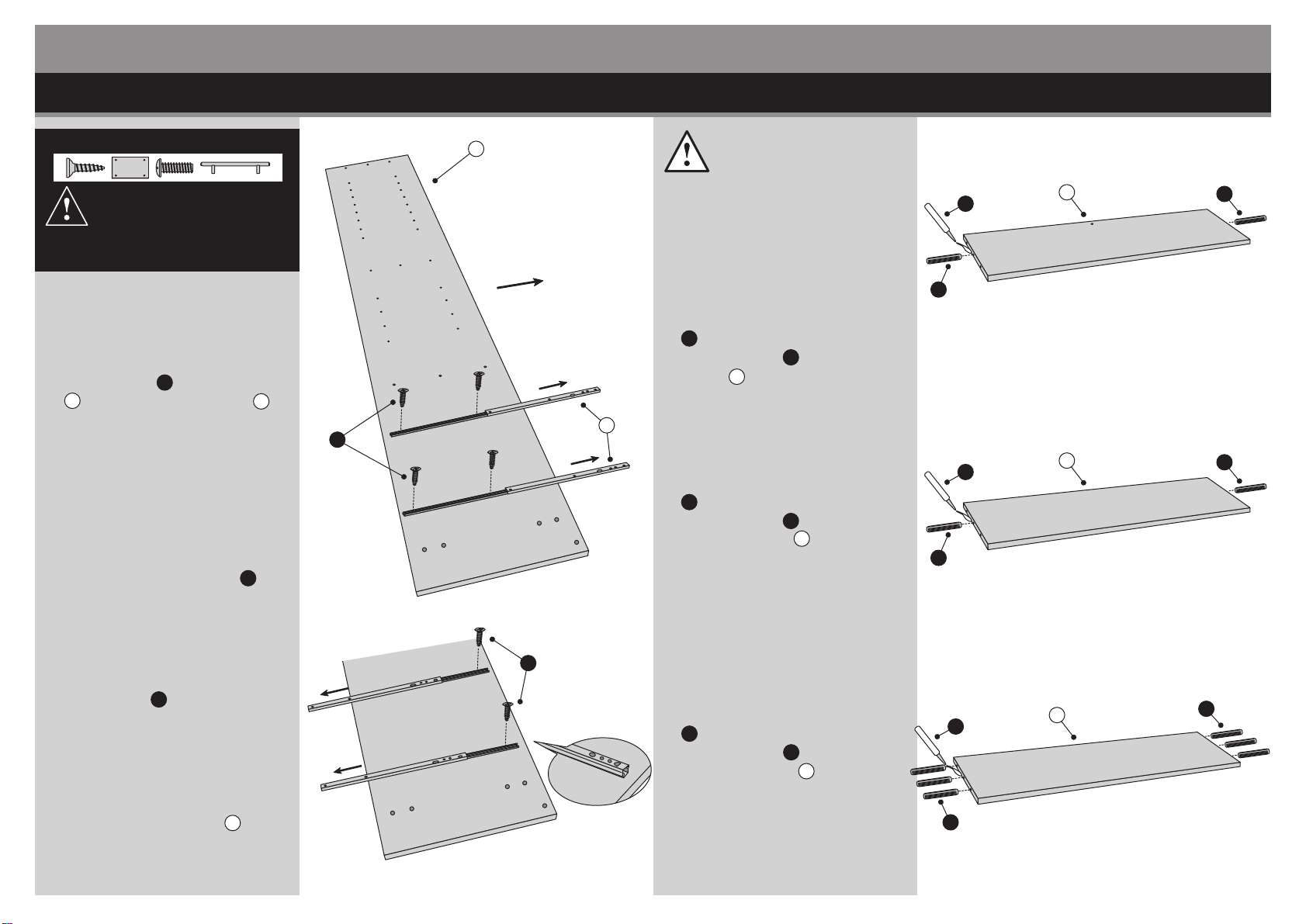

Step 1
Attaching runners
a:
6
J
Middle hole
K
a:
Position the Runners
J
in from front edge of the Right side panel .
Slide top of the Runners
6
J
back.
K
Runners on the Right side panel .
No
The front part of the
J
6
te:
Runner should be approximately 1.7 cm from the front edge of the panel.
b:
Slide top of the Runners
J
forward.
K
Runners on the Right side panel .
J
6
b:
K
6
back edge
Middle hole
1.7cm
K
K
J
J
K
J
6
6
back edge
J
K
K
K
K
J
44
Assembly Instructions
Step 1- continued
Attaching runners
c:
Position the Runners in from front edge of the Left side panel .
5
Slide top of the Runners back.
K
Runners on the Left side panel .
J
5
J
J
c:
5
Finished front edge
K
5
J
Middle hole
J
K
K
K
K
K
d:
Slide top of the Runners
J
forward.
K
Runners on the Left side panel .
J
5
d:
J
K
Middle hole
J
5
K
J
5
J
K
Finished front edge
5
Assembly Instructions
Step 2

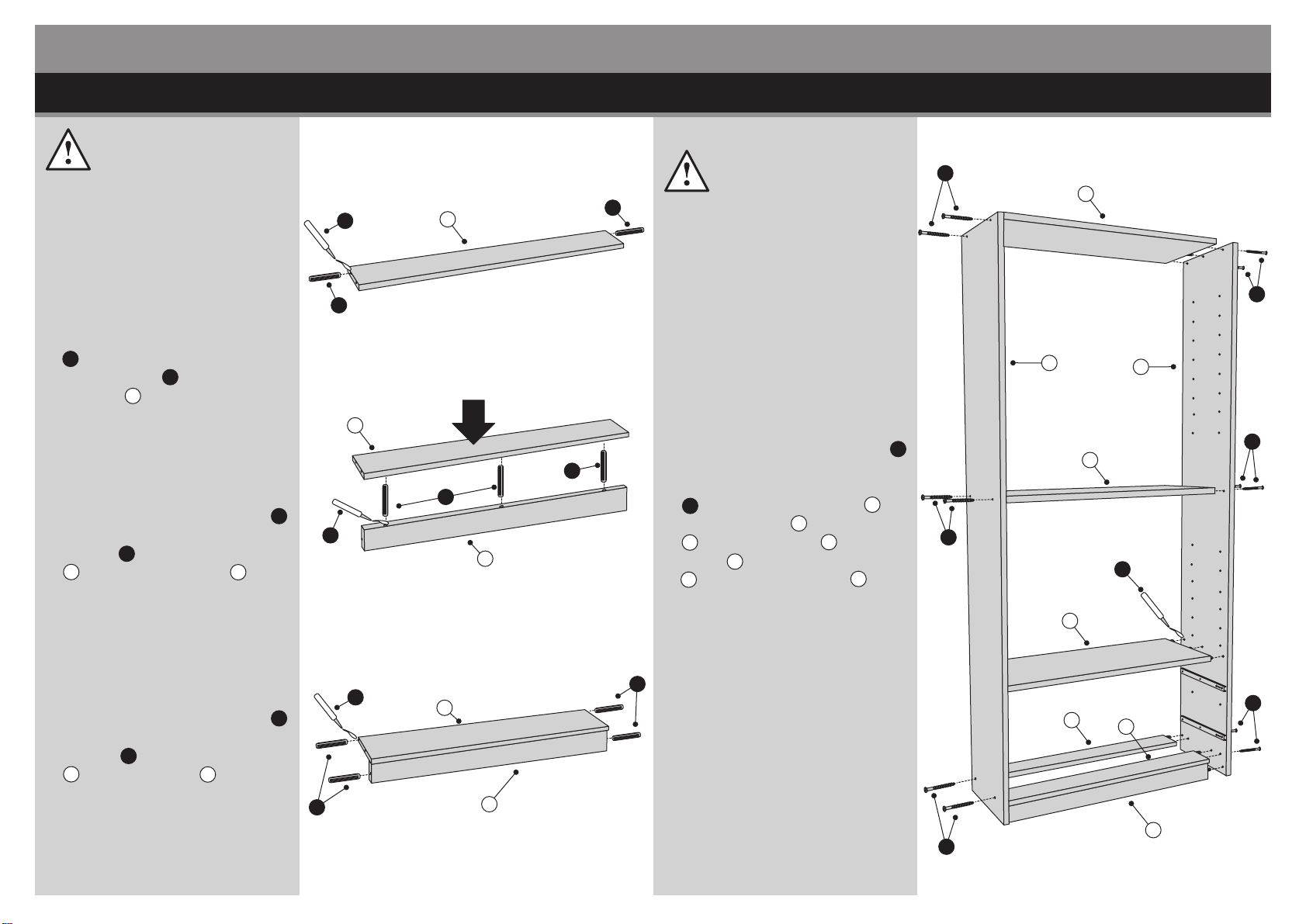

Attaching bottom panel
a:
Place a small amount of Glue into the dowel holes. Insert Dowels into the Front panel and Bottom panel .
b:
Place a small amount of Glue onto the joint’s surfaces and ends of
A
G
9
10
A
G
a:
G
G
G
b:
G
G
G
9
9
A
10
G
back edge
G
A
Position Front panel onto the Bottom panel .
10
9
Step 3
Attaching side panels
a:
Place a small amount of Glue into the dowel holes. Insert Dowels into the Back support .
b:
Place a small amount of Glue into the dowel holes. Insert Dowels into the Fixed panels .
A
G
11
A
G
1
a:
b:
10
G
11
G
G
1
G
A
G
A
x 2
G
c:
Place a small amount of Glue into the dowel holes. Insert Dowels into the Middle panel .
A
G
2
c:
G
G
G
2
G
G
G
G
A
6
Assembly Instructions
Step 3 - continued
Caution: Always check the assembly method is correct before applying glue.
d:
Place a small amount
of Glue onto the joint’s
Dowels .
Left side panel and Right side panel onto the Fixed panels and Middle panel , Bottom panel , Back support .
11
A
G
D
5
6
1
2
10
d:
Finished front edge
1
D
D
D
D
A
Finished
D
1
5
front edge
D
D
D
6
2
11
10
A
D
D
Step 4
Fixing back panels
Attach Top back panel
12
,Middle back panel
13
and Bottom back panel onto the unit using Nails .
14
Q
Important:
The unit MUST be ‘square’ when back is attached.
12
Q
back surface
13
6
14
7
Assembly Instructions
Step 5

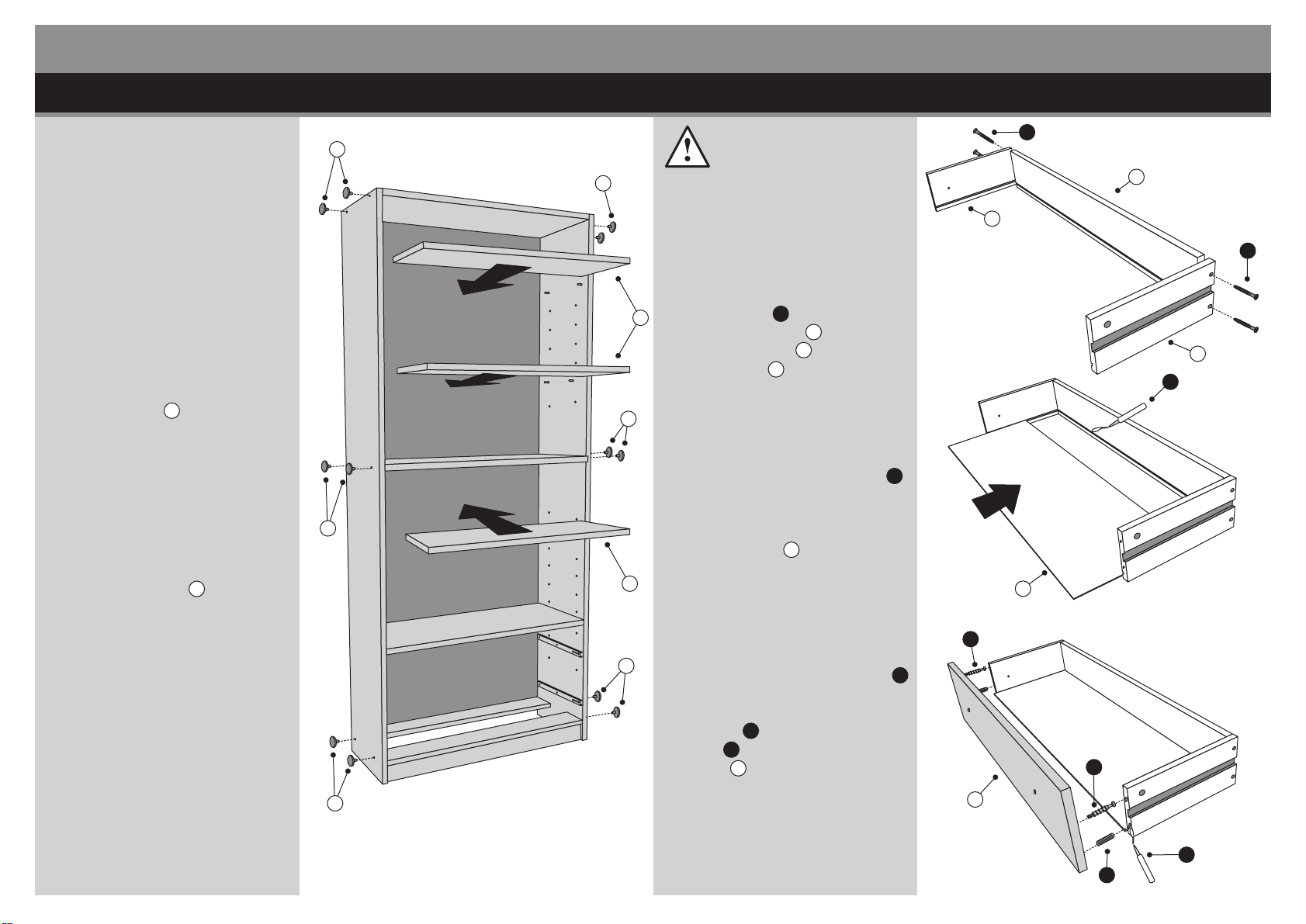

Dawer assembly
a:
Fix Drawer right and left side panels & to Drawer back panel using Screws .
b:
Place a small amount of
A
Glue into the groove on the Drawer side panels and Drawer back panel. Carefully slide the Drawer
bottom panel into the unit.
Screw Locking pins
c:
into the 2 holes shown on the back of the Drawer front panel .
Note:
Insert Locking pins as far as shown.
Do not over tighten.
Place a small drop of Glue into the 2 holes shown
A
and insert Dowels .
15 16
8
C
4
I
7
G
a:
b:
Finished front surface
c:
C
C
16
G
I
8
C
15
4
G
7
I
C
A
I
G
A
d:
Place a small drop of
A
Glue onto the ends of the Dowels and into the
G
groove.
Position the Drawer front panel onto the drawer
7
sides.
together without any gaps.
e:
Insert 2 Locking nuts
H
into the holes in the drawer sides(they will only insert one way).
Turn the Locking nuts
H
clockwise to lock the panels together.
Fix the Handles onto the Drawer front panel using Screws .
M
7
C
Repeat with remaining drawer.
d:
e:
G
7
H
H
M
M
C
7
C
H
A
A
8
Assembly Instructions

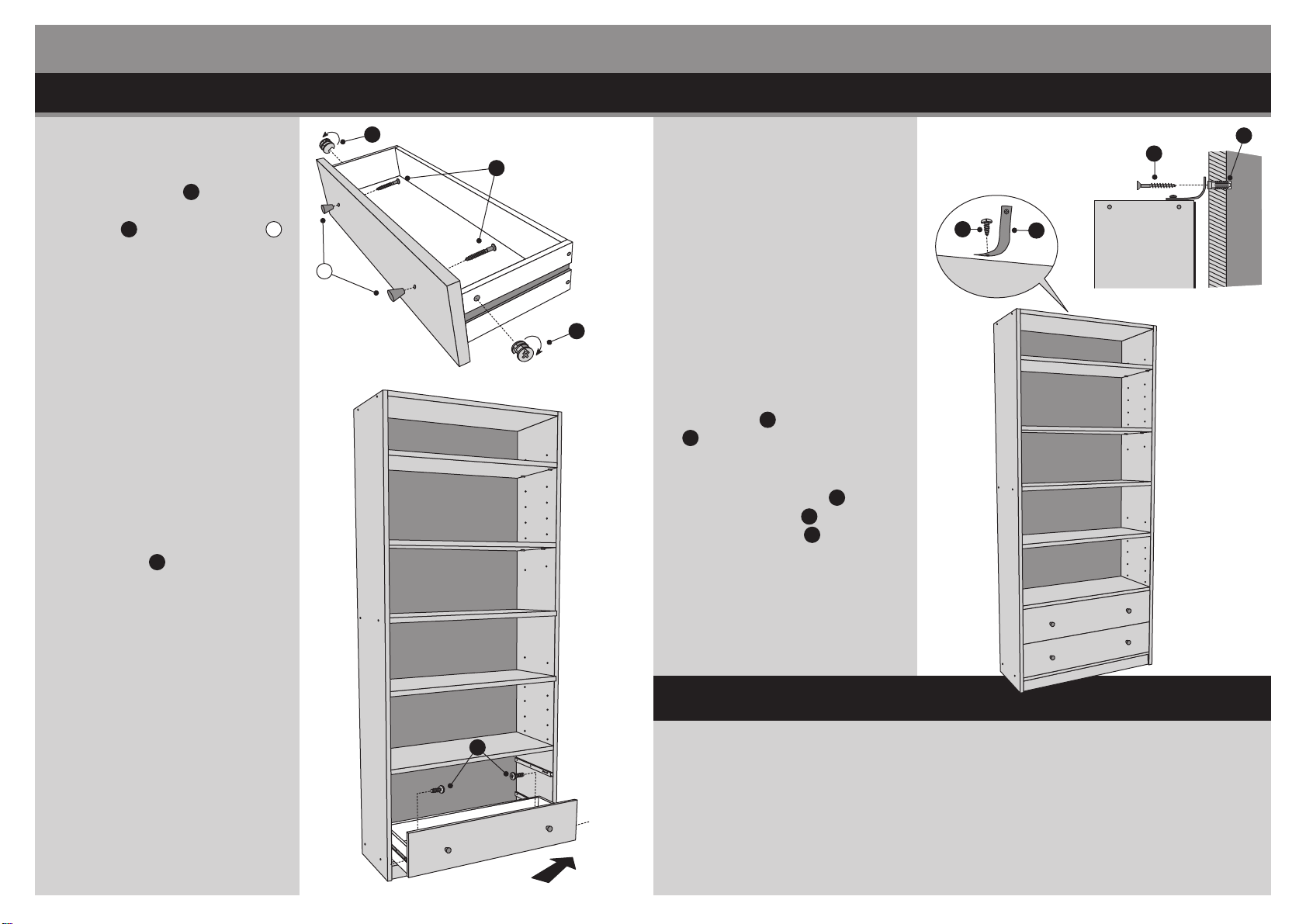

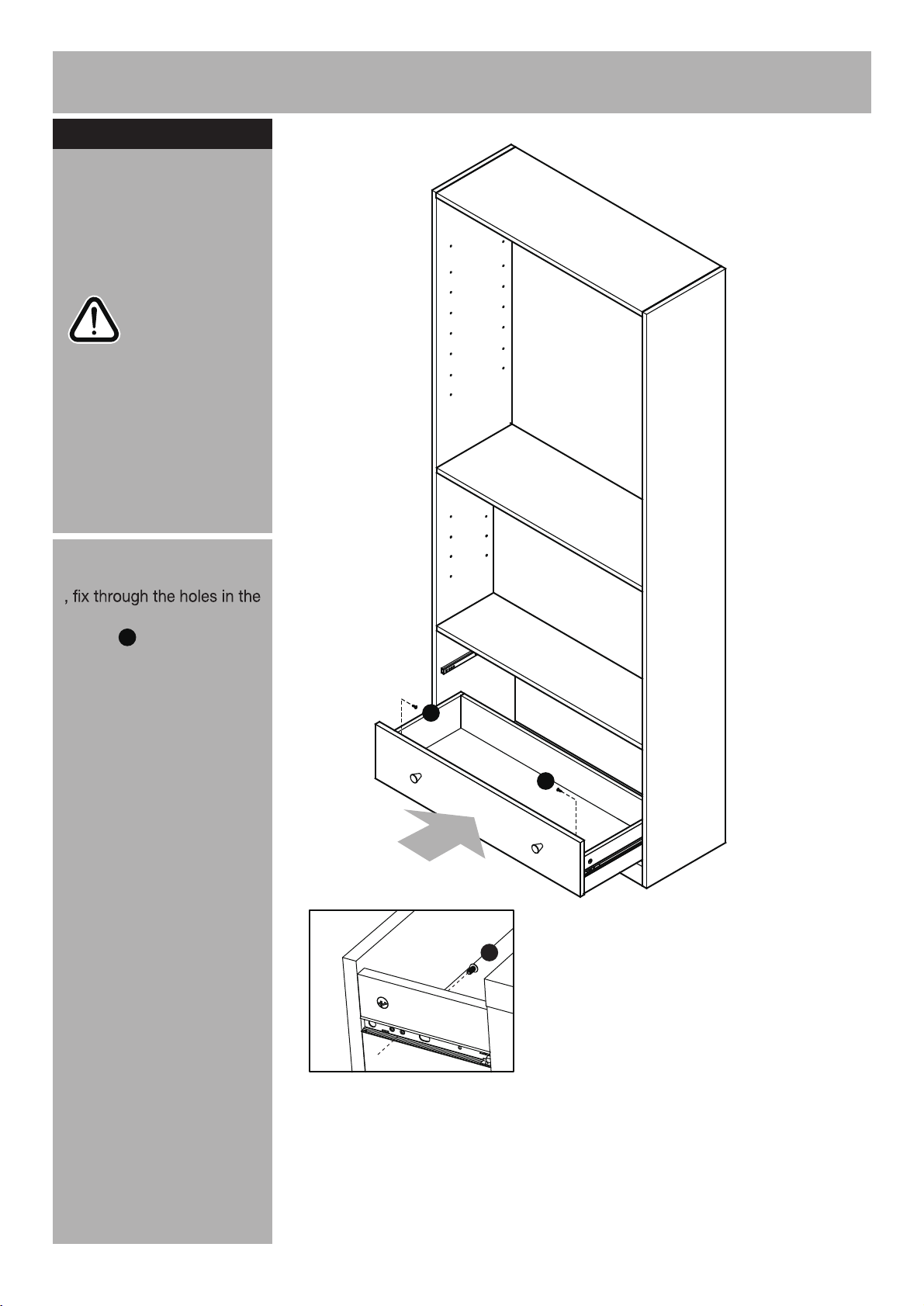

Step 6
a:
Inserting drawers
With help, carefully stand bookcase upright.
Warning:
The bookcase is heavy.
Lift with care.
a:
Slide the assembled drawers fully onto the runners so the runners butt up against the back of the drawer front.
b:
From inside each drawer
sides into the runners using Screws .
L
L
L
b:
L
9
Assembly Instructions

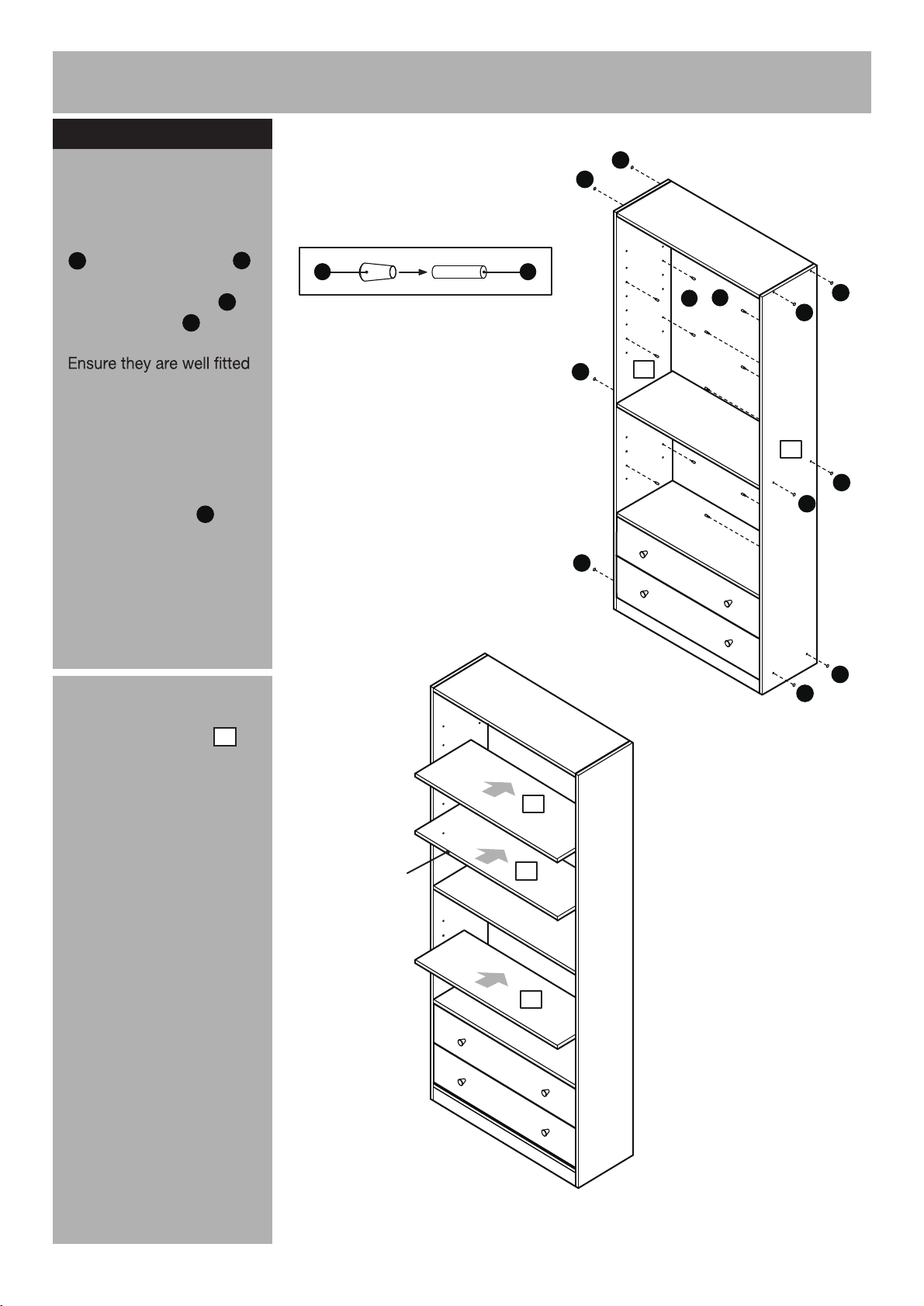

Step 7
Attaching shelf panels
a:
SIide Support covers
E
onto Shelf supports .
lnsert Shelf supports (Support covers are
E
F
F
included) into the unit.
before inserting the Shelves.
Note:
Set the shelf supports to the desired height.
Use Screw covers to cover the screw heads.
N
a:
E
N
N
F
+
E
F
N
N
5
6
N
N
N
N
b:
Slide the Shelves into the unit.
3
b:
Finished front edge
N
N
3
3
3
10
Assembly Instructions
Step
8

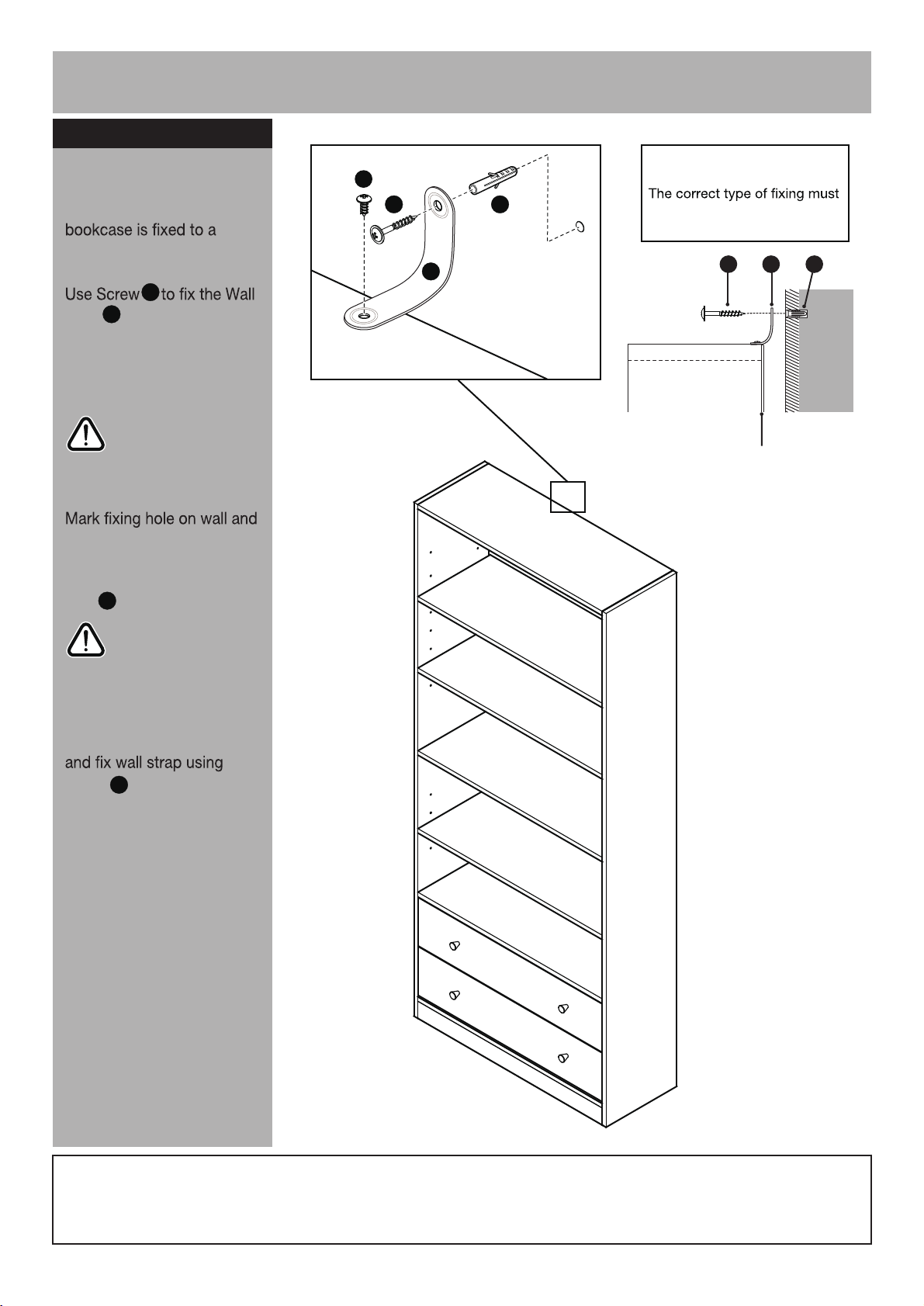

Fixing to wall

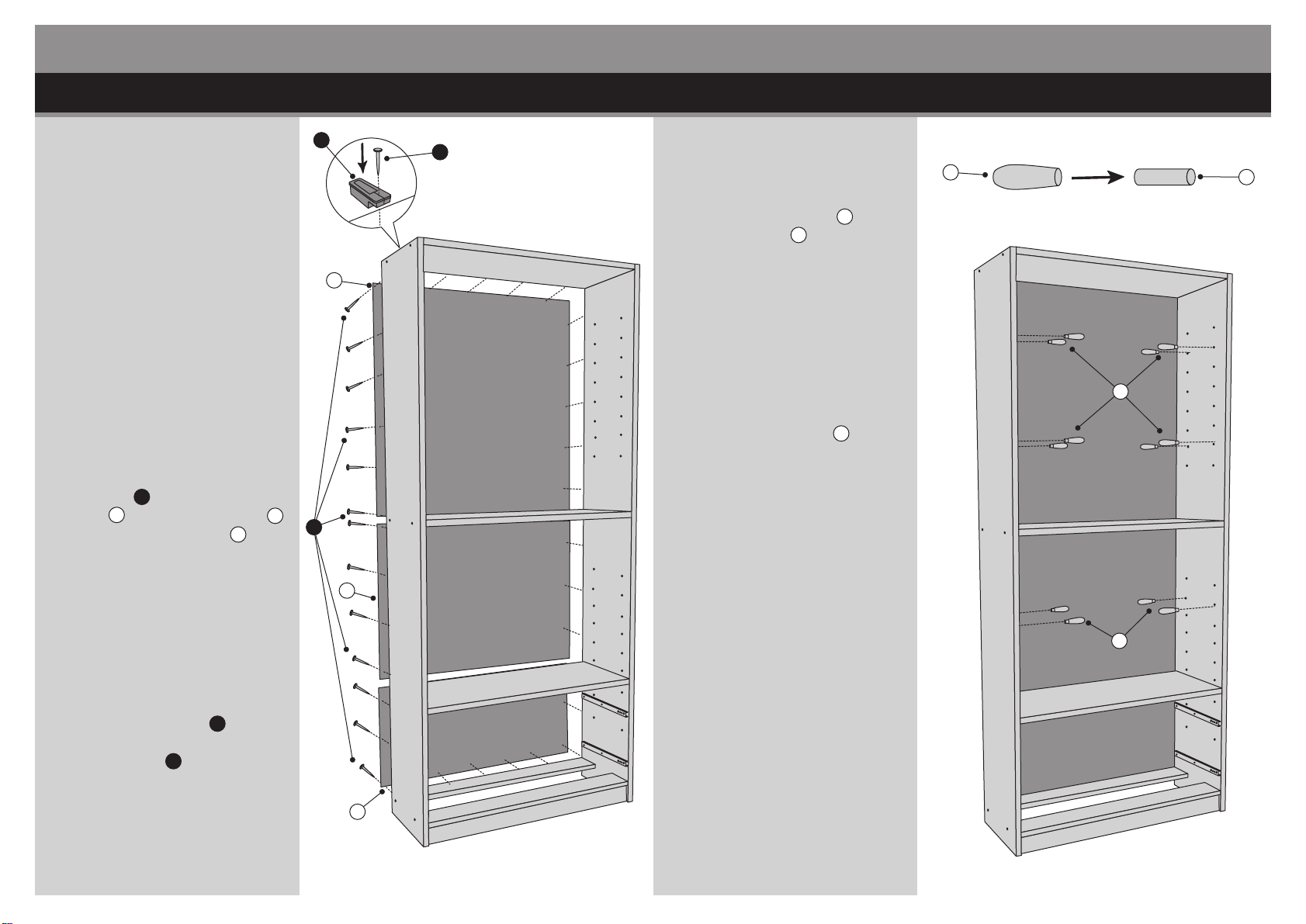

It is recommended that the
wall.
B
O
strap onto the top panel.
With help, move bookcase into position.
Warning:
The bookcase is heavy.
Lift with care.
remove bookcase .
Drill a hole and insert Wall
P
plug .
B
O
Top panel
Note:
Wall plugs supplied are
for solid wall only.
P
O
wall
be used for your wall, seek professional advice if in doubt
O O P
back panel
Warning:
Before drilling, check wall for hidden pipes and and cables.
Reposition bookcase
Screw .
Before use allow the
Note:
glue to dry for 24 hours and make sure the unit is secure.
O
Assembly is complete.
If you need help or have damaged or missing parts, call the
11
Customer Helpline: 08456 400800

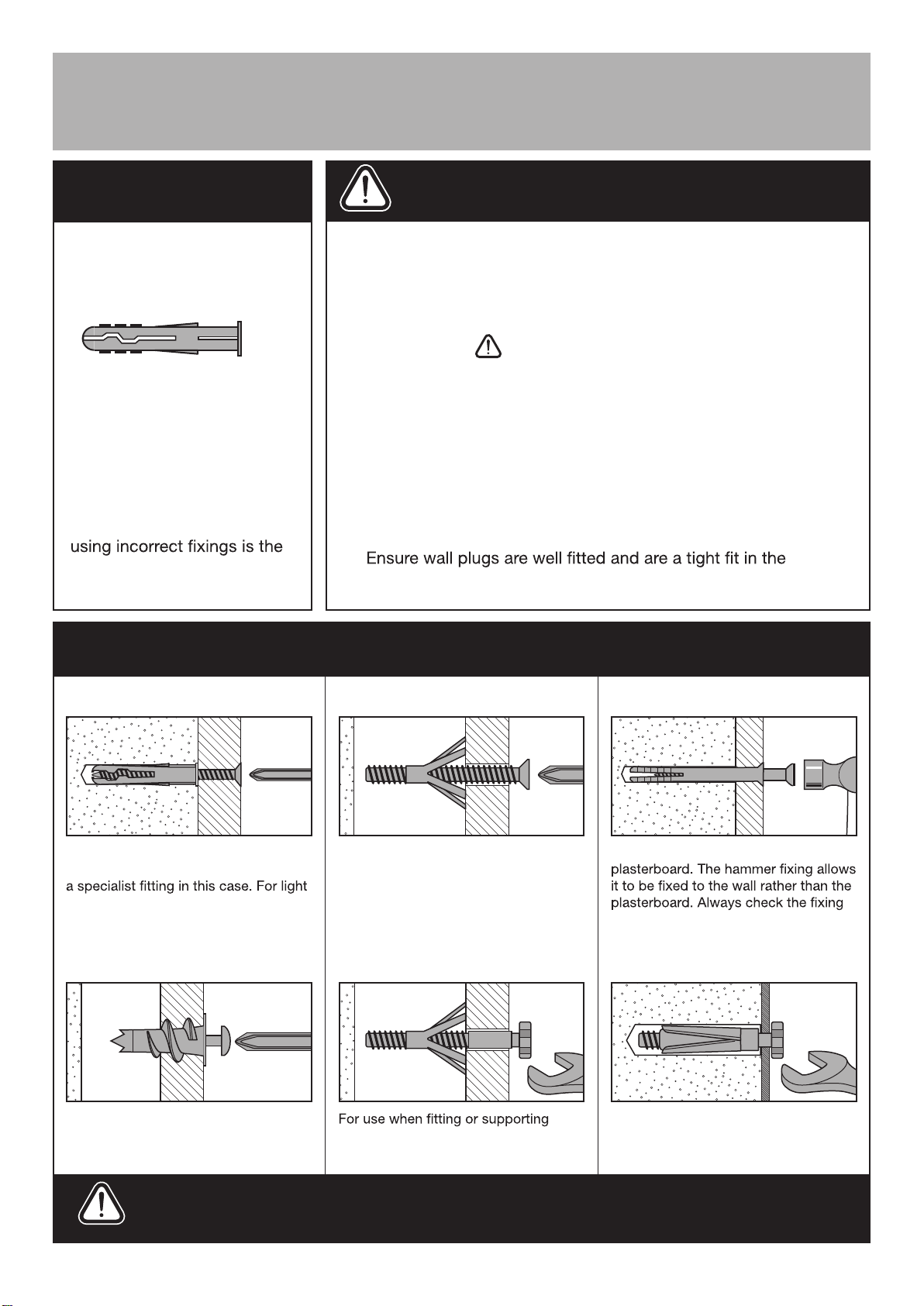

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs are supplied with your product:
- these are only suitable for use in masonry walls.
If you are in any doubt about the correct wall plugs for your wall, seek professional advice.
Failure of the product due to
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not be used to support heavy loads, use
loads, general purpose wall plugs can be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on to plasterboard partitions.
Care & Maintenance
heavy loads such as shelving, wall cabinets and coat racks.
Safety: Always check the fitting and location to ensure your safety in and around the home.
For use with heavier loads such as TV & HiFi speakers and satelite dishes etc.
Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.
Revision 2 - 7/10/09
2 Drawers/Tall/Wide/Extra Deep Bookcase
Simple Assembly Instructions - Please keep for future reference
IMPORTANT
1. Read these instructions carefully and familiarise yourself with the procedure before assembling the unit.
2. Check that you have all the component
5-06
parts following the list on the back cover and familiarise yourself with each part before proceeding.
3. Take all the fittings out of the plastic bag and separate them into their groups.
4. Ensure you have enough space to lay out all the parts before assembly.
5. To avoid scratching it is recommended that you assemble the unit on a soft level surface.
Components
Components
A
1 x Top Panel
1 x Bottom Panel
C
1 x Back Support
D
1 x Front Panel
E
1 x Right Side Panel
H
3 x Shelf
B
1 x Middle Support
F
1 x Bottom Support
G
Side View
1 x Top Back Panel
P
1 x Middle Back Panel
Q
1 x Bottom Back Panel
R
2 x
U
2 x Drawer Front Panel
S
2 x Drawer Back Panel
T
Drawer Left Side Panel
2 x Drawer Bottom Panel
V
2 x
X
Drawer Right Side Panel
1 x Left Side Panel
J
12 x Support Cover
K
4 x Track
N
12 x Shelf Support
L
12 x Plastic Plug
M
4 x Handle
O
Fittings
A
12 x Screw
F
13 x Screw
K
4 x Locking Nuts
54 x Nail
B
G
4 x Locking Pin
1 x Nail Guide
L
C
23 x Dowel
H
4 x Screw
1 x Wall Plug
M
D
12 x Screw
1 x Screw
E
1 x Glue
J
1 x Wall Strap
N
Assembly Instructions
Assembly Instructions
Stage 2 – Fitting the Top PanelStage 1 – Fitting the Tracks
Check Before Assembly
There are many different
kinds of Screws and Panels. Ensure you check all before assembly.
NOTE: It would be useful to ask someone to help you at this stage.
1. Use Screws D to fix the Tracks N on the Right Side Panel H.
See fig. 1 and 2.
NOTE: The front part of the Track
should be approximately 1.5cm from the edge of the panel.
NOTE: Ensure the Screws D are
located using the centre of the three locating holes.
H
CAUTION: Always check
the assembly method is correct
fig. 1
Front
N
D
before applying Glue.
NOTE: It would be useful to ask
someone to help you at this stage.
1. Place a small amount of Glue
J into the dowel holes. Then
insert Dowels C into the Top Panel A.
See fig. 3.
2. Place a small amount of Glue
J into the dowel holes. Then
insert Dowels C into the Middle Support F.
See fig. 4.
J
C
J
C
A
F
C
fig. 3
C
fig. 4
2. Slide the Tracks to other side. Then use Screws D to fix the front end of the Tracks.
See fig. 2.
3. Use the same method as in fig. 1 and 2 to fix the Tracks on the Left Side Panel J.
D
fig. 2
3. Place a small amount of Glue
J into the dowel holes. Then
insert Dowels C into the Bottom Support G.
See fig. 5.
J
C
G
C
fig. 5
Assembly Instructions
Assembly Instructions
Stage 4 – Fitting the Side PanelsStage 3 – Fitting the Bottom Panel
CAUTION: Always check the assembly method is correct before applying Glue.
NOTE: It would be useful to ask
someone to help you at this stage.
1. Place a small amount of Glue
J into the dowel holes. Then
insert Dowels C into the Back Support D.
See fig. 6.
2. Place a small amount of Glue J into the dowel holes. Then use Dowels C to fix the Bottom Panel C onto the Front Panel E.
See fig. 7.
CAUTION: Always check
J
C
C
J
D
C
fig. 7
E
C
fig. 6
C
the assembly method is correct before applying Glue.
NOTE: It would be useful to ask
someone to help you at this stage.
1. Place a small amount of Glue J into the dowel holes and onto the joints' surfaces. Then use Screws
A to fix the Bottom Panel C,
Middle Support F, Back Support D, Bottom Support G and Top Panel A onto the Left Side Panel J and Right Side Panel H.
See fig. 9.
A
A
A
J
F
A
G
H
A
J
3. Place a small amount of Glue J into the dowel holes. Then insert Dowels C into the Bottom Panel C and Front Panel E.
See fig. 8.
J
C
C
fig. 8
E
C
A
D
A
fig. 9
C
E
Assembly Instructions
Assembly Instructions
Stage 6 – Fitting the Shelf SupportsStage 5 – Fitting the Back Panels
NOTE: It would be useful to ask
someone to help you at this stage.
1. Use Nails B to fix the Top Back Panel P, Middle Back Panel Q and Bottom Back Panel R onto the unit.
See fig. 10.
L
P
B
Q
B
1. Slide Support Covers K onto Shelf Supports L.
See fig. 11.
2. Insert Shelf Supports L into the unit. Ensure they are well fitted before inserting the Shelves.
See fig. 12.
NOTE: Set the shelf supports to
the desired height.
K
fig. 11
L
L
L
NOTE: Use Nail Guide L to keep
a constant distance from the edge to Nails B.
R
fig. 6
fig. 10
fig. 12
Assembly Instructions
M
NOTE: It would be useful to ask
someone to help you at this stage.
1. Slide Shelves B into the unit.
See fig. 13.
M
2. Use Plastic Plugs M to cover the Screw Heads.
See fig. 13.
M
Assembly Instructions
Stage 8 – Fitting the DrawersStage 7 – Fitting the Shelves
CAUTION: Always check the assembly method is correct before applying Glue.
NOTE: It would be useful to ask someone to help you during
assembly.
1. Use Screws F to fix the Drawer
B
M
B
Right Side Panel X and Drawer Left Side Panel U onto Drawer Back Panel T.
See fig. 14.
2. Place a small amount of Glue J into the groove on the Drawer Sides and Drawer Back Panel. Carefully slide the Drawer Bottom Panel V into the unit.
See fig. 15.
F
T
U
fig. 14
X
T
J
V
G
fig. 15
F
M
fig. 13
M
3. Place a small amount of Glue J into the dowel holes and onto the joints' surfaces and groove. Insert Dowels C and screw in Locking Pins G into the Drawer Front Panel S. Then attach the Front Panel to the Drawer.
See fig. 16.
G
S
fig. 16
J
C
Assembly Instructions
Assembly Instructions
Stage 9 – Finishing the UnitStage 8 – Fitting the Drawers
4. Use Locking Nuts K to fix the Front Panel onto the drawer. Then use Screws F to fix the Handles O onto the Front Panel.
See fig. 17.
5. Follow the same method as in fig. 14-17 to complete the other Drawer.
6. Use Screws H to fix the Drawers onto the tracks.
See fig. 18.
K
F
O
fig. 17
K
IMPORTANT: When drilling into
walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs supplied are suitable for supporting the unit. Consult a qualified tradesperson if you are not sure.
NOTE: It would be useful to ask someone to help you at this stage.
1. Carefully place the unit in the desired location.
See fig. 21.
2. Use Screw E to fix the Wall Strap
N onto the top of the unit.
See fig. 20.
3. Drill a hole at the desired height and insert Wall Plug M into the hole. Pass Screw F through loose end of Wall Strap N to fix the unit to the wall.
See fig. 19.
NOTE: Before use always make
sure the unit is secure. Please wait 8 hours until Glue is completely dry
fig. 20
F
fig. 19
E
N
fig. 21
M
fig. 18
H
Care and Maintenance
Safety
To avoid any risk of suffocation to animals or children dispose of the plastic bags immediately.
Cleaning
As with all surfaces clean with a damp cloth and mild detergent, do not use bleach or abrasive products.
Fitting
From time to time please ensure there are no loose screws on the product.
A Guide to
A Guide to
Wall Mounting & FixingsWall Mounting & Fixings
IMPORTANT:
When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure.
HINTS:
1) General Rule Always use a larger screw and wall plug if you are not sure.
2) Ensure you use the recommended drill bit to match the wall plug and hole size.
3) Ensure you drill the hole horizontally, do not force the drill or enlarge the hole.
4) Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure the plug is fitting below the ceramic tile to avoid splitting or cracking.
5) Ensure wall plugs are well fitted and are a tight fit in the drilled hole.
Types Of Walls
You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone, wood or plaster board.
No.2 "General Purpose" Wall Plug Aerated / Breeze Block
No.3 "Shield Anchor" Wall Plug Heavy Loads
For use with heavier loads such as TV & HiFi Speakers and Satellite Dishes etc.
No.4 "Cavity Fixing" Wall Plug
For use with plaster board partitions or hollow wooden doors.
No.5 "Cavity Fixing - Heavy Duty" Wall Plug
For use when fitting or supporting heavy loads such as shelving, wall cabinets, coat racks.
No.6 "Hammer Fixing" Wall Plug
For use with walls stuck with plaster board. The hammer fixing allows it to be fixed to the wall rather than the plaster board. Always check the fixing is secure to the retaining wall.
No.1 "Standard" Wall Plug General Wall Materials
These come in various sizes and are made from plastic or sometimes wood fiber.
Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, a General Purpose Plug can be used.
CARE & MAINTENANCE
SAFETY
Always check the fitting and location to ensure your safety in and around the home.
FITTING
From time to time check the fitting to ensure the wall plugs or screws do not become loose.
Loading...
