Page 1

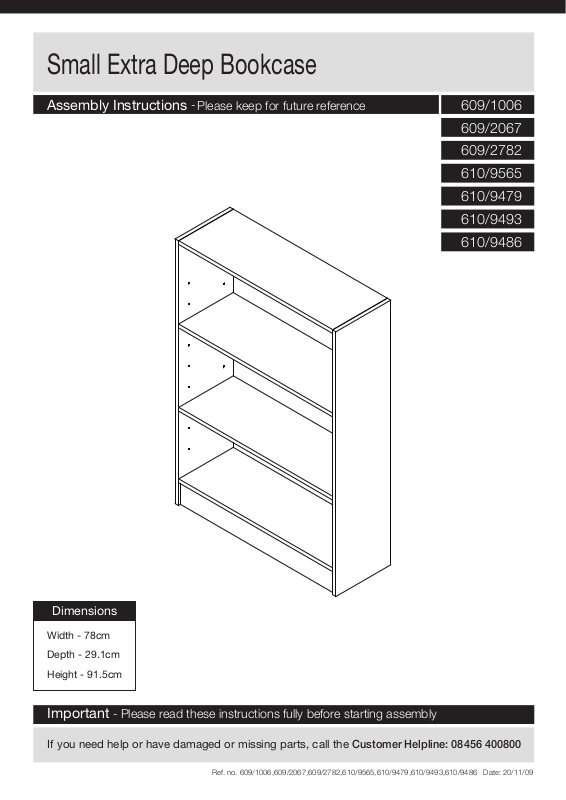

Small Extra Deep Bookcase
Assembly Instructions
-
Please keep for future reference
609/1006
609/2067
609/2782
610/9565
610/9479
610/9493
610/9486
Dimensions
Width - 78cm
Depth - 29.1cm
Height - 91.5cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Ref. no. 609/1006,609/2067,609/2782,610/9565,610/9479,610/9493,610/9486 Date: 20/11/09
Customer Helpline: 08456 400800
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Do not stand on the product,
components and tools listed on
pages 2 and 3.
plastic bags and separate them
into their groups.
away from the work area, small
parts could choke if swallowed.
space to layout the parts before
starting.
Glue safety - Take care when using glue, please follow the advice below
this could cause damage.
room) as possible.
surface to avoid damaging the
easier with 2 people.
as this could damage the unit.
Only use hand screwdrivers.
carefully and responsibly.
Note:
Only apply the glue
once you are sure of the
assembly.
recommend the
use of power
drill/drivers for
inserting screws,
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Care and maintenance
and mild detergent, do no use
bleach or abrasive cleaners.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
there are no loose screws on
this unit.
If swallowed: Seek medical
advice immediately.
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
Components - Panels
Please check you have all the panels listed below
Top Panel (749 x 285mm)
1
Right Side Panel
5
(915 x 286mm)
Bottom Panel
2
Front Panel
3
Shelf x 2
4
(749 x 285mm)
(749 x 59mm)
(749 x 284mm)
Left Side Panel
6
Back Panel
7
(915 x 286mm)
(850 x 767mm)
2
Page 4
Components - Fittings
call the Customer Helpline: 08456 400800
Please check you have all the ttings listed below
Note: The quantities below are the correct amount to complete the assembly. in some cases more ttings
may be supplied than are required.
If you have damaged or missing components,
A
Plastic Support x 4
D
Q
50mm Screw x 8
G
Support Cover x 8
J
Nail x 20
M
Wall Plug x 1
B
14mm Screw x 9
E
Wooden Dowel x 4
H
Covering Sticker x 8
K
Nail Guide x 1
C
30mm Screw x 1
F
Shelf Support x 8
I
Glue x 1
L
Wall Strap x 1
Tools required
Phillips screwdriver
(medium & large)
Bradawl
(or sharp point)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
Small
hammer
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions
Step 1
Attaching bottom panel
a:
Use Plastic Supports
A
and Screws to x the
Front Panel onto the
Bottom Panel .
B
3
2
Step 2
Attaching side panels
a:
Place a small amount
of Glue into the dowel
holes and onto the join’t
sufaces.Use Screws and
Wooden Dowels to x
the Left Side Panel and
Right Side Panel onto
the Bottom Panel and
Top Panel .
I
D
E
6
5
2
1
a:
a:
D
D
B
B
B
3
A
A
A
A
B
B
Finished
front edge
E
6
B
B
E
1
E
B
2
Unnished
back edge
D
D
5
E
2
D
D
E
I
Step 3
Fixing back panel
a:
Use Nails to x the
Back Panel onto the
unit.
Note: Use Nail Guide to
keep a constant distance
from the edge.
J
7
K
Important:
The cabinet MUST
be ‘square’ when
the back is attached.
a:
D
D
J
K
7
4
Page 6
Assembly Instructions
Step 4
Attaching shelf panel
a:
SIide Support Covers
G
onto Shelf Supports .
lnsert Shelf Supports
(Support Covers are
included) into the unit.
Ensure they are well tted
before inserting the Shelves.
G
F
F
a:
H
G
H
F
Note:
Set the shelf
supports to the desired
height.
Use Covering Sticker to
cover the Screw Heads.
b:
Slide the Shelves
into the unit.
H
4
b:
+
G
F
H
H
H
H
H
H
4
4
5
Page 7
Assembly Instructions
Step 5
Fixing to wall
It is recommended that the
bookcase is xed to a
wall.
B
L
Strap onto the back of
the top panel.
With help, move bookcase
into position.
Warning:
The bookcase is
heavy.
Lift with care.
remove bookcase .
Drill a hole and insert Wall
M
Plug .
Warning:
Before drilling,
check wall for
hidden pipes and
and cables.
C
Top Panel
M
L
wall
Note:
B
be used for your wall, seek
professional advice if in doubt.
Reposioion bookcase
Screw .
C
Note: Before use allow
the Glue to dry for 24
hours and make sure
the unit is secure.
The assembly is now
complete.
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
6
Page 8
A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
