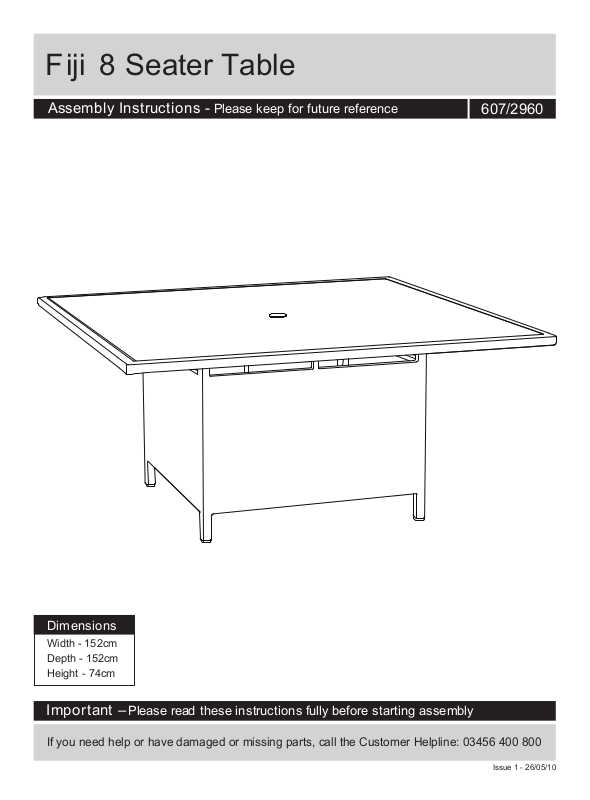

Fiji 8 Seater Table
Assembly Instructions -
Please keep for future reference
607/2960
Dimensions
Width - 152cm
Depth - 152cm
Height - 74cm
Important –
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Please read these instructions fully before starting assembly
Issue 1 - 26/05/10
Page 2
This product is
manufactured from
toughened safety glass.
In the unlikely event that
the glass fails it will break
in to a large number of
small fragments that may
be spread over a wide
area. This is a feature of
toughened glass,
designed to remove the
risk of injure from glass
breaking into large shards.
If the glass is chipped
or broken, stop using the
product and consult the
manufacture
Check you have all the
or supplier.
components and tools
listed on page 2.
Remove all fittings from
the plastic bags and
separate them into their
groups.
Keep children and
animals away from the
work area, small parts
could choke if swallowed.
Make sure you have
enough space to layout
the parts before starting.
Do not stand or put
weight on the parts during
assembly, this could
cause
damage.
Assemble on a soft
level surface to avoid
damaging the unit or your
floor.
Dispose of all packing
carefully and responsibly
Do not sit or stand upon
horizontal glass surface.
Do not place very hot or
very cold items on the
glass
thick tablemats are used to
prevent such items from
coming into contact with
the glass.
Warning:
weights approximately
unless adequately
The unit
.
62kgs.
Please lift with care.
Wash frame parts with
soap and water, rinse
mild
thoroughly, and dry frame
completely. Do not use
b leach, acid, or other
solvents on the frame
parts.
Wash glass with mild
soap and water, rinse
thoroughly, and dry glass
completely.
When moving the table,
remove the umbrella. Do
not drag.
We recommend the use
of furniture covers when
not in use.
Do not use the glass as
chopping surface. Do not
strike the glass with hard
or point
ed items.
In order to prolong the
life and beauty of your
table, we recomm end it be
stored in a dry and
protected area during off
season periods.
Do not use washing
powders or any abrasive
substances which may
scratch the surface.
Page 3
Components - Parts
Please check you have all the parts listed below
1
Table top x 1
3
Panel x 2
Components - Fittings
Note:
The quantities
below are the correct amount to complete the assembly.
2
Panel with legs x 2
4
Glass x 1
A
20mm screw x 1
Plastic cap x 18
B
40mm screw x 8
E FD
Allen key x 1
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
C
Metal washer x 18
(Have already fixed on the table rim)
Plastic support x 16
2
Page 4
Assembly Instructions
Step 1
Suggest to complete this
product assembly by two person.
Use 40mm screw
and
metal washer
to fix
panel
to
panel with leg
Important:
Do not fully
tighten all screws
until assembly is
complete.
B
C
3
2
2
3
2
3
C
B
3
Step 2
Use 40mm screw
and
metal washer
to fix leg
like Step 1
with panel
2
Important:
Do not fully
tighten all screws
until assembly is
complete.
B
C
2
3
C
B
3
3
2
2
3
3
Page 5
Assembly Instructions
Step 3
Use 20mm screw
and metal washer
to fix panel 3 and panel
with leg
2
Tighten all the screws
and seal them with
plastic cap
A
C
to table top 1
D
2
D
A
C
3
2
1
1
2
D
A
C
Step 4
Turn the table top 1 to
its upright position and put
on the glass 4 .
Important:
Make sure the
plastic support
not detached from
table rim.
F
1
4
F
4
Page 6
Assembly Instructions
Step 5
Please remove the cap
if you want to insert
parasol.
Warning:
The parasol must be
placed into the parasol's
base if the table set need
to match a parasol.
cap
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Argos Limited
489-499 Avebury Boulevard Saxon Gate West Central Milton Keynes Bucks,MK9 2NW
5
