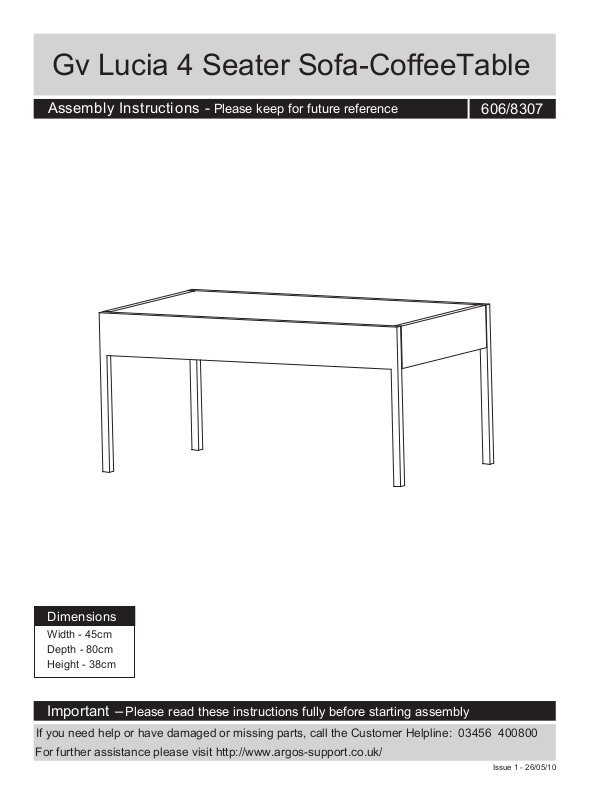

Gv Lucia 4 Seater Sofa-CoffeeTable
Assembly Instructions -
Please keep for future reference
606/8307
Dimensions
Width - 45cm
Depth - 80cm
Height - 38cm
Important –
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
For further assistance please visit http://www.argos-support.co.uk/
Please read these instructions fully before starting assembly
Issue 1 - 26/05/10
Page 2
This product is
manufactured from
toughened safety glass.
In the unlikely event that
the glass fails it will break
in to a large number of
small fragments that may
be spread over a wide
area. This is a feature of
toughened glass,
designed to remove the
risk of injure from glass
breaking into large shards.
If the glass is chipped
or broken, stop using the
product and consult the
manufacture
Check you have all the
or supplier.
components and tools
listed on page 2.
Remove all fittings from
the plastic bags and
separate them into their
groups.
Keep children and
animals away from the
work area, small parts
could choke if swallowed.
Make sure you have
enough space to layout
the parts before starting.
Do not stand or put
weight on the parts during
assembly, this could
cause
damage.
Assemble on a soft
level surface to avoid
damaging the unit or your
floor.
Dispose of all packing
carefully and responsibly
Do not sit or stand upon
horizontal glass surface.
Do not place very hot or
very cold items on the
glass
thick tablemats are used to
prevent such items from
coming into contact with
the glass.
Warning:
weights approximately
7.4
Please lift with care.
unless adequately
The unit
kgs.
.
Wash glass with mild
soap and water, rinse
thoroughly, and dry glass
completely.
We recommend the us
of furniture covers when
not in use.
Do not use the glass as
chopping surface. Do not
strike the glass with hard
or pointed items.
e
In order to prolong the
life and beauty of your
table, we recommend it be
stored in a dry and
protected area during off
season periods.
Do not use washing
powders or any abrasive
substances which may
scratch the surface.
Page 3
Components - Parts
Please check you have all the parts listed below
1
Side panel x 2 L eg x 2
3
Glass x 1
Components - Fittings
Please check you have all the fittings listed below
Note:
The quantities
fittings may be supplied than are required.
below are the correct amount to complete the assembly. In some cases more
2
A
35mm Screw x 8
D
Allen key x 1
2
B
Metal washer x 8
C
Plastic cap x 8
Page 4
Assembly Instructions
Step 1
Assembly frame
Suggest to complete this
product assembly by two
person.
Use screws A , metal
washers B
2
to
,
to fix leg
side
panel
Important:
Do not fully
tighten all screws
until assembly is
complete.
1
.
Step1:
B
A
1
2
Step 2
Tighten all the screws.
with the Allen key .
Seal the screws
with plastic cap
D
.
C
Step2:
1
2
C
1
2
3
Page 5
Assembly Instructions
Step 3
Put on
the glass 3 .
Step3:
3
1
Assembly is complete.
Customer Helpline: 03 456 400800
If you need help or have damaged or missing parts, call the
For further assistance please visit http://www.argos-support.co.uk/
