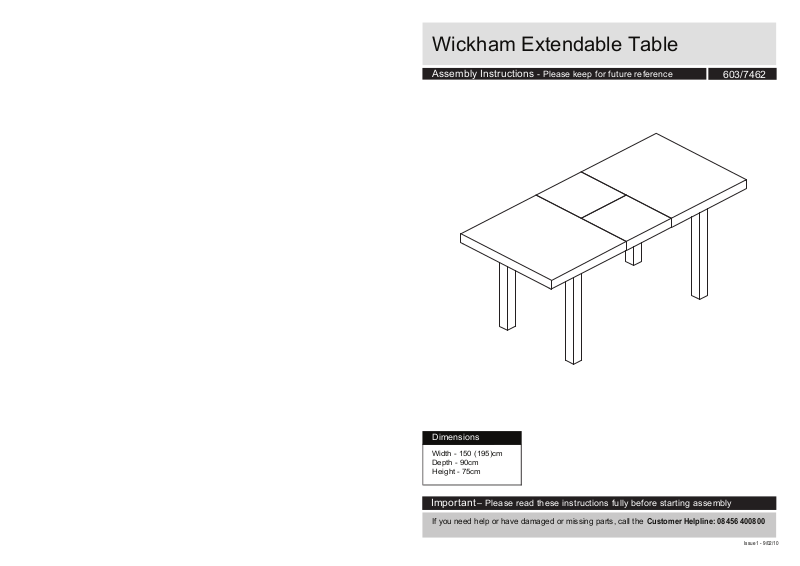

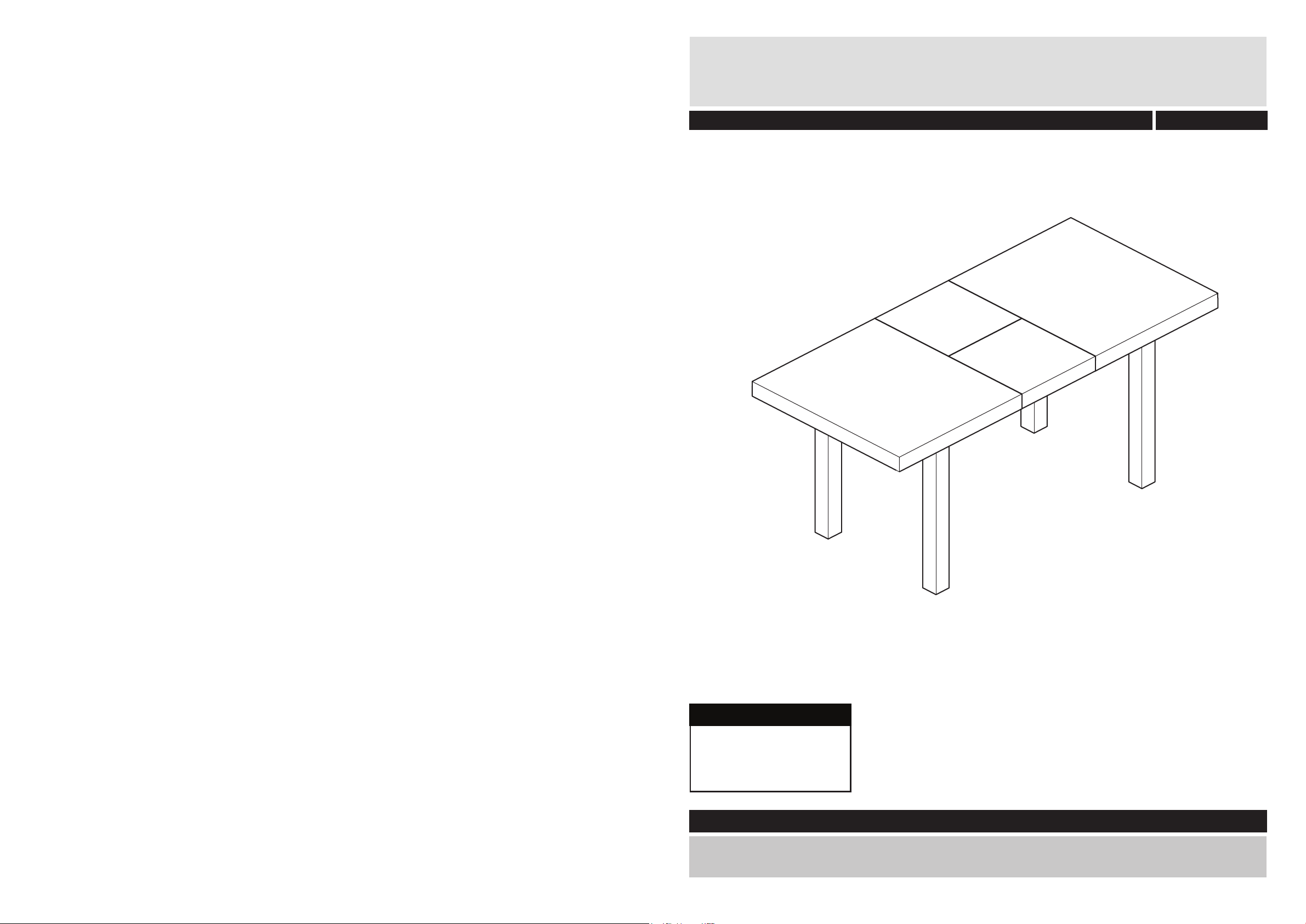

Wickham Extendable Table
Assembly Instructions - Please keep for future reference
603/7462
Dimensions
Width - 150 (195)cm
Depth - 90cm
Height - 75cm
Important
If you need help or have damaged or missing parts, call the
– Please read these instructions fully before starting assembly
Customer Helpline: 08456 400800
Issue 1 - 9/02/10
Page 2
Safety and Care Advice
Assembly Instructions
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product during assembly,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.

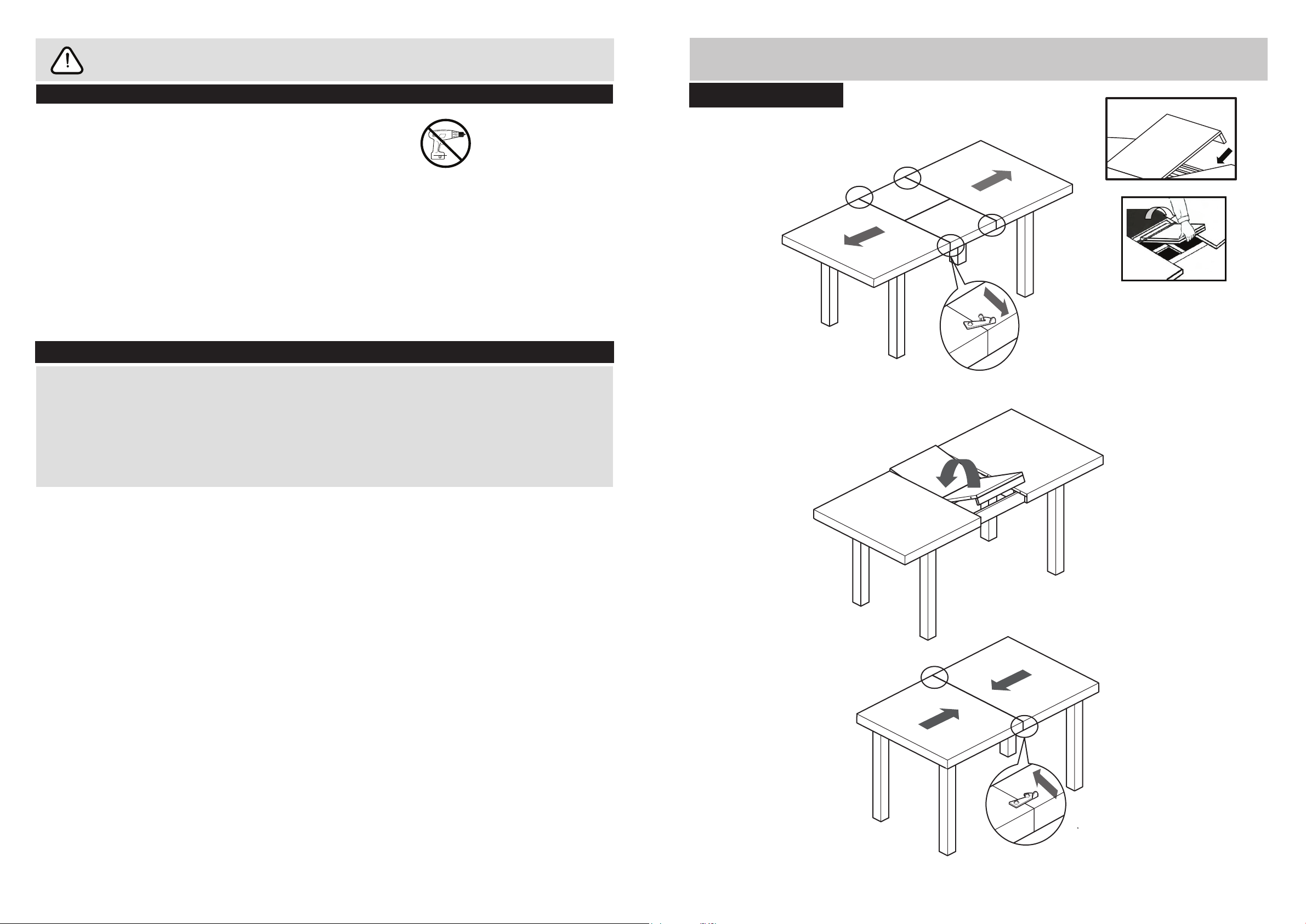

Close table
Unfold apron of leaves
Unlock
Step 1
Step 2
Lock
Step 3
1
6
Page 3
Assembly Instructions
Components - Parts
If you have damaged or missing components,
call the
Customer Helpline: 08456 400800

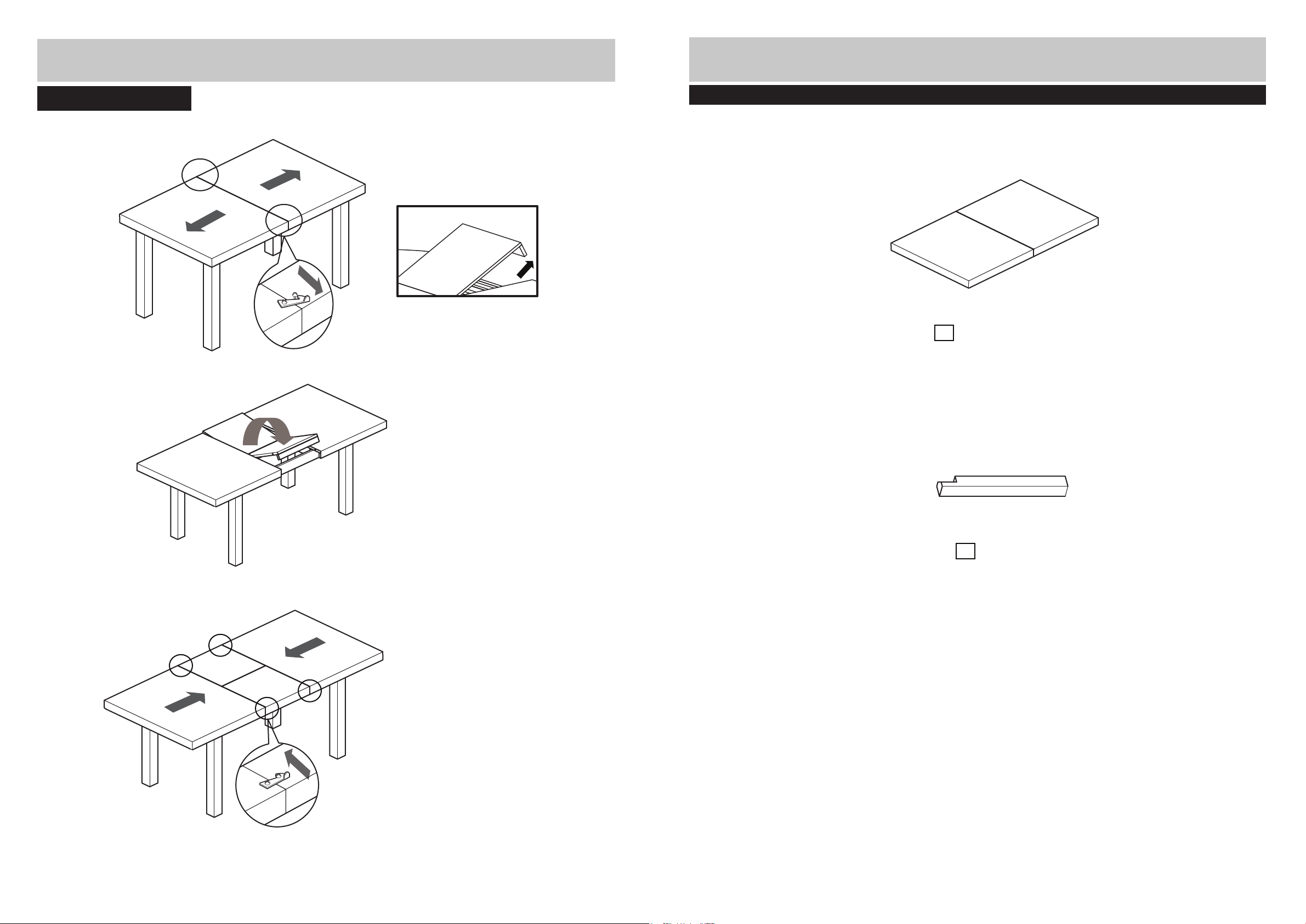

Open table
Step 1
Unlock
Unfold apron of leaves
Please check you have all the parts listed below
Table top x 1
1
Step 2
Step 3
Lock
2
Leg x 4
5
2
Page 4
Components -
Fittings
Assembly Instructions
Please check you have all the fittings listed below
Note :The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
Bolt x 8
D
Allen key x 1
B
Spring washer x 8
C
Washer x 8

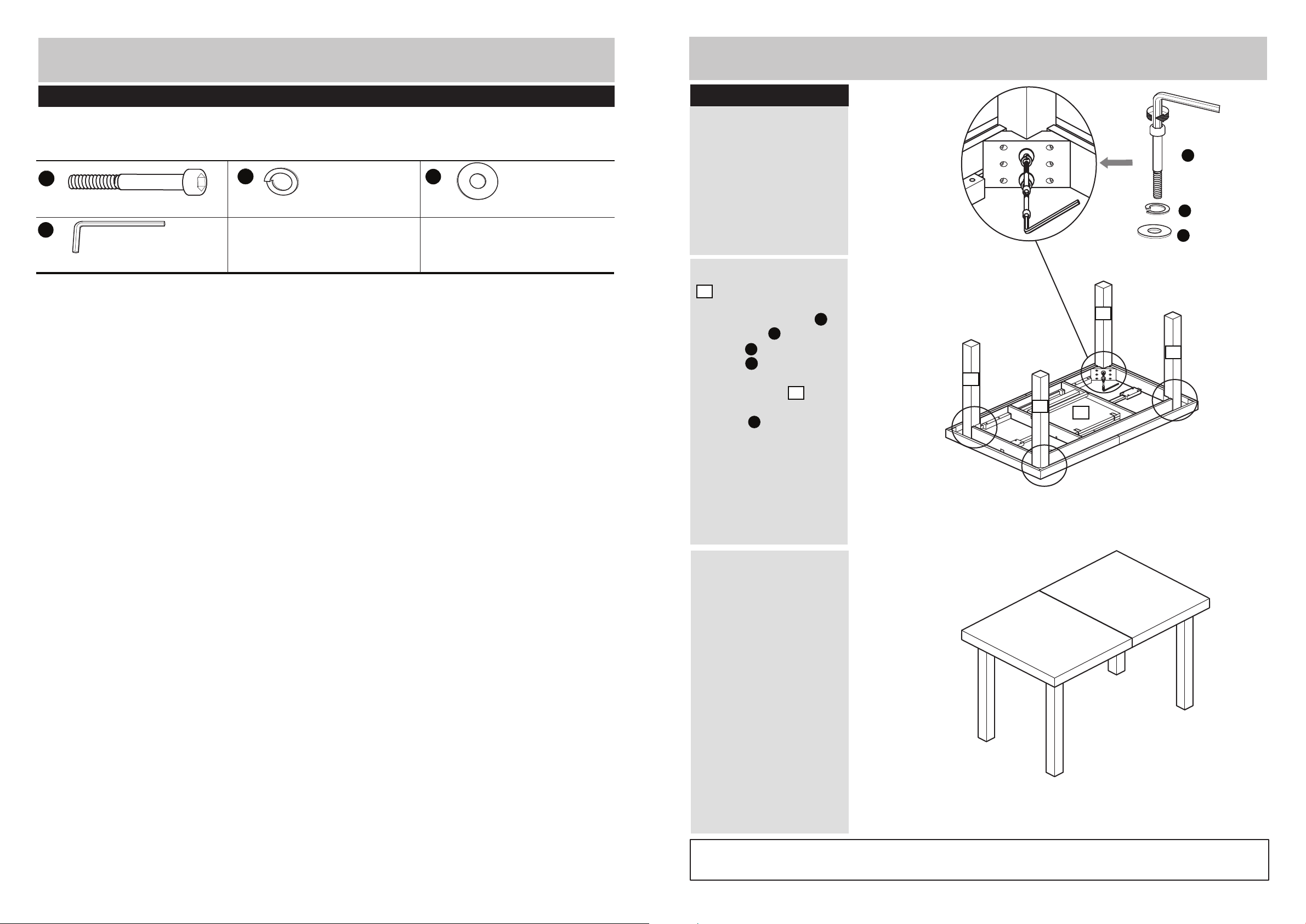

Step 1
Place table top upside
down being careful to not
scratch the table top
surface (Leaving the
product within its
cardboard packaging will
assist you in being able
to do this)
a:
Now attach the legs
(x4) to each of the
2
corners, by first step
insert spring washers
and washers into all
the bolts . Then screw
the bolts through the
corner blocks and into the
holes in the legs .
Tighten bolts by using the
allen key .
C
A
A
D
B
2
a:
A
B
C
2
2
2
2
1
Tighten all 8 bolts
securely.
b:
2 people are required
for this next stage.
Please now turn the table
180 degrees and place on
all four of its legs in your
desired location.
b:
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400800
3
4
