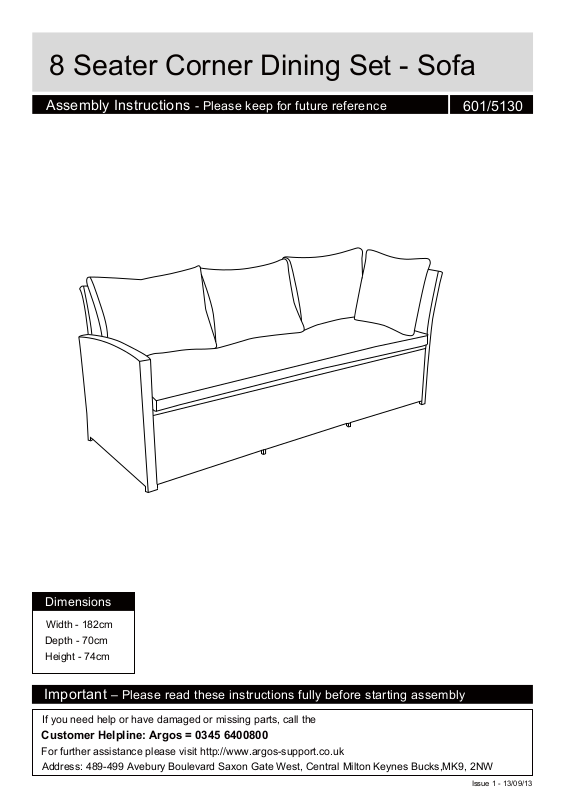

Page 1
8 Seater Corner Dining Set - Sofa
Assembly Instructions
- Please keep for future reference
601/5130
Dimensions
Width - 182cm
Depth - 70cm
Height - 74cm
Important
If you need help or have damaged or missing parts, call the
Customer Helpline: Argos = 0345 6400800
For further assistance please visit http://www.argos-support.co.uk
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW
– Please read these instructions fully before starting assembly
Issue 1 - 13/09/13
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2.
•
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make su re you have enough
space to layout the parts before
starting.
Care and m ainte nance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• Do not stand or put weight on the
product during assembly, this could
cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
bench or your floor.
• Parts of the assembly will be
easier with 2 people.
r
• F om time to time check that
the e are no loose screws on
r
this chair.
• We do not
recommend the
use of power
drill/drivers for
inserting screws ,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Maximum safe seated
weight: 330kgs.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Make sure each screw
matches the corresponding
figure to ensure correct
assembly.
• Do not fully tighten all screws
until assembly is complete.
1
Page 3

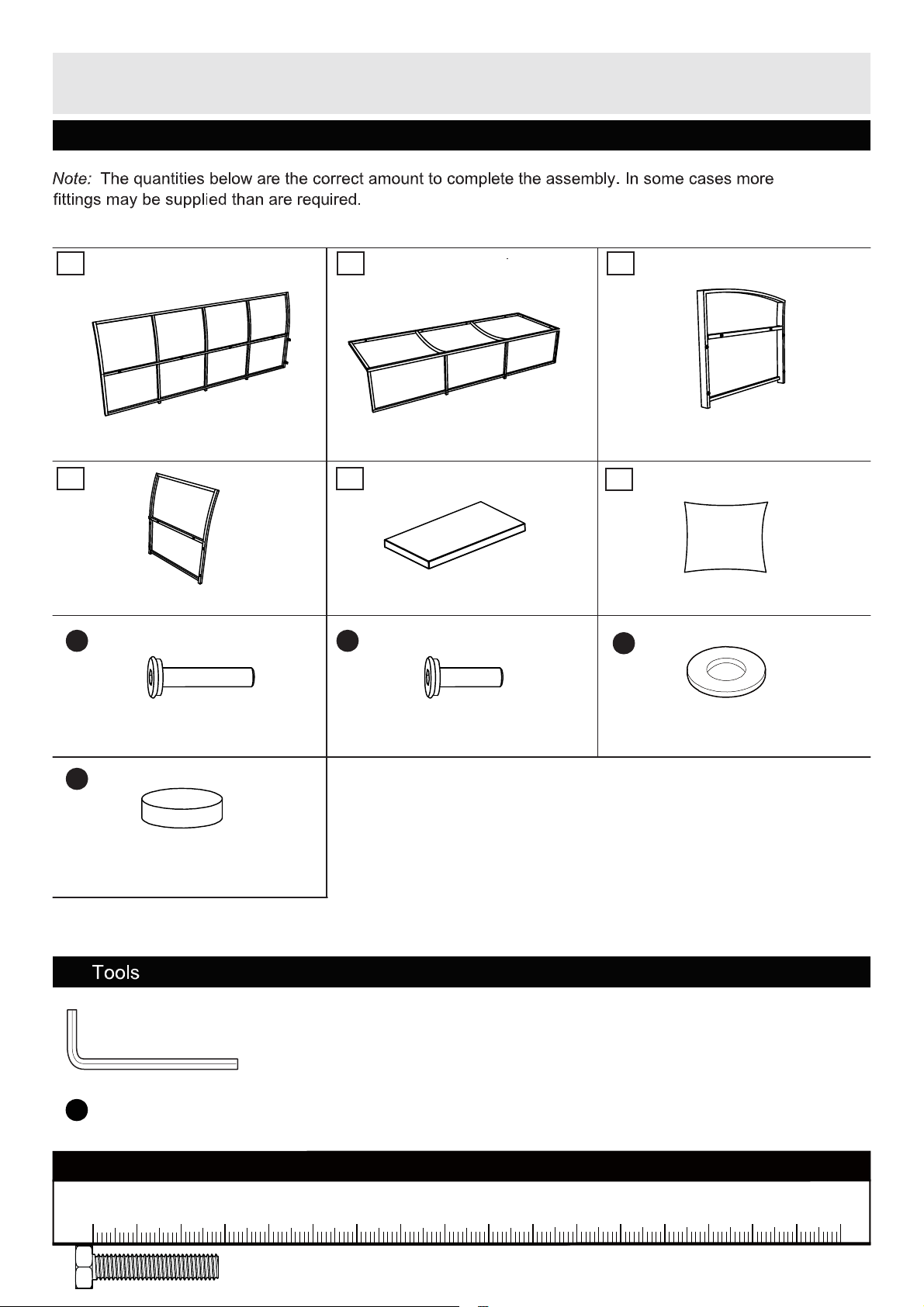

Components - Parts & Fittings
If you have damaged or missing components, call the
P
lease check you have all the parts & fittings listed below
Customer Helpline: Argos = 0345 6400800
21
Backrest x 1
4
Left Armrest x 1
A
5
B
Seat x 1
Seat Cushion x 1 Back Cushion x 4
3
Right Armrest x 1
6
C
M6X35
Screw x 14
D
Screw cap x 16
M6X20
Screw x 2
provided
Hexkey x 1
E
Ruler - Use this ruler to help correctly identify the screws
Washer x 16
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4
Assembly Instructions

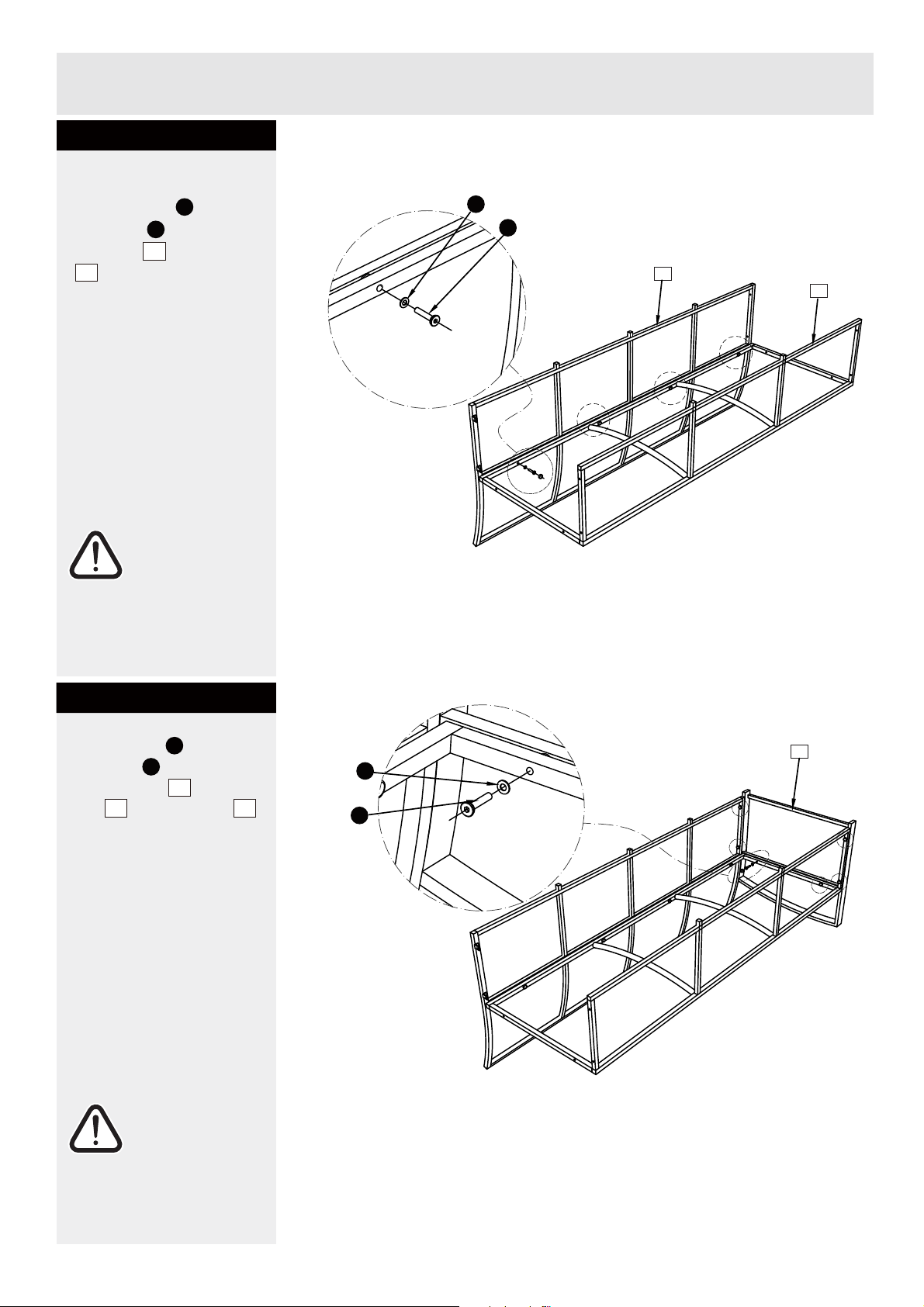

Step 1
Use screws and
washers to fix the
backrest to the seat
2
.
A
C
1
Important:
Do not fully
tighten all screws
until assembly is
complete.
C
A
1
2
Step 2
Use screws and
washers to fix the
right armrest to the
2
seat and backrest .
A
C
3
1
Important:
Do not fully
tighten all screws
until assembly is
complete.
3
C
A
3
Page 5
Assembly Instructions

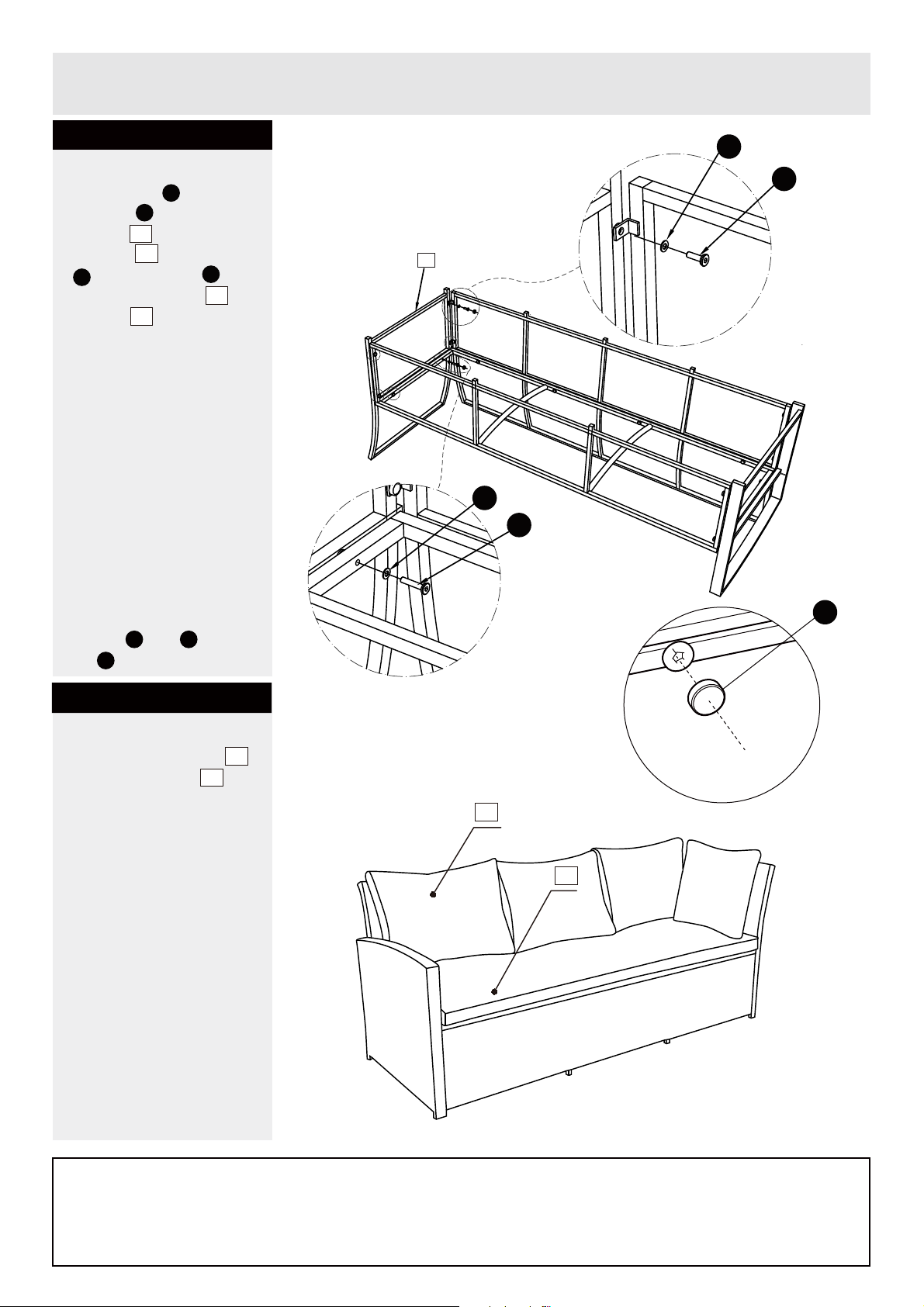

Step 3
Use screws and
washers to fix the left
armrest to the
backrest , use screws
and washers to
A
fix the left armrest to
the seat .
B
C
4
1
C
4
2
Fully tighten all the
screws and cover all the
screws and with
cap .
A B
D
C
B
4
C
A
D
Step 4
Put the seat cushion
and back cushion
onto the sofa.
Assembly is complete
6
5
6
5
If you need help or have damaged or missing parts, call the
Customer Helpline: Argos = 0345 6400800
For further assistance please visit http://www.argos-support.co.uk
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW
4
