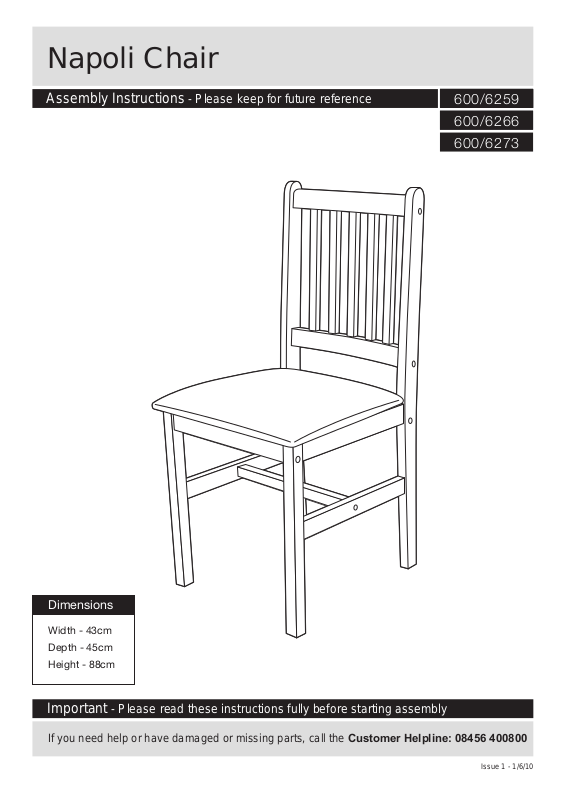

Page 1
Issue 1 - 1/6/10
Dimensions
Width - 43cm
Depth - 45cm
Height - 88cm
Assembly Instructions- Please keep for future reference
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Astwood Chair
600/5092
Napoli Chair
600/5896
600/6259
600/5889
600/6266
600/6273
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Care and maintenance
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• The maximum safe weight of
user: 110kg.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1

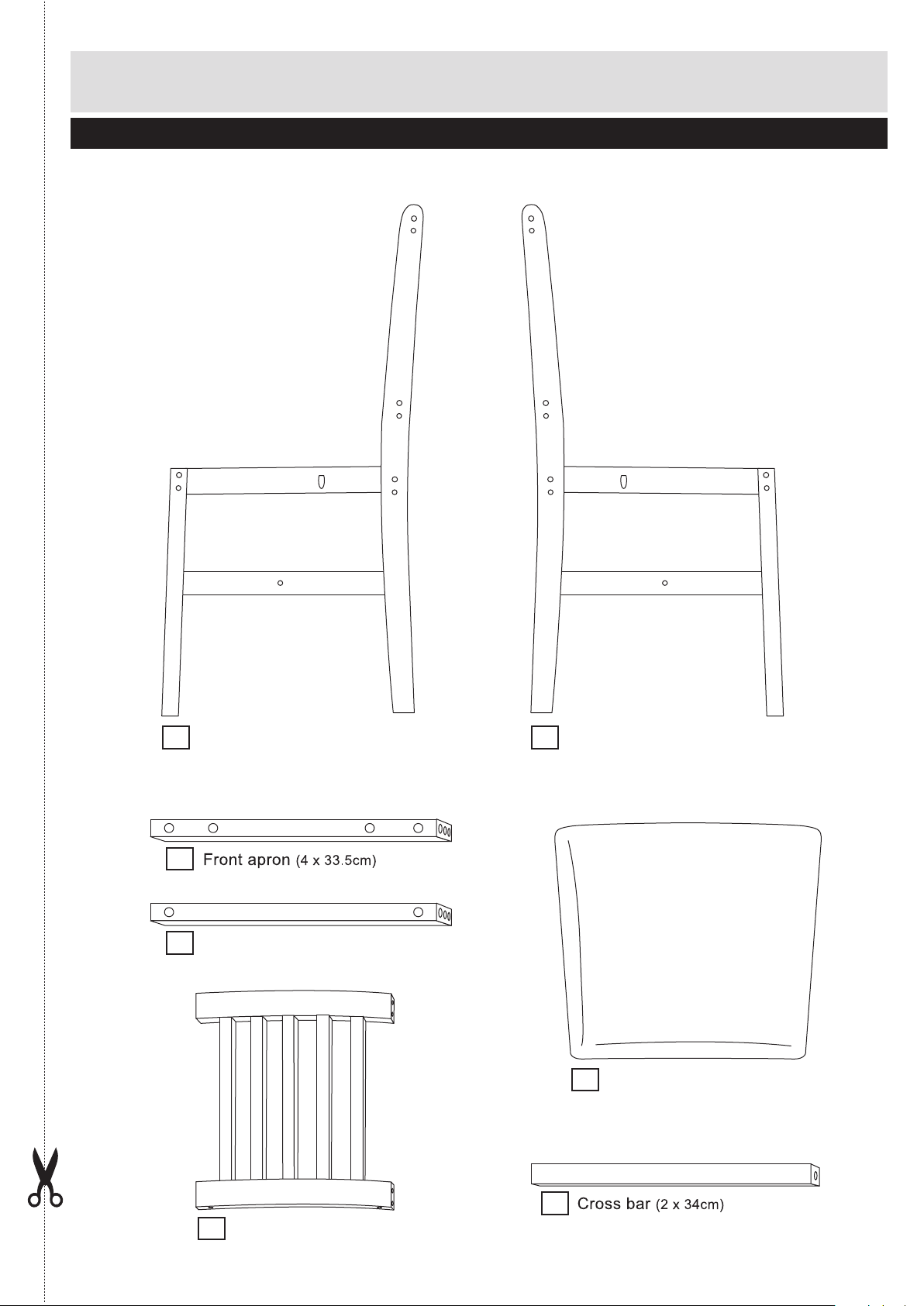

Page 3
Left side frame (41 x 88cm)
1
Right side frame
(41 x 88cm)
2
Front apron (4.5 x 33.5cm)
3
Seat cushion
(39 x 43cm)
4
Back apron
(4.5 x 33.5cm)
5
Back rest
(38 x 33.5cm)
6
Cross bar
(2 x 33.5cm)
7
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Note: Components listed below are required for one chair only.
2

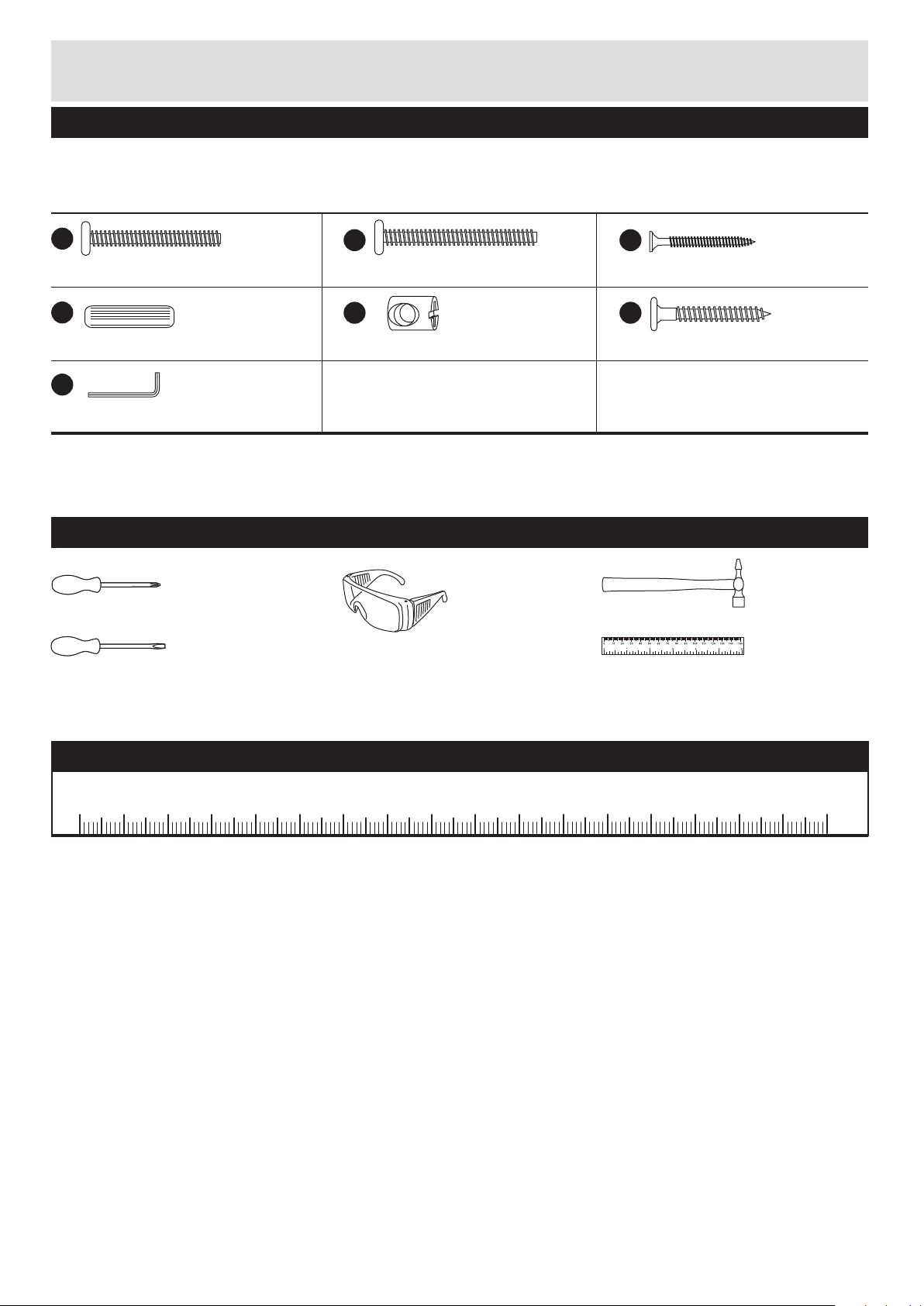

Page 4
50mm Screw x 6
60mm Screw x 2 30mm Screw x 4
Dowel x 8
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Barrel Nut x 8 42mm Screw x 2
Tool x 1
A
B C
Components - Fittings
Please check you have all the fittings listed below
Tools required
Ruler - Use this ruler to help correctly identify the screws
D
E F
G
3
Note: The quantities below are the correct amount to complete the assembly for one chair. In some cases
more fittings may be supplied than are required.
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions

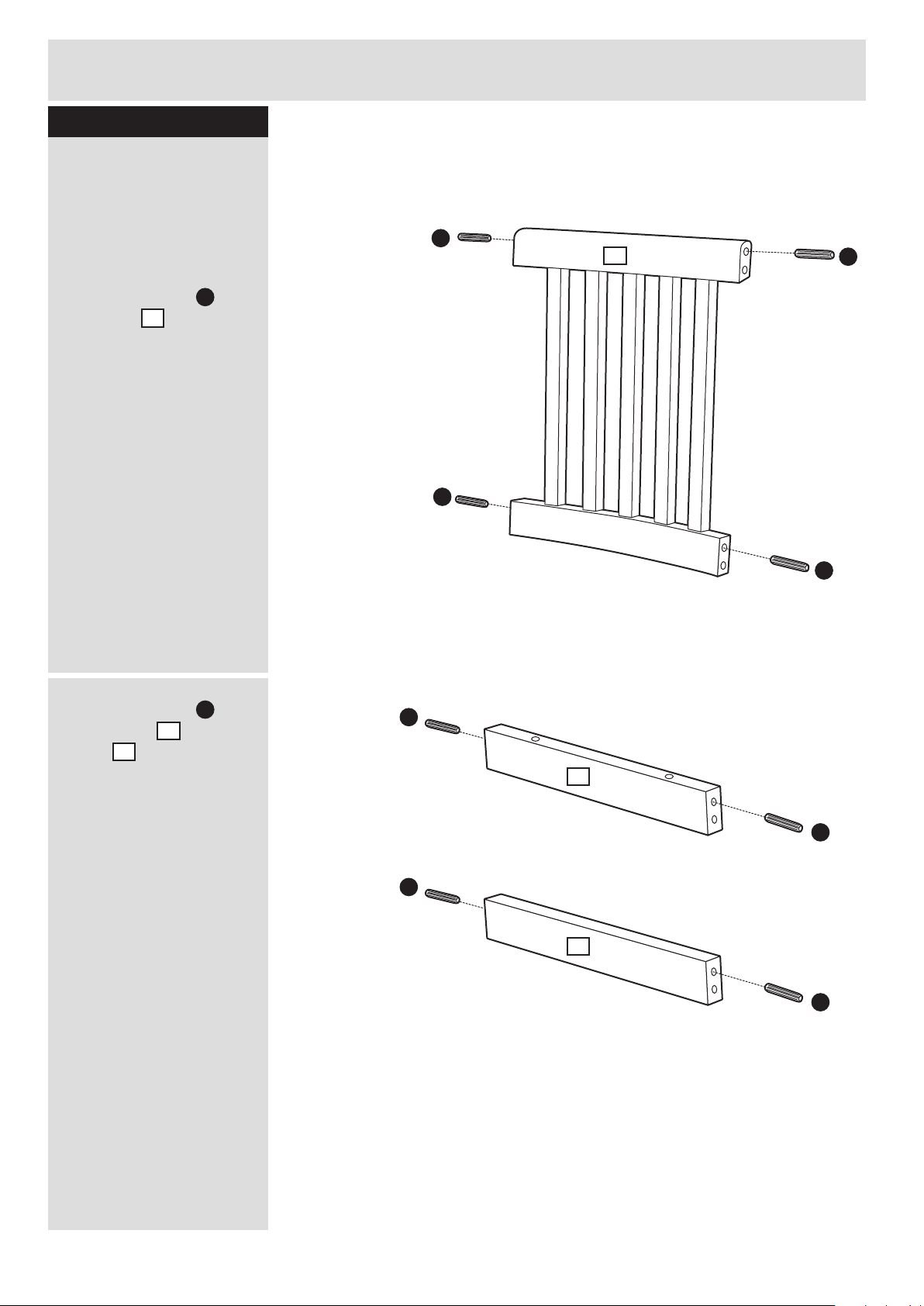

Step 1
Fitting the Back rest
a: Insert Dowels D into
Back rest
5 .
Note: It would be useful to
ask someone to help you
at this stage.
b: Insert Dowels D into
Front apron
3 and Back
apron
5 .
4
a:
b:
6
3
5
D
D
D
6
D
D
D
D
D
3
D
D
5

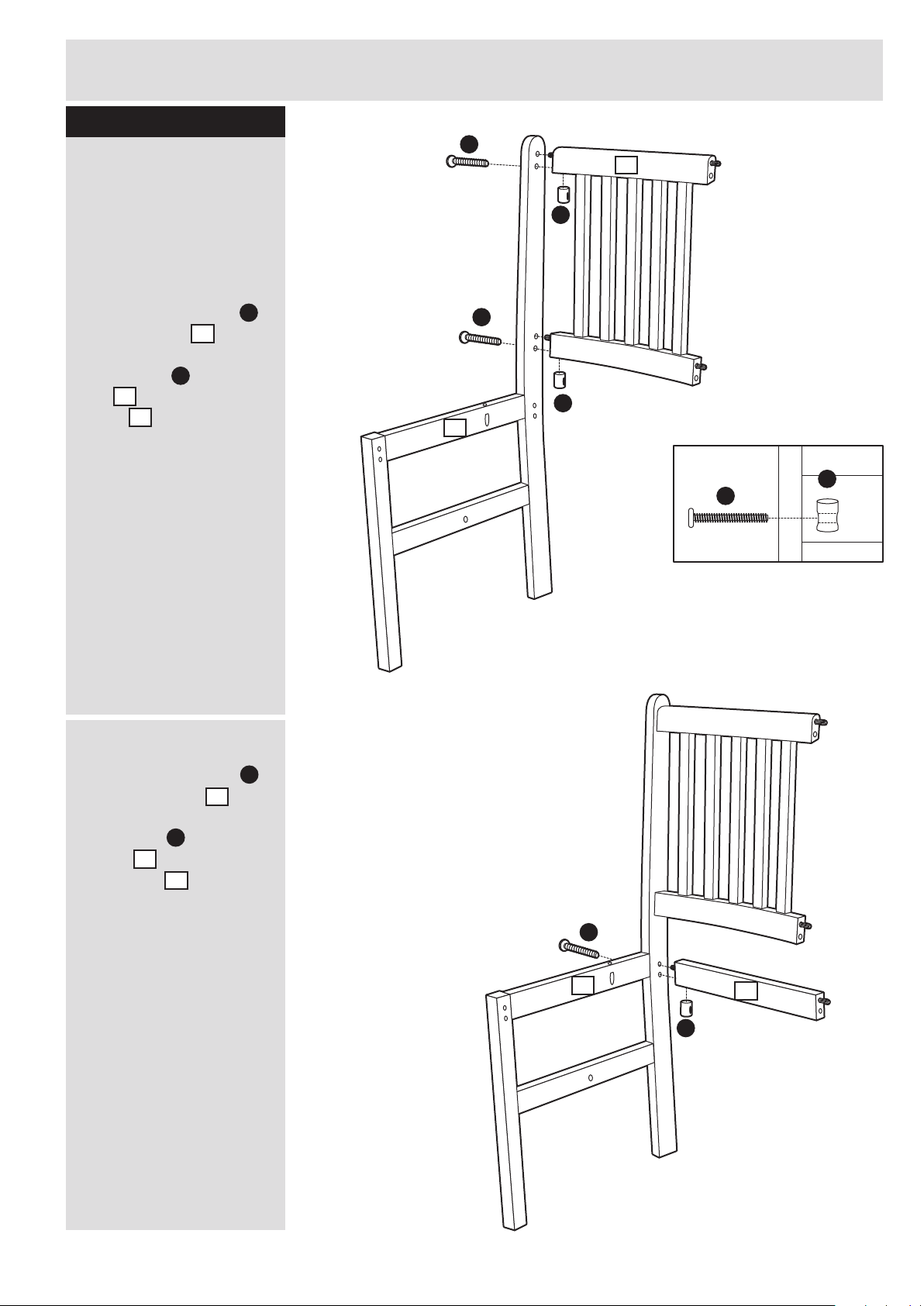

Page 6
b:
1
E
A
5
a: Insert Barrel nuts E
into Back rest 6 .
Use Screws
A to fix Back
rest
5 onto the Left side
frame
1 .
Assembly Instructions
Step 2
Continued on next page.
Note: Do not tighten the
screws at this moment.
b: Insert Barrel nuts E
into Back apron 5 .
Use Screw
A to fix Back
apron
5 onto the Left
side frame
1 .
Fitting the Left side
frame
Note: It would be useful to
ask someone to help you
at this stage.
Note: Insert Barrel nuts
into the Back rest taking
care to align the screw
holes.
Note: Insert Barrel nut into
the Back apron taking care
to align the screw hole.
5
A
E
a:
A
E
6
1
A
E
1
6
6
1
5
5
E
A
E
A
Page 7
Assembly Instructions

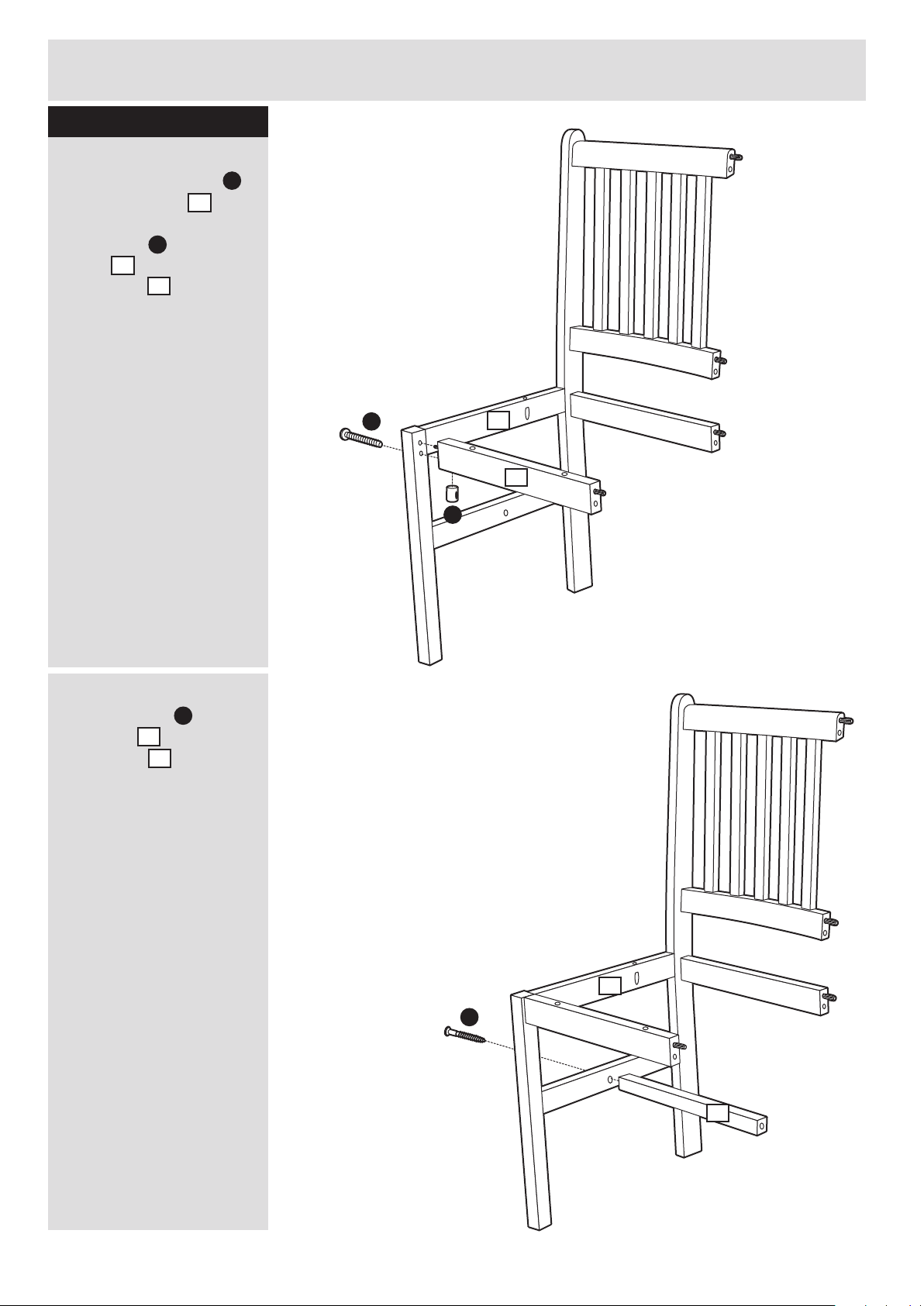

Step 2 - continued
d: Use Screw F to fix
Cross bar
7 onto the Left
side frame
1 .
c: Insert Barrel nuts E
into Front apron 3 .
Use Screw
B to fix Front
apron
3 onto the Left
side frame
1 .
Note: Insert Barrel nut into
the Front apron taking care
to align the screw hole.
6
d:
c:
1
3
B
E
1
7
3
3
1
F
E
B
1
7
F

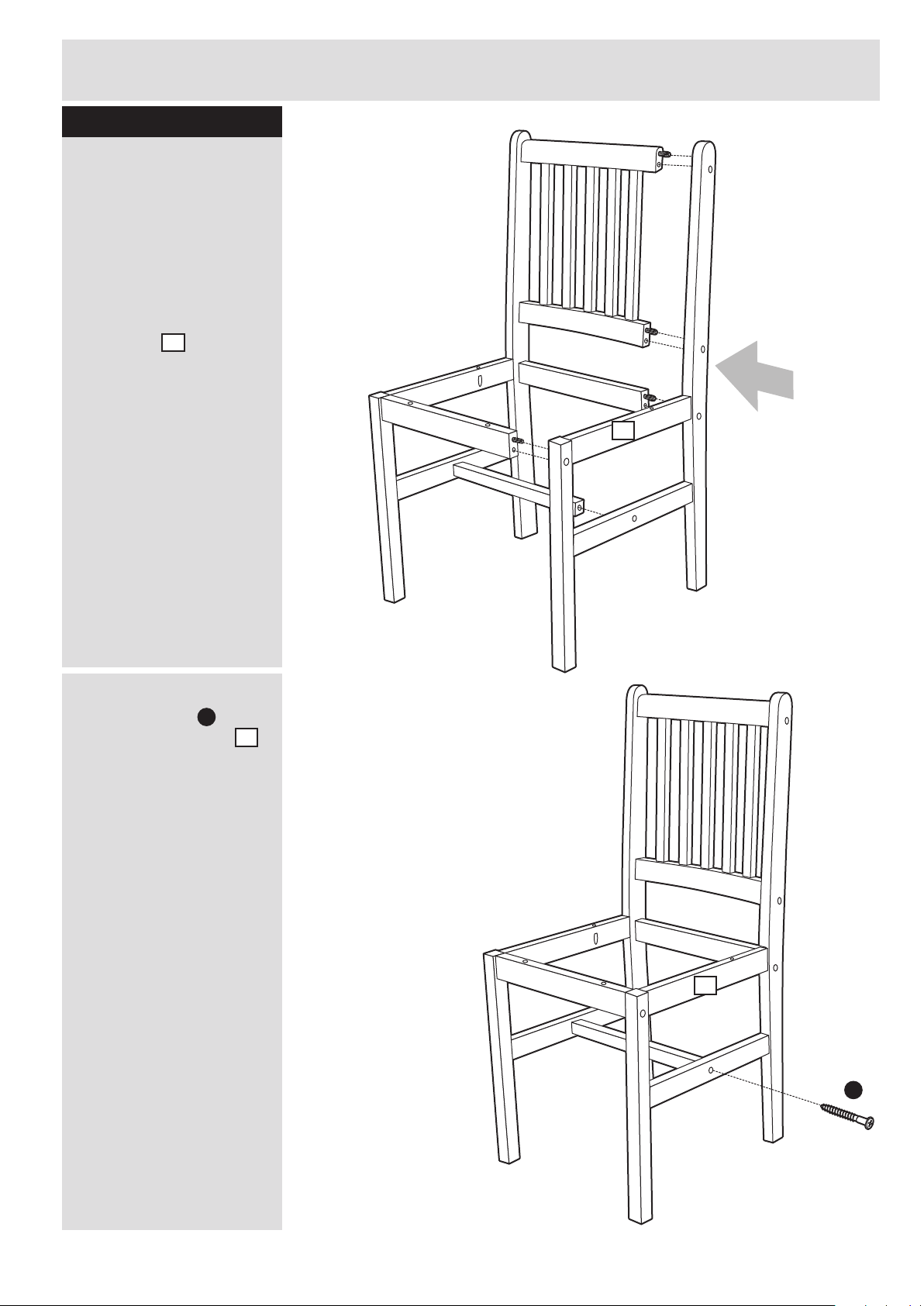

Page 8
b: Use Screws C to fix
the Right side frame
2
onto the unit.
Assembly Instructions
Step 3
Continued on next page.
Fitting the Right side
frame
Note: It would be useful to
ask someone to help you
at this stage.
a: Carefully attach Right
side frame
2 onto the
unit.
7
b:
a:
2
2
F
F
2
2

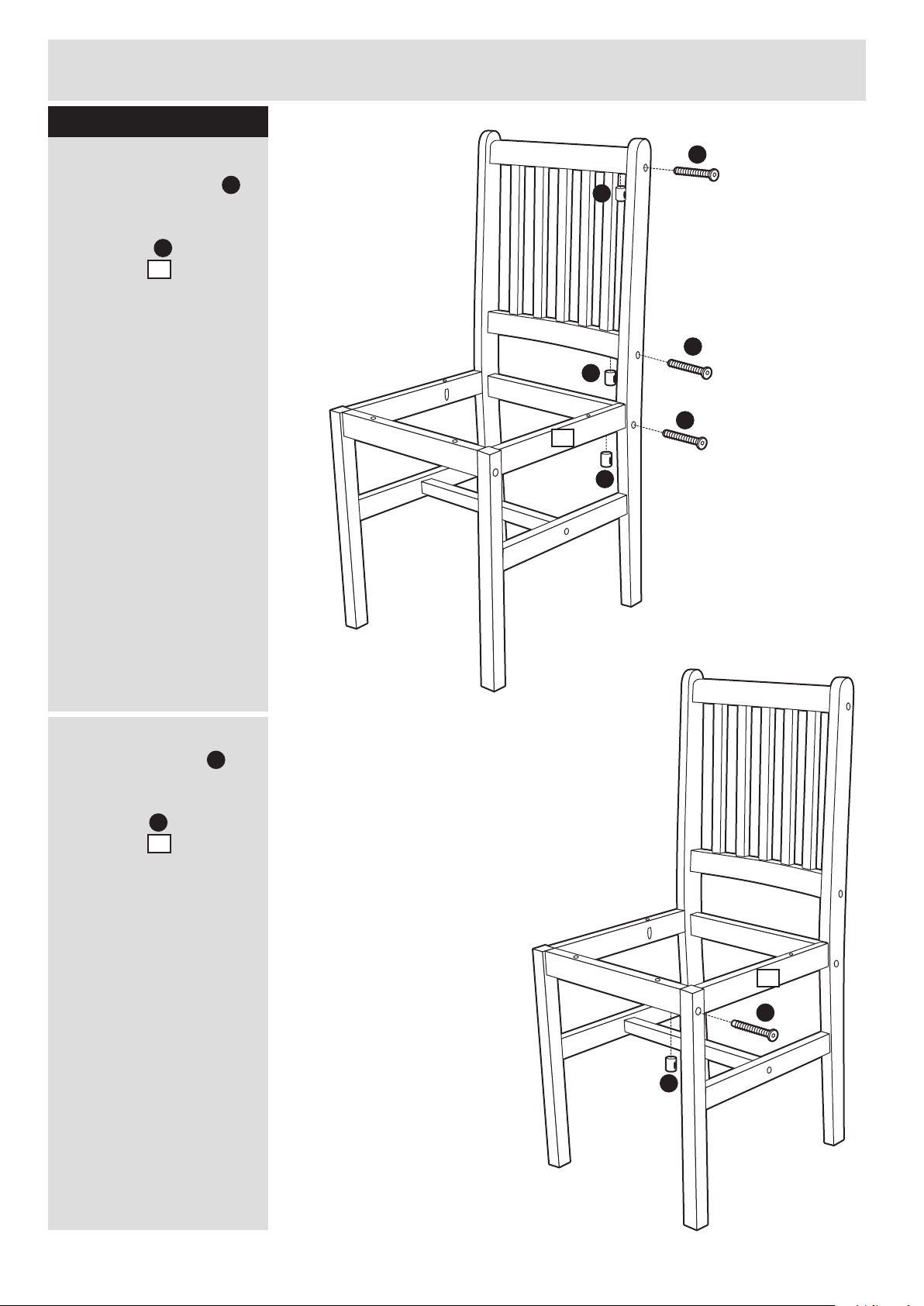

Page 9
d: Insert Barrel nut E into
the unit.
Use Screw
B to fix Right
side frame
2 onto the
unit.
Assembly Instructions
Step 3 - continued
c: Insert Barrel nuts E
into the unit.
Use Screws
A to fix Right
side frame
2 onto the
unit.
E
E
E
A
A
B
d:
E
A
8
c:
2
2
E
B
E
A
2
2
Page 10
Assembly Instructions

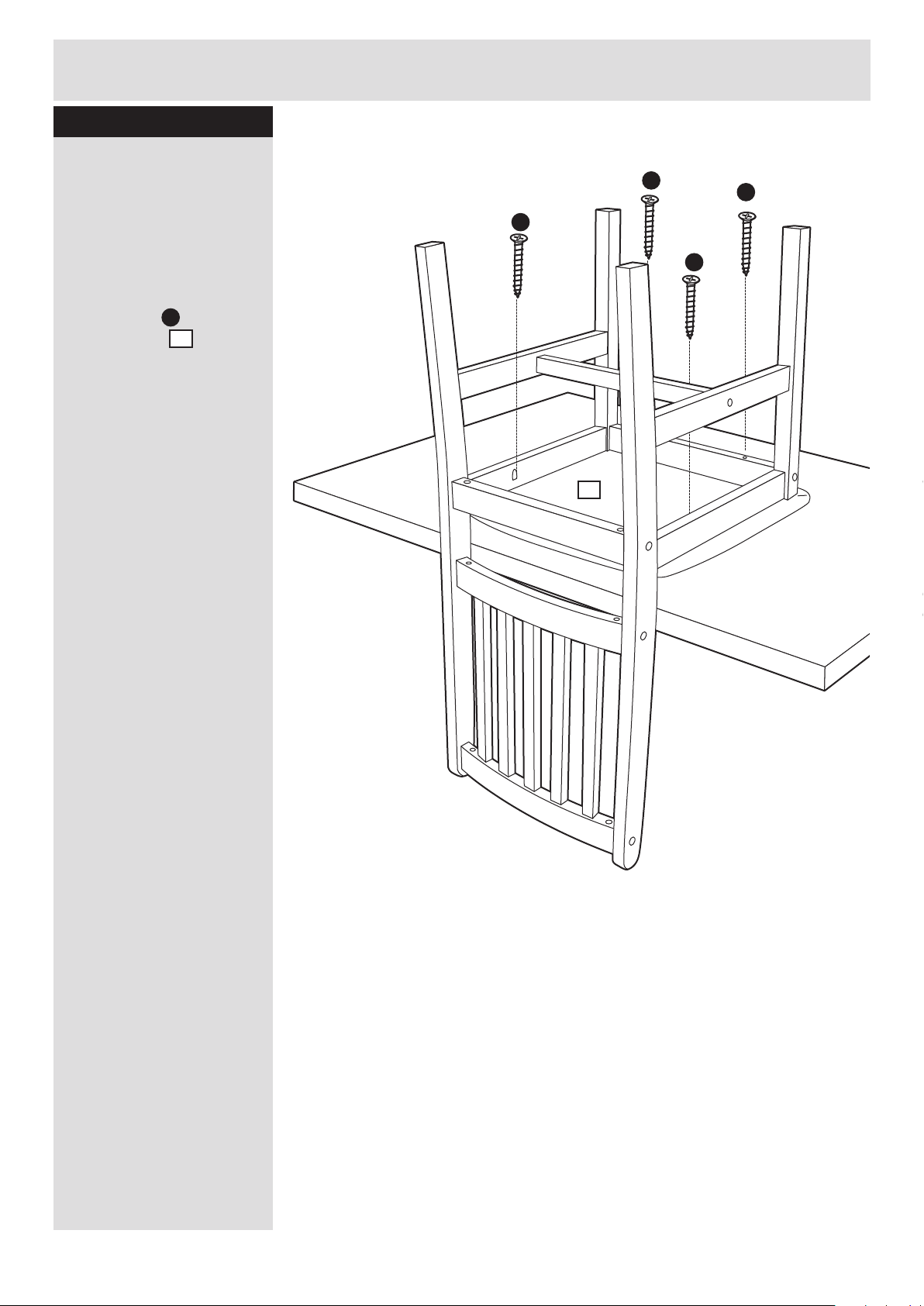

Step 4
Fitting the Seat cushion
Use Screws
C to fix the
Seat cushion
4 onto the
unit.
Fully tighten all screws
now.
Note: It would be useful to
ask someone to help you
at this stage.
9
4
C
C
C
C
C
4

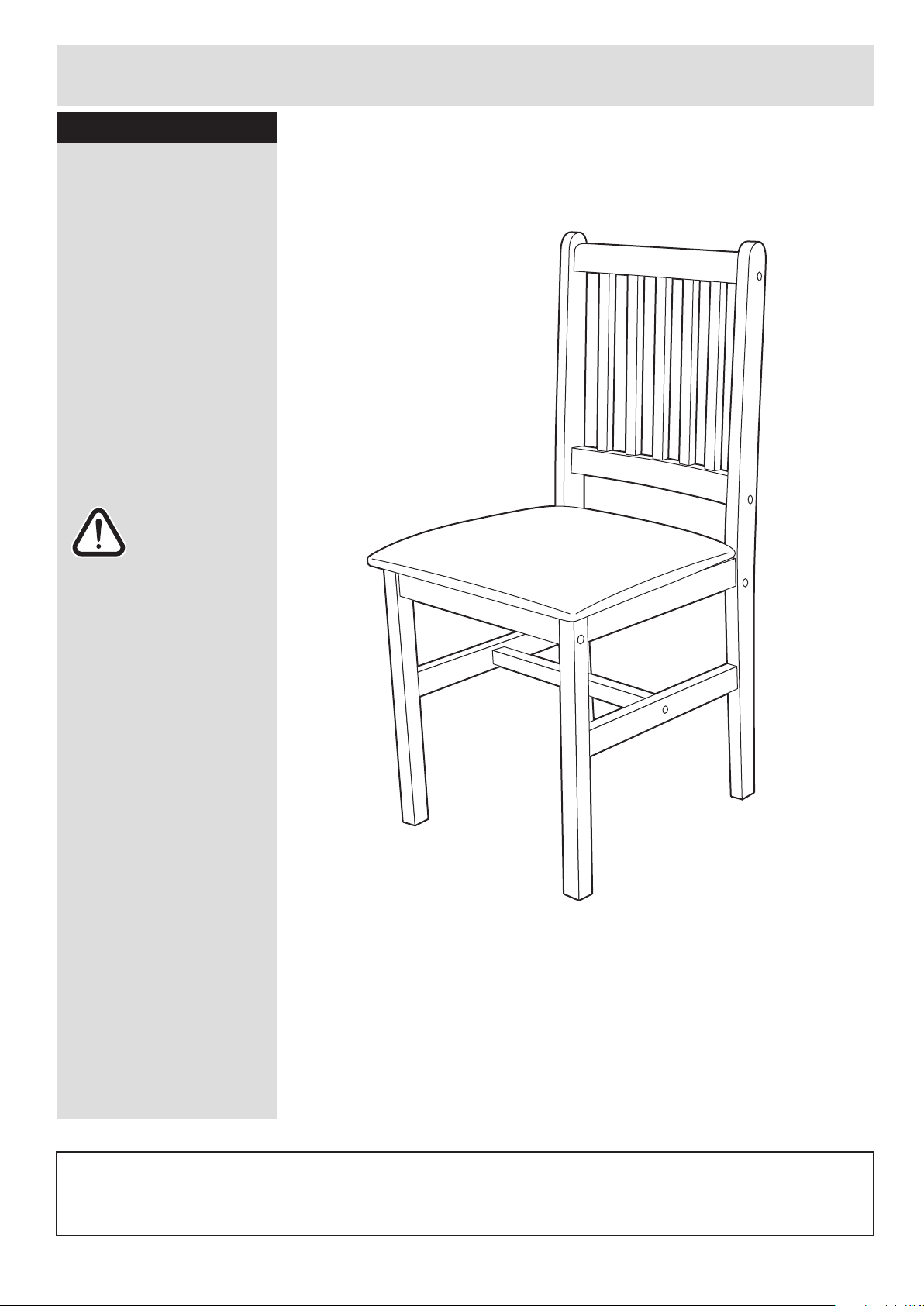

Page 11
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Assembly Instructions
Step 5
Finishing the unit
Note: It would be useful to
ask someone to help you
at this stage.
With help, turn the unit
upright. Place the unit in
the intended position.
Assembly is complete.
Note: Before use always
make sure the unit is
secure.
•Do not stand on this chair.
Do not use this chair as a
step ladder.
•Use this product only for
seating one person at a
time.
•Do not use this chair
unless all bolts, screws and
knobs are firmly secured.
•At least every 4 months,
check all bolts, screws and
knobs, to be sure they are
tight.
• If parts are missing,
broken or damaged or
worn, stop use of this
product until repairs are
made & using factory
authorized parts.
• Failure to follow these
warnings could result in
serious injury.
Note: The maximum safe
weight of user: 110kg.
10
