Page 1

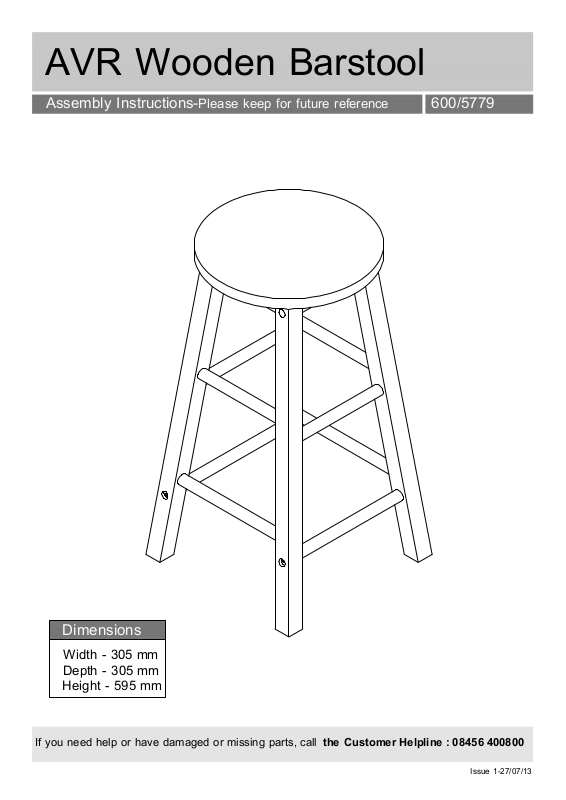

AVR Wooden Barstool
Assembly Instructions-Please keep for future reference
600/5779
Dimensions
Width - 305 mm
Depth - 305 mm
Height - 595 mm
If you need help or have damaged or missing parts, call the Customer Helpline : 08456 400800
Issue 1-27/07/13
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly.
-Check you have all the
components and tools
listed on page 2 .
-Remove all fittings from
the plastic bags and
separate them into their
groups.
-Keep children and animals
away from the work area,
small parts could choke if
swallowed.
-Make sure you have
enough space to layout
the parts before starting.
-Do not use this chair as a
step ladder.
-Do not stand on the product,
this could cause damage.
-Assemble the item as close
to its final position(in the same
room) as possible.
-Assemble on the soft level
surface to avoid damaging the
unit or your floor.
-Parts of the assembly will be
easier with 2 people.
-At least every 4 months,
check all bolts, screw
to be sure they are tight.
-We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
-Dispose of all packaging
carefully and responsibly.
-This maximum safe weight of
user : 110 kg.
-Failure to follow these
warnings could result in
serious injury.
-Use this product only for
seating one person at a
time.
-Do not use this chair
unless all bolts,screw
are firmly secured.
Care and Maintenance.
Care and Maintenance.
- Only clean using a damp
cloth and mild detergent,
do no use bleach or abrasive
cleaners.
-If parts are missing,
broken, damaged or
worn, stop use of this
product until repairs are
made & using factory
authorized parts.
- From time to time check that
there are no loose screws on
this unit.
-This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Note:if required the next
page can be cut out and used
as reference throughout the
assembly.Keep this page with
these instructions for future
reference.
1
Page 3
If you have damaged or missing components.
Components - Parts
call the Customer Helpline: 08456 400800
Please check you have all the parts listed below.
Note: Components listed below are required for one chair only.
1
Left Side Frame
(30.5x58.1cm)
Short Stretcher x 2
4
(2x21.2cm)
2
Right Side Frame
(30.5x58.1cm)
Long Stretcher x 2
5
(2x25cm)
3
Seat Pad (30x30 cm)
Components - Fittings
Please check you have all the fittings listed below.
Note: The quantities below are the correct amount to complete the assembly for one chair. In some cases
more fittings may be supplied than are required.
A B
Tool x1 Screw x 8 Wood dowel x 4
2
C
Page 4
Assembly Instructions
Step 1
Fitting the dowel
Insert Wood Dowel
into Seat Pad
C
3
Step 2
Assembling the leg frame
- Insert Short Stretcher
into the hole at
Right Side Frame.
- Fix Right Side Frame onto
Seat Pad using Screw
tighten with Tool
- Fix Long Stretcher onto
Right Side Frame using
screw tighten with Tool
3
A
B A
4
2
2
5
2
1:
C
3
2:
B
B
B
A
B
2
5
4
3
Note:It would be useful to
ask some to help you
at this stage.
Step 3
Assembling the leg frame.
-Fix Left Side Frame onto
Seat Pad
and Long Stretcher using
Screw tighten with Tool
-Turn the assembled barstool
upright.
3
B
1
5
1
3:
B
A
A
B
B
3
5
4
If you need help or have damaged or missing parts,call the Customer Helpline :08456 400800
3
