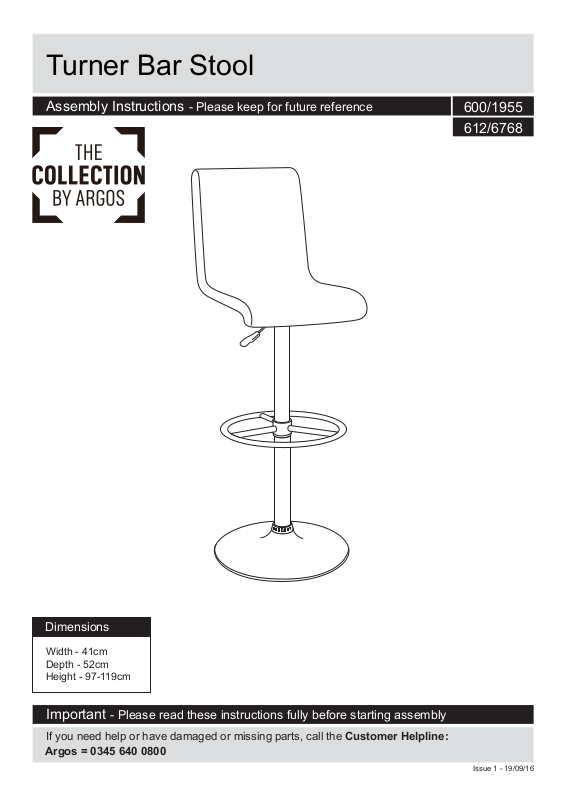

Turner Bar Stool
Assembly Instructions - Please keep for future reference
600/1955
612/6768
Dimensions
Width - 41cm
Depth - 52cm
Height - 97-119cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 1 - 19/09/16
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Do not discard any of the
packaging until you have
checked that you have all the
parts and the pack of fittings.
• Discard all extra fittings and
keep fittings out of reach of
children.
• At least 2 people are required
to assemble this product.
• Assemble this product on a flat
surface.
Warnings
• Do not stand on the stool.
• Do not use the stool as a step
ladder.
• Make sure the legs remain in
contact with the ground.
• Assemble all parts loosely
before tightening any bolts.
• Unit weight: 9kgs.
• Maximum safe weight of user:
110kgs.
• Retain Assembly Instructions
for future reference.
• Dispose of all packaging
carefully and responsibly.
• Do not knock the surface of
the seat against sharp solid
surfaces.
• This product should only be
used on firm, level ground.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Do not sit with sharp objects in
back pockets as this may
damage the seat surface.
Care and maintenance
• Please clean the product using
either damp (not wet) cloth and
a mild domestic soap solution or
by using an appropriate polish.
• Do not use any abrasive
materials when cleaning.
• From time to time check that
there are no loose bolts on this
unit.
1
Page 3
If you have damaged or missing components,

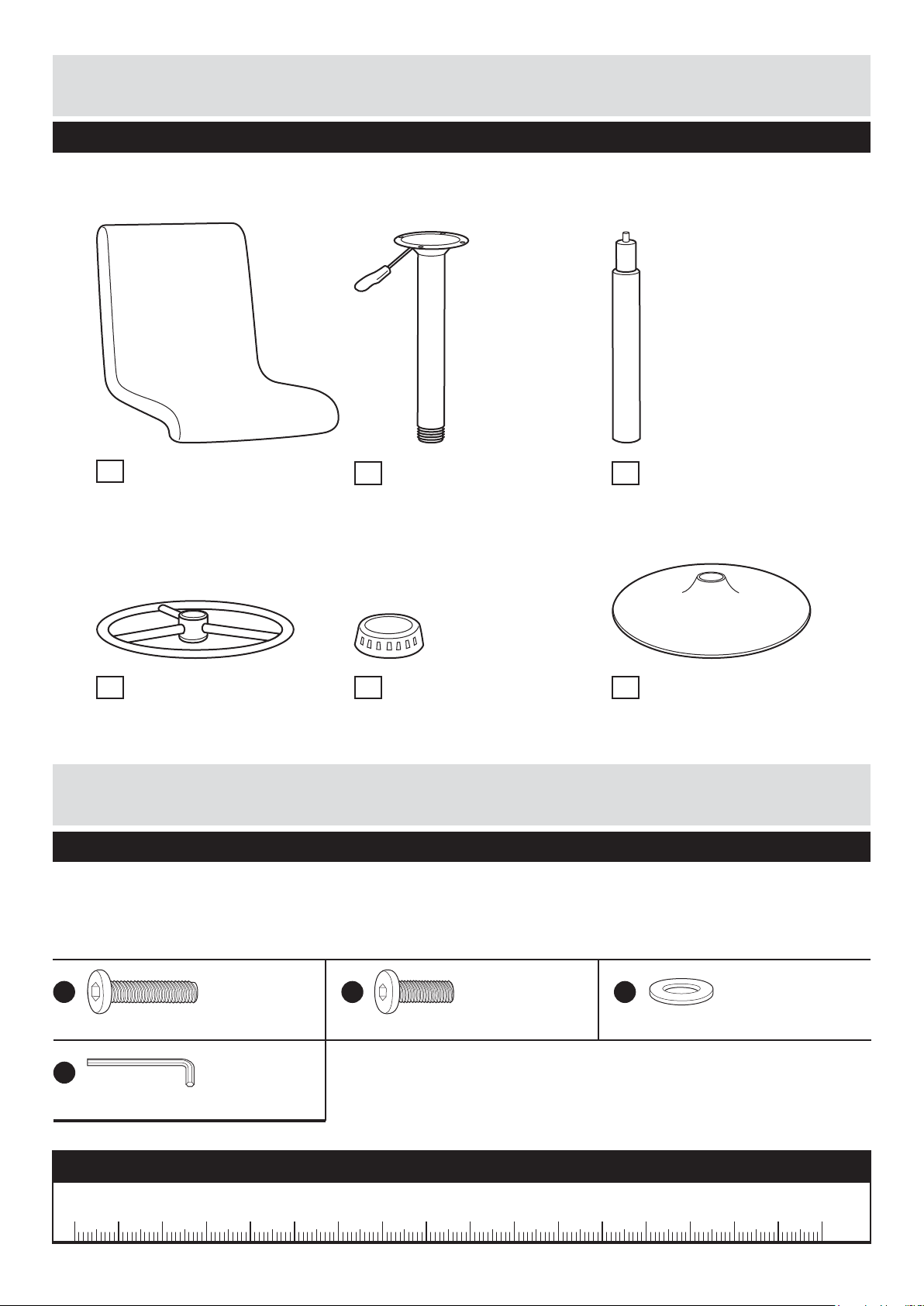

Components - Parts
call the Customer Helpline: Argos = 0345 640 0800
Please check you have all the parts listed below
1
Seat
(41.5 x 41 x 52cm)
2
Upper leg
(Ø16 x 39.5cm)
3
Gaslift
(Ø5 x 50.5~72.5cm)
4
Foot rest
(Ø1.6 x 38 x 3.3cm)
5
Decor ring
(Ø5 x 7.5 x 2.2cm)
6
Base
(Ø41 x 8.5cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
M6 x 25mm Bolt x 2
D
Allen key x 1
B
M6 x 18mm Bolt x 2
C
Washer x 4
Ruler - Use this ruler to help correctly identify the screws
105 150 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4
Assembly Instructions

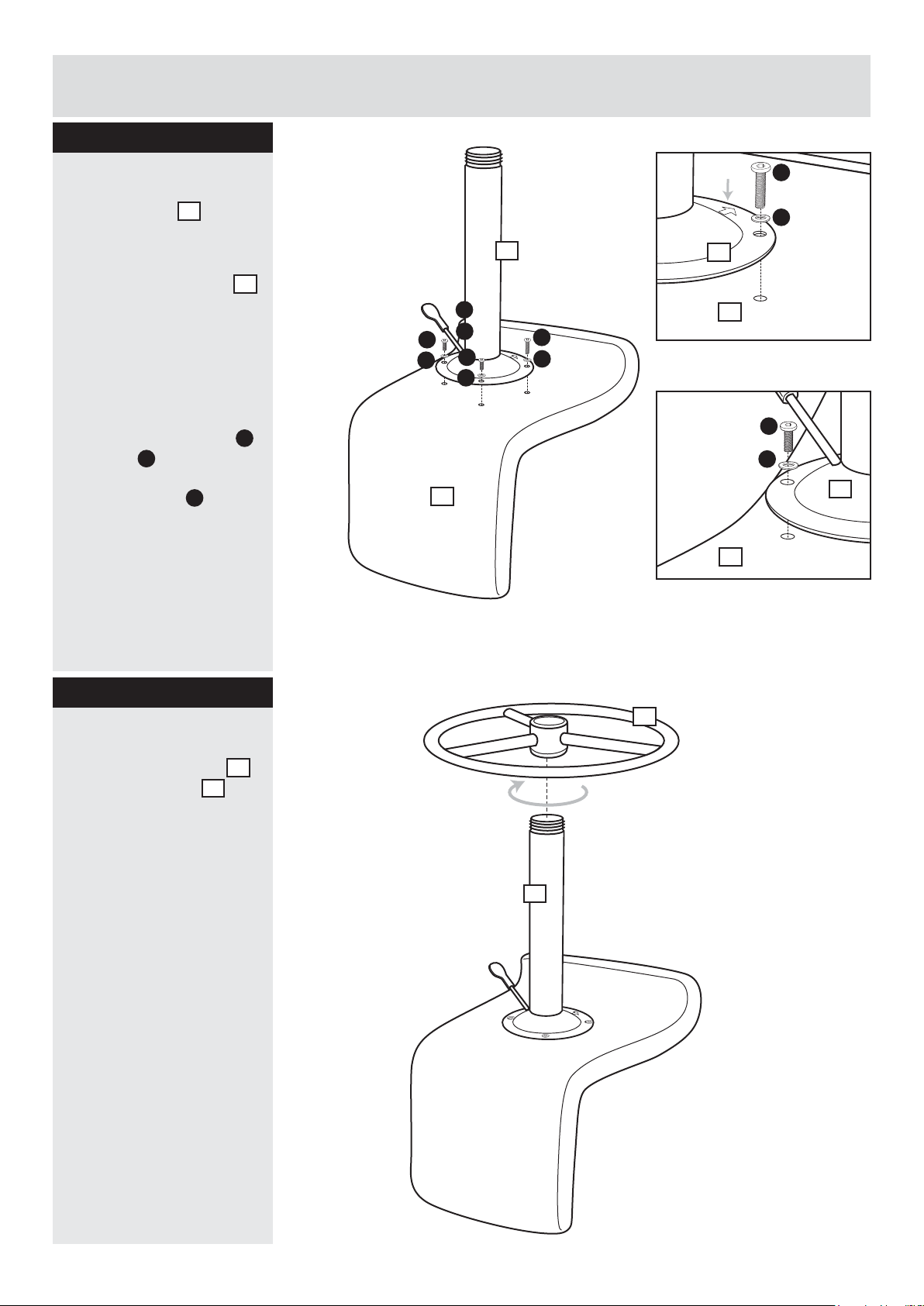

Step 1
Attaching upper leg
Place the seat upside
1
down on a flat protected
surface.
Position the upper leg
2
and make sure that the
arrow on the plate is
pointing towards the front
edge of the seat as
shown in the inset
diagram.
Secure using washers
and bolts for the two
A
C
holes near the front of
the seat & bolts for the
B
back holes.
Arrow
2
A
C
B
B
C
C
1
A
C
2
1
1
A
C
B
C
2
Step 2
Attaching footrest
Connect the footrest
into the upper leg by
turning it clockwise.
4
2
4
2
3
Page 5
Assembly Instructions

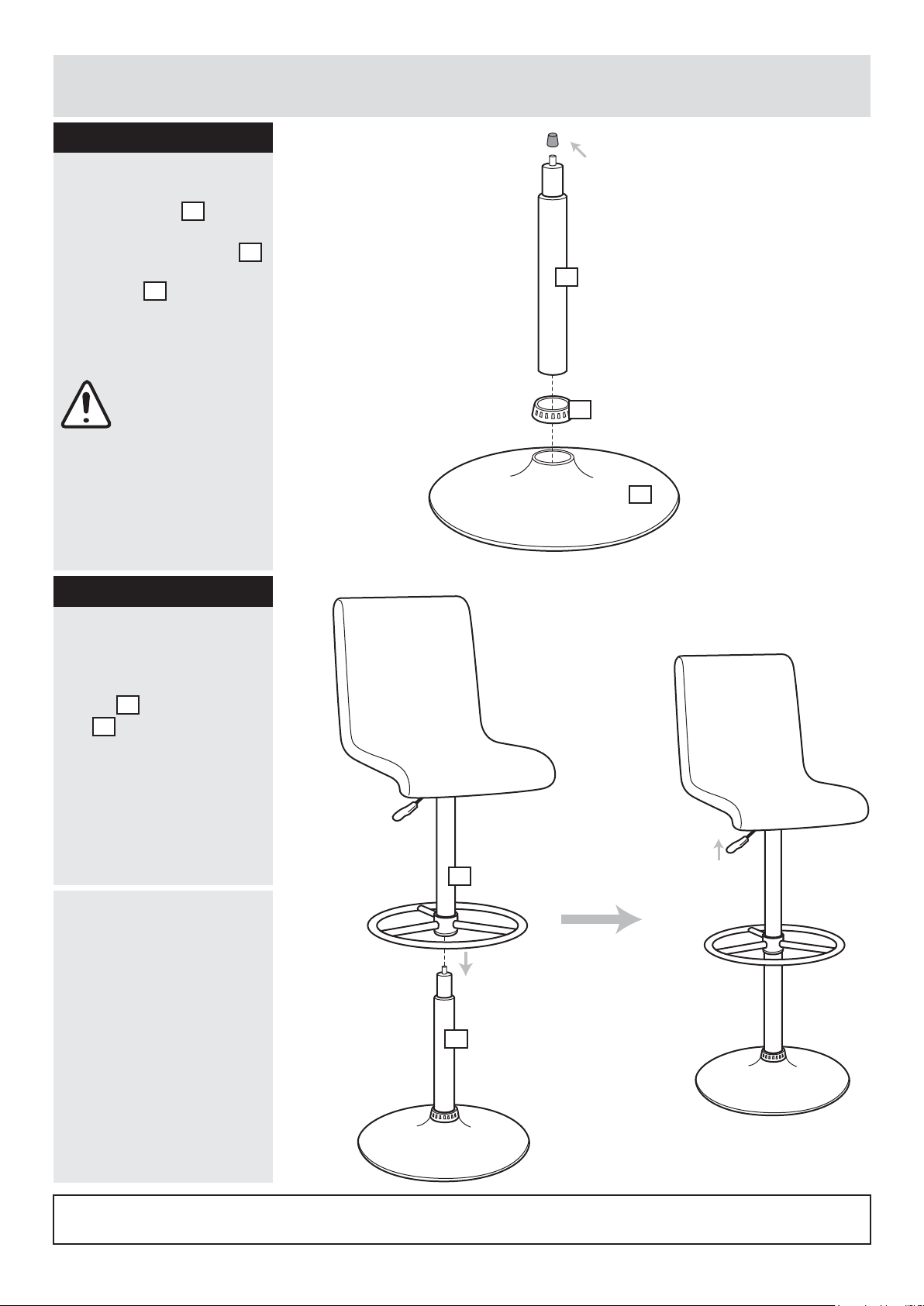

Step 3
Attaching gaslift
Place the base on a
flat protected surface.
Position the decor ring
on the base and insert
the gaslift into the
decor ring and hole of
the base.
Important:
Remove plastic tip
cover on gaslift
before
assembling.
6
5
3
Plastic tip
3
5
6
Step 4
Attaching the seat
Position the seat as
shown and insert the
gaslift into the upper
leg . Secure by
pressing down the seat
firmly.
Gaslift operation
To adjust the seat higher,
lift up the lever under the
seat and release at
desired height.
To lower the seat, lift up
the lever while seated on
the stool.
3
2
Lever
2
3
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 640 0800
4
