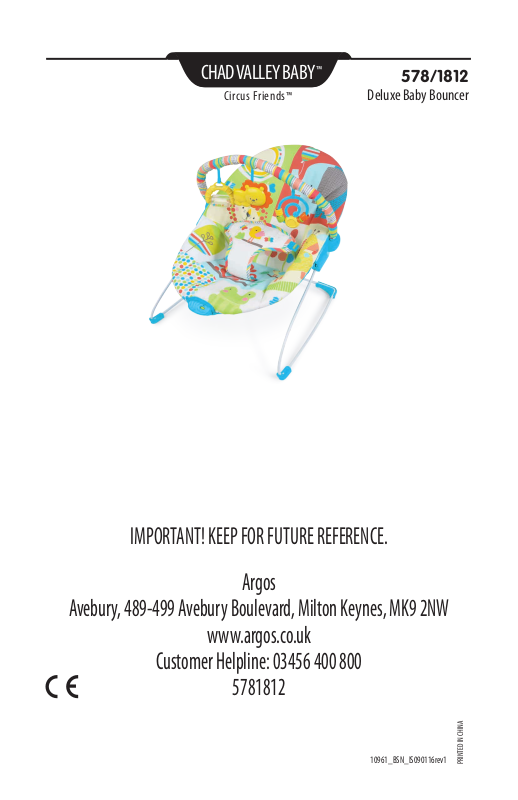

Page 1
CHAD VALLEY BABY
Circus Friends™
™
578/1812
Deluxe Baby Bouncer
IMPORTANT! KEEP FOR FUTURE REFERENCE.
Argos
Avebury, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW
www.argos.co.uk
Customer Helpline: 03456 400 800
5781812
10961_BSN_IS090116rev1
PRINTED IN CHINA
Page 2
EN
FALL HAZARD: Babies have suered skull fractures falling while in and from
bouncers when not used properly.
• Use bouncer ONLY on oor
• A child’s movement can slide the bouncer. • NEVER place the bouncer on
countertops, tables, on or near steps or on other elevated surfaces. • ALWAYS
use on the oor.
• NEVER lift or carry baby in bouncer
SUFFOCATION HAZARD: Babies have suocated when bouncers tipped over on
soft surfaces.
• NEVER use on a bed, sofa, cushion, or other soft surface.
• NEVER leave baby unattended.
To prevent falls and suocation:
• ALWAYS use restraints. Adjust to t snugly.
• STOP using bouncer when baby starts trying to sit up (approximately 5
months of age).
o ONLY use the product when the child weighs more than 3kg and less than
• This bouncer is not intended for prolonged periods of sleeping.
• NEVER lift bouncer using a toy bar as a handle.
• NEVER use as an infant carrier for automobile or airline travel.
• NEVER attach any additional strings or straps to product or toy bar
WARNING
9kg.
IMPORTANT
• Adult assembly required.
• Please read all instructions before assembly and use of the product.
• Care should be taken in unpacking and assembly.
• Examine product frequently for damaged, missing, or loose parts.
• DO NOT use if any parts are missing, damaged, or broken.
• Contact Kids II for replacement parts and instructions if needed. Never substitute parts.
• This product has not been designed for sleeping. Should your child need to
sleep, they should be placed in a suitable cot or bed.
– 2 –
Page 3
Battery Information
The Music/vibration Unit requires (1) size C/LR14 (1.5V) alkaline batteries (not included).
EN
CAUTION: Follow the battery guidelines in this section. Otherwise, battery life may be
shortened or the batteries may leak or rupture.
• Always keep batteries away from children.
• Do not mix old and new batteries.
• Do not mix alkaline, standard, or rechargeable batteries.
• Only batteries of the same or equivalent type as recommended are to be used.
• Install the batteries so that the polarity of each one matches the markings in the battery
compartment.
• Do not short-circuit the batteries.
• Do not store batteries in areas that have extreme temperatures (such as attics,
garages, or automobiles).
• Remove exhausted batteries from the battery compartment.
• Never attempt to recharge a battery unless it is specically marked “rechargeable.”
• Rechargeable batteries are to be removed from the toy before being charged.
• Rechargeable batteries are only to be charged under adult supervision.
• Do not use rechargeable alkaline batteries in a Ni-Cad or Ni-MH battery charger.
• Please use the correct disposal method for batteries.
• Remove batteries before putting the product into storage for a prolonged period of time.
• Weak batteries cause erratic product operation, including distorted sound, dimming or
failed lights, and slow or non-working motorized parts. Because each electrical component requires a dierent operating voltage, replace the batteries when any function fails
to operate.
• Do not dispose of product or batteries in re, batteries may explode or leak.
This symbol indicates that the product is not to be disposed of in household waste as
batteries contain substances that can be damaging to the environment and health.
Contact local authority for recycling & collection information.
– 3 –
Page 4
Parts List and Drawing
No. Qty. Description
1 (1)
2 (1)
3 (1)
4 (1)
5 (1)
6 (1)
7 (1)
8 (1)
9 (1)
Base frame tube
Left base frame member
Right base frame member
Left backrest tube
Right backrest tube
Footrest wire
Vibration unit
Seat pad
Toy bar with toys
not included
1x
9
+
-
1.5V
C/LR14
A
8
4
5
3
1
7
6
2
– 4 –
Page 5
1
2
3
1
2
x2
3
5
4
6
– 5 –
Page 6
4
5
6
7
– 6 –
Page 7
7
8
1x
+
-
1.5V
C/LR14
9
8
x3
– 7 –
Page 8
10
11
12
x3
– 8 –
Page 9
13
14
9
9
9
9
9
9
9
9
– 9 –
Page 10
1
2
Using the Seat Restraint
x2
– 10 –
x2
x2
Page 11
Using the Vibration Unit
Vibration ON/OFF switch
EN
OFF
OFFON
ON
Vibration calms and soothes the baby.
To use the vibration function: Slide the Vibration ON/OFF switch to the ON or OFF position.
Indicator
Care and Cleaning
S
Seat pad – Can be cleaned by sponging with warm water and a mild detergent. (Do not im-
EN
merse in water.) Never clean with abrasive, ammonia-based, bleach-based, or spirit-type cleaners. Seat pad must be dried thoroughly on a at surface before using or storing. Do not spin or
tumble dry.
Toy bar and toys – Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in
water.
Frame – Wipe the metal frame with soft, clean cloth and mild soap.
CAUTION: CARELESSNESS CAUSES FIRE. COVER(S) AND FILLING(S) HAVE BEEN TESTED TO
ENSURE COMPLIANCE WITH THE FURNITURE AND
FURNISHINGS (FIRE) (SAFETY) REGULATIONS 1988.
Storage and Travel
Release button
To disassemble the bouncer for storage:
EN
Use a small Phillips screwdriver to depress the release button on the inside of each connecting hub on
the bouncer.
Remove the footrest tube and base frame tubes from each connecting hub.
– 11 –
