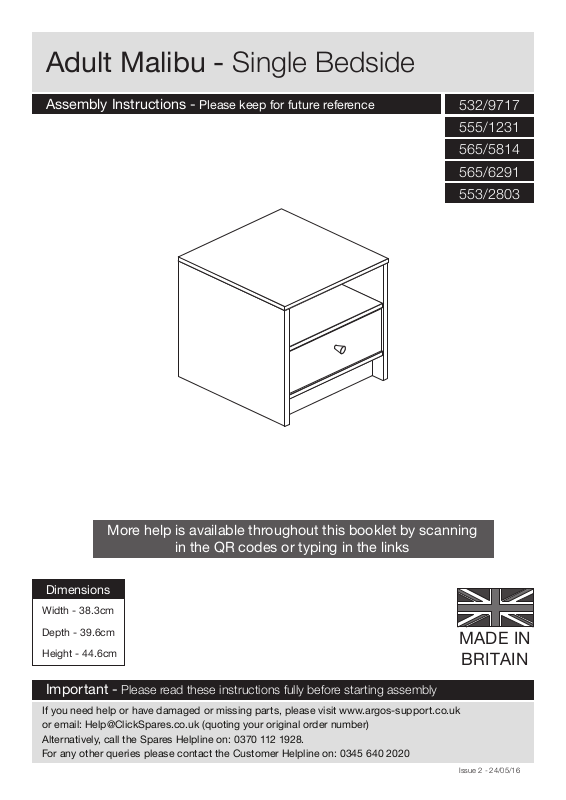

Argos 5532803 ASSEMBLY INSTRUCTIONS

Adult Malibu - Single Bedside
Assembly Instructions - Please keep for future reference
CR
532/9717
555/1231
565/5814
565/6291
553/2803
in the QR codes or typing in the links
Dimensions
Width - 38.3cm
Depth - 39.6cm
Height - 44.6cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
MADE IN
BRITAIN
Issue 2 - 24/05/16
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 10kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
Care and maintenance
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: If there is any chance of this unit being pulled over by children etc. it must be secured to a wall using suitable fixings (not supplied).
• Dispose of all packaging carefully and responsibly.
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
1
Components - Panels
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the panels listed below
When applicable, remove any protective film before use
1 2 3
Left Side
(43.1 x 39.4cm)
(DF7343)
Right Side (DF7344)
(43.1 x 39.4cm)
5 6 7
Plinth (DF6021)
(34.9 x 9.2cm)
Back Rail (DF6022)
(34.9 x 6cm)
Top (DF6020)
(38.3 x 39.6cm)
Cross Rail (DF6023)
(34.9 x 6cm)
4
Shelf (DF7345)
(34.9 x 39.2cm)
Drawer Front (DF6025)
8 9 10
(34.3 x 15.7cm)
11
Drawer Back (W300-130)
(30 x 13cm)
Left Drawer Side (W350-130LH)
(35 x 13cm)
Drawer Base (T311-347)
12
(31.1 x 34.7cm)
Right Drawer Side (W350-130RH)
(35 x 13cm)
Back (X375-350)
13
(37.5 x 35cm)
2
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
A
Quickfit dowel
(F545) x 14
D E
19mm
Screw (F461) x 1
G
Wooden dowel (F22) x 16
J
Nail (F51) x 12
350mm long
a
L
CL
CL Runner
(F422) x 1
B
Large locking cam nut (F607) x 14
Wedgefix (F639) x 2
H
9mm Screw (F73) x 6
K
Handle
(F418) x 1
C
Knock-in Peg
F
13mm Screw
I
Plastic Nail
(F91) x 4
(F171GY) x 4
(F63) x 6
b
L
CR
CR Runner (F424) x 1
c
L
DL
DL Runner (F425) x 1
d
L
DR Runner
(F426) x 1
DR
Tools required
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
3

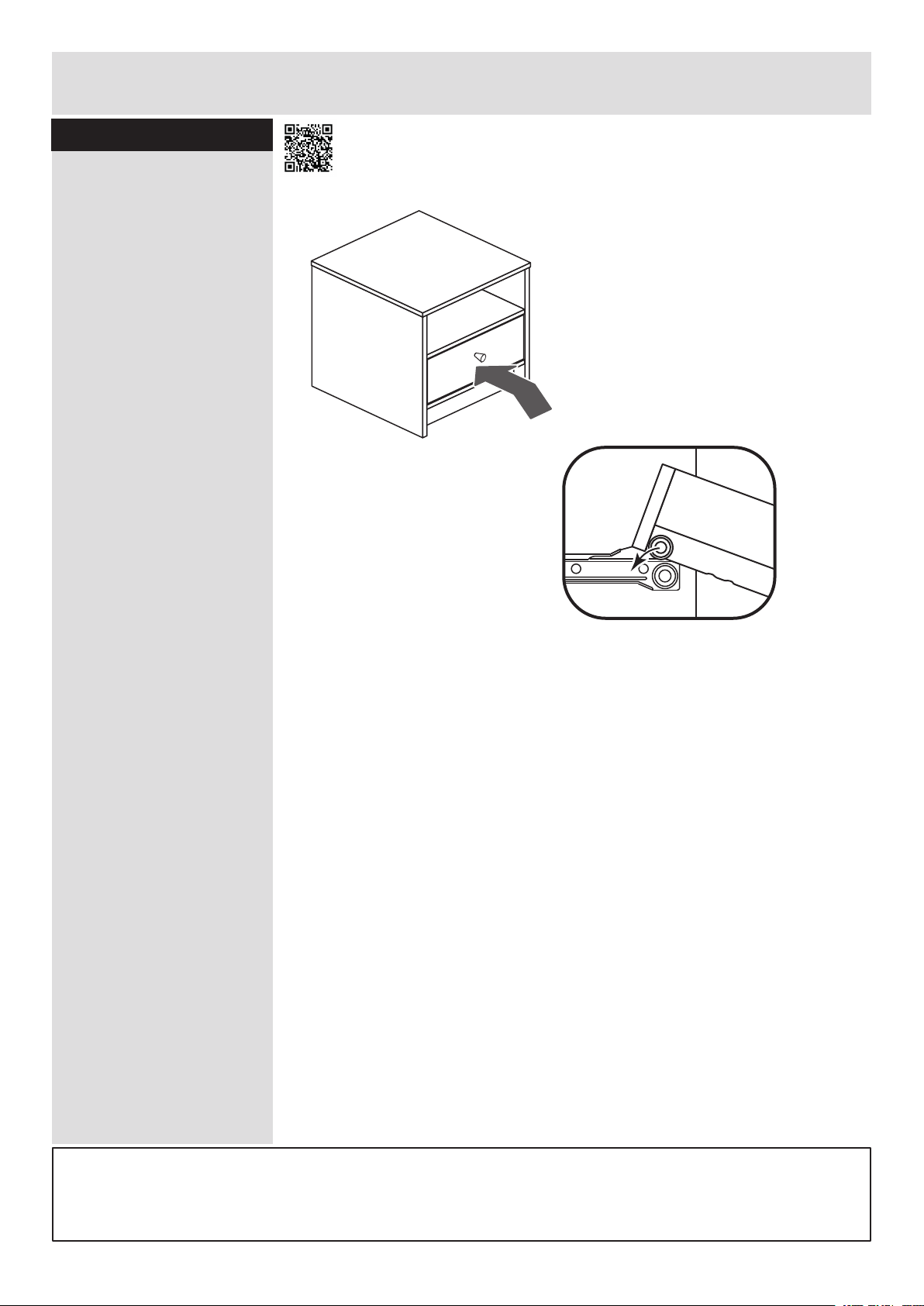

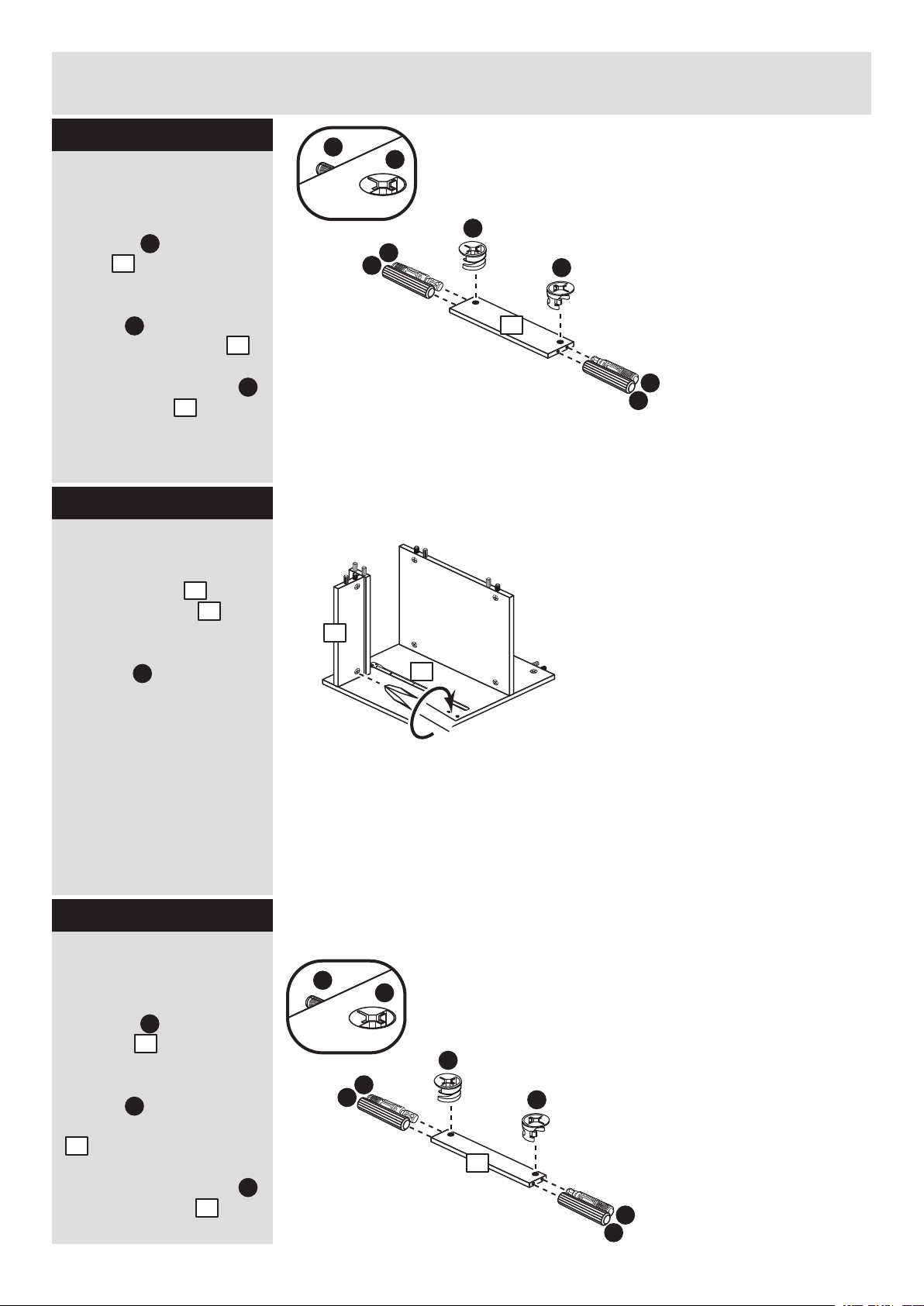

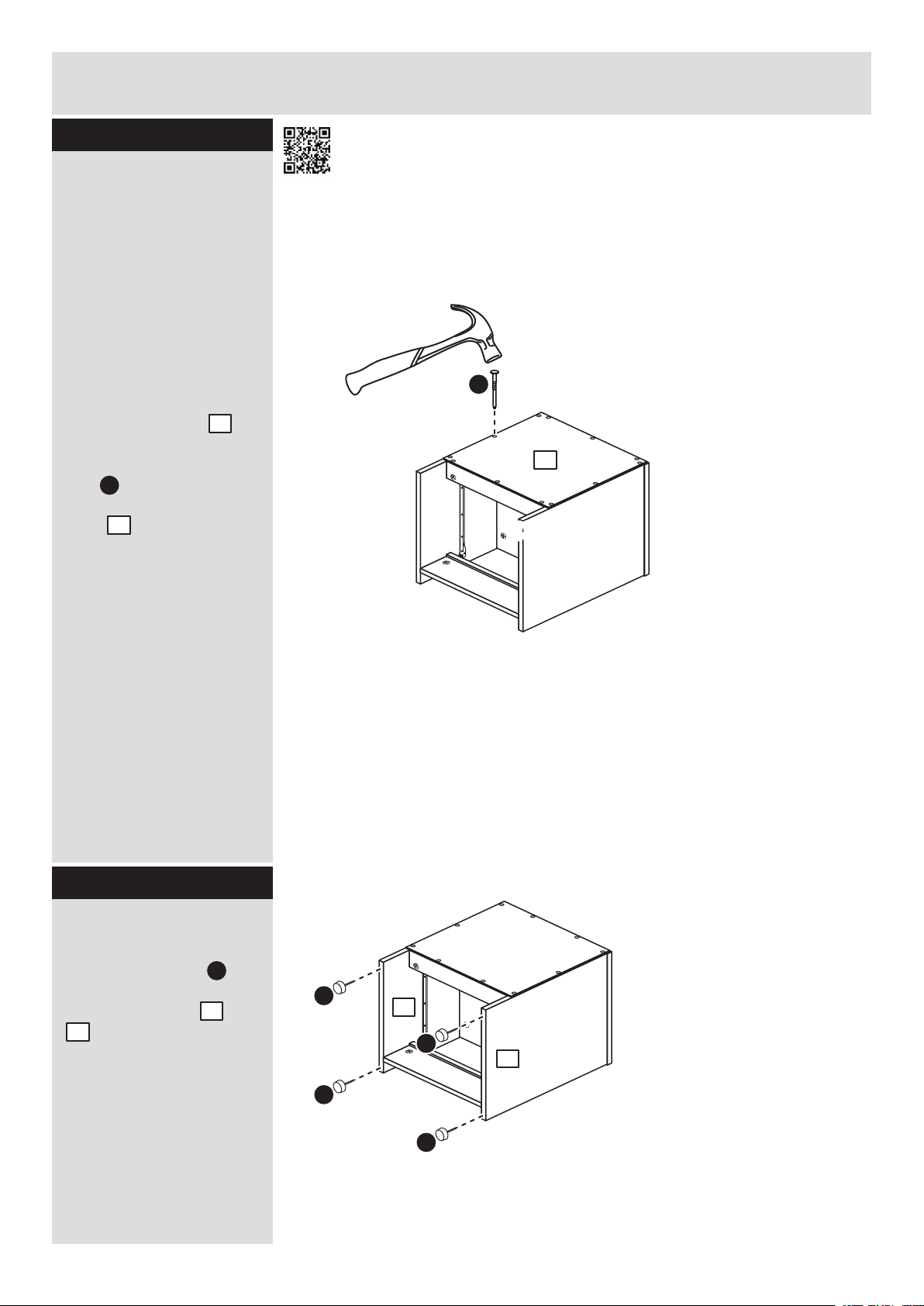

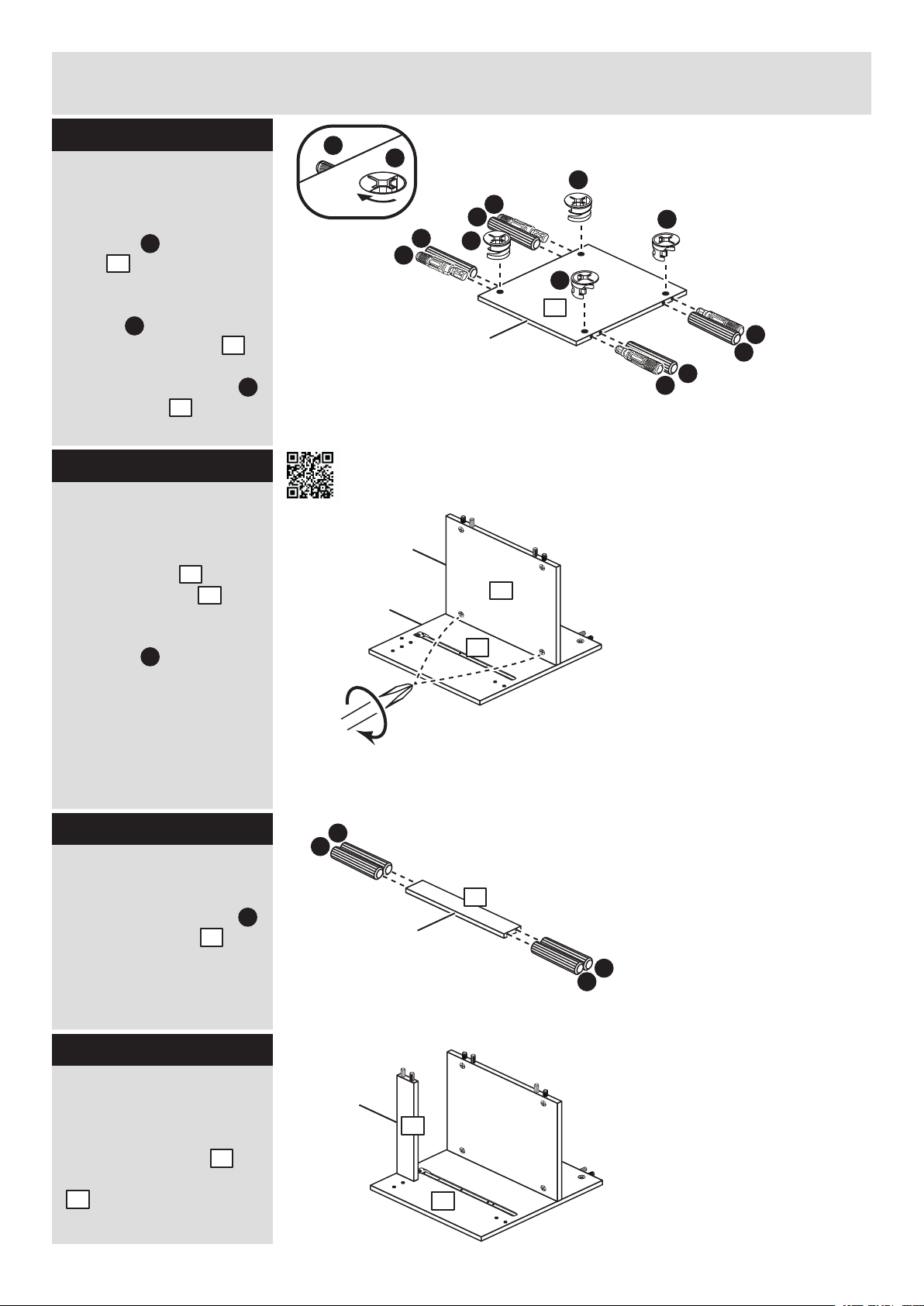

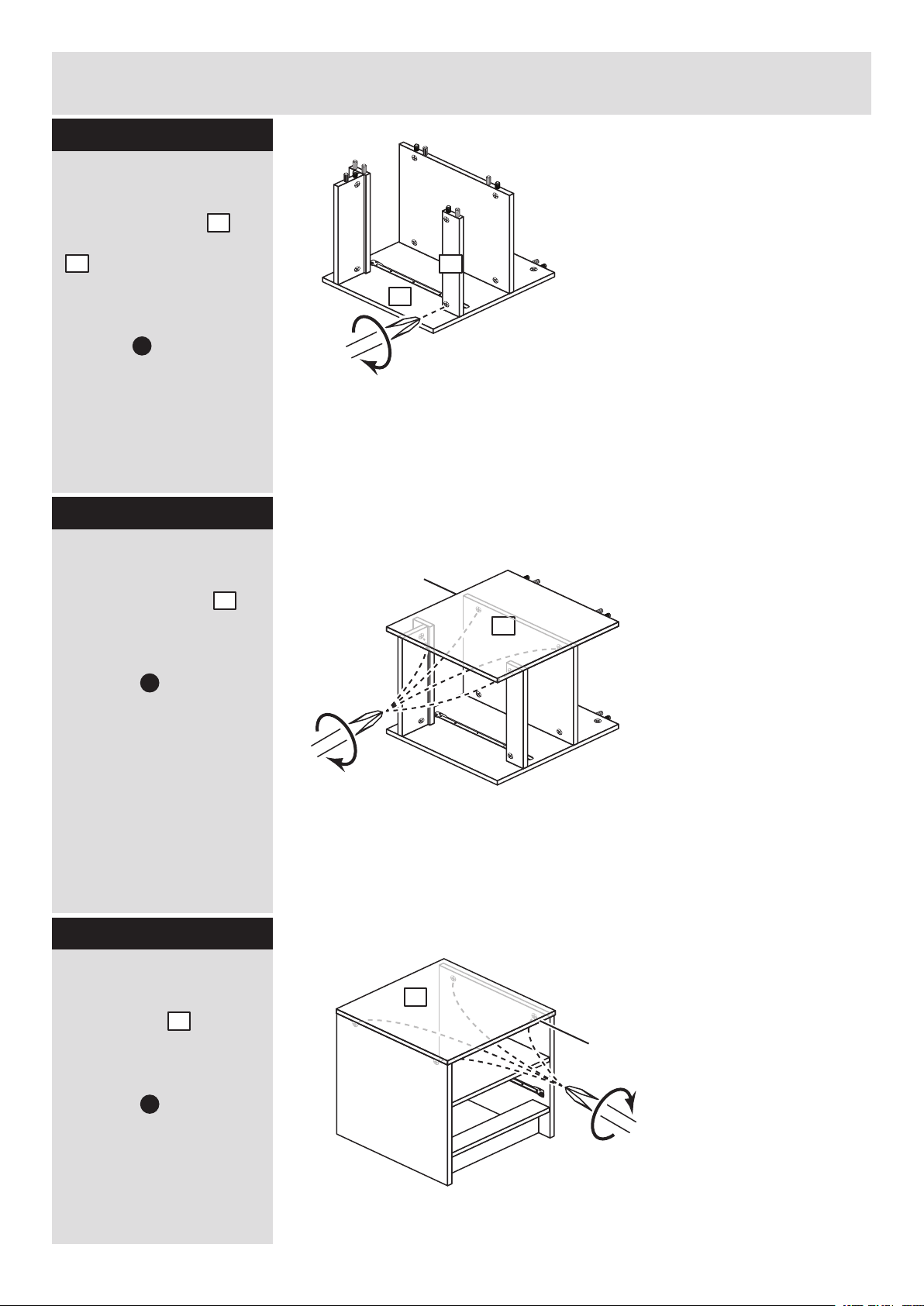

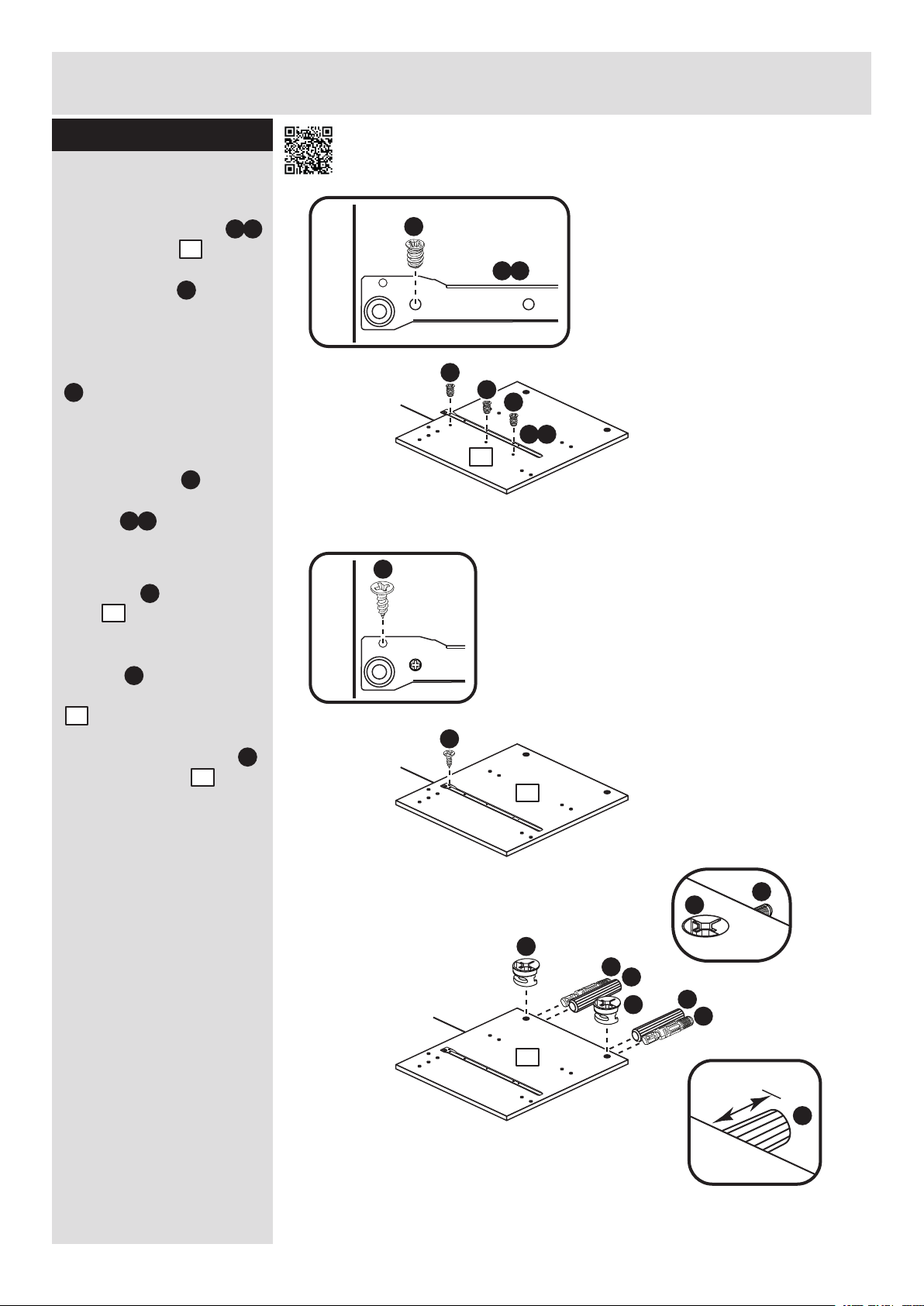

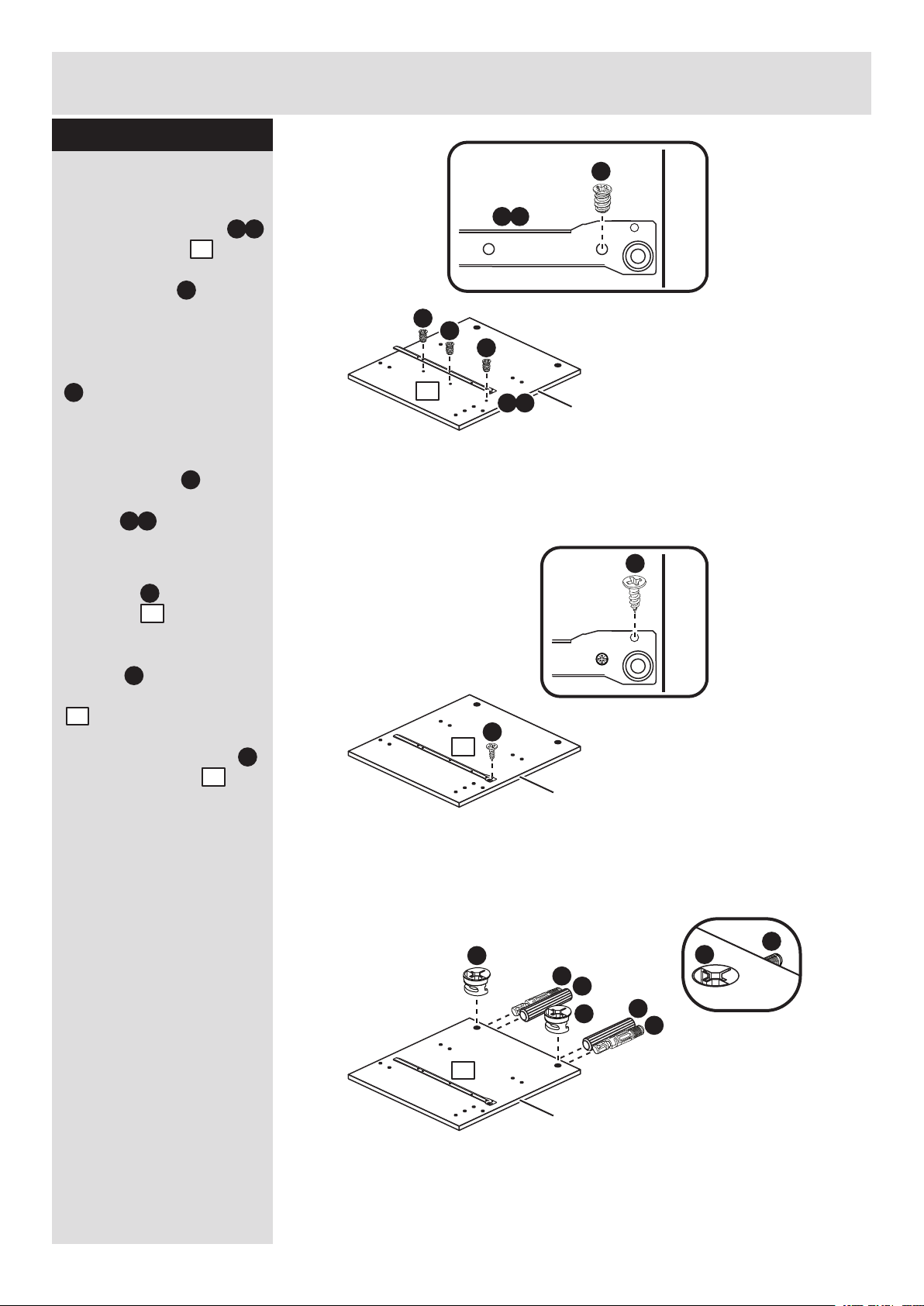

Assembly Instructions
Step 1
Prepare the drawer sides
a: Insert a large locking
cam nut into the left drawer side . and the right drawer side .
Note: The arrow on the locking cam nut must point towards the hole in the end of the panel.
B
9
10
a:
B
b:
B
9
B
10
b: Push 1 of the quickfit
dowels as far as it will go into the left drawer side and the right drawer side .
Note: Only the plastic thread of the quickfit dowel sticks out from the panel.
A
9
10

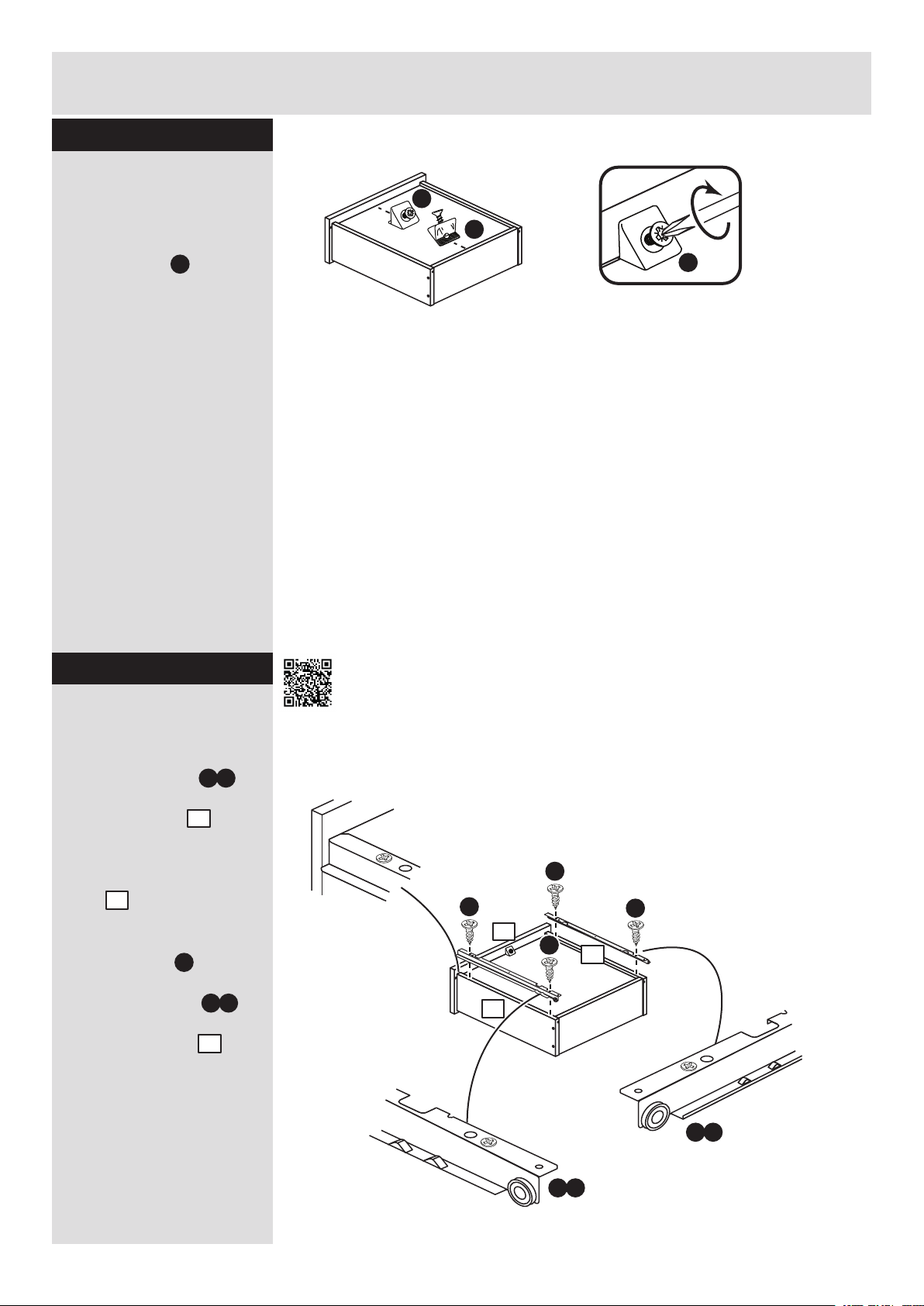

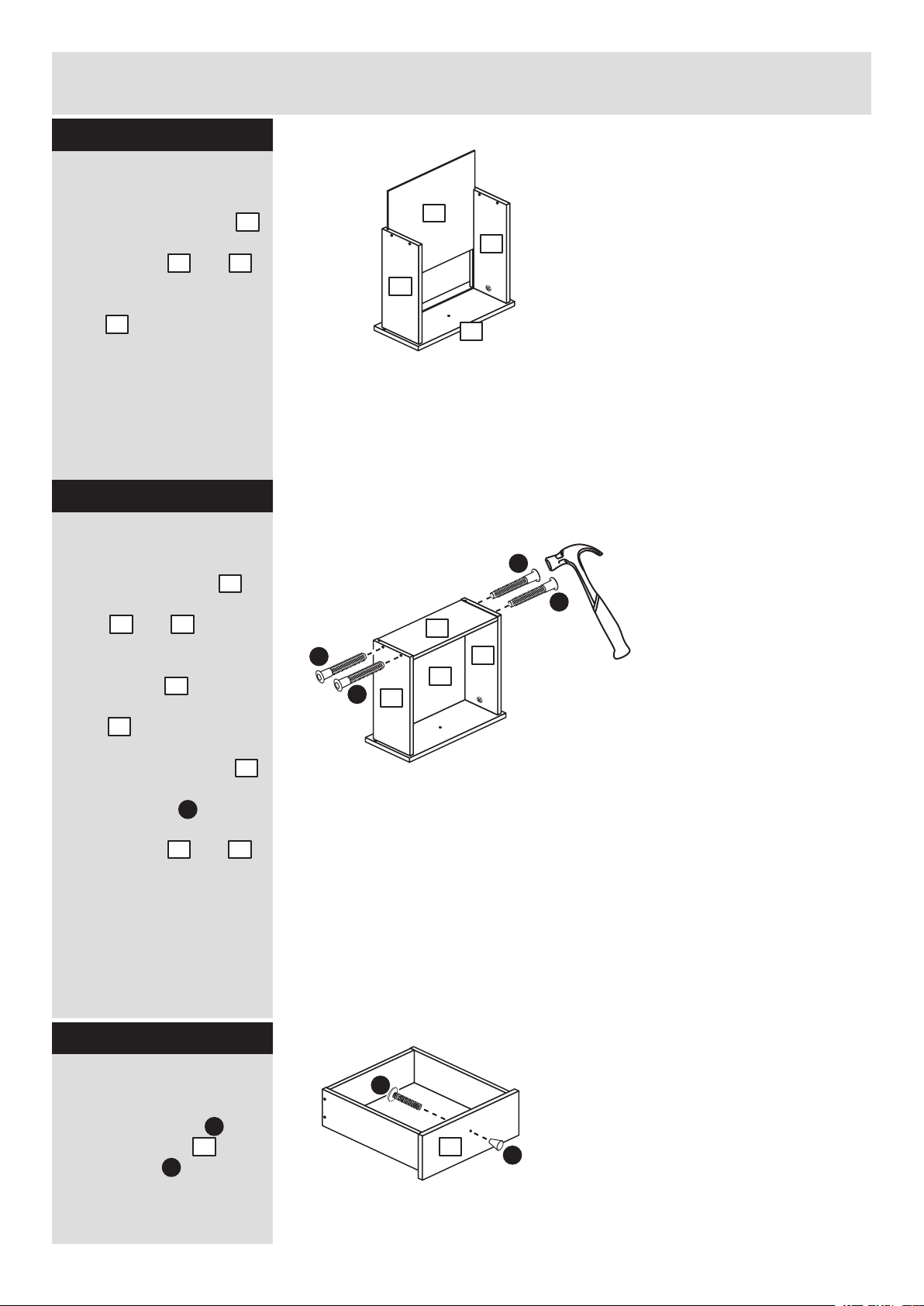

Step 2
Fit the drawer sides to the drawer front
9
A
B
A
10
A
Push the left drawer side . and right drawer side
9
. down onto the back
10
of the drawer front .
8
Turn the large locking cam nuts clockwise
B
as far as they will go to secure the panels.
Important: Make sure there is no gap between the fitted panels.
10
A
9
8
B
4
