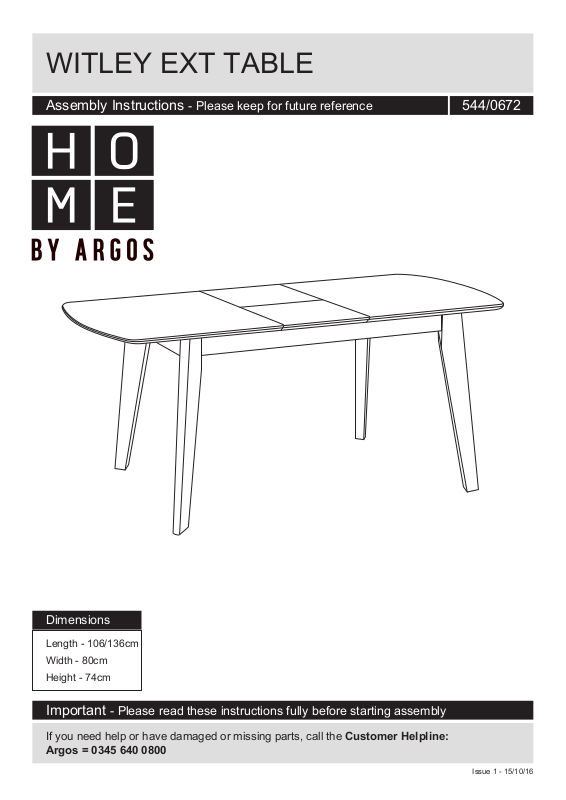

Page 1
WITLEY EXT TABLE
Assembly Instructions - Please keep for future reference
544/0672
Dimensions
Length - 106/136cm
Width - 80cm
Height - 74cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 1 - 15/10/16
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• During assembly do not stand
or put weight on the product, this
could cause damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Do not stand on the product.
• Always lift the product when
moving it around. Never drag.
• Please note wood is a natural
material, some slightly colour
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Unit weight: 22 kgs.
and grain variation and natural
marks will be present.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the
bolts.
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
1
Page 3
If you have damaged or missing components, call the

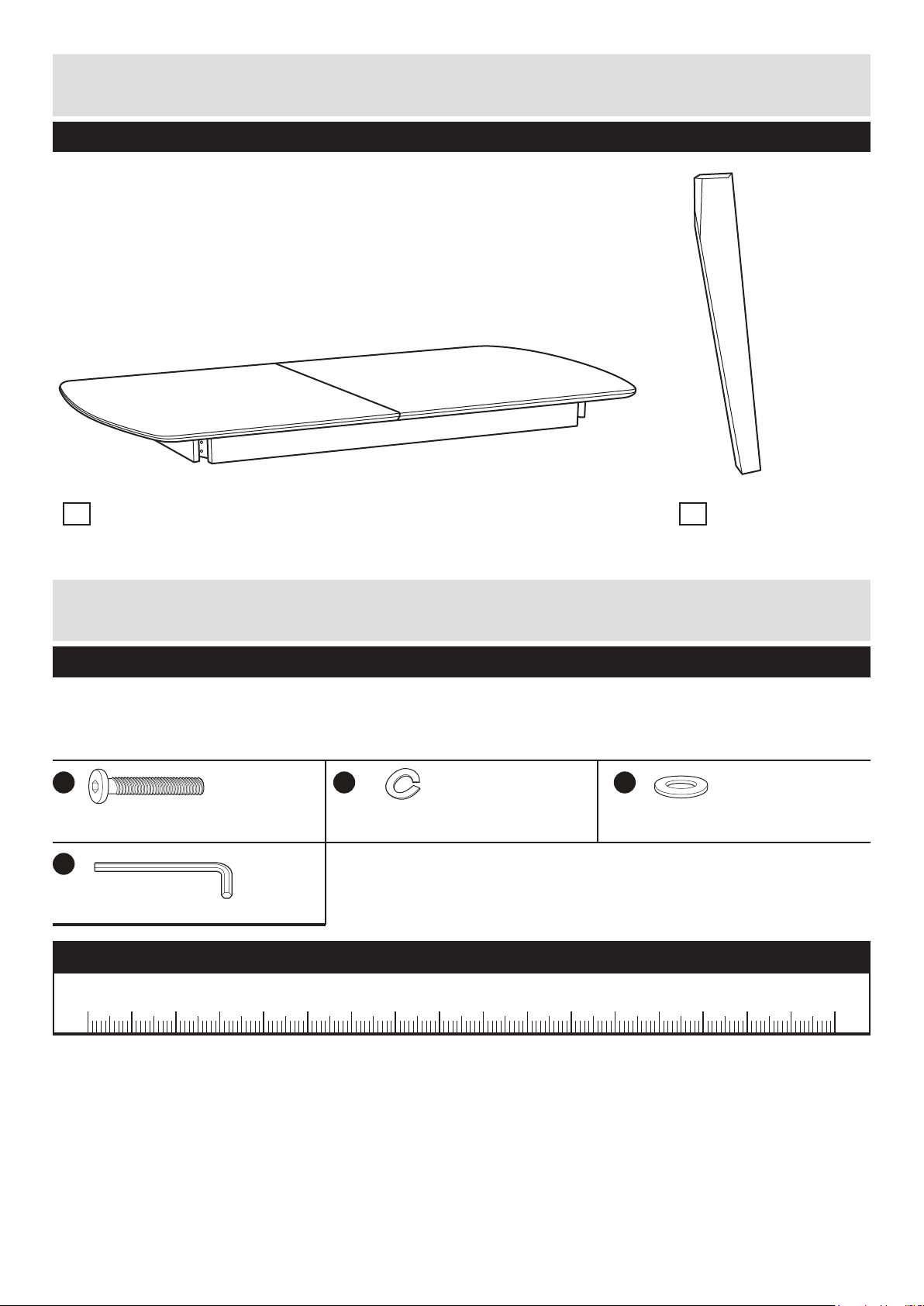

Components - Parts
Customer Helpline: Argos = 0345 640 0800
Please check you have all the parts listed below
1 Leg x 4
Table top
(106/136 x 80 x 11cm)
2
(3.5 x 6.5 x 73cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
M8 x 70mm Bolt x 8
D
Allen key x 1
Ruler - Use this ruler to help correctly identify the screws
B
Spring washer x 8
C
Washer x 8
0 15 30 45 60 75 905 20 35 50 65 80 9510 25 40 55 70 85 100 120 140105 125 145110 130 150115 135 155 160 165 170
2
Page 4
Assembly Instructions

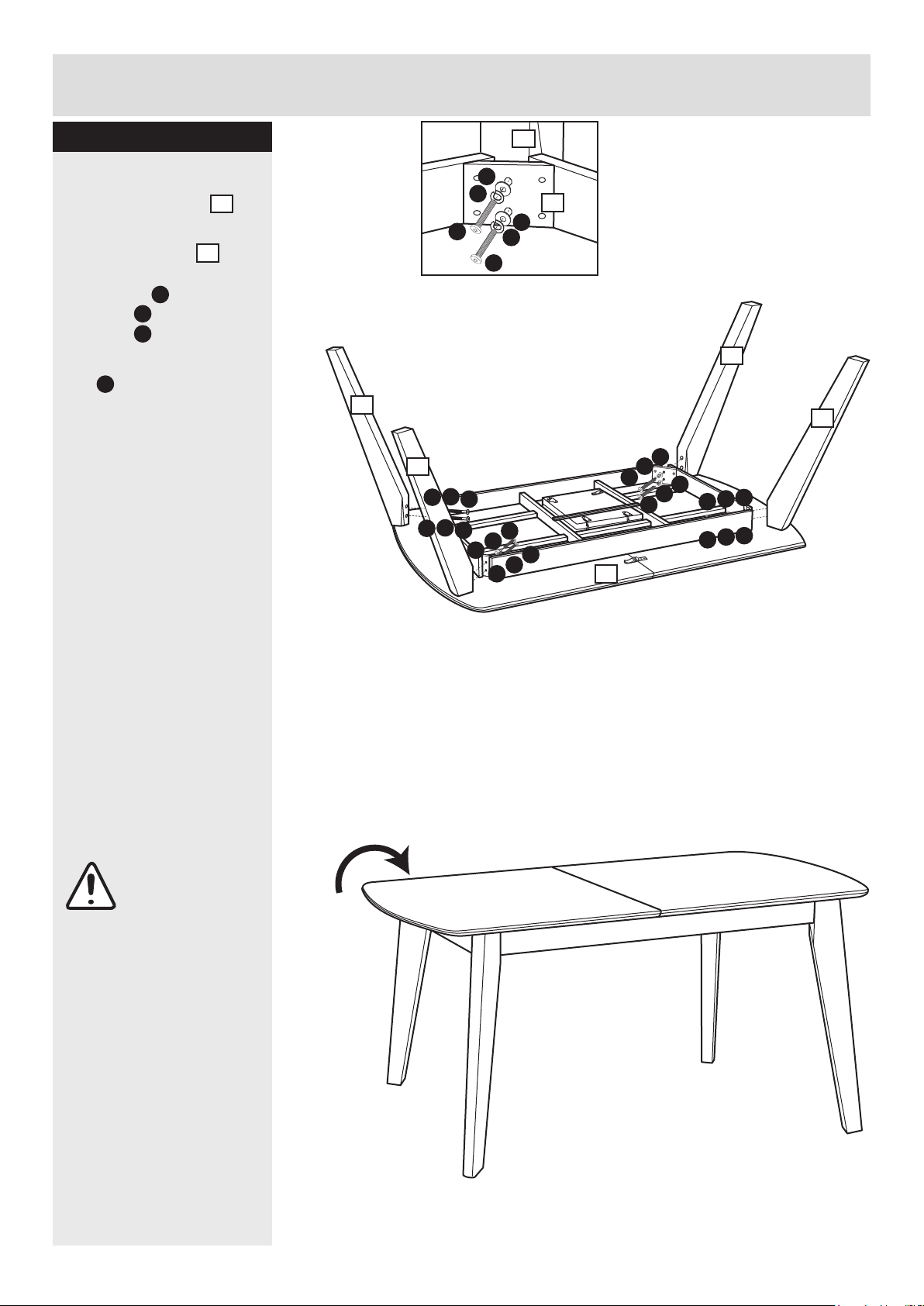

Step 1
Attaching legs
Place the table top on
a flat protected surface.
Position the legs on
the table top and fix
using bolts , spring
washers & flat
washers as shown.
A
B
C
Tighten bolts using allen
D
key .
1
2
2
C
B
A
A
2
2
B
C
A
B
C
A
B
C
C
1
C
B
2
2
C
B
A
A
A
B
1
C
B
A
C
B
A
C
B
A
Carefully turn over the
table and place on a firm
surface.
Important:
This table is
heavy. At least 2
people are
required to lift this
table.
Assembly is complete.
Carefully turn
over unit.
3
Page 5

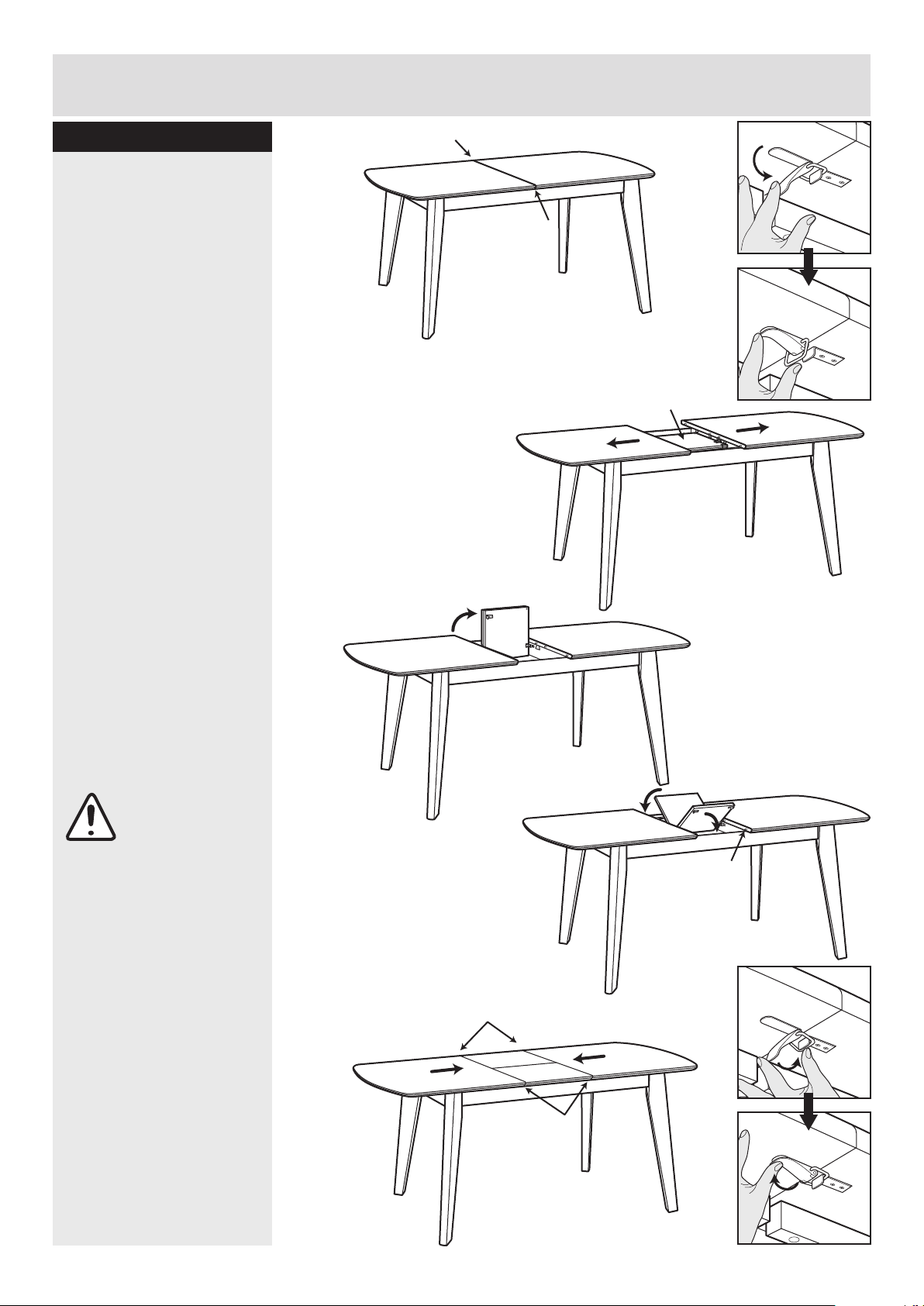

Operation Instructions
Step 1
Extending table top
a: Release the 2 locks
under the table top.
b: With two persons on
each end of the table,
carefully pull out the
table top as shown.
c: Pull out the middle
extension top as shown.
d: Open up the middle
extension top.
e: Push the table top
back in.
a:
lock
unlock
lock
middle extension top
b:
Firmly close the gaps by
aligning and inserting the
dowels with the holes on
the edge of the table
tops.
Fasten the 4 locks under
the table top.
Warning:
Keep hands away
from gaps when
adjusting table
tops.
c:
e:
d:
locks
dowels
lock
locks
4

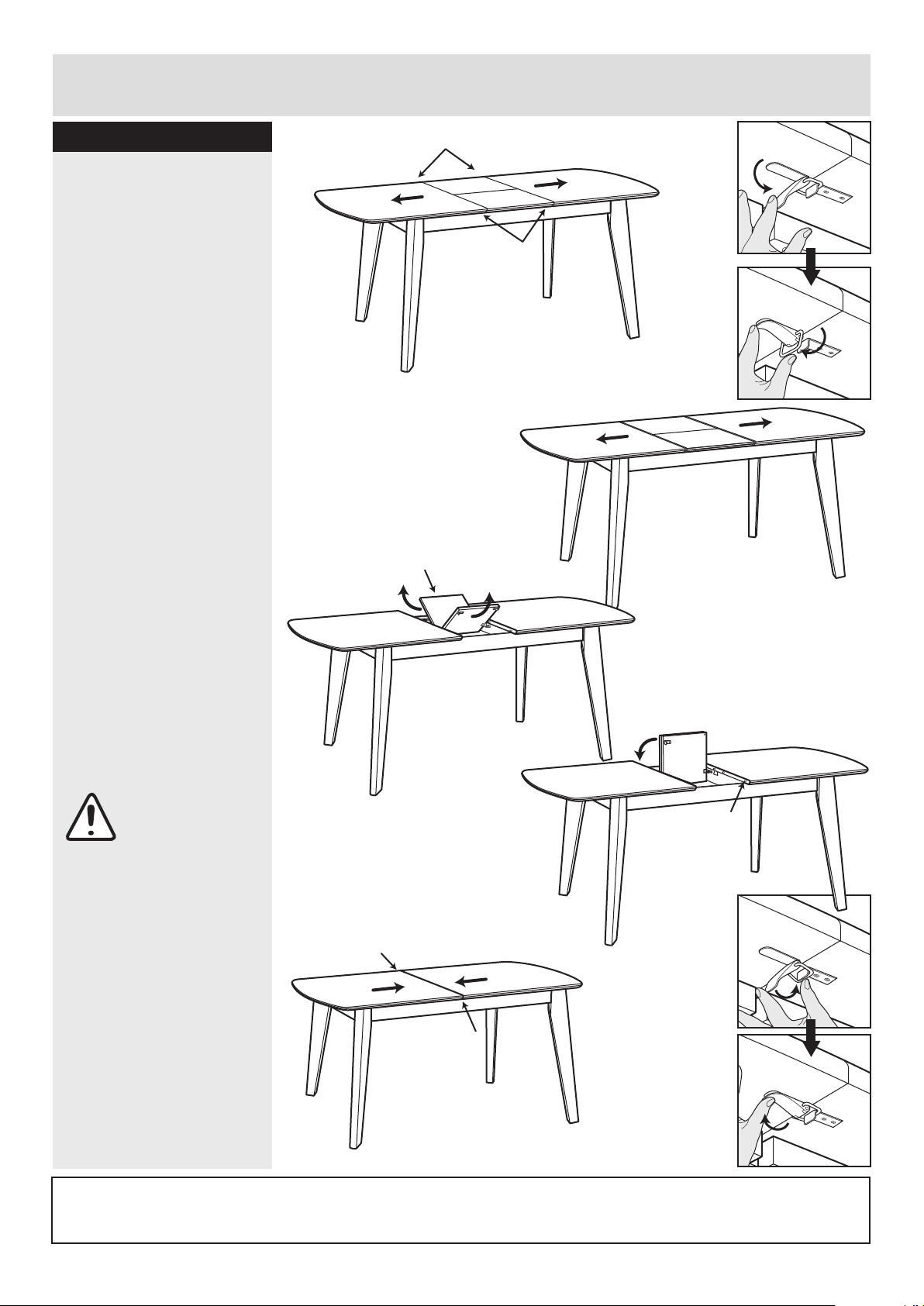

Page 6
Operation Instructions
Step 2
Retracting table top
a: Release the 4 locks
under the table top.
b: With two persons on
each end of the table,
carefully pull out the
table top as shown.
c: Pull up the middle
extension top as shown.
d: Fold down the middle
extension top.
e: Push the table top
back in.
locks
a:
c:
middle extension top
unlock
locks
b:
Firmly close the gaps by
aligning and inserting the
dowels with the holes on
the edge of the table
tops.
Fasten the 2 locks under
the table top.
Warning:
Keep hands away
from gaps when
adjusting table
tops.
e:
d:
dowels
lock
lock
lock
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
5
