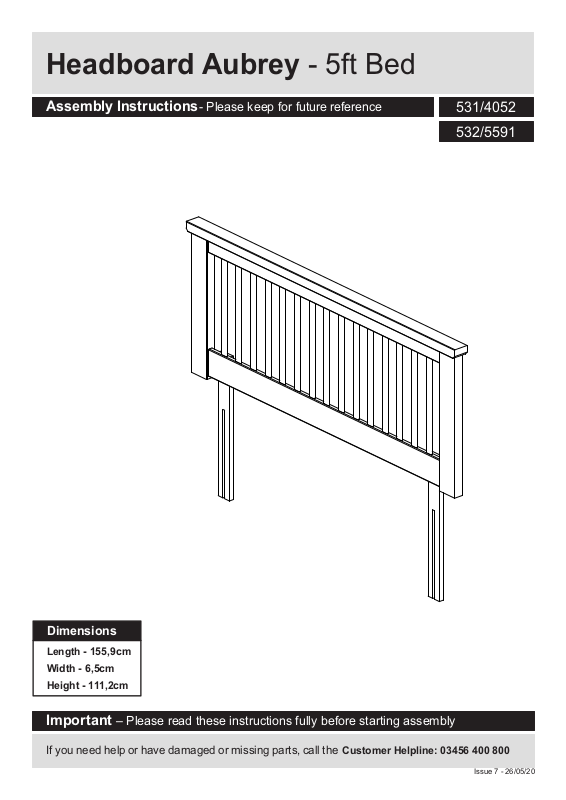

Headboard Aubrey - 5ft Bed
Assembly Instructions- Please keep for future reference
531/4052
532/5591
Dimensions
Length - 155,9cm
Width - 6,5cm
Height - 111,2cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, ca l l t h e Customer Helpline: 03456 400 800
Issue 7 - 26/05/20
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
.
Check you have all the
components and tools listed on
pages 2 and 3.
.
Remove all fittings from the
plastic bags and separate them
into their groups.
.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
.
Make sure you have enough
space to layout the parts before
starting.
.
Do not stand or put weight on
the product, this could cause
damage.
.
Assemble the item as close
to its final position (in the same
room) as possible.
.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
. This product contain natural
timber. You may notice some
variation in the grain and
colour of different component
parts which is normal for
furniture produced using
natural wood and is not the
result of any manufacturing
fault.
.
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
.
Parts of the assembly will be
easier with 2 people.
.
Dispose of all packaging
carefully and responsibly.
We do not
care and maintenance
.
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
1
.
From time to time check
that there are no loose
screws on this unit.
.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Page 3
Components - Panels
Please check you have all the panels listed below
Headboard (155,9 x 63,0cm)
01
Support (60 x 6,5cm)
02
2
Page 4
If you have damaged or missing components,
Components - Fittings
call theCustomer Helpline: 03456 400 800
Please check you have all the fittings listed below
Note:The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
Bolt 7x35mm x 04
B
Allen Key x 01
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler- Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
3
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
m
2
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Page 5
Assembly Instructions
Step 1
Fixing Supports
Fix support to
headboard using
bolts and allen Key ,
A
02
01
as shown.
B
01
02
02
A
A
B
Assemble is complete!
