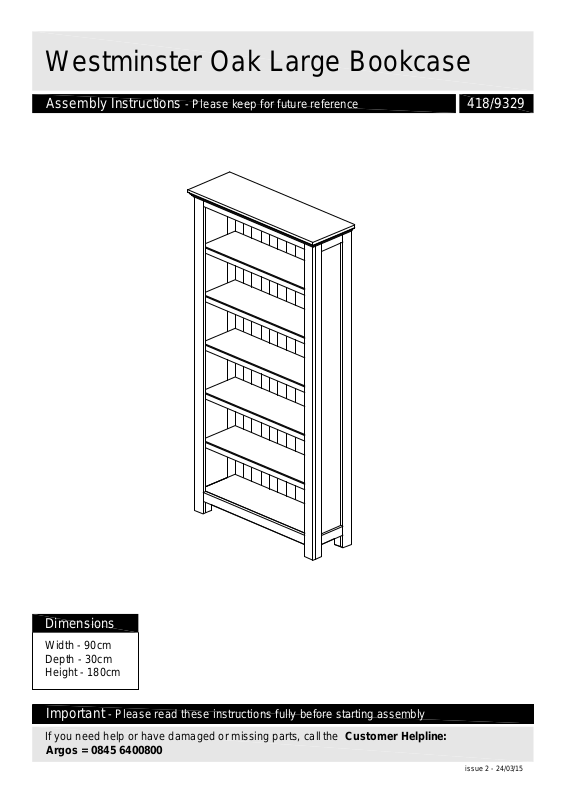

Westminster Oak Large Bookcase
Assembly Instructions - Please keep for future reference
418/9329
Dimensions
Width - 90cm
Depth - 30cm
Height - 180cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0845 6400800
issue 2 - 24/03/15
!
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
the following pages.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
During assembly do not stand
or put weight on the product,
this could cause damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
From time to time check that
there are no loose screws on
this unit.
To redure
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts.
Regularly check and ensure
that all bolts and fittings are
tightened properly.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
If you have damaged or missing components, call the
Components - Panels
Please check you have all the panels listed below
Customer Helpline: Argos = 0845 6400800
1
Large Bookcase (90x30x180 cm)
2
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
Wall strap x 1
Tools required
0
Ruler/tape
150140130120110100908070605040302010
measure
B
Ø12x1mm Washer x 1
C
Ø3.5x15 mm Screw x 1
Philips screwdriver
(medium & large)
Ruler - Use this ruler to help correctly identify the screws
The screws length is measured from the head to the point (15 mm screw shown).
3
17016015014013012011010090807060504030201005 15 25 35 45 55 65 75 85 95 105 115 125 135 145 155 165
Assembly Instructions
Step 1
Fixing to wall.
It is recommended that
the unit is fixed to a wall.
Mark fixing hole on wall,
making sure there is
enough space to the left
and right of the wall strap
for the unit.
Fasten wall strap to the
wall using a suitable wall
screw/plug system.
Warning:
!
Before drilling,
check wall for
hidden pipes
and cables.
A
A
!
!
Note: The correct type of wall
screws must be used for your
wall. Please seek professional
advice if in doubt.
178 cm
Step 2
Fixing to unit.
With the help of another
person move the unit into
position.
Place the wall strap on the
top of the unit.
Fasten the wall strap to
the unit with screw and
washer .
B
C
C
B
A
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0845 6400800
