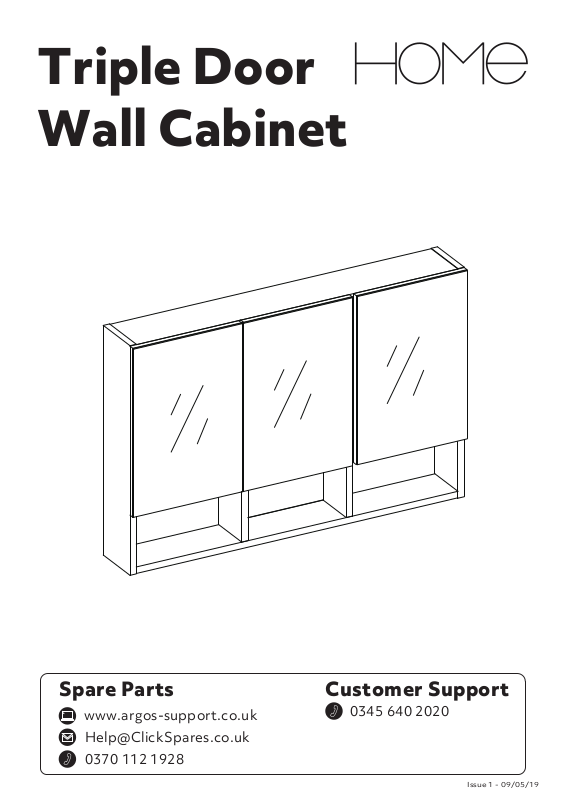

Page 1
Triple Door
Wall Cabinet
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 09/05/19
Page 2
Safety and Care Advice
Product Details
502/5509
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
• This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
room) as possible.
Assemble on a soft level
surface to avoid damaging the
• From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
WARNING
Do not place very hot or very cold items directly on glass surfaces.
Do not sit or stand on glass surfaces.
Do not strike the glass with hard or pointed items, or use the glass as a chopping surface
Do not use washing powders or any other substances containing abrasives, as these may scratch
the glass.
2
Page 3
Fittings
A
Metal Dowel x 14
D
Pin x 2
G
35mm Screw x 4
J
Screw Cap x 4
B
Locking Nut x 18
E F
Metal Support x 12
H I
45mm Screw x 4
K
Cam Cap x 18
C
8x30mm Wooden Dowel x 6
8x50mm Wooden Dowel x 4
14mm Screw x 36
L
Wall plug x 4
Hardware
M
Hinge × 6
3
Page 4
Tools required
Phillips screwdriver
(small & medium)
Phillips screwdriver
(small & medium)
Large hammer
Pencil
Drill Heads
Spirit Level
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Power Drill
Ladder
4
Page 5
Panels
Door panel ×3
3
(390 x 265mm)
Side adjustable shelf ×2
5
(250 x 97mm)
Middle adjustable shelf
6
(233 x 97mm)
1
Top panel
(770 x 115mm)
8
Left side panel
(530 x 115mm)
2
Bottom panel
(770 x 115mm)
9
Right side panel
(530x 115mm)
4
Side fixed panel ×2
(252 x 115mm)
10
Left clapboard
(498 x 115mm)
7
Middle fixed panel
(235 x 115mm)
11
Right clapboard
(498x 115mm)
Upper side
back panel ×2
(357 x 260mm)
Upper middle
1312
back panel
(357 x243mm)
Lower side
14
back panel x 2
(260 x 142mm)
15
Lower middle
back panel
(243x 142mm)
5
Page 6
1
A
A
A
Metal Dowel x 14
D
D
Pin x 2
G
G
35mm Screw x 4
J
J
Screw Cap x 4
Locking Nut x 18B8x30mm Wooden Dowel x 6
E F
Metal Support x 12
H I
45mm Screw x 4
K
Cam Cap x 18
C
8x50mm Wooden Dowel x 4
14mm Screw x 36
L
Wall plug x 4
A
A
A
Metal Dowel x 14
Metal Dowel x 14
9
A
1
2
8
B
Locking Nut x 2
10
D
Pin x 2
7
F
8x50mm Wooden Dowel x 4
11
D
F
D
B
F
a b
c
B
6
Page 7
3
B
Locking Nut x 2
11
10
4
B
4
B
4
A
11
15
10
13
Turn
Product
7
Page 8
C
G
5
8x30mm Wooden Dowel x 2
10
Turn
Product
35mm Screw x 4
11
4
4
C
C
2
G
G
6
Locking Nut x 4
1
B
11
B
10
Turn
Product
8
Page 9
7
1
Turn
Product
B
12
10
11
2
14
C
8
Locking Nut x 5
8
8x30mm Wooden Dowel x 2
1
B
C
2
C
B
Turn
Product
9
Page 10
9
1
8
2
B
C
12
14
10
8
Locking Nut x 5
8x30mm Wooden Dowel x 2
B
C
B
9
10
Page 11
J
K
11
Screw Cap x 4
Cam Cap x 18
G
12
M
Hinge x 6
B
K
I
14mm Screw x 12
I
J
Repeat
x3
M
3
11
Page 12
I
13
Turn
Product
I
3
I
14mm Screw x 24
I
I
I
a
M
I
I
3
3
b
M
c
OR
3
M
d
I
I
I
I
I
3
3
I
I
12
Page 13
14
Solid wall
15
Solid wall
WARNING!
L
Wall Plug x 4
16
Solid wall
L
L
13

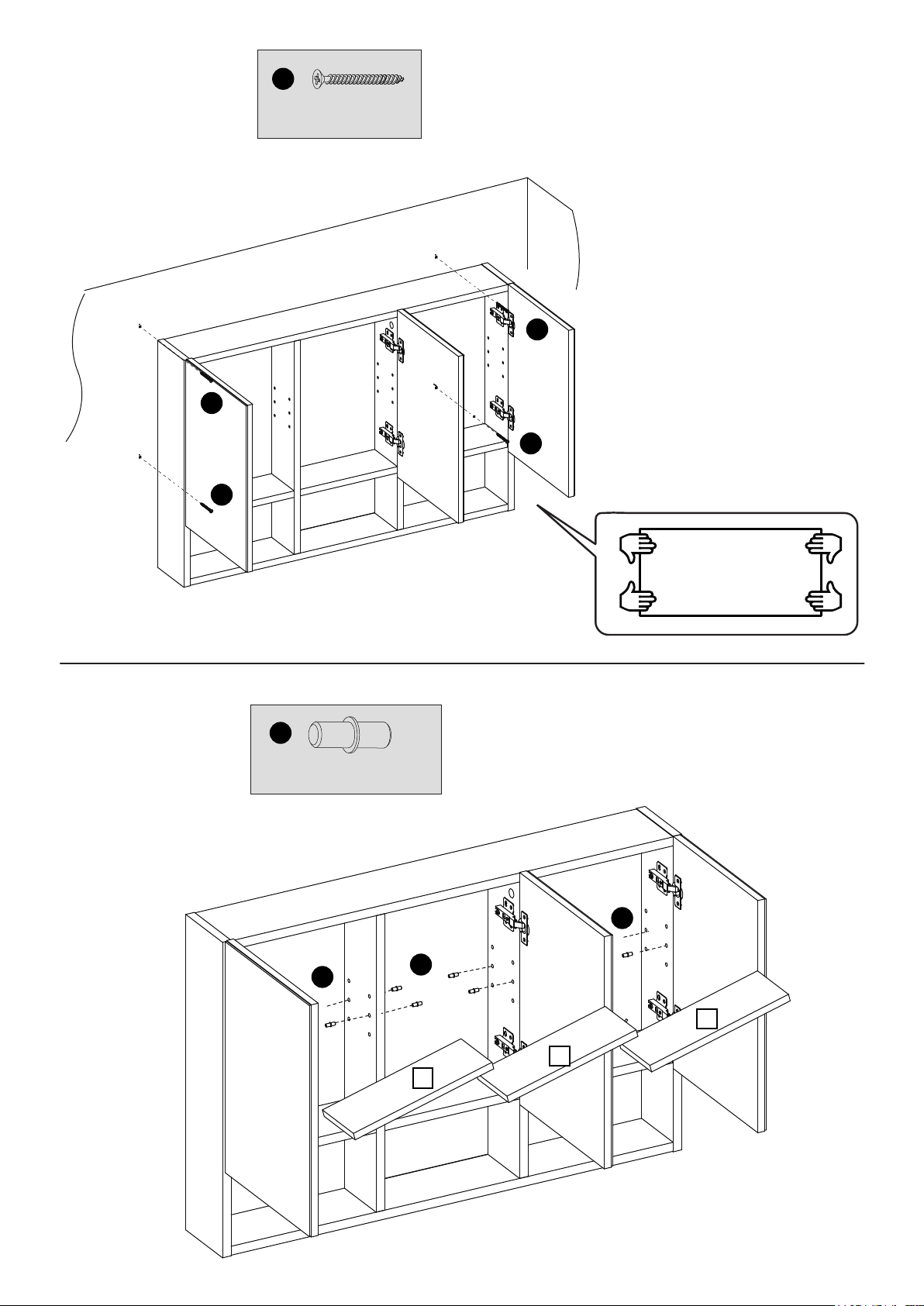

Page 14
17
H
H
H
45mm Screw x 4
H
H
18
E
Metal Support x 12
E
E
E
5
6
5
14
Page 15
A Guide to Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
15
