Aspley -
3FT Bed
Assembly Instructions - Please keep for future reference
498/9622
490/9664
Dimensions
Width - 101cm
Depth - 202.5cm
Height - 102cm
Important –Please read these instructions fully before starting assembly
Customer Helpline:03456400800
If you need help or have damaged or missing parts, ca
ll th
e
Issue 1 - 20/11/15
Safety and Care Advice
Important –Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
The product has been treated
with a wax and oil finish to
prevent dirt ingress and preserve
moisture.
On unpacking the
furniture you may notice an
odour due to this treatment;
this will disappear once the
furniture is unpacked and
assembled after a period of time.
This process may leave some
staining on the packaging
material; please take care to
ensure this does not transfer
to clothing or carpeted surfaces
during assembly.
We do not
recommend the
use of power
drill/driversfor
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Care and maintenance
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
From time to time check
that there are no loose
screws on this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note:If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Components - Panels
Please check you have all the panels listed below
Headboard
1
Footboard
2
Side rail x 2
3
Slats x 12
4
(100.0 x 98.9cm)
(34.0 x 98.9cm)
(190.0 x 11.0cm)
(91.0 x 7.0cm)
Headboard top rail
5
Footboard top rail
6
(
101.0 x 6.8cm)
(
101.0 x 6.8cm)
2
If you have damaged or missing components,

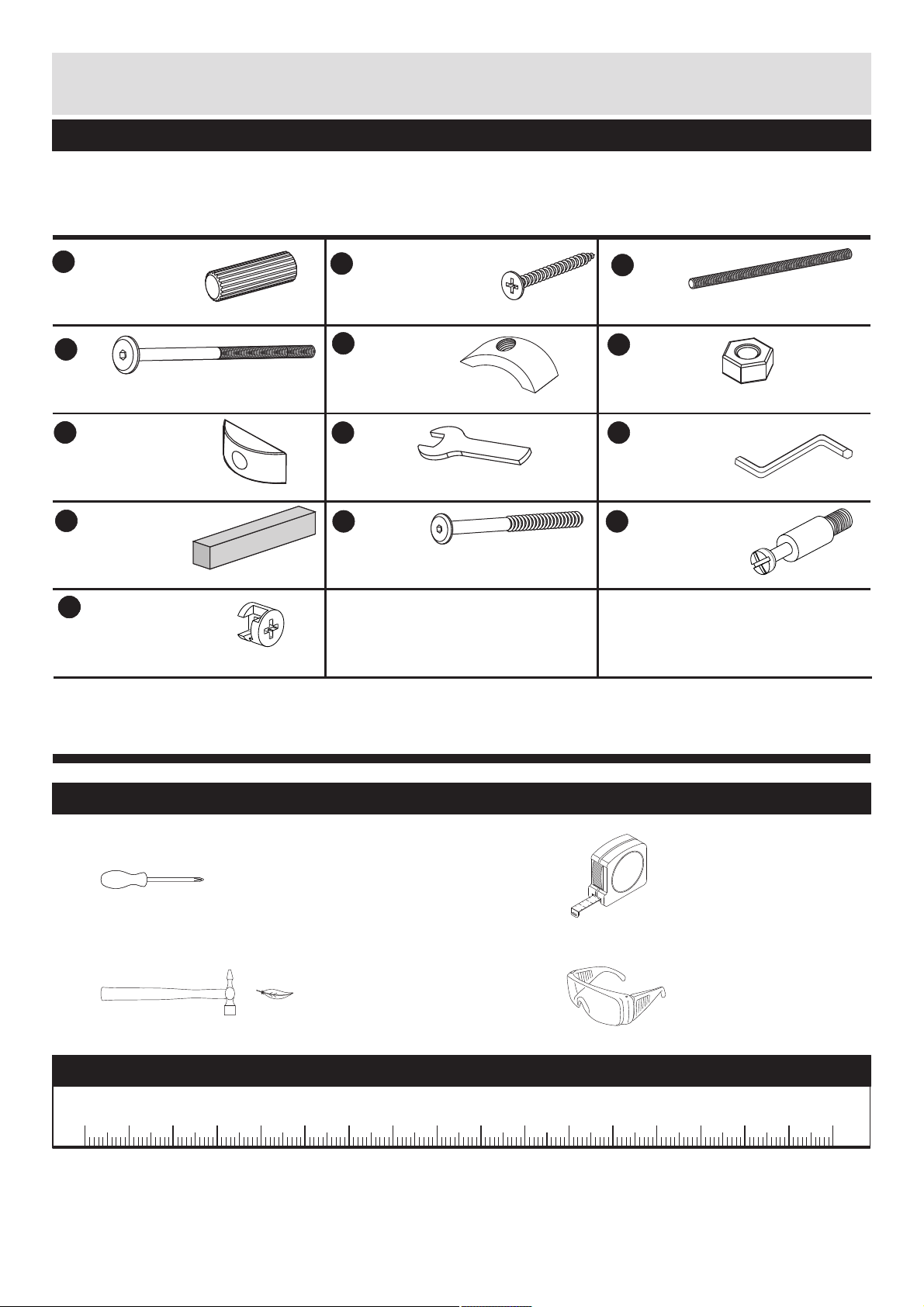

Components - Fittings
call theCustomer Helpline: 03456 400 800
Please check you have all the fittings listed below
Note:
The quantities below are the correct amount to complete the assembly.
In some cases more fittings may be supplied than are required.
A
Wooden dowel x 10
10 x 50mm
F
1/4 x 110mm Bolt x 4
Cab. 17
K
Washer x 4
Cod. 330103
N
82mm Spacer x 2
Q
Locking nut x 3
D
4 x 35mm Screw x 24
G
Half moon nut 1/4 x 4
L
Spanner
O
7 x 90mm Bolt x 3
Cab. 13
E
Headless bolt 1/4 x 75mm x 4
H
Nut 1/4 x 4
M
Allen key x 1
P
Metal dowel x 3
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
m
2
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
3

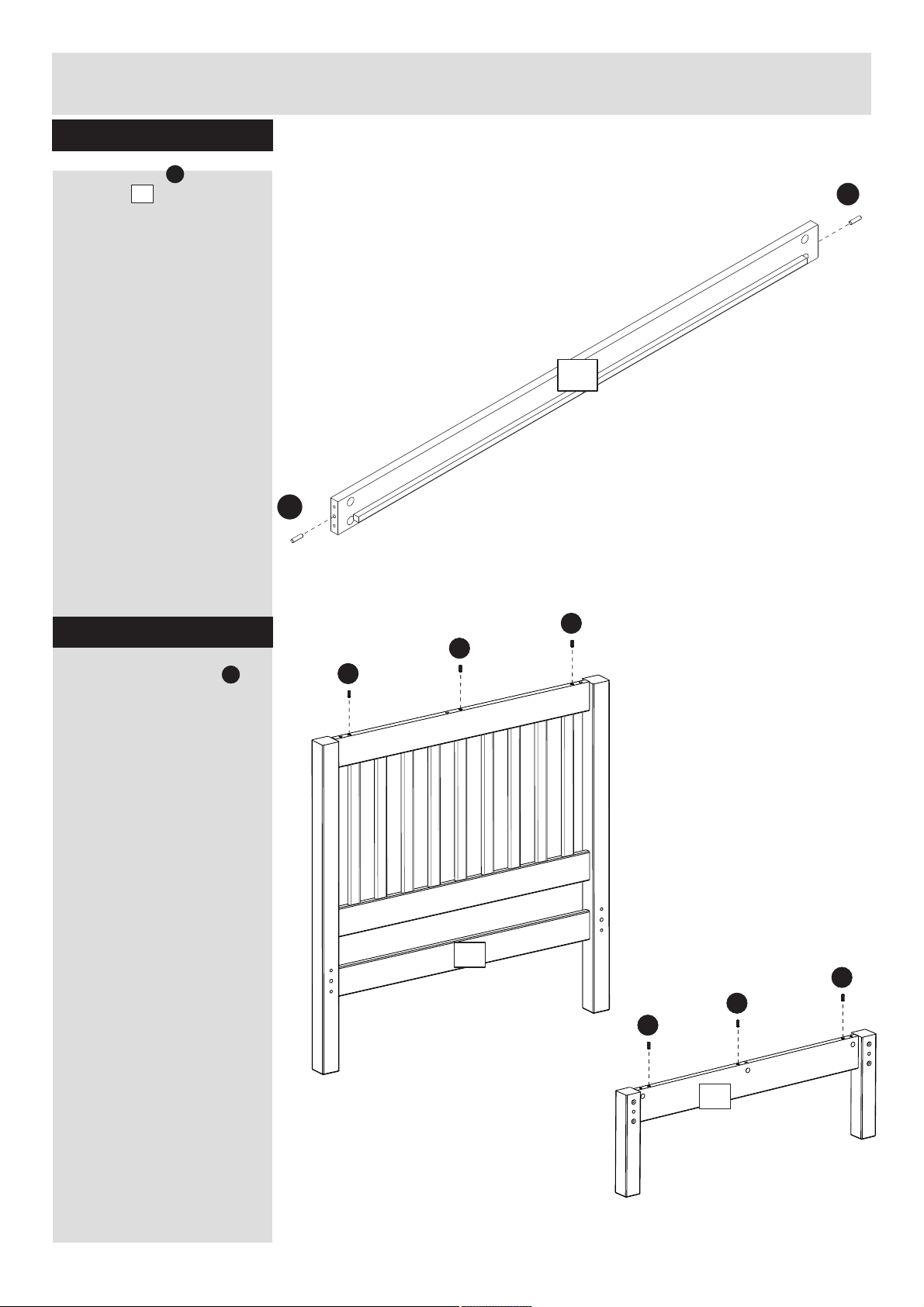

Assembly Instructions
Step1
Insert dowels into the
side rails .
A
3
Step2
Insert wooden dowels into
headboard and footboard as. headboard and footboard as.
shown..
A
A
A
2x
3
A
A
A
A
A
A
1
A
A
A
A
A
A
2
4

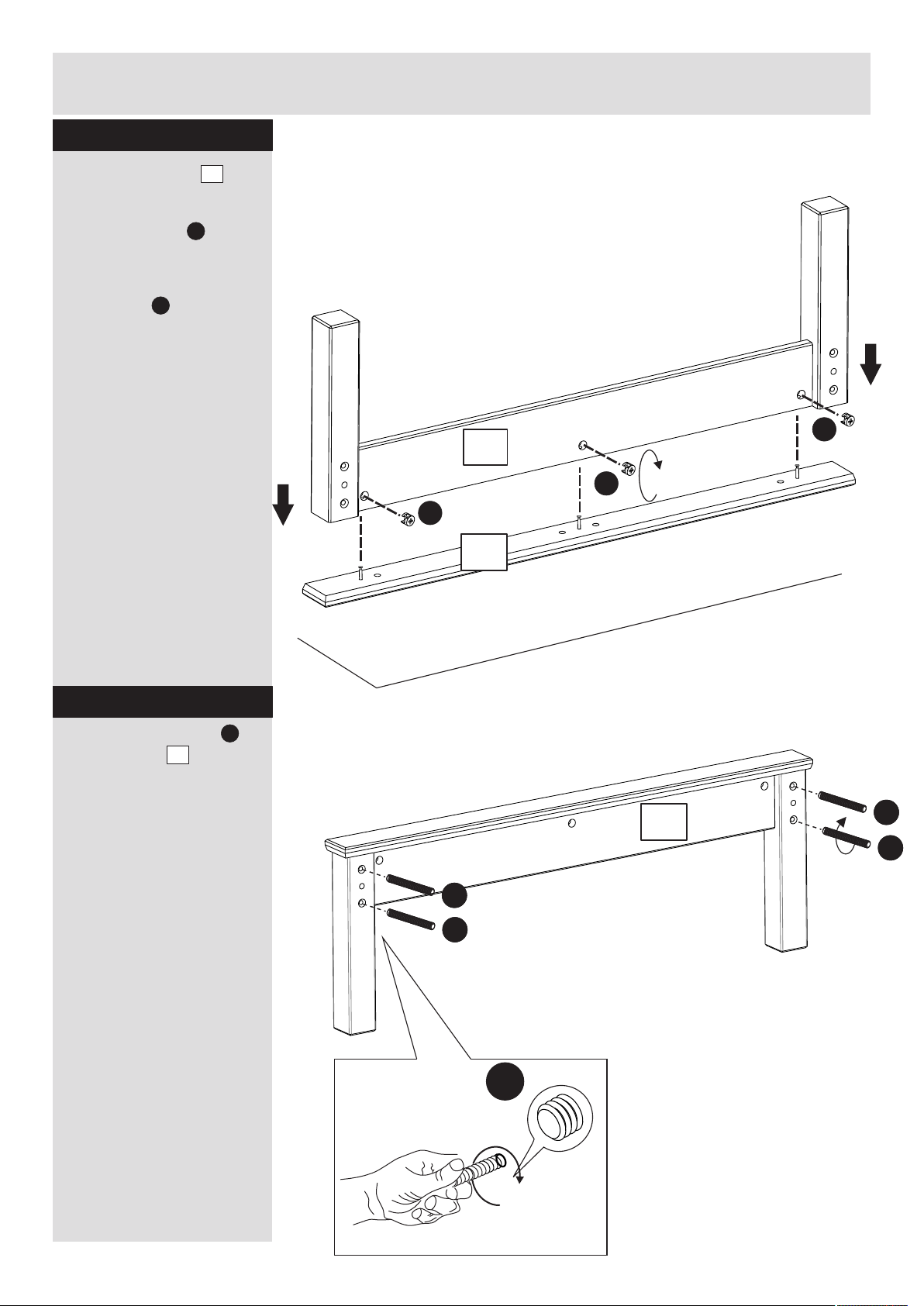

Assembly Instructions
Step3
Fixing top rail
Caution:
Carefully lay the
headboard
top rail on a soft and
clean surface to avoid
damaging the product.
1
M
M
Fix headboard top rail to
the headboard using bolts
and allen key .
M
5
Step4
Fixing top rails
Caution:
Carefully lay the
footboard
top rail on a soft and
clean surface to avoid
damaging the product.
M
O
M
O
O
O
O
5
5
M
P
M
O
P
O
Screw metal dowels into
footboard top rail .
Do not over tighten.
5
P
6
P
A
A
6
B
P
6
Assembly Instructions
Step5
Fit footboard top rail to the
footboard.
Insert locking nuts where
shown.
Use a screwdriver to turn
locking nuts clockwise to
lock.
Q
6
Q
Q
2
Q
Q
6
Step6
Screw headless bolts
into footboard .
2
E
E
E
2
E
E
E
E
E
E
E
6

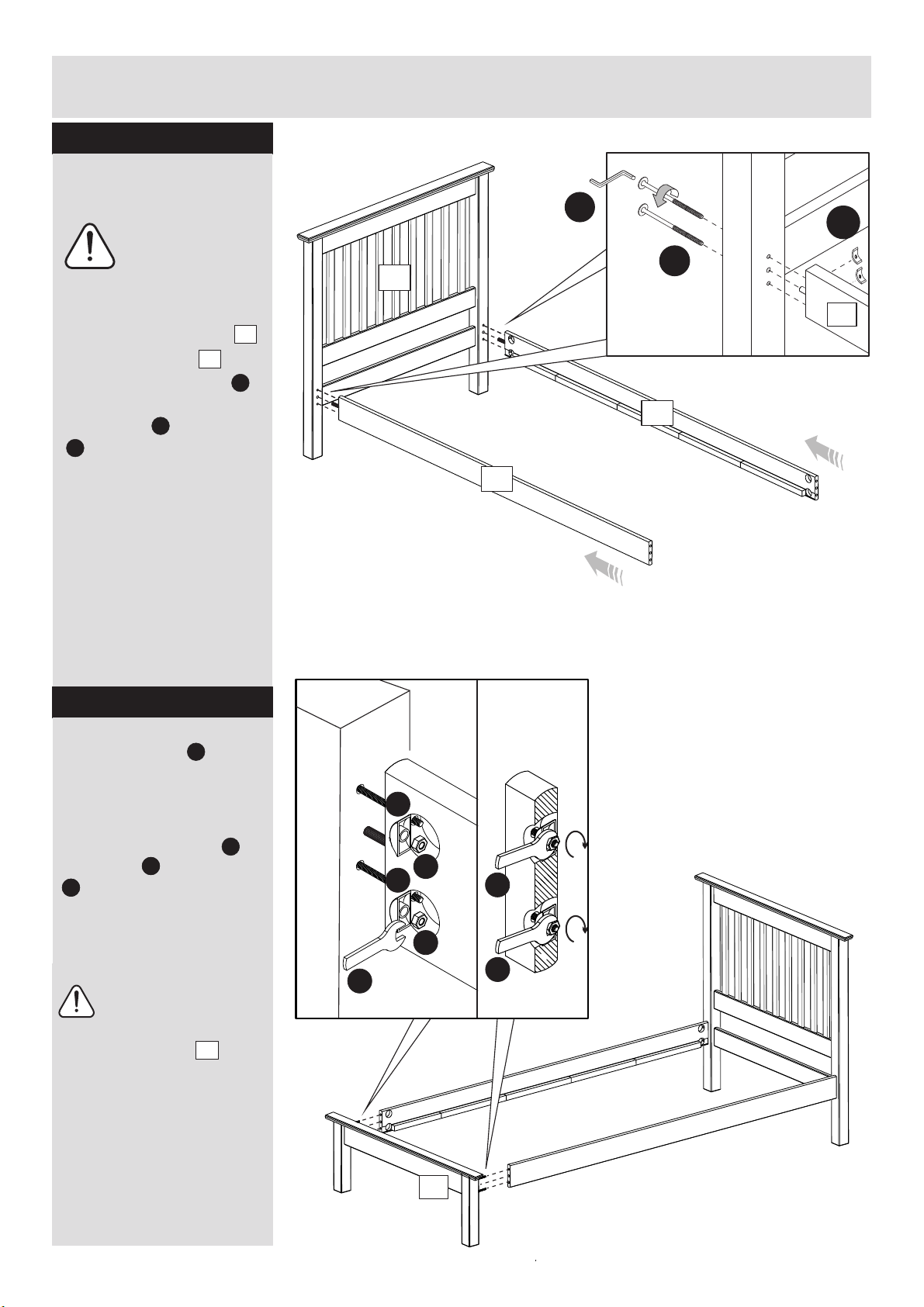

Assembly Instructions
Step7
Assembling side rails.
Important:
Two people are
required for an
easier assembly.
With help, fit one side
to the headboard .
Insert half moon nuts
as shown, then fix parts
using bolts
M
.
Repeat step 7 for the other Repeat step 7 for the other
side rail.
F
1
and allen key
M
G
F
1
3
3
G
3
3
Step8
a: Insert washer into the
side rails. Fit the headless
bolts in the footboard
thought the washers.
b: Fix headless bolts
using nuts and spanner
.
LL
Assembling of
Step and Step 8
7
will be easier with
people. It can also avoid
damages or brakes of any
part or component.
K
E
H
2
a
b
K
H
K
L
H
L
L
2
7
Assembly Instructions
Step9
Assembling slats
Please fix the first slat
at the end of the rail
and work towards the
middle of the bed using
the spacer as shown to
ensure correct spacing.
Fix slats in one side first,
then fix them in the other
side by pushing the rail
against the slats if
necessary.
N
D
D
N
Use screws for fixing.
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
4
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
8
