Stakka - Guestbed Frame
Assembly Instructions - Please keep for future reference
475/9955
497/0909
Dimensions
Width - 98.8cm
Depth - 201.4cm
Height - 50.3cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, c a l l t h e Customer Helpline: 03456 400 800
Issue 1 - 15/10/15
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
The product has been treated
with a wax and oil finish to
prevent dirt ingress and preserve
moisture.
On unpacking the
furniture you may notice an
odour due to this treatment;
this will disappear once the
furniture is unpacked and
assembled after a period of time.
This process may leave some
staining on the packaging
material; please take care to
ensure this does not transfer
to clothing or carpeted surfaces
during assembly.
We do not
recommend the
use of power
drill/driversfor
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Care and maintenance
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
From time to time check
that there are no loose
screws on this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note:If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Components - Panels
Please check you have all the panels listed below
1
2
3
4
Left foot x 4 (
22.0 x 5.7cm)
Right foot x 4 (
Rail x 4 (
Slats x 24 (
90.0 x 13.8cm)
91,0 x 7.0cm)
22.0 x 5.7cm)
5
Side rail x 4 (
190,0 x 11.0cm)
2
If you have damaged or missing components,

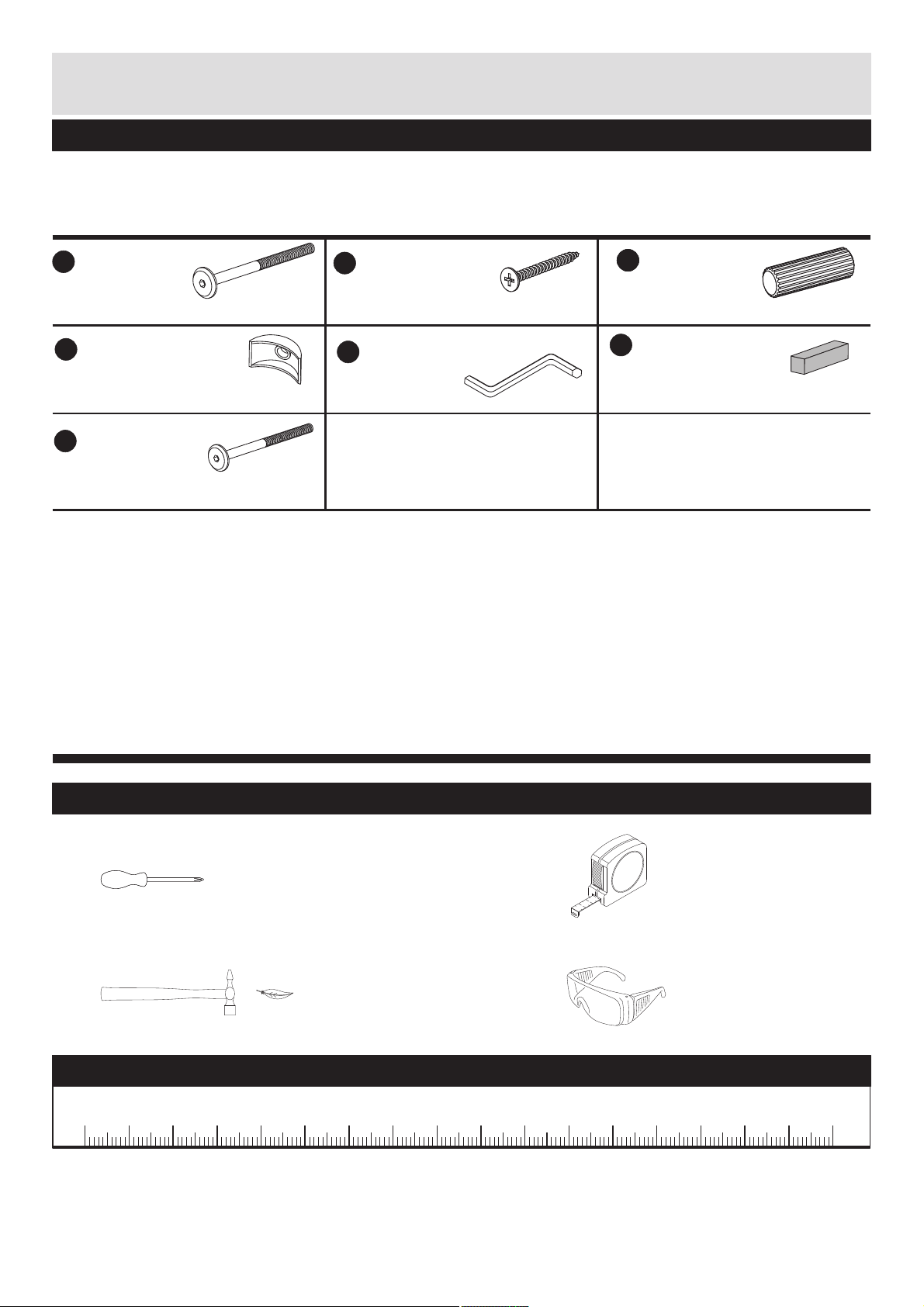

Components - Fittings
call the Customer Helpline: 03456 400 800
Please check you have all the fittings listed below
Note:
The quantities below are the correct amount to complete the assembly.
In some cases more fittings may be supplied than are required.
A
1/4 x 100mm Bolt x 8
D
Half moon nut 1/4 x 8
G
7 x 80mm Bolt x 8
B
4.0 x 35mm Screw x 48
E
Allen key x 1
C
Wooden dowel x 24
10 x 50mm
F
96mm Spacer x 2
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
m
2
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
3
Assembly Instructions

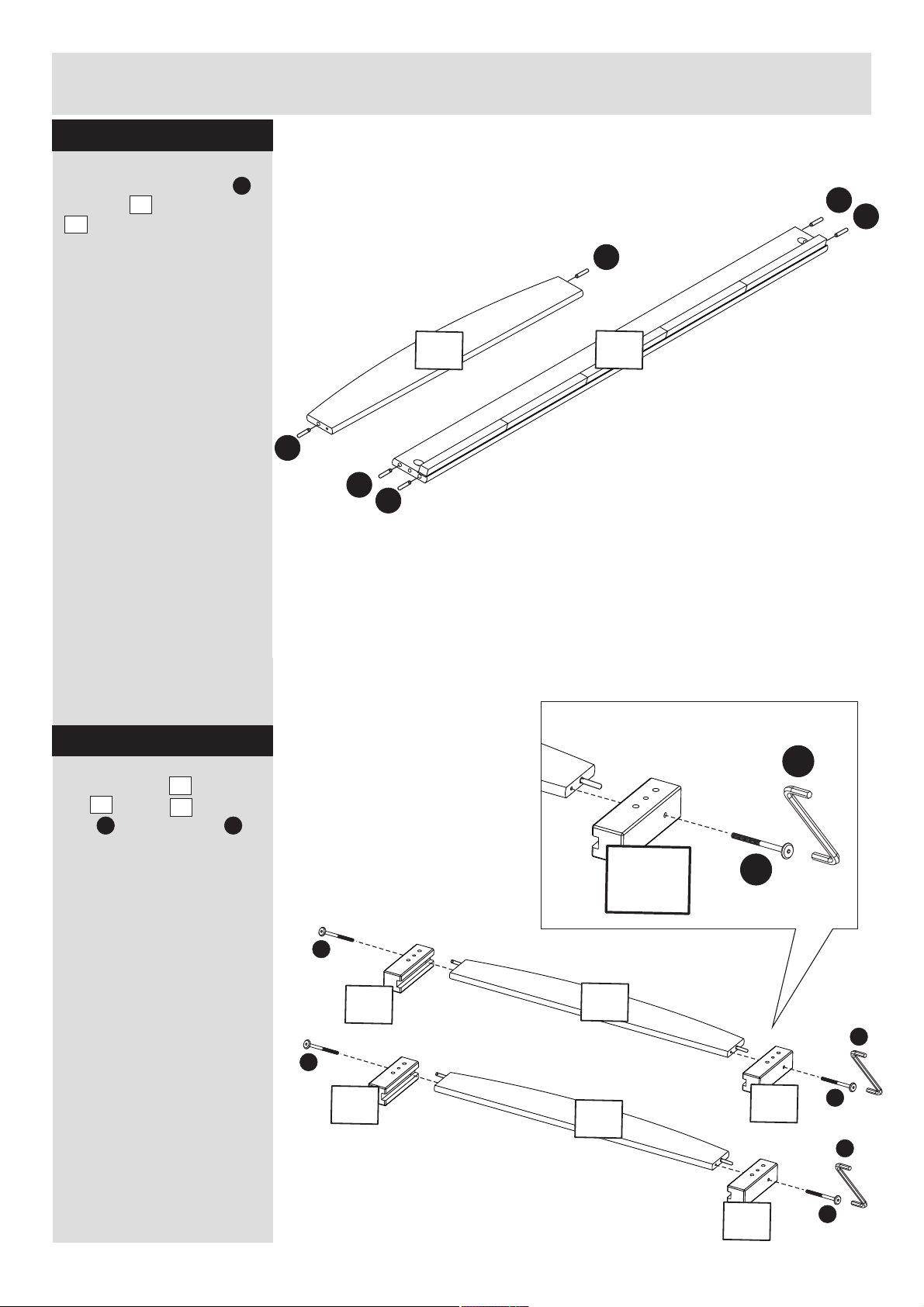

Step1
Insert wooden dowels
into rails and side rails
5
3
C
C
C
C
3
C
C
C
5
4x
Step2
Attach left feet and right
2
feet to rails using
bolts and allen key .
G
Make sure feet are
positioned as shown.
1
3
E
E
G
1
G
3
3
1
E
G
E
2
G
1
2x
2
G
4
Assembly Instructions

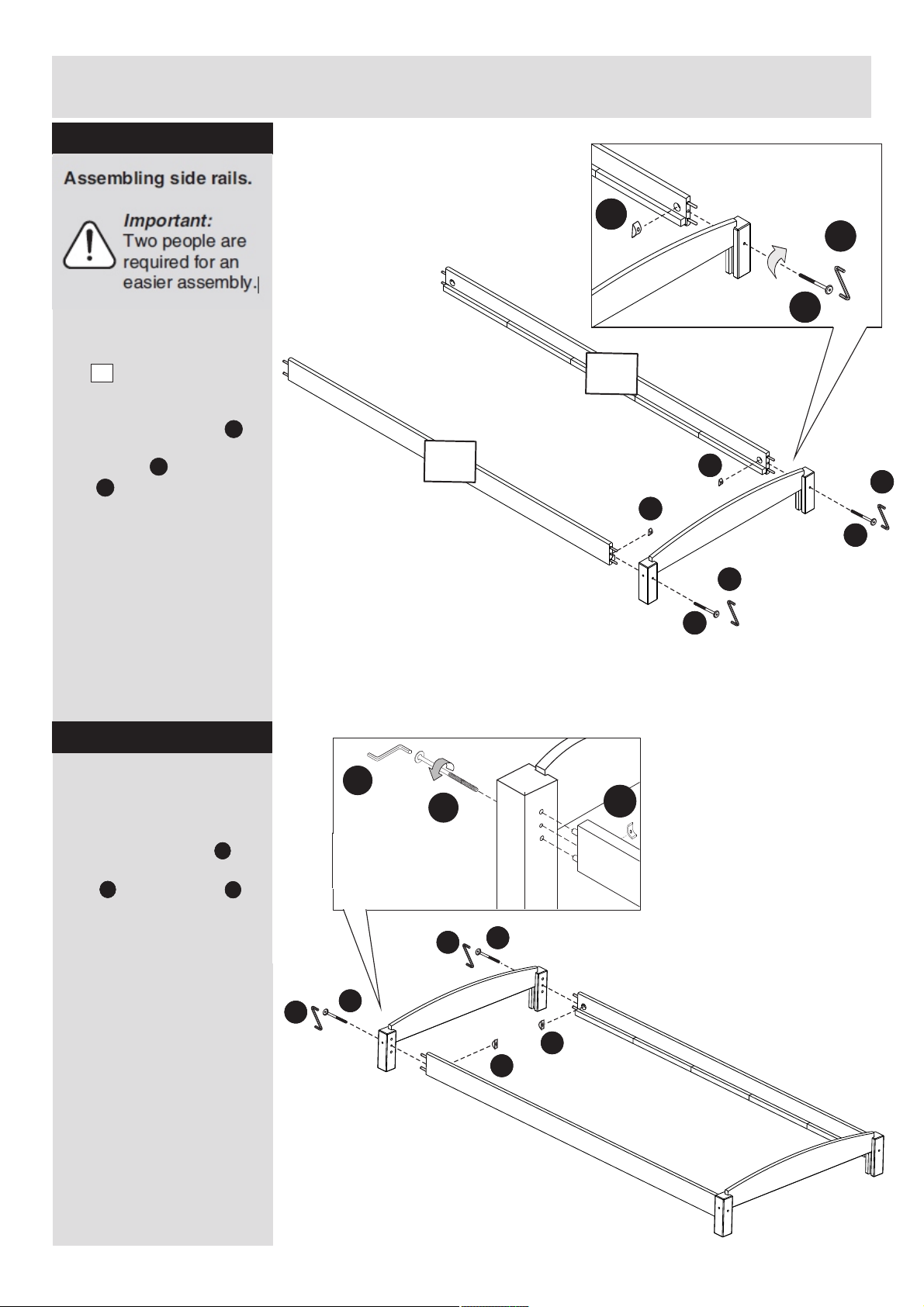

Step3
With help, fit one side
5
rail to the assembled
frame.
D
E
A
5
Insert half moon nut
as shown, then fix parts
using bolts and allen
key .
E
Repeat step 3 for the
other side rail.
A
D
Step4
With help, fit side rails to
another assembled frame.
Insert half moon nut as
shown, then fix parts using
A
bolts and allen key .
D
E
2x
E
A
5
D
E
D
A
E
A
D
Repeat step 3 for the other
side rail.
5
E
E
A
A
D
D
2x
Assembly Instructions

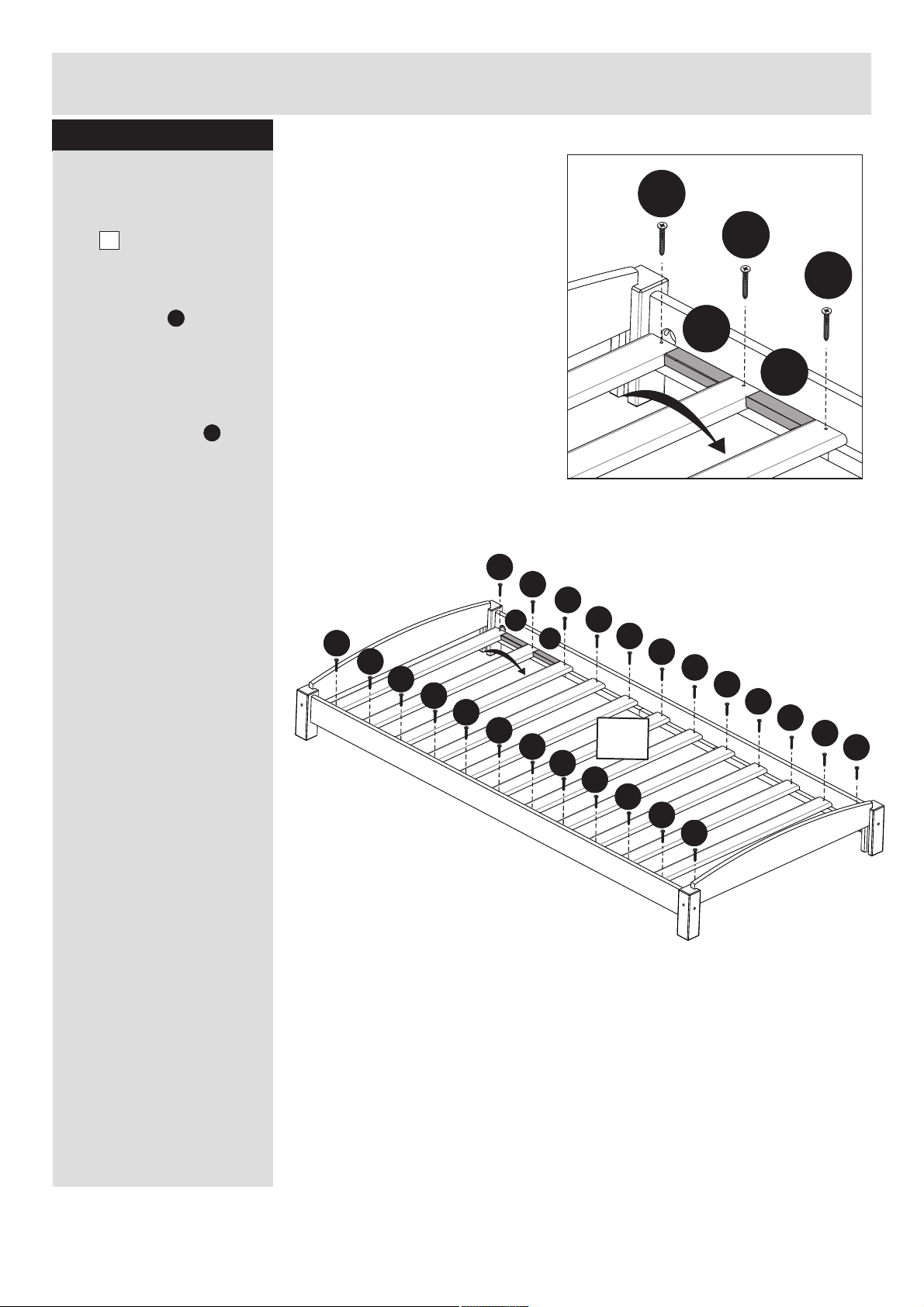

Step5
Assembling slats
Please fix the first
4
slat next to the
headboard/footboard
and work towards the
middle of the bed
using spacer as
shown to ensure
correct
spacing.
Fix slats to one side
first using screws .
After, fix all the slats
to the other side by
pushing the rail
against the slats if
necessary.
F
B
B
B
B
F
F
Periodically check that
all screws are tight.
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
4
BB
B
B
B
B
B
B
B
B
B
B
F
F
F
F
B
B
B
B
B
B
B
2x
6
Assembly Instructions

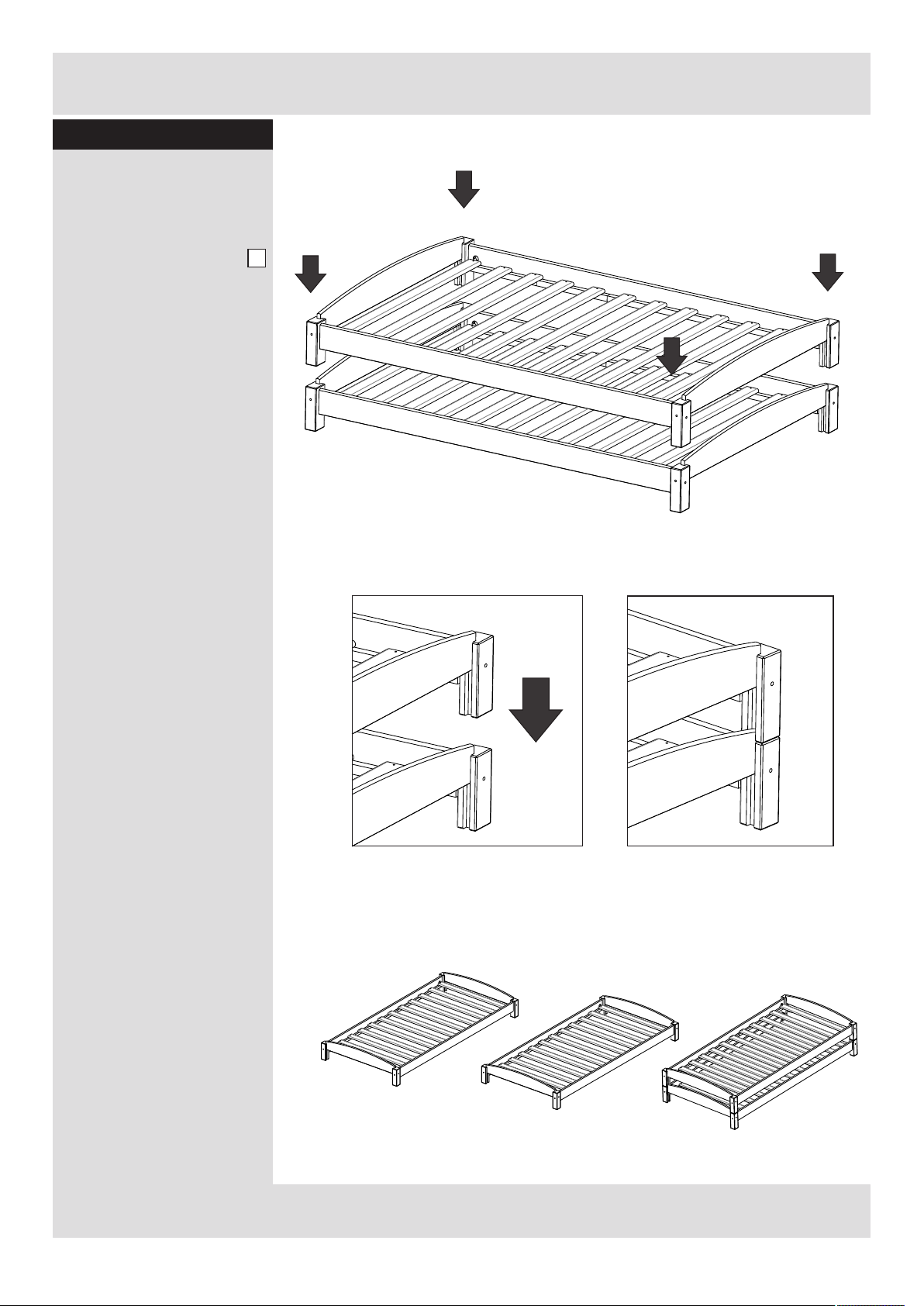

Step6
Stack one bed above the
other.
Make sure the rails of the
bed at the bottom are
inside the grooves of the
feet.
4
Assembly is complete.
If you need help or have damaged or missing parts, c a l l t h e Customer Helpline: 03456 400 800
