Assembly Instructions - Please keep for future reference
Issue 3 - 26/03/15
MADE IN
BRITAIN
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: Help@ClickSpares.co.uk (quoting your original order number)
Important - Please read these instructions fully before starting assembly
Dimensions
Seville - 5 Drawer Chest
184/9198
145/0862
184/8319
Width - 66cm
Depth - 33cm
Height - 91cm
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 21kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
2
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
1
2
Top (D2488A)
(627 x 327mm)
Plinth (D2491B)
(627 x 80mm)
Drawer Front (D2492A)
(623 x 157mm) x 5
4
3
8
5
Back (X653-648)
(653 x 648mm)
Left Side (D2503A)
(896 x 328mm)
Right Side (D2504A)
(896 x 328mm)
Drawer Base (TSAV)
(299 x 608mm) x 5
7
6
Drawer Wrap (WSAV)
(1221 x 95mm) x 5
3
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Tools required
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
A
Wooden dowel (F22) x 4
B
Metal dowel (F901) x 10
C
D E F
G
Small locking
nut (F3) x 10
40mm Screw (F910) x 6
Handle (F300) x 10
H
Nail (F51) x 15
I
R (F601)
L (F600)
F599
F599
Drawer stops (F599) x 10
Runners (F600) x 5 and (F601) x 5
25mm Screw (F95) x 10
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
4
Step 1
Assembly Instructions
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
x 5
B
B
B
5
x 5
Prepare the drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panel.
B
5
6
C
6
C
C
x 5
Fit the drawer base
Place the drawer base
into the narrow slot on
the drawer wrap .
Fold the wrap around the
drawer base.
7
7
6
6
Step 3
Prepare the drawer
wraps
Insert 2 small locking
nuts into each of the
drawer wraps .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 2
C
6
Note: Due to the manufacturing
process, the holes for the
locking nut can be on either
surface of the drawer wrap.
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
Plain chipboard
surface
Assembly Instructions
5
Step 4
Attach the handles
Attach 2 handles to
each of the 5 drawer
fronts using 2
screws .
Note: Do not
overtighten the screws.
G
E
Step 6
Step 5
x 5
5
G
E
G
E
Attach the drawer
stops
Carefully break off 2
drawer stops (F599) from
a set of drawer runners
. .
Push the drawer stops
fully through the drawer
wrap from the inside.
I
6
F599
I
F599
I
x 5
SNAP!
SNAP!
F599
I
I
F599
I
x 5
Fit the drawer front
Turn drawer wrap
assembly over and push
it onto the back of the
drawer front .
Note: Turn the locking
nuts clockwise to
secure the panels - more
than 1/2 a turn.
6
C
5
6
6
6
B
B
C
5
5
5
Assembly Instructions
6
Step 7
Prepare the right side
Push fit 5 right runners
marked ‘R’ into the right
side .
Note: Runners must be
be fitted flat against the
panel. If necessary
gently tap into final
position.
I
2
Step 8
Step 9
R
I
I
I
I
I
Finished
front edge
2
F601
I
Finished
front edge
Prepare the left side
Separate the runners .
Push fit 5 left runners
marked ‘L’ into the left
side .
Note: Runners must be
be fitted flat against the
panel. If necessary
gently tap into final
position.
I
I
1
L
F600
I
I
I
I
I
I
1
Finished
front edge
A
A
Prepare the top
Tap 2 wooden dowels
into the top .
A
3
plain chipboard surface
3
Assembly Instructions
7
Finished
front edge
D
D
Step 10
Join the top to the
right side
Push the top onto
the right side and
secure with 2 screws .
Step 11
3
2
D
3
2
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
A
4
A
A
plain chipboard surface
4
Finished
front edge
D
Assembly Instructions
8
Step 12
Join the plinth to the
right side
Push the plinth onto
the right side and
secure with screw .
4
2
D
Fit the left side
Push the left side
onto the assembly and
secure with 3 screws .
Step 13
1
D
Support the plinth
until the left side
has been fitted in
the next step.
2
D
D
D
1
plain chipboard surface
4
Assembly Instructions
9
Step 14
y
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the 3
edges of the back ,
as shown.
Note: Nails should
be spaced about 150mm
apart.
Stand the unit up for
the next step.
8
F
8
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
y
y
x
x
b:
F
8
Warning: The
unit is heavy.
Lift with care.
Assembly Instructions
10

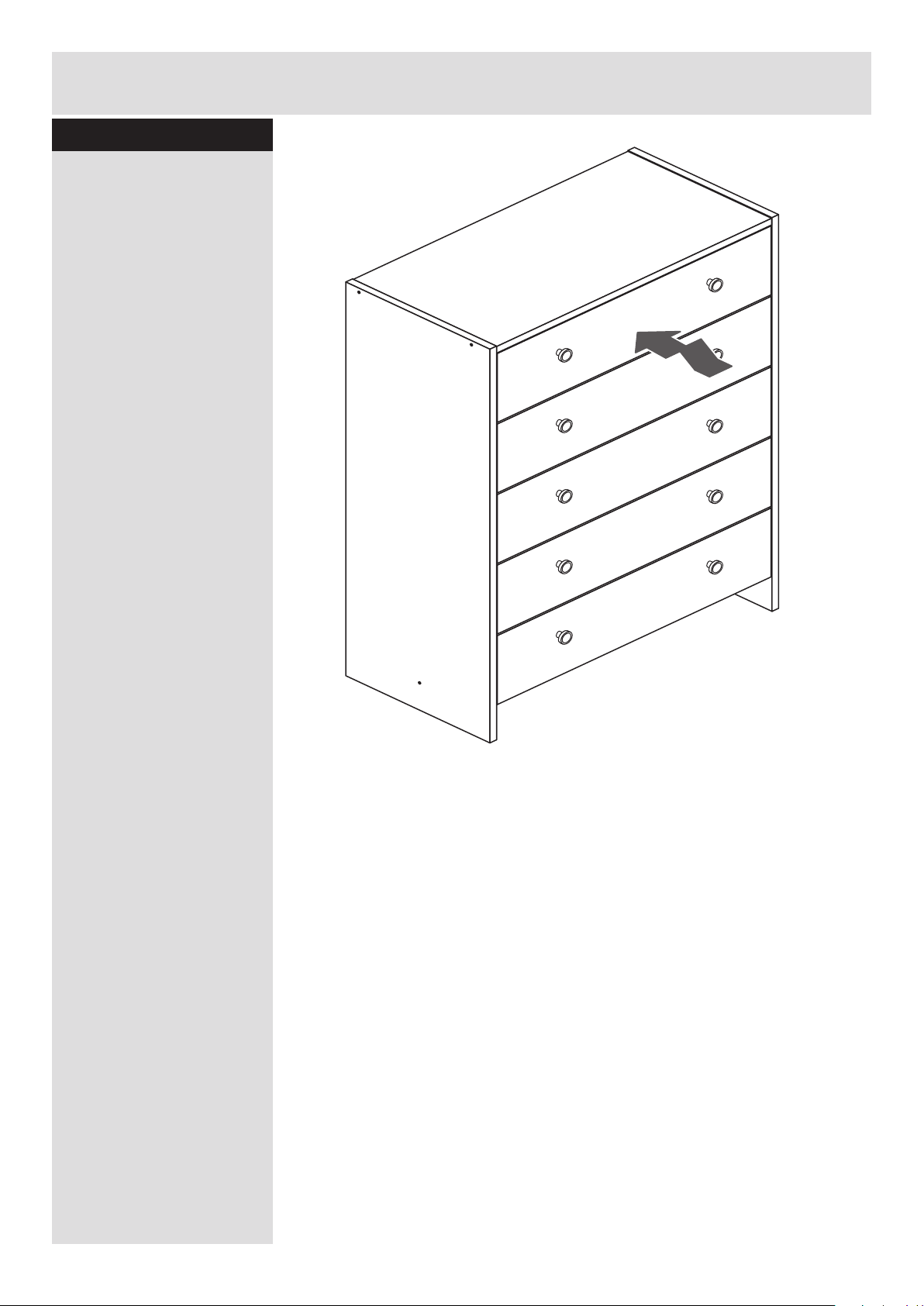

Step 15
Insert the drawers
Lift the front of the
drawers whilst inserting
to overcome the ‘stop’
system.
Note: To ensure that
your drawers run
smoothly, spray a small
amount of furniture
polish into the grooves.
Assembly Instructions
11
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers on the component pages)
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 16
ALR2910
Fit the overbalance
protector kit
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
H
Attach the
strap to the unit
Attach the
strap to the wall
Wall fixing
(not supplied)
Washer
Strap
Strap
H
H
Example
Screw
(not supplied)
Washer
Screw
UNIT
