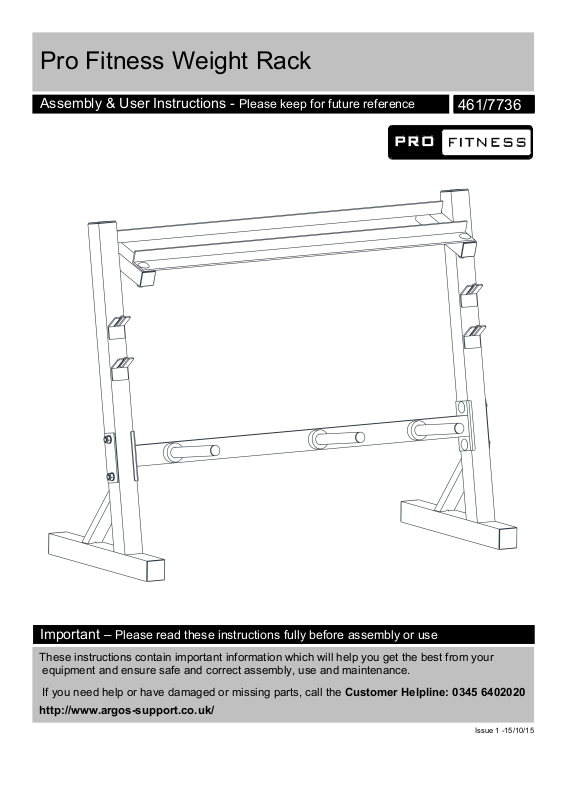

Page 1
These instructions contain important information which will help you get the best from your
equipment and ensure safe and correct assembly, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6402020
http://www.argos-support.co.uk/
Assembly & User Instructions - Please keep for future reference
Important – Please read these instructions fully before assembly or use
Pro Fitness Weight Rack
461/7736
Issue 1 -15/10/15
Page 2
Contents
Safety Information
2
Components - Parts
3
Components – Fixings
4
Assembly Instructions
5-7
Product information
8
Care and Maintenance
9

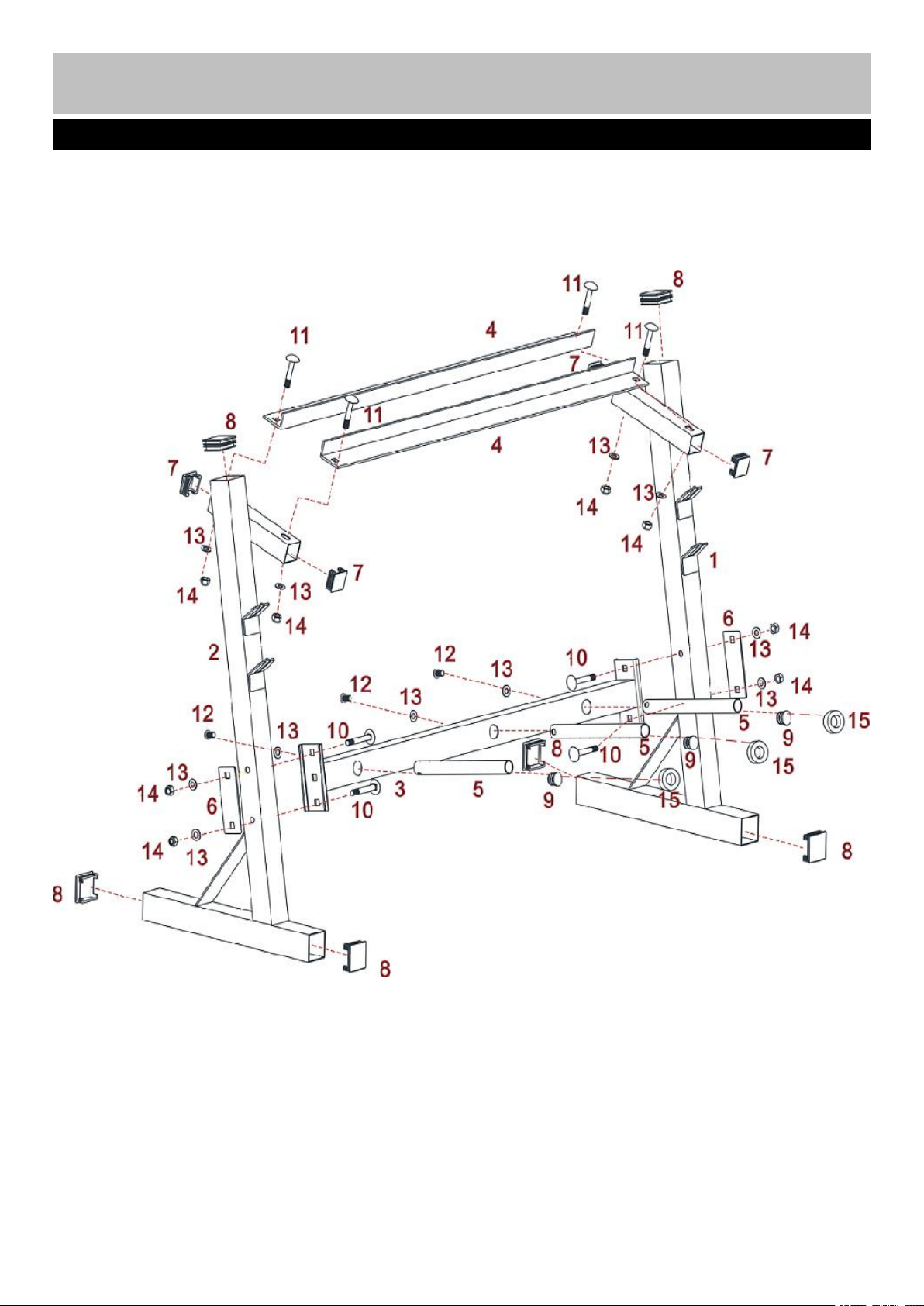

Exploded Parts Diagram
10
Parts List
11
Guarantee
1

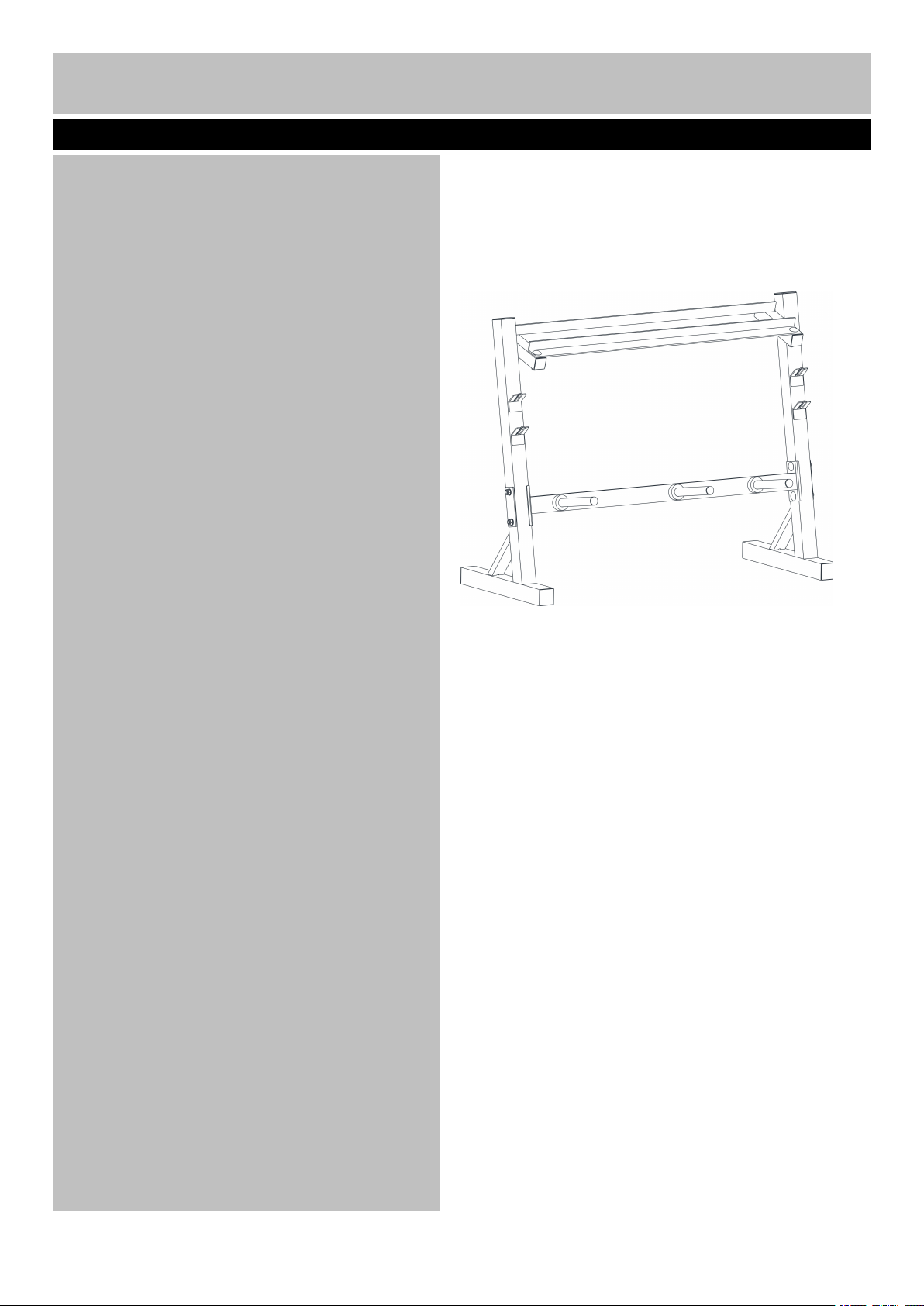

Page 3
To reduce the risk of serious injury, read the entire manual before you assemble or operate the Pro Fitness
Weight Rack. In particular, note the following safety precautions.
Assembly
• Check you have all the components and tools
listed in the parts list, bearing in mind that, for ease
of assembly, some components are pre-assembled.
• Keep children and animals away from the exercise
area, small parts could pose a choking hazard if
swallowed.
• Make sure you have enough space to layout the
parts before starting.
• Assemble the item as close to its final position (in
the same room) as possible.
• The product must be installed on a stable and
level surface.
• Dispose of all packaging carefully and responsibly.
Use
• Keep unsupervised children away from the
equipment.
• Injuries to health may result from incorrect or
excessive training.
• It is the responsibility of the owner to ensure that
all users of this product are properly informed as to
how to use this product safely.
• This product is intended for domestic use only.
Do not use in any commercial, rental, or institutional
setting.
• If the user experiences dizziness, nausea, chest
pain or any other abnormal symptoms stop the
workout and seek immediate medical attention.
• Do not place any sharp objects around
the equipment.
• Keep this equipment indoors, away from
moisture and dust. Do not put the equipment in a
garage, outbuilding, covered patio, or near water.
• This product is fit for 1" weight plates.
Warning: Before beginning any exercise program, consult your Doctor. This is especially
Safety Information
2
Important – Please read fully before assembly or use
no responsibility for personal injury or property damage sustained by or through the use of this product.
important for persons over the age of 35 or persons with pre-existing health problems. You
MUST read all instructions before using any fitness equipment. Argos and its associates assumes
Page 4
MUST read all instructions before using any fitness equipment. Argos assumes no responsibility for

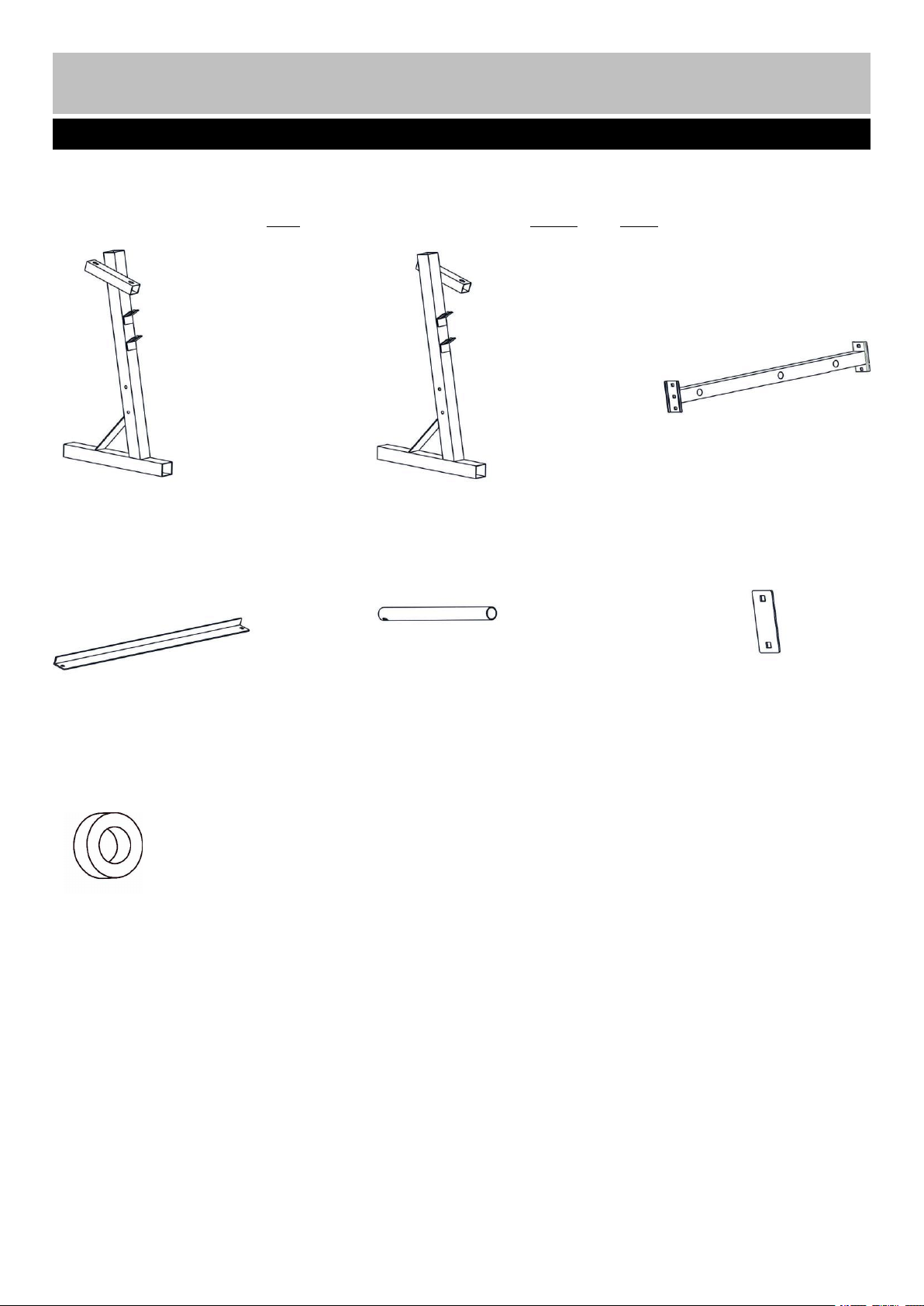

Components - Parts
If you have damaged or missing parts, please
call the Customer Helpline: 0345 640 2020.
Please check you have all parts listed below
1
2
4
5
6
3
3
Left Upright Frame x 1
Right Upright Frame x 1
Cross Beam x 1
Dumbbell Rack x 2
Weight Plate Post x 3
Bracket x 2
15
Rubber Bumper x 3
personal injury or property damage sustained by or through the use of this product.
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully
before contacting Argos regarding any missing components.
Total mass of the product is 15.5 kg. Footprint of the product is 104.5 cm × 45.4 cm.
Page 5
Note: Some of the smaller components may be pre-fitted to the larger components. Please check carefully

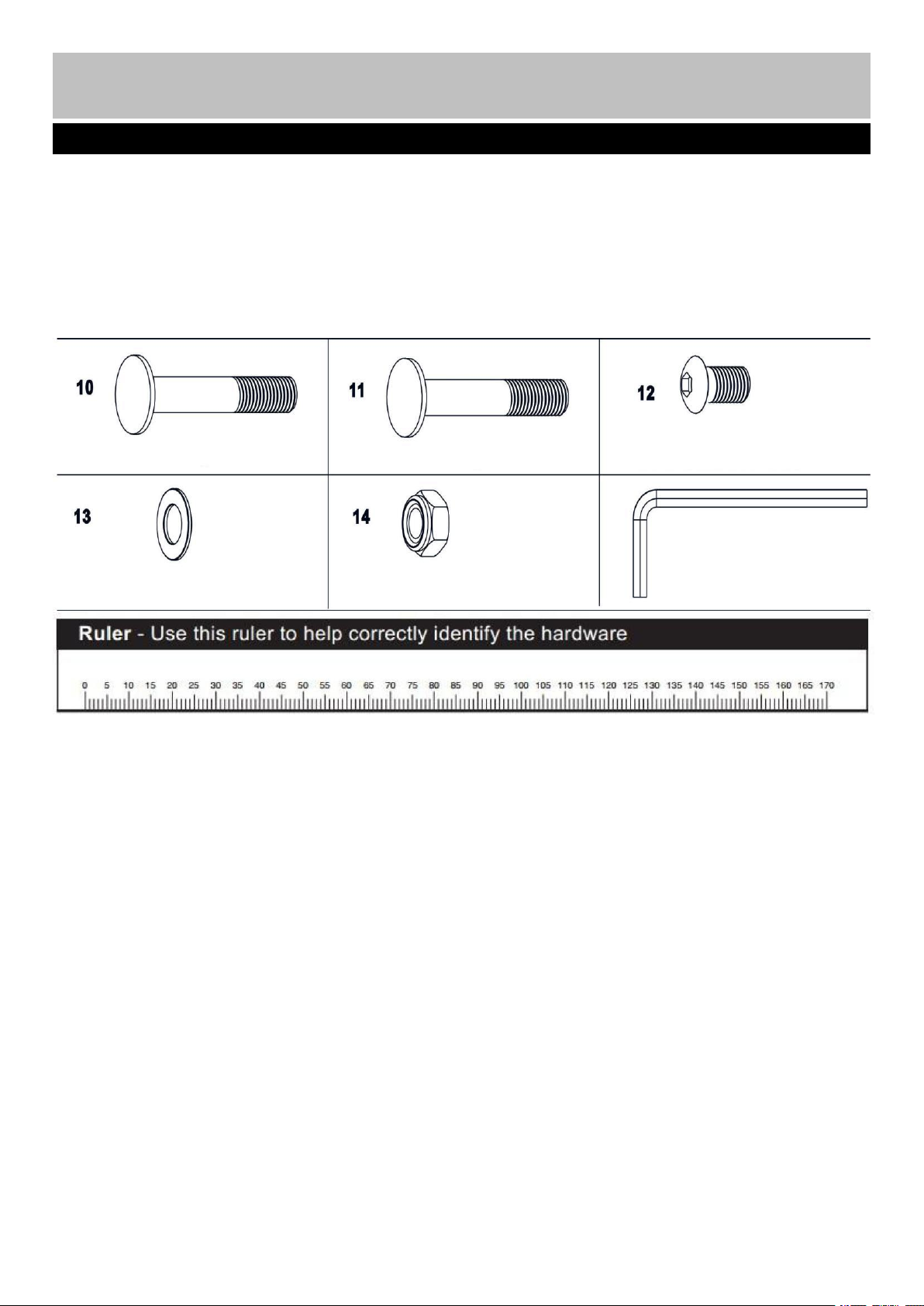

Components - Fixings
4
Please check you have all fittings listed below
M10 x70mm Carriage Bolt x 4
M10 x 55mm Carriage Bolt x 4
M10 x 20mm Allen Bolt x 3
10mm Washer x 11
M10 Aircraft Nut x 8
6# Allen Wrench x 1
before contacting Argos regarding any missing components. Please prepare an adjustable spanner by
yourself when you are intend to assemble this machine.
Page 6
Assembly instructions
5

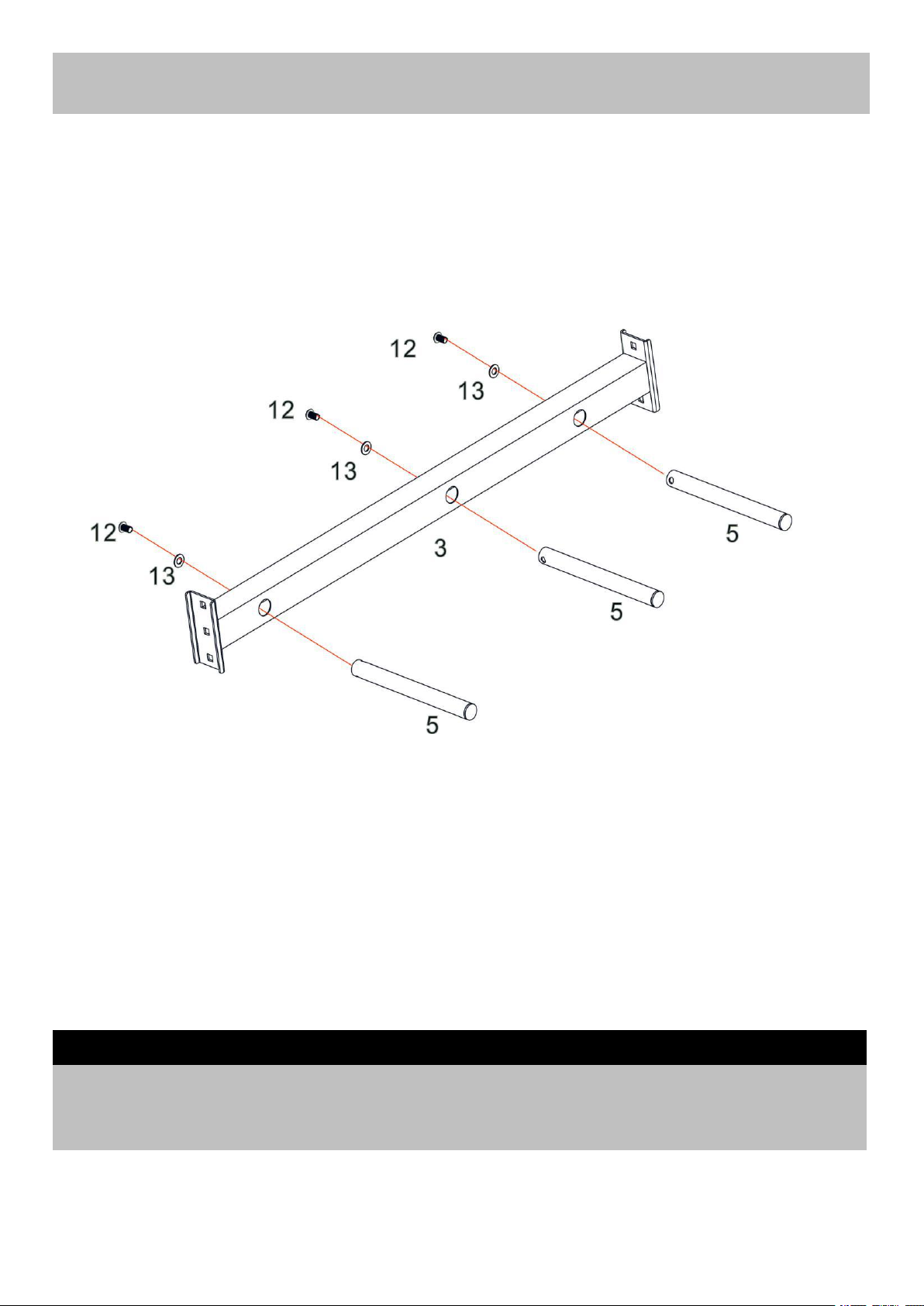

Step 1
Attach the Weight Plate Posts (5) to the Cross Beam (3) using 3 x M10×20mm Allen Bolts (12) and 3 x
Ø10mm Washers (13).
Page 7

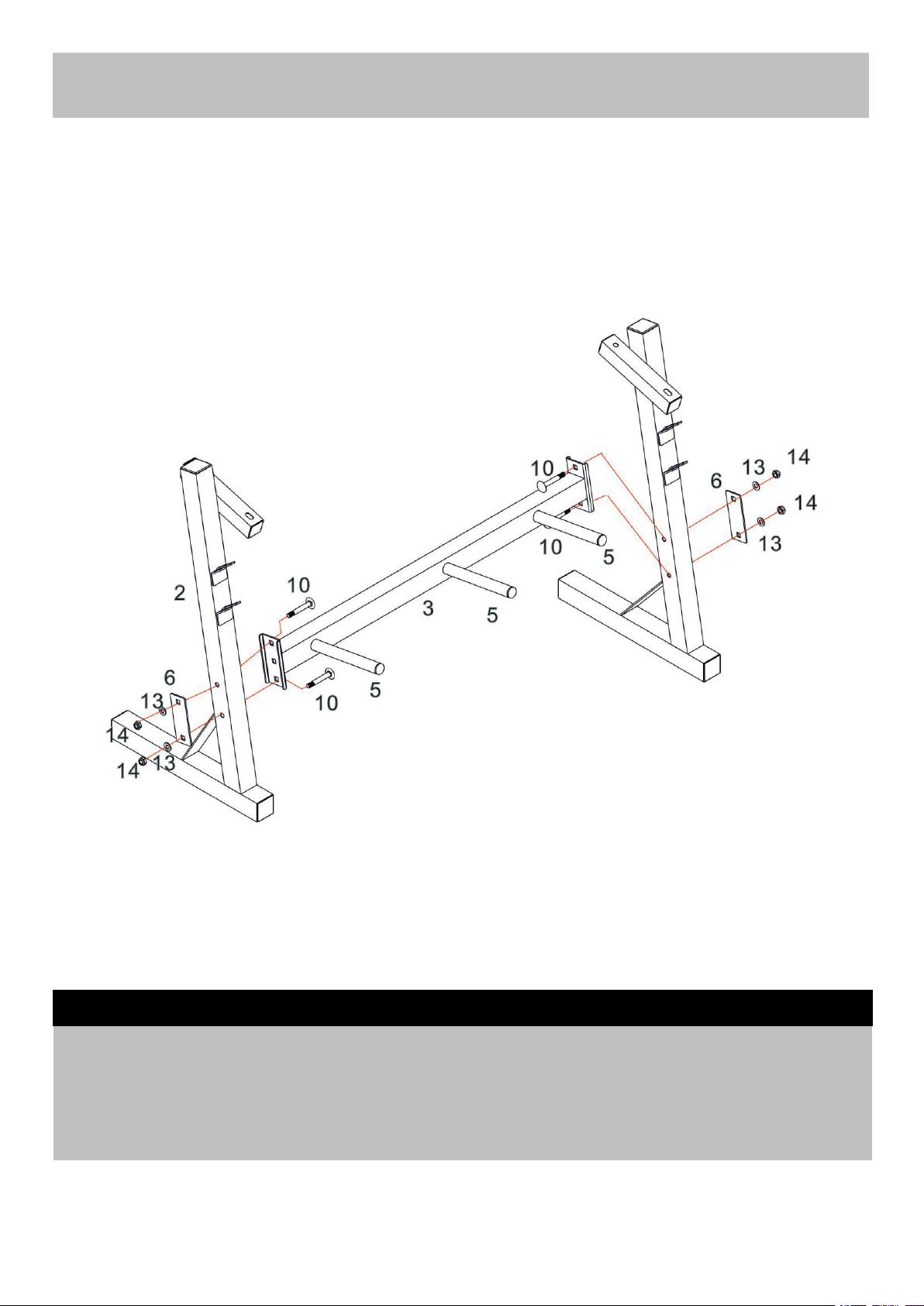

Step 2
Connect the both ends of the Cross Beam (3) to the Left & Right Upright Frame (1, 2) using 4 x
M10×70mm Carriage Bolts (10), 4 x Ø10mm Washers (13), 4 x M10 Aircraft Nuts (14) and 2 x
120×45×90×2mm Brackets (6).
Notes: The Cross Beam (3) must not be assembled in reverse orientation. Do not tighten the bolts at this
step.
Assembly instructions
6
C:
1
Page 8

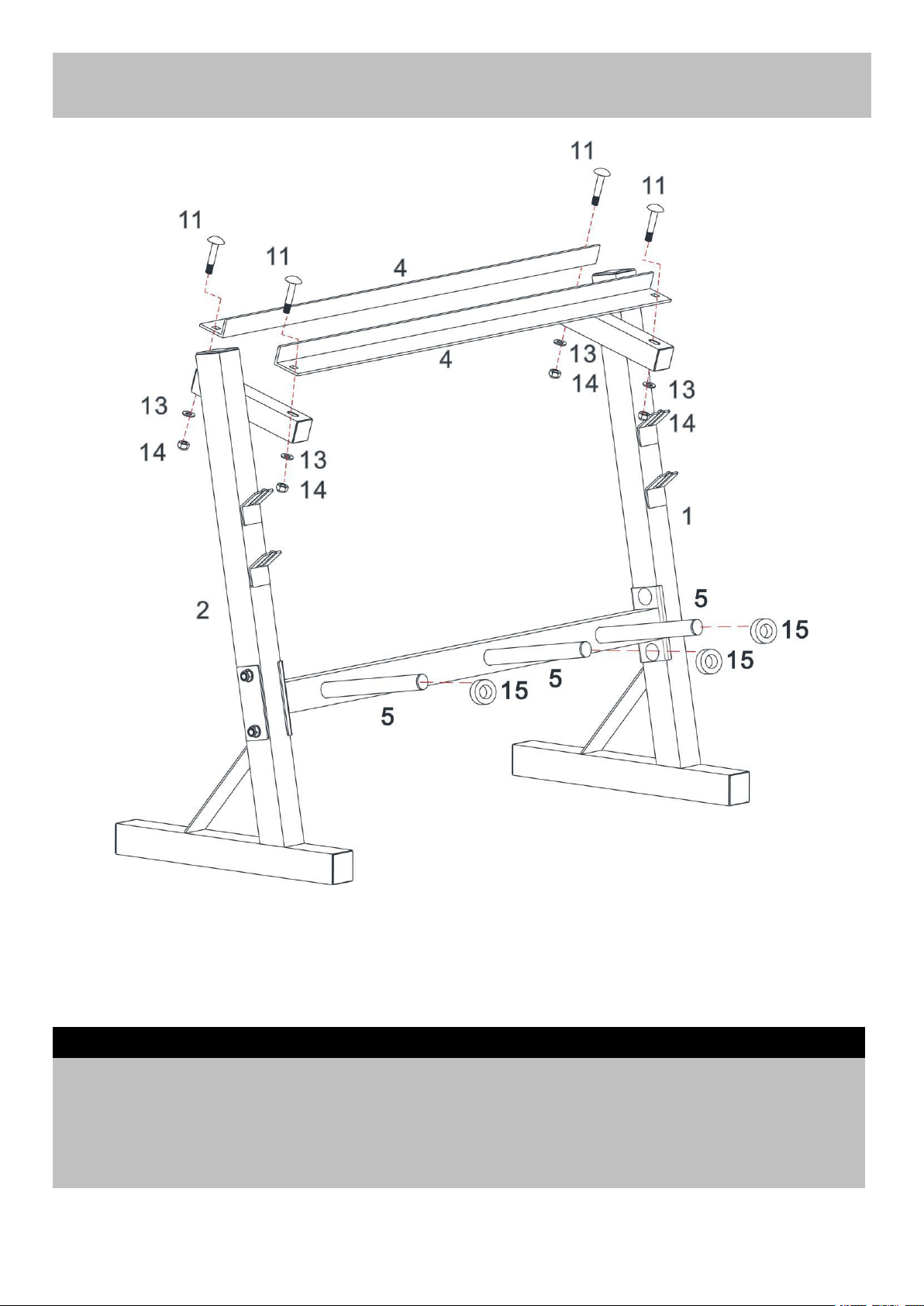

Connect the both ends of the Dumbbell Rack (4) to the Left & Right Upright Frame (1, 2) using 4 x
M10×55mm Carriage Bolts (11), 4 x Ø10mm Washers (13), 4 x M10 Aircraft Nuts (14). Attach 3 x
φ46×φ26×18 Rubber Bumper (15) to 3 x Weight Plate Post (5) respectively.
Notes: The Dumbbell Rack (4) must not be assembled in reverse orientation. Tighten all the bolts at this
step.
Step 3
7
Assembly instructions
Page 9
11
8
Care and Maintenance

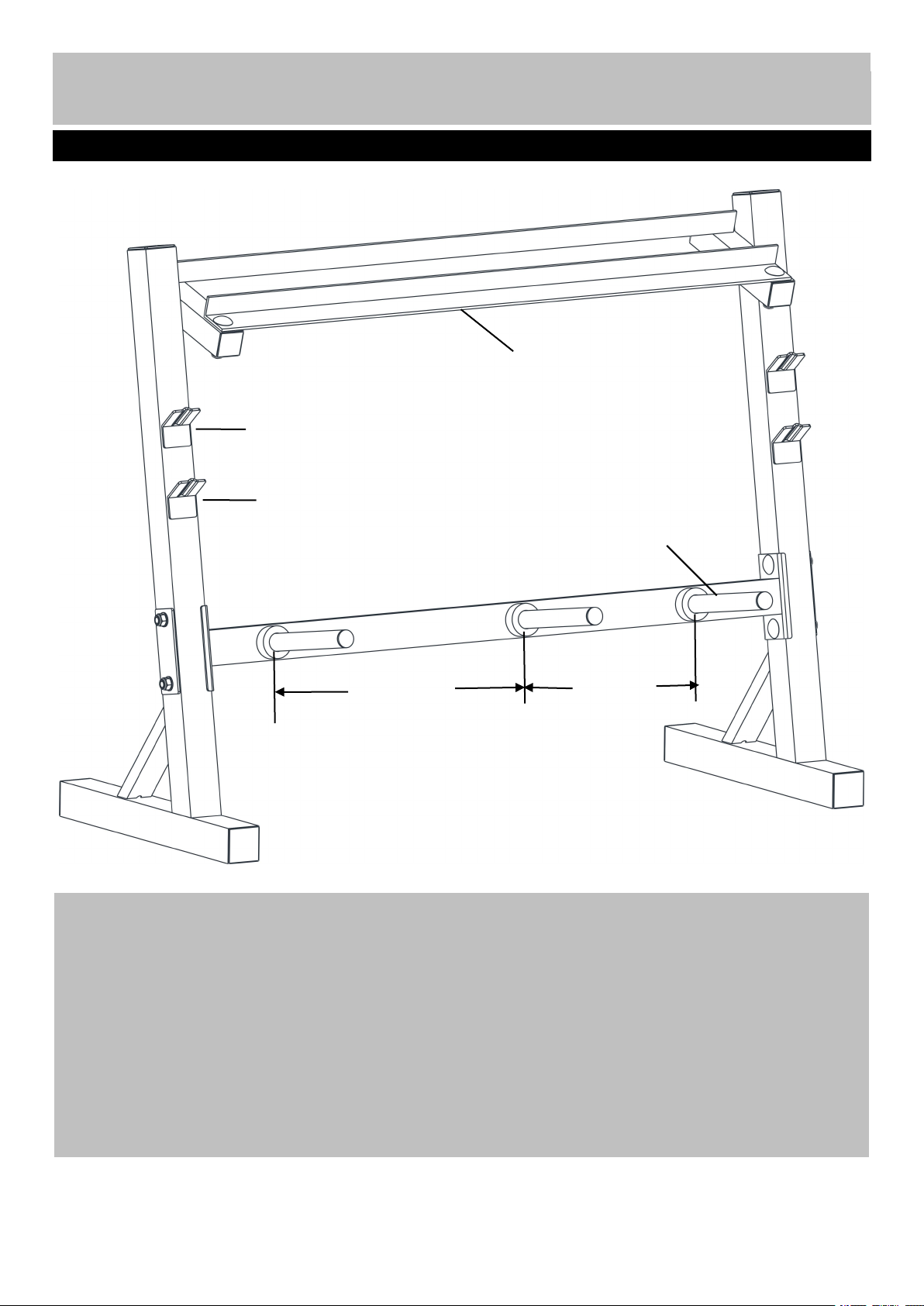

Product information
1. Max capacity on the Dumbell Rack (4) is 100Kgs.
2. The gap between the two Dumbell Rack (4) is 107-117mm.
3. Max capacity on each of the Barbell bar support is 20Kgs.
4. Max capacity on each of the Weight Plate Post (5) is 50kgs.
5. The total assembly length is 1040mm.
6. The size for each of the Weight Plate Post (5) is 185mm (L) x 25mm (Dia).
5
4
Max. 100Kgs
Max. 20Kgs
Max. 20Kgs
Max. 50Kgs
415mm
280mm
Page 10
11
1. The safety level of the
equipment can only be
maintained if it is examined
regularly for damage and wear
e.g. connection points.
2. Inspect and tighten all parts
before using the equipment.
Replace defective
components immediately and
and/or keep the equipment out
of use until repair.
3. Do not attempt to repair
this equipment yourself.
Should you have any difficulty
with assembly, operation or
use of your exercise product
or if you think that you may
have parts missing, contact
the Customer Helpline:
0345 640 2020.
www.argos-support.co.uk
Guarantee:
For guarantee purposes,
please retain your
purchase receipt.
Care and Maintenance
Care and Maintenance
9
Page 11
Exploded Parts Diagram
10
Page 12
Part
Description
Qty.
Part
Description
Qty.
1
Left Upright Frame
19φ25×1.5 End Cap
3
2
Right Upright Frame
110M10×70mm Carriage Bolt
4
3
Cross Beam
111M10×55mm Carriage Bolt
4
4
Dumbbell Rack
212M10×20mm Allen Bolt
3
5
Weight Plate Post
313φ10 Washer
11
6
Bracket
214M10 Aircraft Nut
8
7
□38×1.5 End Cap
415φ46×φ26×18 Rubber Bumper
3
8
□50×1.5 End Cap
6
6# Allen Wrench
1
Exploded Parts List
11
Page 13
Guarantee
Product Guarantee
This product is guaranteed against manufacturing defects from a period of
This product is guaranteed for twelve months from the date of original
purchase. Any defect that arises due to faulty materials or workmanship
will either be replaced, refunded or repaired free of charge where possible
during this period by the dealer from whom you purchased the unit.
The guarantee is subject to the following provisions:
• The guarantee does not cover accidental damage, misuse, cabinet parts,
knobs or consumable items.
• The product must be correctly installed and operated in accordance with
the instructions contained in this manual.
• It must be used solely for domestic purpose.
• The guarantee will rendered invalided if the products is re-sold or has been
damaged by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for the incidental or consequential
damages.
• The guarantee is in addition to, and does not diminish your statutory or
legal right.
• In the event of problem with the product with in the guarantee period call
Customer Helpline: 0345 640 2020 http://www.argos-support.co.uk/
Guarantor: Argos Ltd
489 – 499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
