Argos 4614351, ZKEN33R-WHO-AR, ZKEN33R-O-AR ASSEMBLY INSTRUCTIONS

MADE IN
BRITAIN
Dimensions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
Kensington - 3 Drawer 3 Door Robe
Assembly Instructions - Please keep for future reference
424/7429
402/7216
Width - 127.4cm
Depth - 49.5cm
Issue 1 - 19/06/15
Height - 198.8cm
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 85kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: It is recommended that this unit is secured to a wall using the overbalance protector kit supplied or, an alternative fixing method of your choice.
• Dispose of all packaging carefully and responsibly.
Rule
Tools required
Rule
ScissorsSquare
Spirit level
Hammer Bradawl
Eye protection (when using a hammer or drill)
Cross-head screwdriver
Step ladder
Electric drill (only use when drilling into walls)
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
2
7
8 9
14
Left Side (DF3773)
(197.3 x 47.5cm)
Divider (DF3776)
(197.3 x 47.5cm)
Right Side (DF3774)
(197.3 x 47.5cm)
Top (DF3772)
(127.4 x 49.5cm)
Narrow Rail (DF3777)
(40 x 8.9cm) x 2
Front Plinth (DF3775)
(127.4 x 9.2cm)
Side Plinth (DF2431)
(47.5 x 9.1cm) x 2
Rail (DF2412)
(79.7 x 8.9cm) x 5
10
Large Shelf (DF2413)
(79.7 x 47.4cm)
6
11
Large Hanging Rail (FHR791)
(79.1cm long)
12
Small Hanging Rail (FHR394)
(39.4cm long)
13
15 17
1816
Drawer Front (DF2414)
(79.1 x 19.2cm) x 3
Drawer Back (W765-124)
(76.5 x 12.4cm) x 3
Left Drawer Side (W370-124LH)
(37 x 12.4cm) x 3
Drawer Base (T776-367)
(77.6 x 36.7cm) x 3
Right Drawer Side (W370-124RH)
(37 x 12.4cm) x 3
1 2 3
4 5
Narrow Shelf (DF3778)
(40 x 45cm)
Narrow Base (DF3779)
(40 x 47.4cm)
Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
3
19
Large Door (DF3767)
(184.5 x 39.4cm)
20 21
Small Left Door (DF3874)
(120.6 x 39.4cm)
Small Right Door (DF3780)
(120.6 x 39.4cm)
Small Back (X1892-419)
(189.2 x 41.9cm)
Large Back (X1914-816)
(191.4 x 81.6cm)
22 23
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
4
A B
D E F
G H I
L
N
Small locking nut (F3) x 6
C
Nail (F51) x 42
M
J K
O
Drawer runner (F1004) x 6
Knock-in Peg (F171GY) x 12
Large locking nut (F900) x 34
Metal dowel (F901) x 38
Wooden dowel (F22) x 30
25mm Screw (F50) x 6
19mm Screw (F461) x 9
9mm Screw (F74) x 6
9mm Screw (F73) x 12
Plastic Nail (F91) x 6
Handle (F220) x 9
P Q
Hinge plate (F523) x 10
Hinge (F522) x 10
S
Shelf stud (F110) x 2
Rail Holder (F891) x 4
13mm Screw (F63) x 28
Wedgefix (F639) x 12
R
U
W X
Back holder (F276) x 6
* These can also be round
Nail screw (F277) x 6
Large wooden dowel (F40) x 1
V
Double metal dowel (F566) x 1
T
Strap
Screw Washer x 2
Overbalance protector kit (F269) x 1
Assembly Instructions
5
Step 1
1
A
A
C
C
C
C
2
3
Step 2
Prepare the 3 drawer fronts
Screw 2 metal dowels into each of the 3 drawer fronts .
Note: Tighten the metal dowels up fully against the panels.
A
1
Prepare the drawer sides
Insert a small locking nut into the hole shown on the left drawer side and the right drawer side .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Step 3
C
2
3
Attach the drawer sides to the drawer fronts
Push the left drawer sides . and right drawer sides . onto the back of the drawer fronts .
Turn the small locking nuts on the left drawer side and right drawer side .
Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.
2 3
1
C
C
2 3
A
A
1
2
3
x 3
x 3
x 3
x 3
Assembly Instructions
6
Step 4
1
F
F
Fit the drawer base
Slide the drawer base down the grooves in the drawer sides and and down into the groove in the drawer front .
Step 5
Fit the drawer back
Fit the drawer back between the drawer sides and . Make sure that the drawer base fits into the groove in the drawer back .
Hold the drawer back in position and tap the knock-in pegs through the holes in the drawer sides and .
Step 6
5
2 3
1
4
2 3
5
4
4
F
2 3
Step 7
Fit the wedgefixes
Turn the drawer assemblies over and slide 4 wedgefixes into the front and back grooves, as shown, and tighten up the screws.
N
F
F
N
N
N
N
N
5
2
3
4
2
3
5
Attach the handles
Attach 2 handles to each drawer front using screws .
H
1
R
H
H
R
R
1
x 3
x 3
x 3
x 3
D
D
Assembly Instructions
7
Step 8
K
O
K
O
Prepare the divider
a: Place 3 runners on
the divider as shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .
Fit 3 hinge plates onto the divider , making sure that the slot is facing towards the finished front edge.
b: Slide the runners
back the other way and fit the 2nd screw into the corresponding holes in the divider .
Insert 2 large locking nuts into the divider . .
Note: The arrow on the locking nuts must point towards the hole in the edge of the panel.
Tap 2 wooden dowels into the divider .
c: Screw 6 metal
dowels into the divider .
To fit the rail holder screw through the top hole with screw and into the mark hole drilled in the divider . Make sure that it is fitted straight, in line with the panel edges and then fit another screw using the lower hole.
9
J
J
B
9
9
M
M
A
9
D
9
P
9
O
K
9
K
P
J
M
a:
b:
c:
Finished
front edge
J
M
J
M
J
M
P
P
P
J
J
J
B
B
Finished
front edge
Finished
front edge
A
A
A
A
A
A
K
K
O
B
10mm
D
9
9
9
Finished
front edge
Finished
front edge
Assembly Instructions
8
Step 9
Turn the divider over and prepare its other surface
Screw 5 metal dowels into the divider .
To fit the rail holder screw through the top hole with screw and into the mark hole drilled in the divider . Make sure that it is fitted straight, in line with the panel edges and then fit another screw using the lower hole.
A
A
A
A
A
K
K
O
A
9
O
K
K
9
9
D
D
Prepare the large shelf
Insert 4 large locking nuts into the large shelf .
Tap 4 wooden dowels into the large shelf .
6
D
6
B
B
B
D
D
B
B
Finished
front edge
6
Step 11
Fit the large shelf to the divider
Push the large shelf onto the divider .
Use a screwdriver to tighten the 2 large locking nuts fitted to the large shelf .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
6
9
B
B
6
A
B
Step 10
Finished
front edge
6
9
Finished
front edge
D
D
Assembly Instructions
9
Step 12
Prepare the narrow base
Insert 4 large locking nuts into the narrow base .
Tap 4 wooden dowels into the narrow base .
11
D
11
B
B
B
B
B
D
D
Finished
front edge
9
Step 13
Fit the narrow base to the divider
Push the narrow base onto the divider .
Use a screwdriver to tighten the 2 large locking nuts fitted to the narrow base .
11
9
B
11
11
11
D
Step 14
B
B
Prepare 1 of the narrow rails
Insert 2 large locking nuts into the narrow rail .
Tap 1 wooden dowel into the narrow rail .
15
D
15
B
15
10
11
Narrow Shelf (DF3778)
(40 x 45cm)
Narrow Base (DF3779)
(40 x 47.4cm)
Assembly Instructions
10
Step 15
V
U
V
U
c:
b:
a:
Fit the narrow rail
a: Position the narrow rail
. up against the 2 holes in the divider .
b: Tap a double metal
dowel through the divider and into the narrow rail until it ‘’bottoms out’’.
Tap a large wooden dowel through the divider and into the narrow rail until it ‘’bottoms out’’.
c: Use a screwdriver to
tighten the large locking nut fitted to the narrow rail .
15
15
9
9
V
U
B
9
15
15
9
15
15
D
Step 16
B
D
B
Prepare the other narrow rail
Insert 2 large locking nuts into the narrow rail .
Tap 2 wooden dowels into the narrow rail .
15
D
15
B
15
Assembly Instructions
11
Step 17
15
Fit the narrow rail to the divider
Push the narrow rail onto the divider .
Use a screwdriver to tighten the large locking nut fitted to the narrow rail .
15
9
B
15
9
Step 18
D
D
Prepare the narrow shelf
Insert 4 large locking nuts into the narrow shelf .
Tap 4 wooden dowels into the narrow shelf .
10
D
10
B
B
B
B
B
D
D
Finished
front edge
10
Step 19
Fit the narrow shelf to the divider
Push the narrow shelf onto the divider .
Use a screwdriver to tighten the 2 large locking nuts fitted to the narrow shelf .
10
9
B
10
10
9
Assembly Instructions
12
Step 20
D
D
P
P
P
P
A
A
A
A
A
B
B
A
K
K
O
Prepare the right side
a: Screw 6 metal
dowels into the right side .
Insert 2 large locking nuts into the right side .
Tap 2 wooden dowels into the right side .
b: Fit 4 hinge plates
onto the right side , making sure that the slot is facing towards the finished front edge.
To fit the rail holder screw through the top hole with screw and into the mark hole drilled in the right side . Make sure that it is fitted straight, in line with the panel edges and then fit another screw using the lower hole.
B
8
A
8
D
8
P
8
O
K
8
K
a:
b:
Finished
front edge
Finished
front edge
8
8
8
Step 21
Fit the right side
Push the right side onto the assembly.
Use a screwdriver to tighten the 6 large locking nuts fitted to the narrow shelf , narrow base and the 2 narrow rails .
8
B
10
11
15
10
11
15
15
Finished
front edge
D
D
Finished
front edge
Finished
front edge
Assembly Instructions
13
Step 22
Prepare the left side
a: Place 3 runners on
the left side as shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw .
Fit 3 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.
b: Slide the runners
back the other way and fit the 2nd screw into the corresponding holes in the left side .
Insert 2 large locking nuts into the left side . .
Note: The arrow on the locking nuts must point towards the hole in the edge of the panel.
Tap 2 wooden dowels into the left side .
c: Screw 7 metal
dowels into the left side .
To fit the rail holder screw through the top hole with screw and into the mark hole drilled in the left side . Make sure that it is fitted straight, in line with the panel edges and then fit another screw using the lower hole.
7
J
J
B
7
7
M
M
A
7
D
7
a:
b:
c:
J
M
K
O
K
O
P
P
7
O
K
7
K
B
10mm
D
J
M
J
M
J
M
P
P
P
7
J
J
J
7
7
B
B
K
K
O
A
A
A
A
A
A
A
Assembly Instructions
14
Step 23
Step 25
17
Note: The holes for this rail must be on this side
17
D
B
D
B
Prepare 4 rails
Insert 2 large locking nuts into 4 of the rails . .
Tap 2 wooden dowels into 4 of the rails .
17
D
17
B
Prepare the other rail
Insert 2 large locking nuts into the rail .
Tap 1 wooden dowel into the rail .
17
D
17
B
x 4
x 4
17
B
D
B
x 1
x 1
17
Fit the 5 rails
Push the 5 rails onto the divider .
Use a screwdriver to tighten the large locking nut fitted to each of the 5 rails .
Step 24
17
9
B
17
17
17
17
9
Note: Fit this rail last and support it until the left side has been fitted in the next step.
Assembly Instructions
15
Step 26
17
17
17
17
17
7
Fit the left side
Push the left side onto the assembly.
Use a screwdriver to tighten the 7 large locking nuts fitted to the large shelf and the 5 rails .
7
B
6
17
6
Prepare the top
Screw 6 metal dowels into the top .
A
14
A
A
A
A
A
A
Step 27
14
G
G
Polystyrene
block
Polystyrene
block
Assembly Instructions
16
Step 28
Fit the top
Note: To make it easier to fit the top and plinths, place polystyrene blocks from the packaging underneath the side and divider panels to raise the assembly.
Push the top onto the assembly.
Use a screwdriver to tighten the 6 large locking nuts fitted to the sides and and the divider .
B
7 8
9
14
Step 29
Warning: The unit is heavy. Lift with care.
Secure the top rail to the top
Screw through the 2 holes in the top and into the top rail using 2 screws .
14
17
G
Polystyrene
block
Polystyrene
block
Polystyrene
block
Polystyrene
block
7
8
9
14
Polystyrene
block
Polystyrene
block
14
17
yy
xx
Assembly Instructions
17
Step 30
Fit the 2 back panels
a: Square up the unit by
making sure that measurement x:x equals
y:y.
Place the small back and large back , coloured surface facing down, onto the unit as shown.
Make sure that the 2 backs are pushed up tight against each other and that they meet in the centre of the divider’s back edge.
b: Nail around the
outside edges of the 2 backs.
Note: Do not nail where the 2 backs meet.
c: Push the nail screws
. through the back holders and tap them down between the small back and large back . and into the back edge of the divider .
Keep tapping the nail screws in until the back holders dig into the small and large back.
22
23
E
W
X
22
23
9
W
X
Note: If ever you need to take the backs off to dismantle the unit, the nail screws can be taken out using a screwdriver.
W
X
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Note: These can also be round
XW
+
c:
W
X
22
23
X
b:
E
yy
xx
22
23
9
Assembly Instructions
18
Step 31
Fit the 4 plastic nails
Tap 2 plastic nails into the bottom edge of each of the sides and . and the divider .
L
7
8 9
L
L
L
L
L
L
7
8
9
D
Prepare a side plinth
Insert a large locking nut into 1 of the side plinths .
Tap a wooden dowel into the side plinth .
16
B
16
D
Step 33
Prepare the other side plinth
Insert a large locking nut into the side plinth . .
Tap a wooden dowel into the side plinth .
16
B
16
D
B
D
Finished
top edge
16
Finished
top edge
16
B
Step 32
Fit the plinths
Position the 3 plinths around the outside of the assembly, ensuring that the bottom edge of the plinths are flush with the bottom edge of the sides, as shown.
Secure the 2 side plinths through the left side and right side using screws .
Carefully stand the unit up for the next step.
Profiled
top edge
Assembly Instructions
19
Step 34
Finished
top edge
Finished
top edge
Profiled
top edge
Prepare the front plinth
Screw 2 metal dowels into the front plinth .
Step 35
A
18
Fit the plinths together
Push the 2 side plinths onto the front plinth .
Use a screwdriver to tighten the large locking nuts fitted to the side plinths .
16
18
B
16
A
A
18
18
16
16
G
G
16
7
8
G
Warning: The unit is heavy. Lift with care.
G
G
16
16
8
7
16
Step 36
18
Fit the hanging rails and shelf studs
Push the large hanging rail and small hanging rail into the rail holders .
Push the 2 shelf studs down into the holes in the large shelf to act as door buffers.
Assembly Instructions
20
Step 37
Step 38
Fit the drawers
Starting with the bottom drawer, slide both the runners forward and locate the drawer sides . and between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners .
Working from the inside of the drawer, insert 2 screws through the drawer sides and out into the 2nd threaded hole in the runner.
Note: Do not overtighten the screws . If they catch on the runner you may need to loosen them slightly.
I
M
M
I
2nd threaded
hole
M
I
2 3
I
I
2
3
12 13
O
S
6
1312
O
12
S
S
13
6
Assembly Instructions
21
Step 39
Step 40
Prepare the 2 small doors
Push fit 3 hinges into each of the 2 small doors . and .
Secure each hinge with 2 screws .
Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
K
Q
19 20
90
Q
Q
K
K
Q
K
K
Q
K
K
Q
K
K
Q
K
K
Q
K
K
20
19
Prepare the large door
Push fit 4 hinges into the large door .
Secure each hinge with 2 screws .
Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
K
Q
21
Q
K
K
Q
K
K
Q
K
K
Q
K
K
21
Assembly Instructions
22
Step 41
Fit doors and handles
Note: The easiest way to attach each door , and is to fit the top hinge first, then align and fit the other hinges.
a: Push the hinge
onto the front part of the hinge plate . The recess at the bottom of screw B goes into the slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge plate as you slide it across as far as it will go. Tighten screw A.
c: The hinge must be
flat against the hinge plate prior to any adjustment.
d: The hinge must
NOT be AT AN ANGLE to the hinge plate when assembled. This would indicate that the recess at the bottom of screw B had not located in the slot in the hinge plate and the hinge would not be secure. Remove the hinge from the hinge plate and then re-assemble being careful to follow instructions a-c.
e: Attach a handle to
each door , and using screws .
Q
Q
Q
P
P
P
Q
P
R
H
19 20
21
19 20 21
a: b:
c: d:
P
Q
P
P
B
P
Q
Q
Q
A
Q
P
B
e:
R
H
21
19
20
R
R
Assembly Instructions
23
Step 42
b:
c:
d:
a:

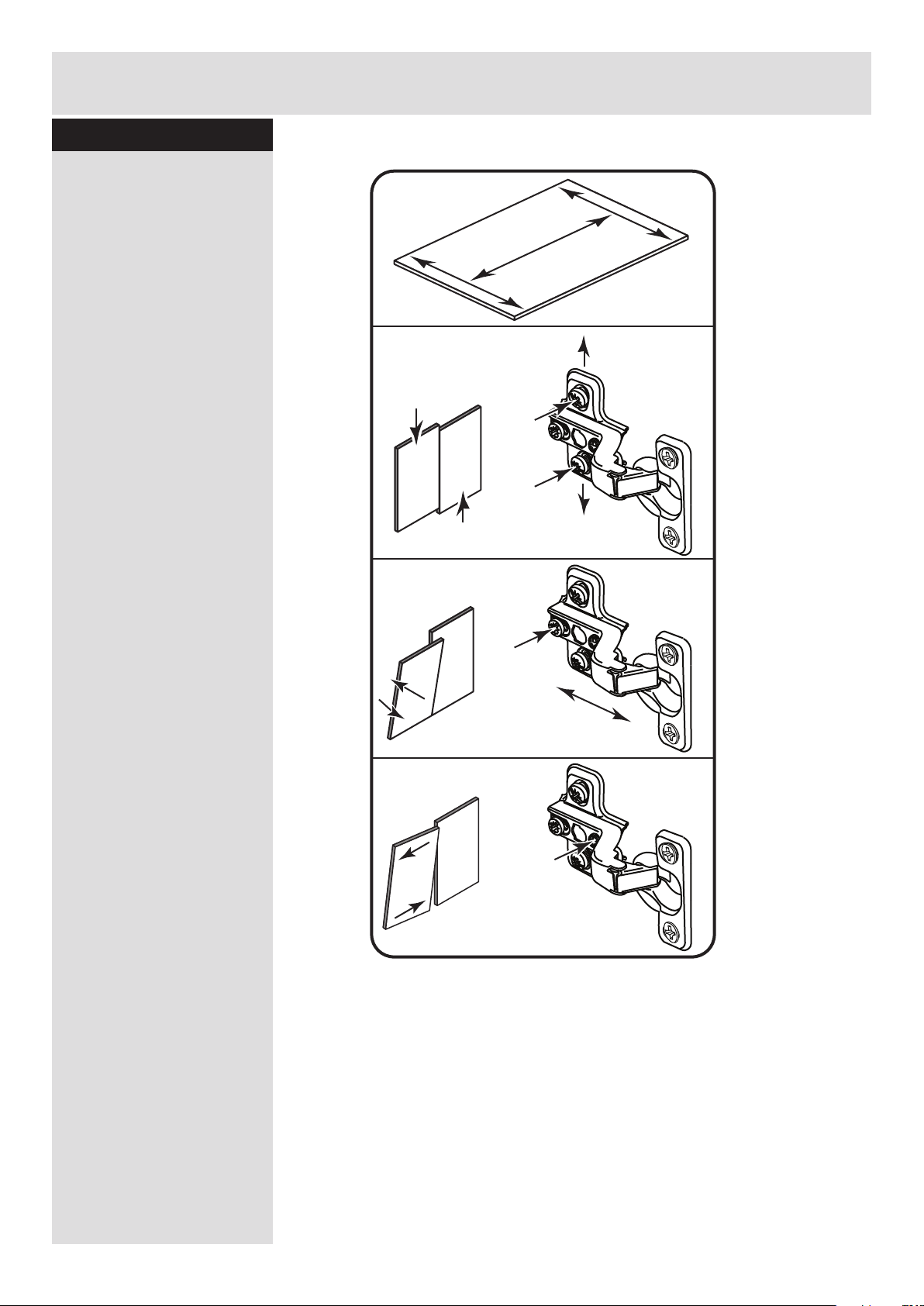

Adjust the doors if needed
a: Before adjusting the
doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges, as shown.
b: Height adjustment.
Loosen screws A on hinge plates and move door up or down as required. Retighten screw A.
c: Forward and Back
adjustment. Loosen screw B on hinge plate and move door in or out as required. Retighten screw B.
d: Sideways
adjustment. To move door ‘out’ loosen screw C. To move door ‘in’ tighten screw C.
A
A
B
C
Assembly Instructions
Step 43
24
Fit the overbalance protector
To prevent possible overbalancing we recommend that this unit is secured to a suitable wall by fitting of the overbalance protector kit . to the unit, or an alternative fixing method of your choice.
Wall fixings are not supplied as they will need to suit the wall type.
Note: Take care when drilling the wall that you do not drill into any pipes, wires etc. If in doubt, consult an expert.
T
T
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
T
Strap
Washer
Screw
TOP OF UNIT
T
Assembly Instructions
25
Step 44
Assembly is complete
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020
ALR3178
Loading...
