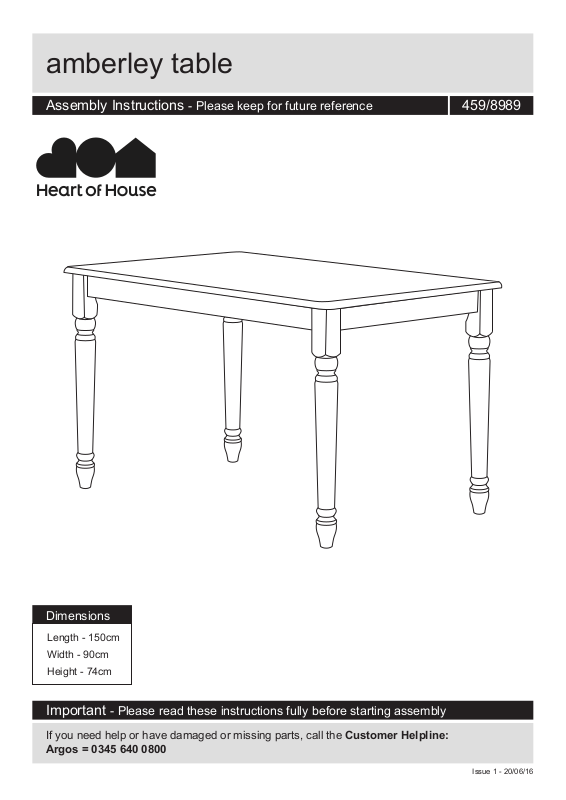

amberley table
Assembly Instructions - Please keep for future reference
459/8989
Dimensions
Length - 150cm
Width - 90cm
Height - 74cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 1 - 20/06/16
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• During assembly do not stand
or put weight on the product, this
could cause damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Do not stand on the product.
• Always lift the product when
moving it around. Never drag.
• Please note wood is a natural
material, some slightly colour
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Unit weight: 31.5 kgs.
and grain variation and natural
marks will be present.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the
bolts.
• Regularly check and ensure
that all bolts and fittings are
tightened properly.
1
Page 3
If you have damaged or missing components, call the
Components - Parts
Customer Helpline: Argos = 0345 640 0800

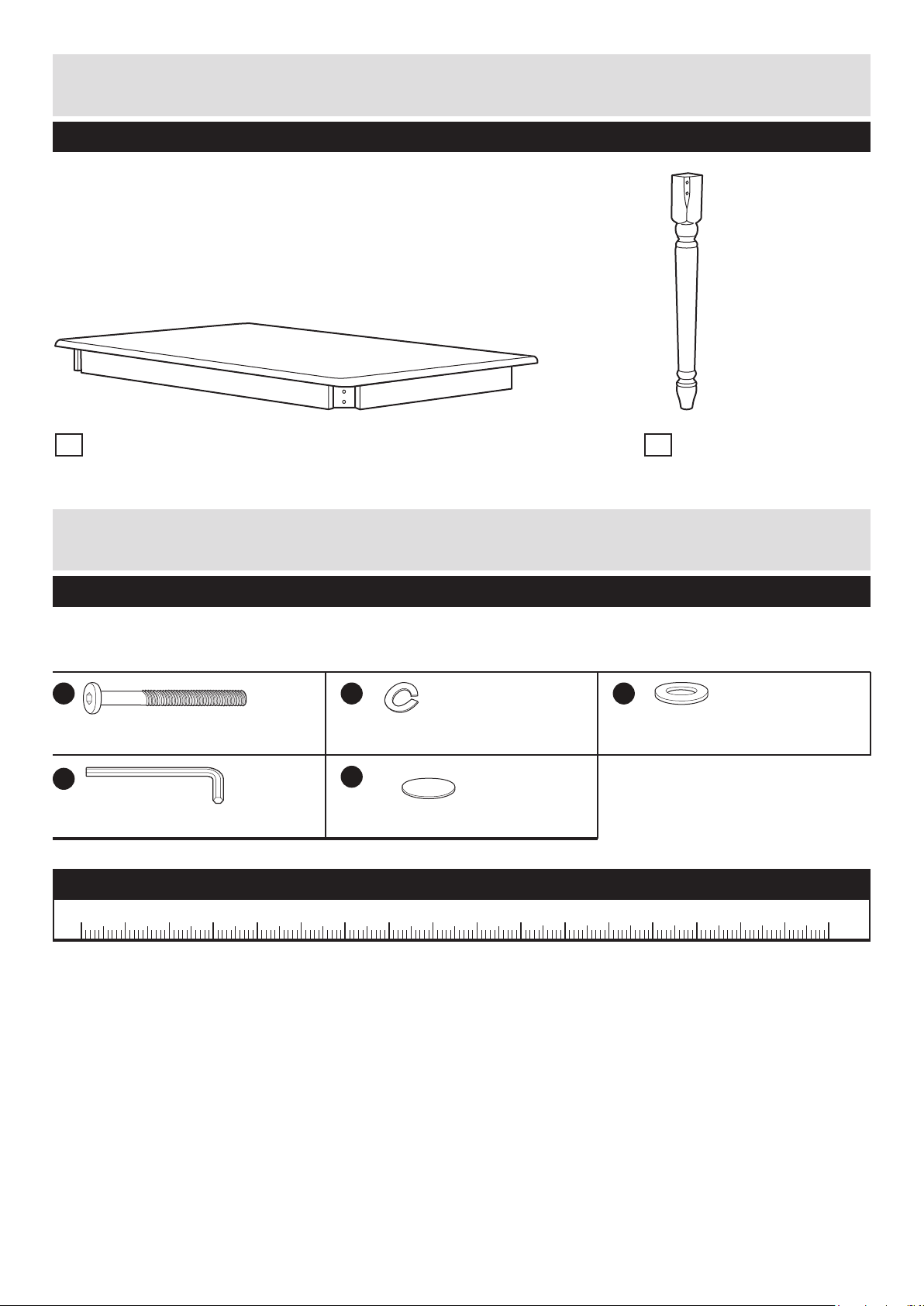

Please check you have all the parts listed below
1 Leg x 4
Table top
(150 x 90 x 11cm)
2
(8 x 8 x 72cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
M8 x 60mm Bolt x 8
D
Allen Key x 1
B
Spring Washer x 8
E
Foot Pads x 4
Ruler - Use this ruler to help correctly identify the screws
C
Washer x 8
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4
Assembly Instructions

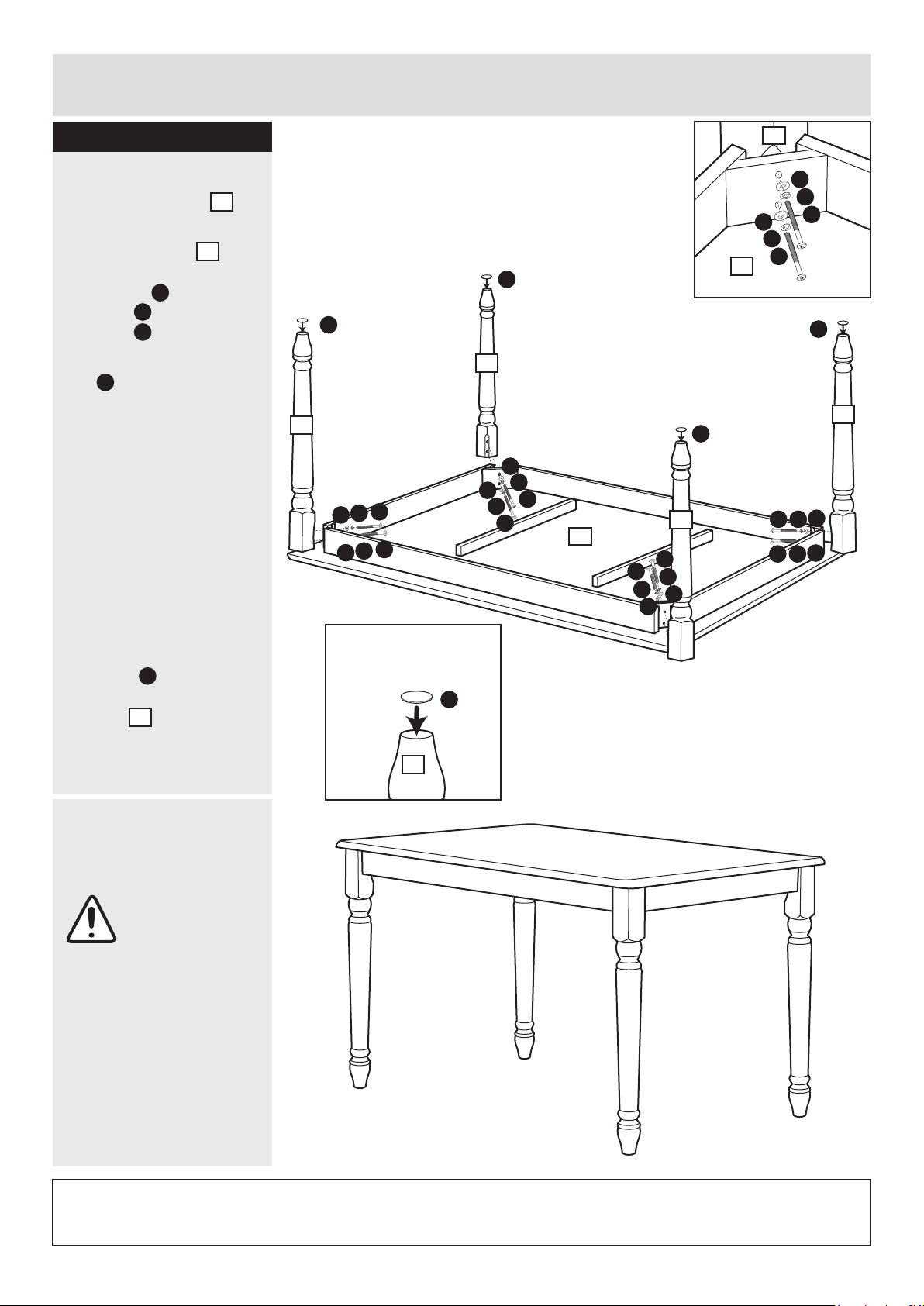

Step 1
Attaching legs
Place the table top on
a flat protected surface.
Position the legs on
the table top and fix
using bolts , spring
washers and flat
washers as shown.
A
B
C
Tighten bolts using allen
D
key .
1
2
2
C
B
B
A
A B
A B
A
E
2
C
C
C
E
E
2
2
C
B
C
A
A
B
C
A
B
C
B
A
1
2
A
A
B
B
C
C
1
E
Remove backing from
foot pads and carefully
E
position on the bottom of
the legs as shown.
2
Carefully turn over the
table and place on a firm
surface.
Note: At least 2
people are
required to lift
this table.
E
2
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
3
