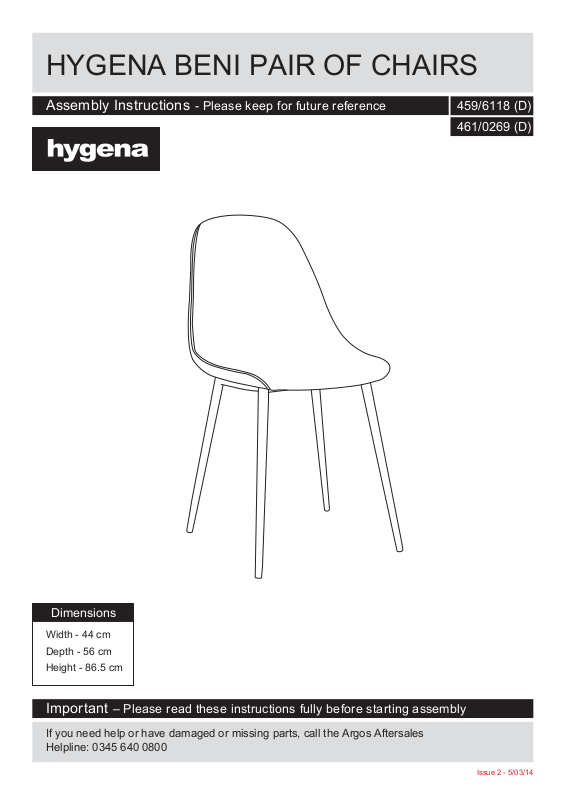

Page 1
HYGENA BENI PAIR OF CHAIRS
Assembly Instructions - Please keep for future reference
459/6118 (D)
461/0269 (D)
Dimensions
Width - 44 cm
Depth - 56 cm
Height - 86.5 cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Argos Aftersales
Helpline: 0345 640 0800
Issue 2 - 5/03/14
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
• Parts of the assembly will be
easier with 2 people.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• From time to time check that
there are no loose screws on
this unit.
• Regularly check and ensure
tightend properly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
Components - Panels
Please check you have all the panels listed below
1
Seat x 1
2
Leg x 1
2
Page 4
Components - Fittings
Note:
may be supplied than are required.
A
M6*20mm x 4
Toolsrequired
Allen key
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown).
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Page 5
Assembly Instructions
Step 1
Fitting the leg
Use bolt to attach leg 2
to seat 1
orientation.
A
with correct
a:
1
FRONT
A
2
Step 2
Finishing the Unit
Carefully place the unit in
the desired location.
Assembly is complete.
Argos Aftersales Helpline 0345 640 0800
4
