Assembly lnstructions - Please keep for future reference

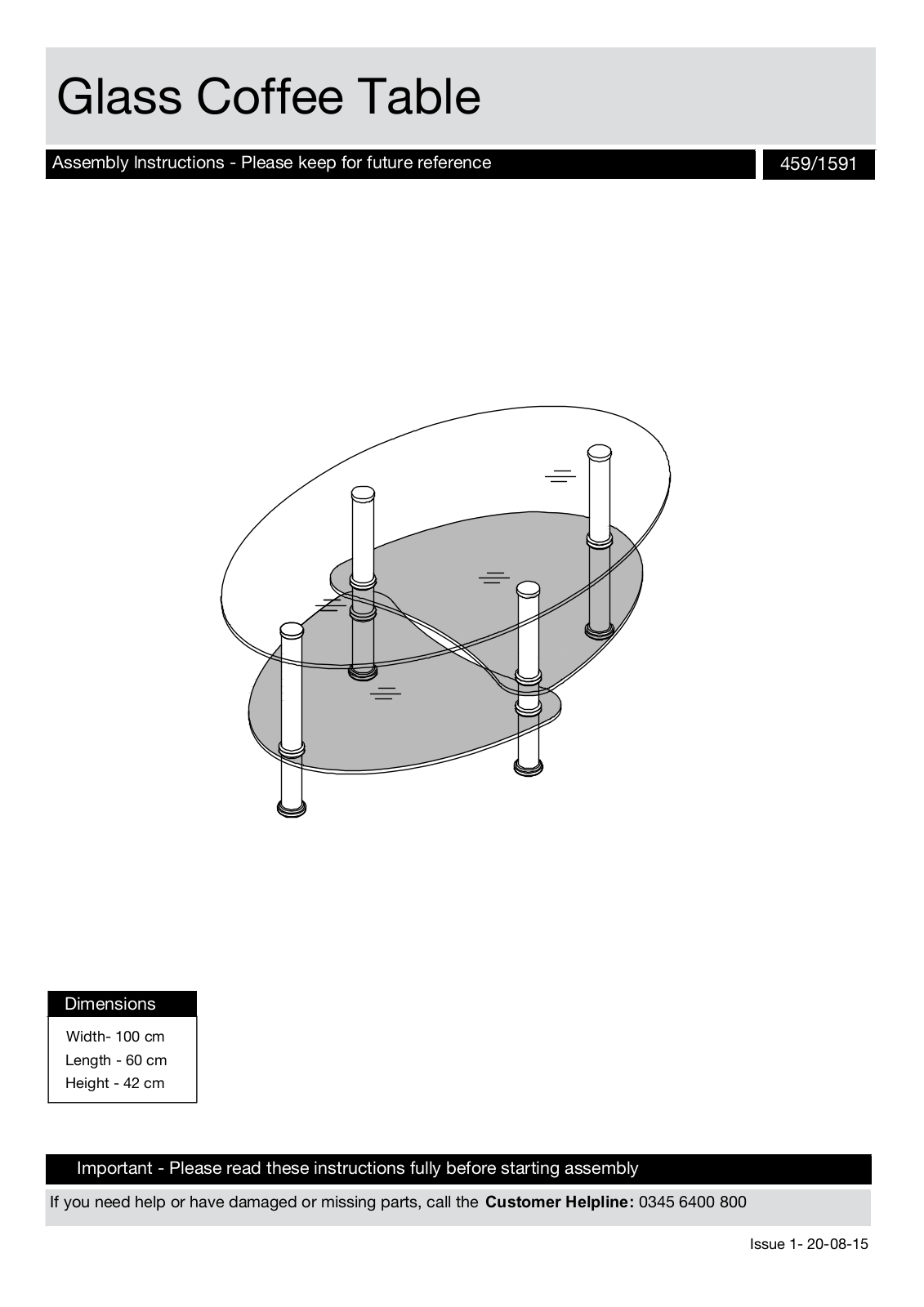

Glass Coffee Table
Width- 100 cm
Length - 60 cm
Height - 42 cm
Dimensions
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Important - Please read these instructions fully before starting assembly
Issue 1- 20-08-15
459/1591

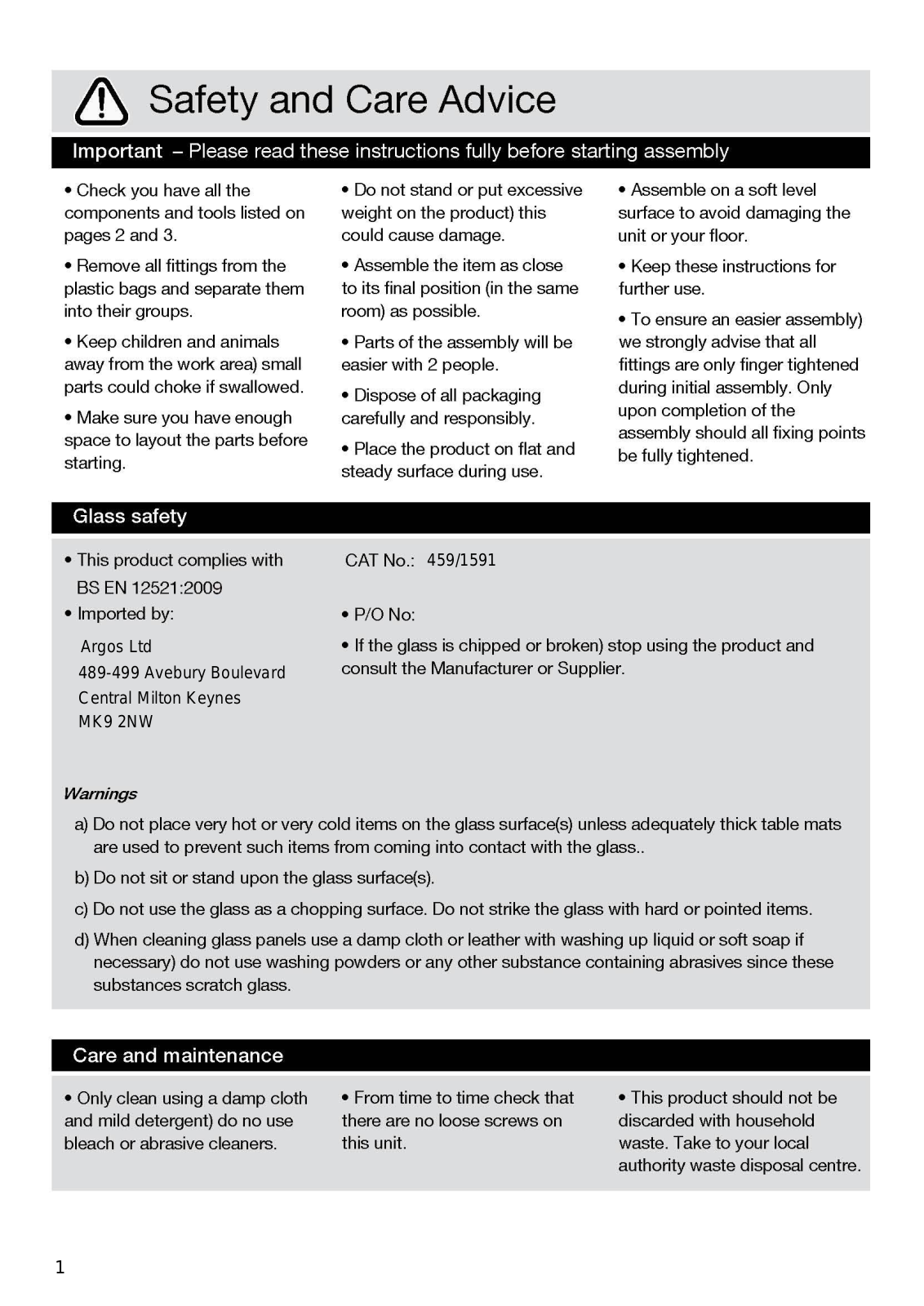

Page 2
Argos Ltd
489-499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
459/1591
1

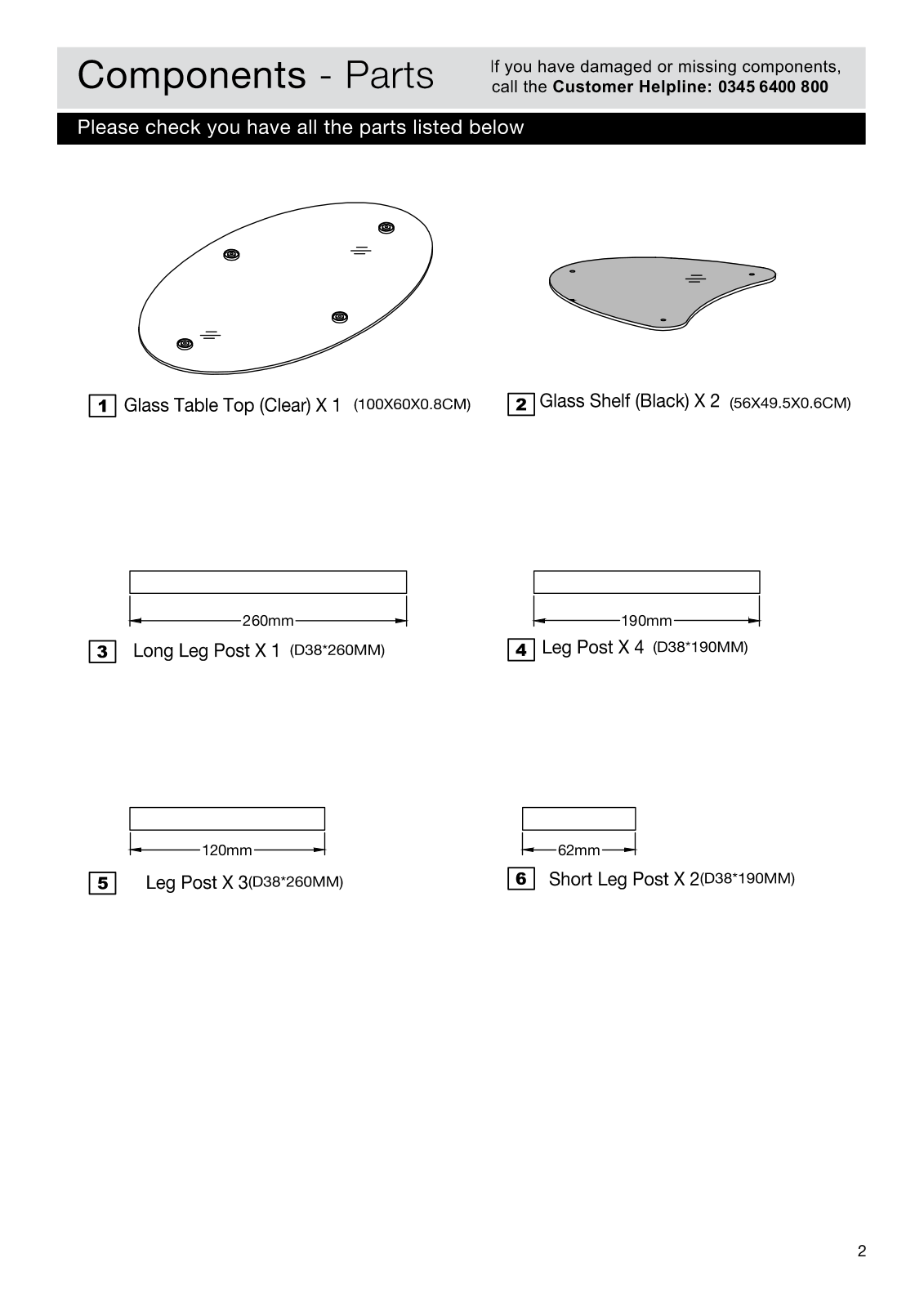

Page 3
2
0345 6400 800
260mm 190mm
62mm120mm
Page 4
M8*395mm Threaded rod x 4
D38mm plastic washer X 12
D50mm foot X 4
M8 Nuts x 4
spanner x 1
0345 6400 800
B C
D E
3
A
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170

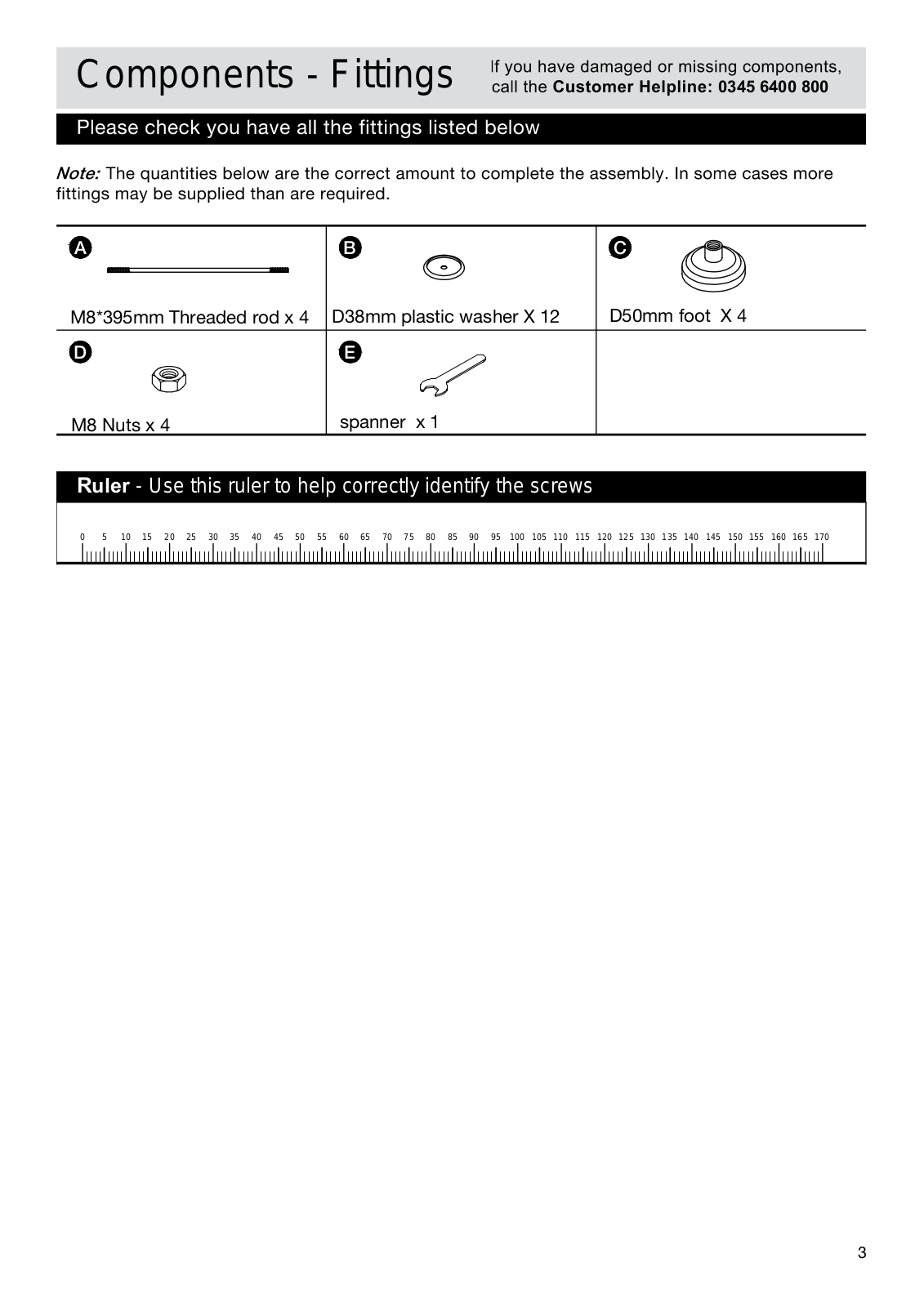

Components - Fittings
Page 5

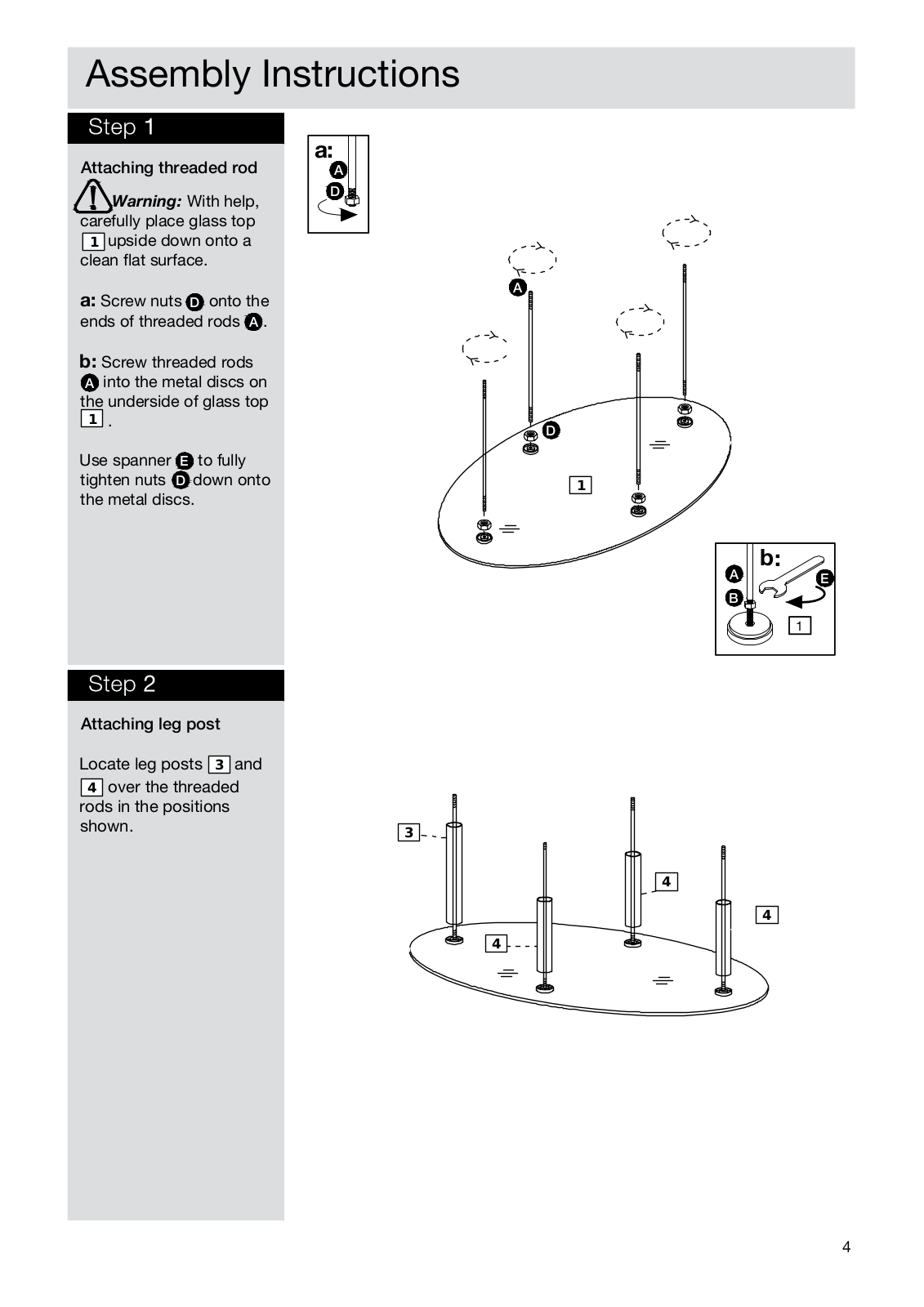

Attaching threaded rod
Warning: With help,
carefully place glass top
upside down onto a
clean flat surface.
a: Screw nuts onto the
ends of threaded rods .
b: Screw threaded rods
into the metal discs on
the underside of glass top
.
Use spanner to fully
tighten nuts down onto
the metal discs.
1
D
Attaching leg post
Locate leg posts and
over the threaded
rods in the positions
shown.
3
4
Assembly Instructions
A
D
a
:
b
:
1
1
3
4
4
4
4
A
A
1
E
D
A
D
A
B
E
Page 6
Assembly lnstructions
5
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW

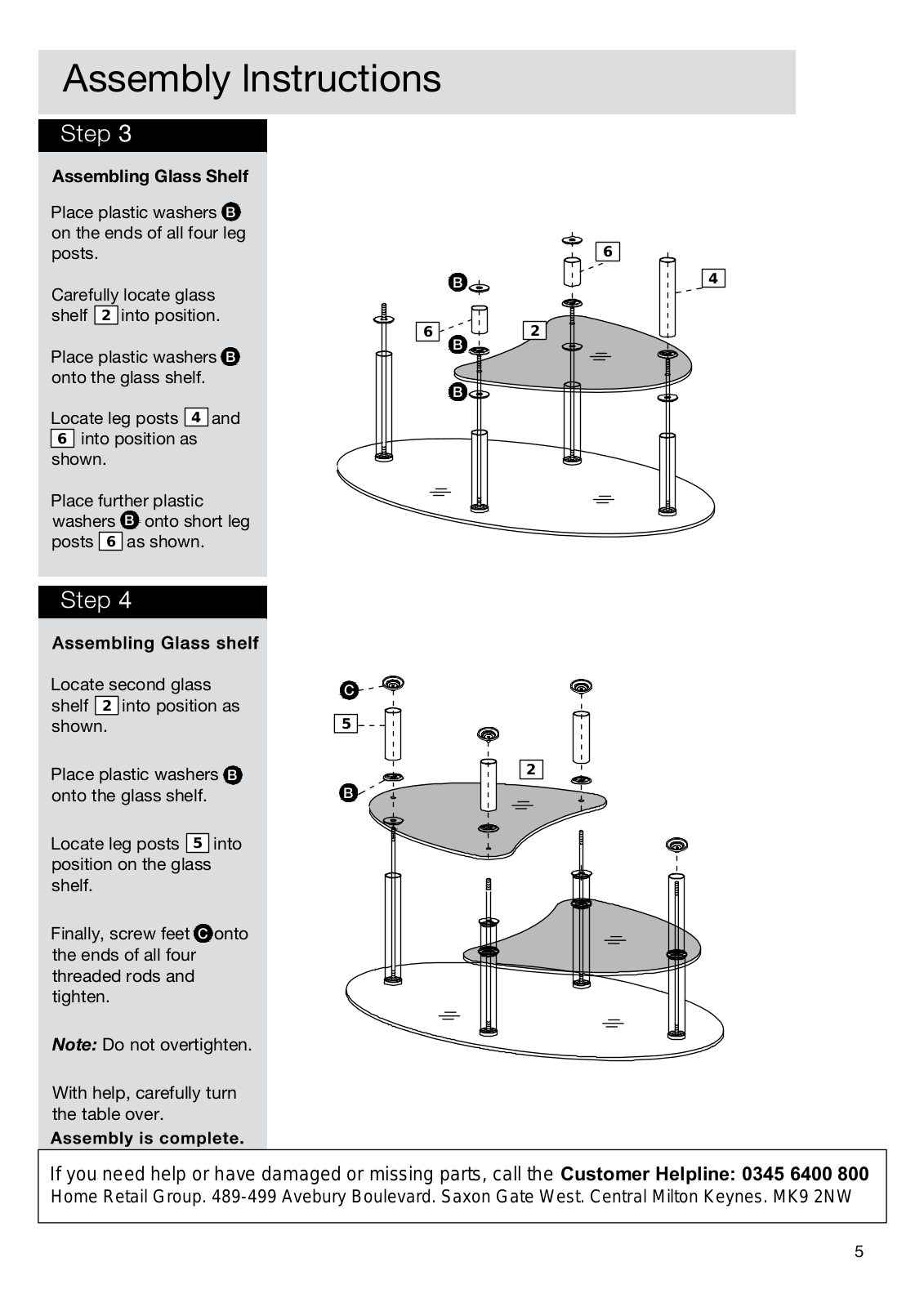

Assembling Glass Shelf
Place plastic washers
on the ends of all four leg
posts.
Carefully locate glass
shelf into position.
Place plastic washers
onto the glass shelf.
Locate leg posts and
into position as
shown.
Place further plastic
washers onto short leg
posts as shown.
5
Locate second glass
shelf into position as
shown.
Place plastic washers
onto the glass shelf.
Locate leg posts into
position on the glass
shelf.
Finally, screw feet onto
the ends of all four
threaded rods and
tighten.
Note: Do not overtighten.
With help, carefully turn
the table over.
2
B
2
B
4
6
B
6
B
5
6
2
B
B
B
C
B
2
4
C
6
