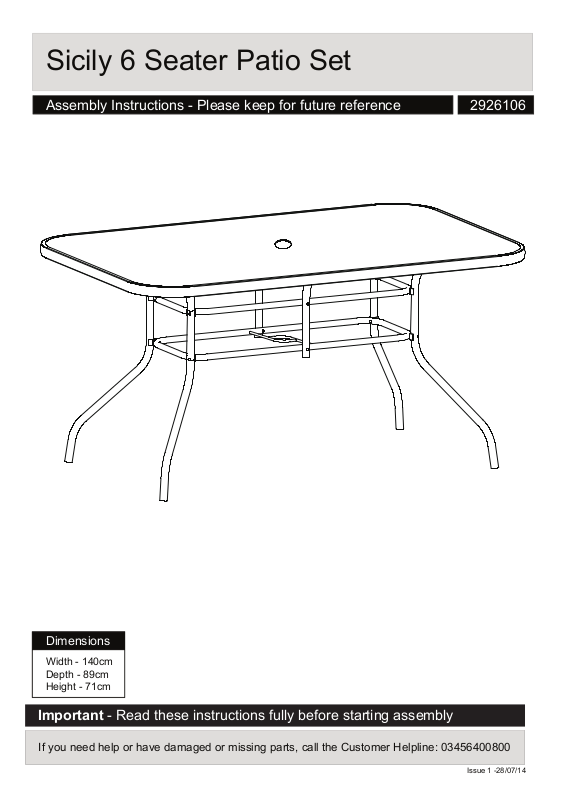

Sicily 6 Seater Patio Set
Assembly Instructions - Please keep for future reference 2926106
Dimensions
Width - 140cm
Depth - 89cm
Height - 71cm
Important - Read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
Issue 1 -28/07/14
Page 2
Safety and Care Advice
Important - Read these instructions fully before starting assembly
• This product is manufactured from
toughened safety glass. In the
unlikely event that the glass fails it
will break in to a large number of
small fragments that may be spread
over a wide area. This is a feature
of toughened glass ,designed to
remove the risk of Injury from glass
breaking into large shards.
• If the glass is chipped or broken ,
stop using the product and consult
the manufacturer or supplier.
• Check you have all the components
and tools listed on page 2.
• Remove all fittings from the plastic
bags and separate them into their
groups.
Care and maintenance
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the components during
assembly, this could cause
damage.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Dispose of all packaging carefully
and responsibly.
• Do not sit or stand on this table.
• Do not place very hot or very cold
items on the glass.
• Warning: The unit weighs
approximately 21.5 kgs.Please lift
with care.
Wash frame parts with mild
soap and water, rinse thoroughly,
and dry completely. Do not use
bleach, acid, or other solvents
on the frame parts.
Wash glass with mild soap and
water, rinse thoroughly, and dry
completely.
Do not use washing powders
or any abrasive substances
which may scratch the surface.
When moving the table,
remove the umbrella and lift. Do
not drag this table.
We recommend the use of
furniture covers when not in use.
Do not use the glass as
chopping surface. Do not strike
the glass with hard or pointed
items.
In order to prolong the life and
beauty of your table, we
recommend that it be stored in a
dry and protected area when not
in use.
1
Page 3

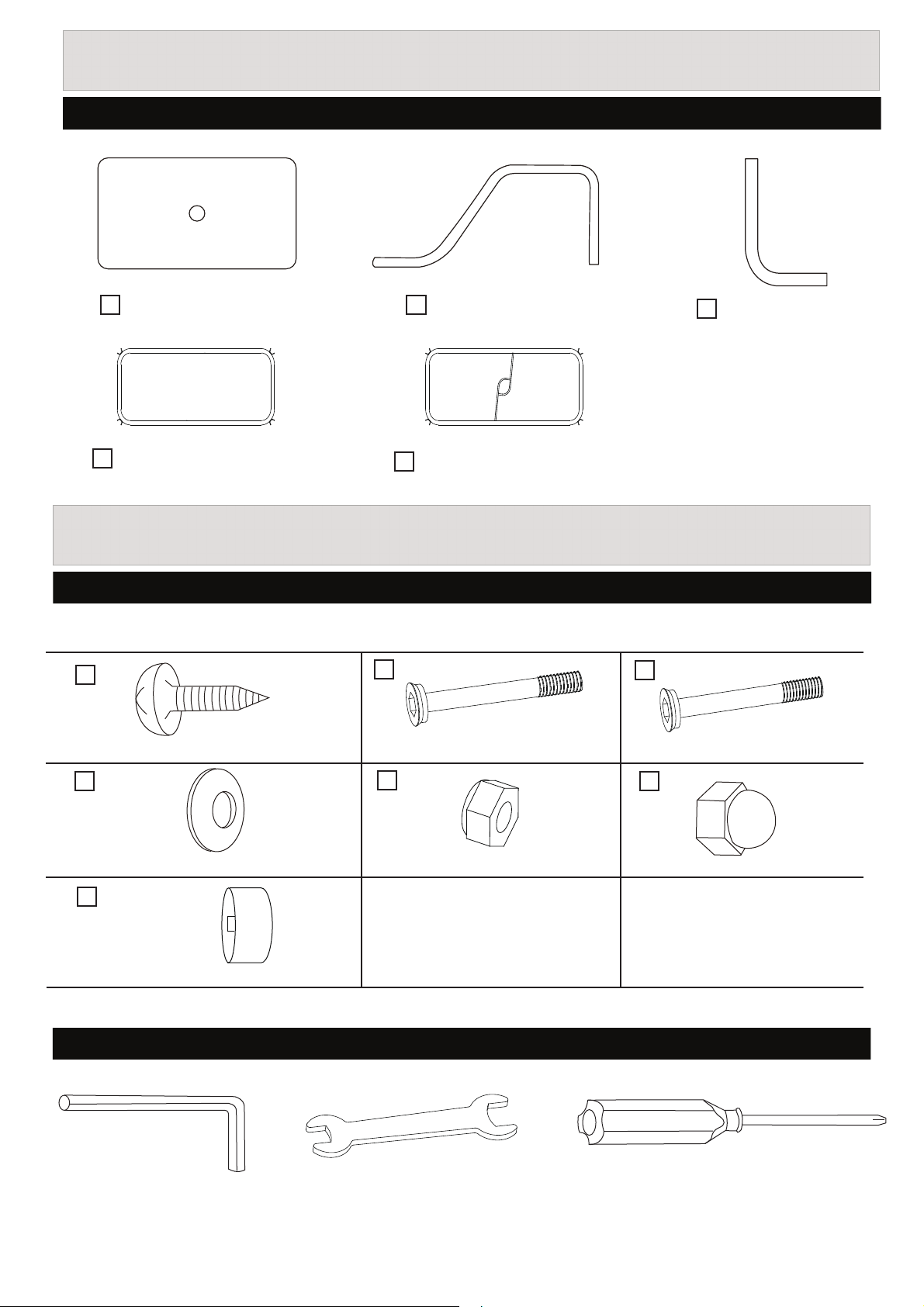

Components - Parts
Please check you have all the parts listed below
1
Table Top x 1
4
Center Connector x 1
2
Leg x 4
Center Connector
5
With Ring x 1
Support x 2
3
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly.
6
ST4.2 x 12 Screw x 6 M6 x 55mm Bolt x 8
7
C
8
M6 x 52mm Bolt x 4
9
D
d6.5 x D13 x 1.0 Washer x 24
12
M6 Bolt Cap x 12
10
E
M6 Metal Nut x 12
11
F
M6 x P1.0 Plastic Nut x 12
Tools required
4mm Hex Key 10 mm Nut Wrench Screwdriver (Provided By Customer)
2
Page 4
Assembly Instructions

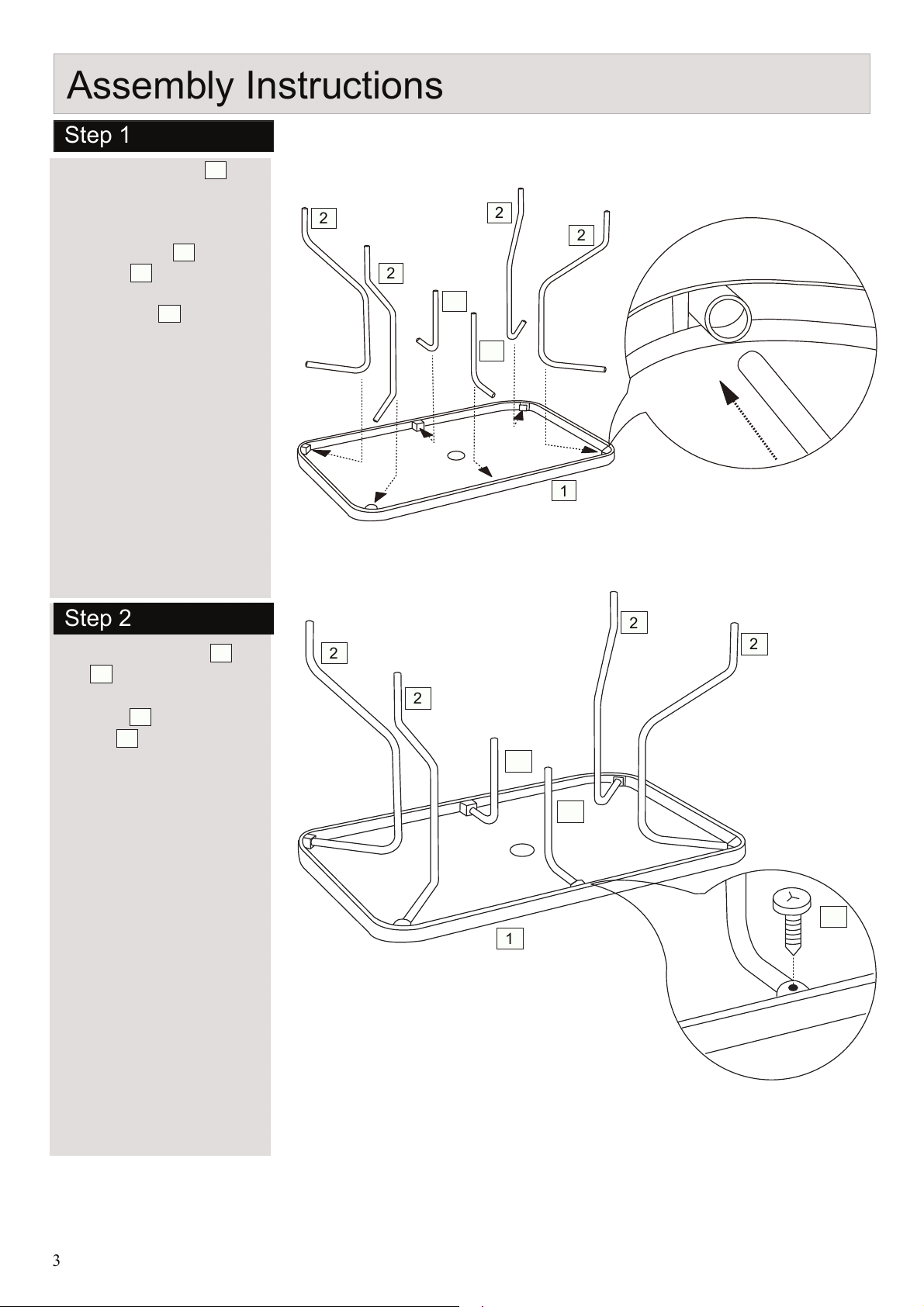

Step 1
Place the table top onto
1
a non-abrasive surface,
such as a carpet, with its
underside facing upwards.
Insert the legs and the
supports into the plastic
2
3
holders on the underside of
the table top rim.
1
2
2
2
2
3
3
1
Step 2
Attach the supports and
2
legs to the plastic holders
on the underside of the
table top rim by using
screws
1
.
6
3
2
2
2
3
3
1
2
6
3
Page 5
Assembly Instructions

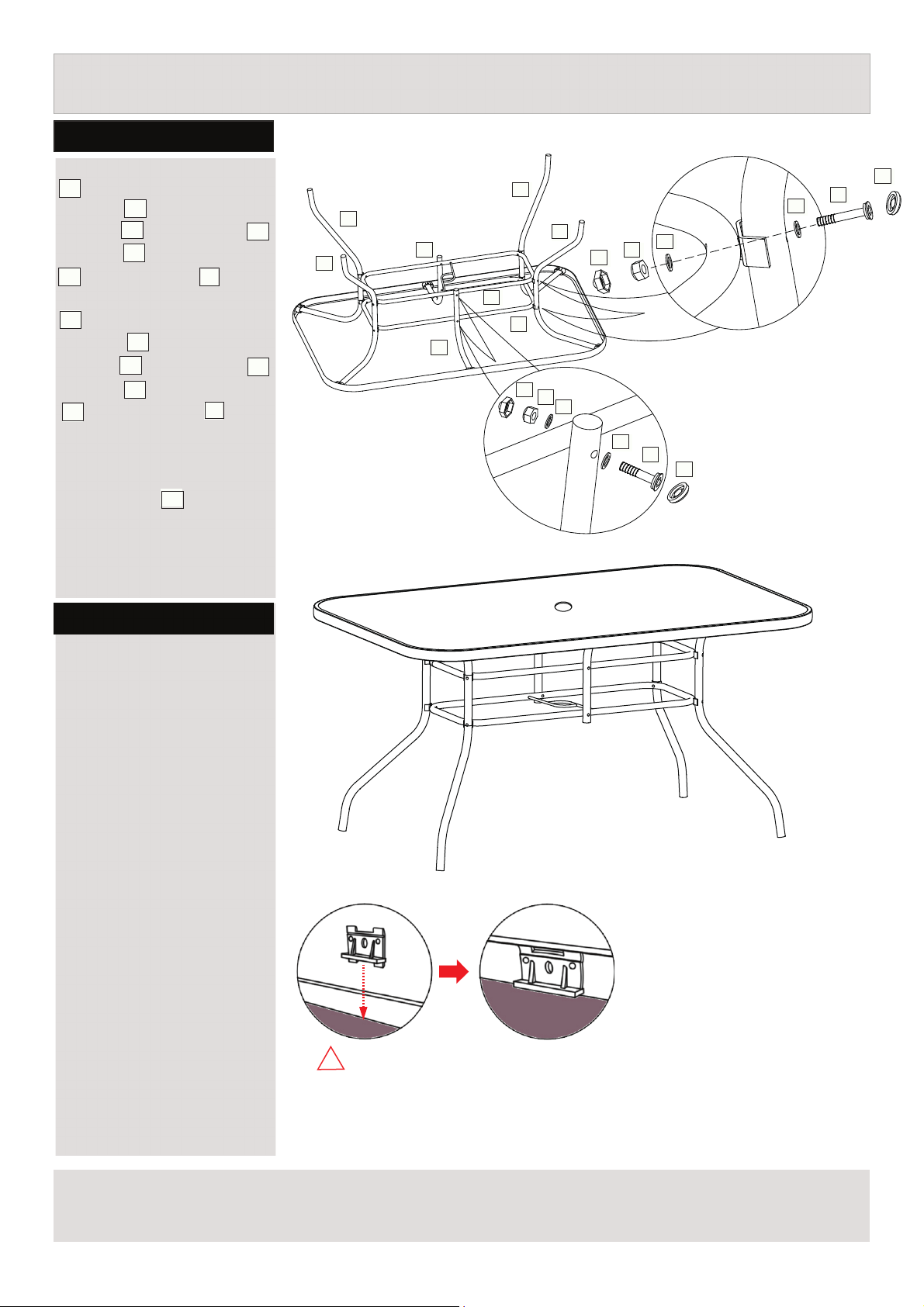

Step 3
Attach the center connector
and the center connector
4
with ring to the middle of
the legs
washers , Metal Nut
and palstic nuts .
10
5
2
by using bolts ,
9
11
7
Attach the center connector
and the center connector
4
with ring to the middle of
the legs
washers , Metal Nut
and palstic nuts .
10
5
3
by using bolts ,
9
11
8
Make
sure that all of the bolts
have been tightened
completely and cover them
with bolt caps .
12
2
2
3
2
5
3
2
11
4
11
10
9
9
10
9
8
12
9
12
7
Step 4
Turn the table to its upright
position.
Note:
To use an umbrella with this
table, remove the plastic
center plug and put the
umbrella pole through the
table top and center
connector ring.
Parts of the assembly will
be easier with 2 people.
A weighted umbrella base
shouid be used when using
an umbrella with this table.
!
Warning: Don't detach the plastic support
from the table frame! It is for glass support!
Assembly is completed.
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW
4
