Argos 452/8454 User guide

Page 1
Arlon
452/8454
Spare Parts
Visit: www.argos-support.co.uk
Call: 0330 016 1114
Customer Support
Call: 0345 640 2020
Issue 2 - 16/12/19
Page 2
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs approximately 34kgs. Please lift with care.
• Assembly to be carried out by a competent adult only.
• During assembly children should be kept away from the product due to possible risk of injury.
• Installation shall only be carried out exactly according to the manufacturer’s instructions ­otherwise a safety risk can occur if incorrectly installed.
• Do not use this item if any components are missing or damaged.
• Regularly check all fastenings to ensure they are properly tightened.
• WARNING: To prevent possible overbalancing this unit must be secured to a wall using the 2 overbalance protector kits supplied.
• A unit that is allowed to topple can cause serious or fatal injury. In addition to wall fixing the unit, place heavy items on the lower shelves, do not put any heavy objects on top of the unit and never allow children to climb or hang on drawers, doors or shelves.
• Refer to guide after section 28 for wall fixing information.
Care Advice
• Check you have all the components and tools listed on relevant pages.
• Remove all fittings from the specified plastic bag and separate them into their groups.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
• Assembly videos are available throughout these instructions by scanning in the QR codes.
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
• Dispose of all packaging carefully and responsibly.
• Only clean with a damp cloth.
Page 3
Cabinet Panels
1 71.4 x 58cm
4 119.8 x 58.6cm
DF-00020061
DF-00020062
2 71 x 56.4cm 3 71 x 56.4cm
5 75.6 x 28cm
DF-00020067
DF-00020055
6 37.1 x 6cm 7 37.1 x 9.2cm
DF-00020063
DF-00020064
DF-00021103
DF-00020065
8 37.1 x 56.2cm 9 37.1 x 56.2cm
Drawer Panels
DF-00020075
13 35 x 13cm
Note: the internal drawer panels are grey
12 39.5 x 19.3cm
14 35 x 13cm
DF-00020066
10 44.9 x 39.5cm 11 39.7 x 65.6cm
WRP-00000156WRP-00000157
15 33.85 x 13cm
DF-00020076
WRP-00000360
16 34.95 x 34.7cm
XDF-00020078
TDF-00020088
Page 4
Fittings
Use these drawings to
correctly identify the fittings
Bag 1
x 4
F73
ED
K
F901
A
A
x 16
F893
H
x 2
B
I
x 16
x 2
F900
C
F892
x 20
J
x 4
F22
F121
x 4
x 2
F63
F
F51
x 14
F269
G
F91
x 4
Bag 2
x 4
F639
F171GY
N
x 4
O
F259
R
F901
A
A
x 2
F52
P
x 4
L
x 2
Q
F607
M
x 2
F74
x 2
F258
x 2
Page 5

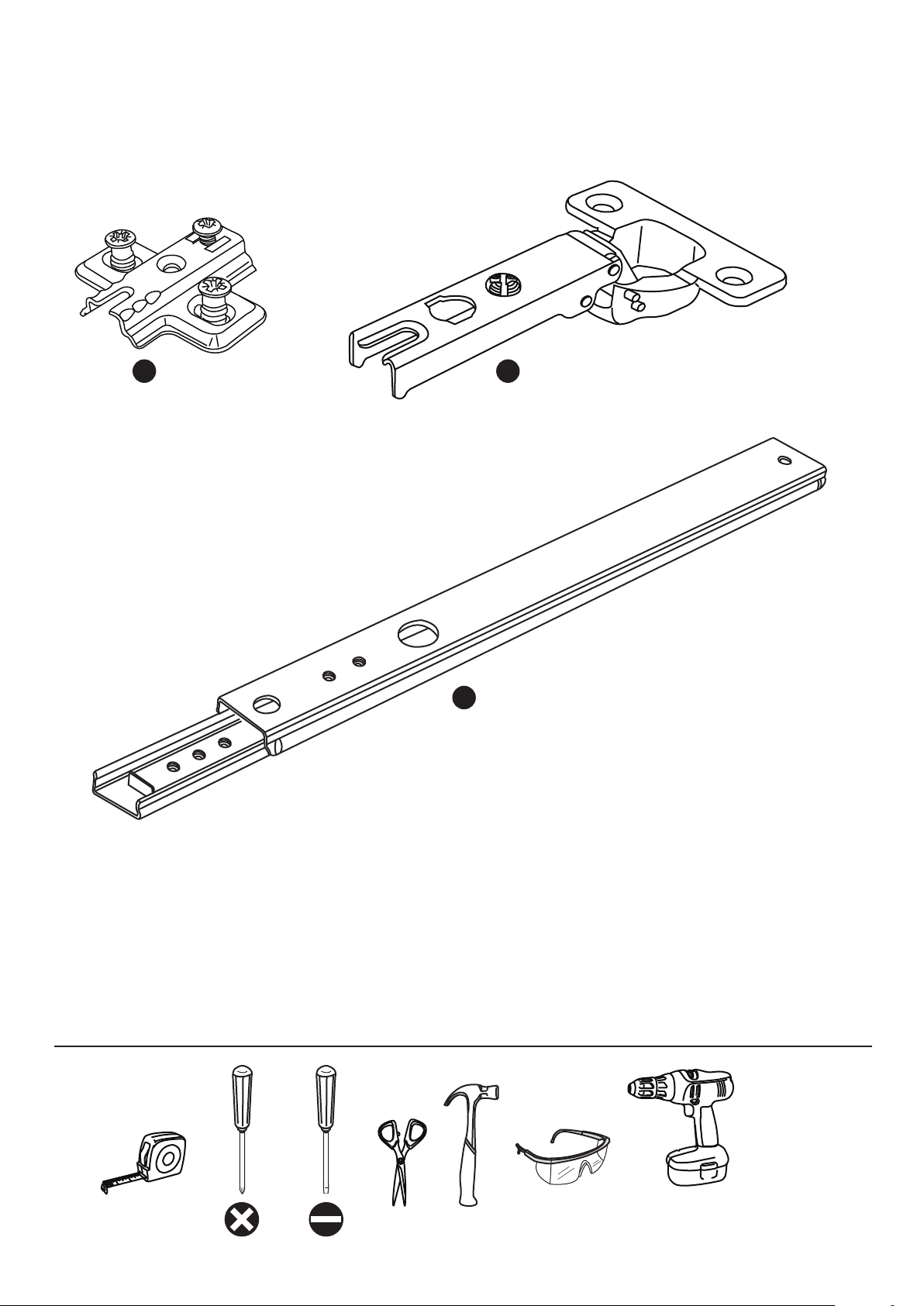

Fittings
Use these drawings to
correctly identify the fittings
F316
F574
S
x 2
T
x 2
F450
U
x 2
Tools
Only used for
drilling walls

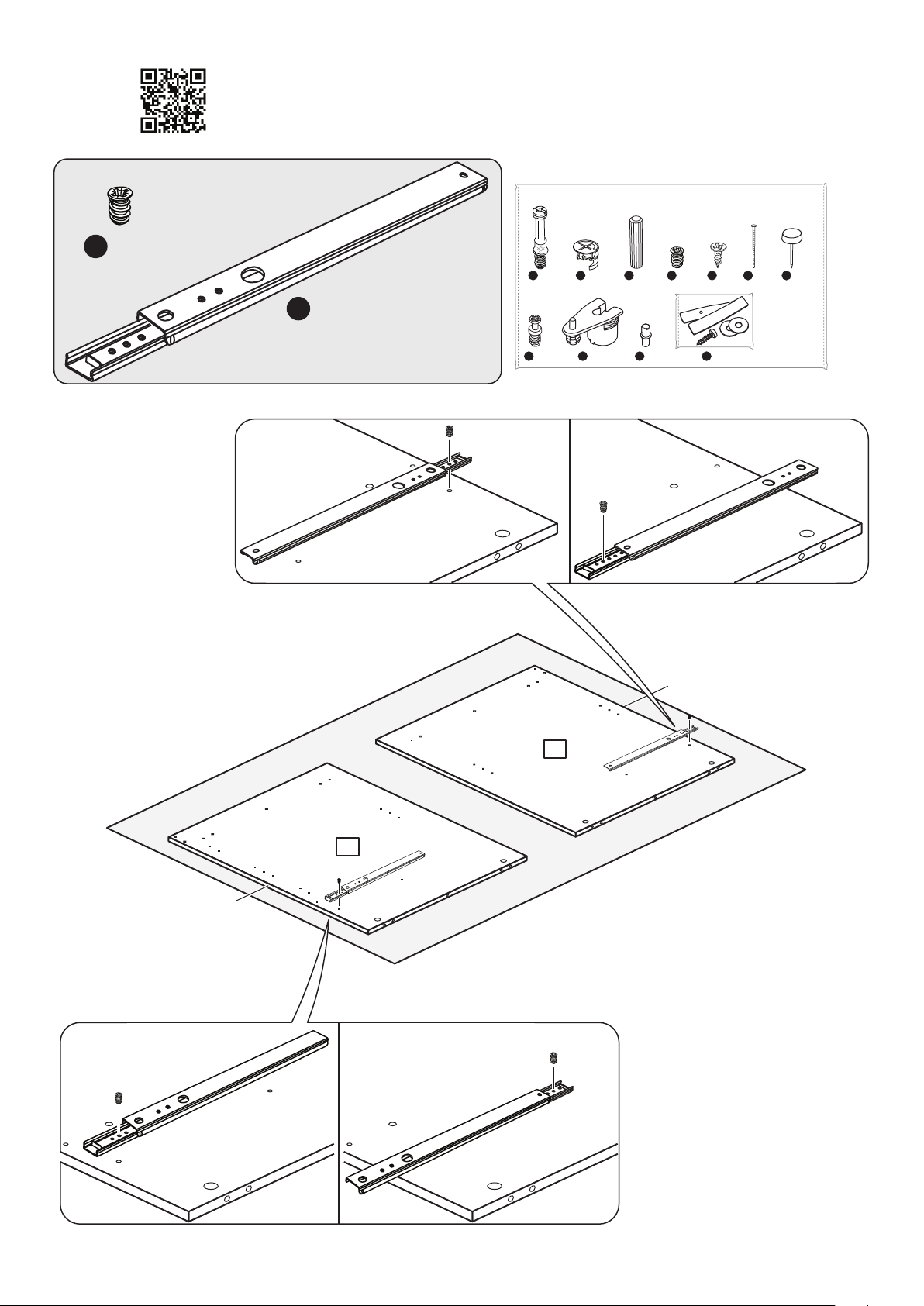

Page 6
1
D
x 4
Fitting Ball Bearing Runners
www.youtube.com/watch?v=yG4xtiJJeSg
F901
A
A
x 16
U
x 2
Bag 1
F73
x 16
C
x 20 x 4
x 4
B
F22
F900
F63
ED
F
x 14
F91
F51
G
x 4
2nd hole
F893
H
x 2
F892
F121
I
x 2
J
x 4
K
x 2
F269
BA
Finished
front edge
2
3
Finished
front edge
A B
2nd hole

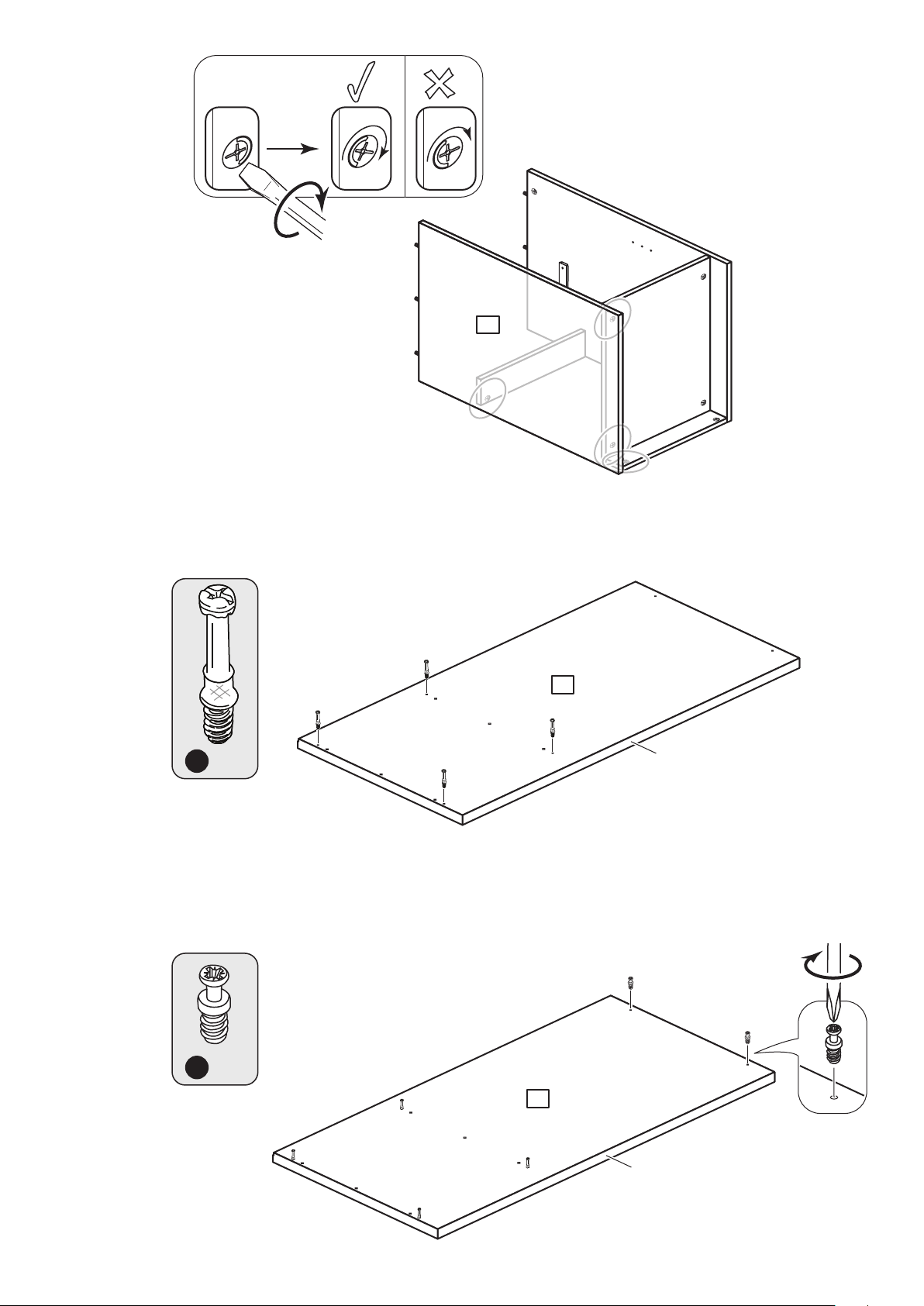

Page 7
2
Finished
front edge
3
C
Finished
front edge
B
x 6
x 4
2
3
Finished
front edge
2
4
Finished
front edge
A
x 8
3
Finished
front edge
2
3
Finished
front edge
Page 8
5
2
A
x 2
2
Finished
front edge
6
Hinge Fixing and Door Adjustment
www.youtube.com/watch?v=wIMhUHeLBtg
S
x 2
3
Finished
front edge
7
8
B
x 4
C
x 6
Finished
front edge
Page 9
8
2
8
9
2
x 2
8
Finished
front edge
Finished
front edge
10
7
Finished
front edge
B
x 2
C
x 2
Page 10
11
x 1
2
7
Finished
front edge
12
13
6
B
x 2
C
x 2
x 1
6
Page 11
14
x 4
3
15
16
4
A
x 4
H
x 2
Finished
front edge
4
Finished
front edge
Page 12
17
x 4
4
Finished
front edge
18
19
I
x 2
1
Finished
front edge
1
A
x 2
Finished
front edge
Page 13
20
5
Finished
B
x 4
C
x 4
front edge
21
x 2
Note: Support this panel until the end panel is fitted in the next step.
5
Finished
front edge
Page 14
22
x 2
5
1
Finished
front edge
23
x 2
1
Page 15
Squaring up a Chest and fitting the Back Panel
24
www.youtube.com/watch?v=FeaI6541z7o
Make sure measurement A and B
A = B
AA
are the same before fixing the
Back panel in the next step
BB
25
F
x 14
11
Page 16
26
G
x 4
27
Page 17
WARNING!
28
In order to prevent overturning
this product must be used with the
wall attachment device provided
K
x 2
See the next section for a guide to wall mounting and fixings
Example
Modesty Panel
Wall fixing
(not supplied)
To prevent possible overbalancing this unit must be secured to a suitable wall by fitting of the overbalance protector kit to the unit.
Wall fixings are not supplied as they will need to suit the wall type.
Take care when drilling the wall that you do not drill into any pipes, wires etc.
Note: If in doubt, consult an expert.
Washer
Screw
Washer
Screw
(not supplied)
Page 18
A Guide to Wall Mounting & Fixings
Important note:
If plastic wall plugs are supplied with your product:
- these are only suitable for use in masonry walls.
If you are in any doubt about the correct wall plugs for your wall, seek professional advice.
Failure of the product due to using incorrect fixings is the responsibility of the installer.
Important: When drilling into walls always check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug if you are not sure. 2: Ensure you use the recommended drill bit to match the wall plug and hole size. 3: Ensure you drill the hole horizontally, do not force the drill or enlarge the hole. 4: Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking. 5: Ensure wall plugs are well fitted and are a tight fit in the drilled hole.
Types of walls
No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, general purpose wall plugs can be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.
For use with plasterboard partitions or hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty” wall plug
For use with walls stuck with plasterboard. The hammer fixing allows it to be fixed to the wall rather than the plasterboard. Always check the fixing is secure to the retaining wall.
No.6 “Shield Anchor” wall plug Heavy loads
For use when attaching light loads on to plasterboard partitions.
Care & Maintenance
For use when fitting or supporting heavy loads such as shelving, wall cabinets and coat racks.
Safety: Always check the fitting and location to ensure your safety in and around the home.
For use with heavier loads such as TV & HiFi speakers and satelite dishes etc.
Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.
Page 19
29
P
x 4
Q
x 2
R
x 2

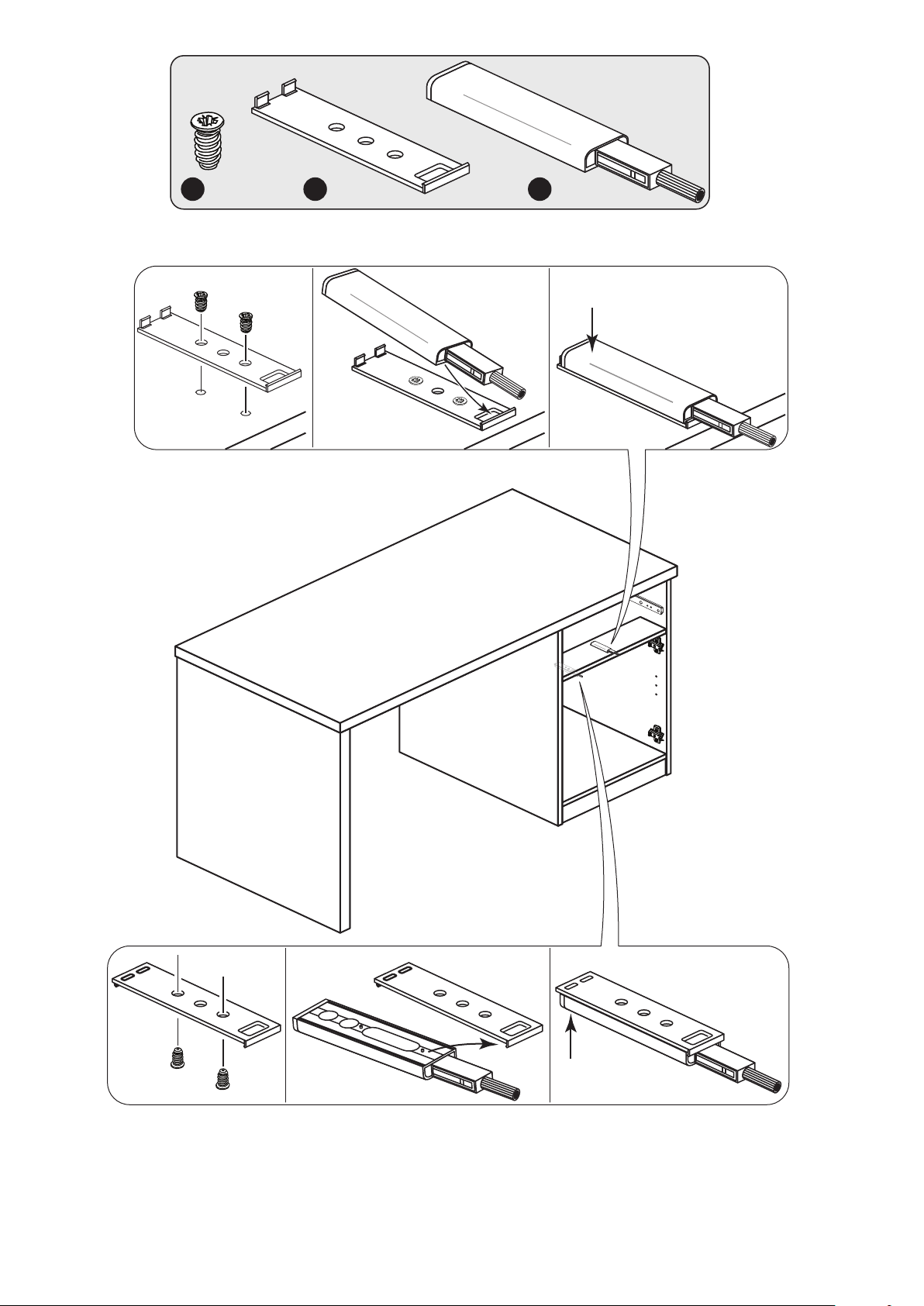

Page 20
30
J
x 4
9
31
E
x 4
T
x 2

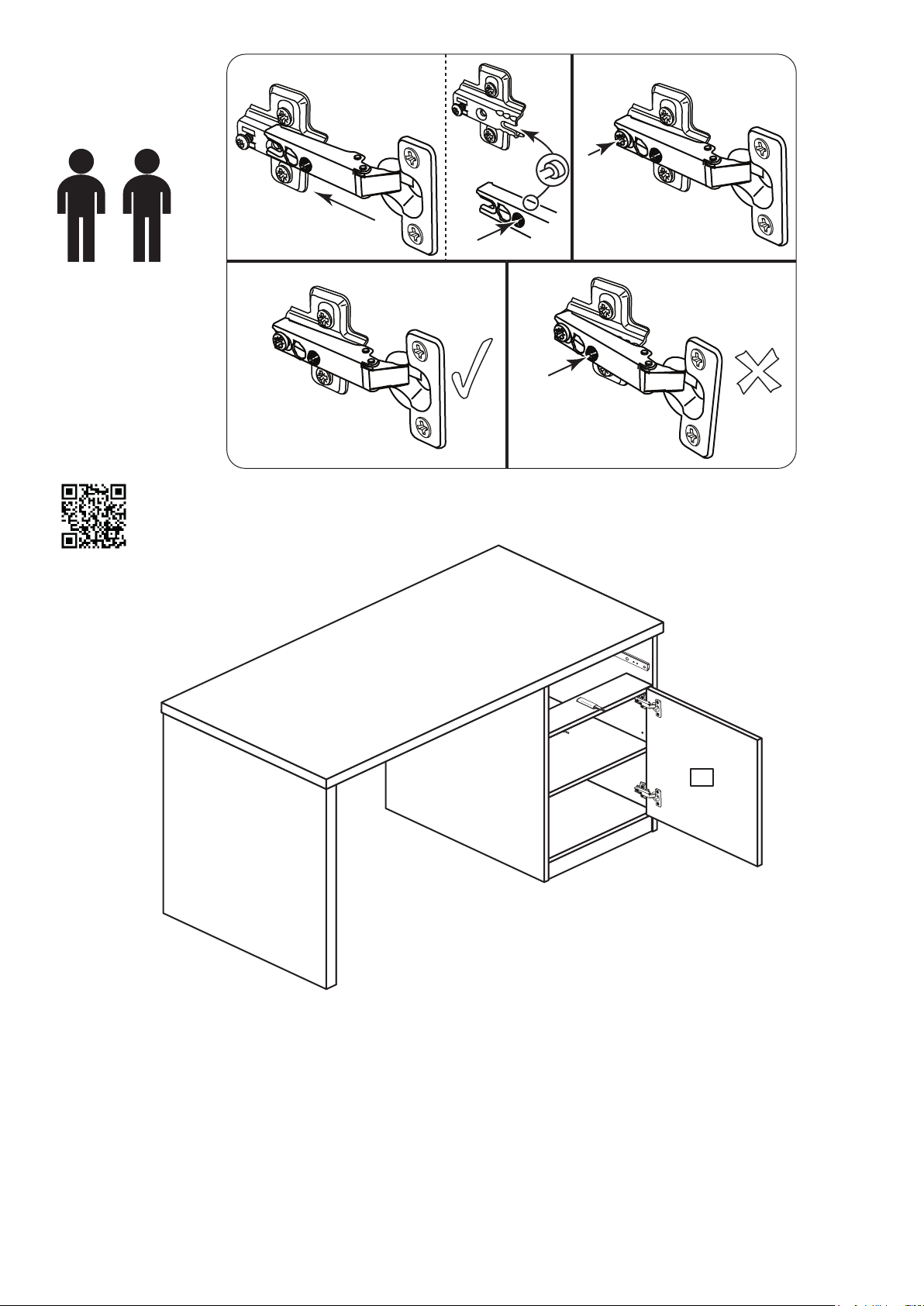

Hinge Fixing and Door Adjustment
www.youtube.com/watch?v=wIMhUHeLBtg
10
Page 21
32
a: b:
A
B
c: d:
B
Hinge Fixing and Door Adjustment
www.youtube.com/watch?v=wIMhUHeLBtg
10
Note: The easiest way to attach the Door is to fit the top
Hinge first, then align and fit the other Hinge.
a: Push the Hinge onto the front part of the Hinge Plate.
The recess at the bottom of screw B goes into the slot in the Hinge Plate.
b: Keep the Hinge FLAT against the Hinge Plate as you slide it across as far as it will go.
Tighten screw A.
c: The Hinge must be flat against the Hinge Plate prior to any adjustment.
d: The Hinge must NOT be AT AN ANGLE to the Hinge Plate when assembled.
This would indicate that the recess at the bottom of screw B had not located in the slot in the Hinge Plate and the Hinge would not be secure. Remove the Hinge from the Hinge Plate and then re-assemble being careful to follow instructions a-c.
Page 22
33

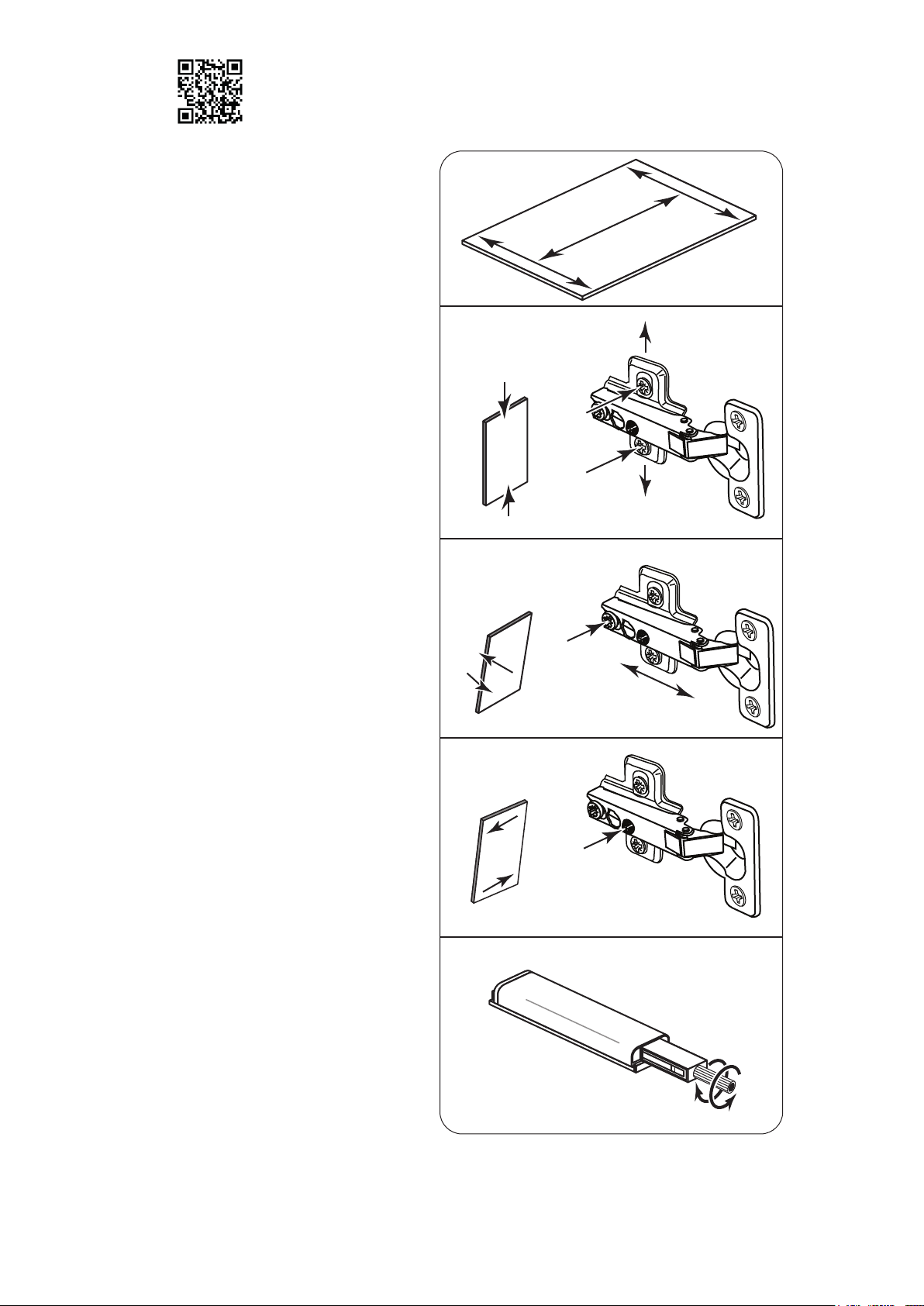

Hinge Fixing and Door Adjustment
www.youtube.com/watch?v=wIMhUHeLBtg
Adjust the Door if needed
a: Before adjusting the Door, use a
Spirit Level to check the Top (or Base) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the Hinges, as shown.
b: Height adjustment.
Loosen screws A on Hinge Plates and move Door up or down as required. Retighten screw A.
c: Forward and Back adjustment.
Loosen screw B on Hinge Plate and move Door in or out as required. Retighten screw B.
a:
b:
A
A
c:
B
d: Sideways adjustment.
To move Door ‘out’ loosen screw C. To move Door ‘in’ tighten screw C.
e: Door Push adjustment.
Finely adjust the Door Push to suit your requirements. Just a 1/4 of a turn can make a difference.
d:
C
e:
Page 23

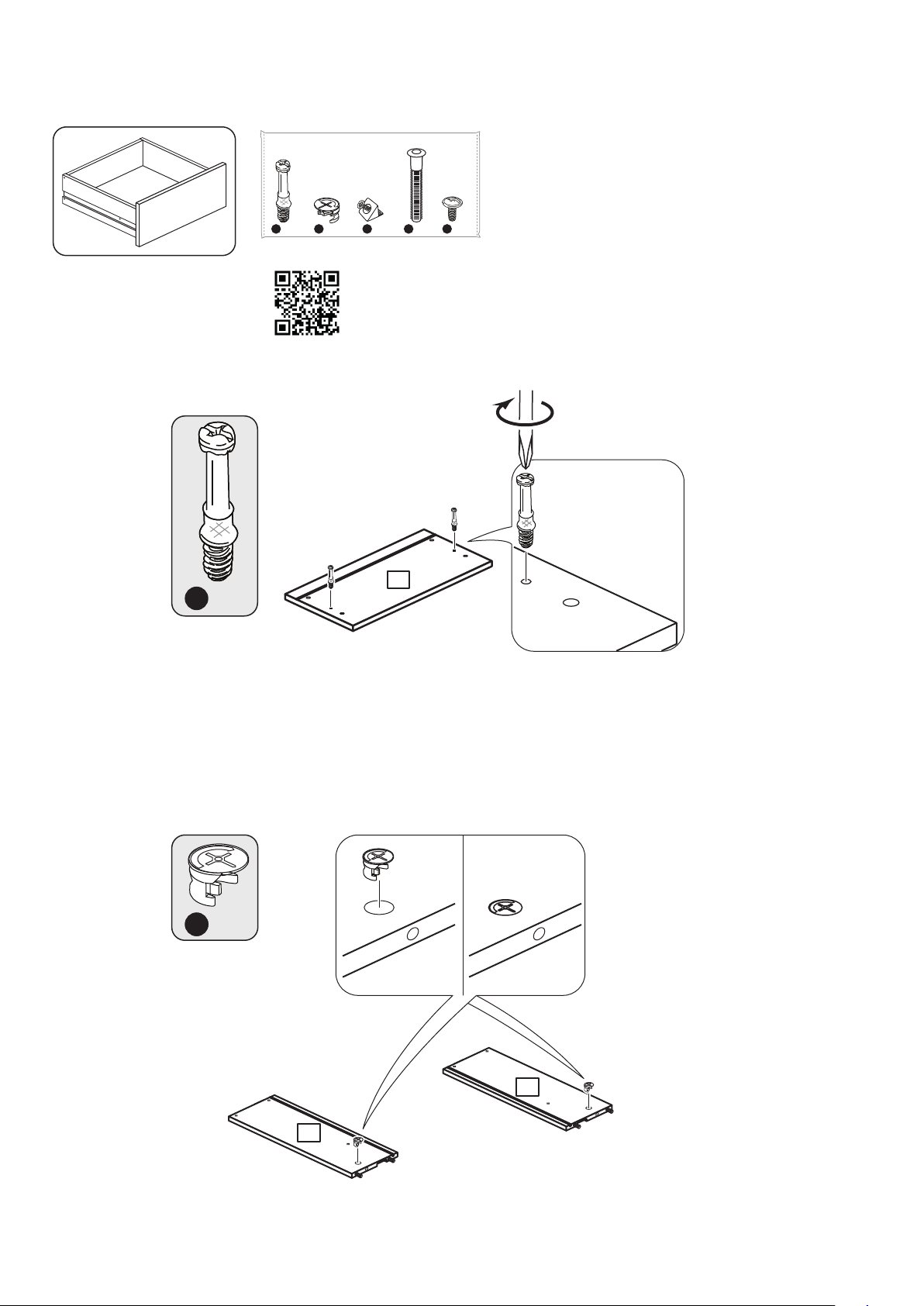

Drawer Assembly
Bag 2
F901
A
A
L
x 2
x 2
34
F639
F171GY
F607
N
M
x 4
x 4
F74
O
x 2
Drawer Assembly
www.youtube.com/watch?v=InNBV_uuMmo
35
12
A
x 2
L
B
x 2
13
14
Page 24
36
x 2
14
13
12
37
38
16
N
x 2
15
15
Page 25
39
N
x 2
40
M
x 4
Page 26

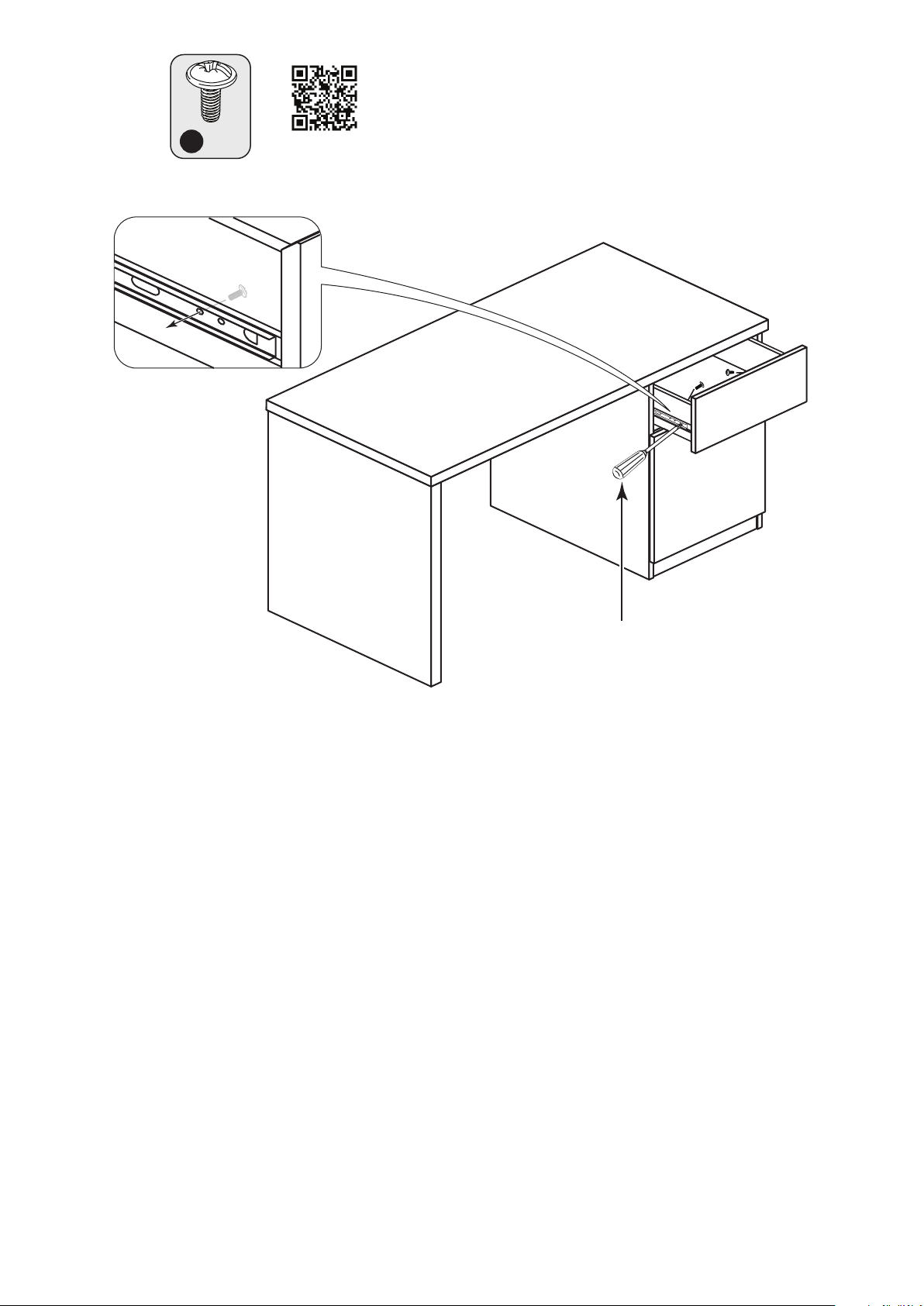

41
O
Fitting Ball Bearing Runners
www.youtube.com/watch?v=yG4xtiJJeSg
x 2
Warning: Use a screwdriver to position the runners as they could have sharp edges
Fit the Drawer by sliding both its runners forward and locate the drawer sides between them, lining up the holes in the drawer sides with the 2nd 'threaded' holes in the runners.
Working from the inside of the Drawer, insert 2 screws through the drawer sides and out into the 2nd threaded hole in the runner.
Note: Do not overtighten the screws. If they catch on the runner you may need to loosen them slightly.
Assembly is complete
Please remove any blue protective film from panel
edges and clear protective film from panel surfaces
