Page 1
Gloss Single
Unit Grey
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 13/08/19
Page 2
Safety and Care Advice
Product Details
435/1652
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
• Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
• Use a dry cloth to clean the
product, furniture polish is not
recommended.
Additional Guidance
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or
• From time to time check that
there are no loose screws, nuts
or bolts. If there are please retighten.
• We do not
recommend the
use of power drill/
drivers for inserting
screws as this could
damage the unit.
Only use hand screwdrivers.
• Parts of the assembly will be
easier with 2 people.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
• Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully
tighten the bolts.
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury’s Supermarkets Limited, Registered
Sainsbury’s plc.
2
Page 3

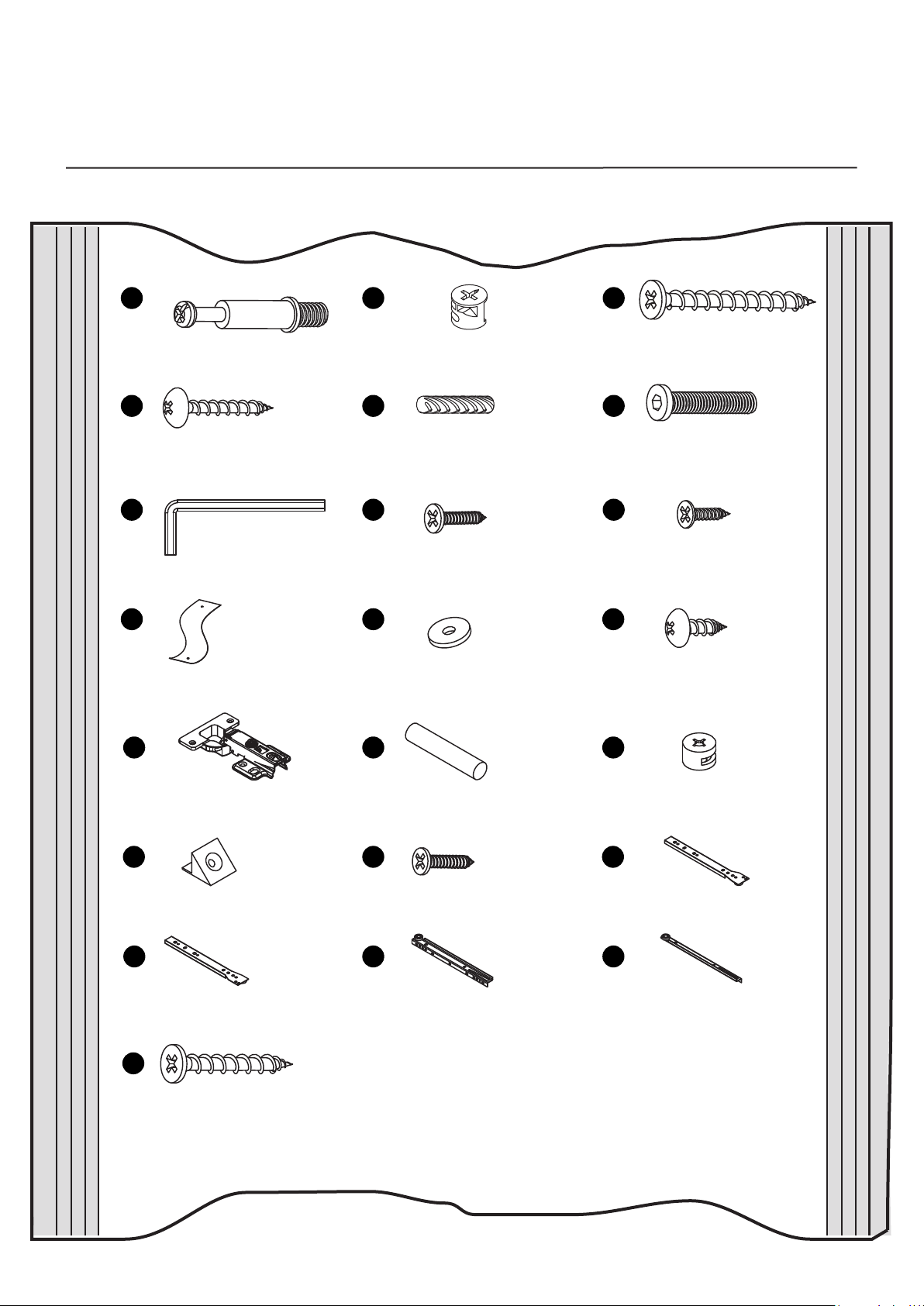

Fittings
Bag 1
A B
35mm Male Camlock x 10
D E F
25mm Screw x 4
G H
Hexagon Key x 1
J
Wall Strap x 1
M
12mm Female Camlock x 6
Dowel x 10
14mm Screw x 12
K
Washer x 2
N
C
40mm Screw x 4
25mm Machine Screw x 8
I
12mm Screw x 8
L
14mm Screw x 1
P
Hinge x 2
Q R S
Buckle x 6 14mm Screw x 6
T U V
Runner x 1 Runner x 1
W
30mm Screw x 4
Shelf Support x 4
10mm Female Camlock x 4
Runner x 1
Runner x 1
3
Page 4

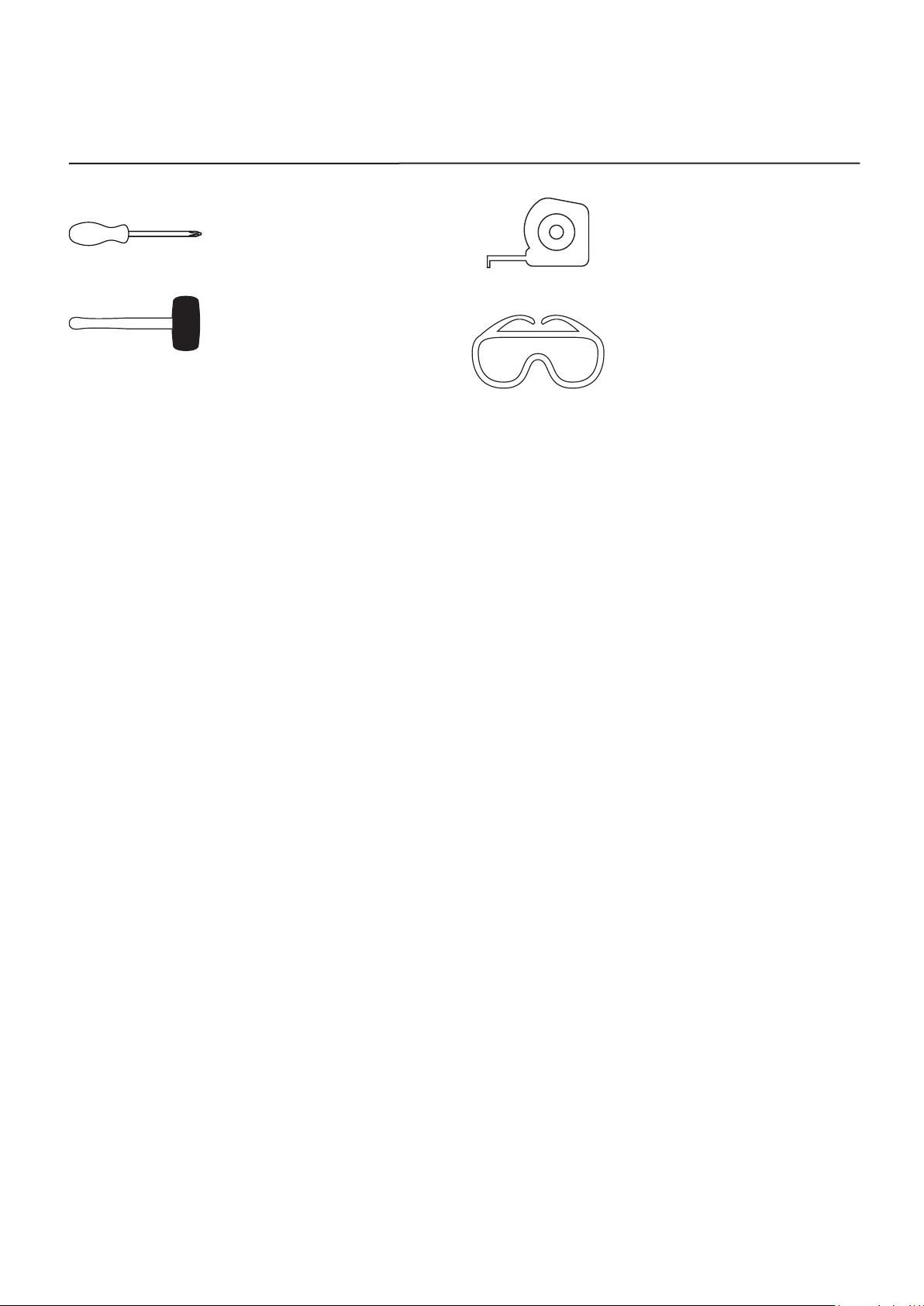

Tools required
Phillips screwdriver
(small & medium)
Mallet
Ruler/tape
measure
Eye protection
(when using a hammer
or glue)
4
Page 5

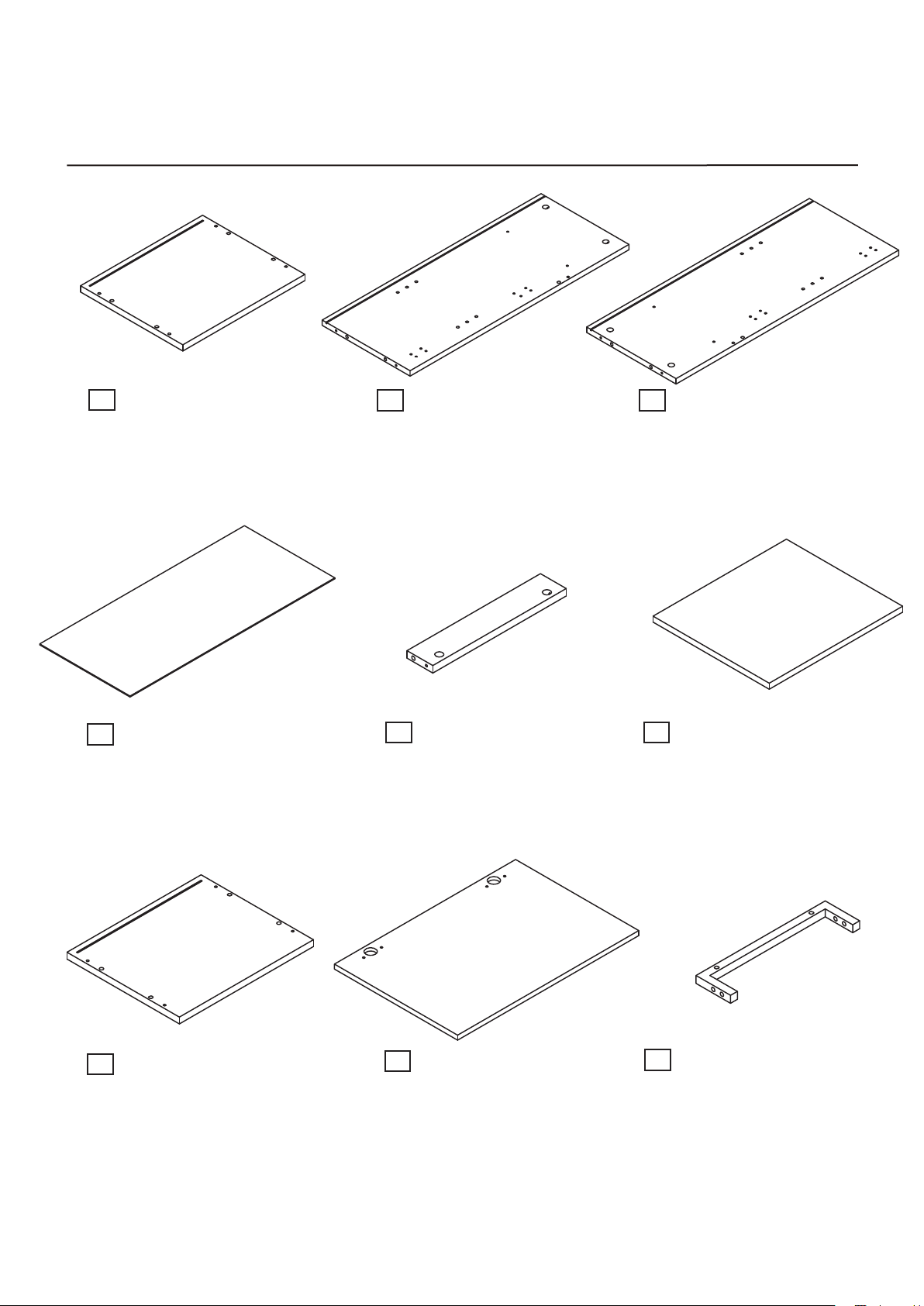

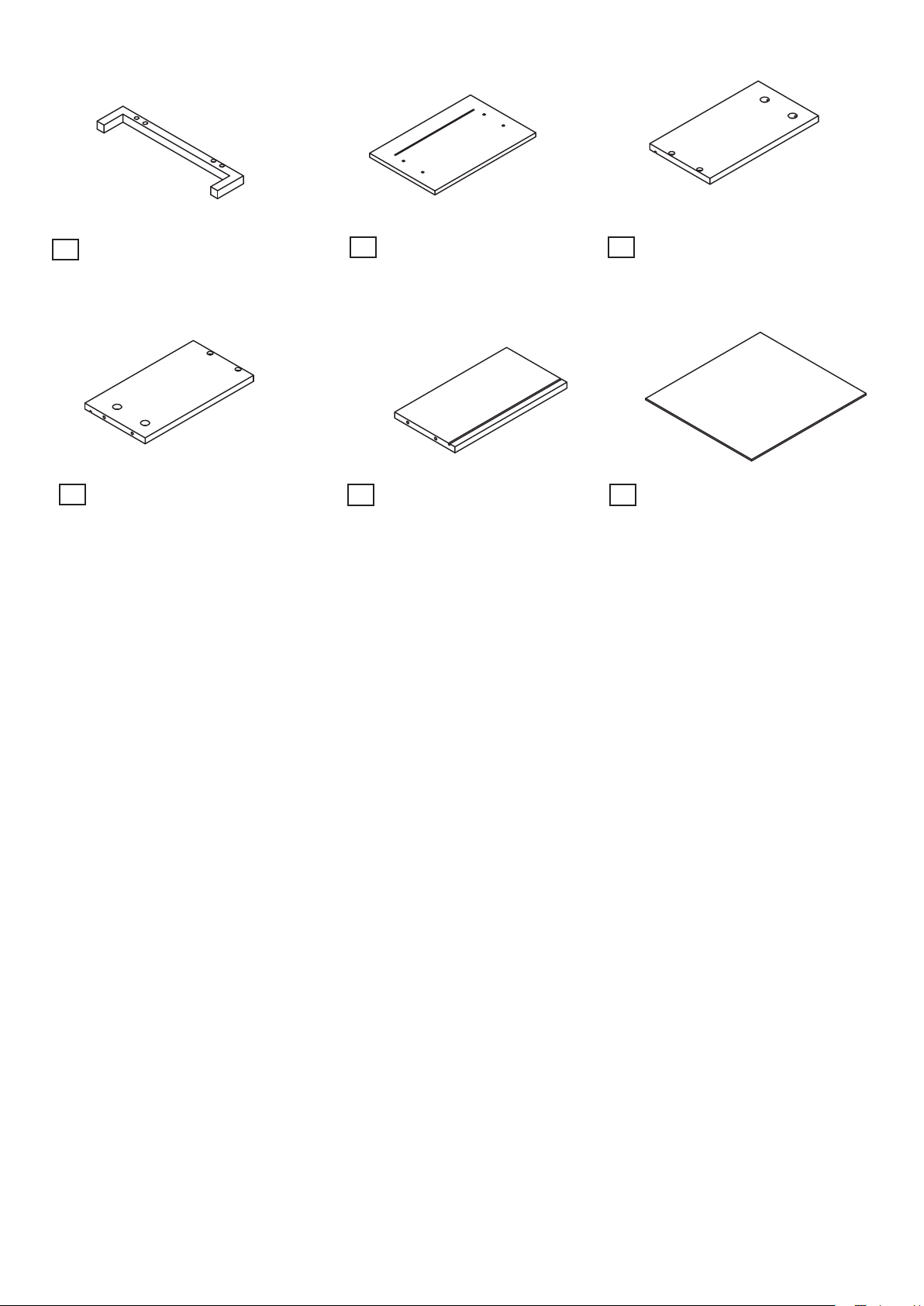

Panels
1
Top Panel x 1
34(w) x 28.5(d) x 1.5(h)cm
2
Right Side Panel x 1
71(w) x 28.5(d) x 1.5(h)cm
3
Left Side Panel x 1
71(w) x 28.5(d) x 1.5(h)cm
4
Back Panel x 1
71.9(w) x 31.8(d) x 0.3(h)cm
7
Bottom Panel x 1
34(w) x 28.5(d) x 1.5(h)cm
5
Back Panel x 1
30.9(w) x 6(d) x 1.5(h)cm
8
Door x 1
50(w) x 34(d) x 1.5(h)cm
6
Shelf x 1
30.8(w) x 26.8(d) x 1.2(h)cm
9
Metal Foot x 2
5
Page 6
10
Metal Foot x 2
13
Drawer Left Panel x 1
25(w) x 14(d) x 1.2(h)cm
11
Drawer Front Panel x 1
34(w) x 22(d) x 1.5(h)cm
14
Drawer Back Panel x 1
26.1(w) x 14(d) x 1.2(h)cm
12
Drawer Right Panel x 1
25(w) x 14(d) x 1.2(h)cm
15
Drawer Bottom Panel x 1
27(w) x 24.6(d) x 0.3(h)cm
6

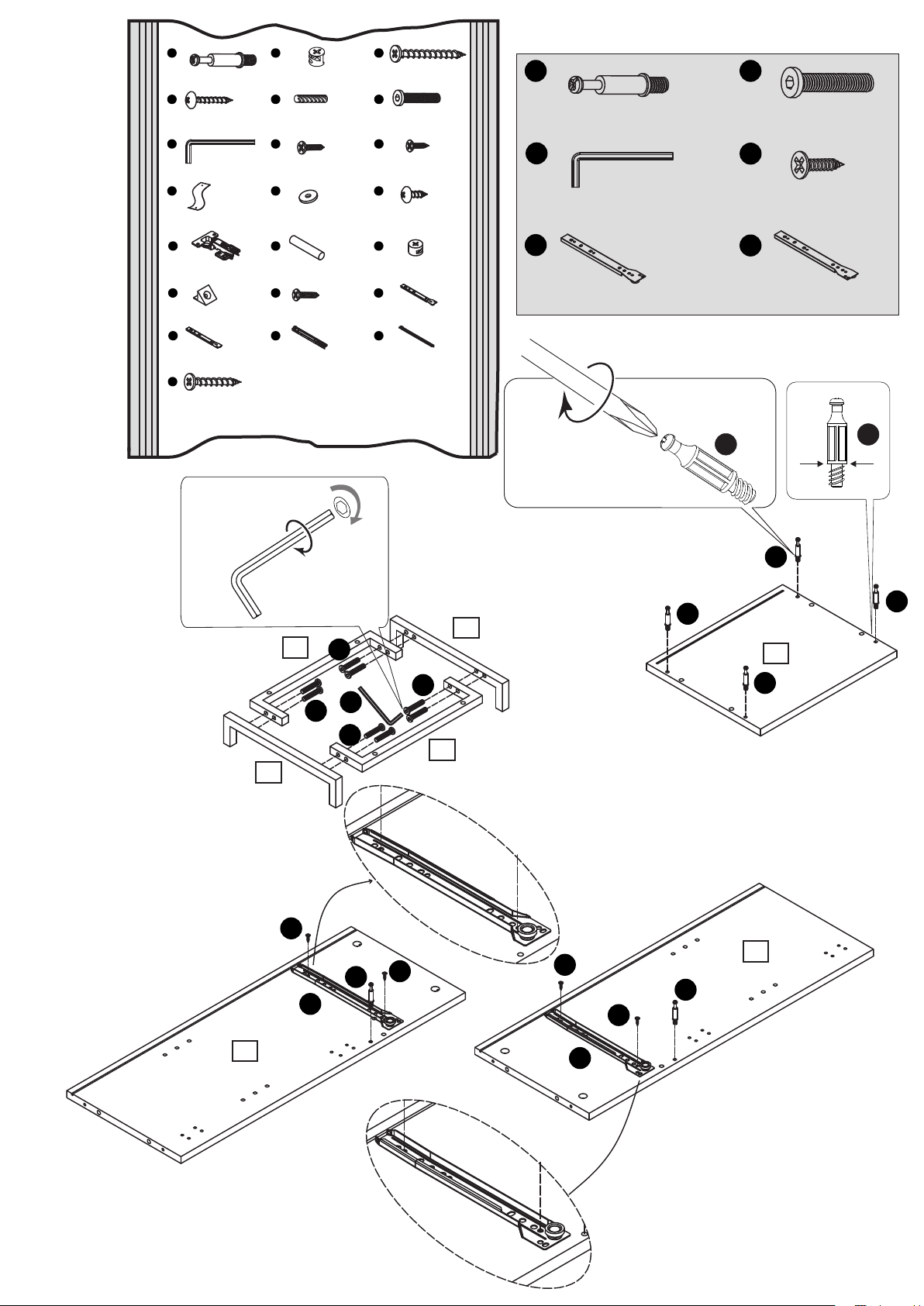

Page 7
1
A B
35mm Male Camlock x 10
D E F
25mm Screw x 4
G H
Hexagon Key x 1
J
Wall Strap x 1
12mm Female Camlock x 6
Dowel x 10
14mm Screw x 12
K
Washer x 2
C
40mm Screw x 4
25mm Machine Screw x 8
I
12mm Screw x 8
L
14mm Screw x 1
A
35mm Male Camlock x 6
G
Hexagon Key x 1
F
25mm Machine Screw x 8
I
12mm Screw x 4
M
Hinge x 2
Q R S
Buckle x 6 14mm Screw x 6
T U V
Runner x 1 Runner x 1
W
30mm Screw x 4
N
Shelf Support x 4
9
F
G
F
F
10
P
10mm Female Camlock x 4
Runner x 1
Runner x 1
F
9
10
S
Runner x 1
A
A
T
Runner x 1
A
A
A
1
A
I
3
A
I
T
2
I
A
I
S
7

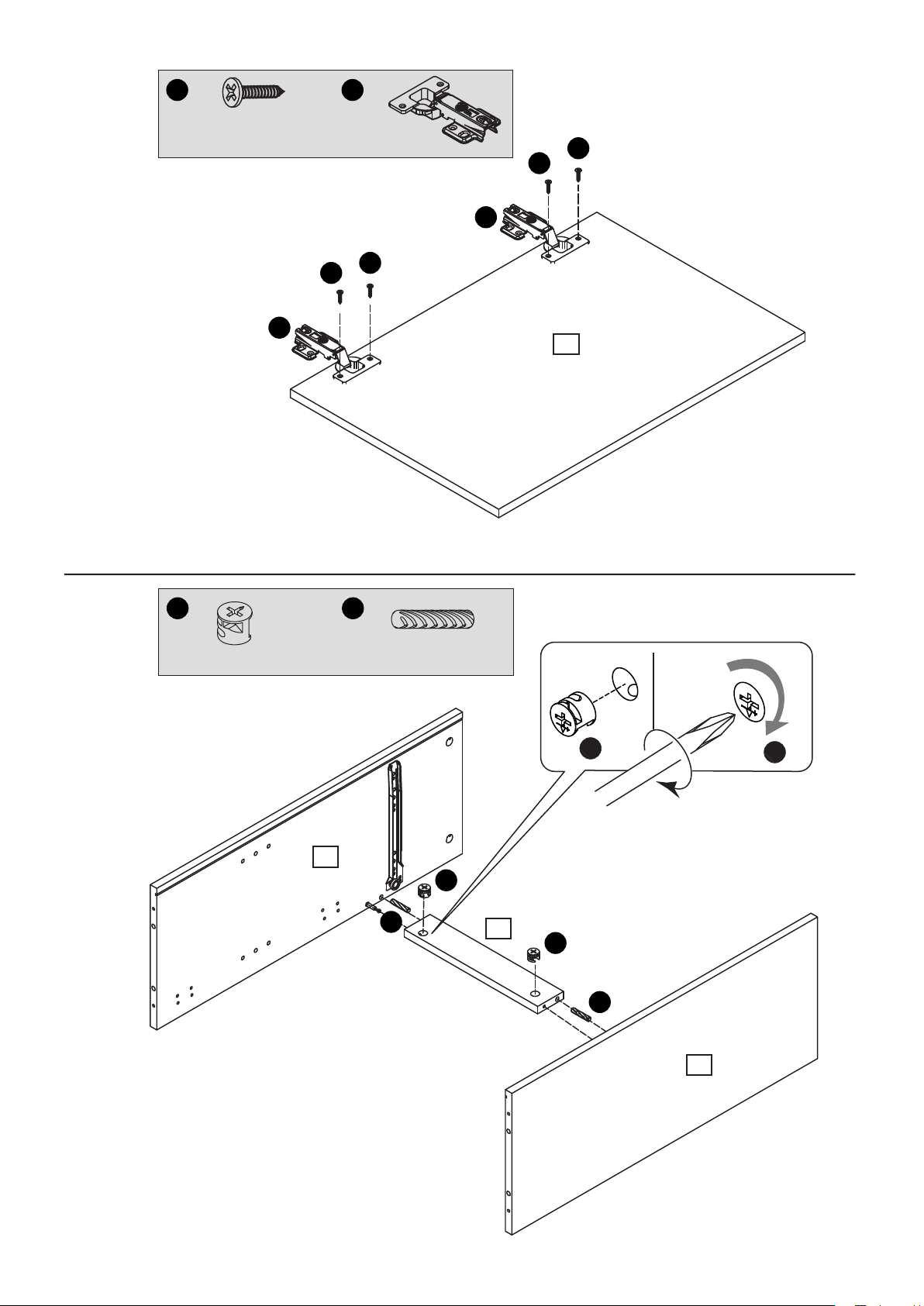

Page 8
H
M
2
14mm Screw x 4
M
H
Hinge x 2
H
H
H
M
8
3
B E
Female Camlock x 2
2
Dowel x 2
E
B
B
5
B
E
B
3
8

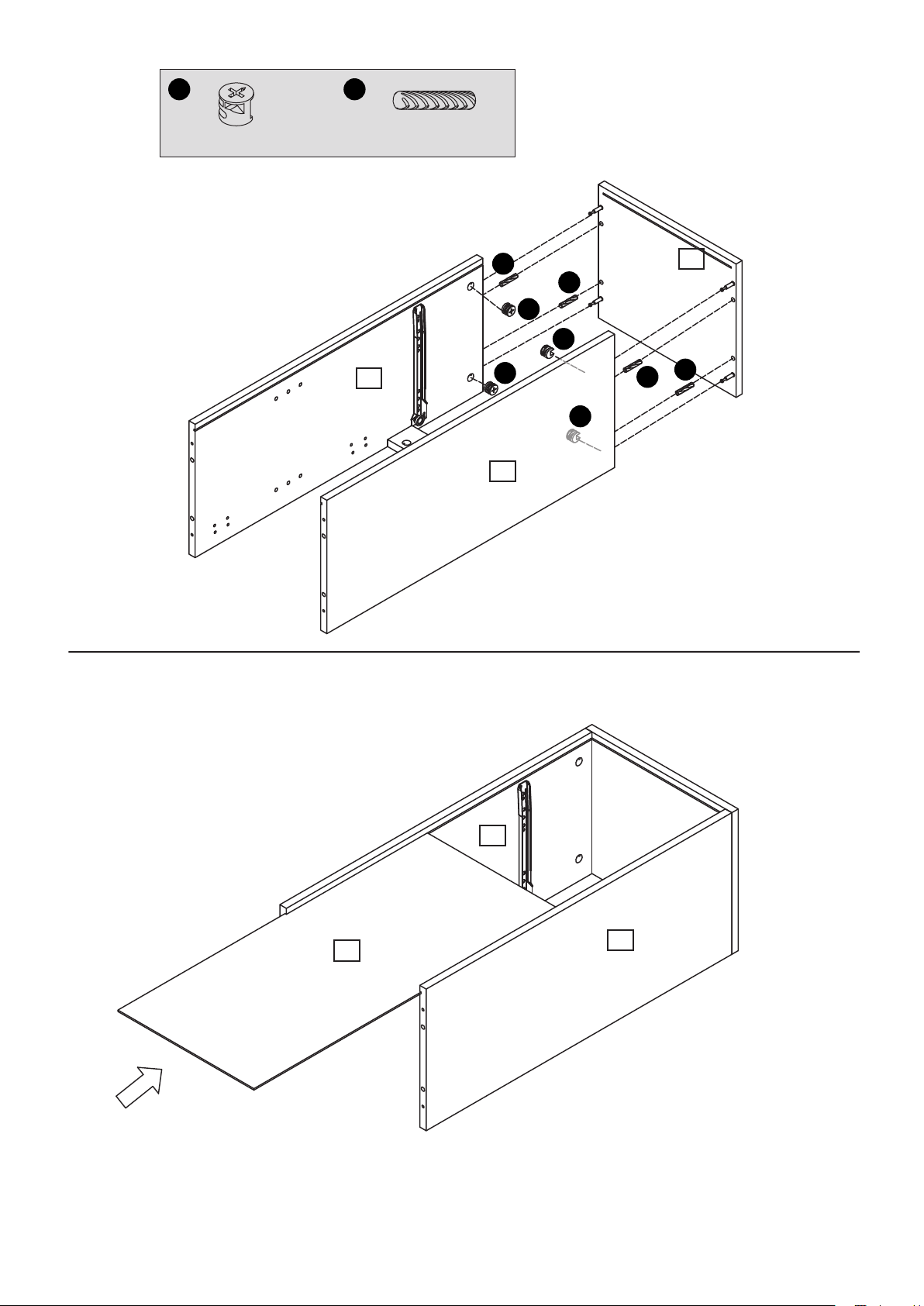

Page 9
B E
4
Female Camlock x 4
Dowel x 4
2
E
E
B
B
B
B
3
1
E
E
5
2
4
3
9
Page 10

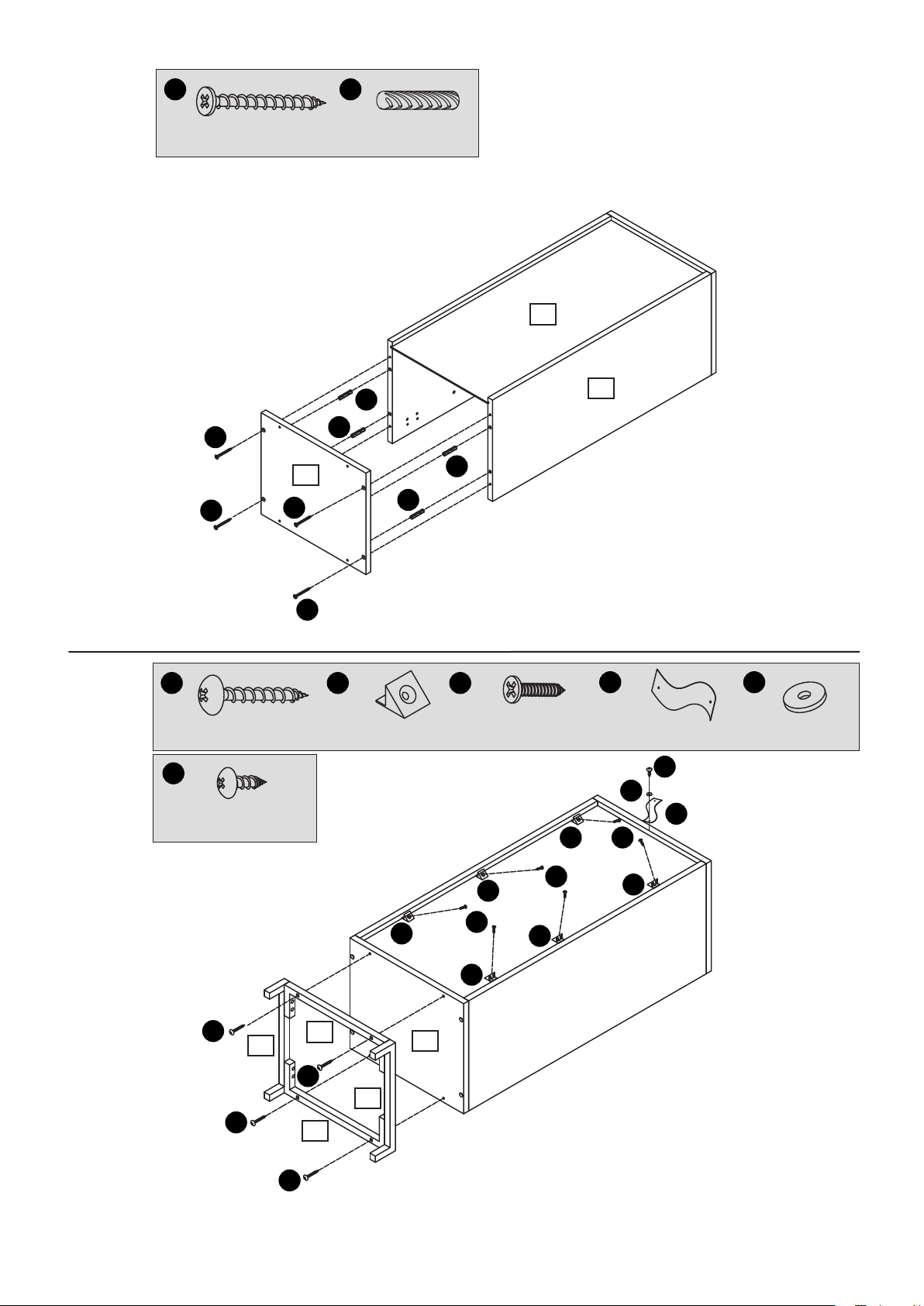

C E
6
40mm Screw x 4
C
C
C
Dowel x 4
2
E
E
7
E
E
3
7
D
25mm Screw x 4
L
14mm Screw x 1
D
10
C
Q
Buckle x 6 14mm Screw x 6
Q
9
R
Q
R
Q
7
R
Q
J
Q R
Wall Strap x 1
L
K
J
Q
K
Washer x 1
10
D
D
10
9
D

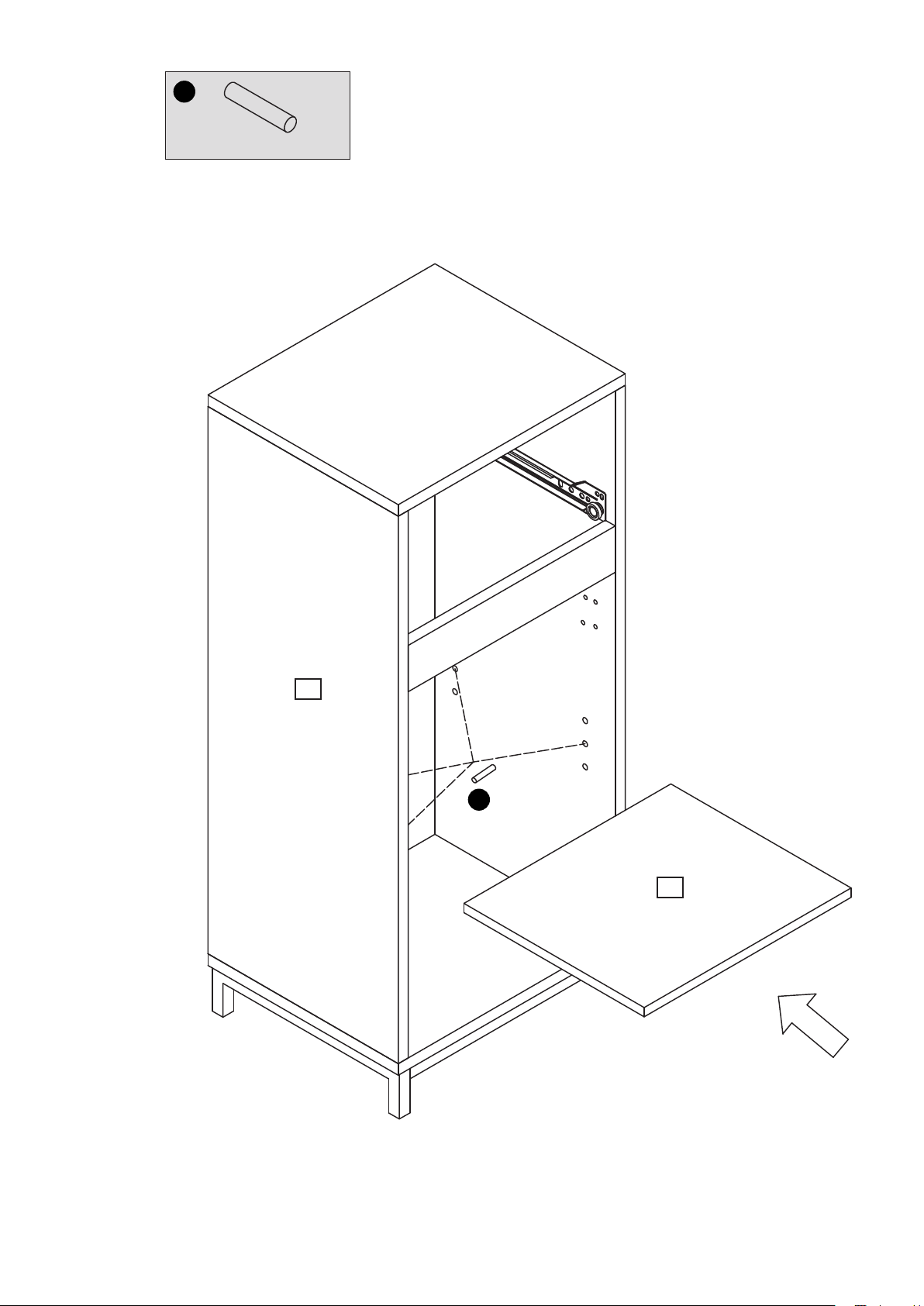

Page 11
N
8
Shelf Support x 4
3
N
6
11

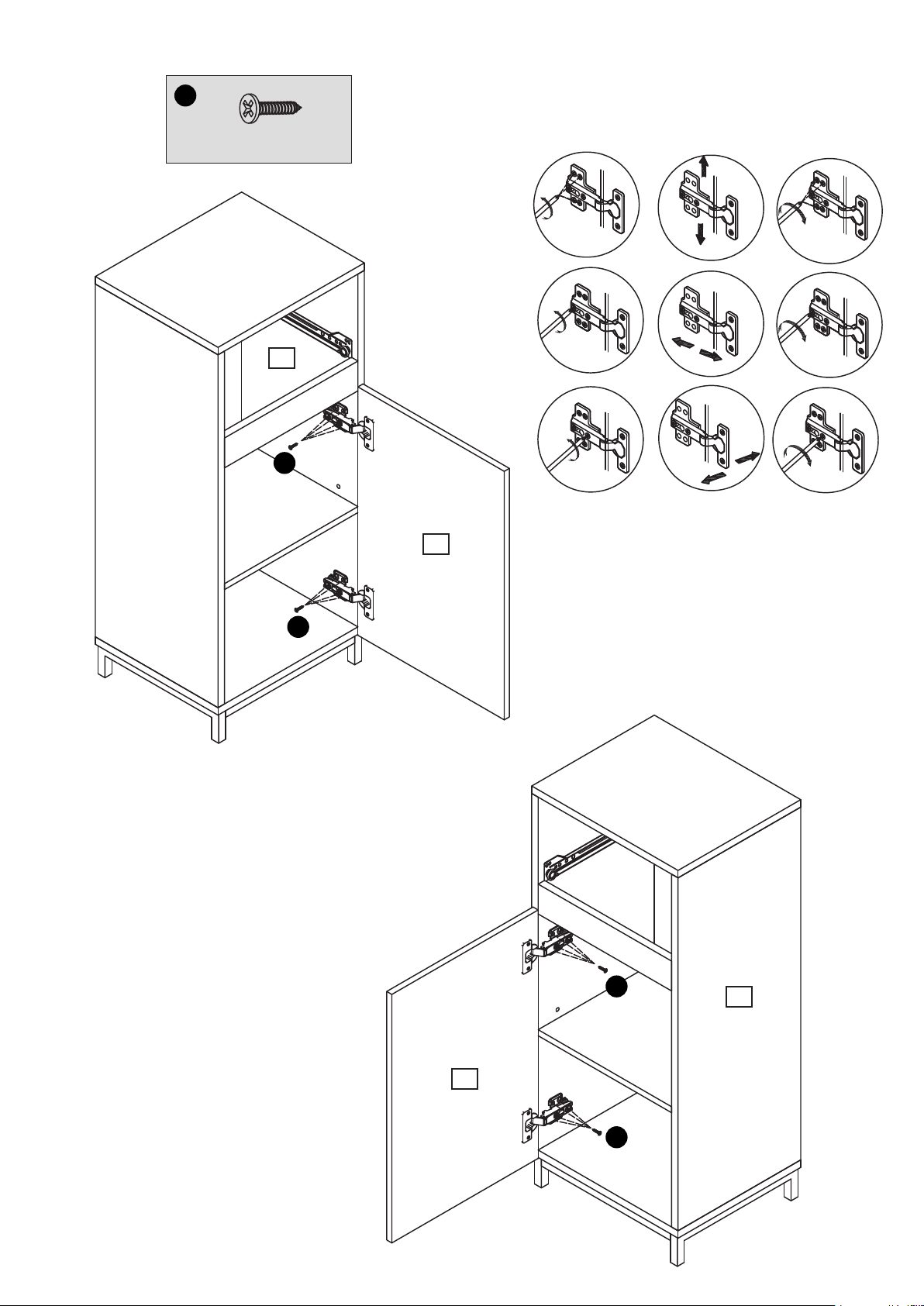

Page 12
H
9
14mm Screw x 8
2
H
8
H
OR
H
2
12
8
H

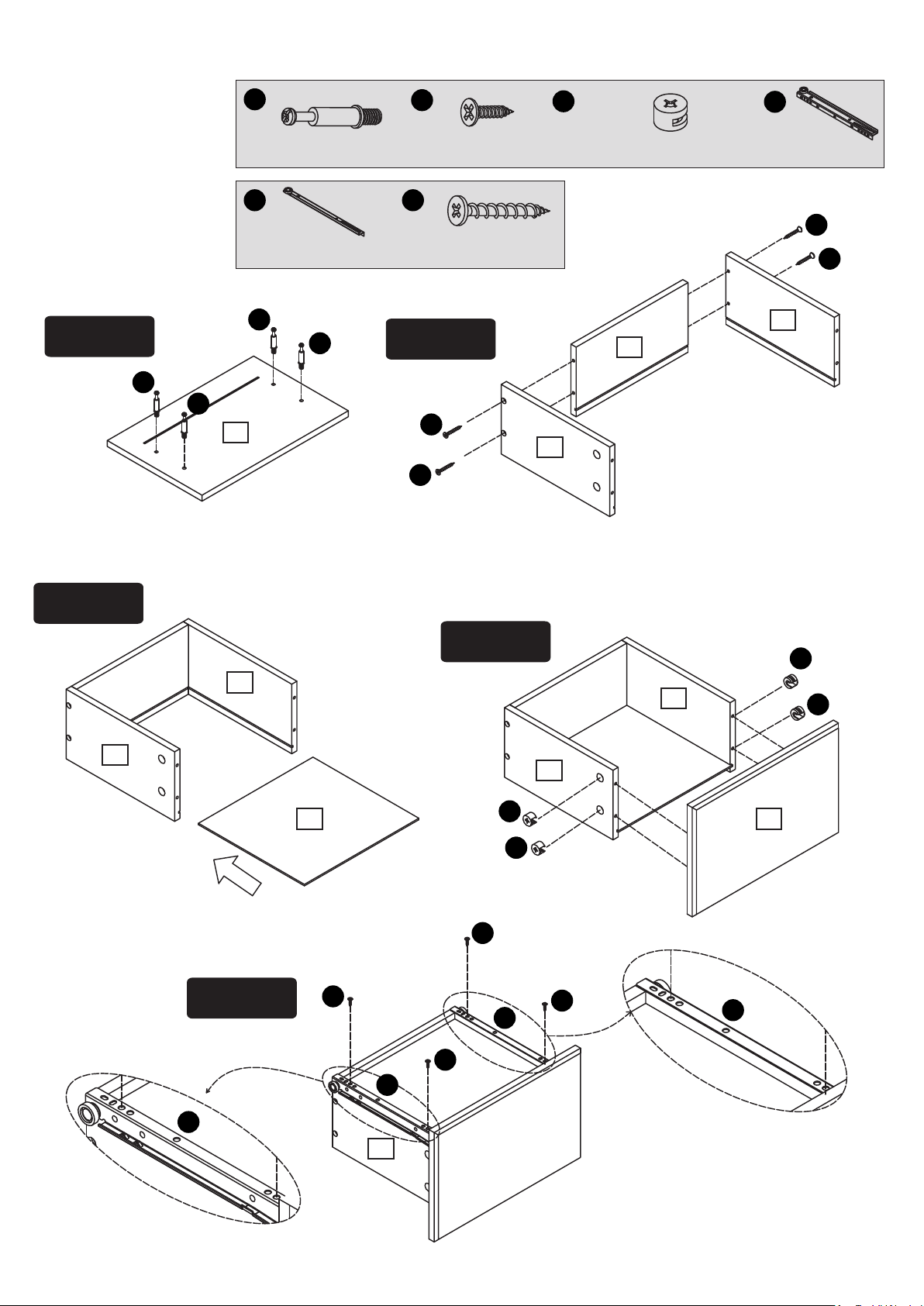

Page 13
A
I
P
U
10
Step 1
A
A
35mm Male Camlock x 4
V
Runner x 1
A
A
11
12mm Screw x 4 10mm Female Camlock x 4 Runner x 1
W
30mm Screw x 4
12
Step 2
W
13
W
14
W
W
Step 3
13
12
Step 5
15
Step 4
P
12
13
P
PP
I
I
U
I
11
U
P
I
V
V
12
13
Page 14

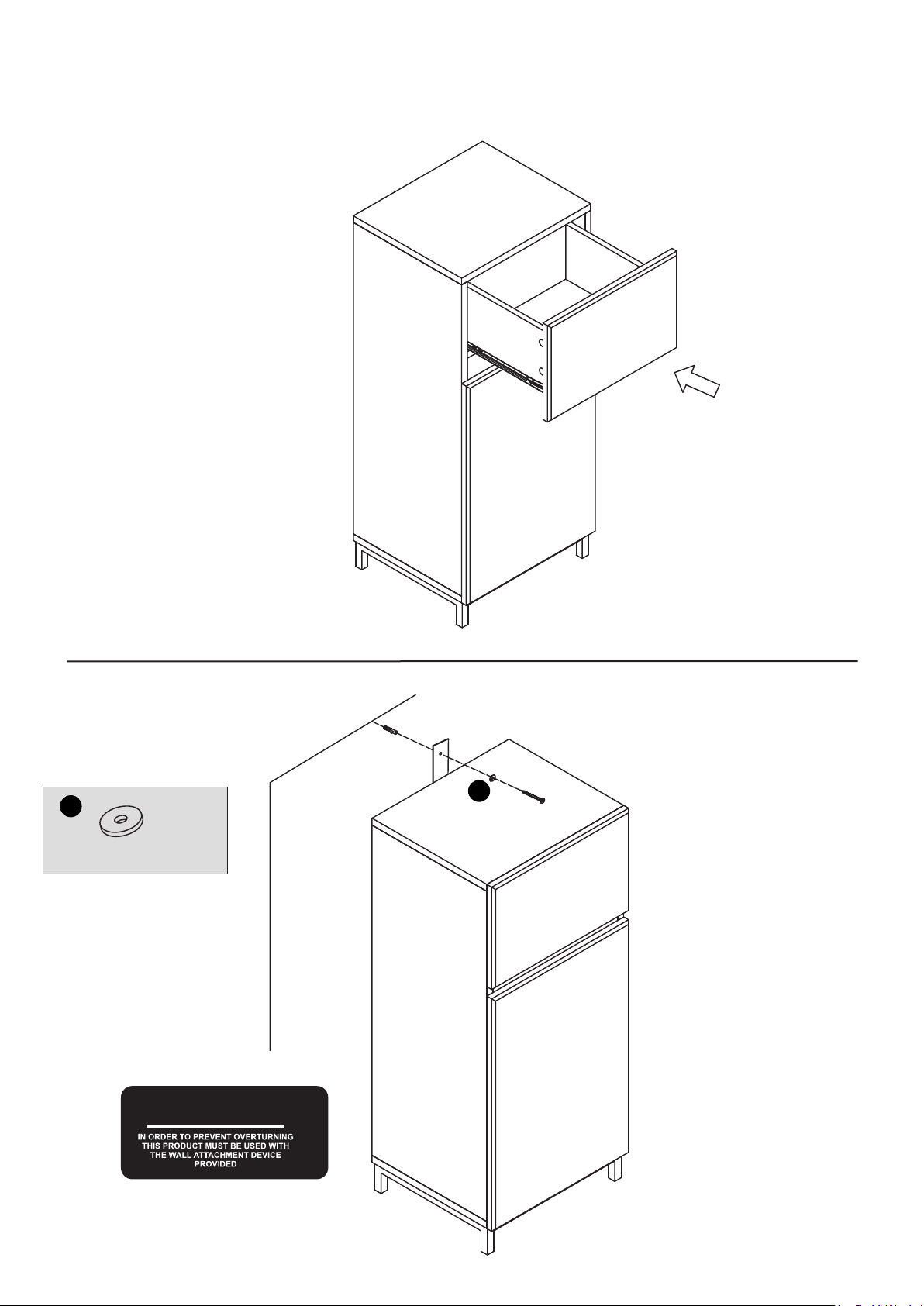

11
12
K
Washer x 1
WARNING!
Wall fixings are not supplied
K
14
Page 15

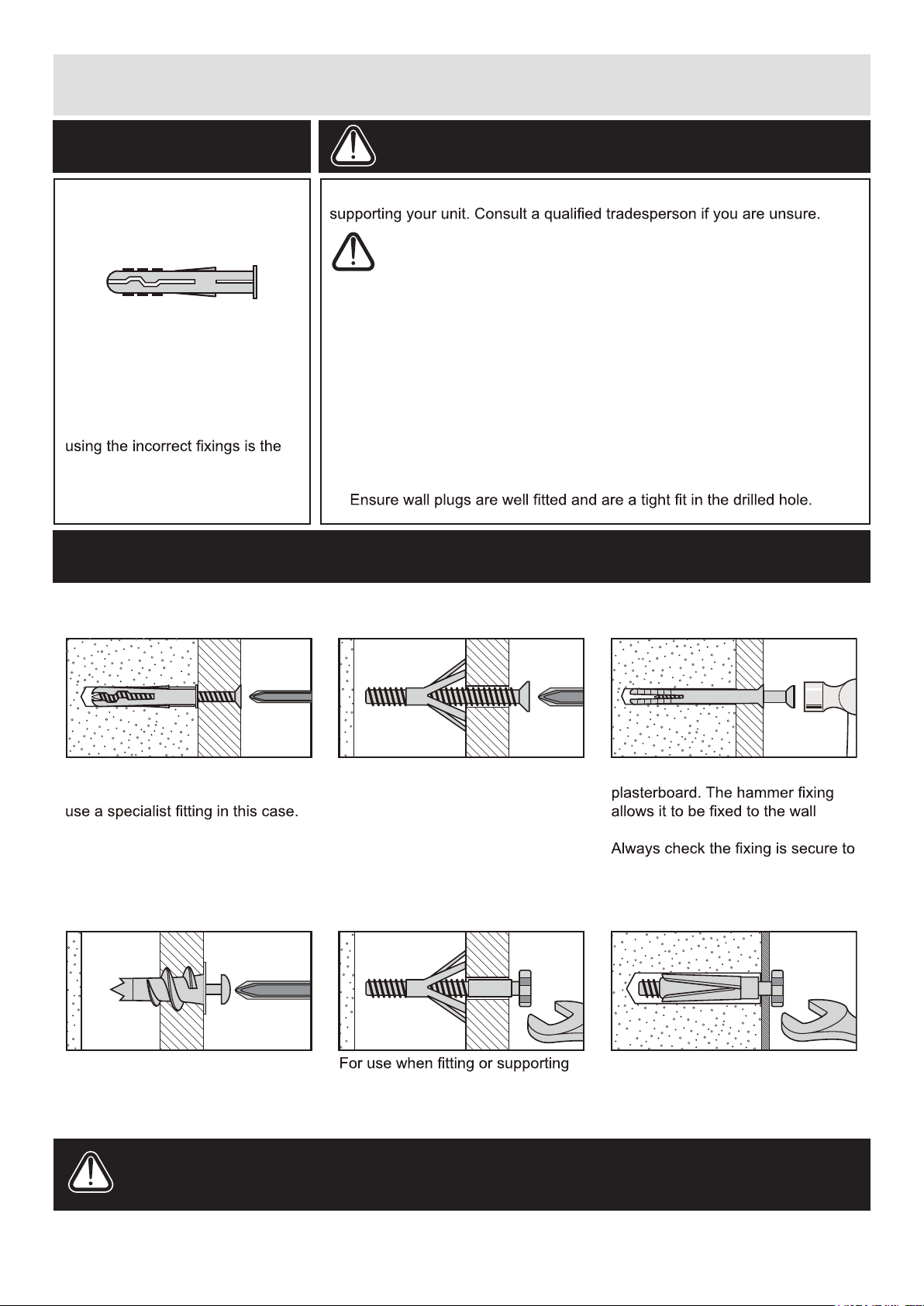

A Guide to Wall Mounting & Fixings
Important note:
If plastic wall plugs (rawl plugs)
are supplied with your product,
eg:
• these are suitable for use in
masonry walls
If you are in any doubt about the
correct wall plugs for your wall,
seek professional advice.
Failure of the product due to
responsibility of the installer.
Types of walls
Important: when drilling into walls always check
that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are suitable for
Hints:
1. General rule: always use a larger screw and wall plug if you are not sure.
2. Ensure you use the recommended drill bit to match the wall plug and hole
size.
3. Ensure you drill the hole horizontally; do not force the drill or enlarge the
hole.
4. Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure
wall plugs are inserted beyond the thickness of the ceramic tiles to avoid
the tiles splitting or cracking.
5.
You can use one of the following types of wall plug if your walls are
made of brick, breeze block, concrete, stone or wood.
No. 1 “General Purpose” wall plug
Generally aerated blocks should
not be used to support heavy loads,
For light loads, general purpose
wall plugs can be used.
No. 2 “Plasterboard” wall plug
No. 3 “Cavity Fixing” wall plug
For use with plasterboard partitions
or hollow wooden doors.
No. 4 “Cavity Fixing - Heavy Duty”
wall plug
No. 5 “Hammer Fixing” wall plug
For use with walls stuck with
rather than the plasterboard.
the retaining wall.
No. 6 “Shield Anchor” wall plug heavy loads
For use when attaching light loads
onto plasterboard partitions.
Care & Maintenance
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting and
location to ensure your safety in and
around the home.
For use with heavier loads such as
TV and HiFi speakers and satelite
dishes etc.
Fitting: From time to time check the
fitting to ensure the wall plugs or
screws do not become loose.
