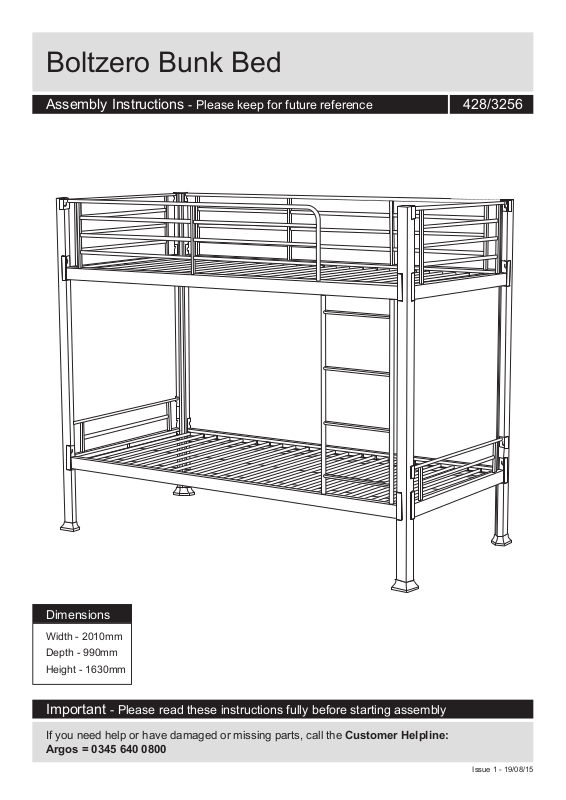

Page 1
Boltzero Bunk Bed
Assembly Instructions - Please keep for future reference
428/3256
Dimensions
Width - 2010mm
Depth - 990mm
Height - 1630mm
Important
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
- Please read these instructions fully before starting assembly
Issue 1 - 19/08/15
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
Warnings
• READ CAREFULLY - RETAIN
FOR FUTURE REFERENCE
• WARNING: High beds and
upper bed of bunk beds are not
suitable for children under six
years due to the risk of injury
from falls.
• WARNING: Bunk beds and
high beds can present a serious
risk of injury from strangulation if
not used correctly. Never attach
or hang items to any part of the
bunk bed that are not designed
to be used with the bed, for
example, but not limited to
ropes, strings, cords, hooks,
belts and bags.
• WARNING: Children can
become trapped between the
bed and the wall, a roof pitch,
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product, this
could cause damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
the ceiling, adjoining pieces of
furniture (e.g. cupboards) and
the like. To avoid risk of serious
injury the distance between the
top safety barrier and the
adjoining structure shall not
exceed 75mm or shall be more
than 230mm.
• WARNING: Do not use the
bunk bed/high bed if any
structural part is broken or
missing.
• Always follow the
manufacturer’s instructions.
• The recommended size of the
mattress is L1900 x W900mm.
• Ventilation of the room is
necessary in order to keep the
humidity low and to prevent
mould in and around the bed.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Unit weight: 41kgs.
• Assembly instructions
including a list of the parts
supplied and details of any tools
required to assemble the bed
are included in the pack.
• The maximum thickness of the
mattress is 190mm. Mattress
maximum thickness marking on
the product are found on the
post.
• Check regularly that all
assembly fastenings are
properly tightened.
• THIS BED COMPLIES WITH
EN747-1:2012+EN747-2:2012
Manufacturer:
BL Packaging Pte Ltd
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
1
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Page 3
If you have damaged or missing components, call the
Components - Parts
Customer Helpline: Argos = 0345 640 0800
Please check you have all the parts listed below
sticker (1) sticker (2)
Back Left
1 Front Left / Back Right
End Post
2 Front Right
End Post x 2
sticker (3)
Upper Side Rail x 24
3 Lower Side Rail x 25
End Post
6
Lower Front Rail
Upper Front Safety Rail
8
Arrow up
Lower Back Rail7
Upper Back Safety Rail9
10
Ladder
Slat x 1211
2
Page 4
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
Footing x 4
D
Washer x 4
Tools required
B
Long Cap x 16
E
Wall Strap x 1
Rubber Mallet (Not Provided)
C
Short Cap x 11
F
Slats Remover Tool x 1
3
Page 5
Assembly Instructions

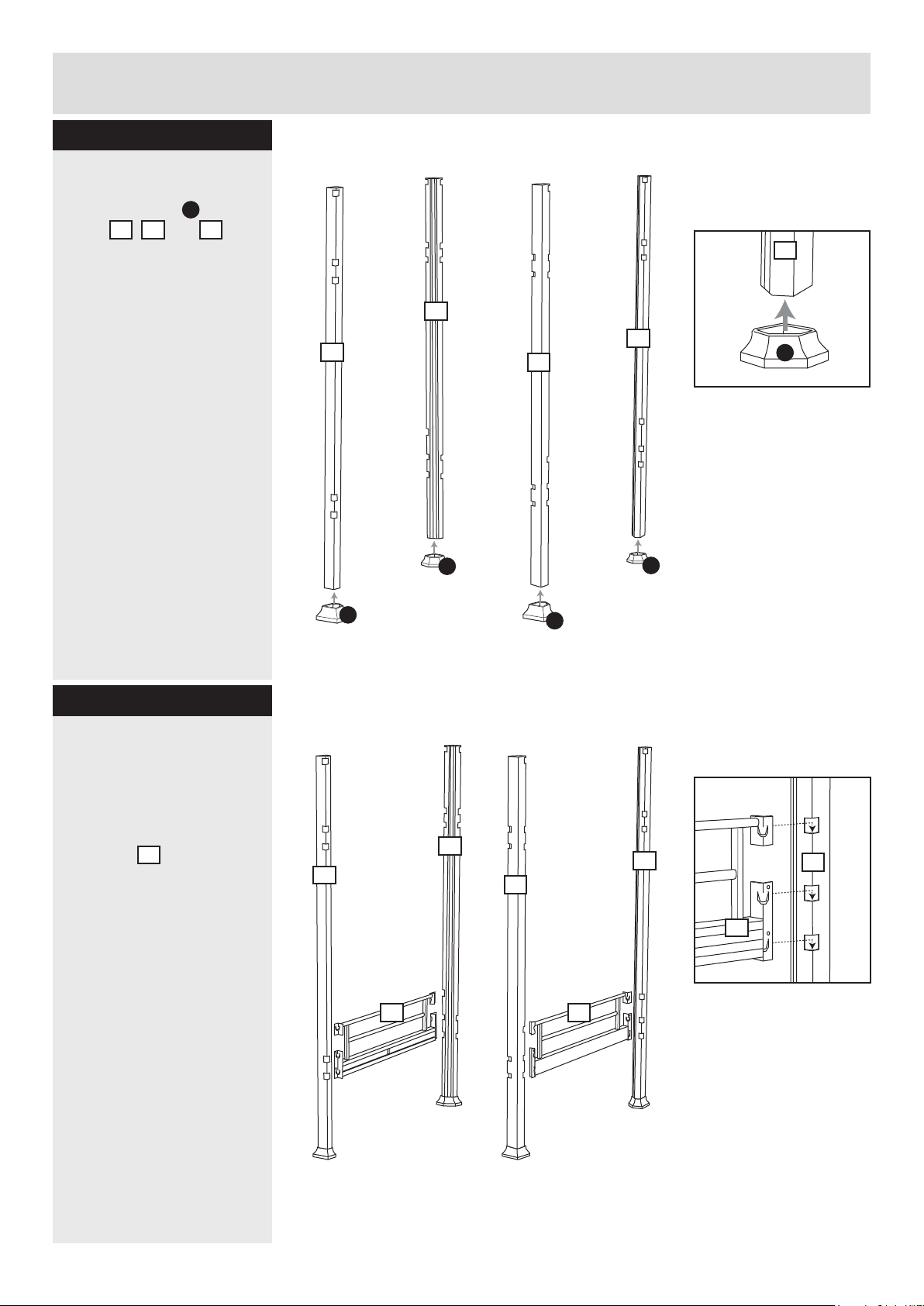

Step 1
Attaching footings
Attach footings to end
posts , and as
1 2 3
A
shown.
9
1
2
A
A
3
A
2
A
A
Step 2
Attaching lower side
rails
With the help of an
assistant holding the end
posts, attach the lower
side rails to the end
posts as shown. Insert
into holes on the end
posts first then push
down the siderails to
lock.
5
1
2
5 5
3
2
5
2
4
Page 6
Assembly Instructions

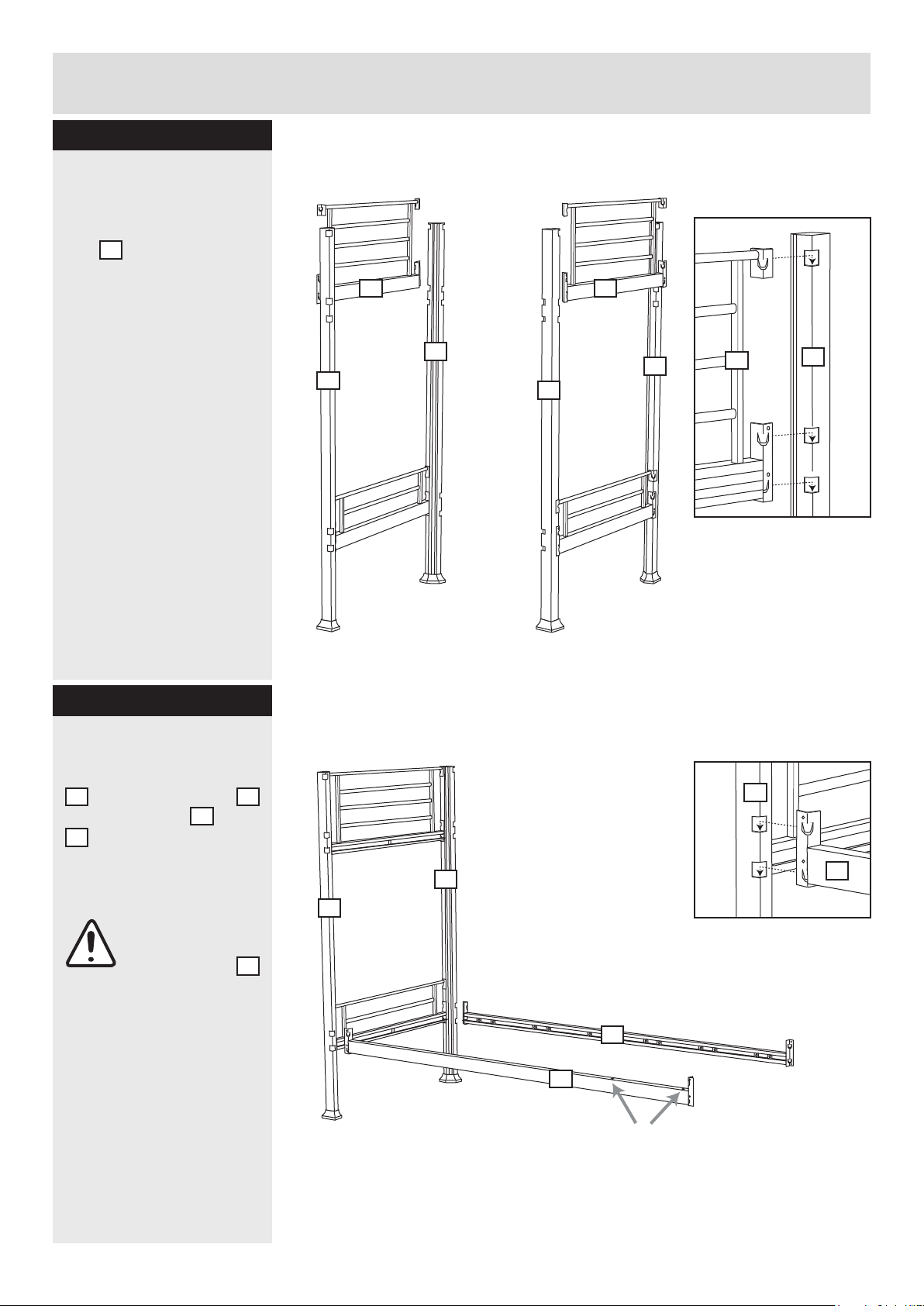

Step 3
Attaching upper side
rails
Attach the upper side
4
rails (4) to the end posts
as shown. Insert into
holes on the end posts
first then push down the
rails to lock.
4
2
4
1
2
3
4
2
Step 4
Attaching lower rails
Attach the lower front rail
6
(6) and lower back rail (7)
to the end posts (1) and
(2) as shown. Insert into
2
holes on the end posts
first then push down the
rails to lock.
Note: Make sure
the holes in the
lower front rail
are in correct
position as
shown.
7
1
6
2
1
2
7
6
6
holes
5
Page 7
Assembly Instructions

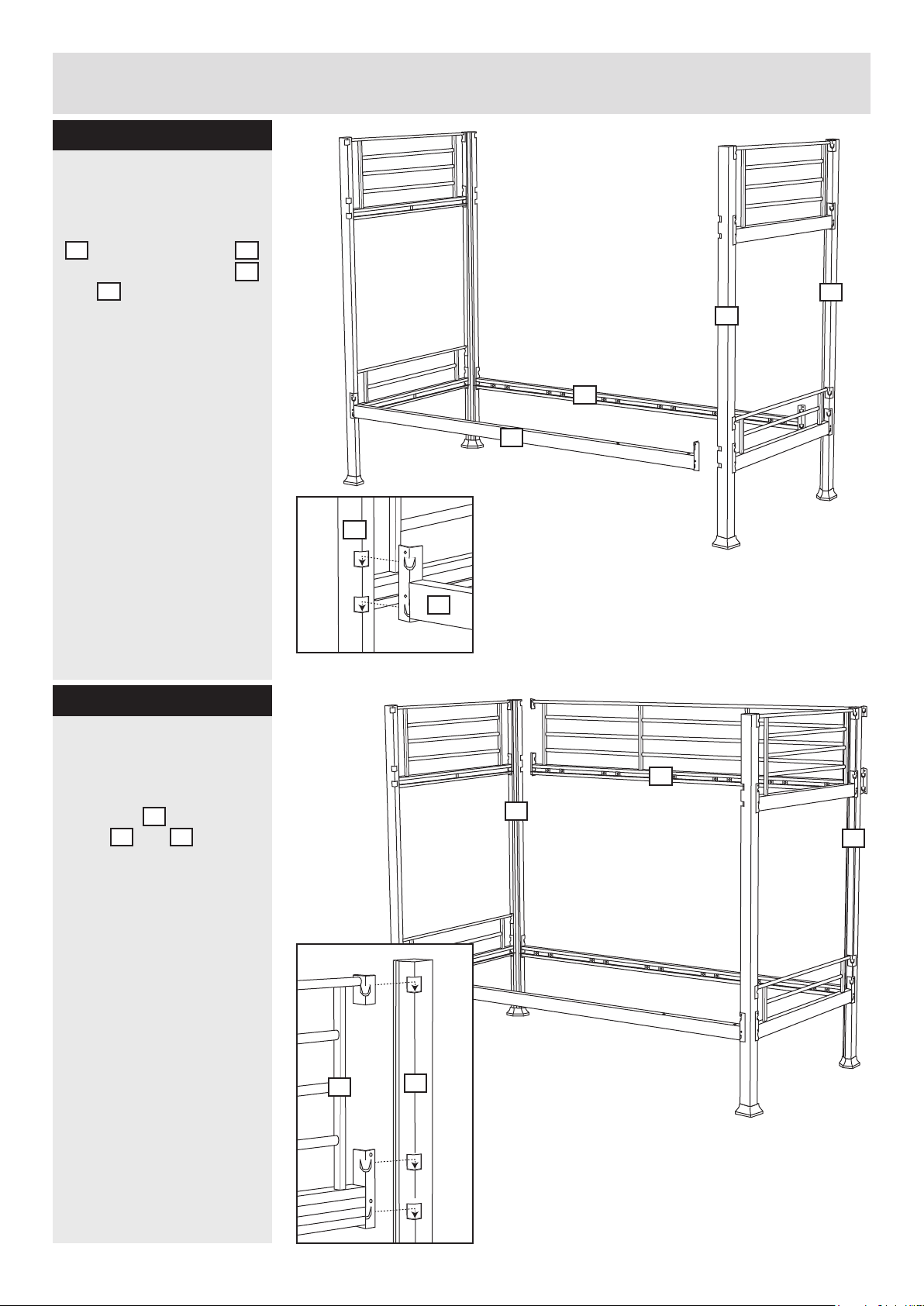

Step 5
Attaching right hand
end panel
Attach the lower front rail
6
(6) and lower back rail (7)
to the other end posts (2)
3
and (3) as shown. Insert
into holes on the end
posts first then push
down the rails to lock.
7
2
2
2
3
7
6
Step 6
Attaching upper back
safety rail
Attach the upper back
safety rail to the end
posts (1) and (2) as
shown. Insert into holes
on the end posts first
then push down the rails
to lock.
9
21
7
9
1
2
9
1
6
Page 8
Assembly Instructions

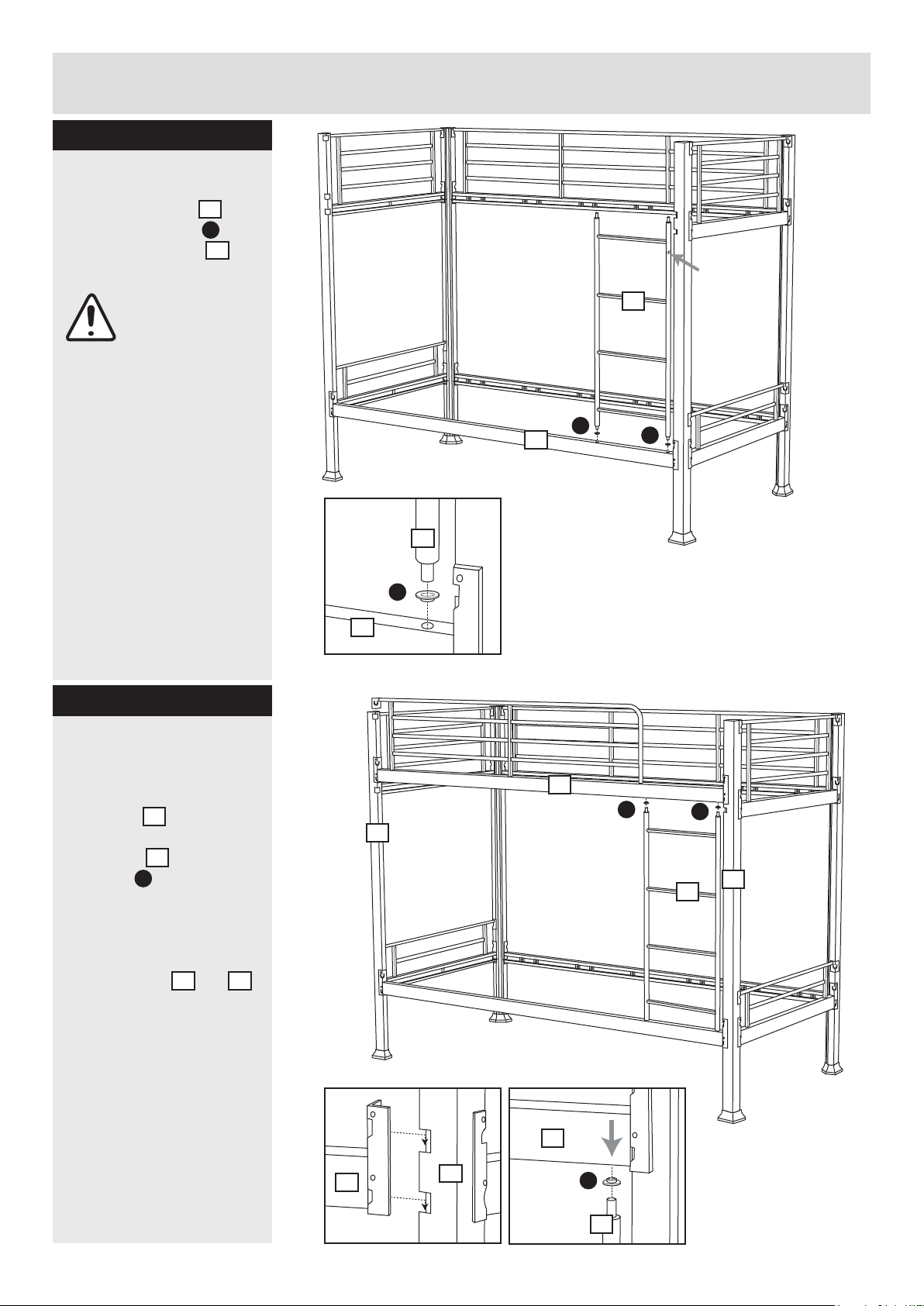

Step 7
Attaching ladder
Attach the ladder (8) into
holes on washers and
the lower front rail (6) as
10
D
6
shown.
Note: Make sure
to position the
ladder with the
arrow sticker on
the ladder
pointing up.
Arrow up
10
D
6
10
D
6
D
Step 8
Attaching upper front
safety rail
Position the upper front
safety rail as shown.
Hold it to align and insert
the ladder and
washers into holes on
the rail. Before fully
inserting the ladder,
insert the upper front
safety rails into holes on
the end posts and .
Then push down the rails
to lock.
8
10
D
2 3
8
D
2
8
D
3
10
8
3
D
10
7
Page 9
Assembly Instructions

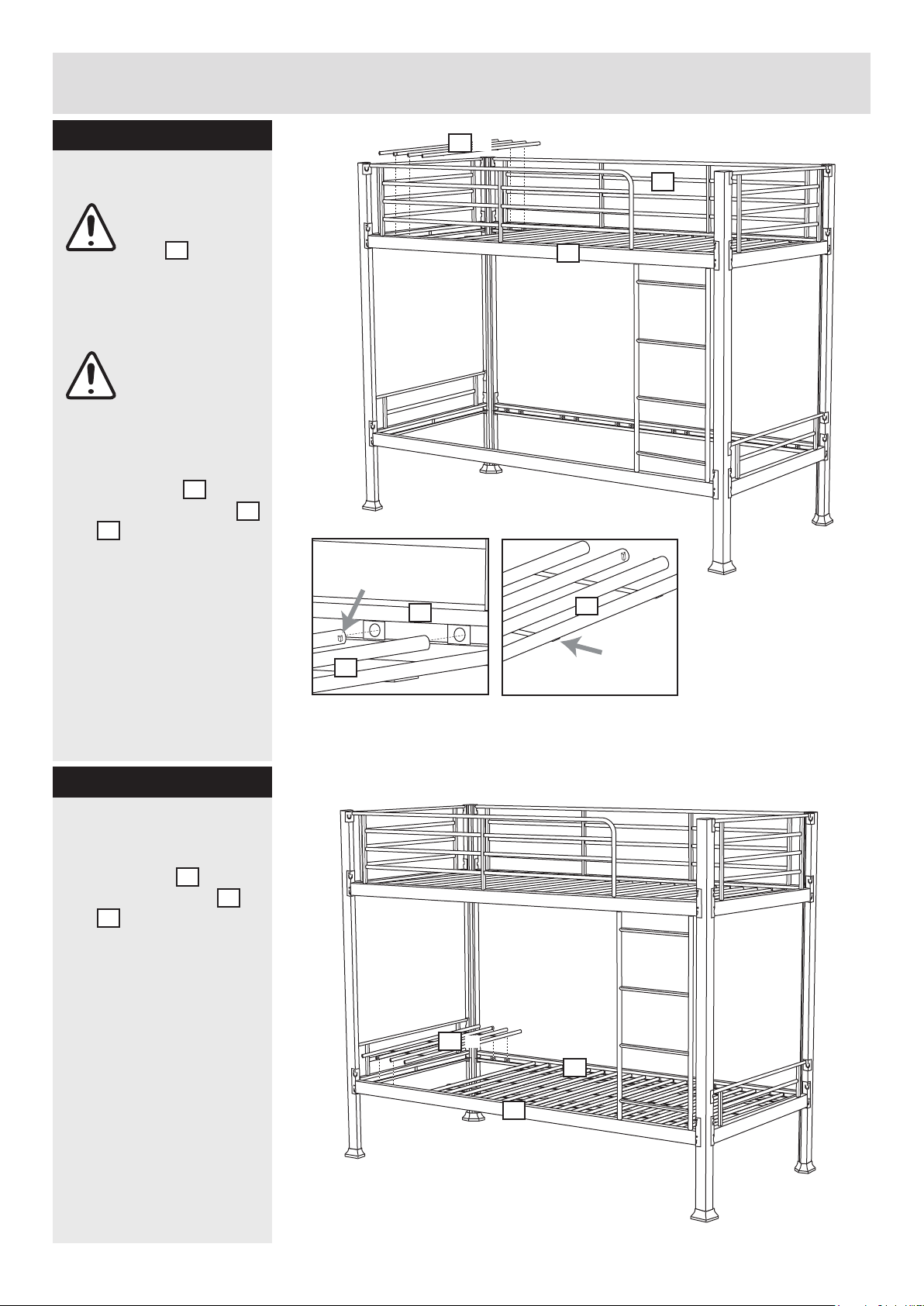

Step 9
Attaching upper slats
Note: Before
attaching the
11
slats ,
carefully make
adjustments to
ensure the bed
frame is straight.
Note: Position
the flat rail below
when attaching
the slats onto the
bed.
Starting on one end,
attach the slats one
by one into upper rails
9
and . Push to insert
the button on the slats
into the hole on the rails
as shown. Make sure it is
lock when you hear the
‘click’ sound. Insert one
end of the slats first
before inserting and
locking the other end.
11
8
Insert button
to hole to lock
10
11
11
x6
9
8
11
position flat rail
to bottom
Step 10
Attaching lower slats
Repeat step 9 to attach
the other slats into
holes on lower rails (6)
7
and (7).
11
6
11
x6
7
6
8
Page 10
Assembly Instructions

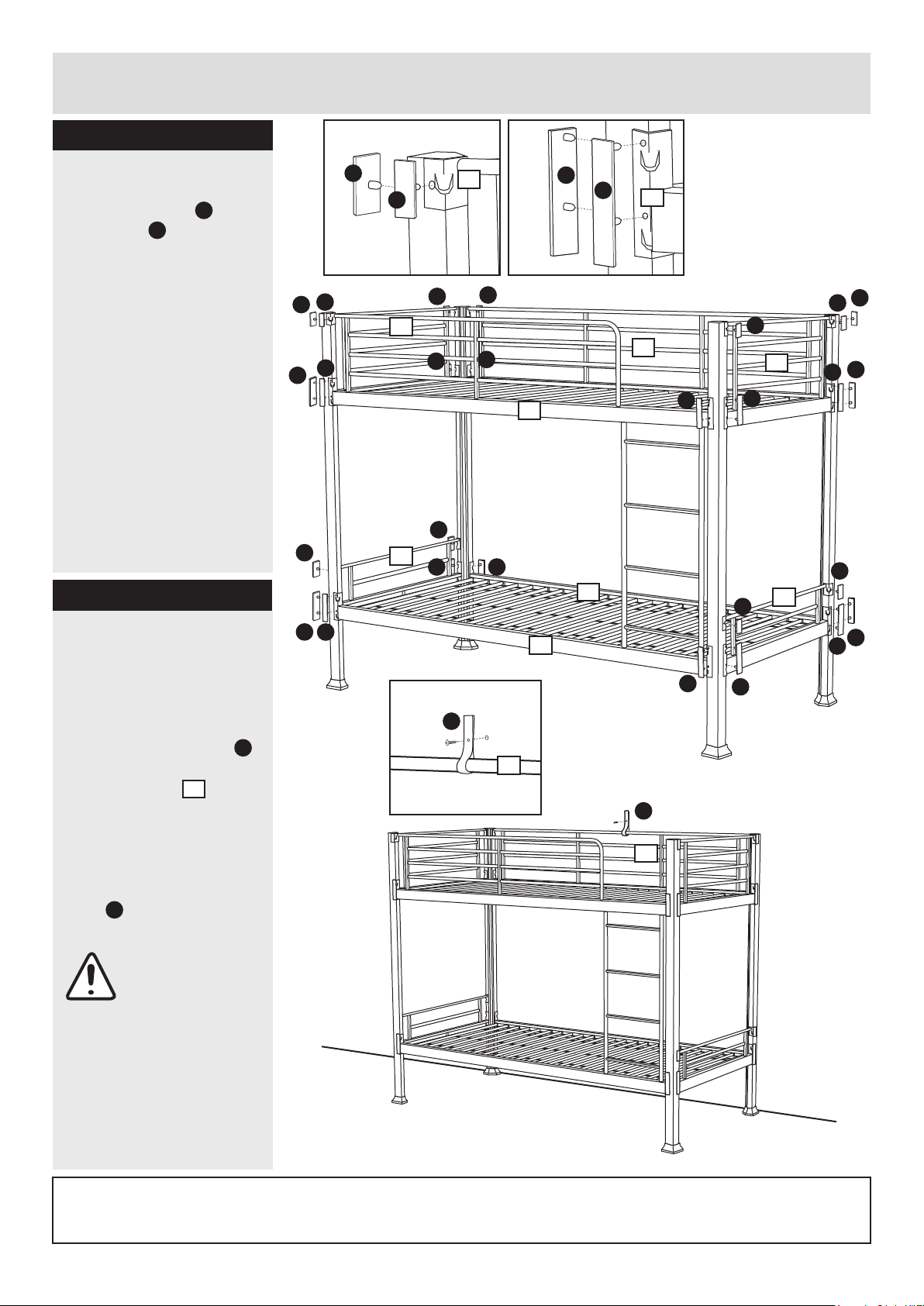

Step 11
Attaching caps
Attach long caps and
short caps into holes
B
C
on the end posts as
shown. Insert and lock it
carefully into holes by
using a rubber mallet.
Step 12
Fixing to wall
This unit must be fixed to
a wall.
Move the bunk bed into
position on the wall.
Position the wall strap
to the top post of upper
back safety rail to
9
mark fixing holes on the
wall. Remove the wall
strap then drill holes and
insert appropriate wall
plugs. Reposition wall
E
strap and fix using
appropriate screws.
E
C
C
C
C
4
B
B
C
B
B
5
Wall
8
C
B
C
B B
C
B
E
9
B
B
8
7
6
Wall
8
C
C
C
9
B
B
E
9
4
B
5
C
B
B
B
C
B
B
Warning:
Before drilling,
check wall for
hidden pipes and
cables. Consult a
qualified
specialist if
unsure.
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
9
Page 11

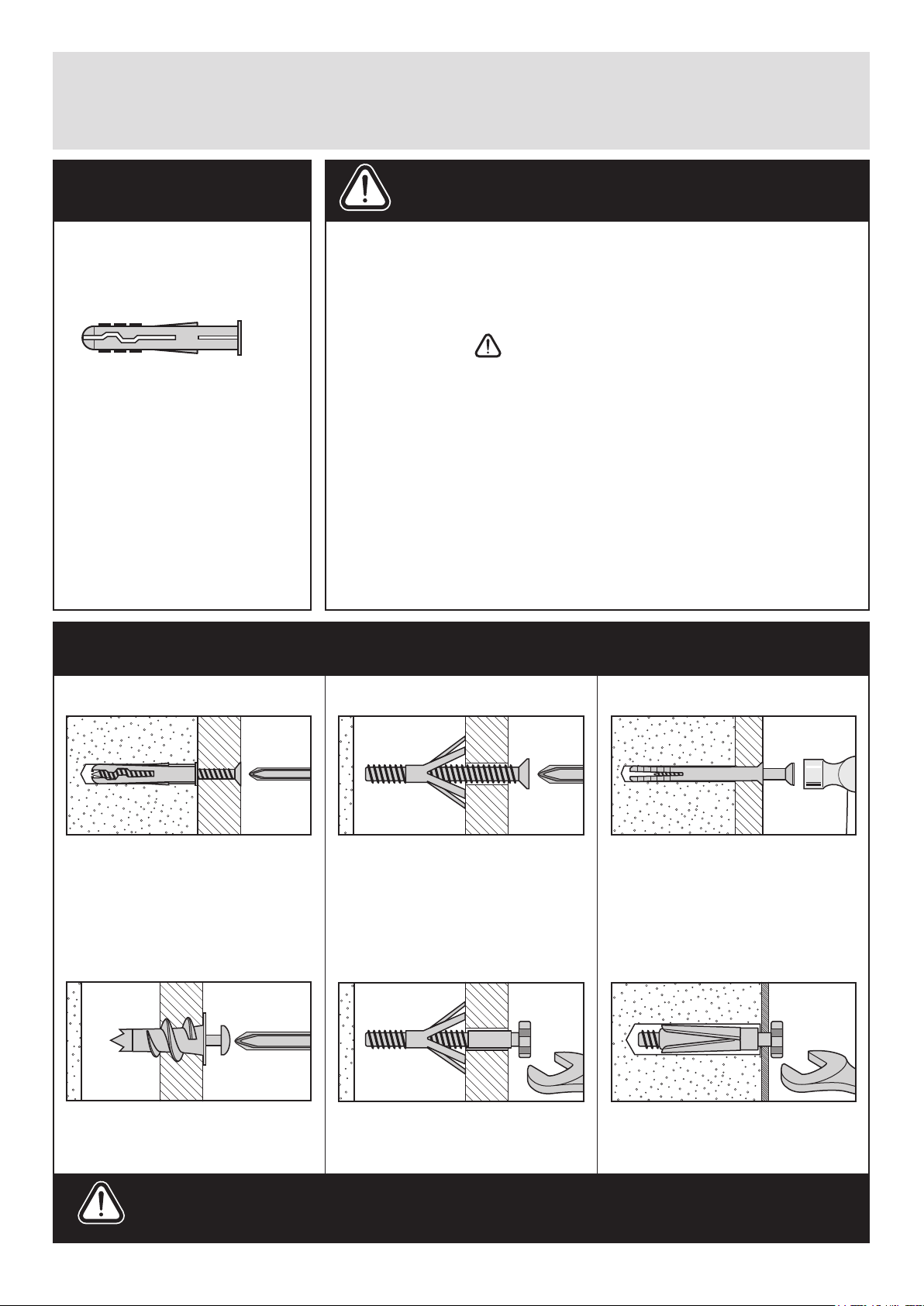

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fxings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well ftted and are a tight ft in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist ftting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls ar e made
of brick, breeze block, concrete,
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
stone or wood.
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer fxing allows
it to be fxed to the wall rather than the
plasterboard. Always check the fxing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when ftting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the ftting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the ftting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
Page 12

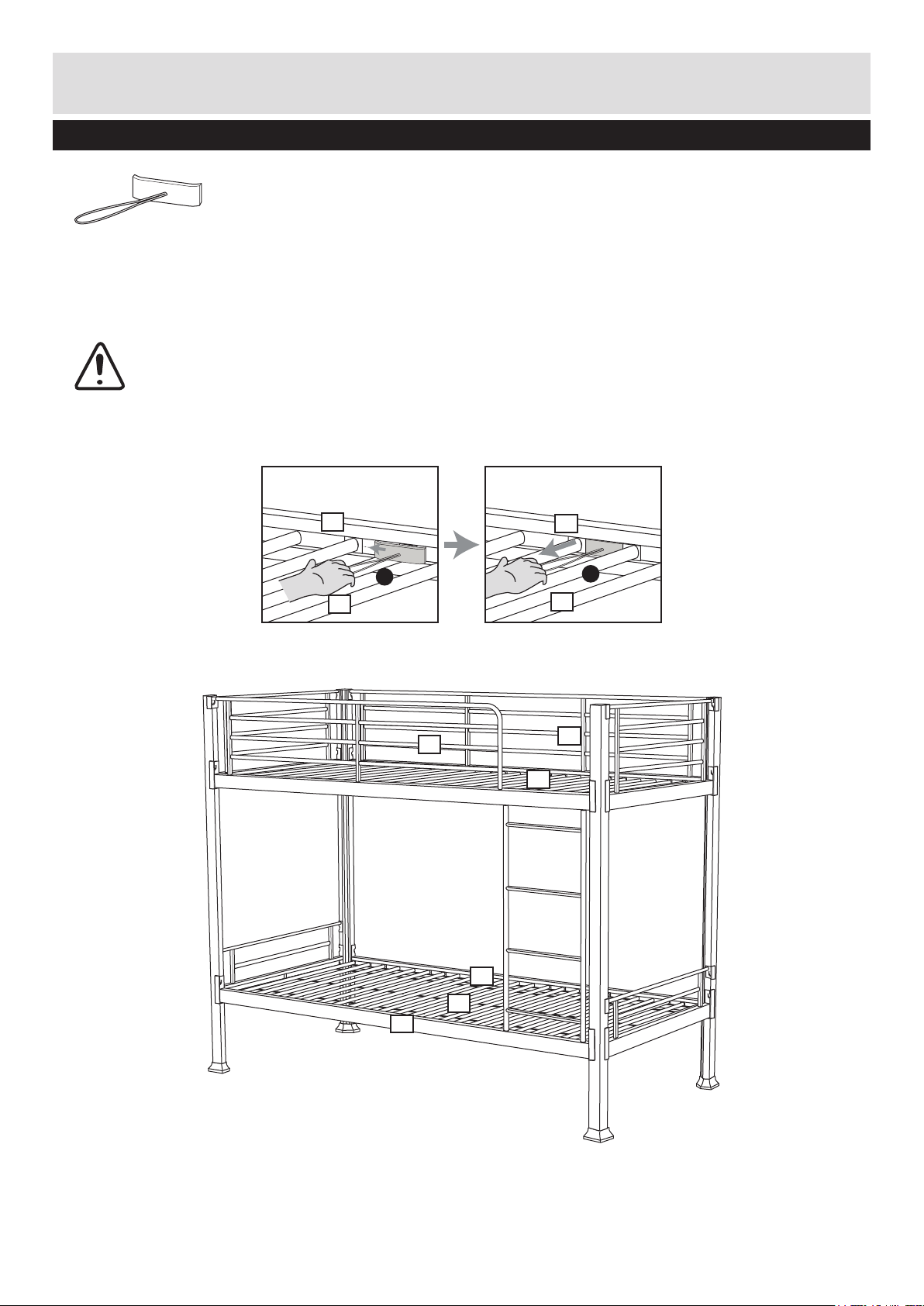

Guide to Disassembling the Slats
Tools required
Slats Remover Tool (Provided)
Please keep this tool for future use.
Use the slats remover tool to remove the slats as shown in the diagram. Insert it into the
front/back/safety rails then pull it until the slats are detached.
9
F
11
8
9
F
11
9
11
11
7
11
6
Loading...
