Page 1

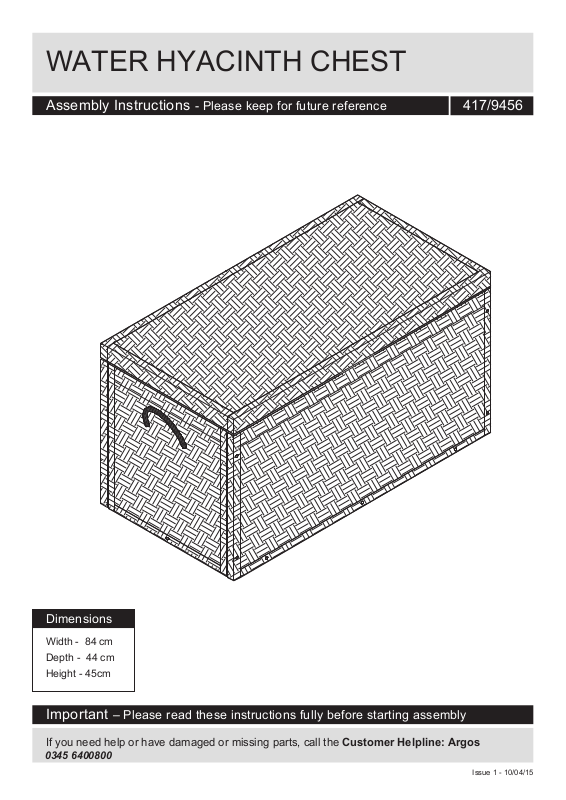

WATER HYACINTH CHEST
Assembly Instructions - Please keep for future reference 417/9456
Dimensions
Width - 84 cm
Depth - 44 cm
Height - 45cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: Argos
0345 6400800
Issue 1 - 10/04/15
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly may be
easier with 2 people.
• To reduce the
likely hood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• Reguraly check and ensure
that all bolts and fittings are
tightend properly.
• From time to time check that
there are no loose screws on
this unit.
• Assemble the item as close
to its final position (in the
same room) as possible.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
Components
If you have damaged or missing components,
call the Customer Helpline: Argos
Please check you have all the panels listed below
0345 6400800
Top Panel 84*44 cm
Front Panel 84*41 cm Left Panel 38*41 cm
Front Panel 84*41 cm
Right Panel 38*41 cm
2
Page 4
Components - Fittings
A
C
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
Screw Ø6*50 mm x 8
Allen key
Bolt Ø3*30 mm x 4
Screw Ø6*40 mm x 8
Tools required
Hammer
The Screw length is measured from the head to the point ( 50mm screws shown).
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions
Step 1
x 2
Attach left panel and
right panel in to bottom
panel . Using 2pcs
srew
Step 2
Attach back panel in to
bottom panel , left panel
and right panel .
Using 4pcs screw and
3pcs screw as show.
x 4
x 3
4
Page 6
Assembly Instructions
Assembly Instructions
Step 3
x 4
Attach front panel in to
bottom panel , left panel
and right panel .
Using 4pcs screw and
3pcs screw as show.
x 3
Step 4
Connect top panel to
back panel 3 using 4pcs
bolt at the hinges.
A hammer may be used to
help to insert the bolts into
the hinges.
Connect the strings by
pressing the hook of the
string on top panel .
Assembly is complete.
C
x 4
If you need help or have damaged or missing parts, call the Customer Helpline: Argos
0345 6400800
