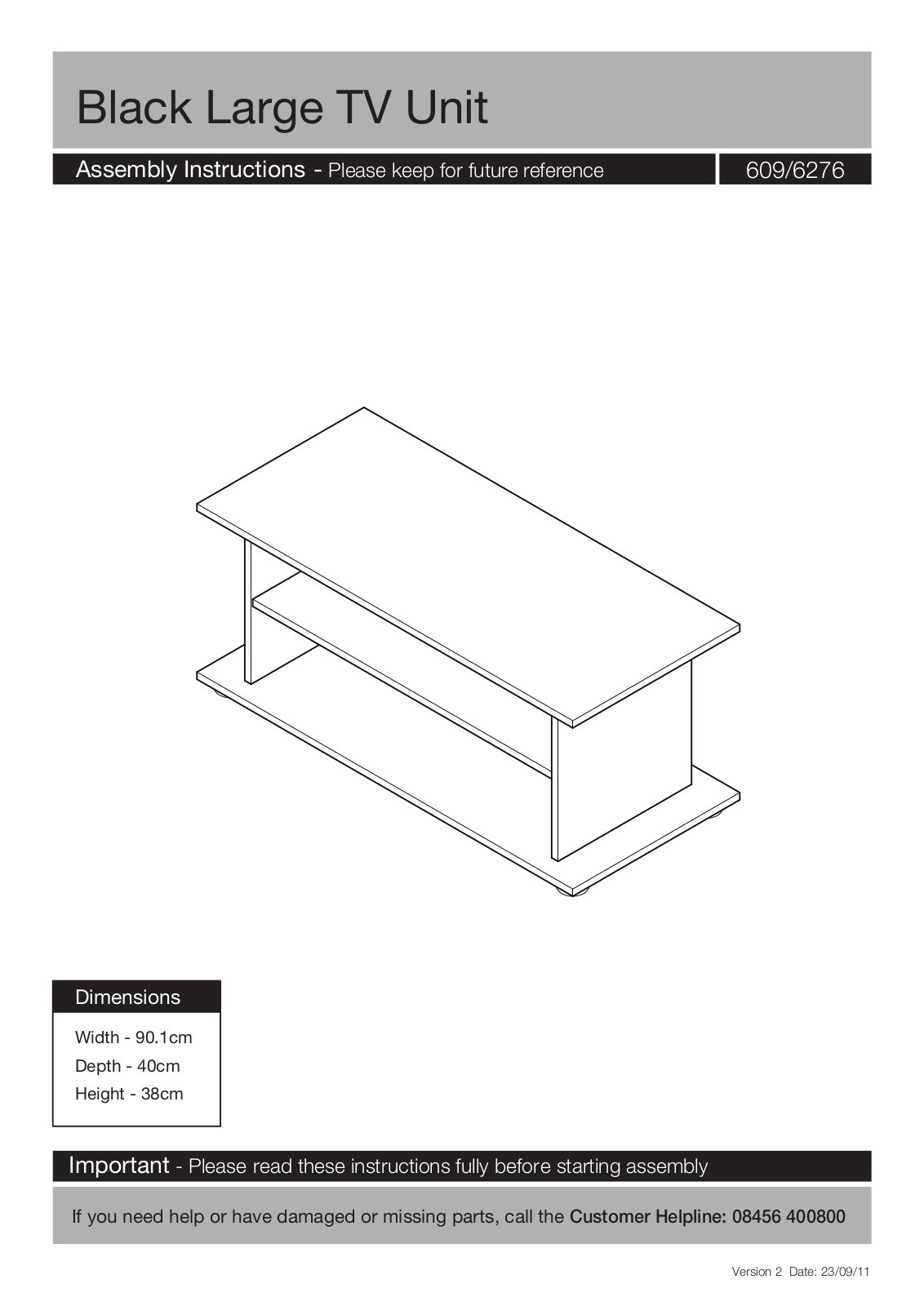

Black Large TV Unit
Assembly Instructions - Please keep for future reference
609/6276
61
Dimensions
Width - 90.1cm
Depth - 40cm
Height - 38cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version 2 Date: 23/09/11

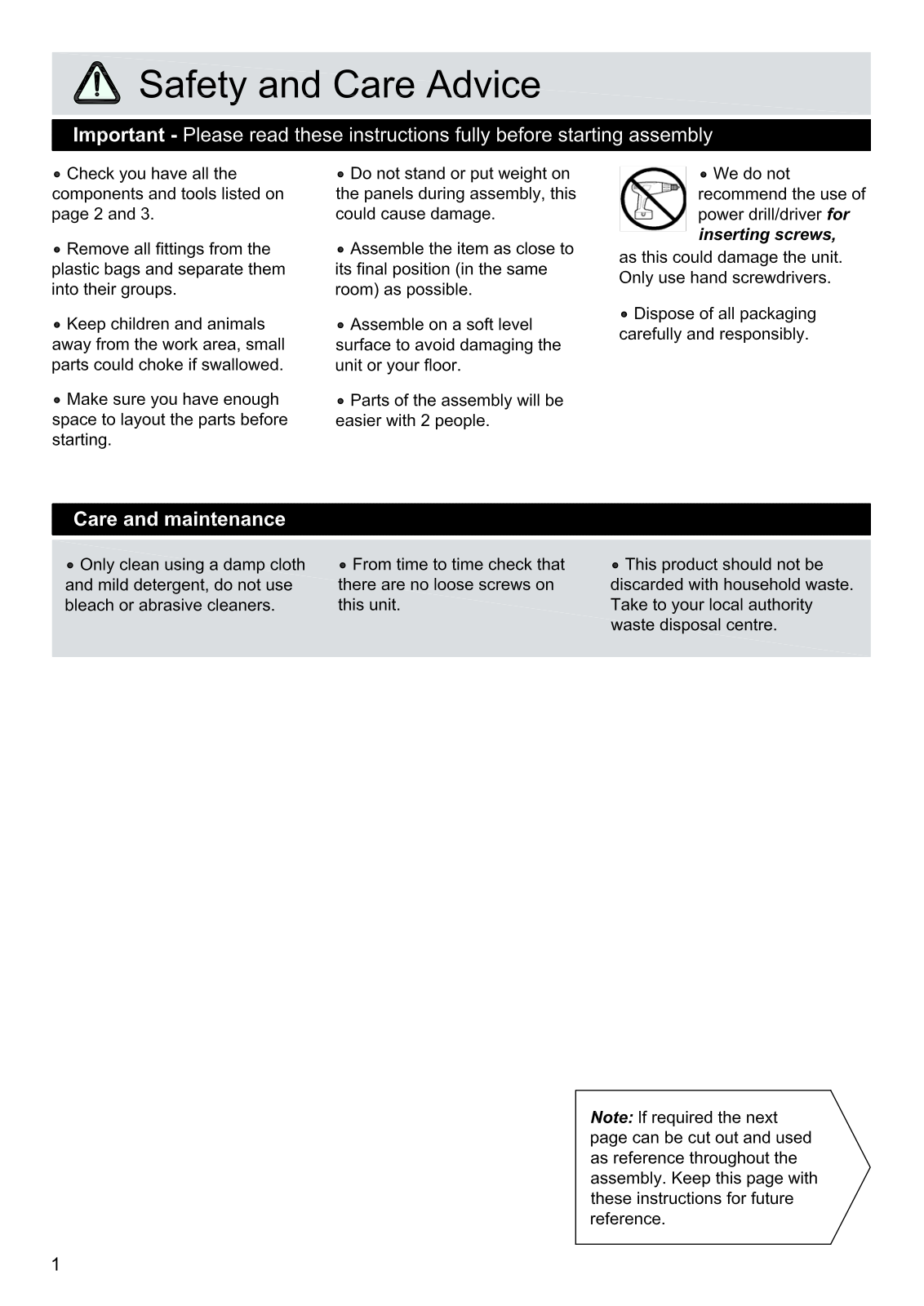

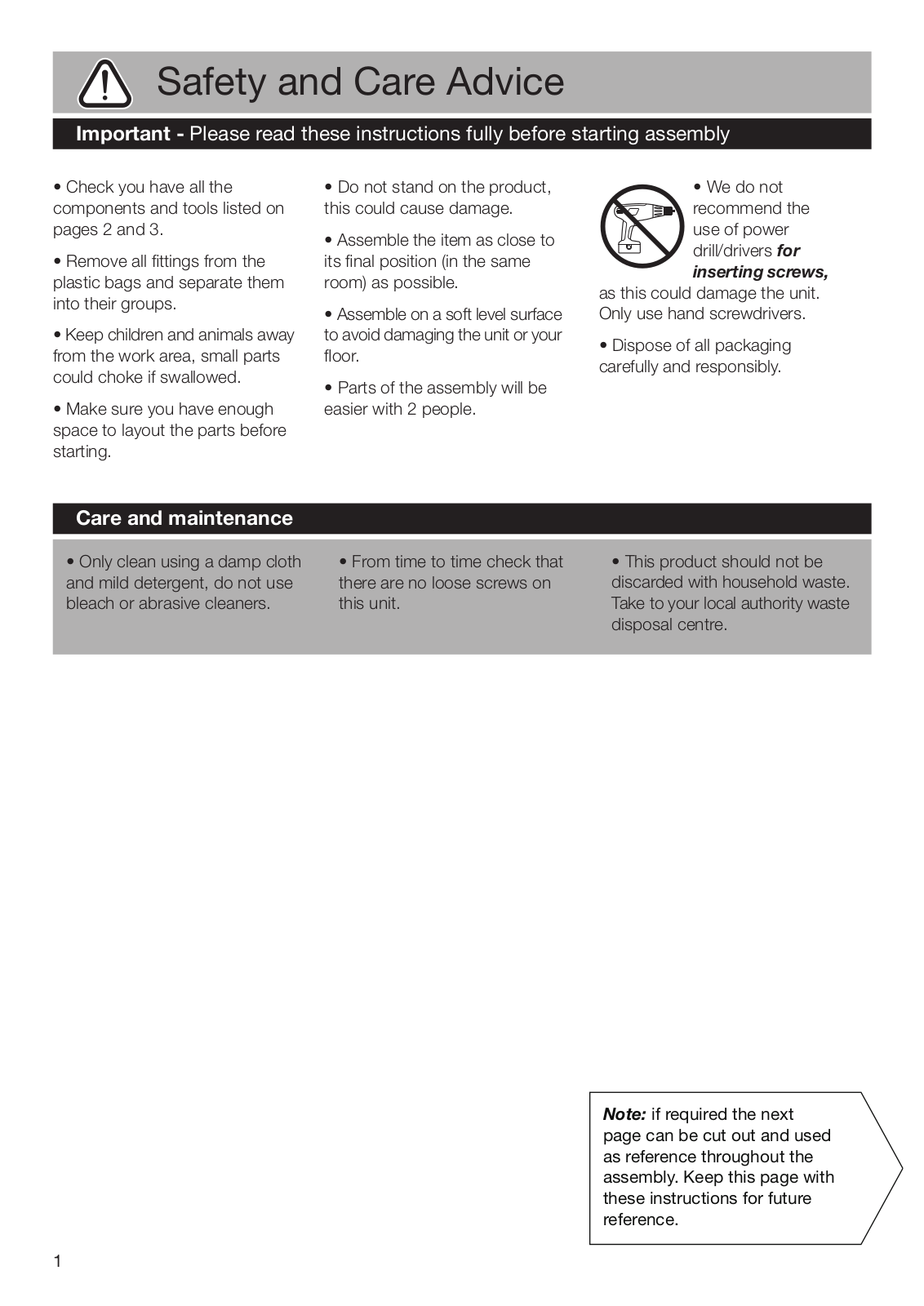

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
its nal position (in the same
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
If you have damaged or missing components,

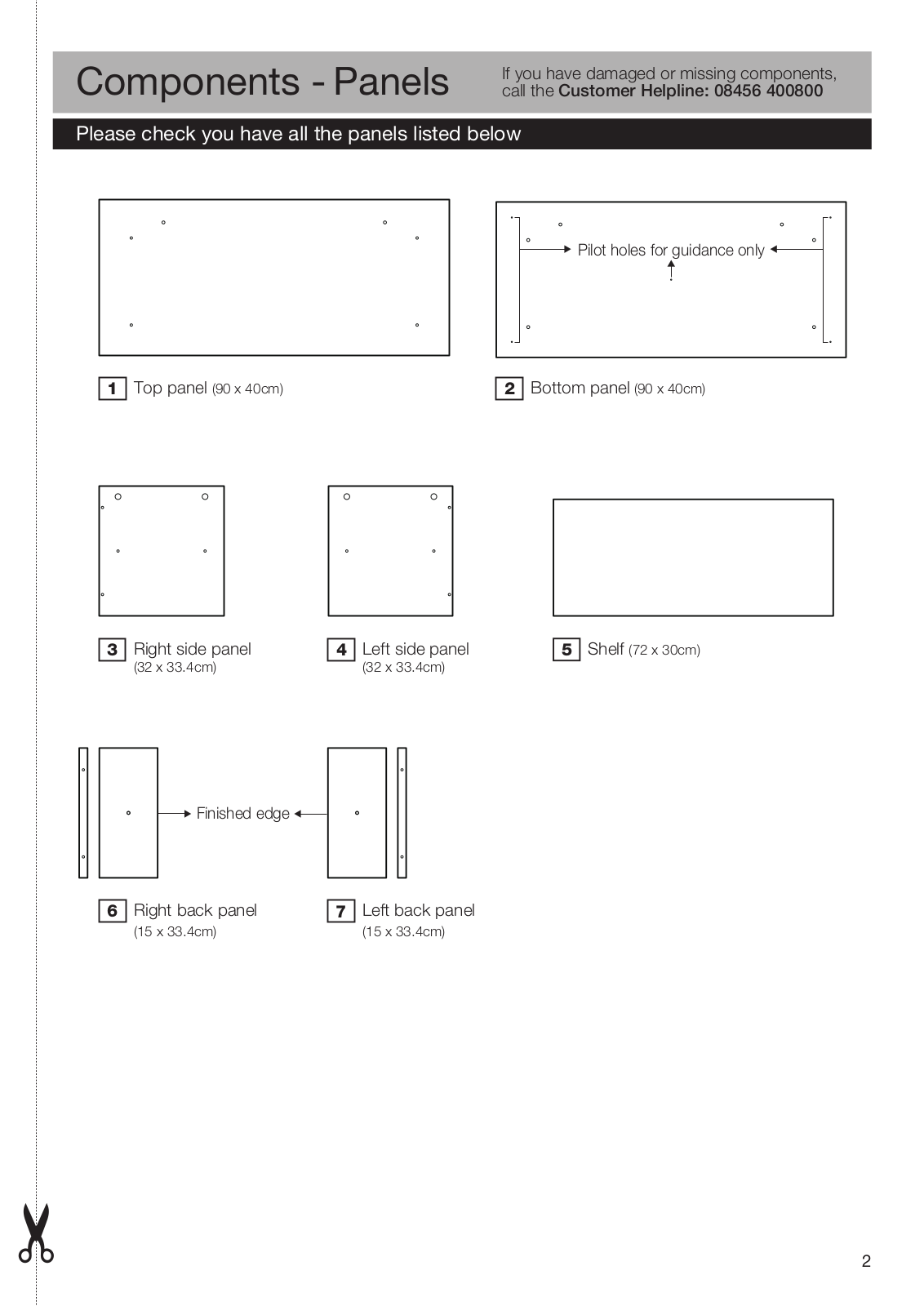

Components - Panels
call the Customer Helpline: 08456 400800
Please check you have all the panels listed below
Pilot holes for guidance only
Top panel
1
Right side panel
3
(32 x 33.4cm)
(90 x 40cm)
Finished edge
Left side panel
4
(32 x 33.4cm)
Bottom panel
2
5
(90 x 40cm)
Shelf (72 x 30cm)
Right back panel
6
(15 x 33.4cm)
Left back panel
7
(15 x 33.4cm)
2

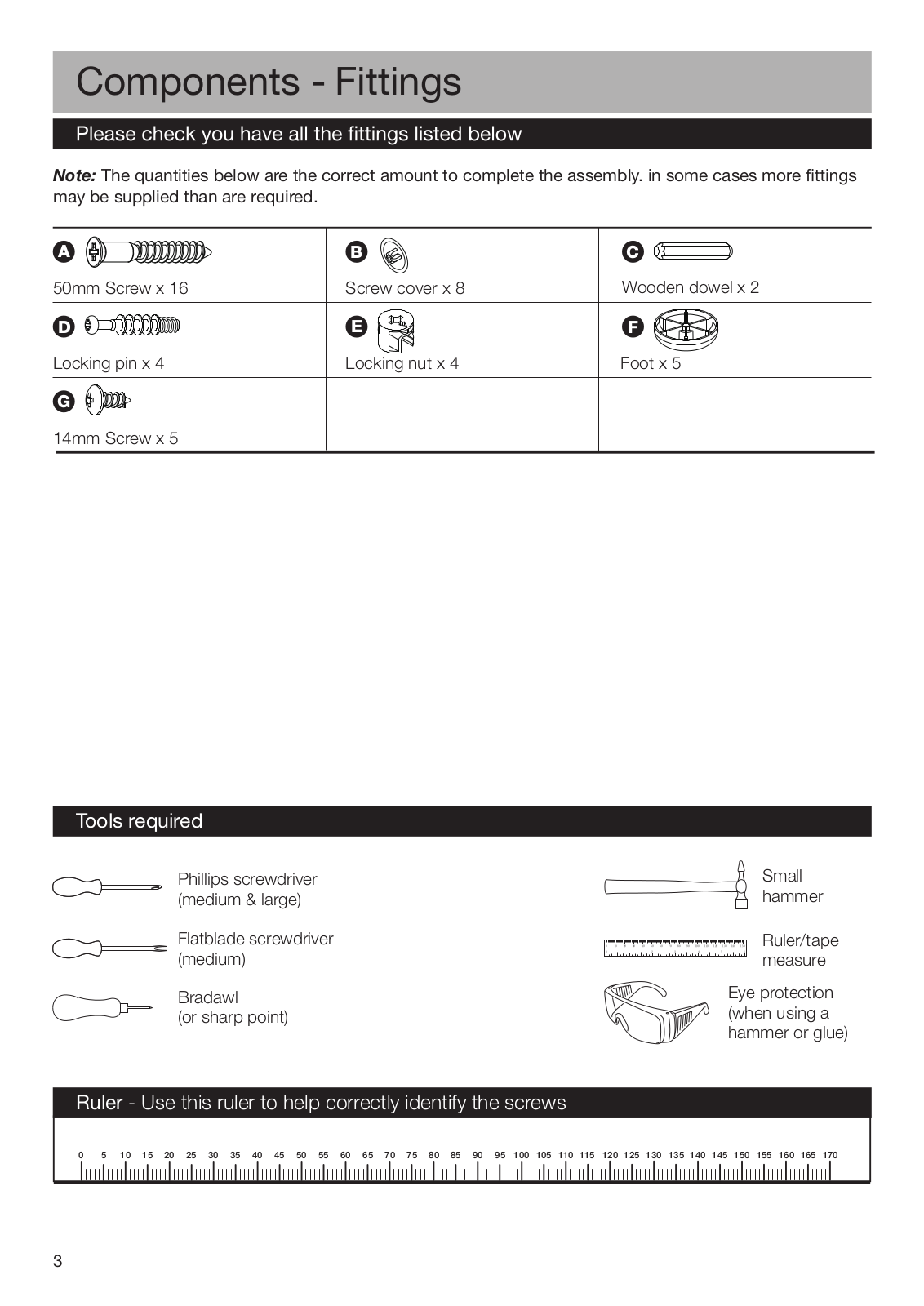

Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
50mm Screw x 16
D
G
14mm Screw x 5
B
Screw cover x 8
E
Locking nut x 4Locking pin x 4
C
Wooden dowel x 2
F
Foot x 5
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Bradawl
(or sharp point)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
Small
hammer
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
105
110 115 120 125 130 135 140 145 150 155 160 165 170

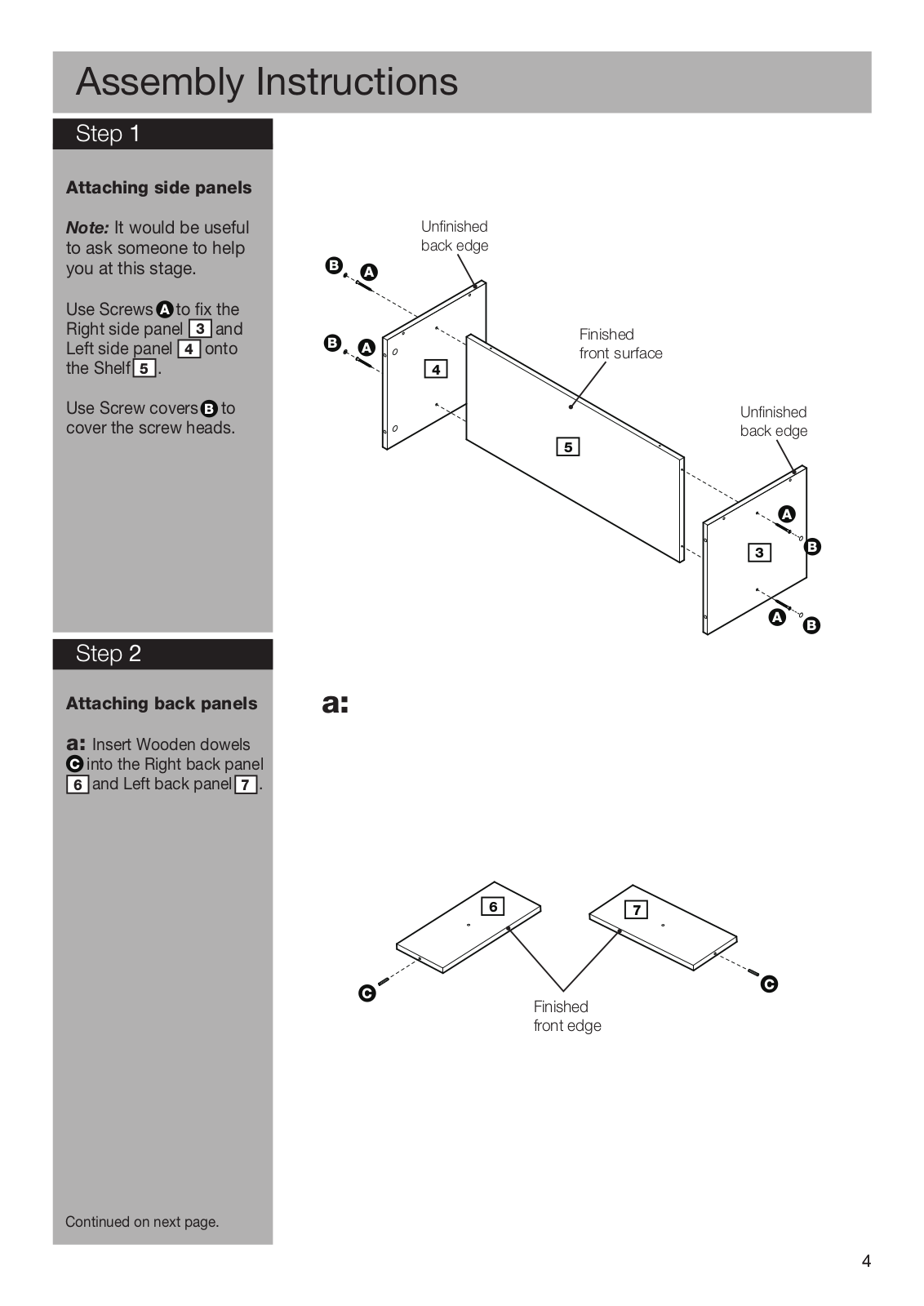

Assembly Instructions
Step 1
Attaching side panels
Note:
It would be useful
to ask someone to help
you at this stage.
A
Right side panel and
Left side panel onto
the Shelf .
5
Use Screw covers to
3
4
B
cover the screw heads.
Step 2
back edge
B
A
B
A
Finished
front surface
4
back edge
5
A
3
B
A
B
Attaching back panels
a:
Insert Wooden dowels
C
into the Right back panel
and Left back panel .
6
7
a:
6
C
Finished
front edge
7
C
Continued on next page.
44

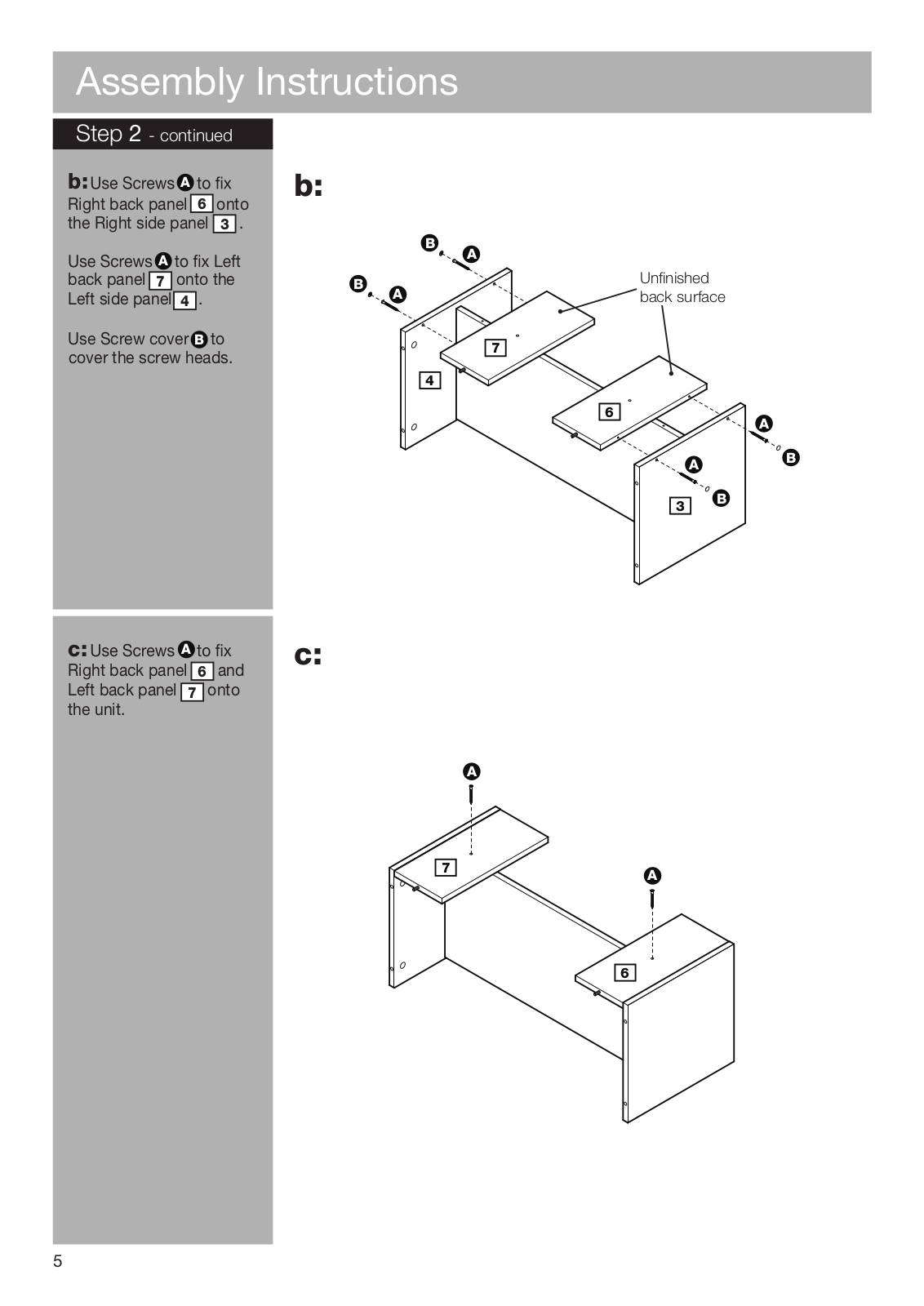

Assembly Instructions
Step 2 - continued
7
A
A
4
6
3
B
b:
Right back panel onto
the Right side panel .
back panel onto the
Left side panel .
Use Screw cover to
cover the screw heads.
b:
B
A
B
A
7
4
Unnished
back surface
6
A
A
B
3
B
c:
Right back panel and
Left back panel onto
A
7
6
the unit.
c:
A
7
A
6
5
Assembly Instructions

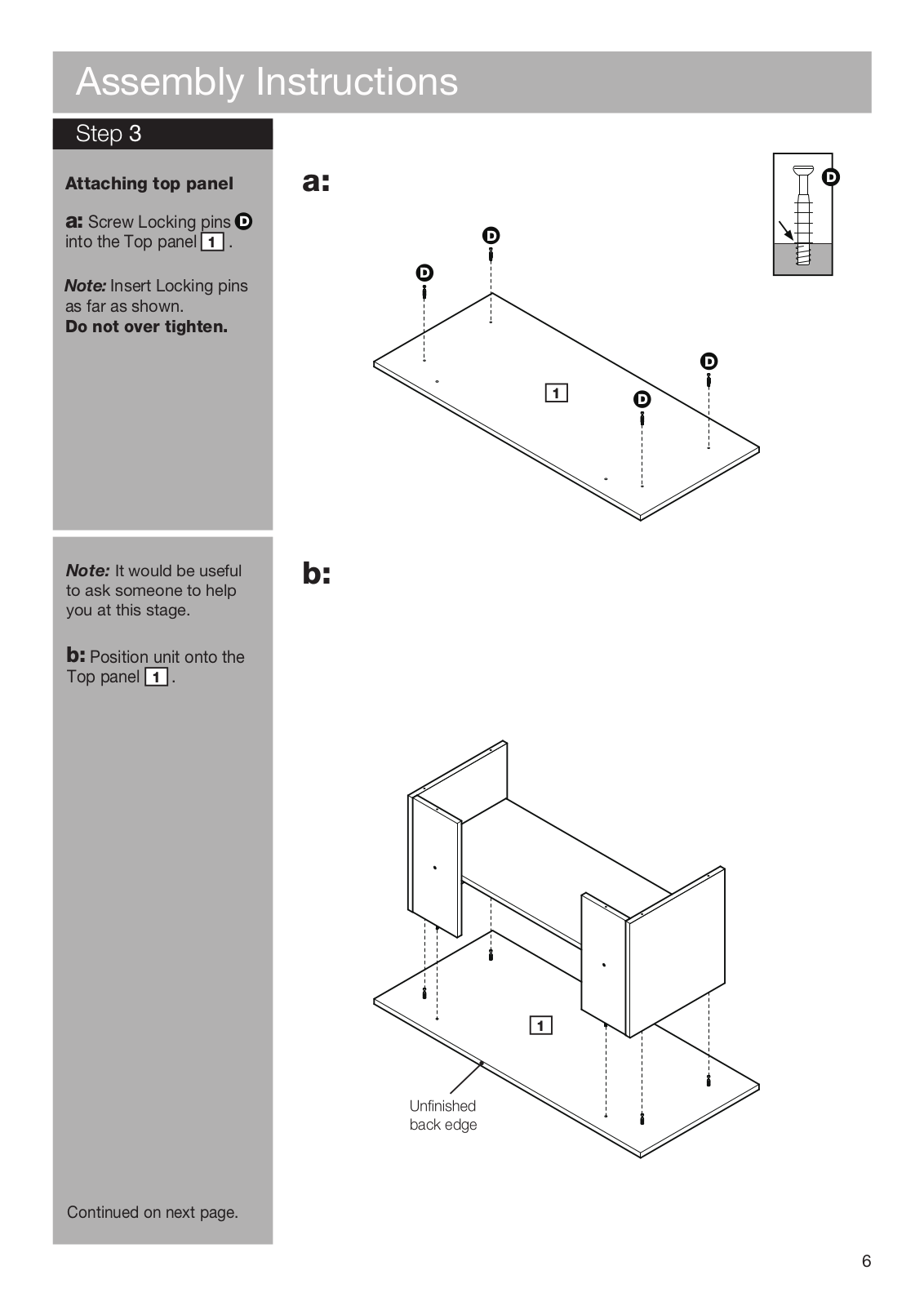

Step 3
Attaching top panel
Screw Locking pins
a:
into the Top panel .
Note:
Insert Locking pins
as far as shown.
Do not over tighten.
It would be useful
Note:
to ask someone to help
you at this stage.
D
1
a:
b:
D
D
D
D
1
D
b:
Position unit onto the
Top panel .
1
1
Continued on next page.
back edge
6

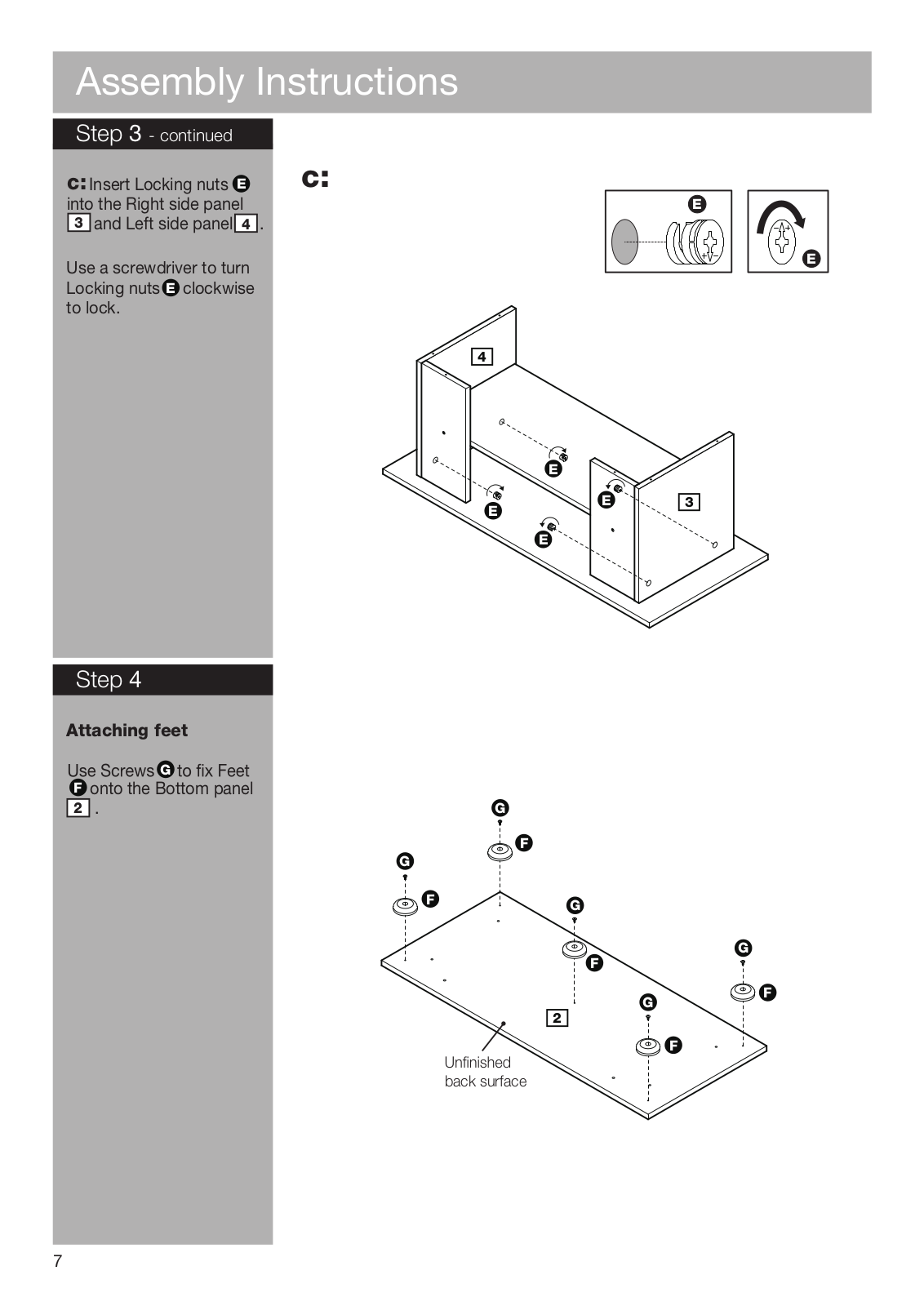

Assembly Instructions
Step 3
c:
Insert Locking nuts
- continued
E
into the Right side panel
3
and Left side panel .
4
Use a screwdriver to turn
Locking nuts clockwise
E
to lock.
c:
E
E
4
E
E
E
E
3
Step 4
Attaching feet
G
F
onto the Bottom panel
2
.
G
F
G
back surface
F
G
F
G
2
F
G
F
7
Assembly Instructions

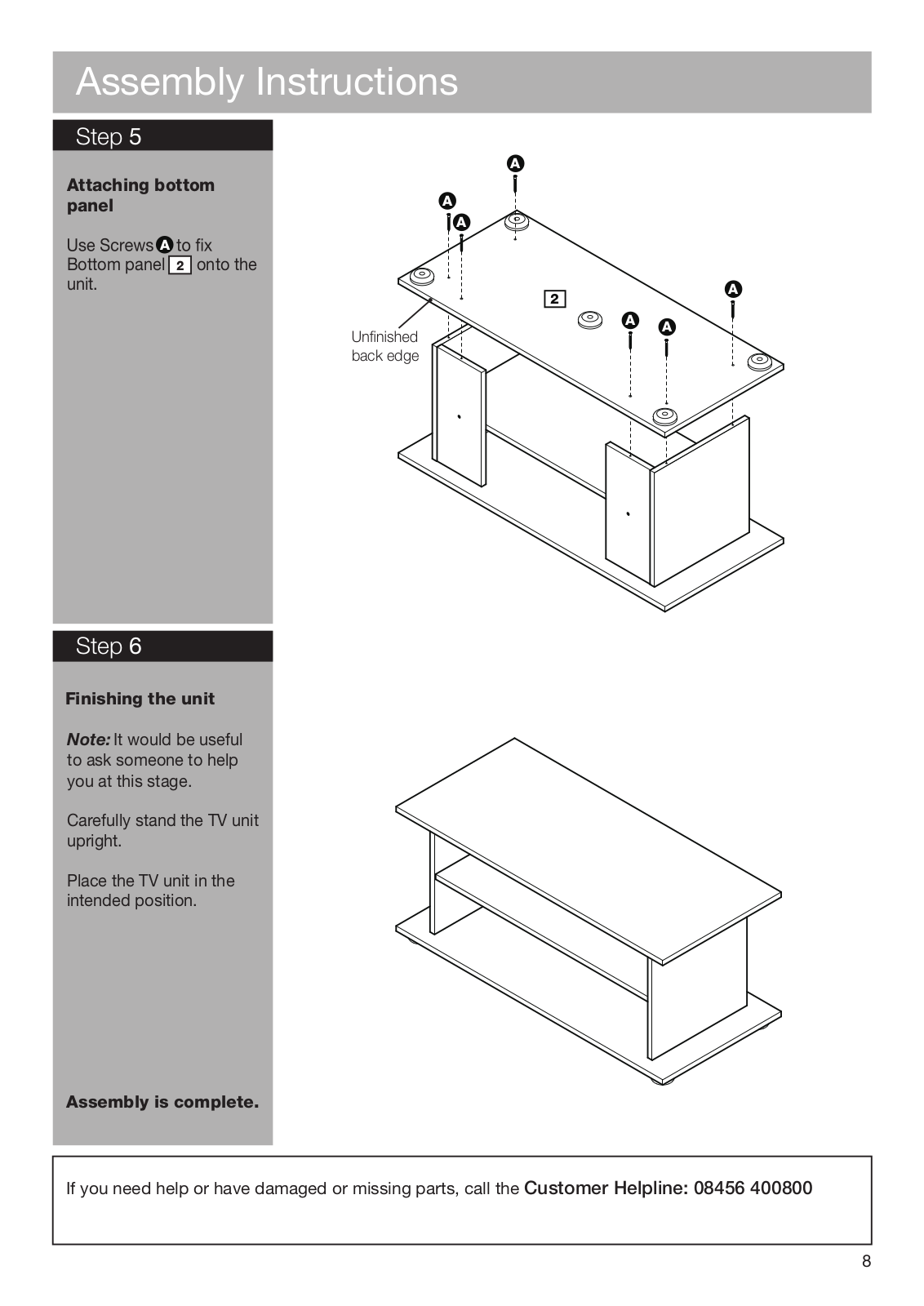

Step 5
Attaching bottom
panel
A
Bottom panel onto the
unit.
2
back edge
A
A
A
2
A
A
A
Step 6
Finishing the unit
Note:
It would be useful
to ask someone to help
you at this stage.
Carefully stand the TV unit
upright.
Place the TV unit in the
intended position.
Assembly is complete.
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
8
