Page 1
MADE IN
BRITAIN
Dimensions
Width - 115cm
Depth - 49cm
Height - 181cm
Capella - 3 Drawer 3 Door Robe
Assembly Instructions - Please keep for future reference
Issue 8 - 18/09/15
255/7276
239/2682
257/9838
258/4517
239/2682
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 77kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Tools required
Rule
Scissors
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Square
mm
10
20
30
40
50
60
70
80
90
100
mm
10
20
30
40
50
60
70
80
90
100
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: You must secure
this unit to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
mm 10 20 30 40 50 60 70 80 90 100mm 10 20 30 40 50 60 70 80 90 100
Ruler - Use this ruler to help correctly identify the screws
Note: If required the next
page can be cut out and
used as reference throughout
the assembly. Keep this page
with these instructions for
future reference.
Page 3

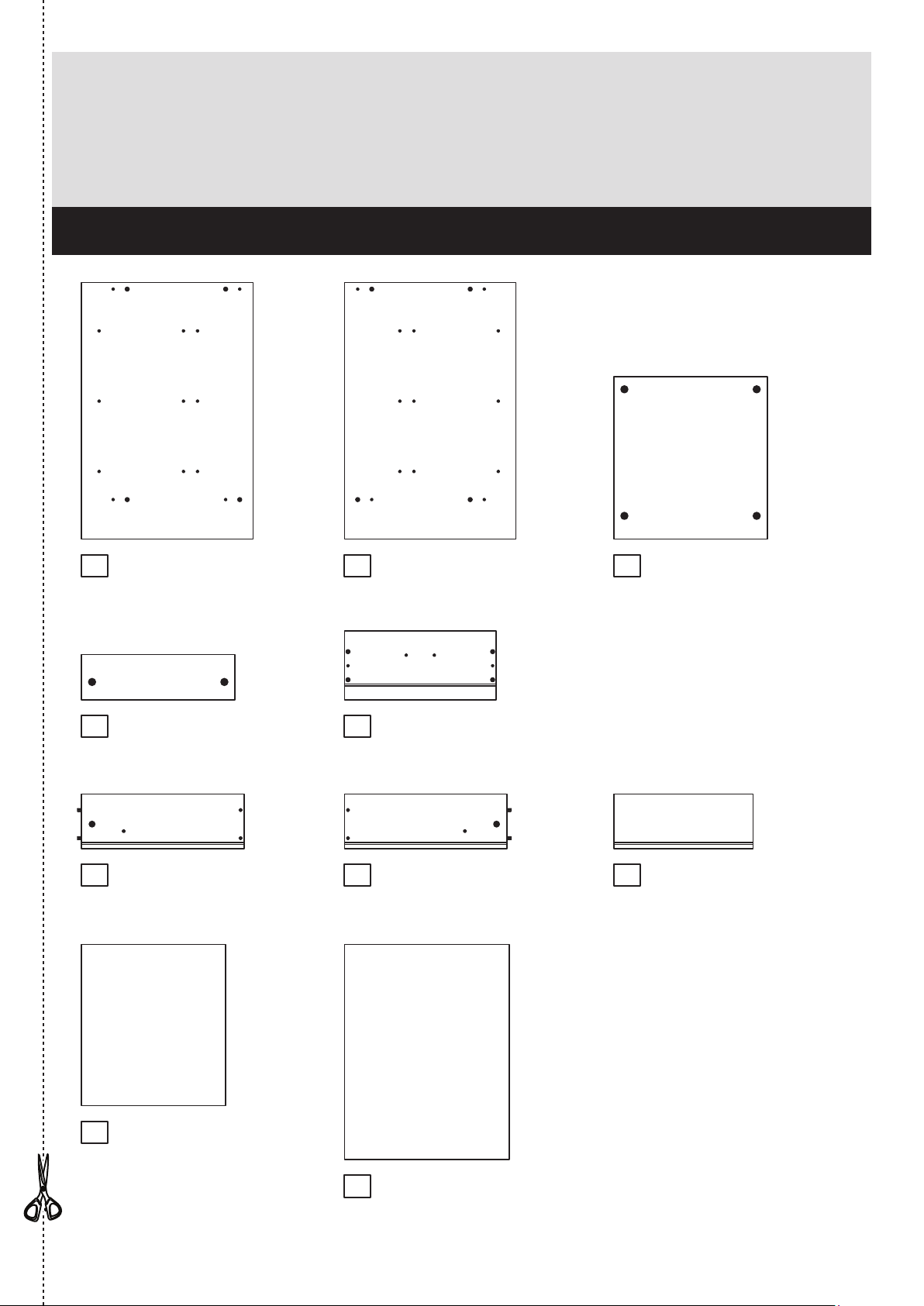

Components - Panels
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the panels listed below
When applicable, remove any
protective film before use
2
1
Left Side (D1013A)
(1808 x 490mm)
2 3
6
Right Side (D1014A)
(1808 x 490mm)
Top/Base (D1018A)
(1119 x 471mm) x 2
Drawer Front (D1022A)
(369 x 157mm) x 3
Plinth (D1024A)
(1119 x 85mm)
Short Divider (D1019A)
(483 x 470mm)
Fixed Shelf (D1020A)
(346 x 469mm)
10
7
11
Outer Door (D1017A)
(1701 x 369mm) x 2
Long Divider (D1084A)
(1685 x 470mm)
8
4
5
Centre Door (D1025A)
(1221 x 369mm)
9
13
15
12
Drawer Base (T325-367)
(325 x 367mm) x 3
14
18
17
Small Back (X831A)
(1711 x 392mm)
Large Back (X830A)
(1711 x 753mm)
Hanging Rail (FHR723)
(723mm long)
16
Loose Shelf (D1023A)
(369.5 x 469mm) x 3
Drawer Back
(W314-124)
(314 x 124mm) x 3
Left Drawer Side
(W370-124LH)
(370 x 124mm) x 3
Right Drawer
Side (W370-124RH)
(370 x 124mm) x 3
Page 4
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
3
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 16
C
D E
Large locking
nut (F900) x 10
F
G H
Nail (F51) x 34
N
Rail holder
(F1014) x 2
25mm Screw (F50) x 12
J
13mm Screw (F63) x 18
Q
Drawer runner (F1004) x 6
K
9mm Screw (F74) x 6
L
9mm Screw (F73) x 12
M
Shelf stud (F110) x 12
P
Handle (F930) x 6
Small locking
nut (F3) x 6
S
40mm Screw (F910) x 10
R
Hinge (F518) x 3
Hinge plate
(F523) x 3
Knock-in Peg (F171) x 12
AHP1546
AHP1043
U
Hinge (F522) x 6
T
Hinge plate
(F523) x 6
W
Plastic Nail
(F91) x 5
Wedgefix
(F639) x 6
V
O
I
Nail screw
(F277) x 6
Back holder (F276) x 6
X
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
Important:
Keep the
Hinges and
Hinge Plates
in their bags
until they
are used.
They must
not get
mixed up.
Page 5
Assembly Instructions
4
Step 1
x 3
x 3 x 3

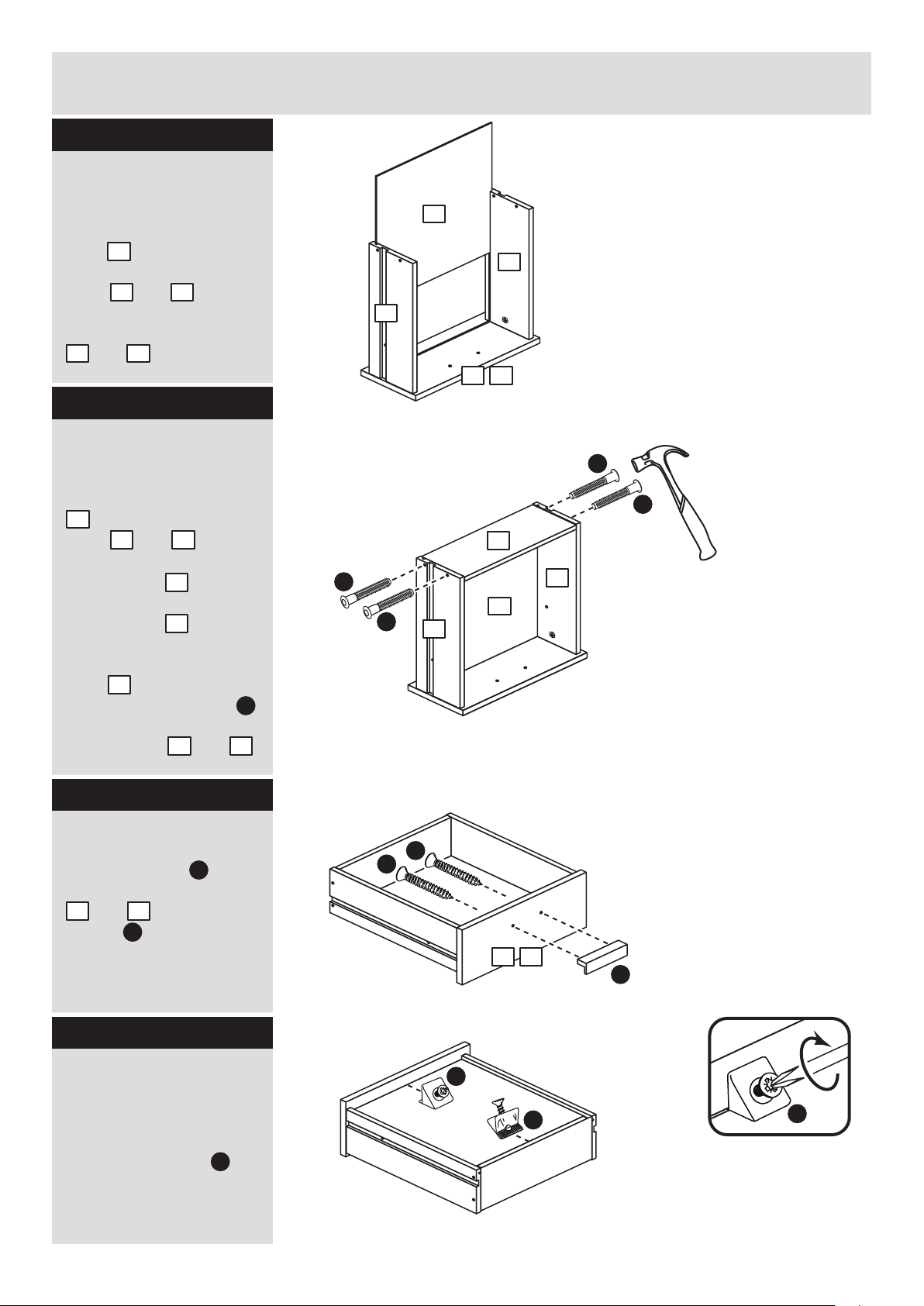

Prepare the drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of each drawer
front .
Note: Tighten the metal
dowels up fully against
the panels.
B
8
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
B
E
11
12
Step 2
B
B
8
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
E
B
B
E
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
E
E
11
12
12
11
8
Small groove
Step 3
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
3 drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
11
12
8
E
E
11
12
x 3
Page 6
Assembly Instructions
5
Step 4

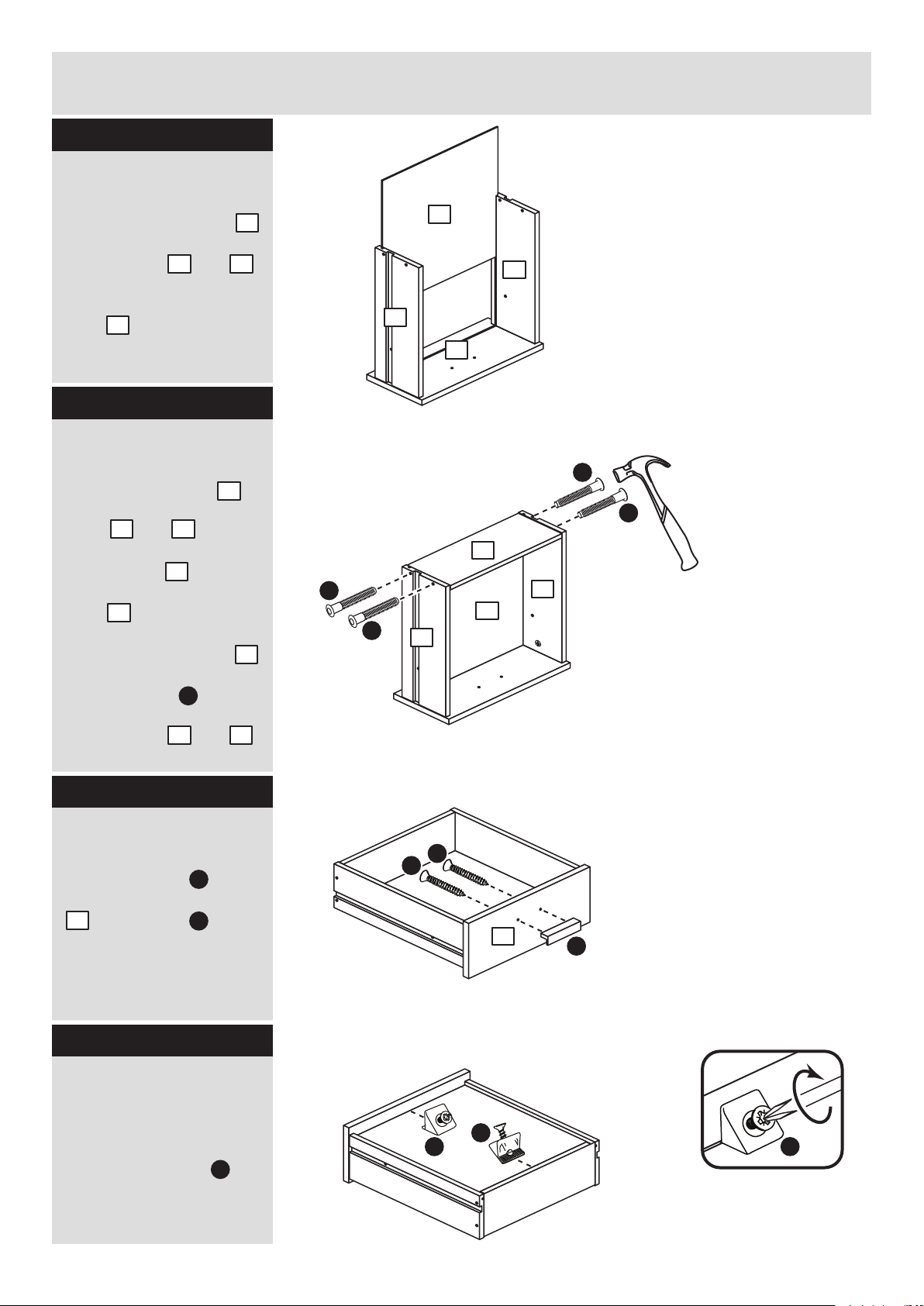

Attach the handle
Attach a handle to
each drawer front
using 2 screws .
P
H
Step 6
8
x 3
H
P
Step 5
8
6
7
8
F
F
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the small
drawer front .
Fit the drawer back
Fit the drawer back .
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
15
11 12
8
14
11 12
15
14
14
F
x 3
x 3
F
F
15
12
11
11 12
14
12
11
15
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
V
V
V
V
x 3
8
H
Page 7
Assembly Instructions
Step 8
3
R
Finished
front edge
L
Q
J
Back edge
L
Q
Prepare the long
divider
a: Place 3 runners on
the long divider . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 3rd hole from the
back to fit the 2nd screw
. .
c: Important: The hinge
plates used in this
step are in the bag
marked as AHP1043.
Fit 3 hinge plates onto
the long divider ,
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the long divider .
Make sure that it is fitted
straight, in line with the
panel edges.
L
Q
3
L
a:
b:
c:
R
R
3
3
N
L
Q
L
Q
L
Q
Finished
front edge
3
LL
L
L
3
Finished
front edge
Finished
front edge
R
R
R
N
3
AHP1043
AHP1546
6
Page 8
Finished
front edge
Finished
front edge
3
Assembly Instructions
7
Step 9
Step 10
Prepare the top and
base
Tap 4 wooden dowels
into the top and base
. as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top
and base as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
D
A
A
A
A
10mm
A
A
4
4
4
4
4
D
Finished
front edge
x 2
D
D
D
G
G
Join the long divider
and fixed shelf
Attach the fixed shelf
to the long divider
using 2 screws .
G
7
3
7
Important: If one of the top/base
panels has a plain chipboard surface
this must be used as the base.
Page 9
G
Assembly Instructions
8
Step 11
Profiled
front edge
Step 12
Prepare the right side
Important: The hinge
plates used in this
step are in the bag
marked as AHP1546.
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
Screw 5 metal dowels
into the right side .
Note: Tighten the metal
dowels up fully against
the panels.
T
T
2
B
2
2
T
T
T
T
B
B
B
B
B
2
Finished
front edge
Finished
front edge
Finished
front edge
G
4
Fit top and base to
the long divider
Attach the top to the
long divider using 2
screws .
Attach the base to
the long divider using
2 screws .
G
G
4
3
4
3
G
4
3
G
Important: If one of the top/base
panels has a plain chipboard surface
this must be used as the base.
AHP1546
AHP1043
Page 10
Finished
front edge
Finished
top edge
Finished
top edge
Finished
front edge
Assembly Instructions
9
Step 13
Step 14
Profiled
front edge
of right side
Fit the right side
Push the right side
onto the top and
base as shown.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the top and base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
D
B
4
2
2
4
4
4 4
D
D
Finished
front edge
L
Q
Back edge
L
Q
L
L
L
Fit runners to short
divider
a: Place 3 runners on
the short divider .
Slide back top of runner
and use 1st hole from
the front to fit 1st screw
. .
b: Slide runner back the
other way and use 3rd
hole from the back to fit
2nd screw .
Q
6
6
6
L
L
a:
b:
L
Q
L
Q
L
Q
4
Page 11
Finished
top edge
Finished
front edge
Assembly Instructions
10
Step 15
Step 16
Profiled
front edge
1
T
T
T
T
Prepare the left side
Important: The hinge
plates used in this
step are in the bag
marked as AHP1546.
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Screw 5 metal dowels
into the left side .
Note: Tighten the metal
dowels up fully against
the panels.
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges.
B
B
B
B
B
B
N
B
B
T
T
1
1
B
1
N
1
Fit the short divider
Attach the short divider
. to the base using
2 screws .
Attach the short divider
. to the fixed shelf
using 2 screws .
G
G
G
G
6
6
6 7
4
G
G
AHP1546
AHP1043
4
7
Page 12
Assembly Instructions
11
Step 17
Step 18
Fit the plinth
Push the plinth onto
the right side .
Use a
screwdriver to
tighten the
large locking
nut fitted to
the plinth .
Step 19
Finished
front edge
Fit the left side
Push the left side
onto the top , base
and plinth .
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top , base and
plinth .
2
4
1
1
4 4
5
4 4
5
D
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Insert 2 large locking
nuts into the plinth
. .
D
A
A
D
5
A
5
5
D
2
5
5
2
D
5
5
Note: Support the plinth
until the left side has been
fitted in the next step.
Plain chipboard
surface
4
Page 13
Assembly Instructions
12
Step 20
Fit the back panels
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the small back
. and large back
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs and are
pushed up tight against
each other and that they
meet in the centre of the
long divider’s back
edge.
Nail
around the
outside
edges
of the 2
backs.
c: Push the 6 nail
screws through the 6
back holders and tap
them down between the
2 backs and and
into the back edge of the
centre divider .
Keep tapping the nail
screws in until the
back holders dig into
the backs.
d: Tap 2 plastic nails
into the bottom edge of
each of the sides and
. and plinth .
Stand the unit up for
the next step.
C
17 18
17
3
18
y
x
y
y
x
17
18
b:
d:
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
3
1
2
5
W
W
W
W
W
IO
+
O
I
O
I
17 18
3
Note: Do not nail where
the 2 backs meet.
Nails should be spaced
out evenly.
W
1
2
5
Warning: The
unit is heavy.
Lift with care.
Note: These can
also be round
c:
O
I
17
18
I
Page 14
Assembly Instructions
Step 21
Fit the hanging rail
and drawers
Push the hanging rail
into the rail holders
fitted to the left side
and long divider .
Starting with the bottom
large drawer, slide both
the runners forward
and locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
wrap and out into the
2nd threaded hole in the
runner.
Note: Do not overtighten the screws .
If they catch on the
runner you may need
to loosen them slightly.
K
1
16
3
11 12
N
Q
K
2nd threaded
hole
Q
K
K
K
16
N
1
3
11
16
13
Page 15
Assembly Instructions
14
Step 22
Step 23
Prepare the centre
door
Important: The 3 hinges
used in this step are in
the bag marked as
AHP1043.
Push fit 3 hinges into
the centre door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
S
9
9
Fit the shelves
For each of the 3
shelves , insert 4 shelf
studs at the required
height.
Lower the 3 shelves
down onto the shelf
studs .
13
13
M
M
Fit the shelves
For each of the 3
shelves , insert 4 shelf
studs at the required
height.
Lower the 3 shelves
down onto the shelf
studs .
23
13
13
13
13
13
M
M
M
M
M
AHP1043
AHP1546
S
J
J
90
S
S
J
J
S
J
J
J
Page 16
Assembly Instructions
15
Step 24
9
Drill the handle holes
in the centre door
Important: Please follow
these instructions
carefully.
Lay the centre door
down onto a smooth
surface.
Check that the hinges
and holes are in the
same place as the
diagram.
Using the pilot holes in
the rear face of the door,
drill through the holes
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
DO NOT drill
these holes
ONLY drill these
2 holes in the
centre door
Small piece of
waste wood
Carefully choose the 2 holes you need to drill
Step 25
Prepare the outer
doors
Important: The 6 hinges
used in this step are in
the bag marked as
AHP1546.
Push fit 3 hinges into
each outer door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
90
U
U
U
J
J
U
J
J
U
J
J
10
10
J
Note: We recommend the use of a small piece
of waste wood, placed behind the hole while
drilling, to reduce the possibility of any breakout.
x 2
9
AHP1546
AHP1043
Page 17
Assembly Instructions
16
Step 26
10
10
H
H
P
P
Fit the outer doors
and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each outer door
using 2 screws .
U
U
U
T
T
T
U
T
P
H
10
10
e:
a: b:
c: d:
T
U
T
T
B
T
U
U
U
A
U
T
B
Page 18
Assembly Instructions
17
Step 27
Fit the centre door
and handle
Note: The easiest way to
attach the centre door
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the centre door using
2 screws .
S
S
S
R
R
R
S
R
P
H
9
9
P
P
H
H
e:
9
a: b:
c: d:
R
S
R
R
B
R
S
S
S
A
S
R
B
Page 19
Assembly Instructions
18
Step 28
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
This shows the hinge and plate that is
fitted to the outer doors.
The ones fitted to the centre door are
adjusted in the same way.
Page 20
Assembly Instructions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
19
ALR2999
Step 29
O
X
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
X
Strap
Washer
Screw
TOP OF UNIT
X
Fit the overbalance
protector kit
To prevent possible
overbalancing this unit
must be secured to a
suitable wall by fitting of
the overbalance
protector kit to the
unit, or an alternative
fixing method of your
choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
X
Warning: The
unit is heavy.
Lift with care.
Page 21
MADE IN
BRITAIN
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 63cm
Depth - 39cm
Height - 75cm
Capella - 3+2 Drawer Chest
Assembly Instructions - Please keep for future reference
Issue 2 - 18/09/15
357/7097
330/7559
448/7306
339/2344
Page 22
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 24kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Tools required
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Page 23
Components - Panels
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the panels listed below
When applicable, remove any
protective film before use
2
Large Drawer Front (D1010A)
(592 x 157mm) x 3
Back (X647-622A)
(647 x 622mm)
12
5
13
15
Large Drawer Base (T575-367)
(575 x 367mm) x 3
8 9
Small Drawer Back (W259 -124)
(259 x 124mm) x 2
Left Drawer Side (W370-124LH)
(370 x 124mm) x 5
Right Drawer Side (W370-124RH)
(370 x 124mm) x 5
1
2
6
Left Side (D1039A)
(744 x 390mm)
Small Left Drawer Front
(DF1852A) (294 x 157mm)
Right Side (D1040A)
(744 x 390mm)
Small Right Drawer Front
(DF1853A) (294 x 157mm)
7
3
Top (DF1848A)
(596 x 369mm)
Rail (D1009A)
(596 x 103mm) x 2
4
14
Small Drawer Base (T270-367)
(270 x 367mm) x 2
11
Large Drawer Back (W564 -124)
(564 x 124mm) x 3
Divider (DF1851A)
(368 x 155mm)
10
Page 24
3
A
Wooden dowel (F22) x 8
B
Metal dowel (F901) x 20
D E
Large locking
nut (F900) x 10
F
G H I
K
Small locking
nut (F3) x 10
C
Nail (F51) x 16
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Drawer runner (F1004) x 10
Handle (F930) x 5
25mm Screw (F50) x 10 9mm Screw (F74) x 10 9mm Screw (F73) x 20
L
Knock-in Peg (F171GY) x 20
Plastic Nail (F91) x 4
M
Wedgefix (F639) x 16
N
Strap
Screw Washer x 2
Overbalance protector kit (F269) x 1
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Page 25
Assembly Instructions
4
Step 1
x 3
Prepare the drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of each large
drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
B
5
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
B
E
8
9
Step 2
B
B
B
B
5
Step 3
x 3
x 3
x 3
B
E
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
large drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
8
9
5
E
E
8
9
E
E
E
8
9
9
8
5
Page 26
Assembly Instructions
5
Step 4
Attach the handle
Attach a handle to
each large drawer front
using 2 screws .
K
G
Step 6
5
x 3
G
G
K
5
5
L
L
Fit the large drawer
base
Slide the large drawer
base down the
grooves in the drawer
sides and and
down into the groove in
the large drawer front .
.
Step 5
Fit the large drawer
back
Fit the large drawer back
. between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
13
8 9
5
11
8 9
13
11
11
L
x 3
x 3
x 3
L
L
8
13
13
9
8
8 9
11
M
Fit the wedgefixes
Turn the large drawer
assemblies over and
slide 4 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
M
M
M
M
M
Step 7
9
Page 27
6
Step 8
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
E
8
9
Step 9
Step 10
E
x 2 x 2
E
E
8
9
x 2
B
B
B
E
Prepare the 2 small
drawer fronts
Screw 2 metal dowels
into the small left drawer
front and the small
right drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
B
6
Attach the drawer
sides to the small
drawer fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
2 small drawer fronts
and .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
8
7
9
6
E
E
8
9
9
B
B
B
B
7
6 7
Note: The small right
drawer front has a shallow
identification mark.
8
6
7
Assembly Instructions
Page 28
Assembly Instructions
Step 11
L
L
Fit the small drawer
base
Slide the small drawer
base down the
grooves in the drawer
sides and and
down into the groove in
the small drawer fronts
. and .
Step 12
Fit the small drawer
back
Fit the small drawer back
. between the drawer
sides and .
Make sure that the small
drawer base fits into
the groove in the small
drawer back .
Hold the small drawer
back in position and
tap the knock-in pegs
through the holes in the
drawer sides and .
Step 13
14
8 9
6 7
12
8 9
14
12
12
L
Attach the handles
Attach a handle to
each small drawer front
. and using 2
screws .
Note: Do not
overtighten the screw.
K
G
6 7
x 2
x 2
x 2
L
L
9
8
6
7
14
14
9
8
8 9
12
H
8
9
x 2
7
Step 14
M
M
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
M
M
G
G
K
Page 29
Profiled
front edge
Profiled
front edge
Profiled
front edge
Assembly Instructions
8
Step 15
Profiled
front edge
I
J
I
J
Back edge
I
J
Prepare the left side
a: Place 4 runners on
the left side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 3rd hole from the
back to fit the 2nd screw
.
c: Screw 4 metal
dowels into the left
side .
a:
b:
c:
1
I
B
1
I
J
I
J
I
J
I
J
1
1
1
I
I
I
I
B
B
B
B
Page 30
Assembly Instructions
9
Step 16
Prepare the right side
a: Place 4 runners on
the right side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 3rd hole from the
back to fit the 2nd screw
. .
c: Screw 4 metal
dowels into the right
side .
Profiled
front edge
I
J
Back edge
I
J
I
J
2
I
B
2
a:
b:
c:
2
2
2
I
J
I
J
I
J
I
J
I
I
I
I
B
B
B
B
Profiled
front edge
Profiled
front edge
Profiled
front edge
Page 31
A
A
Assembly Instructions
10
Prepare the top
Tap 4 wooden dowels
into the top as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Screw 2 metal dowels
into the top .
10mm
A
A
3
3
D
Step 18
B
3
D
D
D
D
A
A
Finished
front edge
3
B
Step 17
B
A
D
D
A
Prepare the rails
Tap 2 wooden dowels
into each of the rails .
Insert 2 large locking
nuts into each of the
rails .
A
4
D
4
4
x 2
Page 32
Assembly Instructions
11
Step 19
Finished
front edge
Finished
front edge
Prepare the divider
a: Place a runner on
the divider as shown.
Slide back the top of
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
Insert 2 large locking
nuts into the divider
. .
Turn the divider over
c: Place a runner on
the divider as shown.
Slide back the top of
runner and use the 1st
hole from the front to fit
the 1st screw .
d: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
10
I
I
E
10
10
J
J
10
I
I
10
J
J
a: b:
c:
d:
I
E
E
Note: Due to the manufacturing process, the 2 holes for
the large locking nut can be on either surface of the divider.
Finished
front edge
I
Finished
front edge
10
10
10 10
Turn the divider over
Finished
front edge
I
J
I
J
Finished
front edge
I
J
I
J
D
B
Join the divider and
top
Push the top onto
the divider as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
3
D
D
10
3
Finished
front edge
Finished
front edge
10
Step 20
10
Page 33
Assembly Instructions
12
Step 21
D
B
Join the right side and
top
Push the top onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 22
3
2
D
D
3
Profiled
front
edge
2
3
Finished
front edge
Note: Support this
rail until the left
side has been fitted
in the next step.
Fit the rails
Push the rails onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
4
2
D
4
2
3
Finished
front edge
4
4
Page 34
Assembly Instructions
13
Step 23
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the top and the rails
.
D
1
3
4
y
y
x
b:
C
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about 150mm
apart.
15
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
15
Step 24
Warning: The
unit is heavy.
Lift with care.
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
F
1
2
Stand the unit up
for the next step.
3
4
4
1
x
F
F
F
F
2
1
15
Page 35
Assembly Instructions
14

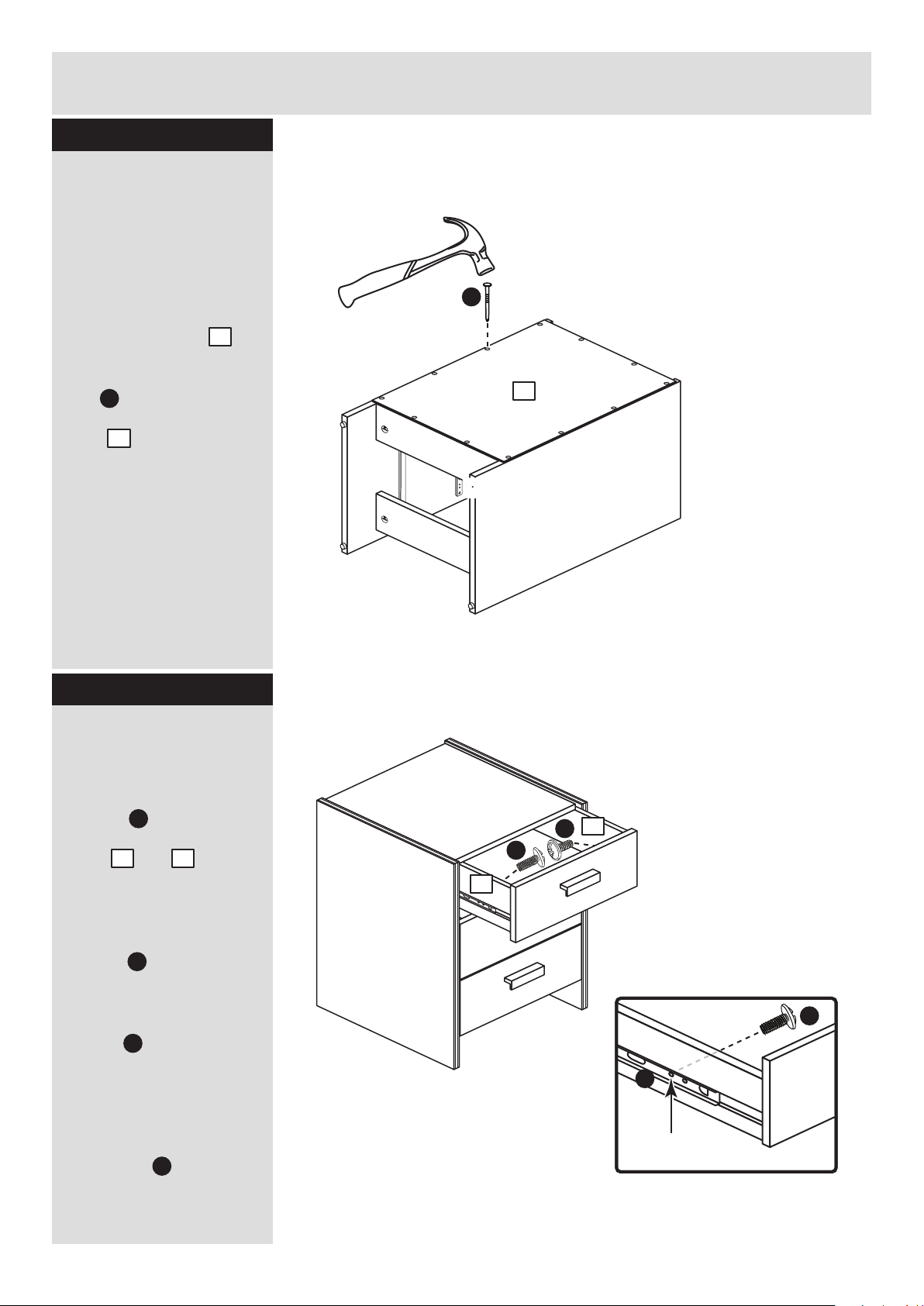

Step 25
Fit the drawers
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
Assembly is complete
H
J
J
H
2nd threaded
hole
J
H
8 9
Warning: The
unit is heavy.
Lift with care.
H
6
H
J
H
8
9
Page 36
Assembly Instructions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
15
Step 25
ALR3120
Fit the overbalance
protector kit
To prevent possible
overbalancing this unit
must be secured to a
suitable wall by fitting of
the overbalance
protector kit to the
unit, or an alternative
fixing method of your
choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
N
N
N
Fit one end of the
strap to the unit
Fit the other
end to the wall
Washer
Washer
Screw
(not supplied)
Wall fixing
(not supplied)
Screw
Strap
Back
of
unit
Page 37
MADE IN
BRITAIN
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 38cm
Depth - 39cm
Height - 58.5cm
Capella - 3 Drawer Bedside
Assembly Instructions - Please keep for future reference
Issue 2 - 18/09/15
395/8056
408/6192
448/1780
424/5263
Page 38
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 13kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Page 39
Components - Panels
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the panels listed below
When applicable, remove any
protective film before use
2
1
4
2 3
8
5
9
10
6 7
Left Drawer Side (W370-124LH)
(370 x 124mm) x 3
Right Drawer Side (W370-124RH)
(370 x 124mm) x 3
Top (D1001A)
(349 x 370mm)
Drawer Front (D1003A)
(345 x 157mm) x 3
Back (X490-375)
(490 x 375mm)
Rail (D1002A)
(349 x 103mm) x 2
Drawer Base (T328-367)
(328 x 367mm) x 3
Drawer Back (W317-124)
(317 x 124mm) x 3
Left Side (D1006A)
(584 x 390mm)
Right Side (D1007A)
(584 x 390mm)
Page 40
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Tools required
3
A
Wooden dowel (F22) x 8
B
Metal dowel (F901) x 14
D E
Large locking
nut (F900) x 8
G H I
K
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Small locking
nut (F3) x 6
C
Nail (F51) x 12
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Drawer runner (F1004) x 6 Handle (F930) x 3
25mm Screw (F50) x 6 9mm Screw (F74) x 6 9mm Screw (F73) x 12
F
Knock-in Peg (F171) x 12
M
Plastic Nail (F91) x 4
L
Wedgefix (F639) x 6
Page 41
5
Assembly Instructions
4
Step 1
x 3
x 3
x 3
x 3
B
B
E
E
E
E
6
7
Step 2
Prepare the 3 drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
B
5
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
E
6
7
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
6
7
5
E
E
6
7
6
7
B
B
5
Page 42
5
Assembly Instructions
5
Step 4
F
F
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
9
6 7
5
8
6 7
9
8
8
F
Attach the handles
Attach a handle to
each of the drawer fronts
. using screw .
Note: Do not
overtighten the screw.
K
G
5
6 7
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
L
x 3
x 3
x 3
F
F
x 3
L
L
L
9
6
8
6
7
9
7
K
G
G
5
Page 43
Profiled
front edge
Profiled
front edge
Profiled
front edge
Assembly Instructions
6
Step 8
Profiled
front edge
I
J
I
J
Prepare the left side
a: Place 3 runners on
the left side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and fit the
2nd screw into the
corresponding hole in
the left side .
c: Screw 4 metal
dowels into the left
side .
a:
b:
c:
1
I
B
1
1
1
1
1
B
B
B
B
I
J
I
I
I
I
J
I
J
Page 44
Assembly Instructions
7
Step 9
Prepare the right side
a: Place 3 runners on
the right side . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and fit the
2nd screw into the
corresponding hole in
the right side .
c: Screw 4 metal
dowels into the right
side .
Profiled
front edge
I
J
I
J
2
I
B
2
2
a:
b:
c:
I
J
I
I
I
I
J
I
J
Profiled
front edge
Profiled
front edge
Profiled
front edge
B
B
B
B
2
2
2
Page 45
A
Finished
front edge
Finished
front edge
A
A
Assembly Instructions
8
Step 10
Prepare the top
Tap 4 wooden dowels
into the top as
shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top
as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
10mm
A
A
3
3
D
Fit the top to the right
side
Push the top onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 11
3
2
D
D
D
D
D
D
A
A
Finished
front edge
3
B
D
3
2
Prepare the 2 rails
Tap 2 wooden dowels
into each of the rails .
Insert 2 large locking
nuts into each of the
rails .
A
4
4
x 2
Step 12
D
D
A
D
4
Page 46
Assembly Instructions
9
Step 13
Fit the 2 rails
Push the rails onto
the right side as
shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
4
2
D
4
Support this rail until
the left side has been
fitted in the next step.
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the top and the rails
.
D
1
3
4
Step 14
4
2
4
4
4
1
3
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
M
1
2
M
M
M
M
Step 15
1
2
Page 47
Assembly Instructions
10
Step 16
Step 17
b:
C
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
10
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
10
yy
yy
xx
10
xx
Fit the drawers
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
H
J
J
H
2nd threaded
hole
J
H
6 7
H
H
6
7
Page 48
Assembly Instructions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
11
ALR3161
Step 18
Assembly is complete
Loading...
