Page 1
Chequer Corner TV Unit
Assembly Instructions
-
Please keep for future reference
399/9015
Dimensions
Width - 100cm
Depth - 40.5cm
Height - 49.5cm
Important
-
-
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Version 1 Date: 21/04/15
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
Glass safety
• Keep these instruction for
future reference.
• Imported by:
Argos Ltd.
489-499 Avebury Boulevard.
Saxon Gate West.
Central Milton Keynes.
MK9 2NW
Warnings
(a) Do not place very hot or very cold items on the glass surface(s) unless adequately thick table mats
are used to prevent such items from coming into contact with the glass.
(b) Do not sit or stand upon the glass surface(s).
(c) Do not use the glass as a chopping surface. Do not strike the glass with hard or pointed items.
(d) When cleaning glass panels use a damp cloth or leather with washing up liquid or soft soap if
necessary, do not use washing powders or any other substance containing abrasives since these
substances scratch glass.
• If the glass is chipped or broken, stop using product and consult
the Manufacturer or Supplier.
• Batch No. & Date of manufacturer: Please refer to the label stick
on product back panel.
• Type of glass used: 5mm toughened glass
1
Page 3
If you have damaged or missing components, call the
Components - Panels
Customer Helpline:
Please check you have all the panels listed below
Pilot holes for
guidance only
Argos = 0345 6400800
Top panel
1
Bottom panel
2
Middle Left panel
3
(43 x 38cm)
(100 x 40cm)
Pilot holes for
guidance only
(96.8 x 39.8cm)
Middle right panel
4
(43 x 38cm)
Large back panel
9
(50.3 x 45.7cm)
Small back panel x 2
10
(23.7 x 43cm)
Left panel
5
(47.6 x 19.5cm)
Finished front edge Finished front edge
Middle shelf panel
7
(47.6 x 37.9cm)
Right panel
6
(47.6 x 19.5.cm)
Shelf panel x 2
8
(23 x 14.5cm)
11
Door x 2
(47.9 x 42.1cm)
2
Page 4
Components - Fittings
Please check you have all the fi ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings
may be supplied than are required.
A B C
30mm Dowel x 12
D
14mm Screw x 6
G
E F
15mm Screw x 4
H
(This screw is included in
the door magnet bag)
Door magnet x 1Foot x 3
J K L
M N O
39mm Locking pin x 1050mm Screw x 8
15mm Locking nut x 10
I
Hinge plug x 4
Small foam pad x 4Foam pad x 2Nail x 14
Door push x 2Bottom hinge x 2Top hinge x 2
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Drill
7mm Suitable drill bit
(for use with wall plug)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown).
3
105
Small
hammer
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions
Step 1
Attaching the middle
shelf panel
a:
Insert Dowels into
the Middle right panel
and Middle left panel .
Use Screws to fix the
Middle right panel and
Middle left panel onto
A
4
3
B
4
3
the Middle shelf panel
7
.
a:
A
B
A
Unfinished back edge
3
7
4
B
B
Unfinished back surface
B
b:
Insert Dowels into
Shelf panel .
c:
Position Shelf panels
8
onto the Middle right
panel and Middle left
panel .
4
3
A
8
b:
c:
Unfinished
back edge
A
A
8
A
A
X 2
Unfinished
back edge
8
3
Unfinished
back surface
4
8
Unfinished
back surface
4
Page 6
Assembly Instructions
Step 2
Attaching bottom panel
Use Screws to fix
Bottom panel onto the
Middle right panel and
Middle left panel .
B
2
4
3
Step 3
Attaching right panel
and left panel
a:
Insert Dowels and
Screw Locking pins into
the Right panel and
Left panel .
Insert Locking pins
Note:
5
as far as shown.
Do not over tighten.
A
C
6
a:
3
4
B
2
B
B
C
A
6
C
A
5
C
C
C
B
b:
Position the Right
panel and Left panel
onto the unit.
Insert 4 Locking nuts
6
5
F
into the unit.
Use a screwdriver to turn
Locking nuts clockwise
F
to lock.
Use Screws to fix Foot
G
onto the unit.
D
b:
F
5
G
D
2
D
G
8
G
6
F
D
F
F
F
G
D
5
Page 7
Assembly Instructions
Step 4
Attaching small back
panels
Unfinished back surface
Slide small back panels
10
into the unit.
10
10
Step 5
Attaching top panel
a:
Use Screws to fix the
Door magnet onto the
Top panel .
Insert Hinge plugs into
the Top panel .
Screw Locking pins(6 pcs)
C
into the Top panel .
Insert Locking pins
Note:
as far as shown.
Do not over tighten.
E
H
1
I
1
1
a:
C
C
C
C
C
C
I
E
1
H
C
I
E
Continued on next page.
I
H
6
Page 8
Assembly Instructions
Step - continued 5
b:
Carefully locate the
Top panel onto the
1
unit.
Insert 6 Locking nuts
F
into the unit.
Use a screwdriver to turn
Locking nuts clockwise
F
to lock.
Insert Hinge plugs into
the Bottom panel .
I
2
b:
F
1
F
F
4
F
F
3
2
5
I
6
I
I
Step 6
Fixing large back panel
Attach large back panel
9
using nails .
Important:
The unit MUST
be ‘square’ when
back is attached.
J
J
Unfinished
back surface
9
7
Page 9
Assembly Instructions

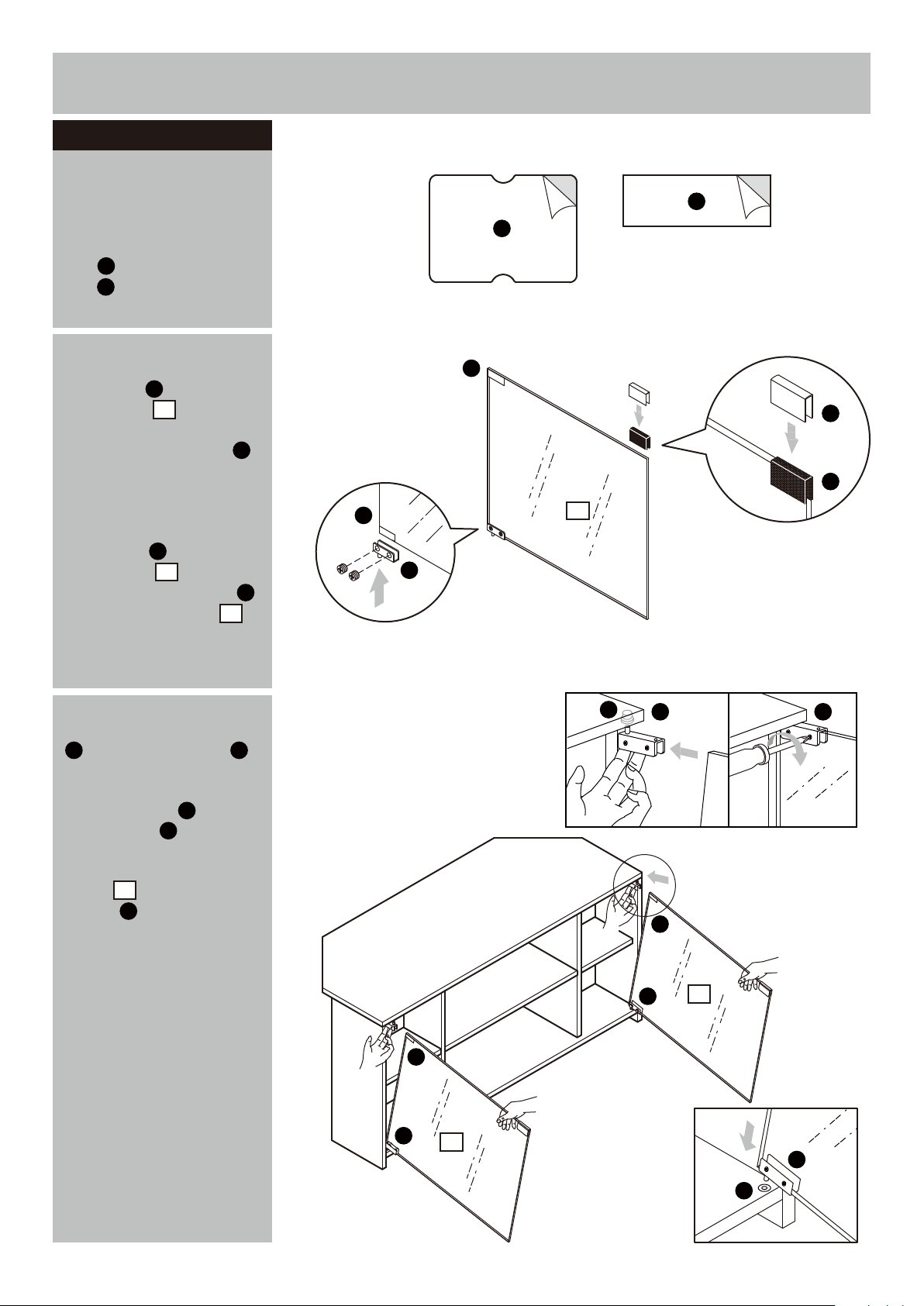

Step 7
Fitting the glass doors
a:
Tear off the protective
backing from the Foam
K
pad and Small foam
L
pad .
b:
Carefully stick the
Foam pad onto the
Glass door so that it
K
11
wraps over Glass door.
Locate the Door push
O
over the top of the Foam
pad and Glass door.
Carefully stick the Small
foam pads onto the
Glass door . Then
slide the Bottom hinge
onto the Glass door ,
L
11
N
11
and tighten the screws to
fix position.
a:
b:
L
K
L
O
K
L
N
11
X 2
c:
Insert the Top hinges
M I
into the Hinge plug .
Carefully locate the
Bottom hinges into the
Hinge plugs .
N
I
Carefully slide the Glass
doors into the Top
hinges , ensuring they
11
M
are parallel with they unit.
Then tighten the screws to
fix in position.
c:
I
M
N
11
M M
M
N
11
N
I
8
Page 10
Assembly Instructions
Step 8
Finishing the unit
Note:
It would be useful
to ask someone to help
you at this stage.
With help, place the unit
in the intended position.
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
9
