Suki TV Unit
Assembly Instructions - Please keep for future reference
609/7426
392/4970
Dimensions
Width - 92cm
Depth - 37cm
Height - 43cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Version 3 Date: 19/03/15
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
power drill is set on a low torque
setting.
Glue safety - Take care when using glue, please follow the advice below
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
• To reduce
the likelihood of
damaging your
product please
ensure that your
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• From time to time check that
there are no loose screws on
this unit.
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
If you have damaged or missing components, call the
Components - Panels
Customer Helpline:
Please check you have all the panels listed below
Argos = 0345 6400800
Finished front surface
Finished front edge
Top panel (91.6 x 36.8cm)
1
Bottom panel (91.6 x 36.8cm)
2
Finished
front edge
Right shelf
7
(17.7 x 14.5cm)
Middle shelf x 2
9
Left shelf
8
(17.7 x 14.5cm)
(49.6 x 36.6cm)
Middle right panel
3
(36.7 x 38.6cm)
Right side panel
5
(14.7 x 38.6cm)
Finished
front edge
Middle left panel
4
(36.7 x 38.6cm)
Left side panel
6
(14.7 x 38.6cm)
Back panel x 2 (19.2 x 38.6cm)
10
2
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
30mm Dowel x 8
D
39mm Locking pin x 6
G
Glue x 1
B
50mm Screw x 18
E
Nail x 6
C
Foot x 4
F
15mm Locking nut x 6
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Drill
7mm Suitable drill bit
(for use with wall plug)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown).
3
105
Small
hammer
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
110 115 120 125 130 135 140 145 150 155 160 165 170
Assembly Instructions
Step 1
Fitting dowels
a:
Insert Dowels into
the Middle right panel
and Middle left panel .
A
3
4
a:
3
A
A
4
b:
Insert Dowels into
the Right shelf and Left
shelf .
8
A
7
A
A
b:
7
A
A
8
A
A
4
Assembly Instructions

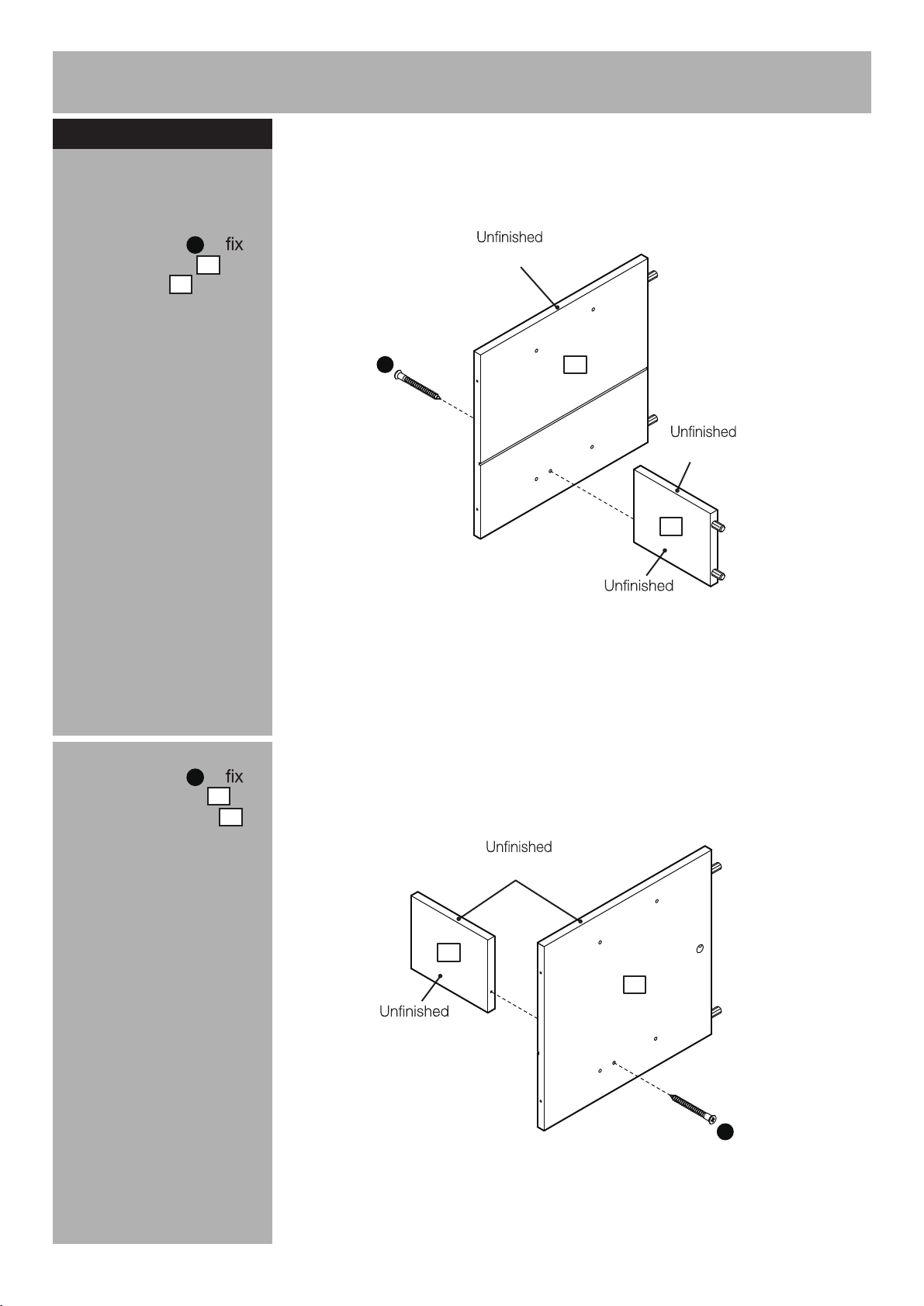

Step 2
Attaching left and
right shelves
a:
Use Screws to
Middle left panel onto
the Left shelf .
B
4
8
a:
back edge
B
4
back edge
8
back surface
b:
Use Screws to
Middle right panel
onto the Right shelf .
B
3
7
b:
back edge
7
3
back surface
B
5
Assembly Instructions
Step 3
Attaching middle
shelves
:
a
Middle shelves onto
the unit.
B
9
a:
back edge
back surface
9
9
4
B
B
B
B
b
Middle right panel onto
the unit.
B
3
b:
B
B
B
B
3
9
9
6
Assembly Instructions
Step 4
Attaching side panels
a:
Position Left side panel
onto the unit.
6
a:
back edge
8
6
b:
Position Right side
panel onto the unit.
5
b:
back edge
5
7
Assembly Instructions
Step 5
Attaching bottom
panel
B
C
onto the unit.
B
back surfaceback surface
5 3
B
B
B
B
C
2
C
B
B
C
C
B
B
4
C
6
Step 6
Inserting back panels
Place a small amount
a:
of Glue into the grooves
of Middle right panel
and Middle left panel .
G
3
4
a:
G
3G3
GG
44
G
Continued on next page.
8
Assembly Instructions
Step 6 - continued
b:
Carefully slide Back
panels into the grooves.
10
b:
back surface
10
back surface
3
10
4
6
Step
Attaching top panel
a:
into the Top panel .
Note:
Insert locking pins
as far as shown.
Do not over tighten.
7
Screw Locking pins
D
1
a:
D
D
D
D
D
1
D
D
Continued on next page.
9

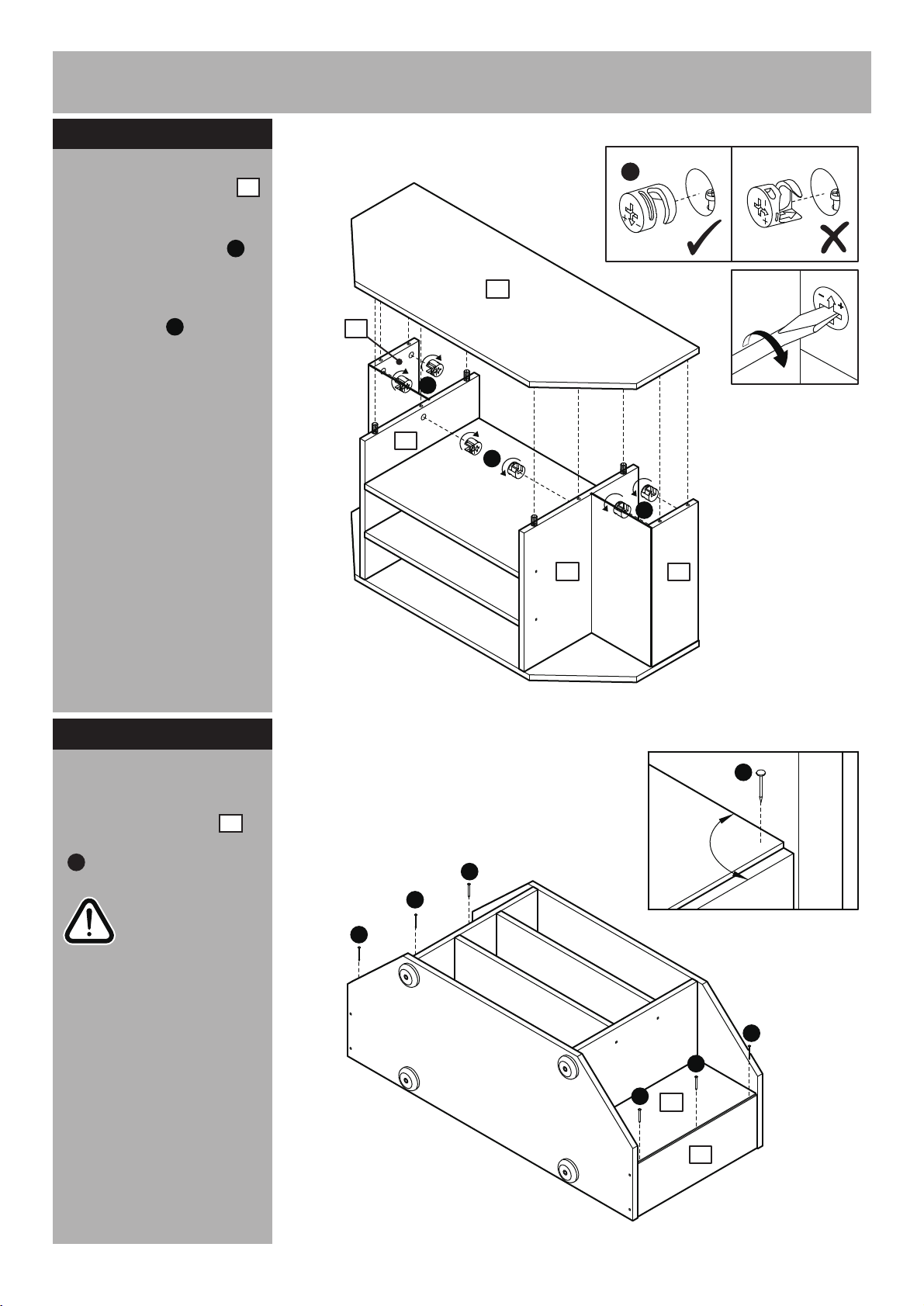

Assembly Instructions
Step
b:
Position Top panel
onto the
7 -
unit.
continued
1
Insert 6 Locking nuts
F
into the unit.
Use a screwdriver to turn
Locking nuts clockwise
F
to lock.
b:
F
1
5
F
3
F
F
4
6
Step
Fixing back panels
Attach Back panels
8
10
onto the unit using Nails
E
.
Important:
The unit MUST
be ‘square’ when
back is attached.
E
90˚
E
E
E
E
E
E
10
6
10
Assembly Instructions
Step 9
Finishing the unit
Note:
It would be useful
to ask someone to help
you at the stage.
With help, place the unit in
the intended position.
Before use allow the
Note:
glue to dry for 24 hours
and make sure the unit is
secure.
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
11
