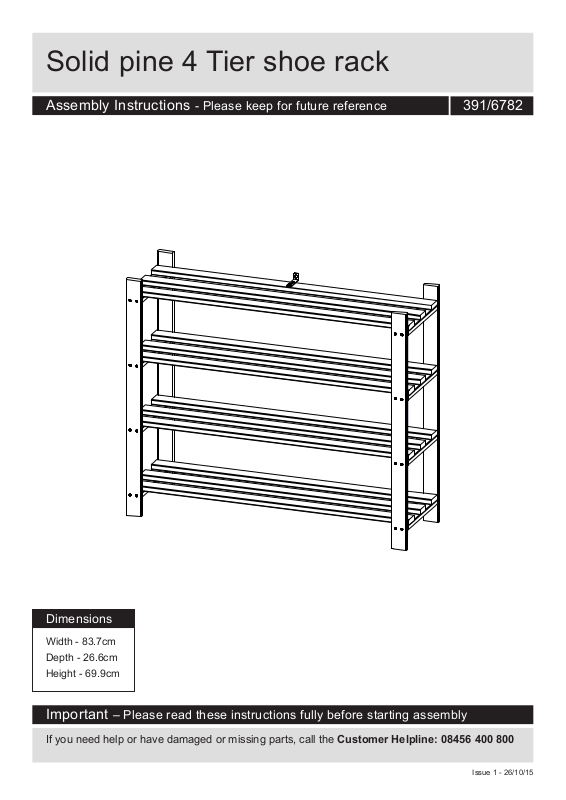

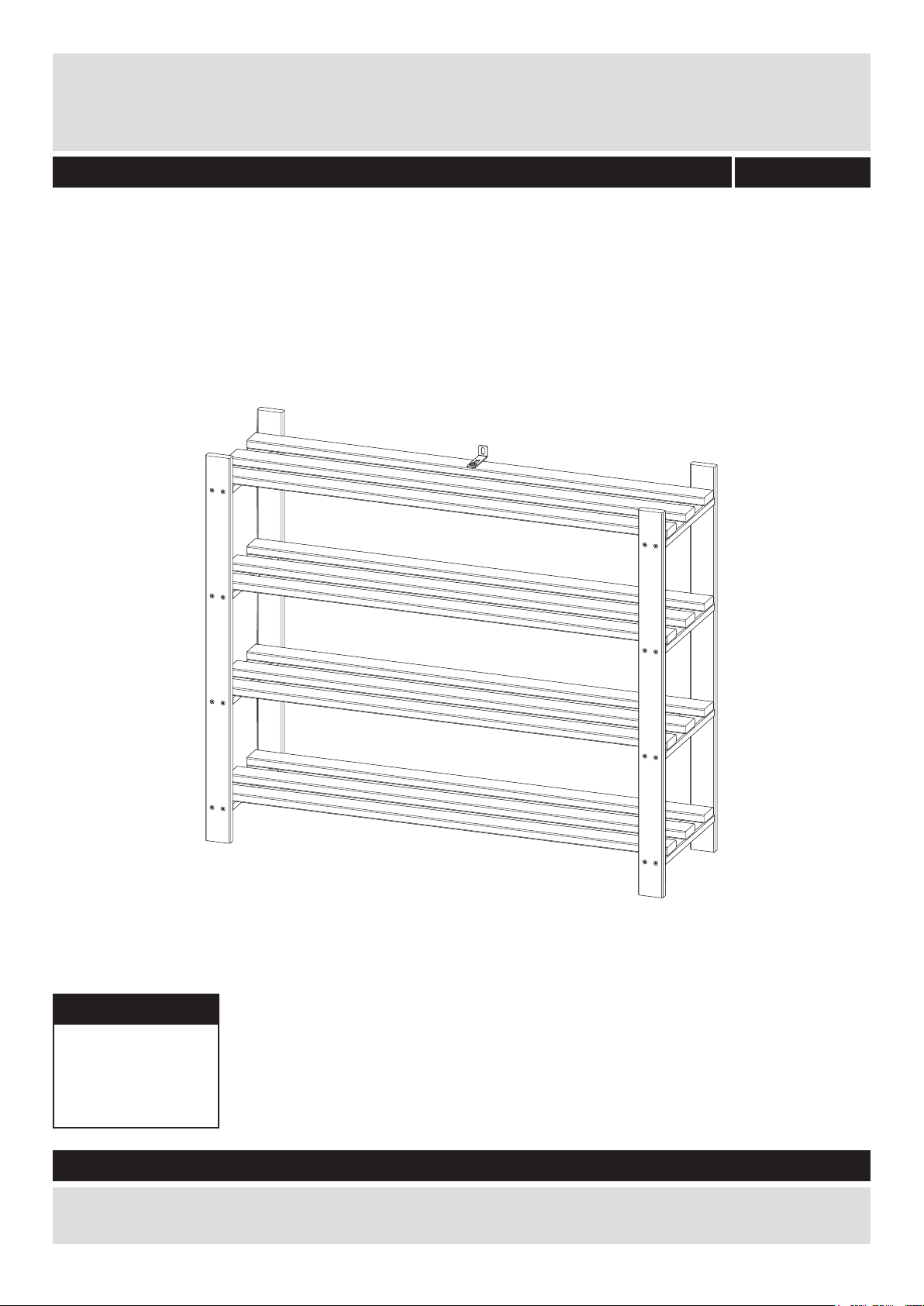

Solid pine 4 Tier shoe rack
Assembly Instructions - Please keep for future reference 391/6782
Dimensions
Width - 83.7cm
Depth - 26.6cm
Height - 69.9cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
Issue 1 - 26/10/15
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
1
Page 3

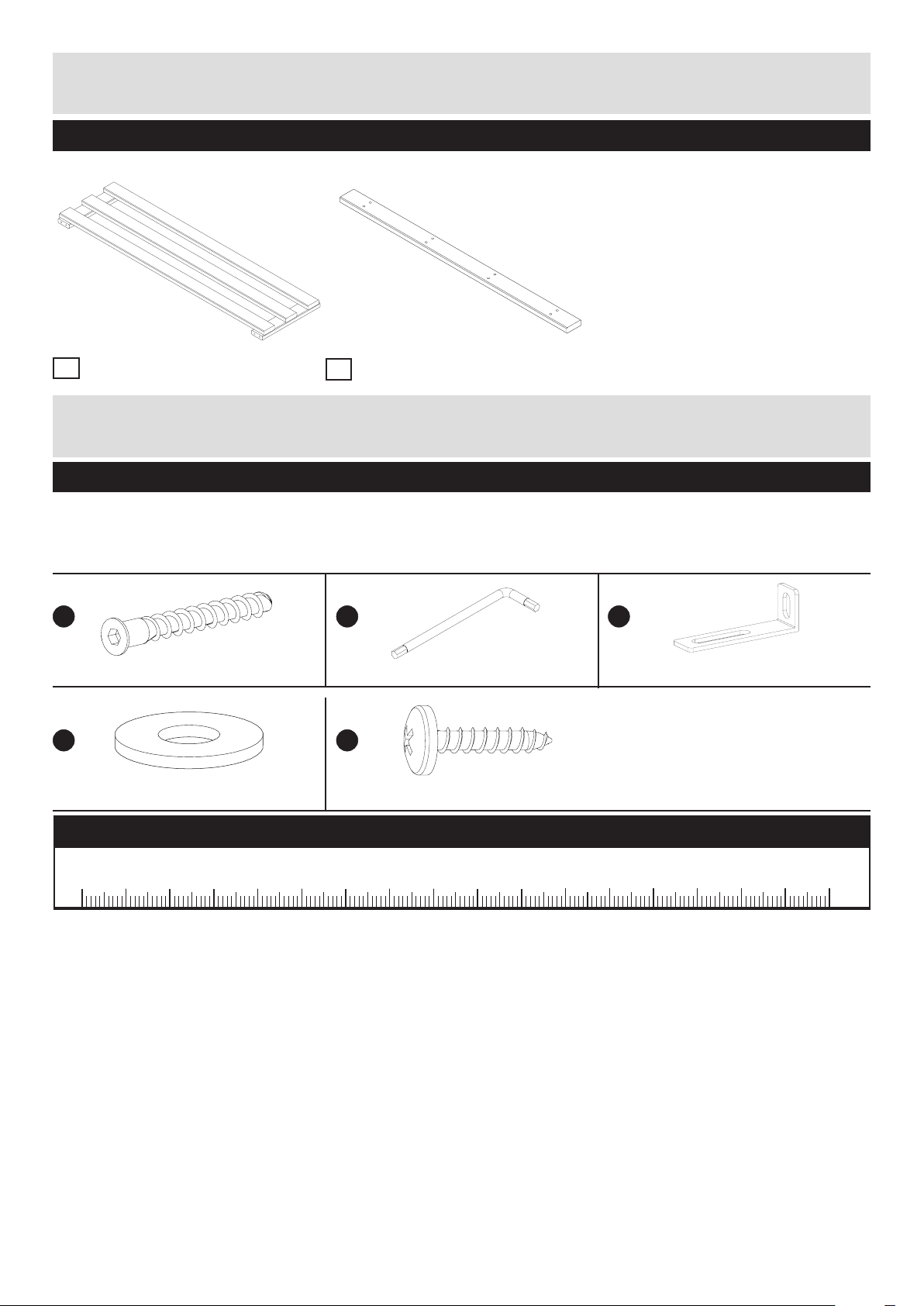

If you have damaged or missing components,
Components - Panels
call the Customer Helpline:
08456 400 800
Please check you have all the panels listed below
Shelf x4 (83.7 x 23.6 cm)
1
Leg x4 (69.9 x 4.5 cm)
2
Components - Fittings
Please check you have all the ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more ttings
may be supplied than are required.
A
Screw x 32
D
Washer x 1
B
Allen key x 1
E
15 mm Screw x 1
Ruler - Use this ruler to help correctly identify the screws
0510 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
C
Angle x 1
105
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4

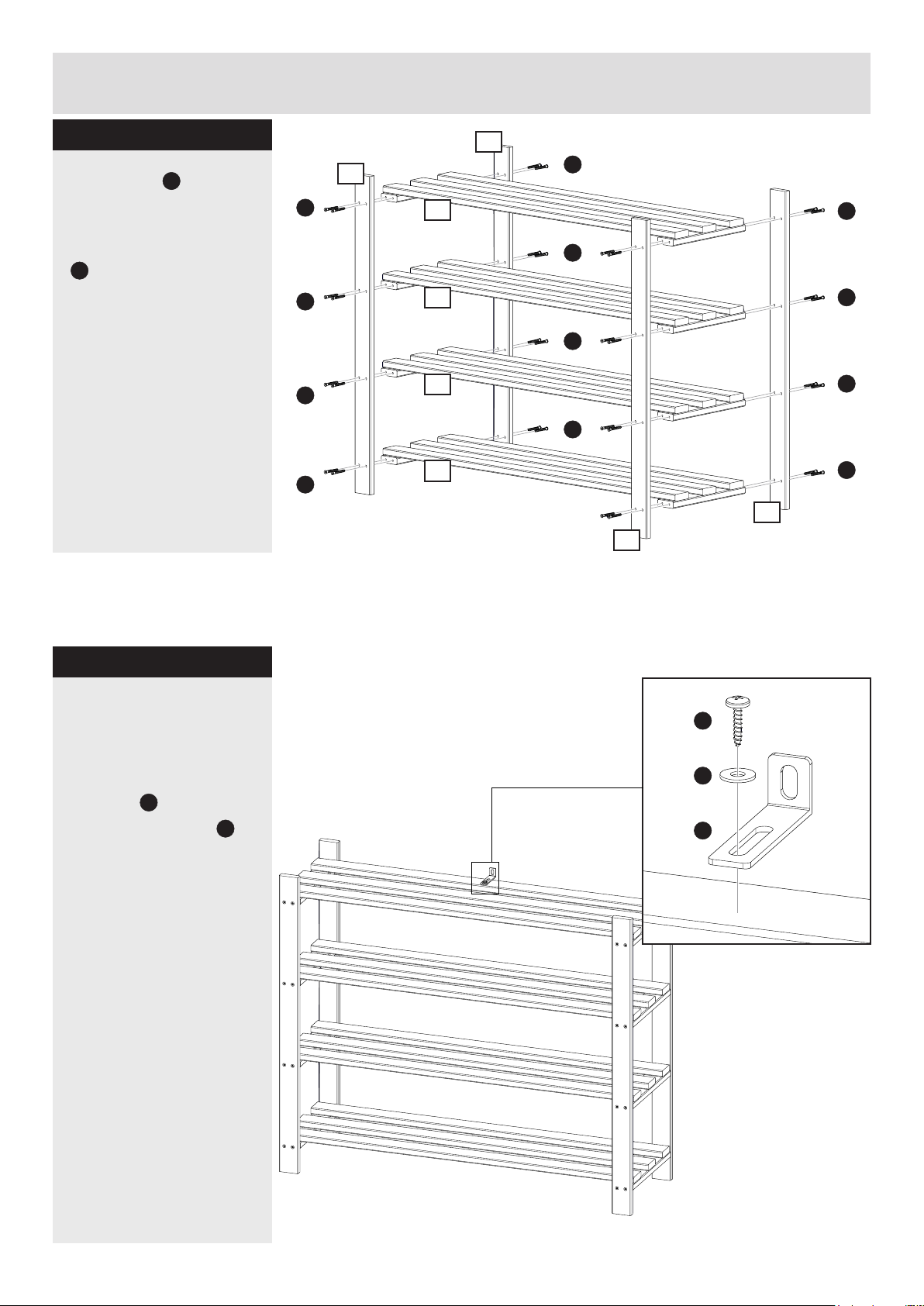

Assembly Instructions
Step 1
Insert screw A into the
screwholes as shown
and tighten using a
B allen key.
2
2
A
A
A
1
1
1
1
A
A
A
A
A
A
A
A
A
2
2
Step 2
Fixing to wall
It is recommended that
the storage is xed to a
wall.
Fix angle С to top
of rack using screw E.
Insert screw into the
screwhole as shown
and tighten using a
screwdriver.
Note:
The correct type of xing
must be used for your
wall, seek professional
advice if in doubt.
E
D
C
3
Page 5

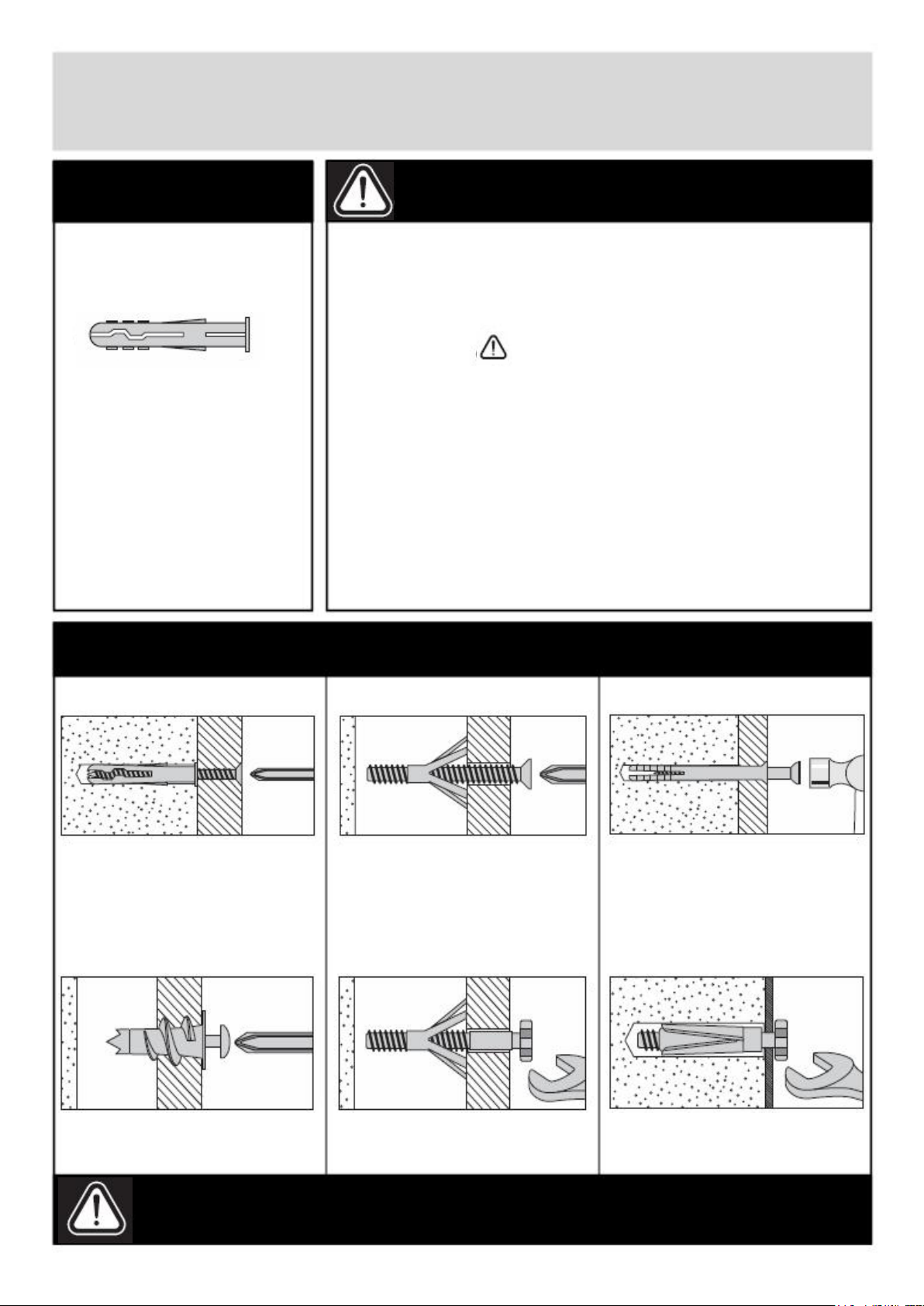

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with
your product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Important:
When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are
suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wal plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are
made of brick, breeze block, concrete, stone or wood.
No.3“Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
2
Page 6
Dear Customer
Please note that the product you have purchased is a natural living timber.
Just like nature itself, wood varies in shape and colour. Knots, vein patterns,
resin pockets and colour differences contribute to giving the piece of furniture
its beauty and form - a natural part of solid wood.
Although the tree has been cut down and dried, it is still alive and therefore will
react to high and low temperatures, light, humidity, drought and time.
In cold and dry periods, the wood contracts which may lead to small cracks in
the piece of furniture. The reverse happens in warm and humid periods where
the wood expands and this may result in slight unevenness.
The colour of the wood also changes with time, particularly if the furniture is
placed in a light place. Thisis a natural process and part of owning a piece of
furniture made of solid wood.
Any exing that has occurred during transport will re-correct itself once this
product is correctly assembled.
Tighten all joints of the furniture after six months.
Please keep these instructions in a safe place for future use.
