Page 1

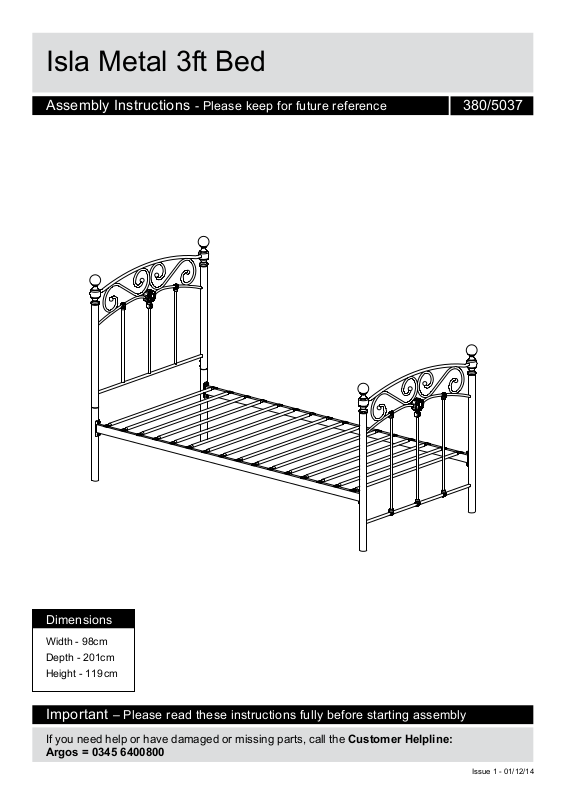

Isla Metal 3ft Bed
Assembly Instructions - Please keep for future reference 380/5037
Dimensions
Width - 98cm
Depth - 201cm
Height - 119cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Issue 1 - 01/12/14
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
1
Page 3
If you have damaged or missing components, call the
Components - Panels
Customer Helpline: Argos = 0345 6400800
Please check you have all the panels listed below
1
Headboard
(95.7 x 72.6cm)
Side rail x 2
4
(192.2 x 9cm)
Finial x 4
6
(dia6 x 18cm)
Footboard
2
(95.7 x 93cm)
7
Finial base x 4
(dia5.9 x 8.4cm)
3
Slat x 16
5
(92.2 x 3.2cm)
Headboard post x 2
(dia3.8 x 47.5cm)
2
Page 4

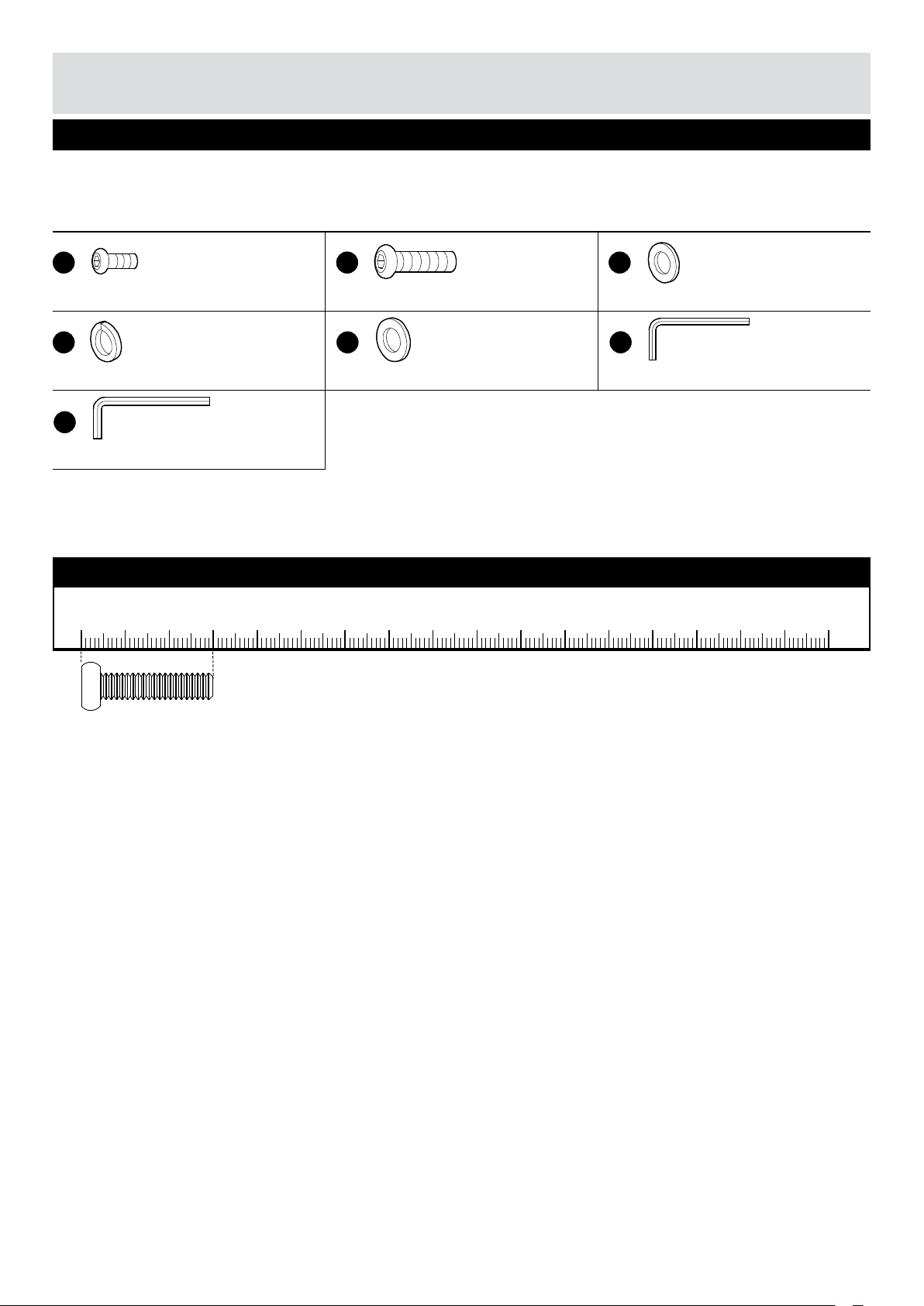

Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
D
Spring washer x 8 Plastic washer x 8
G
Large hex key x 1
B C
E
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The bolts length is measured from the head to the point (30mm bolt shown).
105
Plain washer x 830mm Bolt x 816mm Bolt x 4
F
Small hex key x 1
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Page 5
Assembly Instructions

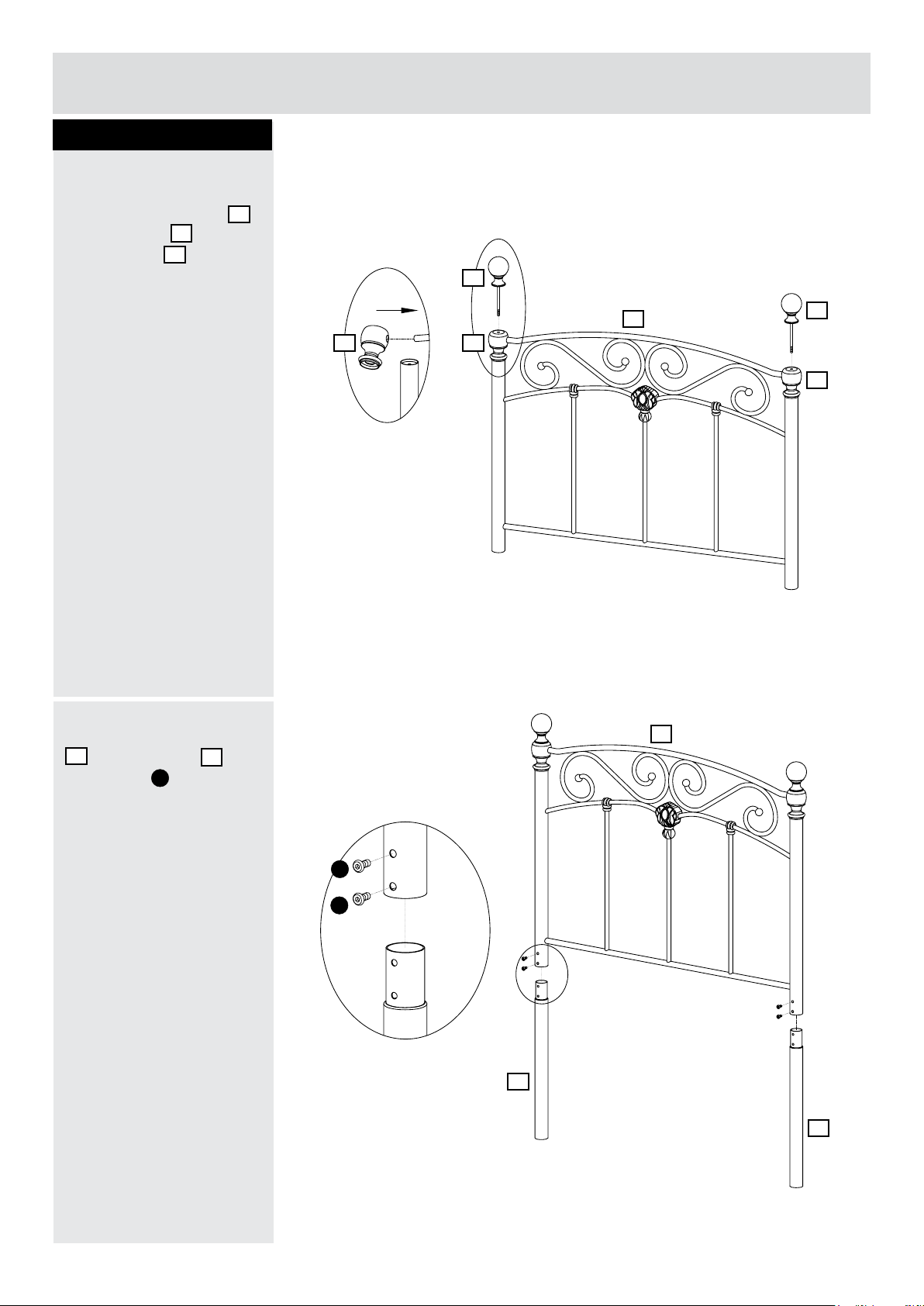

Step 1
Assemble headboard
a: Insert finial bases
to headboard , then
screw finials into the
headboard
1
6
7
a:
6
1
7
7
6
7
b: Fix headboard post
3
to headboard
using bolts .
A
1
b:
A
A
3
1
3
4
Page 6
Assembly Instructions

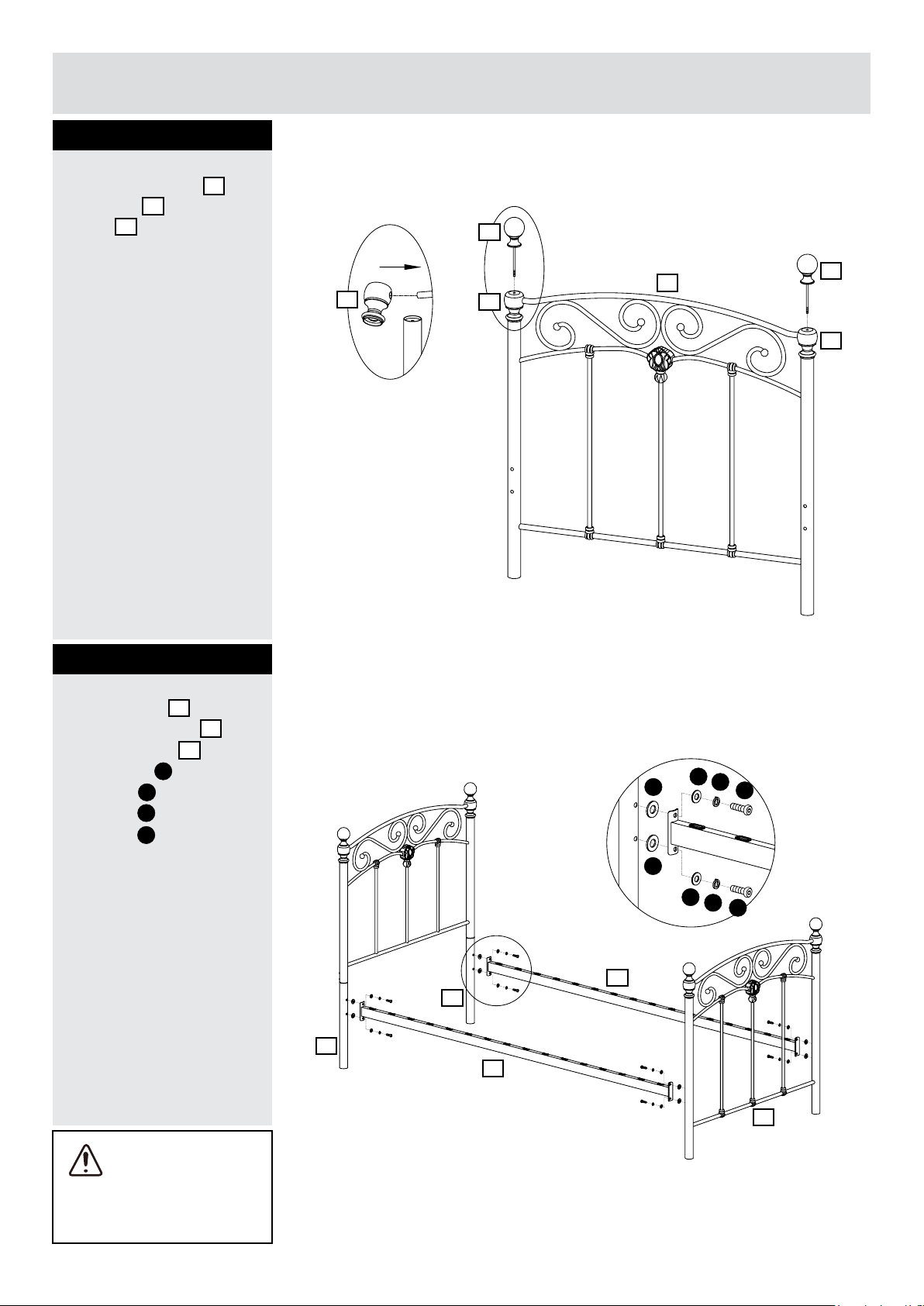

Step 2
Insert finial bases to
footboard , then screw
finials into footboard.
2
6
7
6
2
7
7
6
7
Step 3
Fix side rails to
headboard posts
and footboard
using bolts , spring
washers ， plain
washers and plastic
washers .
4
3
2
B
D
C
E
C
E
E
4
3
3
4
D
B
C
D
B
Important note:
Do not fully tighten
bolts at this stage.
5
2
Page 7
Assembly Instructions

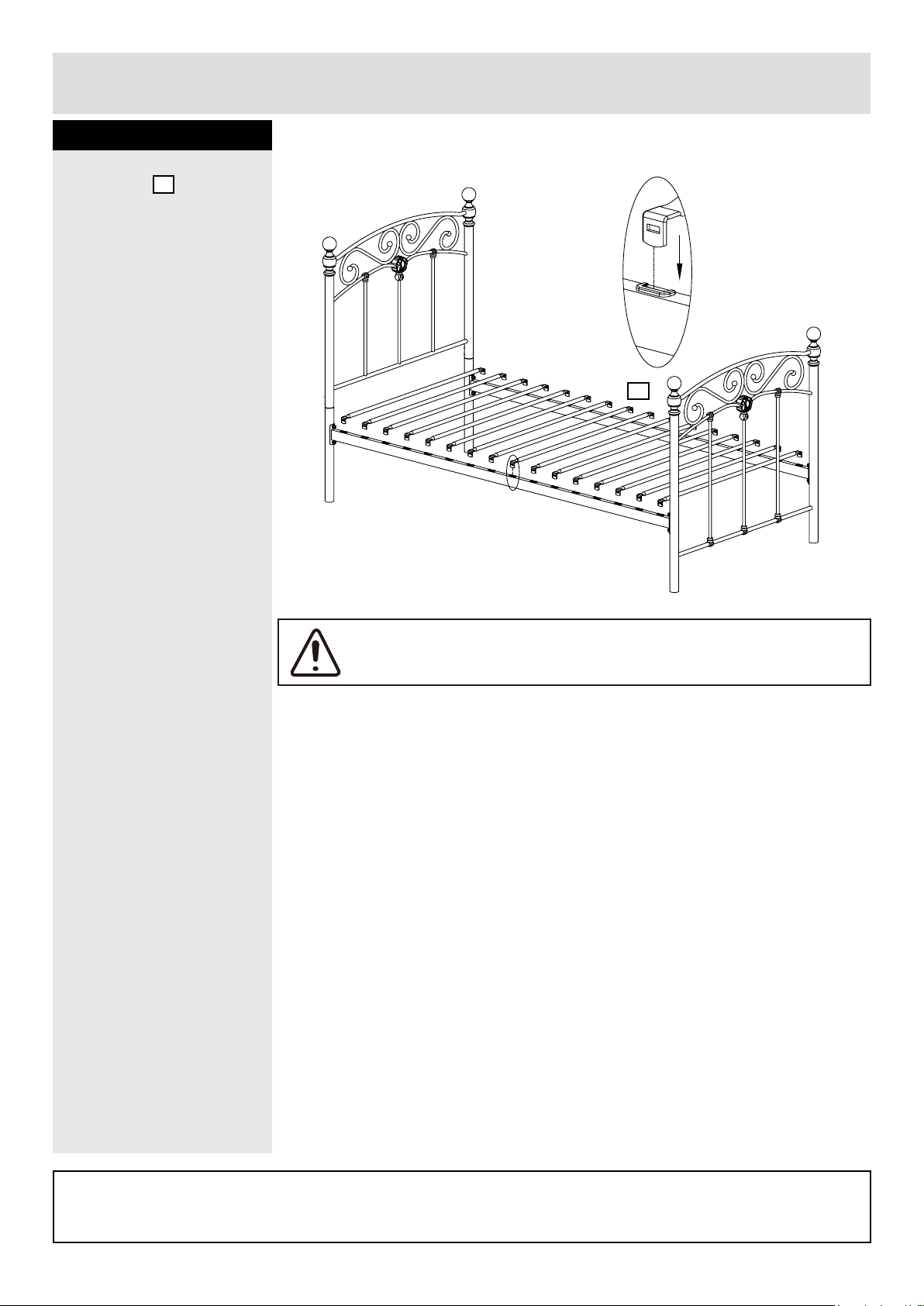

Step 4
Insert slats to the
side rails.
Assembly is complete.
5
5
can now fully tighten all bolts fixed on previous steps.
Important note: After all the parts are positioned, you
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
