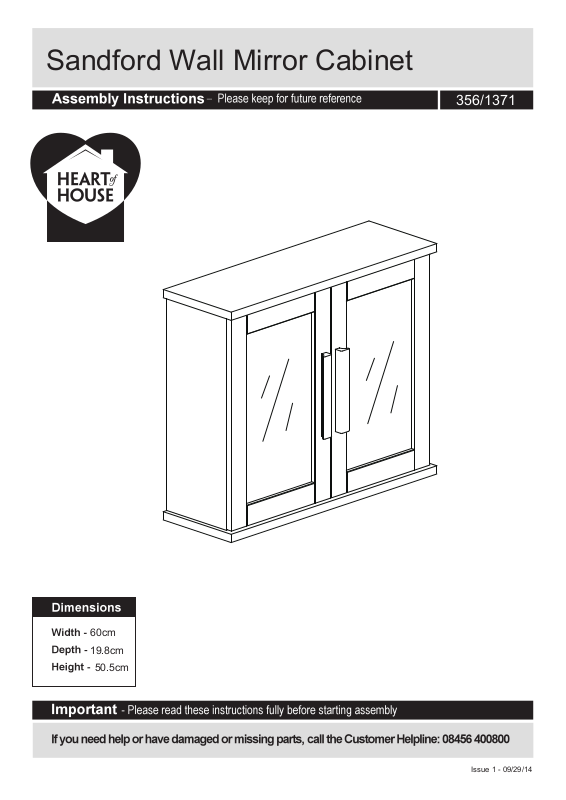

Page 1
Sandford Wall Mirror Cabinet
356/1371
60cm
19.8cm
50.5cm
Issue 1 - 09/29/14
Page 2

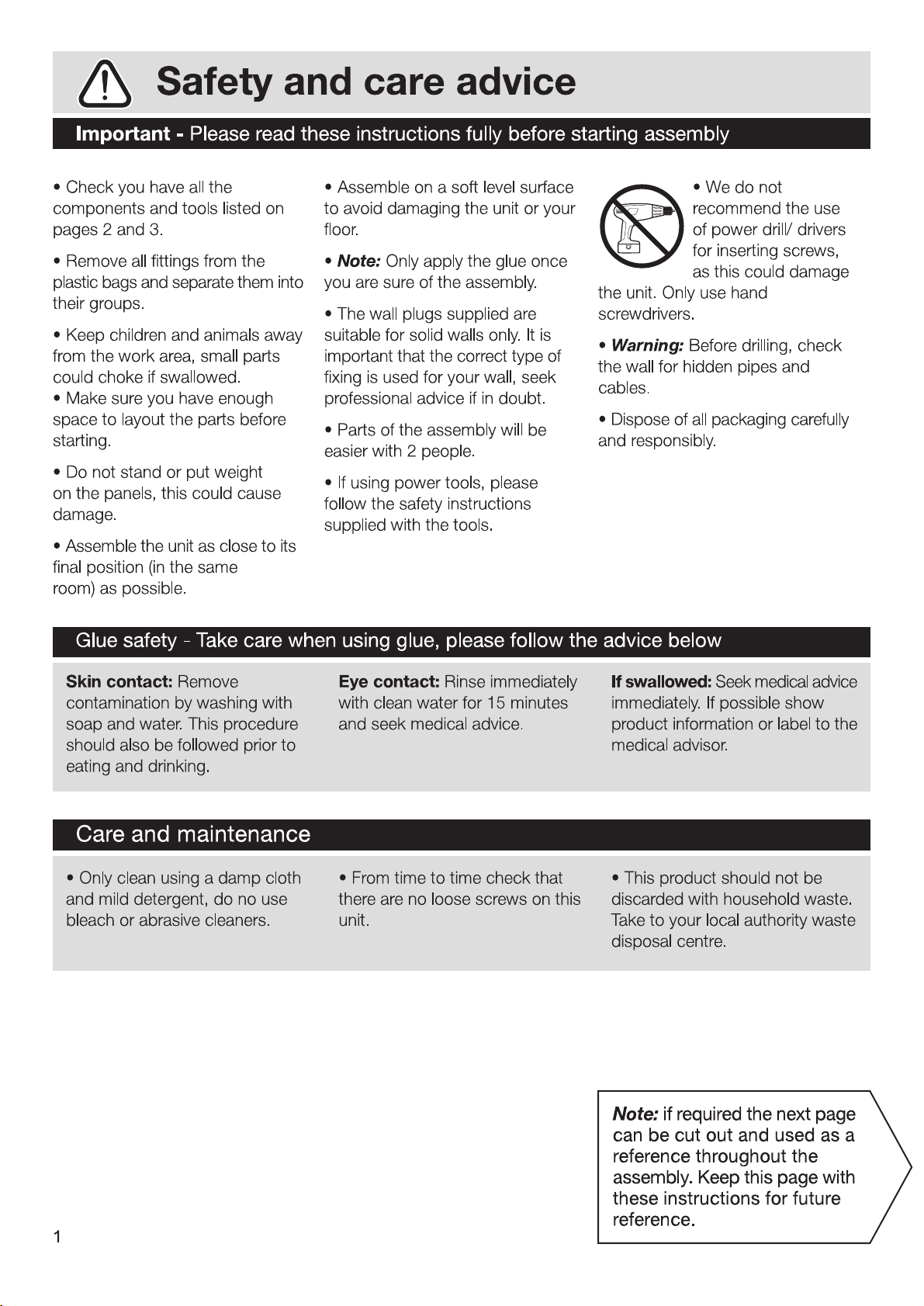

Page 3

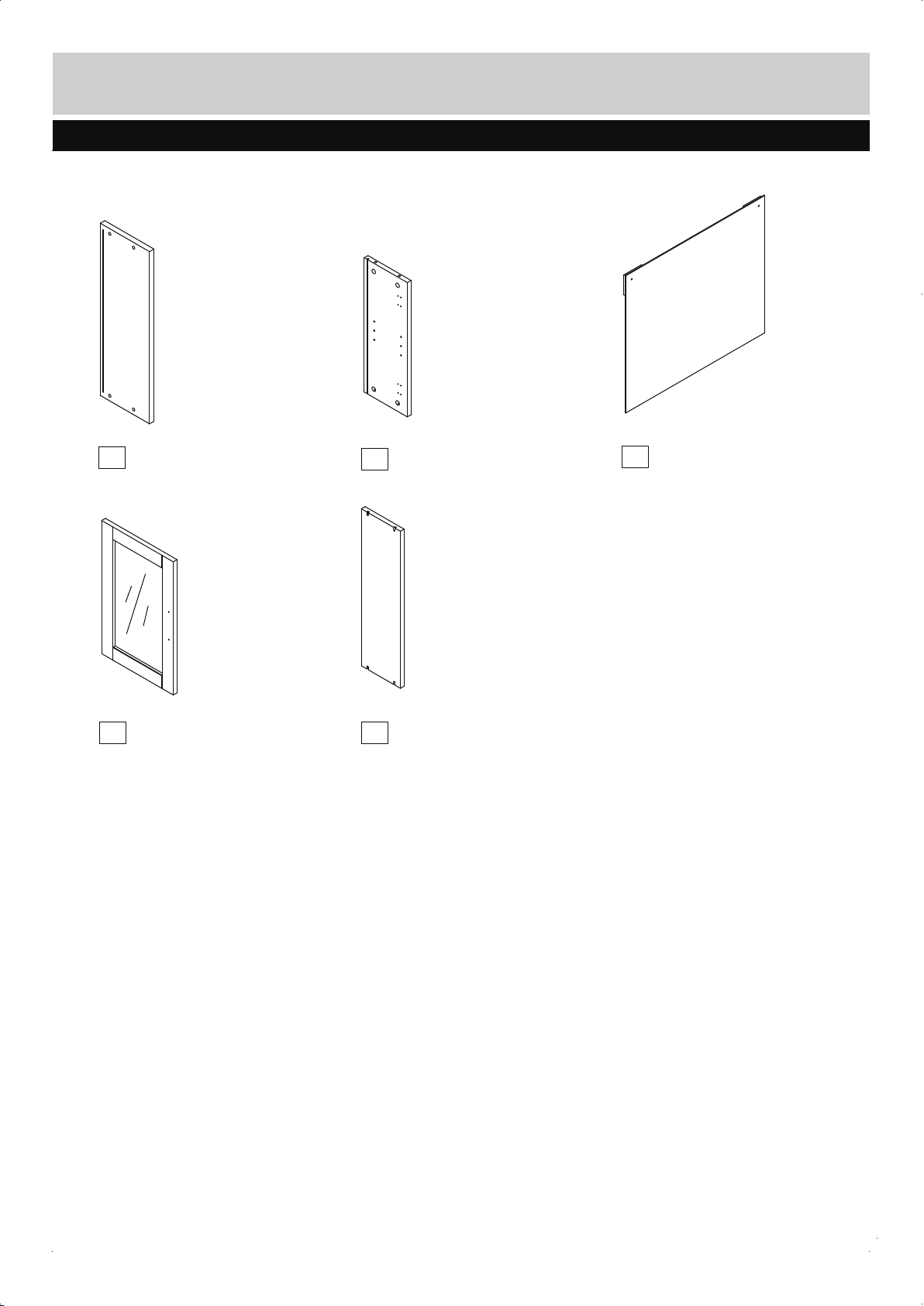

Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components,
call the Customer Helpline:08456 400800
1
Top & bottom panel x 2
4
Door panel x 2
Left & right side panel x 2
2
5
Adjustable shelf
3
Back panel
2
Page 4

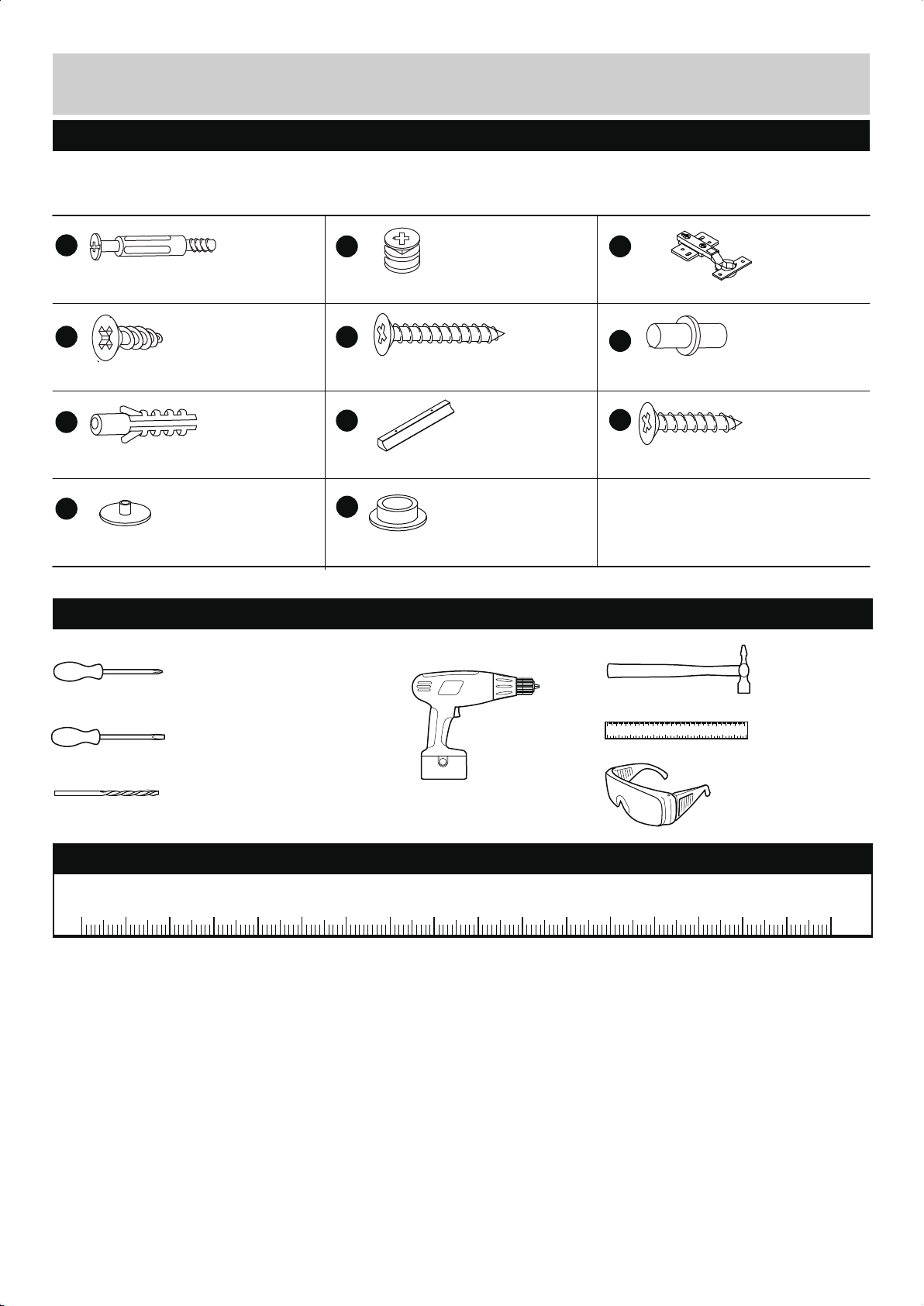

Components - Fittings
Please check you have all the fittings listed below
Note:The quantities below are the correct amount to complete the assembly .In some cases more
fittings may be supplied than are required.
A
Locking Pin x 8
D
Φ4 x 12mm Screw x 24
G
Wall plug(for solid
walls only) x 2
J
B C
Locking Nut x 8
E
Φ4 x 45mm Screw x 2
H
Wooden handle x 2
K
Cam cap x 8 Screw cap x 4
Tools
required
Phillips screwdriver
(medium & large)
Straight hinge x 4
F
Metal Support x 4
I
Φ4 x 25mm Screw x 4
Small
hammer
Flatblade screwdriver
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
(medium)
6mm Suitable drill bit
(for use with wall plug)
Hammer Drill
(Only for dril hole on the wall)
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
3
Page 5

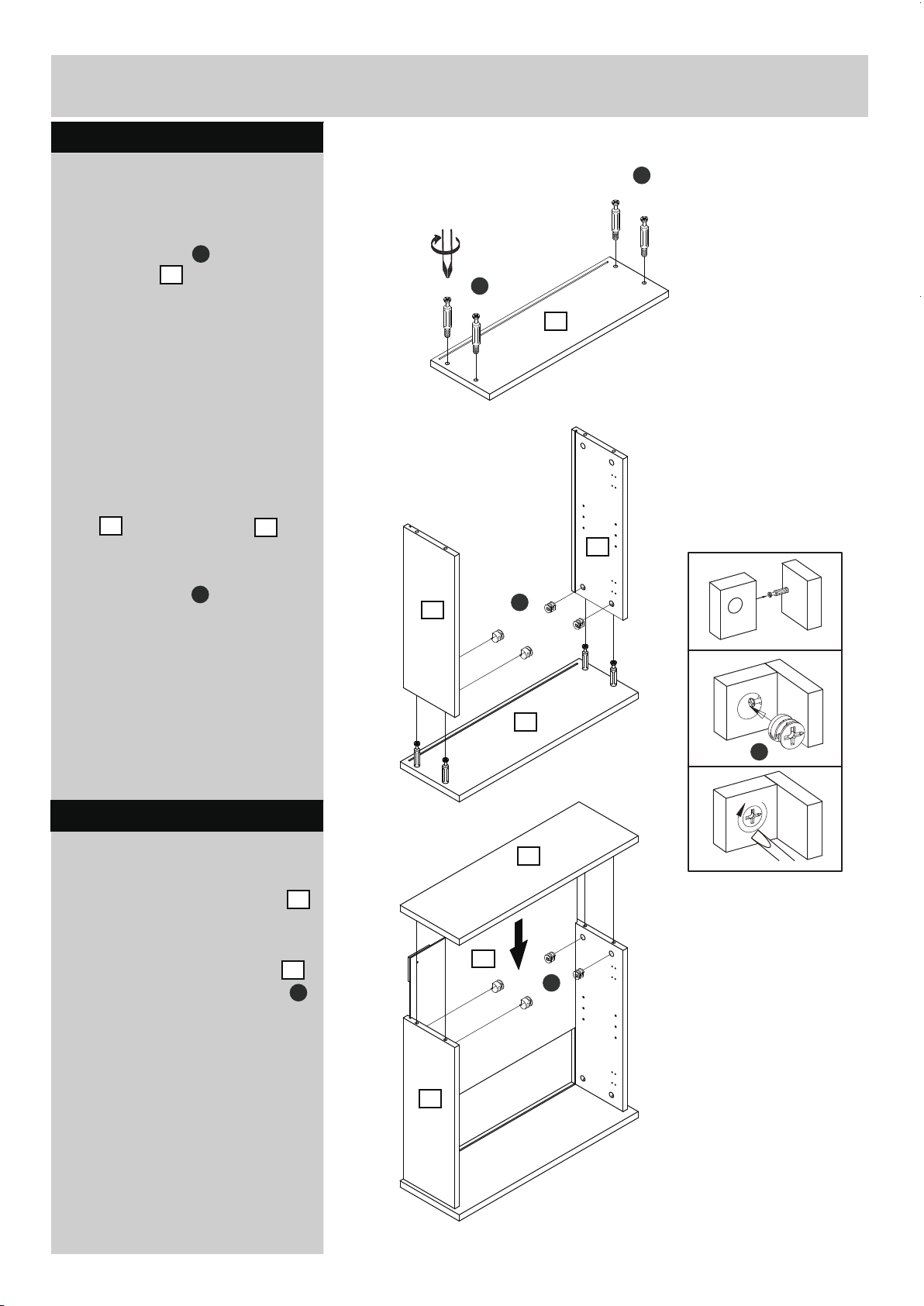

Assembly Instructions
Step 1
Assembling side and bottom
panel
a:
Screw locking pin into top and
bottom panel .
b:
Attach left side panel and right side
panel to bottom panle .
2
A
1
1
a:
A
A
1
b:
2
Insert locking nut into left side
B
panel and right side panel.
Tighten the locking nut to secure
the unit.
Step 2
Assembling back and top panel
Carefully slide the back panel
into side and bottom panels of the
groove.
Carefully place the top panel
onto the unit.Insert locking nut
into left side panel and right side
panel.
2
3
1
B
B
1
B
1
3
B
Tighten the locking nut to secure
the unit.
4
2
Page 6

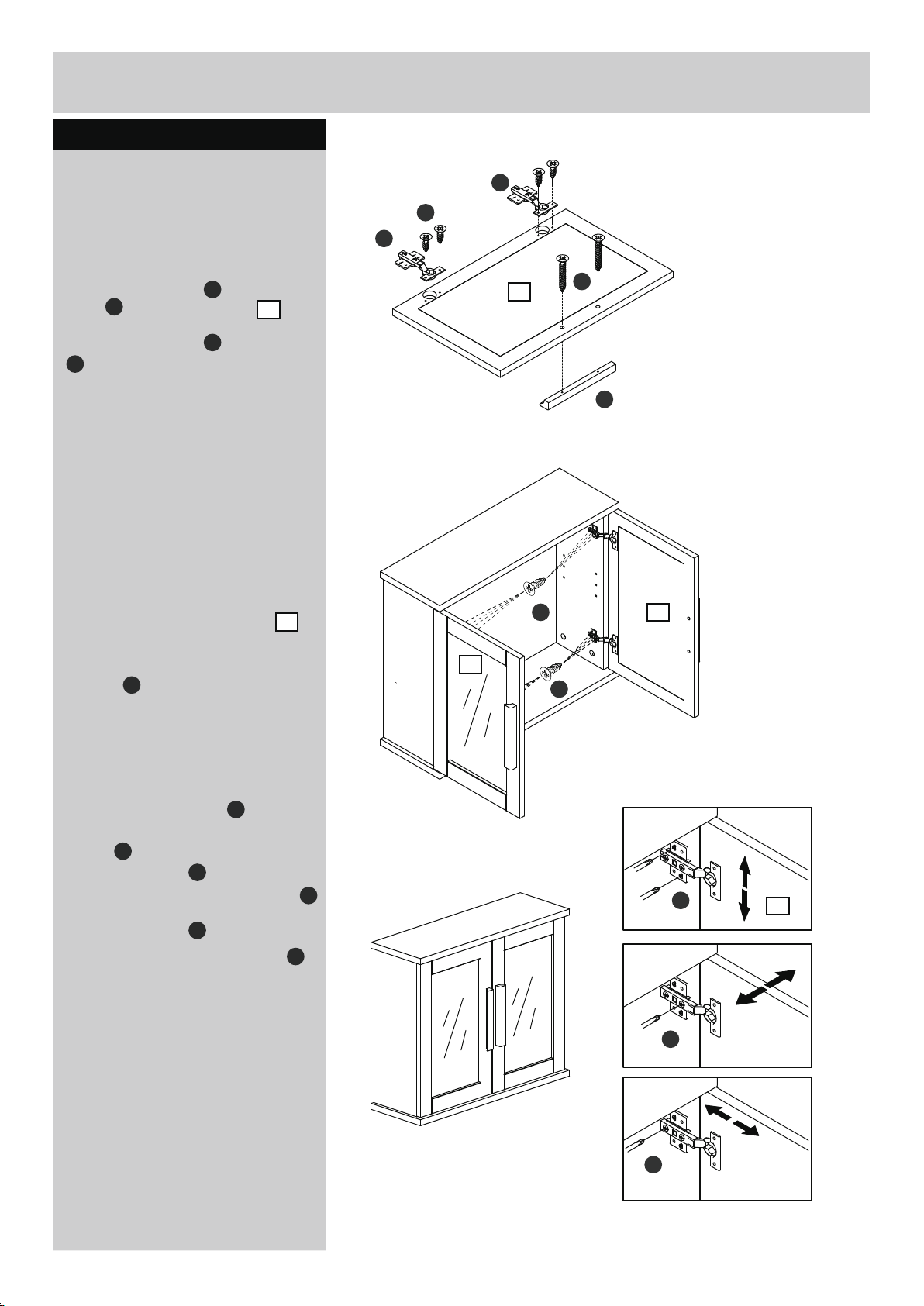

Assembly Instructions
Step 3
Assembling door panel
NOTE:It would be useful to ask
someone to help you at this stage.
a:
Use 12mm screws to fix straight
hinge onto door panels .
C
Use 25mm screws to fix handles
H
onto doors .
D
4
I
b:
Carefully attach door panels
4
to the unit by fixing straight hinge
onto the side panels with 12mm
screws .
D
a:
b:
C
D
C
4
4
I
H
D
D
4
Adjust the door up or down, left or
right, in or out if needed as shown:
1. Loosen two screws and adjust
D
the door up or down, then fix
screws again.
2. Loosen screw and adjust the
door left or right, then fix screw
D
C1
C1
again.
3. Loosen screw and adjust the
door in or out, then fix screw
C2
C2
again.
1
D
2
C1
3
C2
4
5
Page 7

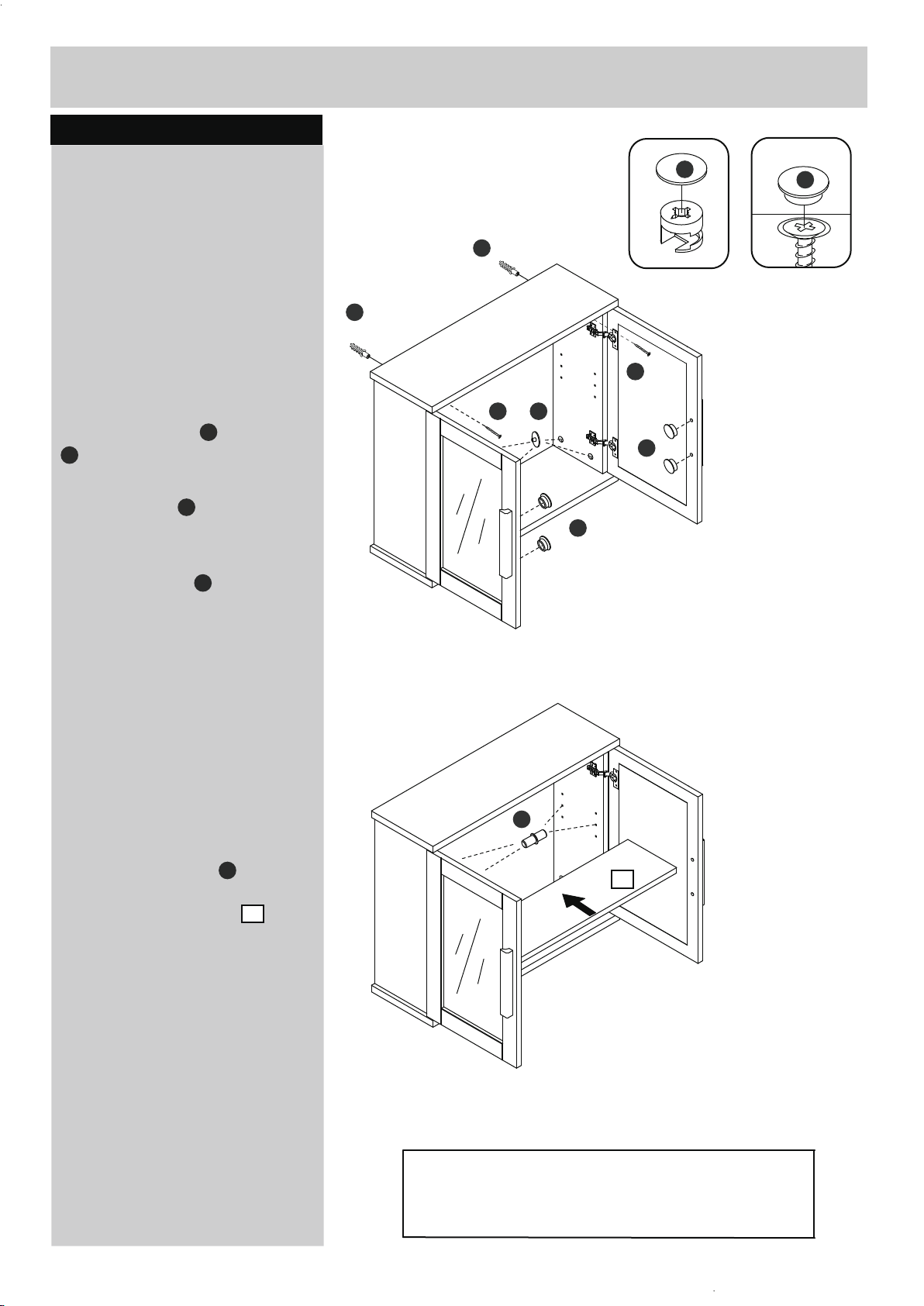

Assembly Instructions
A
Step 8
Step 4
Fixing to the wall
NOTE:It would be useful to ask
someone to help you at this stage.
Warning!
Please make sure the unit is
secured to the wall before use.
Please refer to next page the Guide
for Wall Mounting & Fixings.
a:
Use 45mm screws and wall plug
to fix the unit on the wall.
G
Use cam caps to cover the
visible cams
Use screw caps to cover
the visible screws
E
J
K
J
K
a:
G
G
E
E
J
K
K
b:
Insert metal support into left &
right side panels.Carefully put the
adjustable shelf panel on it.
After above assembly, please
double check and make sure all
screws are firmly fixed before use.
F
5
b:
F
5
NOTE:If you have damaged or missing components,
call the Customer Helpline:08456 400800
Argos LTD,489-499 Avebury Boulevard,
Central Milton Keynes, MK9 2NW
6
Page 8

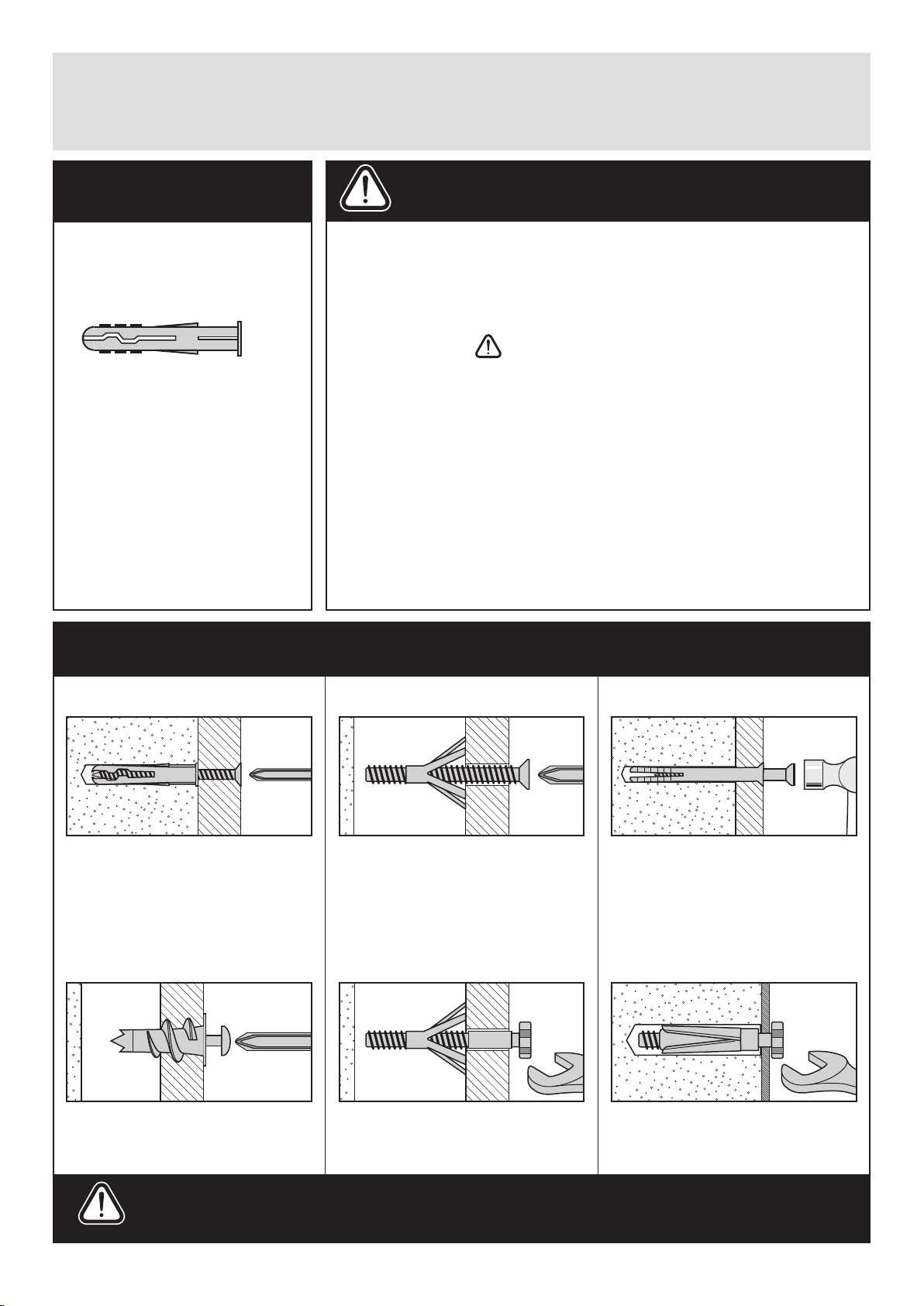

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
