Page 1

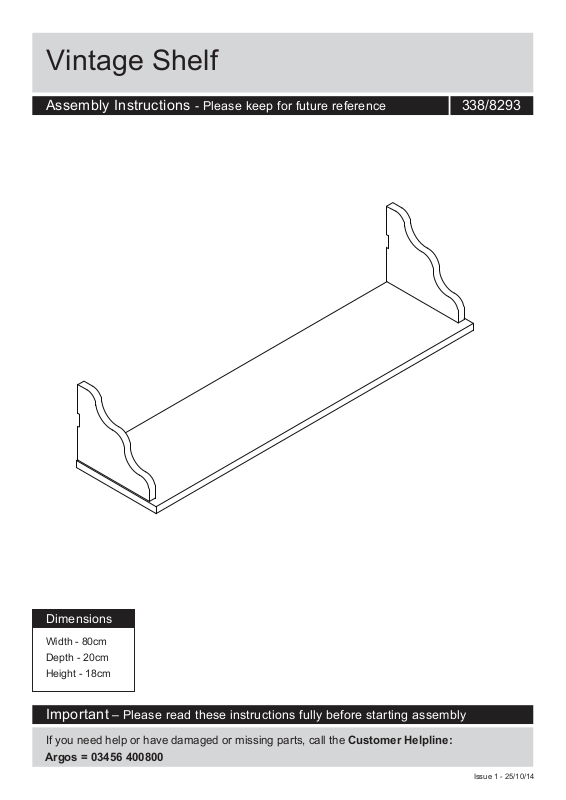

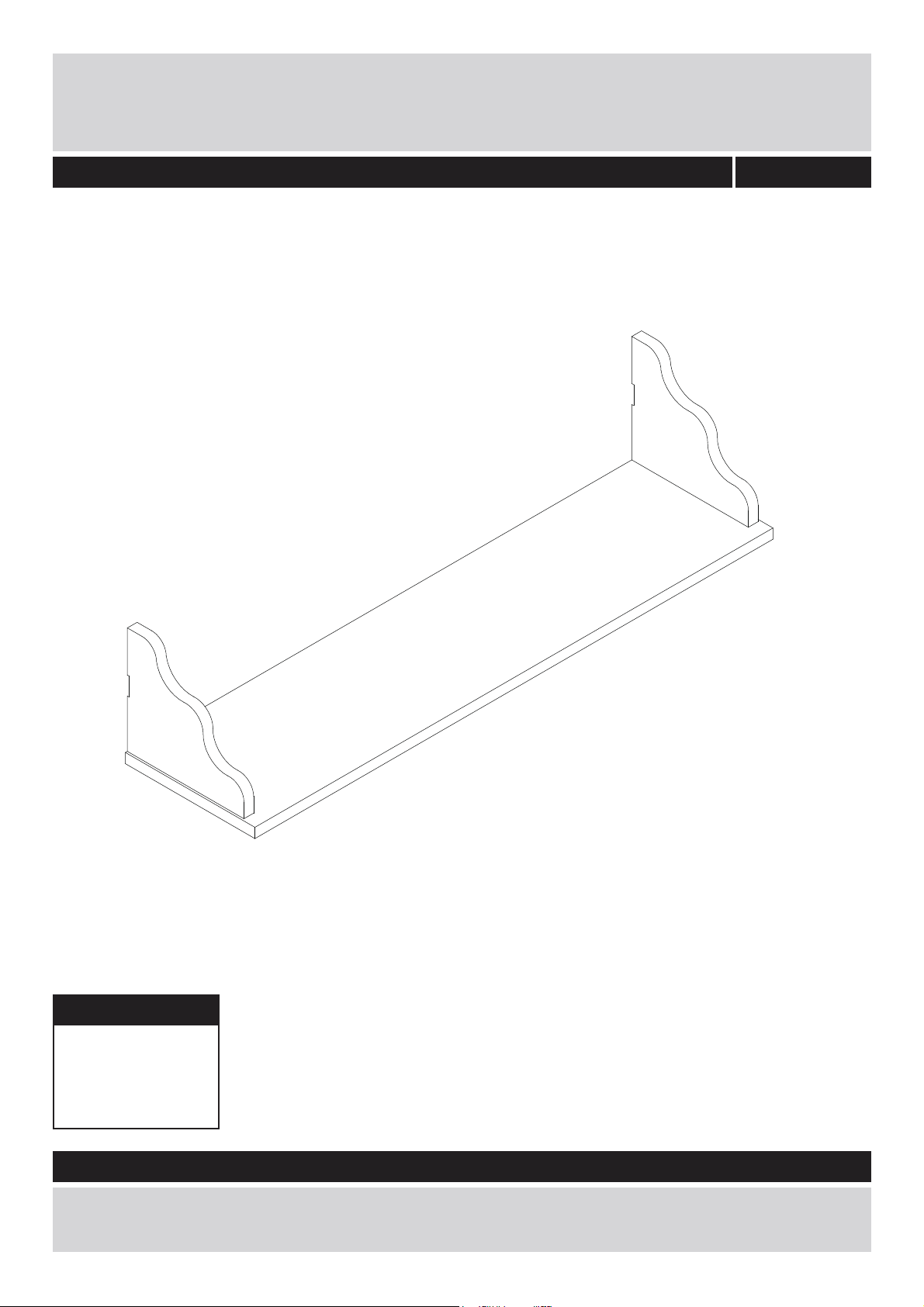

Vintage Shelf
Assembly Instructions - Please keep for future reference
338/8293
Dimensions
Width - 80cm
Depth - 20cm
Height - 18cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 03456 400800
Issue 1 - 25/10/14
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
oor.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Handy Hint
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
1
Page 3

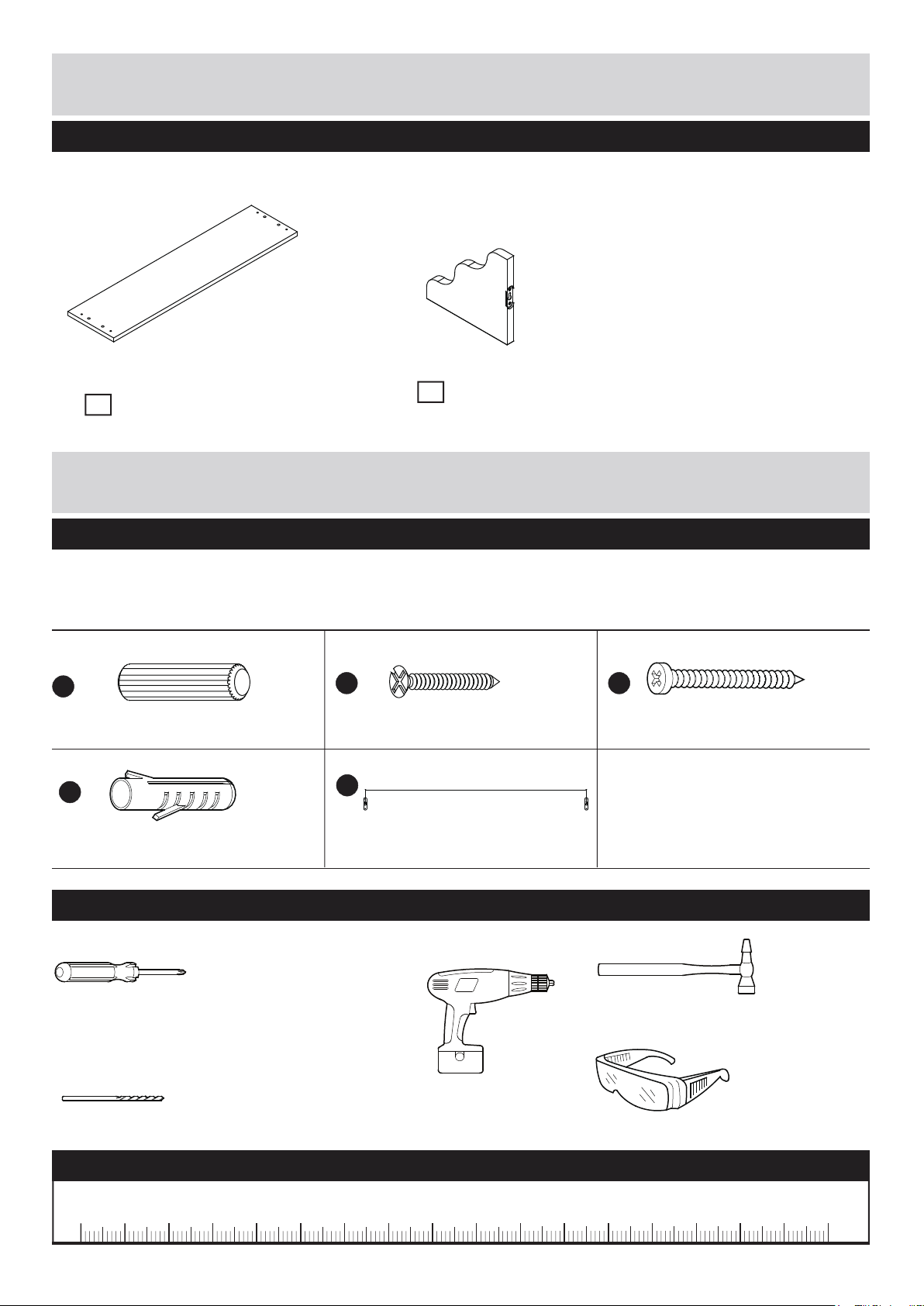

Components - Panels
Please check you have all the panels listed below
1
Shelf
(80x20cm)
2
If you have damaged or missing components, call
the
Customer Helpline: Argos = 03456 400800
Side Panel x 2
(18x16.5cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
D
Wall plug (for solid walls only) x 2
Wooden Dowel x 4
B
32mm Screw x 4
E
Paper template x 1
C
38mm Wall Screw x 2
782mm
Paper template
Tools required
Phillips screwdriver
(medium)
Drill
6mm drill bit (which
is suitable for the wall
plugs supplied)
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
Small
hammer
Eye protection
(when using a
hammer)
2
Page 4

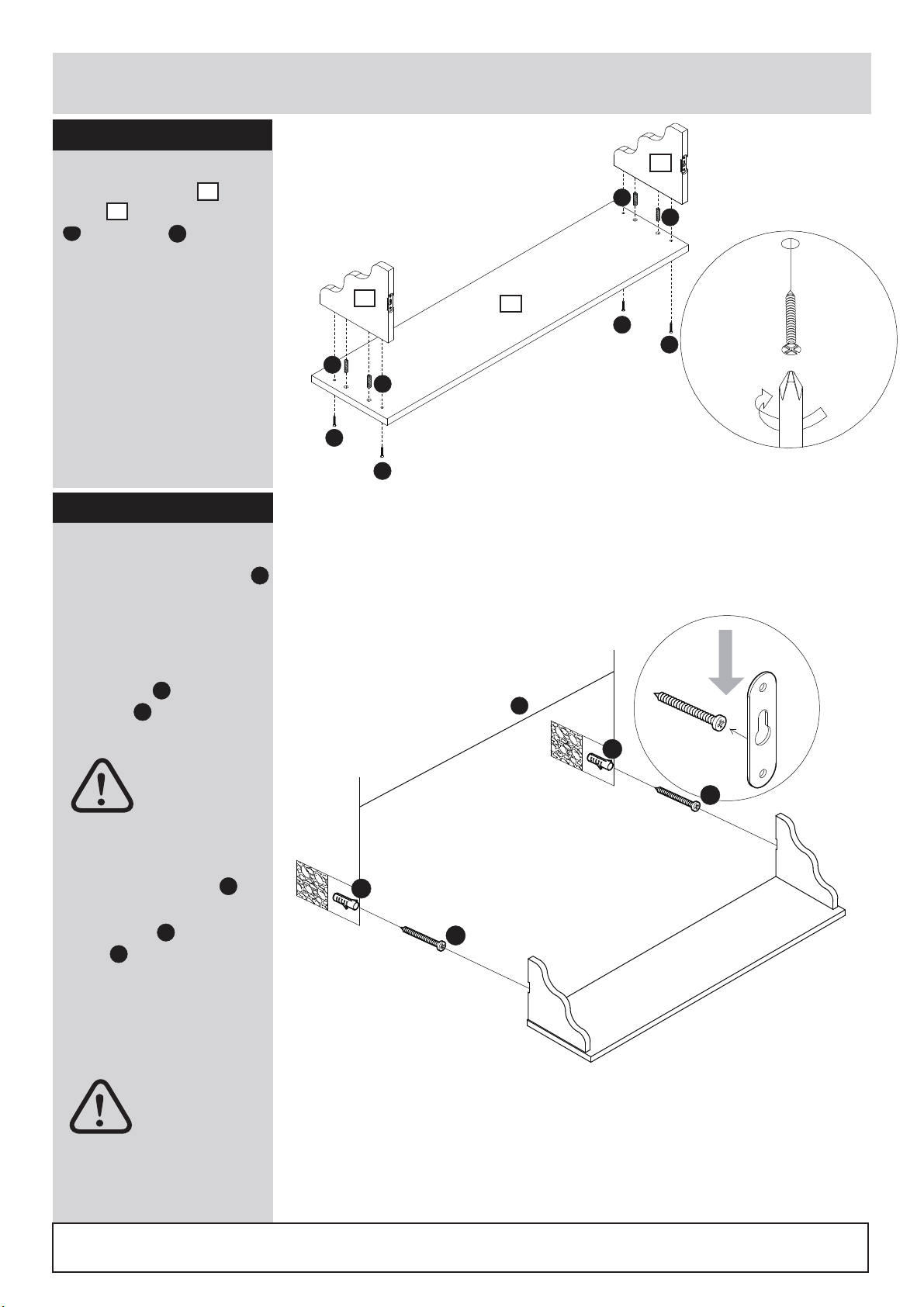

Assembly Instructions
Step 1
Attaching side panel
Attach side panel to the
shelf with wooden dowel
1
A
and screw .
2
B
2
A
A
Step 2
Using paper template
Stick the paper template
onto the wall.
Fixing to wall
Drill 6mm holes for the
wall plugs
template .
onto paper
D
E
2
A
A
B
B
E
1
B
B
E
Warning:
Before drilling,
check wall for
hidden pipes
and cables.
Insert the wall plugs
into
D
the drilled holes, and fix the
C
wall screws
plugs
Fit the unit to the
.
D
into the wall
wall through the metal
hanger supports shown.
Warning:
The maximum
load allowed on
the unit is 10Kg.
D
Paper template
C
D
C
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 03456 400800
3
Page 5

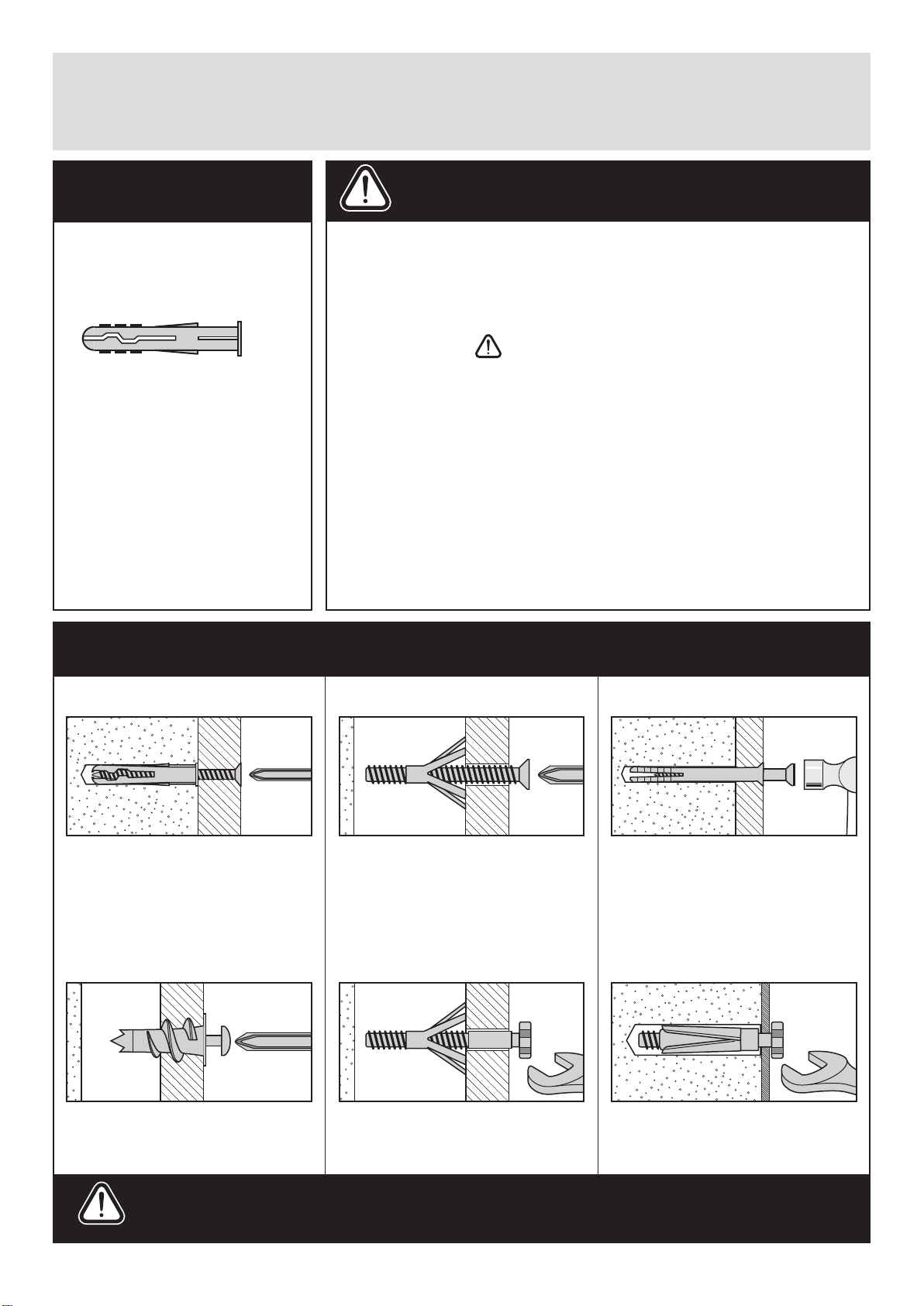

A Guide to - Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
