Page 1
Classic
Mirror Cabinet
1 Door
Spare Parts
www.argos-support.co.uk
03701121928
Customer Support
03456402020
Issue 1 - 15/01/19
Page 2
White 336/7922
Page 3
Fittings (Shown to scale)
Bag 1
A
35 mm Male Camlock x 4
D
12 mm Screw x 9
G
Magnetic Catch x 1
J
12 mm Screw x 10
B
15 mm Female Camlock x 4
E
Catch Plate x 1
H
16 mm Machine Screw x 2
K
45 mm Screw x 2
C
30 mm Dowel x 12
F
14 mm Screw x 2
I
Shelf Supports x 4
L
Wall Plug x 2
Hardware
M
Hinges x 2
2
N
Handle x 1
Page 4
Tools required
Phillips screwdriver
(small & medium)
Pencil
Spirit Level
Ruler/tape
measure
Power Drill
Drill Heads
3
Page 5
Panels
1
Top Panel x 1
(300 x 130mm)
2
Bottom Panel x 1
(300 x 130mm)
3
Left Panel x 1
(430 x 100mm)
4
Right Panel x 1
(430 x 100mm)
5
Cross Plinth x 1
(240 x 40mm)
6
Back Panel x 1
(450 x 260mm)
7
Door x 1
(425 x 270mm)
8
Shelf x 1
(238x95mm)
4
Page 6
A
G
1
F
F
G
35mm Male Camlock x 4
F
0
14mm Screw x 2
A
A
1
Pt. No F
A
Magnetic Catch x 1
Pt. No A
2
Pt. No G
A
2
C
Dowels x 8
C
C
Pt. No C
C
C
C
C
1
2
C
C
5
Page 7
C
3
Dowels x 4
Pt. No C
3
C
C
5
4
C
C
4

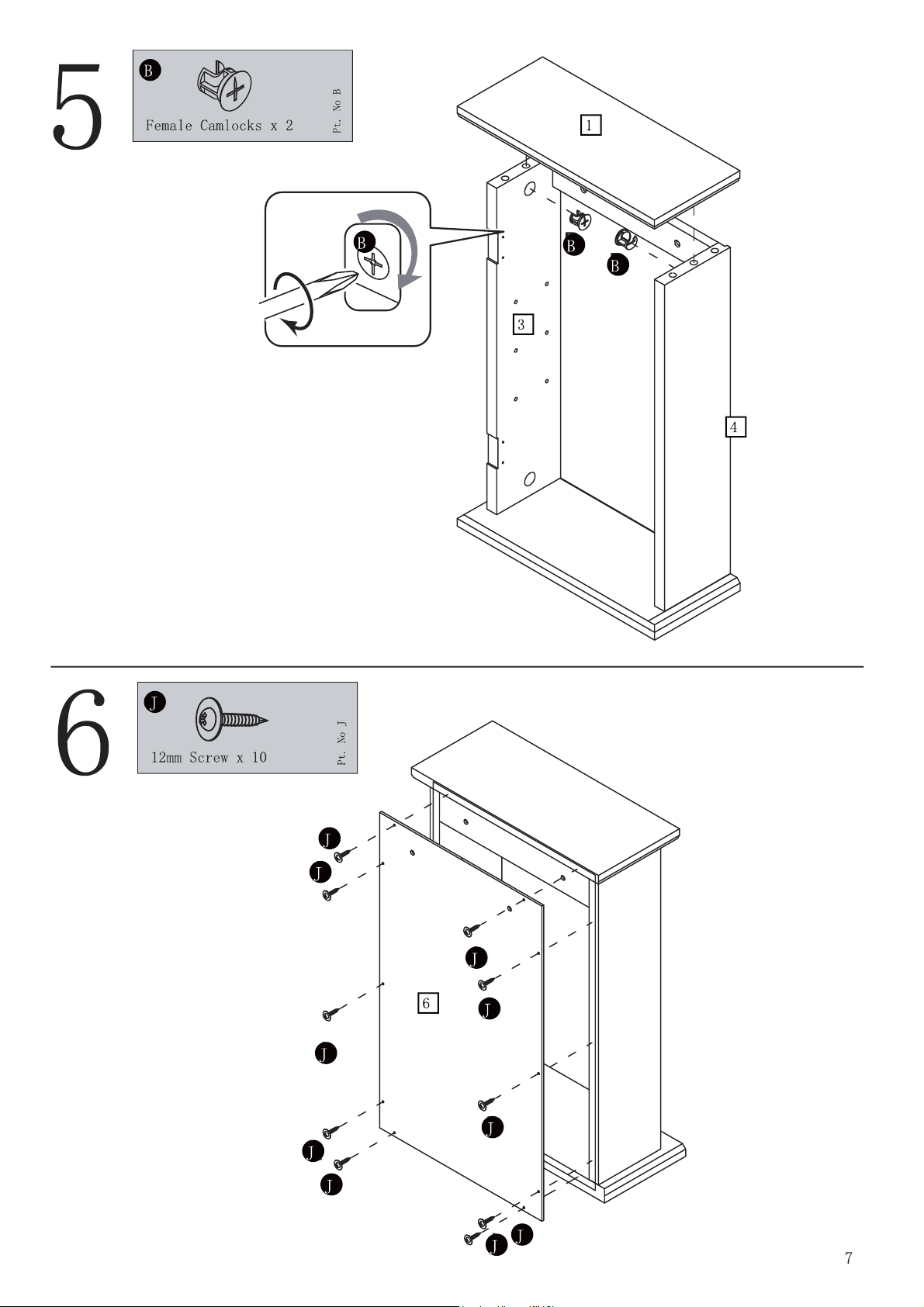

B
Female Camlocks x 2
Pt. No B
3
4
B
B
B
2
6
Page 8
Page 9
E
7
Catch Plate x 1
D
12mm Screw x 1
N
Handle x 1
H
16mm Screw x 2
Pt. No E
Pt. No D
Pt. No N
Pt. No H
N
E
D
7
H
H
8
M
Hinges x 2
M
D
D
D
D
D
12mm Screws x 8
Pt. No M
Pt. No M
7
M
M
D
D
8
Page 10
I
9
Shelf Supports x 4
Pt. No I
I
I
I
7
8
I
10
WARNING!
K
45mm Screws x 2
K
K
L
Wall Plugs x 2
Pt. No K
Pt. No L
L
L
9
Page 11
A Guide to Wall Mounting & Fixings
lmportant note:
lf plastic wall plugs(rawl plugs)
are supplied with your product,
e.g.:
- these are only suitable for use in
masonry walls.
lf you are in any doubt about the
correct wall plugs for your wall,
seek professional advice.
Failure of the product due to
using the incorrect fixings is the
responsibility of the installer.
Types of walls
lmportant: when drilling into walls always check
that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are suitable for
supporting your unit.Consult a qualified tradesperson if you
are unsure.
Hints:
General rule: always use a larger screw and wall plug if you are
not sure.
Ensure you use the recommended drill bit to match the wall plug and
hole size.
Ensure you drill the hole horizontally; do not force the drill or enlarge
the hole.
Take extra care when drilling high walls,ceilings and ceramic tiles.
Ensure wall plugs are inserted beyond the thickness of the ceramic
tiles to avoid the tiles splitting or cracking.
Ensure wall plugs are well fitted and are a tight fit in the
5:
drilled hole.
You can use one of the folllowing types of wall plug if your walls are made
of brick, breeze block, concrete,stone or wood.
No.1"General Purpose" wall plug No.3"Cavity Fixing" wall plug
Generally aerated blocks should not
be used to support heavy loads,use
For use with plasterboard partitions
or hollow wooden doors.
a specialist fitting in this case. For
light loads, general purpose
wall plugs can be used.
No.2" Plasterboard"
wall plug
No.4" Cavity Fixing - Heavy Duty"
wall plug
No.5"Hammer Fixing" wall plug
For use with walls stuck with
plasterboard. The hammer fixing
allows it to be fixed to the wall
rather than the plasterboard.
Always check the fixing is secure
to the retaining wall.
No.4" Shield Anchor" wall plug -
heavy loads
For use when attaching light loads
onto plasterboard partitions.
or use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with heavier loads such as
TV and HiFi speakers and satelite
dishes etc.
Page 12
