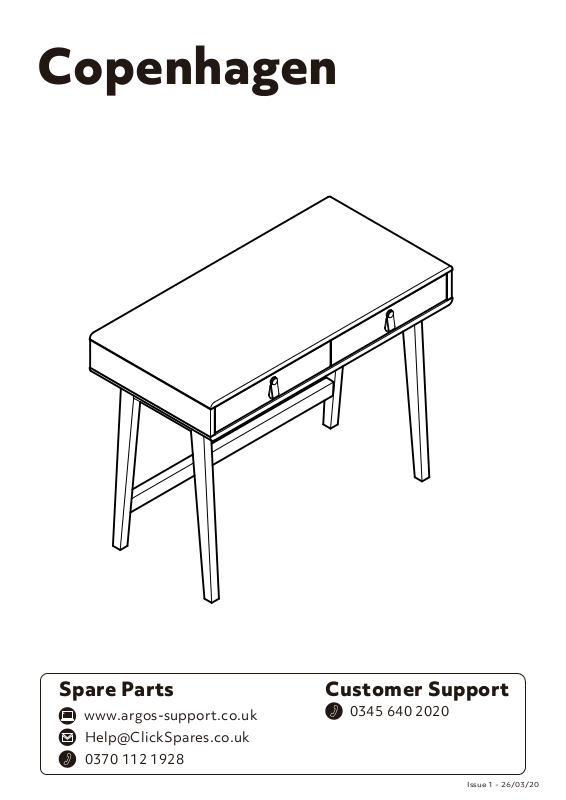

Copenhagen
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 26/03/20
Page 2
Safety and Care Advice
Product Details
Desk 336/0046
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
• This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
room) as possible.
Assemble on a soft level
surface to avoid damaging the
• From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
WARNING
In order to prevent overturning this product must be used with the wall attachment device provided.
Additional Guidance
● Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
● Regularly check and ensure that all bolts and fittings are tighten properly.
●
This product is compliant EN12521
Sainsbury's Argos is a trading name of both: Argos Limited, Registered office: 489-499 Avebury Boulevard, Milton Keynes, United
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury's Supermarkets Limited, Registered
office: 33 Holborn, London, EC1N 2HT, registered number: 03261722 (England and Wales). Both companies are subsidiaries of J
Sainsbury's plc.
1
Page 3

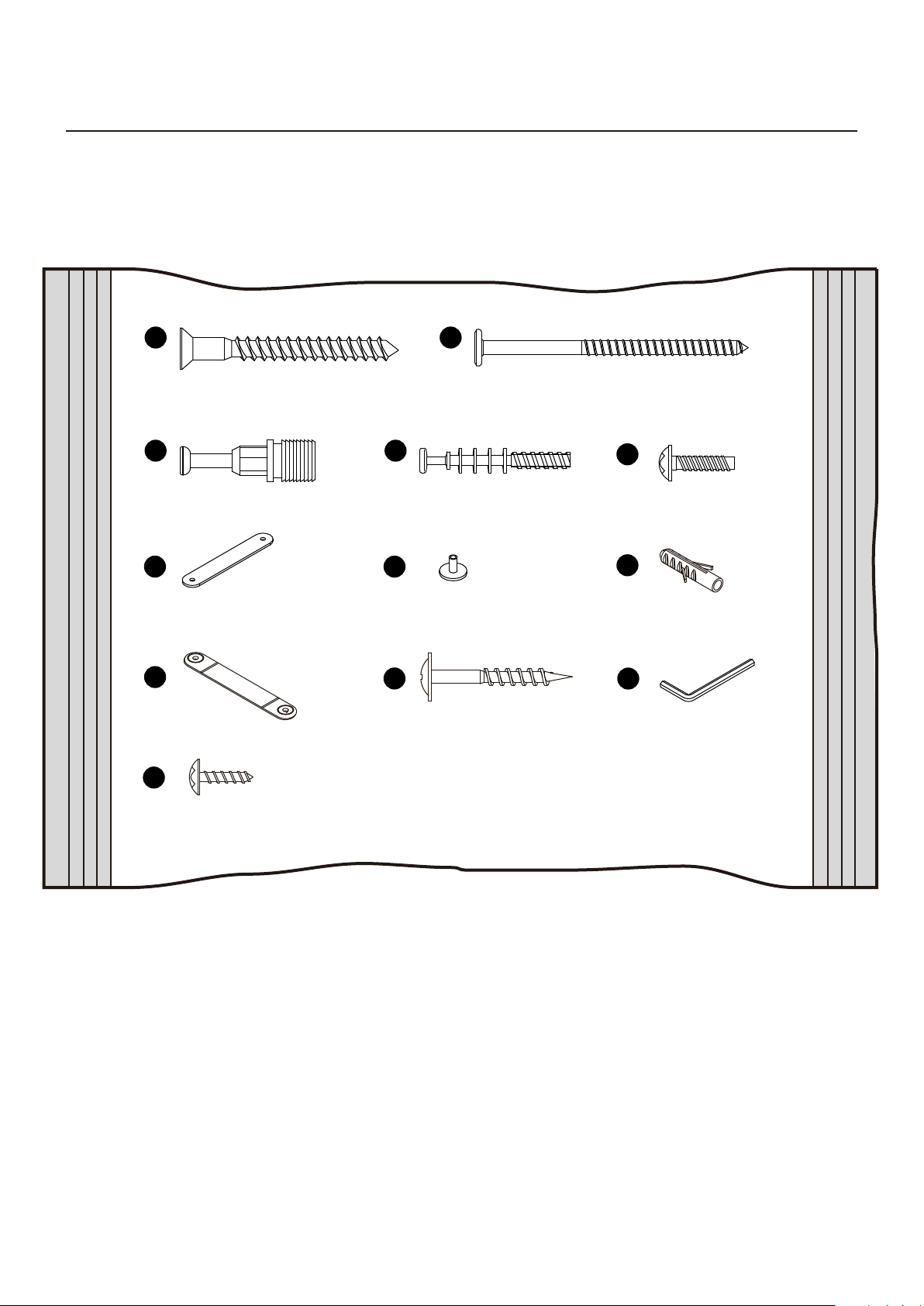

Fittings (Shown to scale)
Bag 1
A
5 x 50mm Screw x 16
C
10 x 32mm Locking Pin x 24
F
25 x 140mm Leather Handle x 2
I
Wall Strap x 2
L
B
6 x 65mm Screw x 4
D
7 x 43mm Locking Pin x 8
G
20mm Buckle x 2
J
L
4 x 33mm Screw x 2
E
4 x 20mm Screw x 2
H
Wall Plug x 2
K
Allen Key x 1
4 x 14.5mm Screw x 2
2
Page 4

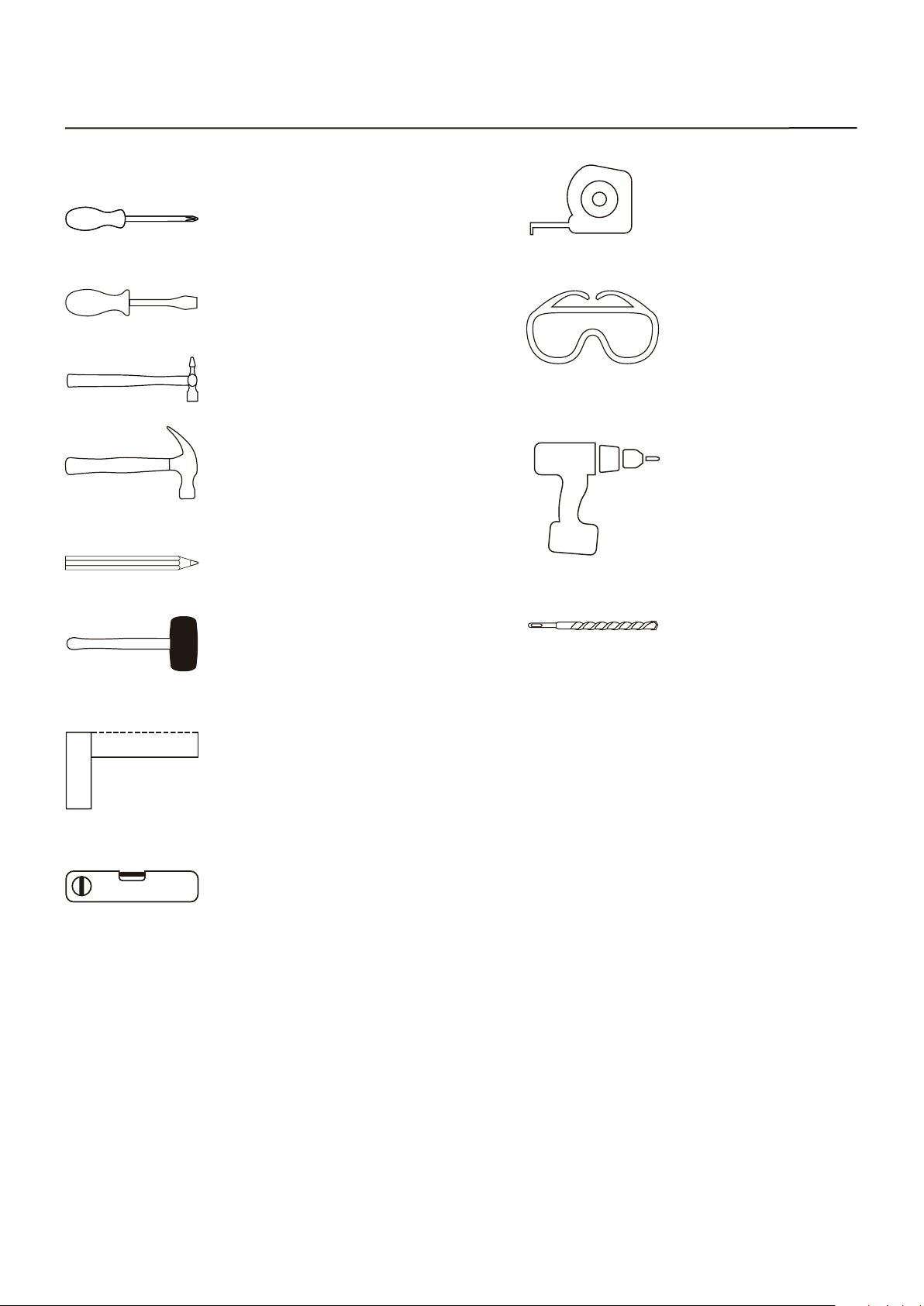

Tools required
Phillips screwdriver
(small & medium)
Phillips screwdriver
(small & medium)
Small
hammer
Large hammer
Pencil
Mallet
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Power Drill
Drill Heads
Set Square
Spirit Level
3
Page 5

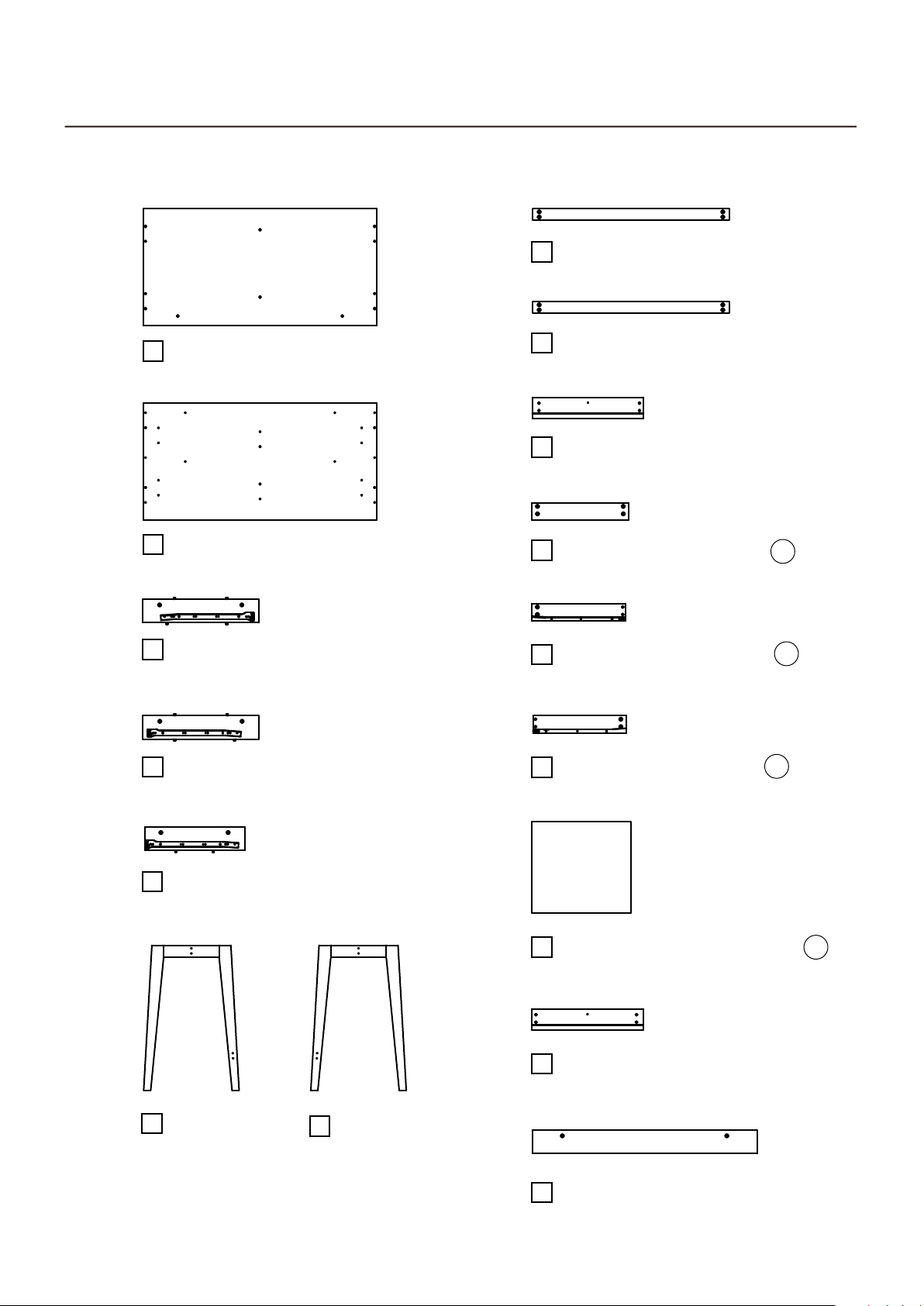

Panels
Top (1000 x 500mm)
1
Bottom (1000 x 500mm)
2
8
Back Support (840 x 50mm)
Bottom Support (840 x 48mm)
9
10
Left Drawer Front (475 x 91mm)
11
Drawer Back (416 x 74mm)
x2
Right Side (497 x 100mm)
3
Left Side (497 x 100mm)
4
Middle support (429 x 100mm)
5
12
Drawer Right (400 x 74mm)
13
Drawer Left (400 x 74mm)
14
Drawer Bottom (425 x 390mm)
15
Right Drawer Front (475 x 91mm)
x2
x2
x2
Left Leg
6
(409 x 622mm)
Right Leg
7
(409 x 622mm)
16
Back (962 x 100mm)
4
Page 6
1
A
5 x 50mm Screw x 16
C
10 x 32mm Locking Pin x 24
F
25 x 140mm Leather Handle x 2
I
Wall Strap x 2
L
4 x 14.5mm Screw x 2

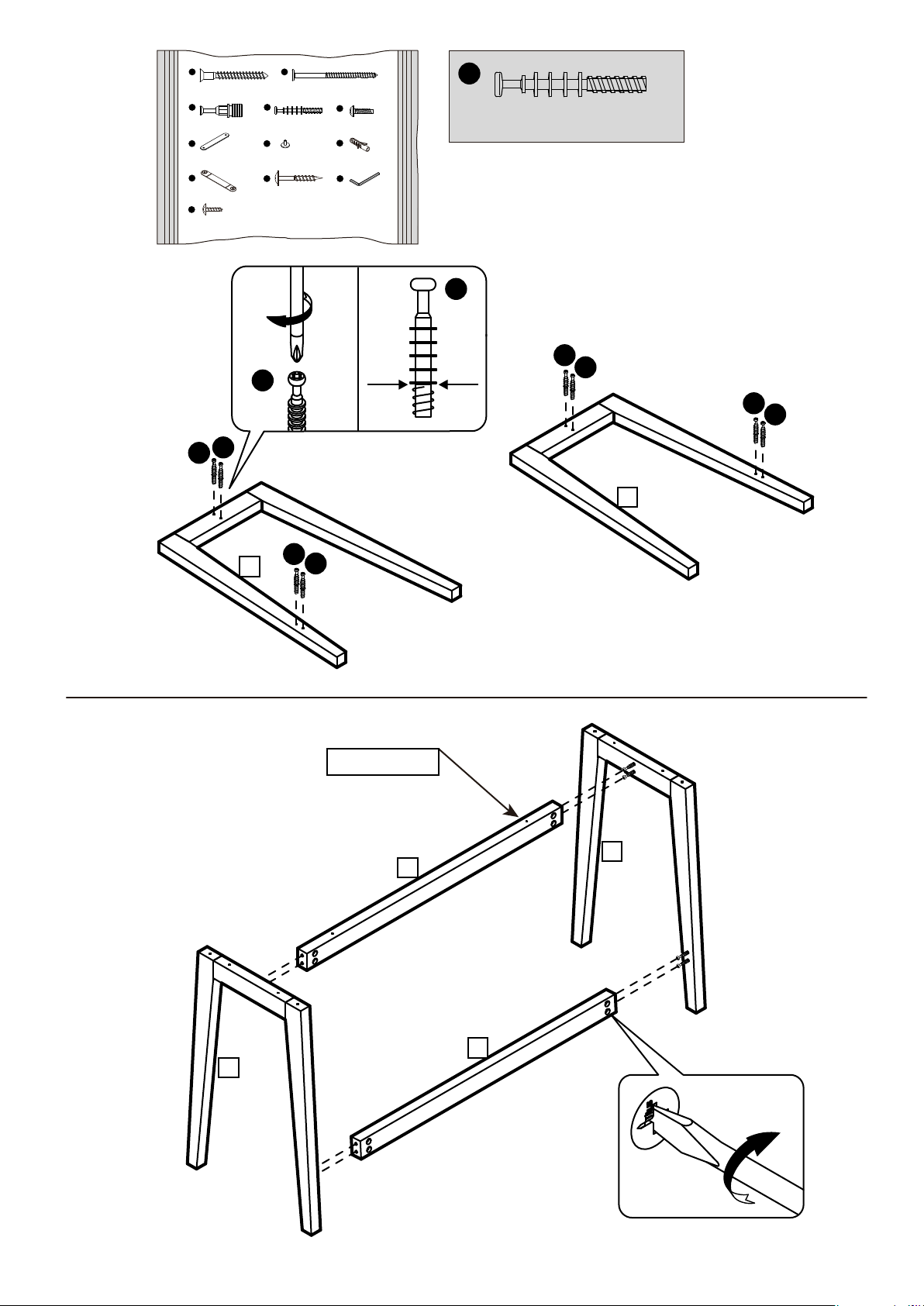

D
D
B
6 x 65mm Screw x 4
7 x 43mm Locking Pin x 8D4 x 20mm Screw x 2
G
20mm Buckle x 2
L
J
4 x 33mm Screw x 2
E
H
Wall Plug x 2
K
Allen Key x 1
D
D
7 x 43mm Locking Pin x 8
D
D
D
D
D
6
2
D
7
D
With holes
6
9
8
7
5

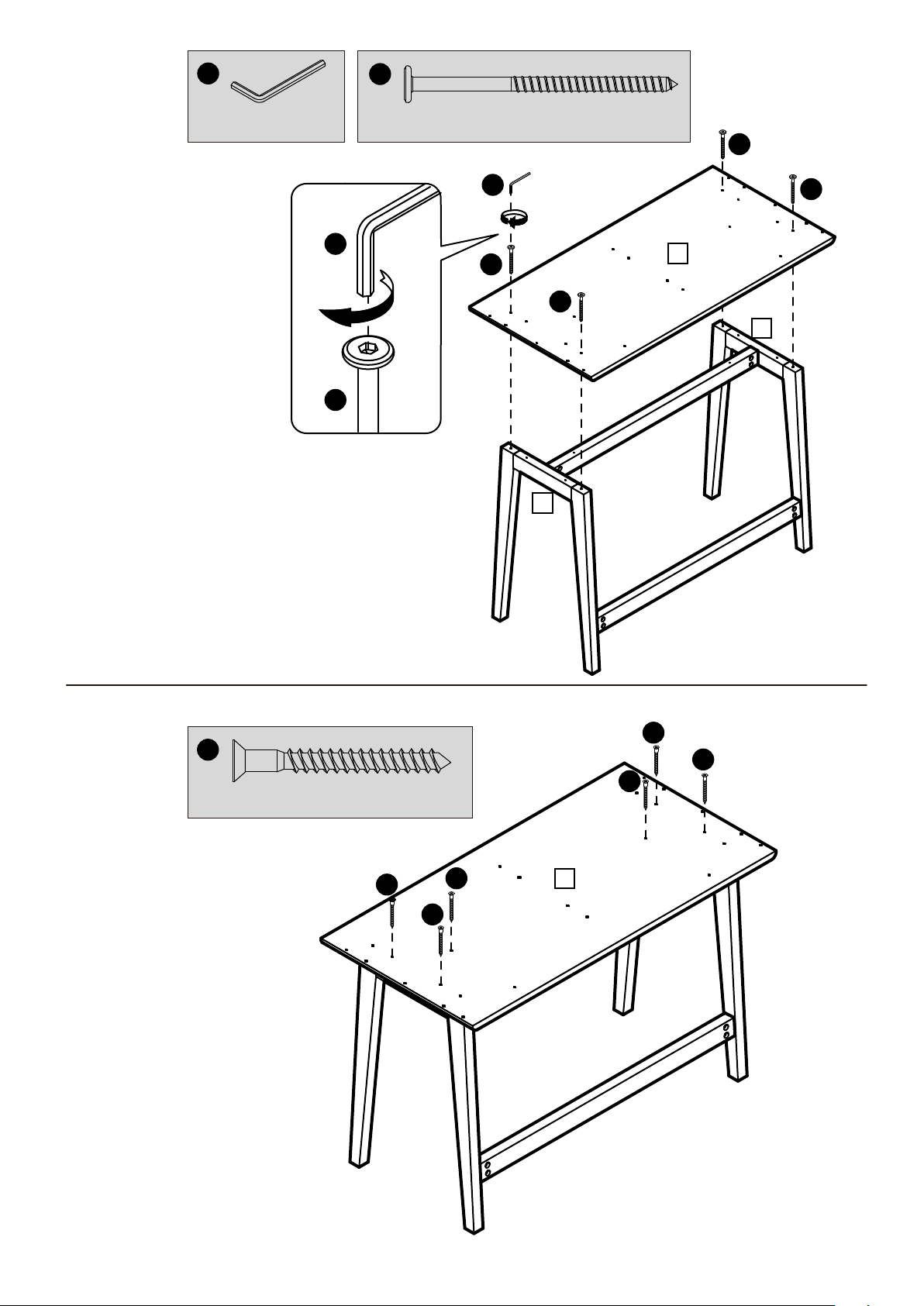

Page 7
K
B
3
Allen Key x 1
6 x 65mm Screw x 4
K
B
B
K
B
B
7
2
6
B
4
A
5 x 50mm Screw x 6
A
A
A
A
A
A
2
6
Page 8

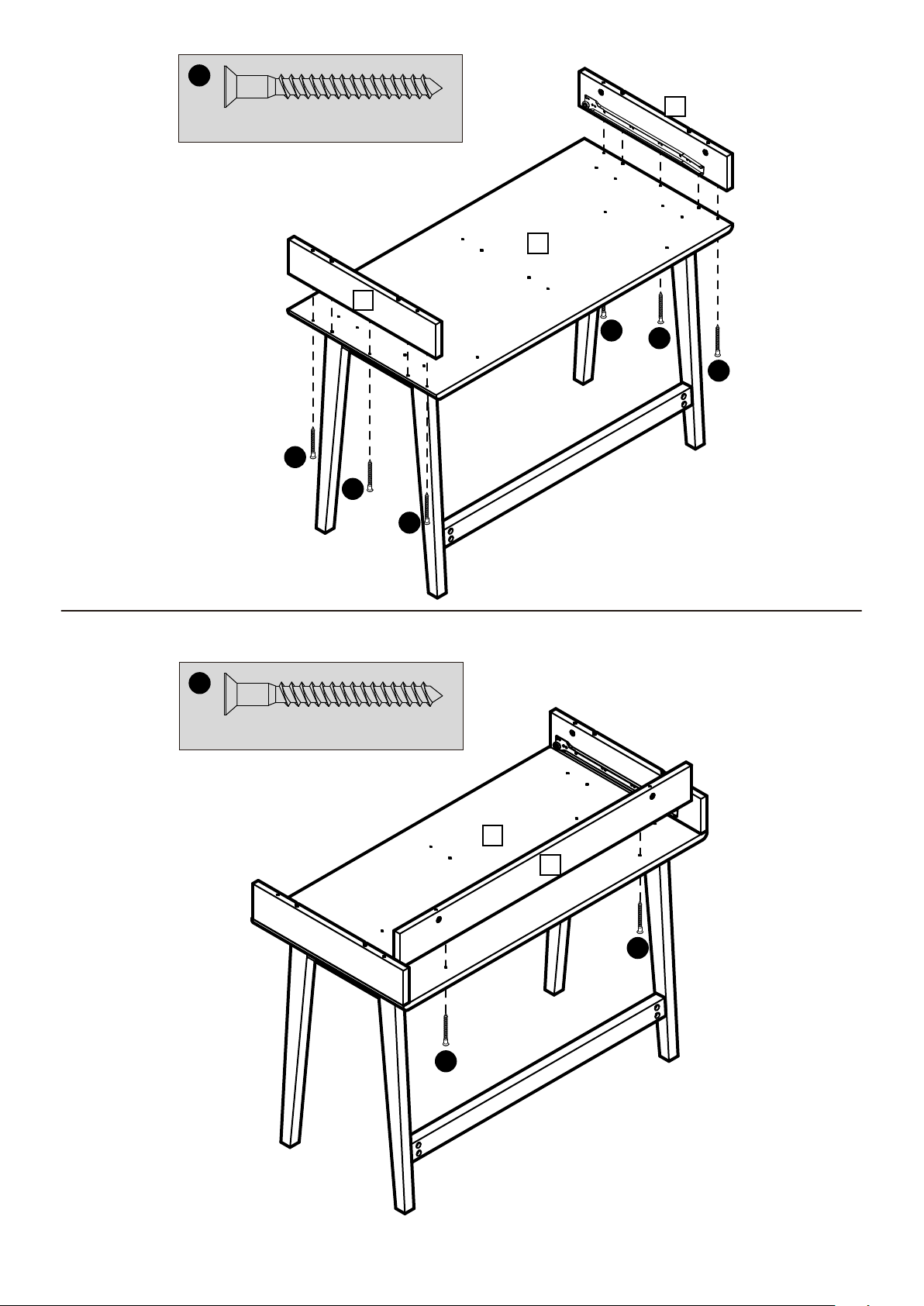

5
A
5 x 50mm Screw x 6
4
2
3
6
A
A
5 x 50mm Screw x 2
A
A
A
A
A
2
16
A
A
7

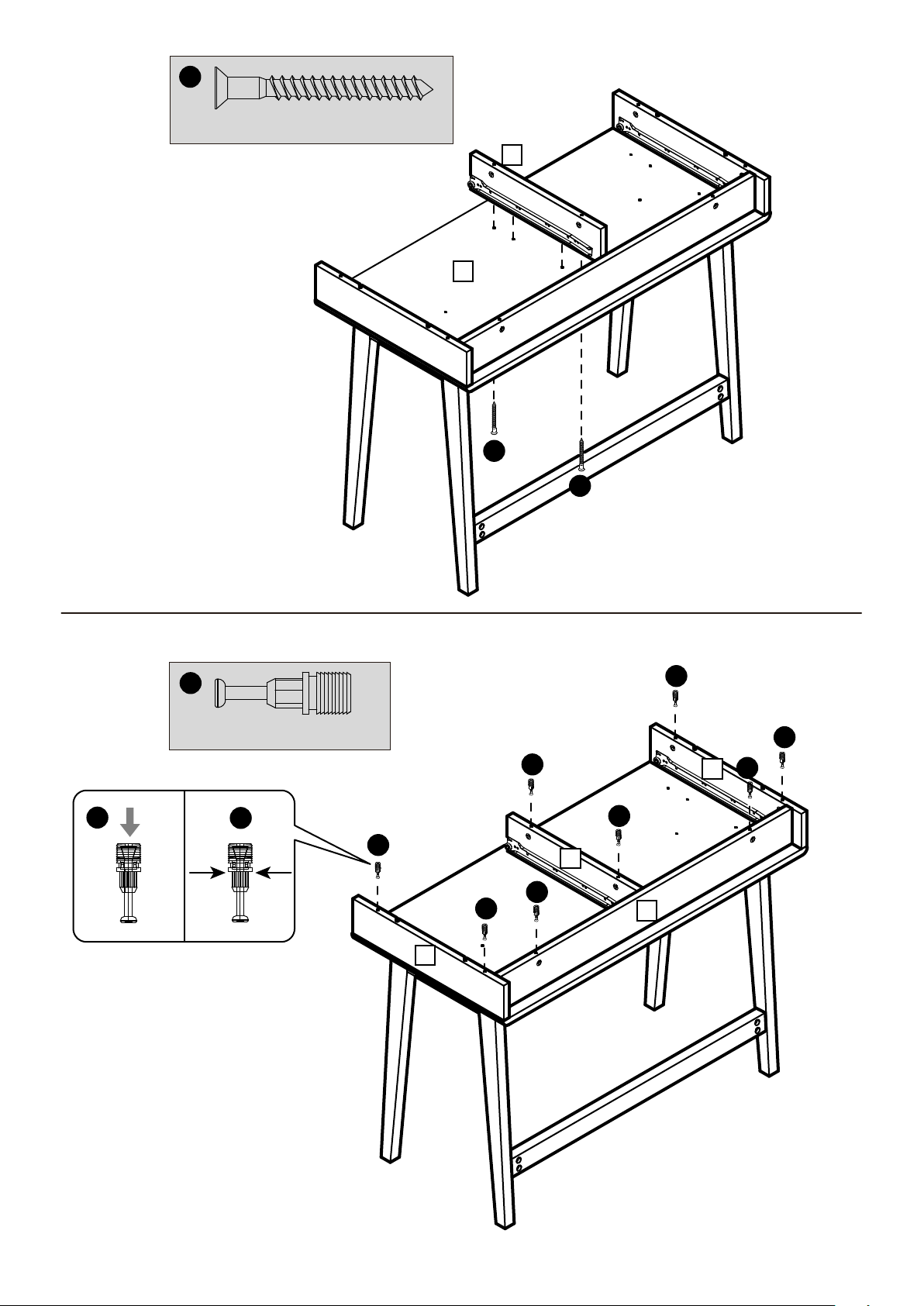

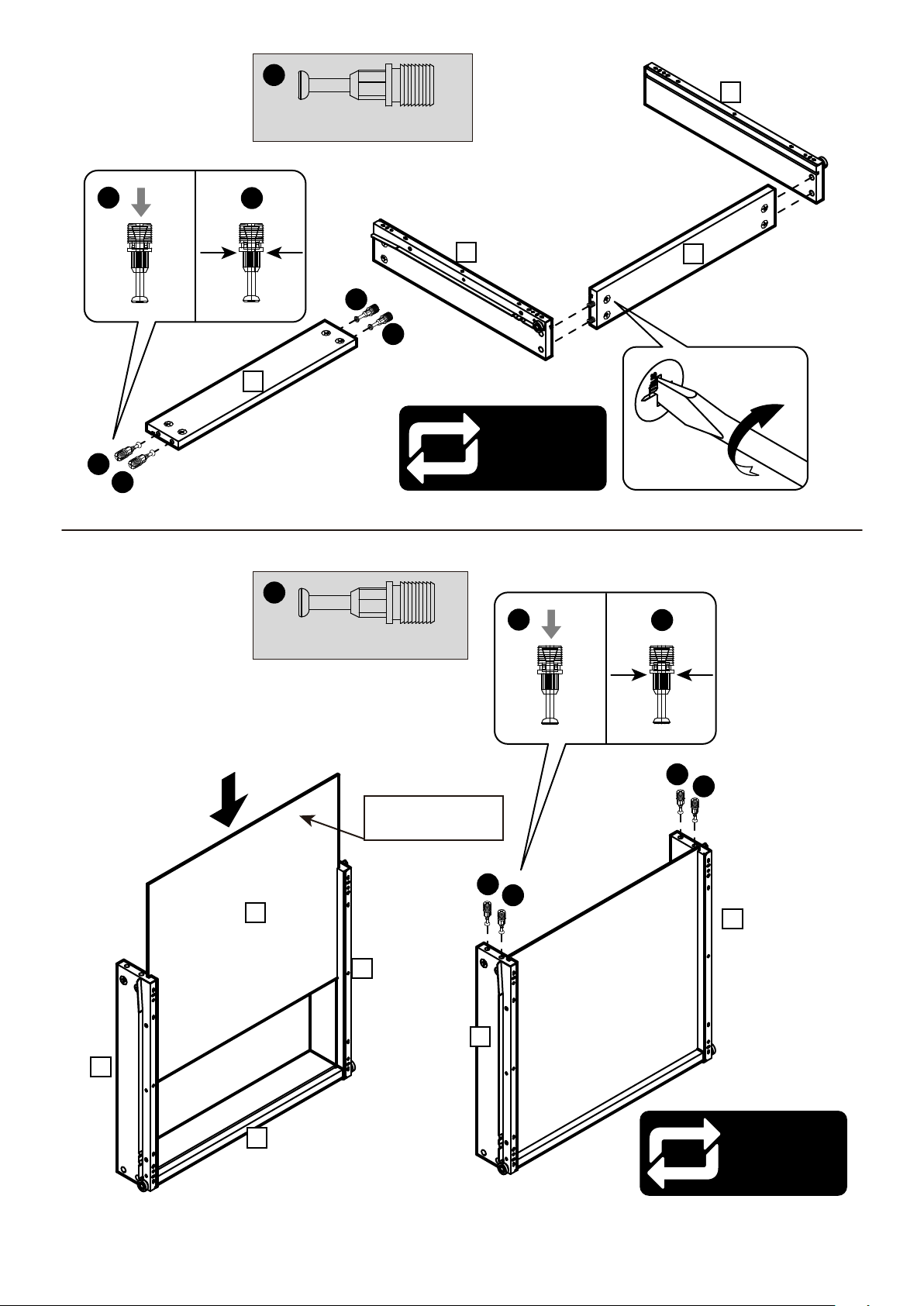

Page 9
A
7
5 x 50mm Screw x 2
5
2
A
A
8
C
C
10 x 32mm Locking Pin x 8
C
C
C
C
C
C
C
3
5
C
16
C
4
8

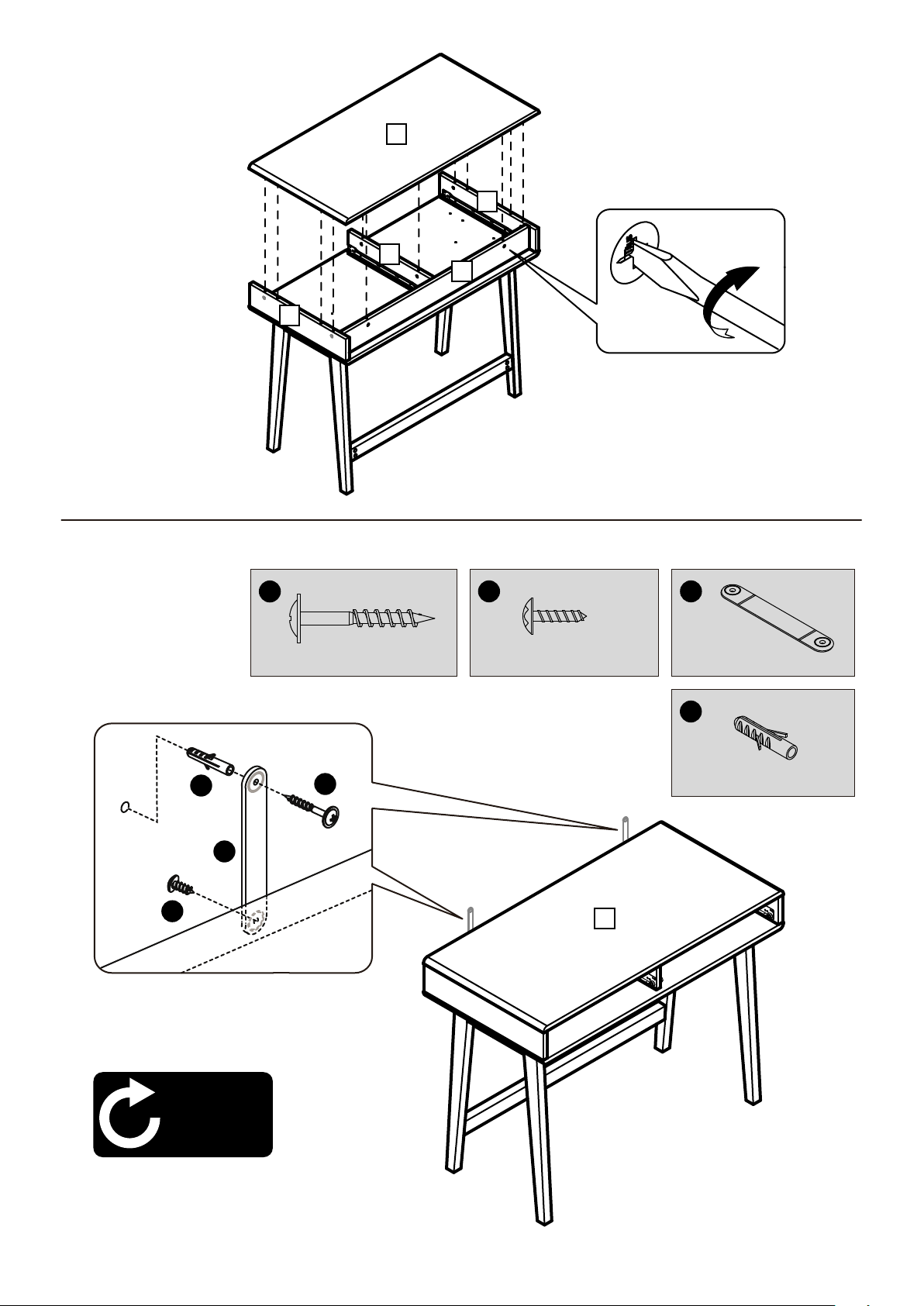

Page 10
9
1
4
5
16
3
10
H
L
I
J
4 x 33mm
J
Screw x 2
L
4 x 14.5mm Screw x 2
1
I
Wall Strap x 2
H
Wall Plug x 2
Rotate
Product
9
Page 11

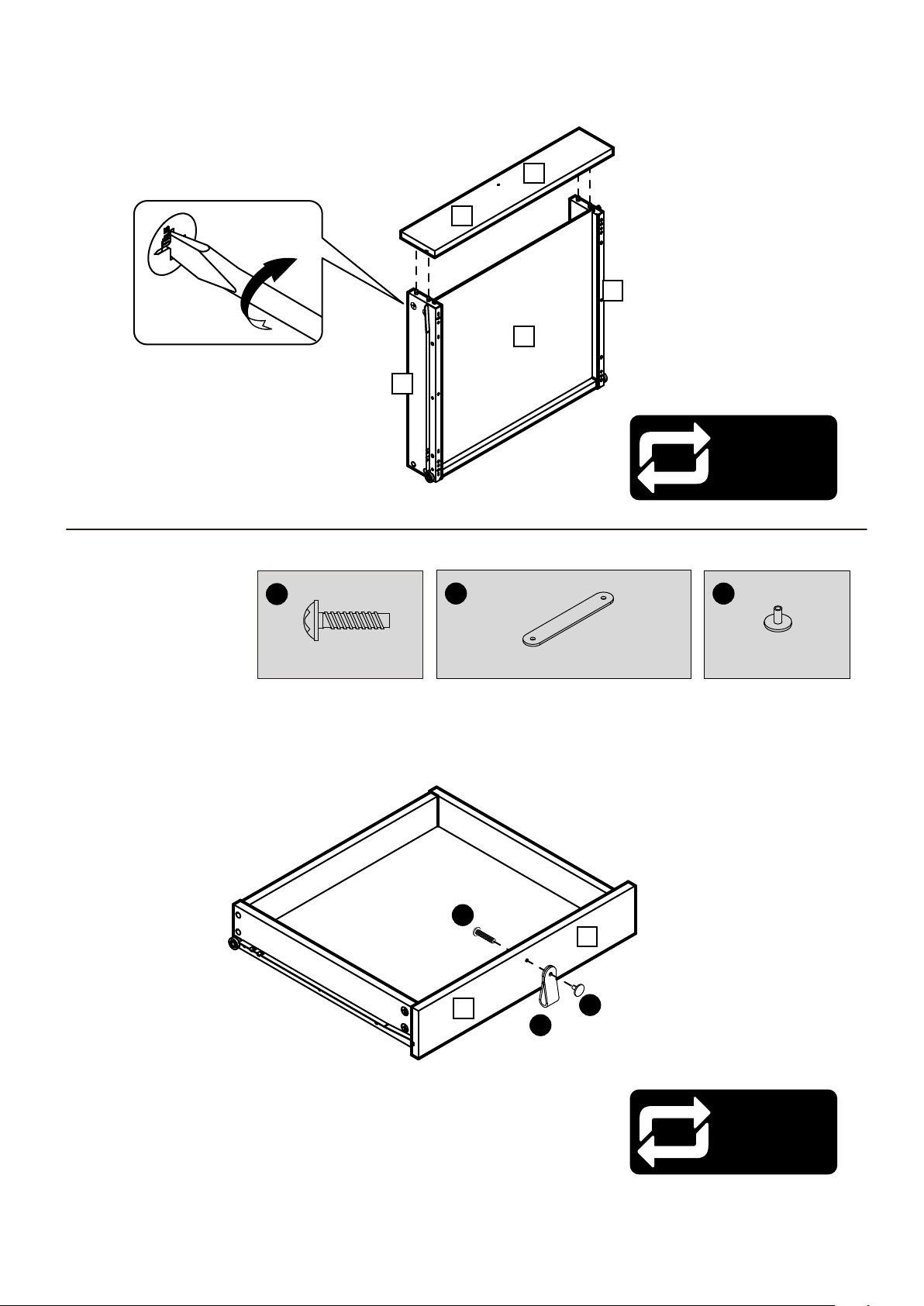

C
12
11
C
C
C
10 x 32mm Locking Pin x 8
C
C
11
C
13
Repeat
x2
11
12
C
10 x 32mm Locking Pin x 8
14
Unfinished
bottom surface
12
13
C
C
C
C
C
C
12
13
11
Repeat
x2
10
Page 12
13
15
10
12
14
13
Repeat
x2
14
E
4 x 20mm Screw x 2
F
25 x 140mm Leather Handle x 2
E
10
F
G
20mm Buckle x 2
15
G
Repeat
x2
11

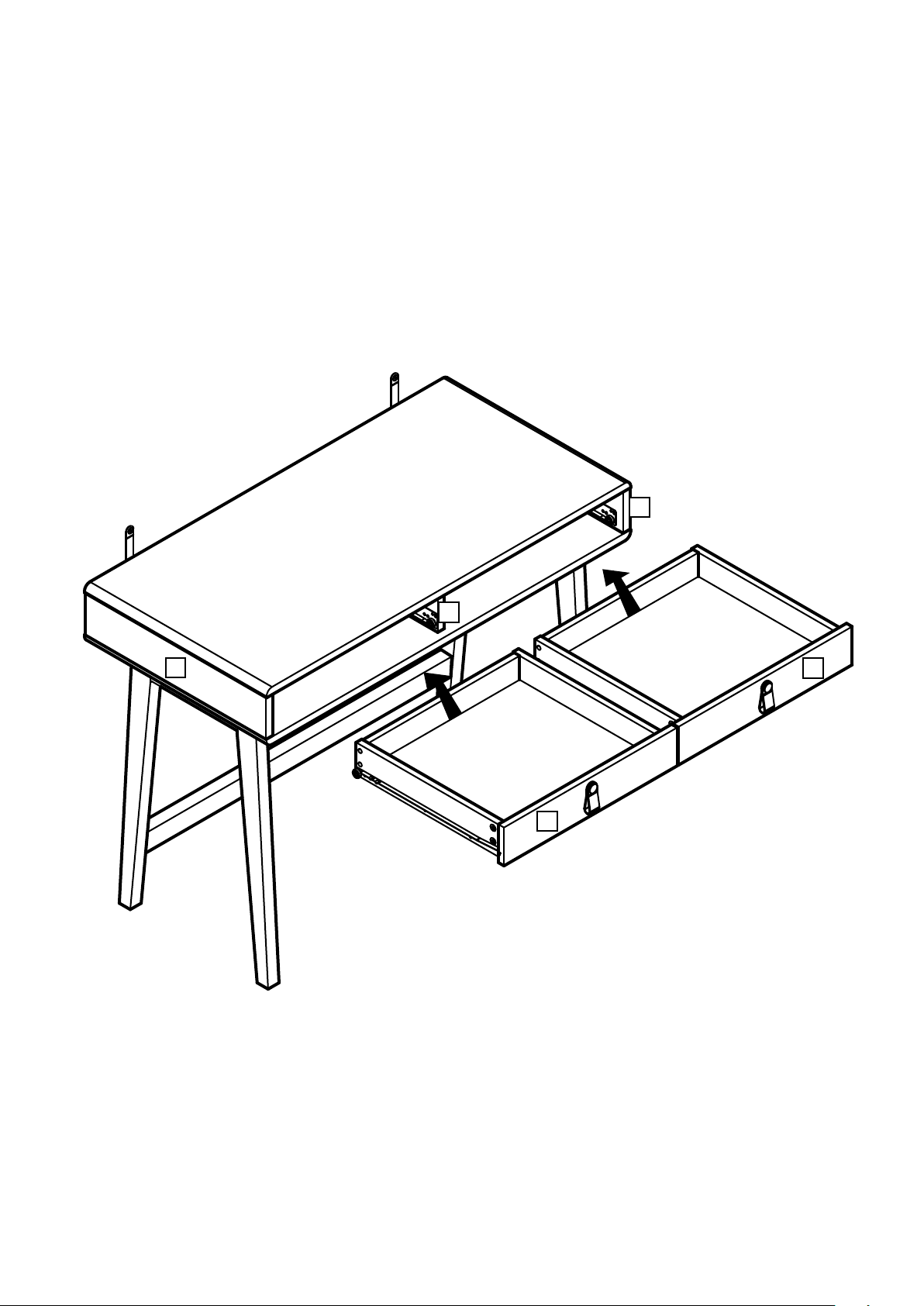

Page 13
15
3
5
4
10
15
12
