Argos 331/4229 User guide

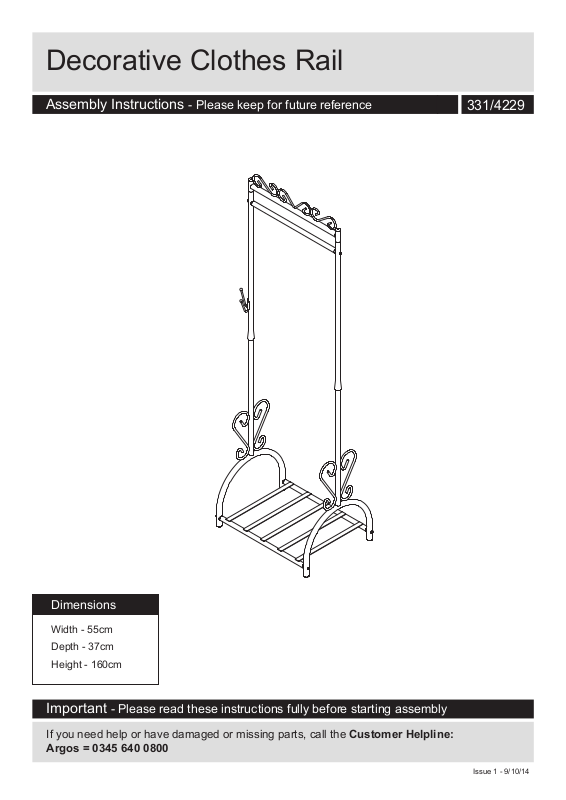

Decorative Clothes Rail

Assembly Instructions - Please keep for future reference

331/4229

Dimensions

Width - 55cm

Depth - 37cm

Height - 160cm

Important - Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline:

Argos = 0345 640 0800

Issue 1 - 9/10/14

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Check you have all the components and tools listed on the following pages.

• Remove all ﬁ ttings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Make sure you have enough space to layout the parts before starting.

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• During assembly do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its ﬁ nal position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your ﬂ oor.

• Parts of the assembly will be easier with 2 people.

• From time to time check that there are no loose screws on this unit. 

• To reduce the likelihood of damaging your product please

ensure that your power drill is set on a low torque setting.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre. 

Handy Hints

• Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully tighten the bolts

• Regularly check and ensure that all bolts and ﬁ ttings are tightend properly.

1

Components - Parts

If you have damaged or missing components,call the

Customer Helpline: Argos = 0345 640 0800

Please check you have all the panels listed below

Upper side support x 1

1

Upper side support with hook x 1 (74.5cm)

2

Decorative leg section x 2

3

(74.5cm)

(84cm)

Decorative crown x 1 (50cm)

4

Hanging rail x 1

5

Base x 1

6

(45.2cm)

Components - Fittings

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

End cap x 4 Spacer x 6

D

Screw 38mm x 6

B

E

Allen key x 1

C

Flat head screw 30mm x 2

Ruler - Use this ruler to help correctly identify the screws

105

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

110 115 120 125 130 135 140 145 150 155 160 165 170

2

Assembly Instructions

Step 1

Fitting the leg section & base.

a: Insert End cap

into Decorative leg section

3

A

a:

3

A

D

b: Use Screw

A

to connect Decorative leg section , Spacer & Base ; then tighten by Allen key

3

6

E

A

B

A

b:

3

D

A

B

A

B

D

A

B

A

6

A

D

A

D

B

A

E

A

3

6

3

D

B

A

E

A

3

Assembly Instructions

Step 2

Fitting the upper part

D

a: Use Screw

A

to connect Upper side support with hook

B

, Spacer & Rail

A

2

5

; then tighten by Allen key

E

A

Repeat Step a: to assemble Upper side

support

1

a:

D

A

B

A

5

B

2

A

B

D

A

E

A

1

A

1

D

A

E

A

b:

Use Flat head screw

C

A

to connect Decorative crown with Upper

4

side support with hook , then tighten by

2

E

Allyen key

Repeat step Upper side support

A

b

: to assemble

1

b:

E

A

C

A

4

C

A

2

1

4

Assembly Instructions

Step 3

Finishing the product

a: Install Upper side

support with hook & Upper side support onto Decorative leg section

3

2

1

2

1

3

Assembly is complete.

If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 640 0800
