Page 1

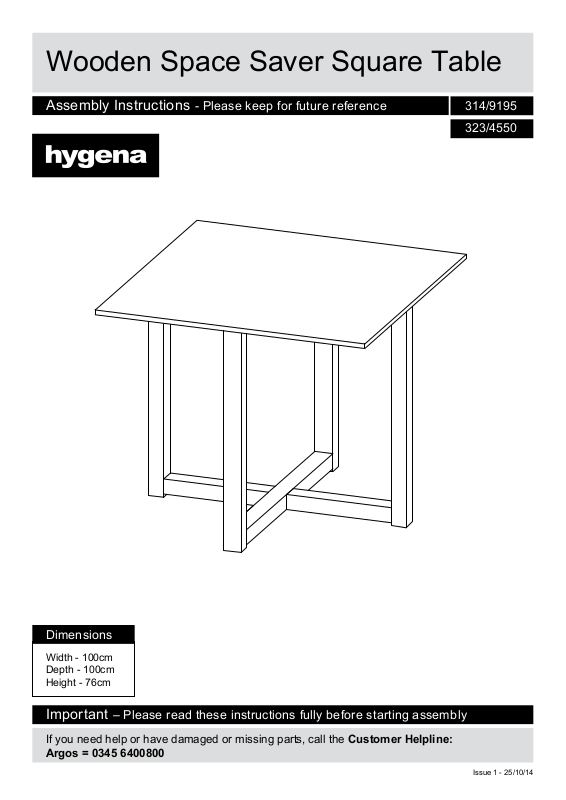

elbaT erauqS revaS ecapS nedooW
Assembly Instructions - Please keep for future reference
314/9195
323/4550
Dimensions
Width - 100cm
Depth - 100cm
Height - 76cm
Important – Please read these instructions fully before starting assembly
eht llac ,s trap gnissim ro degamad evah ro pleh deen uoy fI Customer Helpline:
Argos = 0345 6400800
Issue 1 - 25/10/14
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
1
Page 3
If you have damaged or missing components, call the
Components - Panels
Customer Helpline: Argos = 0345 6400800
Please check you have all the panels listed below
smaller holes
1
Upper supporting bar
(83 x 7cm)
Leg supporting bar
4
(83 x 6.4cm)
bigger holes
Upper supporting bar
2
(83 x 7cm)
Table leg x 4
5
(74.5 x 6.5cm)
Leg supporting bar
3
(83 x 6.4cm)
6
Table top
(100 x 100cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
70mm Bolt x 4
D
Nut X 8
G
Wooden dowel x 18
Ruler - Use this ruler to help correctly identify the screws
B
80mm Screw x 8
E
Connector x 8
H
Wrench X 1
C
Plain washer x 8
F
Cap x 4
I
Hex key X 1
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The bolts length is measured from the head to the point
(70mm bolt shown).
105
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4
Assembly Instructions
Step 1
Assemble leg frame
Two people are needed
here.
a
:Fix screws and insert
wooden dowels into
5
legs as shown.
B
G
a:
B
G
G
5
G
G
B
G
b : Attach leg supporting
4
bar and upper
supporting bar to table
5
legs ,then fix with
connectors , plain
washers and nuts as
C D
shown.
1
E
b:
5
E
C
4
1
D
5
E
C
D
Important note: Do not fully tighten bolts at this stage.
3
Page 5
Assembly Instructions
Step 1 - continued
c
:Attach leg supporting
bar to the assembled
unit by using wooden
dowels as shown.
Attach upper supporting
bar to the assembled
unit as shown.
3
G
2
c:
3
G
G
d:Attach legs to the
assembled unit,then fix
with connectors , plain
washers and nuts
5
E
C
D
d:
5
2
E
C
D
5
Important note: Do not fully tighten bolts at this stage.
4
Page 6
Assembly Instructions
Step 2
Assemble table top
Two people are needed
here.
Place table top upside
down on a clean surface,
fix the assembled leg
frame onto table top using
bolts
6
A
Important note: After all the parts are positioned, you
can now fully tighten all bolts fixed on previous steps.
A
Step 3
Assemble cap
Cover the holes by using
F
caps as shown.
Assemble is complete
6
F
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
