Argos 3098459 ASSEMBLY INSTRUCTIONS

Page 1

Assembly & User Instructions- Please keep for future reference

Important

– Please read these instructions fully before assembly or using

Roger Black Plus Treadmill

These Instructions contain important information which will help you get best from your equipment and ensure safe and correct assembly, use and maintenance.

If you need help or have damaged or missing parts, call the Customer Helpline: 03456040105

www.argoshelpdesk.co.uk

309/8459

Issue 1 -9/23/14

Page 2

Contents

Before you Begin

General Safety Information

Safety Information

Components-Parts

Components-Fixings

Before Assembly

Assembly Instructions

8-12

How to Start

Computer Instruction

Computer Operation

15-22

Limited Warranty

Maintenance

24-28

Exercising Information

29-32

Care and Maintenance

Exploded Parts Diagram

Exploded Parts List

35-36

Page 3

Congratulations for selecting the 3098459 Treadmill from Roger Black. Whether you are an accomplished athlete seeking to maintain peak performance or a beginner realizing the benefits of exercise for the first time, the 3098459 Treadmill will help you to achieve your goals.

In the meantime, remember that the benefits of exercise are many and varied including higher energy levels, reduced stress, improved self-esteem, clearer and more radiant skin, greater cardiovascular efficiency, higher metabolic rate, and improved body posture – all of which can result in a longer and more enjoyable life.

While purchasing the 3098459 Treadmill will not do all of this alone, it is an important step towards understanding and achieving the benefits of exercise.



When you open the carton, please DO NOT

hold the handle grip to carry the treadmill from the carton. Assemble the treadmill and take out from the carton, failure to do this will damage the treadmill console .

 Do not under any circumstance turn the

machine on its side unless in the fold up position. Failure to follow this instruction could lead to serious injury from base frame being sprung open with considerable force.

Before you Begin

Precautions

All Roger Black products are manufactured to the highest specifications and this instruction manual should enable you to assemble the 3098459 Treadmill and commence your workout program. If, however, you have any additional questions, please call out UK Customer Service：03456040105 or go to www.argoshelpdesk.co.uk. To help us assist you, please quote the product model number and serial number when calling. The model number is 3098459. The serial number can be found on a sticker attached to the rear of main treadmill body (located on the right hand side of the treadmill base next to the mains power cord inlet).

Page 4

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described in this

manual.

3. Place on a level surface, clear safety area of

at least 2000 mm in length and at least as wide as the treadmill shall be provided behind the equipment when in use. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. When choosing a location for the treadmill

make sure that the location and position permit access to a plug.

5. Keep the treadmill indoors, away from

moisture and dust. Do not put the treadmill in a garage, outbuilding, covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being administered.

7. Keep children under the age of 12 and pets

away from the treadmill at all times.

8. The treadmill should not be used by persons

weighing more than 110kgs.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothing when

using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

11. When connecting the power cord, plug the

power cord into a grounded circuit. When replacing the fuse, an ASTA approved BS 1362 type should be fitted to the fuse carrier, A13 amp fuse should be used, no other appliance should be on the same circuit.

12. Keep the power cord away from any heated

surface.

13. Never move the running belt while the power

is turned on. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly.

14. Never start the treadmill when you are

standing on the walking belt. Stand on the side rail, hold the handrails, start with low speed and then step on the unit. When comfortable increase the speed to one that you are comfortable with.

15. The treadmill is capable of high speed. Adjust

the speed in small increments to avoid sudden jumps in speed.

16. The pulse sensor is not a medical device,

various factors, including the user’s movement, may affect the accuracy of the heart rate readings. The pulse sensor is intended only as exercise aid in determining heart rate trends in general. WARNING! Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death. If you feel faint stop exercising immediately.

17. Never leave the treadmill unattended while it

is running. Always remove the safety key when the treadmill is not in use.

18. Always examine your treadmill before using to

ensure all parts are in working order.

19. Never insert any object or body parts into any

opening.

20. Inspect and tighten all parts of the treadmill

regularly. ( see maintenance page )

21. Always unplug the treadmill before cleaning

and/or servicing. Service to your treadmill should only be performed by an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow these instructions will void the treadmill warranty.

22. This appliance is not intended for use by

person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision and instruction concerning use of the appliance by person responsible for their safety.Keep unsupervised children away from the equipment.Injuries to health may result from incorrect or excessive training.

General Safety Information

Page 5

To reduce the risk of serious injury, read the entire manual before you assemble or operate the Roger Black

Assembly

• Keep children and animals away from the work area, small parts could cause choke if swallowed.

• Make sure you have enough space to layout the parts before starting.

• Assemble the item as close to its final position (in the same room) as possible.

• Position the equipment on a clear, level surface.

• Dispose of all packaging carefully and responsibly.

Using

• It is the responsibility of the owner to ensure that

all users of this product are properly informed as to how to use this product safely.

• This product is intended for domestic use only. Do not use in any commercial, rental, or institutional setting.

• Before using the equipment to exercise, always do stretching exercises to properly warm up.

• If the user experiences dizziness, nausea, chest pain, or other abnormal symptoms stop the

workout and seek immediate medical attention.

• Only one person at a time should use the

equipment.

• Keep hands away from all moving parts.

• Always wear appropriate workout clothing when exercising. Do not wear loose or baggy clothing, since it may get caught in the equipment. Wear athletic shoes to protect your feet while exercising.

• Do not place any sharp objects around the equipment.

• Disabled persons should not use the equipment without a qualified person or doctor in attendance.

• This product is suitable for user’s weight of:

110kgs.

•This product conforms to ISO 20957-1 and EN 957-6. Class (H) - Home Use - Class (C)

•This exercise product has been designed and manufactured to comply with the latest (BS EN

957) British and European Safety Standards.

Important – Please read fully before assembly or using

Safety Information

Platinum Treadmill, In particular, note the following safety precautions.

Page 6

Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully

Components - Parts

If you have damaged or missing parts, please calll

the Customer Helpline: 03456040105

www.argoshelpdesk.co.uk

Please check you have all parts listing below

20. Left Mast Cover

Lubricating Oil

21. Right Mast Cover

57. Mp3 Link

45. Safety Key

3. Left Console Mast

4. Right Console Mast

Main Frame

Hardware pack

Console

52. Power cord

before contacting Argos regarding any missing components. Total mass of the product is 54 kg.Foot print of the product is 162 * 76 cm. The free standing equipment shall be installed on a stable and leveled base.

Page 7

Note: Some of the fixings are pre-fitted to the larger components. Please check carefully before contacting

Argos regarding any missing fixings.

Components - Fixings

Please check you have all parts listing below

20mm Allen Bolt × 4

8mm Washer × 10

90mm Allen Bolt × 2

8mm Spring Washer × 10

15mm Phillips Screw × 2

5# Allen Wrench × 1

6# Allen Wrench × 1

80mm Allen Bolt × 2

Multi Wrench × 1

Page 8

Before Assembly

Overview Drawing

Pulse Sensor

Console Mast Cover

Mp3 Link

Transport Wheel

Handle Grip Safety Key

Console Mast

Motor Cover

Side Rail

End Cap

Running Deck

Page 9

a. Thread the Main wire from the bottom of the Console Mast (4) to the upper opening.

b. Fix each Console Mast (3&4) to the Base Frame (1) using 4 x 90mm Allen Bolts (54), 2 x 80mm Allen

Bolts (66), 6 x 8mm Spring Washers (87) and 6 x 8mm Washers (84).

Assembly Instructions

Step 1

Page 10

换图

Assembly Instructions

a. Connect the wires as the diagram showing;

b. Fix each side of the Console to the two Console Mast (3&4) by using 4 x 20mm Allen Bolts (68), 4 x 8mm Spring Washes (87) and 4 x8mm Washers (84).

c. Insert the wires into the handles holes.

Console

Step 2

A’

B’

Page 11

Assembly Instructions

Attach the Mast Cover (20&21) to the Console Mast (3&4), press the Fastener (on the end of the Mast Cover ) into the Groove (on the Base frame 1),and then using 2 x ST4.8×15mm Dome Head Philips Screw (71).

Fastener

Groove

Step 3

Page 12

Assembly Instructions

1. Hold the End caps to lift the running deck, make sure you hear the sound of the deck locking into

position.

2. Hold the End caps,touch the joint with your tiptoes to unfold it.

3. The treadmill has three manual incline positions.Lift up the running deck as shown in Step 1. and

adjust the Bracket to the desired incline and then return the running deck back to the floor. End caps

Joint

Bracket

Page 13

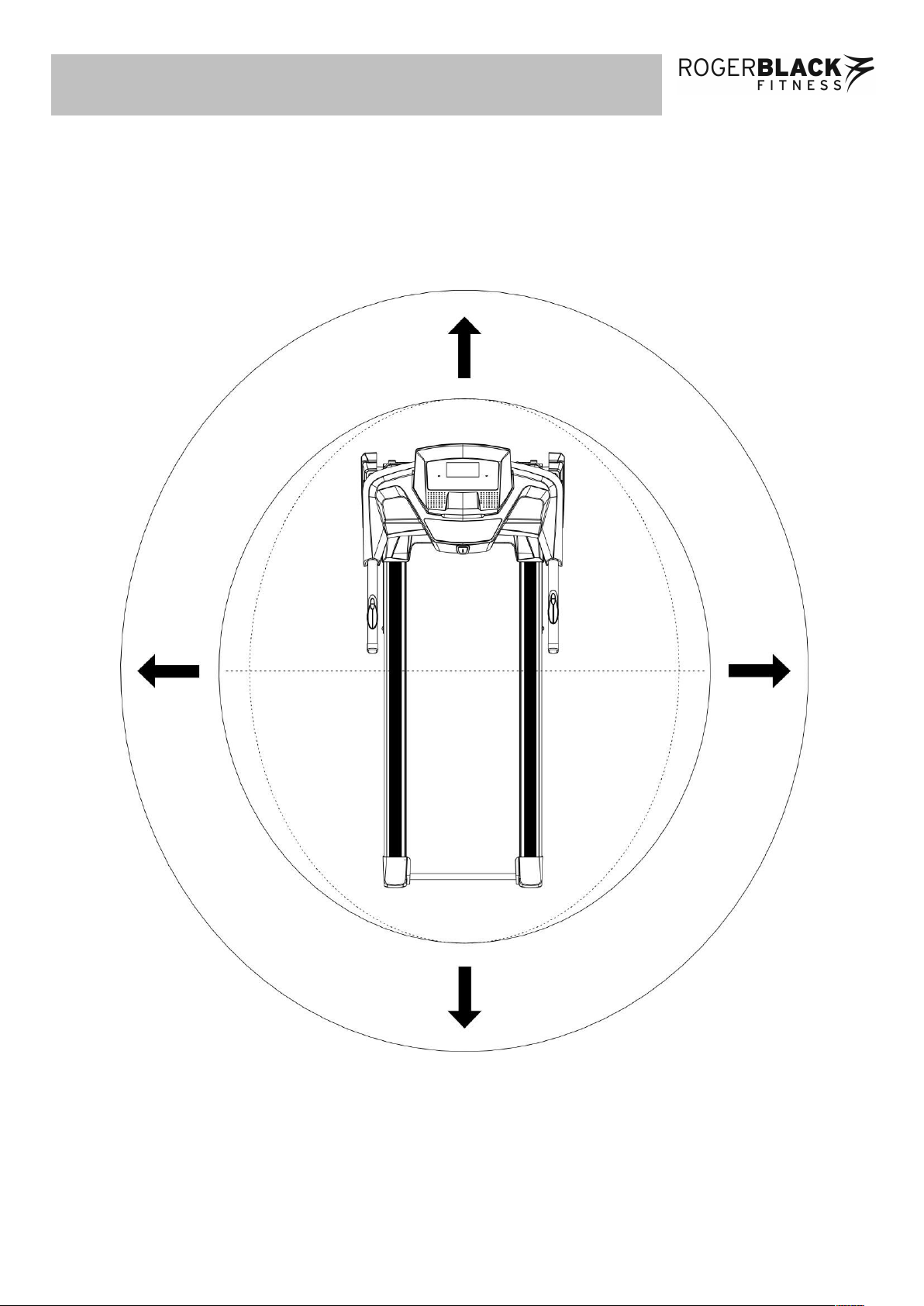

Free area and training area.

Assembly Instructions

0.6m

(Free area)

0.6m

(Free area)

0.6m

(Free area)

0.6m

(Free area)

Training

area

1.7m

The free area shall be not less than 0.6m greater than the training area in the directions from which the equipment is accessed. The free area must also include the area for emergency dismount. Where equipment is positioned adjacent to each other the value of the free area may be shared.

跑步机的后方必须留有2000mm×1000mmde 安全区！

Page 14

How to Start

Turning on the treadmill

SAFETY KEY:

The treadmill will only work if the safety key (45) is properly locked in the provided notch of the console. Insert the safety key (45) and attach the clip onto the waist part of your clothes. If it is necessary to turn off the motor immediately, just pull the safety key (45) out of the console.

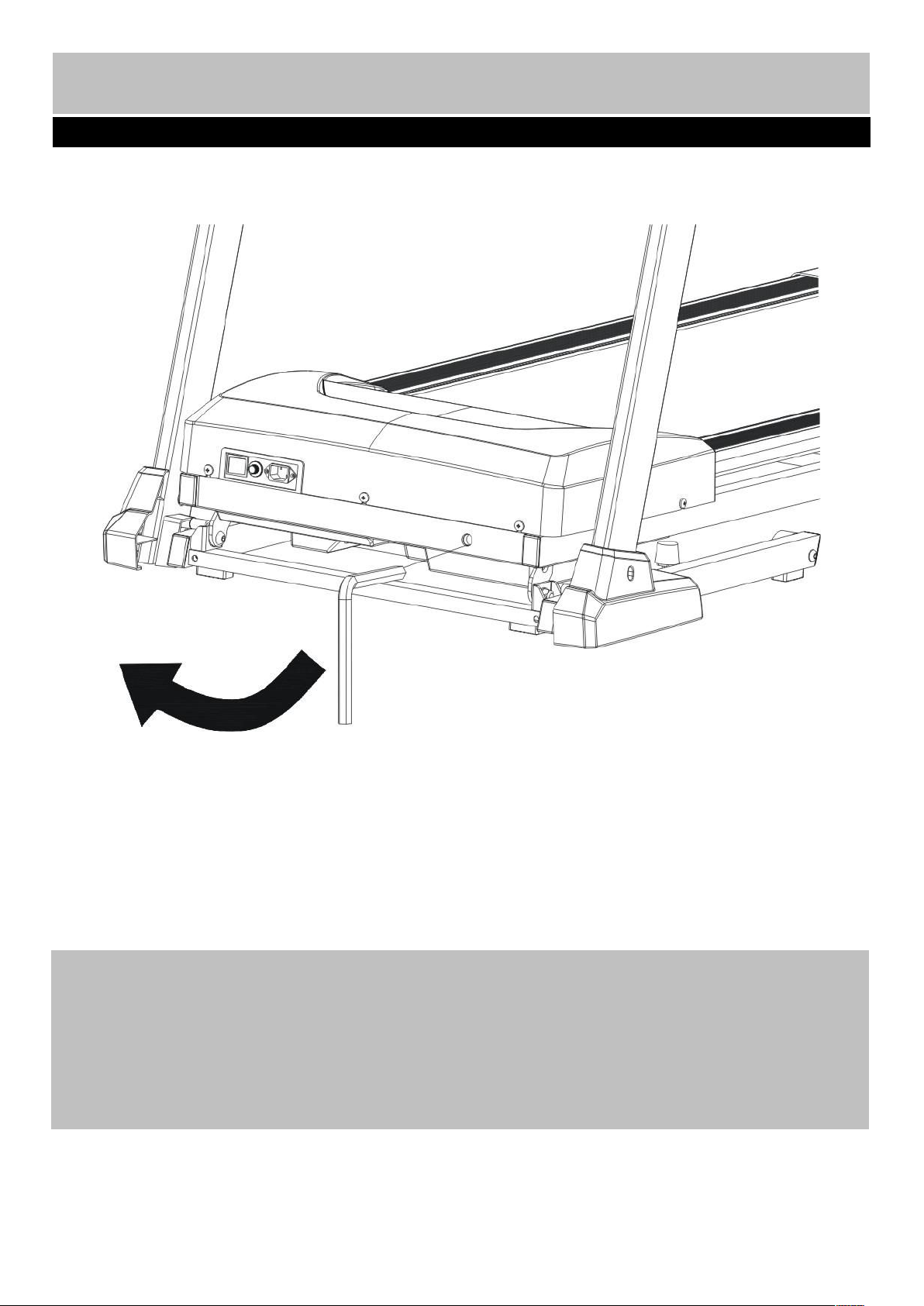

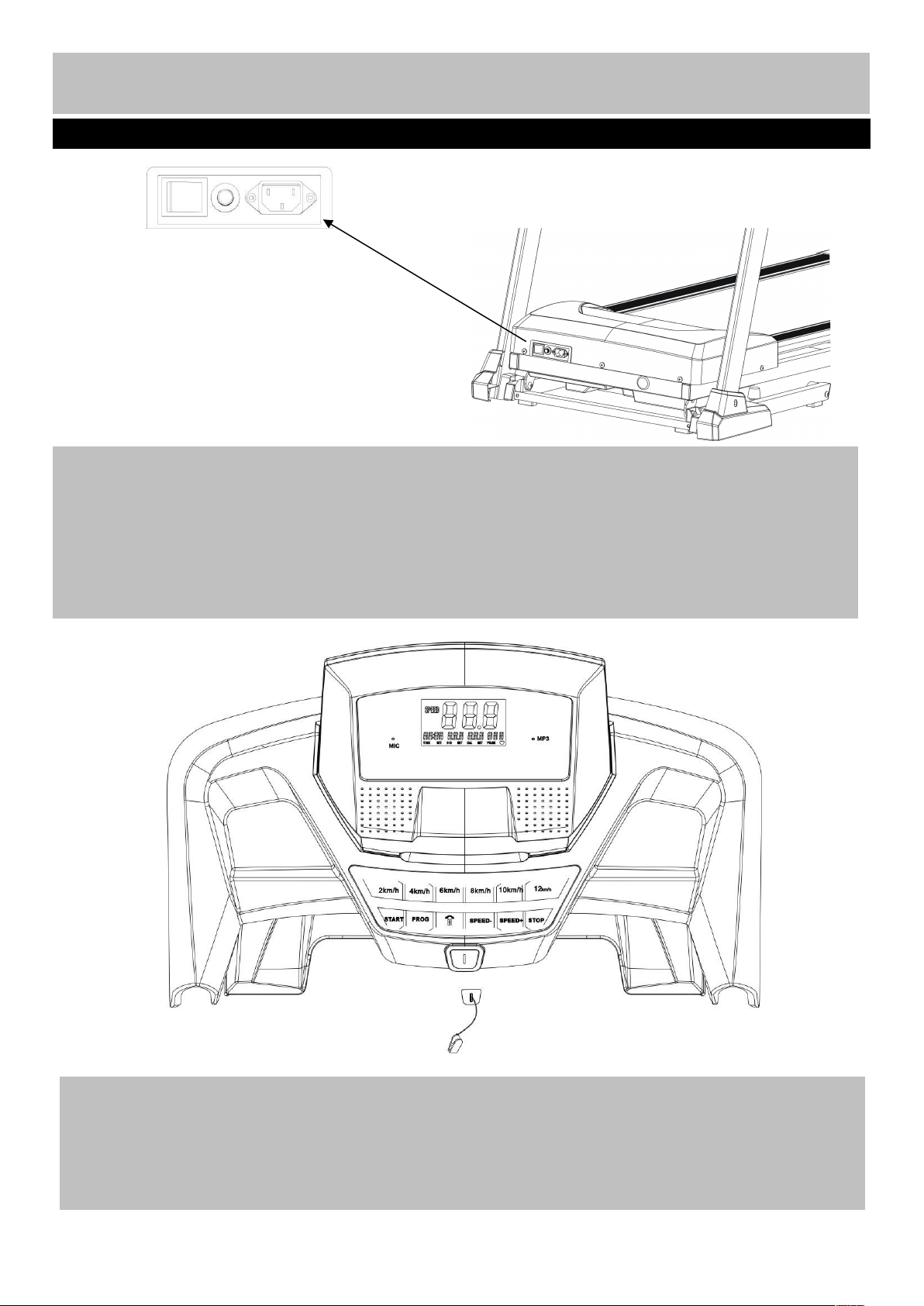

Plug in the mains power and turn on the switch (1). You will hear a signal tone and the screen of the Computer will light up.

OVER-CURRENT PROTECTOR:

There is an over-current protector (2) located on the right side of the switch (1) (see above picture); in case of short circuit or over-current, the Button of the over current protector will pop up and the treadmill will power off; please unplug the power source and push down the button, and then turn on the switch to restart your workout. If the button pops up again, please contact Argos.

Turning on the treadmill

1 2

Page 15

Computer Instruction

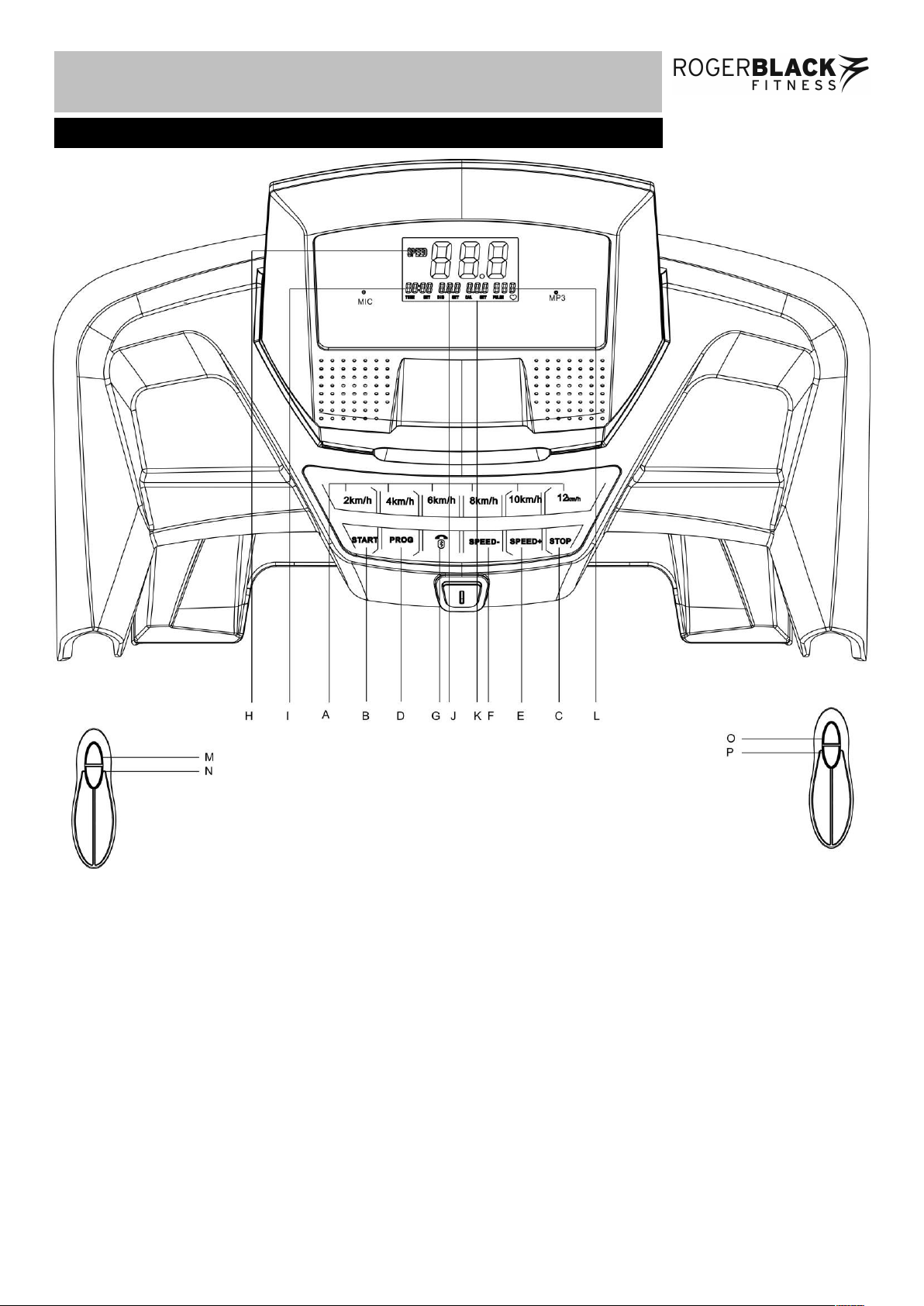

Front view of the Computer

A Quick Speed Select B Start C Stop D Prog E Speed+ F Speed- G Tel/Bluetooth H Speed

I Time J Dis K Cal L Heart rate M Start N Stop O Speed+ P Speed-

Page 16

TECHNICAL SPECIFICATION

Time---------------------------------0:00--99:59 Min Speed-------------------------------0.8--12.0 km/h Distance----------------------------0.00--99.9 km Calorie------------------------------0.0--999Kcal Pulse--------------------------------50--200 Times/ Min

START

Press to start exercise at initial speed 0.8km/h

STOP



Press during workout, and the treadmill will stop

by gradually reducing the speed.



Press again all display window will be cleaned

to zero.

QUICK SPEED SELECT

Press to select your desired running speed with 2, 4, 6, 8, 10, 12km/h.

SPEED UP/DOWN

 Press to increase/decrease exercise speed by

0.1km/km

 Press to select training time under program

workout model



Press to choose the desired training target

(Time, Distance, Calorie) under training target control workout model

PROGRAME

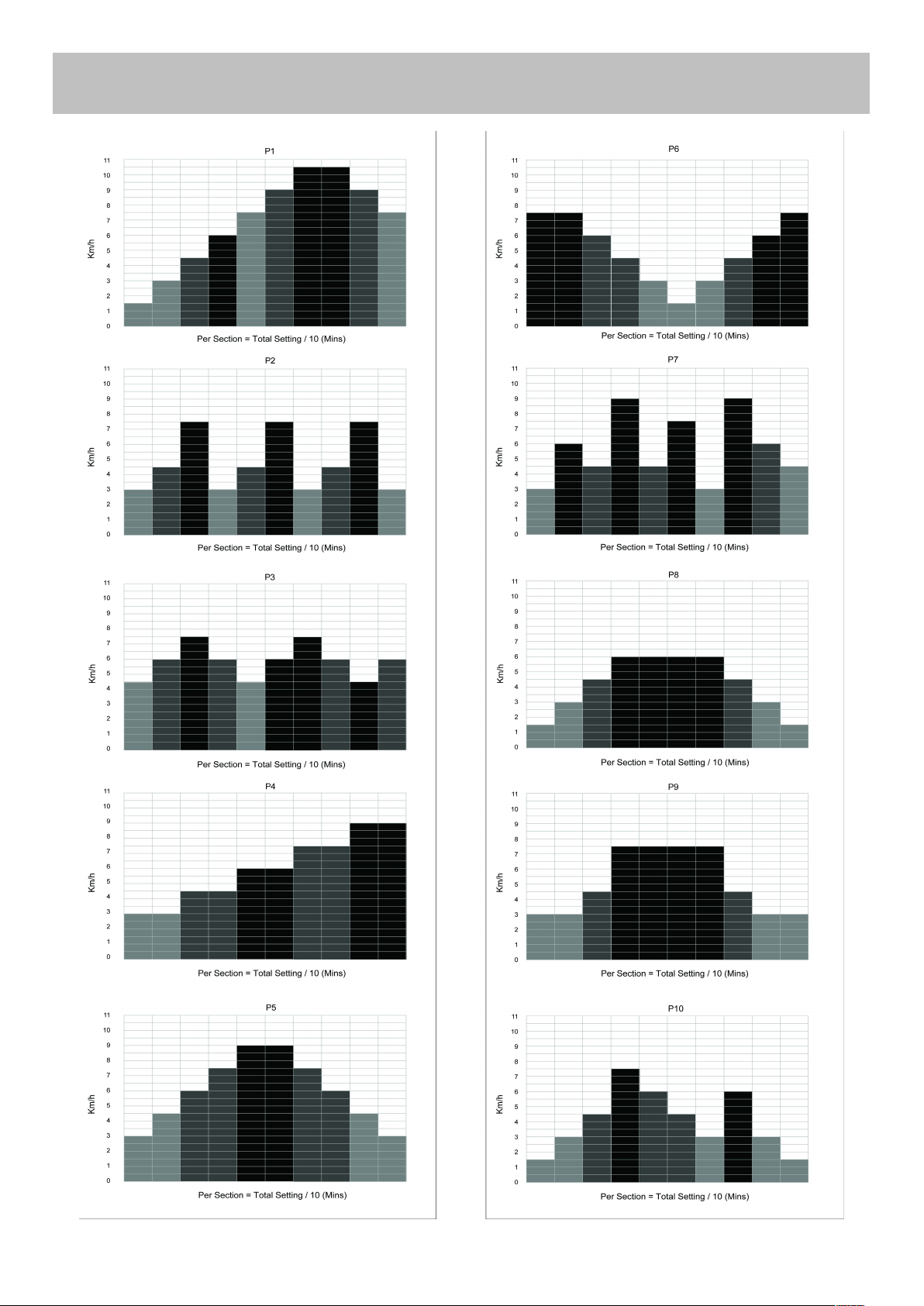

Press to select workout program (P01—P10).

BLUETOOTH

Turn your mobile phone Bluetooth on,connect with your treadmill(JXBLE-XXXX), then you can:

1.Play your mobile phone music,adjust the volume

by your mobile phone;

2.Press Bluetooth key to answer coming calls, press

it again to end the call.

For the most accurate heart rate measure, please hold both hand pulse sensors continuously during this programme.

Computer Operation

Functions and Operations

Page 17

IMPORTANT

1. The console will turn off automatically about

ten minutes after the belt has stopped.

2. The pulse function is for reference only, and

not to be used for medical purpose.

SAFETY KEY

1. The safety key must be placed into the

magnetic recess on the console in order to operate the treadmill. Always place the safety key on its position and attach the clip to your clothing at your waist before beginning your workout.

2. If you should encounter problems and need to

stop the motor immediately, simply pull the safety key away from the console; to continue operation, simply turn the power switch to off, set the speed controller to stop and then reinsert the safety key into the console.

GENERAL OPERATION

1.Turn on the Power Switch at the front of your

Treadmill. This switch is located next to the

Mains Power Cord inlet.

2.Place the Safety Key into the magnetic recess

on the middle front of the Computer

Console.

The console will give an audible signal and all console window displays function with a start display value of 0.

Note: If the Safety Key is not placed correctly or is faulty, the “Distance” window will display "E00", which indicates that the treadmill will not operate.

If the Safety Key falls off during exercise, the console will give an audible signal and “Distance” window will display “E00” and the treadmill will stop.

To stop the treadmill in an emergency, simply pull the safety key off its mount in the console front or simply press the red STOP button in the center of the console. It is important that you connect the clothing clip to your shirt or other suitable clothing during exercise to ensure that this safety system can operate easily.

To get a pre-exercise pulse rate, simply hold both Hand Pulse Sensors on either side of the Handlebar Supports for 5 seconds. The Pulse Range is between 50 ~ 200 Beats per Minute.

Note: The readings displayed by the computer should not be used for therapeutic purposes as they can vary due to the sensitivity of the equipment and the available pulse signal put out by individuals’ palms. To get the best accurate readings, keep the hands placed flat and firm on the PULSE PADS for 10 to 20 seconds, as this will allow the pulse reading to average and then settle.

Computer Operation

Functions and Operations

Page 18



START YOUR TREADMILL

Turn on the treadmill, and press “Start” button on the console.

Press “Speed +” or “Speed -” button to adjust speed or press handle “Speed + or Speed -” button to adjust speed. Press the key once, and the speed changes 0.1Km/H.

Also the user can press the “Quick Speed Select” button to select desired running speed.

 STOP YOUR TREADMILL

Press the “Speed -” button on the console, adjust or press handle “Speed -” button to reduce the speed to lower, then press the “Stop” key on the Console, and the treadmill will stop; turn off the switch if you intend to finish workout.

Pull away the Safe Key and the treadmill will stop itself, and then “Speed” window will display “E00”.

TRAINING TIME CONTROL WORKOUT MODE

Turn on the treadmill，press the “PROG” button one time, and the “Time” window flashes and displays “15:00”, which is the pre-set training time of the treadmill. Press “Speed +” / “Speed -” button to select your desired training time, (the range is 5:00—99:00).

Press “Start” button to start your workout, the time data will reduce gradually during your training and the treadmill will stop automatically when the “Time” window displays “0:00”.



TRAINING DISTANCE CONTROL

WORKOUT MODEL

Turn on the treadmill, press the “PROG” key two times, and the “Dis” (Distance) window flashes and displays “1.00”, which is the pre-set training distance of the treadmill.

Press “Speed +” / “Speed -” button to select your desired training distance (the range is 1.0—99.9).

Press “Start” button to start your workout, the time data will reduce gradually during your training and the treadmill will stop automatically when the “Dis” (Distance) window displays “0.00”.



BURNING CALORIE CONTROL WORKOUT

MODEL

Turn on the treadmill, press the “PROG” button three times continuously, the “Cal” (Calorie) window flashes and displays “50.0”, which is the pre-set burning calories of the treadmill.

Press “Speed +” / “Speed -” button to select target burning calories (the range is 10.0---999).

Press “Start” button to start your workout, the calories data reduce gradually during your training, and the treadmill will stop automatically when the “Cal” (Calorie) window display “0.0”.



SPEED ADJUSTMENT

In any training target control workout model, press “Speed +” /“Speed -” button button to choose your desired running speed.

Computer Operation

Functions and Operations

Page 19

1. Program Workout Model (P01—P10)

In this mode, the user has a choice of Program P01 – Program P10.

1. Press the “Prog. ” button four times, the

“Speed” window will display “P01” and the “Time” window will display “10:00”, which is the preset time of the treadmill for each program.

2. The preset workout time of the treadmill for

each program is 10:00Mins; when you finish selecting workout program, press “Speed +” / “Speed -” button to select your desired workout time (the range is: 5:00---99:00).

3. Press “Start” button and the treadmill will count

down and start operation. The start speed depends on the program you have chosen.

4. For all preset values, please refer to following

table and diagrams.

Any of the training program levels has 10 segments, and each segment time is 1/10 of total setting time; during any training segments, press the “Speed +” / “Speed -” button to adjust training speed.

Starting speed for each program

Program

Start Speed

P01

1.5Km/h

P02

3.0Km/h

P03

4.5Km/h

P04

3.0Km/h

P05

3.0Km/h

P06

7.5Km/h

P07

3.0Km/h

P08

1.5Km/h

P09

3.0Km/h

P10

1.5Km/h

Computer Operation

Functions and Operations

Page 20

Computer Operation

Page 21

1. PULSE CONTROL WORKOUT MODE

 Turn on the treadmill, press “Prog.” button

until the “Speed.” window display “HP1”. “Time” window displays “10:00” which is the treadmill pre set workout time for pulse control workout mode.

 Press “Speed +” or “Speed -” button to choose

your desired training time (5:00-99:00).

 Press the “PROG” button 5s, the “Speed”

window is displaying “120” . Press “Speed +” or “Speed -” button to set your pulse value (85-195).



Press “PROG” key to enter your setting

information when starting your workout, the treadmill will run with the speed 0.8km/h for about 1min warm up, you can adjust your speed during this time.



When your heart rate is over your setting heart

rate, then the treadmill will decrease incline by 10% every 20 seconds.

 The treadmill has three pulse control workout

modes, press “Prog.” button to select “HP1” “HP2 “ or “HP3”.

Note: HP1 Pulse Control Workout Mode, the

treadmill default Max running speed is 8Km/h, HP2 and HP3 Max running speed is 9Km/h &10Km/h. We recommend you to read target heart rate zone table on page 19 carefully before you starting Pulse Control Workout.

Computer Operation

Functions and Operations

Page 22

User’s Target Heart Rate Table

Heart Beat

Computer Operation

Workout at Your Target Heart Rate

(Times/Mins)

AGE

H Default L H Default L H Default L

15 195 123 123 37 174 110 110 59 153 97 97

16 194 122 122 38 173 109 109 60 152 96 96

17 193 122 122 39 172 109 109 61 151 95 95

18 192 121 121 40 171 108 108 62 150 95 95

19 191 121 121 41 170 107 107 63 149 94 94

20 190 120 120 42 169 107 107 64 148 94 94

21 189 119 119 43 168 106 106 65 147 93 93

22 188 119 119 44 167 106 106 66 146 92 92

23 187 118 118 45 166 105 105 67 145 92 92

24 186 118 118 46 165 104 104 68 144 91 91

AGE

Heart Beat (Times/Mins)

AGE

Heart Beat

(Times/Mins)

25 185 117 117 47 164 103 103 69 143 91 91

26 184 116 116 48 163 103 103 70 143 90 90

27 183 116 116 49 162 103 103 71 142 90 89

28 182 115 115 50 162 102 102 72 141 90 89

29 181 115 115 51 161 101 101 73 140 90 88

30 181 114 114 52 160 101 101 74 139 90 88

31 180 113 113 53 159 100 100 75 138 90 87

32 179 113 113 54 158 100 100 76 137 90 86

33 178 112 112 55 157 99 99 77 136 90 86

34 177 112 112 56 156 98 98 78 135 90 85

35 176 111 111 57 155 98 98 79 134 90 85

36 175 110 110 58 154 97 97 80 133 90 84

Page 23

2. BODY FAT ANALYSIS

 Turn on the treadmill, press “PROG” button till

the “Speed ” window displays “FAT”.

 Press the “PROG” button 5s, the “Speed”

window is displaying “01”, the “Time ” window is

displaying “F - 1”.Press “Speed +” or “Speed -”

Key , the “Speed” Window will change to“ 01” or “0 2 ”, Please select your sexual distinction, “ 01” – Male, “02” – Female.



Press the “PROG” key again, the “Speed”

window displays: “25” – Which is the treadmill preset user’s age,the “Time ” window is

displaying “F - 2” .Press “Speed +” or “Speed -”

button to select your correct age. (Range is: 10 – 99).

 Press the “PROG” button again, the “Speed”

window displays “170” – Which is the treadmill preset user’s body height 170cm,the “Time ”

window is displaying “F - 3”.Press “Speed +” or

“Speed -” button or press “Incline +” or “Incline -” key to select your correct body height. (Range is: 100 – 200cm).



Press the “PROG” button again, the “Speed”

Window displays: “70” Which is the treadmill preset user’s body weight 70kg,the “Time ”

window is displaying “F - 4”. Press “Speed +” or

“Speed -” button to select your correct body weight. (Range is : 20 –110kg).

 Press “PROG” key again, the “Time ” window is

displaying “F - 5” and the “Speed” window is displaying: “ --- “ . Grasp the two handle pulse sensor with your two hands and hold for about 3 seconds, the “Pulse” window will display your desired body fat rate, refer to below table for your body fat date.

Body Fat Scale Parameter Table

Computer Operation

Functions and Operations

Body Fat ≤18.5 Under Weight

Body Fat =( 20—25) Ideal Weight

Body Fat =( 25—29) Over Weight

Body Fat ≥30 Obesity

Page 24

This product is warranted to be free from defects in workmanship and material, under normal use and service conditions, for a period (1) one years from the date of purchase. This warranty only applies to the original purchaser, and is limited to replacing or repairing. All repairs for which warranty claims are made must be pre-authorized by the manufacturer. This warranty does not apply to any product or damage to the product caused by or attributed to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an authorized service center, products used for commercial or rental purpose, or products used as store display models. No other warranty beyond that specifically set from above is authorized.

The Manufacturer is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use of the product or damages with respect to any economic, property, revenues or profits, and enjoyment loss or use, costs of removal. The warranty extended hereunder is in lieu of any

and all other warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth within.

This warranty gives your specific legal rights.

HOW TO ORDER REPLACEMENT PARTS

If you encounter any problem with the product, or need to order replacement parts, call UK

Customer Service：0345 604 0105 or visit www.argoshelpdesk.co.uk. To help us assist you,

please be prepared to give us the following information:

The Model Number of the product (3098459). The name of the product (Platinum Treadmill) The Serial Number/Manufacturing Date of the product/the description of the part(s),the purchase date and order number also required.

Limited Warranty

UK Only

Page 25

Proper maintenance is very important to ensure a faultless and operational condition of the treadmill. Improper maintenance can cause damage to the treadmill or shorten the life of the product and exceed the LIMITED WARRANTY coverage.



Important: Never use abrasives or solvents to

clean the treadmill. To prevent damage to the computer, keep liquids away and keep it out of direct sunlight.



All parts of the treadmill must be checked and

tightened regularly. Worn out parts must be replaced immediately.

BELT ADJUSTMENT

You may need to adjust the running belt during the first few weeks of use. All running belts are properly set at the factory. It may stretch off the center after use. Stretching is normal during the break-in period.

ADJUSTING THE BELT TENSION

If the running belt feels as though it is “slipping” or hesitating when you plant your foot during a run, the tension on the running belt may have to be increased.

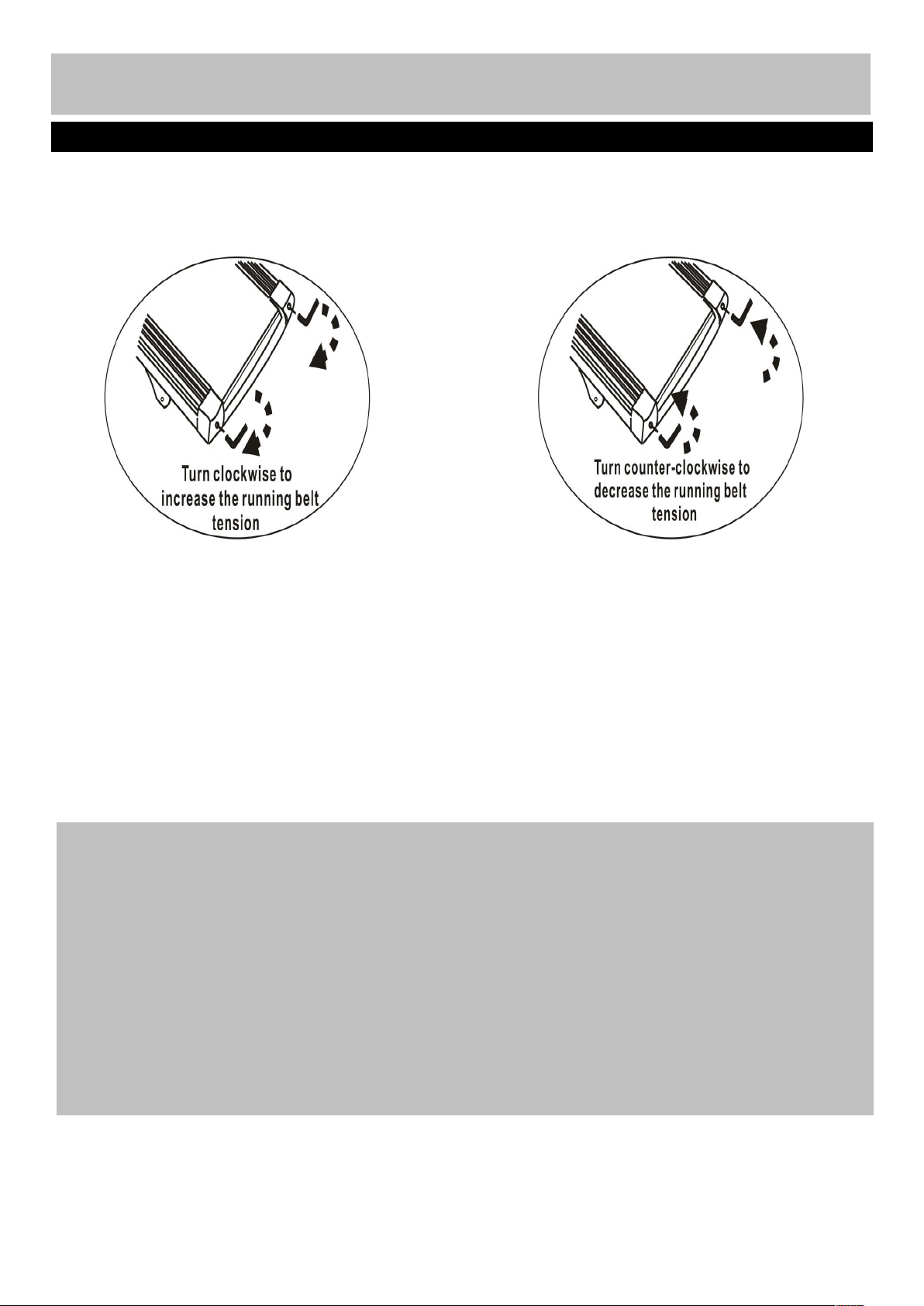

TO INCREASE THE RUNNING BELT TENSION

STEP 1: Place 6# Allen wrench on the left belt tension bolt. Turn the wrench clockwise 1/4 turn to draw the rear roller and increase the belt tension.

STEP 2: Repeat STEP 1 for the right belt tension bolt. You must be sure to turn both bolts the same number of turns, so the rear roller will stay square relative to the frame.

 Repeat STEP 1 and STEP 2 until the slipping

is eliminated.



Be careful not to tighten the running belt

tension too much as you can create excessive pressure on the front and rear roller bearings. An excessively tightened running belt may damage the roller bearings that would result in bearing noise from the front and rear rollers.

TO DECREASE THE TENSION ON THE RUNNING BELT, TURN BOTH BOLTS COUNTER-CLOCKWISE THE SAME NUMBER OF TRUNS.

CENTERING THE RUNNING BELT

When you run, you may push off harder with one foot than with the other. The severity of the deflection depends on the amount of force that one foot exerts in the relation to the other. This deflection can cause the belt to move off-center. This deflection is normal and the running belt will center when nobody is on the running belt. If the running belt remains consistently off-center, you will need to center the running belt manually.

Maintenance

Belt Adjustment

Page 26

Maintenance

Centering the Running Belt

1. Start the treadmill without anyone on the running belt, press “Speed+” button until speed reaches 6Km/h.

2. Observe whether the running belt is toward the right or left side of the deck.

a) If toward the left side of the deck, using 6# Allen Wrench, turn the left adjustment bolt clockwise 1/4 turn and let the running belt will find its new position; if it’s still moving toward left side, turn the bolt

further for 1/4 turn. b) If toward the right side of the deck, using 6# Allen Wrench, turn the right adjustment bolt clockwise 1/4 turn and let the running belt will find its new position; if it’s still moving toward right side, turn the bolt further for 1/4 turn. c) If the belt is still not center, repeat the above steps until the running belt is centered.

3. After the belt is centered, increase the speed to 12km/h and verify that it is running smoothly. Repeat the above steps if it is necessary. If the above procedure is unsuccessful in resolving the off-center, you may need to increase the belt tension.

Centering the Running Belt

Page 27

Maintenance

During your workout, if you find the running belt is not running smoothly, that means the motor belt is loosing, please follow the below steps to adjust the motor belt tension:

1. Turn the motor belt adjustment bolt using an M8 Allen wrench 1/4 turn in clockwise direction.

2. Re-Start the treadmill and run on the treadmill; if the running belt is still not working properly, repeat

above step.

3. Please do not make the motor belt too tight; if the belt is over tightened, it will cause the treadmill over

loading and reduce the motor life.

Motor Belt Tension Adjustment

Page 28

The treadmill is pre-lubricated. However, it is

recommended to check the lubrication of the

treadmill regularly, to ensure an optimal operation

of the treadmill.

After every 2 months of operation, lift the sides of the treadmill and feel the surface of the belt, as far as possible. If traces of silicon spray are found, lubrication is not necessary. In case of a dry surface, refer to the instructions below.

Only use 100% silicon oil to lubricate your treadmill deck.

To apply lubricant on the belt



Position the belt so that the seam is located in

the middle of the plate.

 Lift the belt at one side and hold the spray

valve at a distance of approximately 15cm to the front end of belt and plate.Then spray from front to the end. Repeat this process on the other side of the belt. Spray each side for about 4 seconds.



Wait 1 minute to let the silicon spray spread,

before starting the machine.

CLEANING

Regular cleaning of the belt ensures a long product life.

 Warning: The treadmill must be turned off to

avoid electric shocks. The power cord must be pulled out of the socket, before starting the cleaning or maintenance.

 Caution: Do not use any abrasives or

solvents. To avoid damage to the computer, keep any liquids away. Do not expose the computer to direct sunlight.



After each training: Wipe the console and

other surfaces with a clean soft and damp cloth to remove sweat residues.

 Weekly: To make cleaning easier, it is

recommended to use a mat under the treadmill. Shoes can leave dirt on the belt that can fall beneath the treadmill. Clean the mat under the treadmill once a week.

STORAGE

Store you treadmill in a clean and dry environment. Ensure the master power switch is off and is un-plugged from the electrical wall outlet.

Maintenance

Deck Lubrication

Page 29

Symptom Cause And Check Solution

E00 Safety Key not in position Re-locate the safety key in correct position

E01 Controller communication error

A: Check the Main Controller Wire B: Replace the controller

E02 Motor communication error

A: Check the wire from motor to controller B: Replace the controller C: Check the power voltage if 50% lower than rate voltage

E05 Over current protector A: Over loading or over resistance

B: Replace controller

E06 Motor Open Circuit Connect the Motor link

E08 Driver Error Replace the driver

Maintenance

Trouble Shooting

Page 30

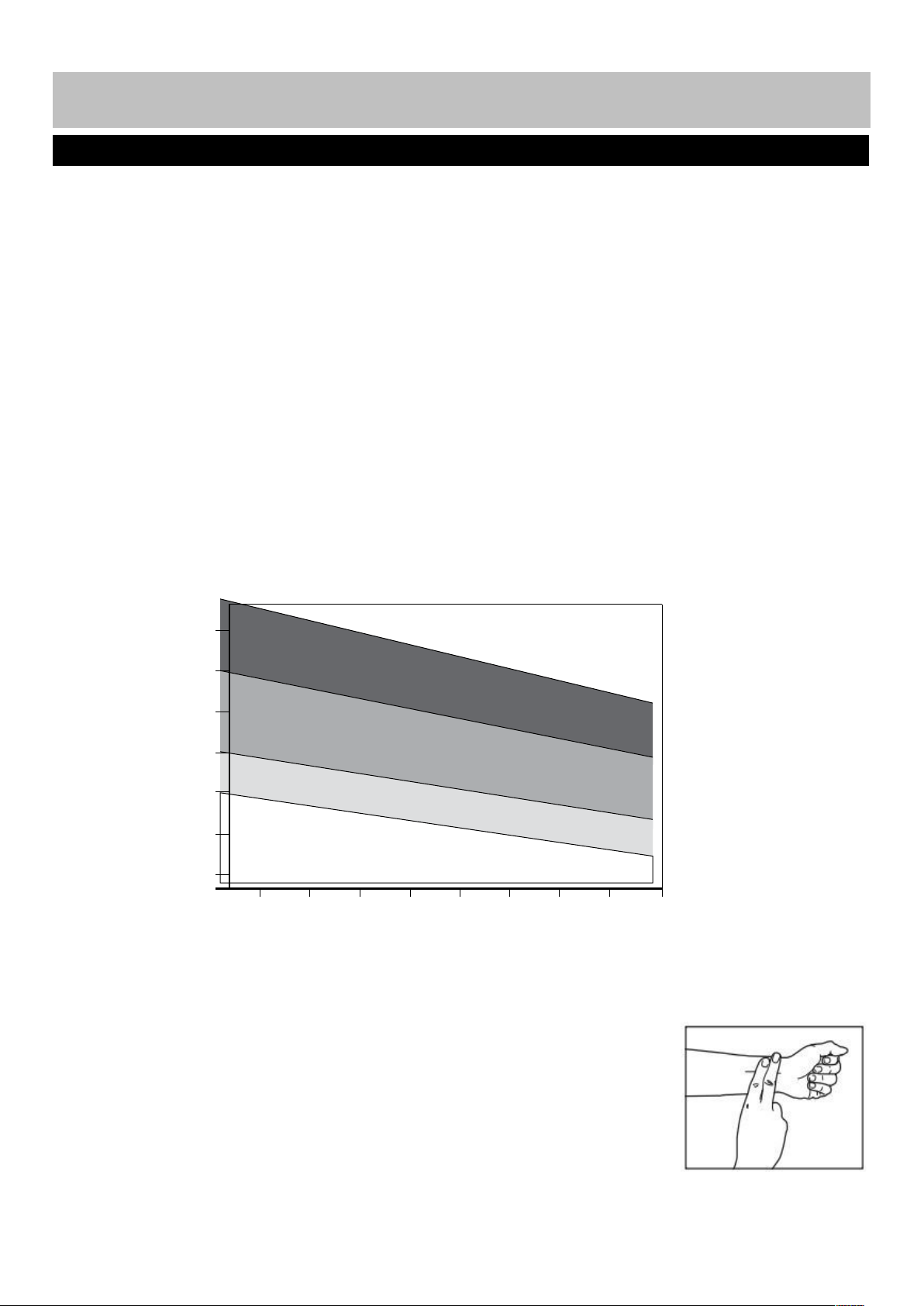

85% to Max

65% to 85%

55% to 65%

Up to 55%

How you begin your exercise program depends on your physical condition. If you have been inactive for

Exercise intensity

200

180

160

140

120

100

Age

During the first few months of your exercise program, keep your heart rate near the low end of your target zone

Exercising Information

Cardiovascular performance

Intermediate aerobic

Effective fat burning

Beats per minutes (bpm)

Before starting to exercise

several years, or are severely overweight, you must start slowly and increase your time on the equipment; a few minutes per workout.

Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic fitness will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at your own pace. Ultimately, you’ll be able to exercise continuously for 30 minutes. The better your aerobic fitness, the harder you will have to work to stay in your target zone.

Please remember these essentials:

• Have your doctor review your training and diet programs to advise you of a workout routine you should adopt.

• Begin your training program slowly with realistic goals that have been set by you and your doctor.

• Monitor your pulse frequently. Establish your target heart rate based on your age and condition.

• Set up your equipment on a flat even surface at least 3 feet from walls and furniture.

To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate should be maintained at a level between 65% and 85% of your maximum heart rate as you exercise. This is known as your target zone. You can find your target zone in the table below.

25 30 35 40 45 50 55 60 70

as you exercise. After a few months, your heart rate can be increased gradually until it is near the middle of your target zone as you exercise.

To measure your heart rate, stop exercising but continue moving your legs or walking around and place two fingers on your wrist. Take a six-second heartbeat count and multiply the results by 10 to find your heart rate. For example, if your six-second heartbeat count is 14, your head rate is 140 beats per minute. (A six-seconds count is used because your heart rate will drop rapidly when you stop exercising.) Adjust the intensity of your exercise until your heart rate is at the proper level.

Page 31

Aerobic Exercise

Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic

Weight Training

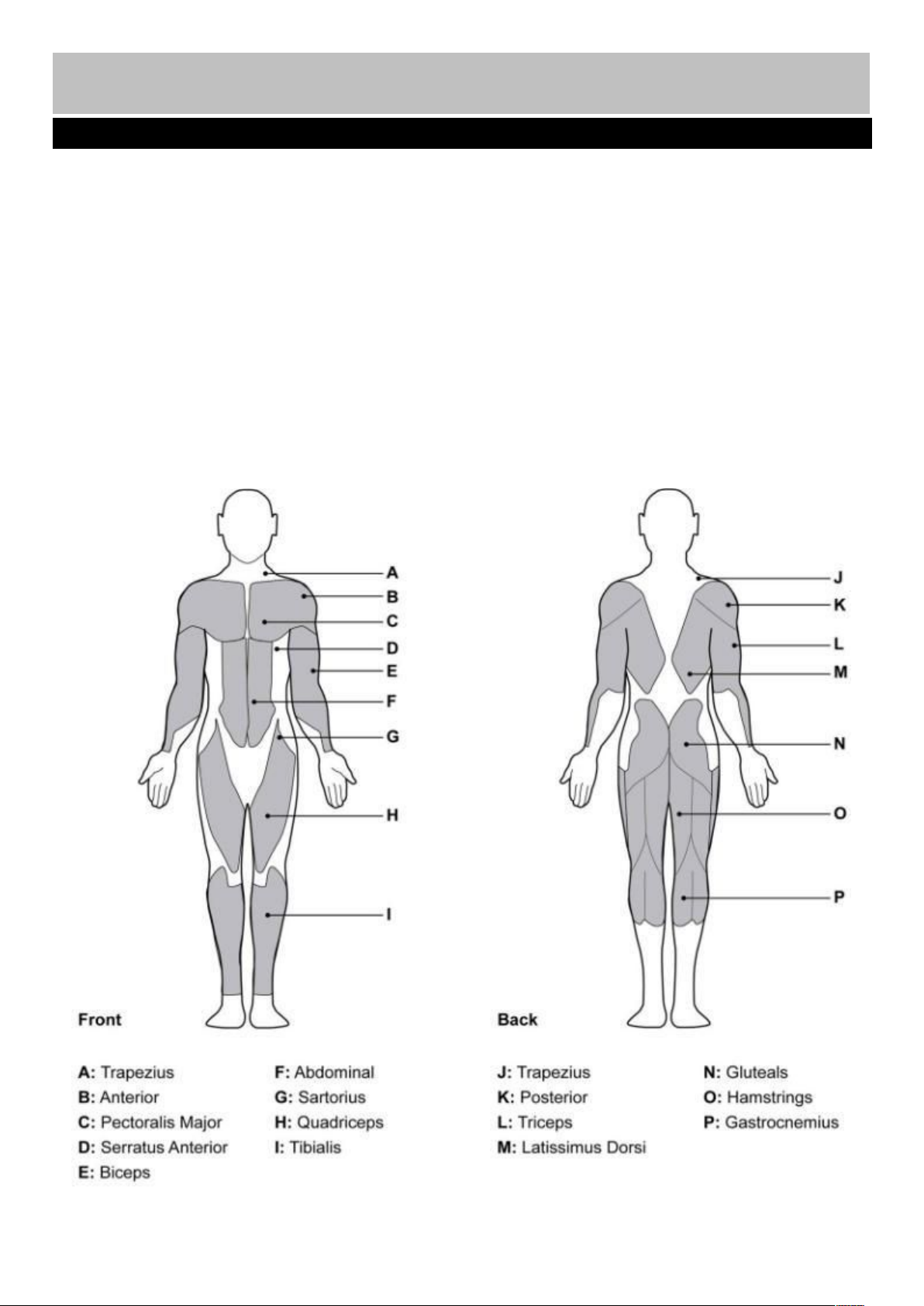

Targeted Muscle Groups

Exercising Information

Muscle Chart

exercise fitness is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example). Your heart beats quickly and you breathe deeply. An aerobic exercise should be part of your entire exercise routine.

Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store, weight training is an essential part of the exercise routine process. Weight training helps tone, build and strengthen muscle. If you are working above your target zone, you may want to do a lesser amount of reps. As always, consult your doctor before beginning any exercise program.

The exercise routine that is performed on the Treadmill will develop the upper and lower body muscle groups. These muscle groups are highlighted on the muscle chart below.

Page 32

Each workout should include the following three parts:

Exercise Frequency

Toe touch stretch

Hamstring stretch

Exercising Information

Warming up and Cooling down exercises

1. A warm up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm up increases your body temperature, heart rate and circulation in preparation for exercise.

2. Training zone exercise consisting of 20 to 30 minutes of exercising with your heart rate in your training zone. (Note: During the first few weeks of your exercise programmer, do not keep your heart rate in your training zone for longer than 20 minutes.)

3. A cool down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.

To maintain or improve your condition, plan three workouts each week with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

Hold 15 counts, and then relax.

Repeat 3 times.

Stretches: Hamstrings, back of knees and back.

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible.

Hold for 15 counts, and then relax.

Repeat 3 times for each leg.

Stretches: Hamstrings, lower back and groin.

Page 33

Inner thigh stretch

Calf / Achilles stretch

Quadriceps stretch

Stretches: Quadriceps and Hip muscles.

Sit with the soles of your feet together

and your knees outward. Pull your feet

toward your groin area as far as possible.

Stretches: Quadriceps and Hip muscles.

Exercising Information

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall.

Hold for 15 counts, and then relax.

Repeat 3 times for each leg. To cause further stretching of the Achilles tendons, bend your back leg as well.

Stretches: Calves, Achilles Tendons and Ankles.

With one hand against the wall for balance, reach back and grasp one foot with your other hand. Keeping your bent knee pointing directly downward towards the floor, gently pull your heel towards your buttock until you feel a gentle stretch in the target area.

Hold for 15 counts, and then relax.

Repeat 3 times for each leg.

Hold for 15 counts, and then relax.

Repeat 3 times.

Page 34

1. Examine the equipment

periodically in order to detect any damage or wear which may have been produced.The safety level of the equipment can be maintained only if it is examined regularly for damage and wear, e.g. belt, connection points.

Lubricate moving parts with light oil periodically to prevent premature wear.

3. Replace defective

components immediately and/or keep the equipment out of use until repair.

Special attention to components most susceptible to wear.

4. The equipment can be

cleaned using a damp cloth

and mild non-abrasive detergent. Do not use solvents.

5. Do not attempt to repair this

equipment yourself. Should

you have any difficulty with assembly, operation or use of your exercise product or if you think that you may have parts missing, contact the manufacturer,their approved service agent or

the Customer Helpline: 0345 604 0105. www.argoshelpdesk.co.uk

Guarantee:

For guarantee purposes,

please retain your purchase receipt.

Care and Maintenance

Page 35

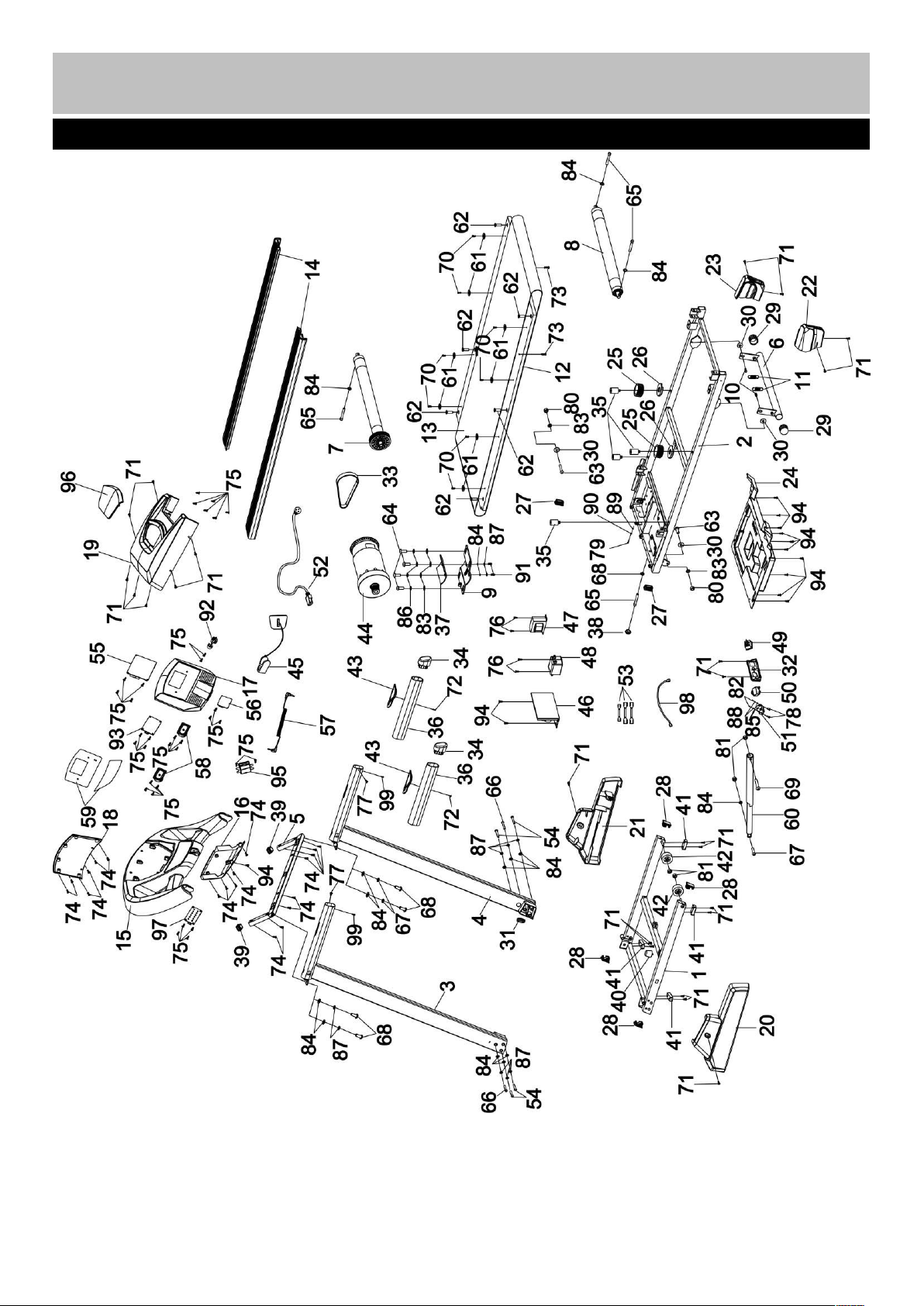

Exploded Parts Diagram

Page 36

Key No. Description QTY

Key No.

Exploded Parts List

1 Base frame 1 28 End Cap 4

2 Running stage 1 29 End Cap 2

3 Left console mast 1 30 Washer 4

4 Right console mast 1 31 Flinger 1

5 Console frame 1 32 Switch box 1

6 Incline frame 1 33 Motor belt PJ483/190J 1

7 Front roller 1 34 End cap 2

8 Rear roller 1 35 Cushion 4

9 Motor support 1 36 Handle grip 2

10 M8 ×Ф12 ×32mm Bolt 2 37 Rubber Cushion 1

11 Spring 2 38 End cap 1

12 Running deck 1 39 End cap 2

Description QTY

14 Side rail 2 41 Shock pad 4

15 Console housing 1 42 Roller 2

16 Back cover 1 43 Pulse sensor 2

17 Display screen 1 44 Motor 1

18 Screen cover 1 45 Safety key 1

19 Motor cover 1 46 Controller 1

20 Left mast cover 1 47 Inductor 1

21 Right mast cover 1 48 Filter 1

22 Left end cap 1 49 Switch 1

23 Right end cap 1 50 Over current Protector 1

24 Motor bottom cover 1 51 Power Socket 1

25 Shock pad 2 52 Power cord 1

Running belt 2580×420mm

1 40 Cushion 1

26 Shock pad bracket 2 53 Short cords (Connectors of 47/48/49) 1

27 End Cap 2 54 M8×90mm Allen bolt 4

Page 37

Key No. Description QTY Key No. Description QTY

55 PC Board 1 78 M3×12mm Philips Screw 2

56 Bluetooth module 1 79 M4×10mm Philips Screw 1

57 MP3 Link 1 80 M10 Aircraft Nut 2

58 Speaker 2 81 M8 Aircraft Nut 4

59 Sticker 1 82 M3 Hex Nut 2

60 Air spring 1 83 Ф

10mm Washer

61 Washer Ф25×Ф15×5mm 8 84 Ф8mm Washer 15

62 M8×24mm Philips Screw 6 85 Ф3mm Washer 2

63 M10×25mm Allen Bolt 2 86 Ф

10mm Spring Washer

64 M10×20mm Allen Bolt 4 87 Ф8mm Spring Washer 12

65 M8×60mm Allen Bolt 4 88 Ф

3mm Spring Washer

66 M8×80mm Allen Bolt 2 89 Ф4mm Washer 1

67 M8×30mm Allen Bolt 1 90 Ф4mm Spring Washer 1

68 M8×20mm Allen Bolt 4 91 M8×15mm Allen bolt 2

69 M8×45mm Allen Bolt 1 92 MP3 Module 1

ST4.8×15mm Philips Screw

8 93 Function board 1

ST4.8×15mm Dome Head Philips Screw

21 94 ST4.8×12mm Dome Head Philips Screw 16

ST4.2×50mm Dome Head Philips Screw

2 95 Safety key plug 1

ST4.2×25mm Dome Head Philips Screw

2 96 Plaque 1

ST4.2×15mm Dome Head Philips Screw

21 97 Key board 1

ST2.9×8mm Dome Head Philips Screw

32 98 Main wire (Console-MCB cables) 1

ST4.2×12mm Dome Head Philips Screw

4 99 ST4.2×15mm Dome Head Philips Screw 2

ST2.9×10mm Dome Head Philips Screw

Exploded Parts List

Page 38

Guarantee

Product Guarantee

This product is guaranteed against manufacturing defects from a period of

This product is guaranteed for twelve months from the date of original

purchase. Any defect that arises due to faulty materials or workmanship

will either be replaced, refunded or repaired free of charge where possible

during this period by the dealer from whom you purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts,

knobs or consumable items.

• The product must be correctly installed and operated in accordance with

the instructions contained in this manual.

• It must be used solely for domestic purpose.

• The guarantee will rendered invalided if the products is re-sold or has been

damaged by inexpert repair.

• Specifications are subject to change without notice.

• The manufacturer disclaims any liability for the incidental or consequential

damages.

• The guarantee is in addition to, and does not diminish your statutory or

legal right.

• In the event of problem with the product with in the guarantee period call

Customer Helpline: 03456040105 www.argoshelpdesk.co.uk

Guarantor: Argos Ltd

489 – 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW

Year
