Jasmin Bistro Table.
Assembly Instructions -
Please keep for future reference
304/4733
304/4733
Dimensions
Diameter-70cm
Height-72.5cm
Important –
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
For further assistance please visit http://www.argos-support.co.uk/
Please read these instructions fully before starting assembly
Issue 1 - 26/05/10
page 2.
This product has been
designed for careful domestic
outdoor use.
When using a parasol with this
table,always use a parasol
base.

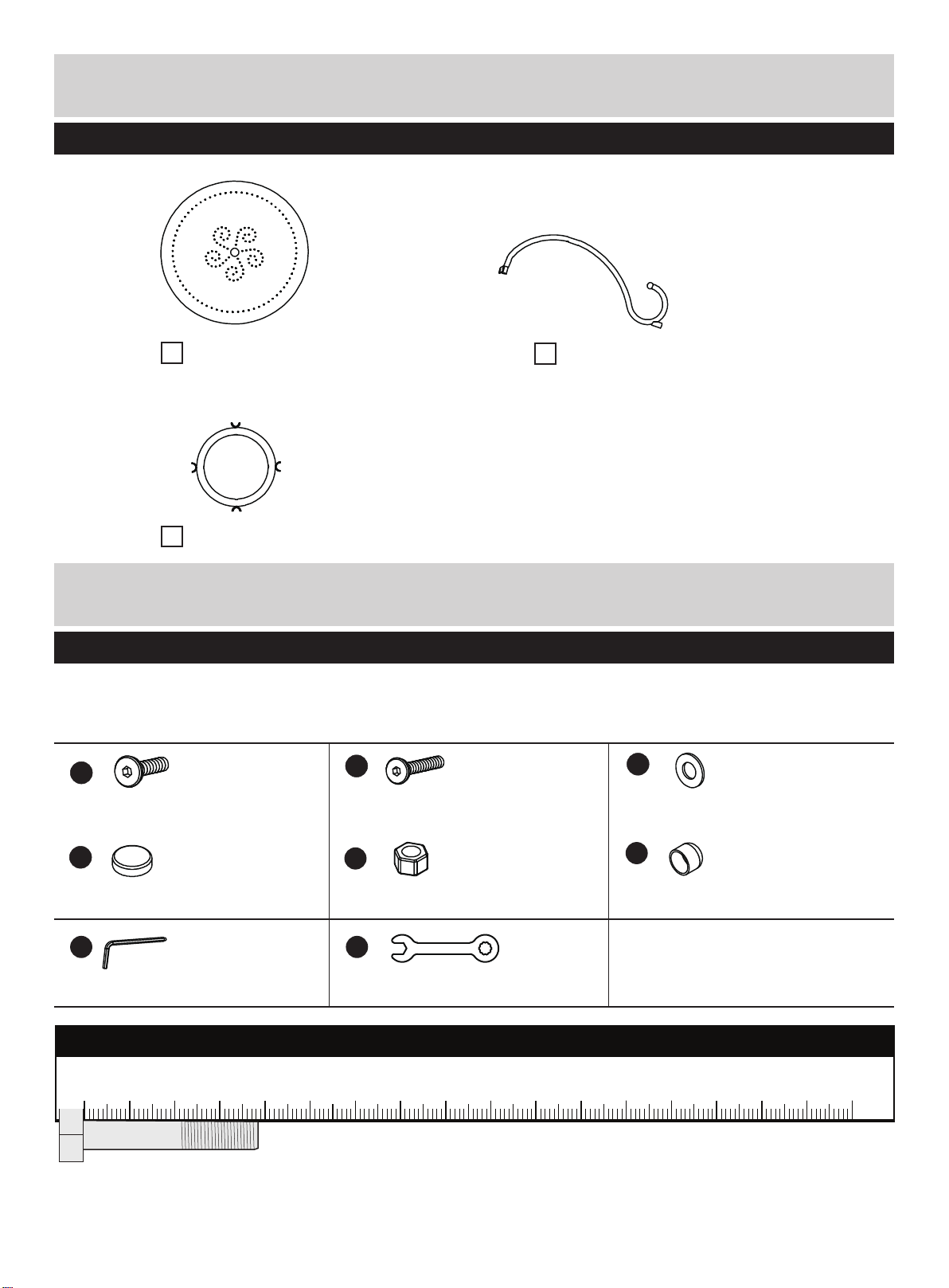

Components - Parts
Please check you have all the parts listed below
1
Table top x1
3
Small top x1
Components - Fittings
Please check you have all the fittings listed below
Note:
The quantities
A
M6*12mm Screw×8
below are the correct amount to complete the assembly.
B
M6*52mm Screw×4
2
Table leg x4
C
Metal washer x16
D
Plastic cap x12
G H
Allen key x1
E
Nut x4
Spanner x1
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
F
Plastic cap x4
2
Assembly Instructions

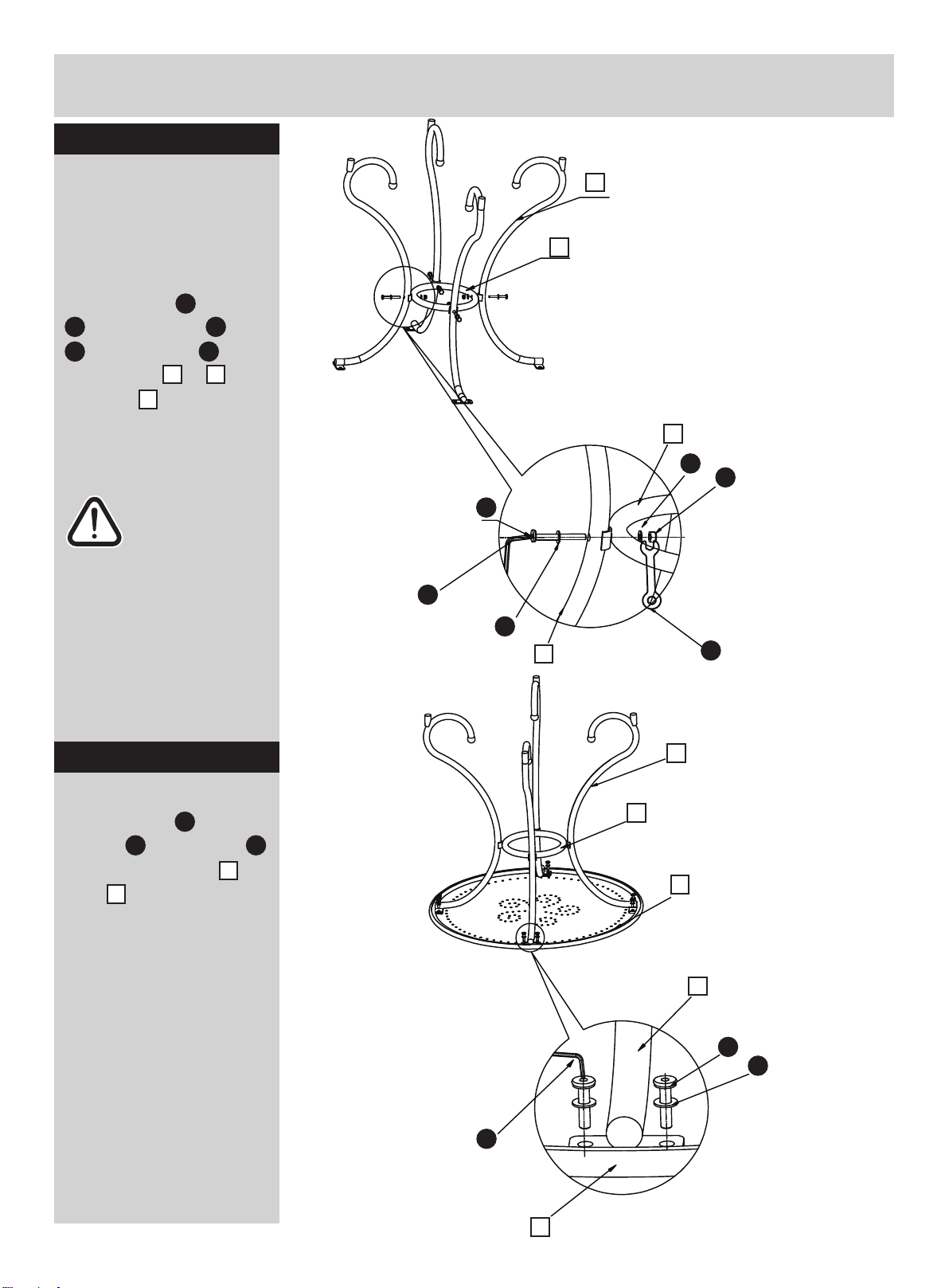

Step 1
Assembly frame
Assembly should be carried
out by two people.
Use allen key G ,screws
B metal washer C ,nuts
E and spanner H to fix
the small top 3 to 4
table legs 2 .
Important:
Do not fully
tighten all screws
until assembly is
complete.
2
3
3
C
E
B
G
C
2
H
Step 2
Use allen key G ,metal
washer C and screws A
to fix the table legs 2 to
table 1
Tighten all the scews
2
3
1
2
A
C
G
3
1
Step 3
Seal all the screws A & B
and nuts E with plastic caps
D & F .
2
D
E
F
2
D
A
Step 4
Turn the table to its upright
position
B
3
1
B
