Page 1

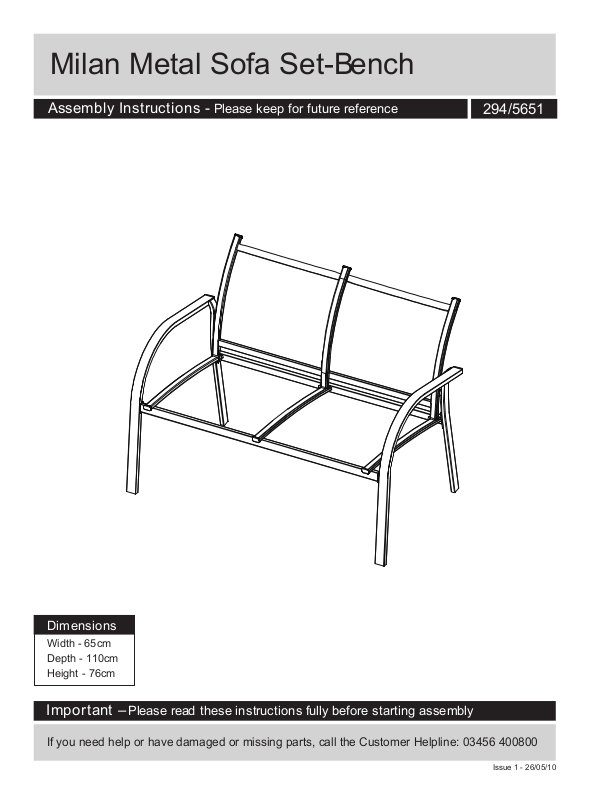

Milan Metal Sofa Set-B ench
Assembly Instructions -
Please keep for future reference
294/5651
Dimensions
Width - 65cm
Depth - 110cm
Height - 76cm
Important –
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please read these instructions fully before starting assembly
Issue 1 - 26/05/10
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2.
•
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make su re you have enough
space to layout the parts before
starting.
Care and mainte nance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Do not stand or put weight on the
product during assembly, this could
cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
chair or your floor.
• Parts of the assembly will be
easier with 2 people.
r
• F om time to time check that
the e are no loose screws on
r
this armchair.
• We do not
recommend the
use of power
drill/drivers for
inserting screws ,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Maximum safe seated
weight: 220 kgs.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Make sure each screw
matches the corresponding
figure to ensure correct
assembly.
• Do not fully tighten all screws
until assembly is complete.
1
Page 3
Components - Parts
Please check you have all the parts listed below
1-D 2-D
3
L eg x1
Back board x1
Components - Fittings
Please check you have all the fittings listed below
Note:
The quantities
fittings may be supplied than are required.
A
6mm Screw x 13
below are the correct amount to complete the assembly. In some cases more
B
Metal washer x 13
L eg x1
4
Seat board x1
2
Page 4
Assembly Instructions
Step 1
Assembly frame
Suggest to complete this
product assembly by two
person.
Use screws A ，metal
washers B and Allen key
C to fix seat board 4 to
chair legs & .
1-D 2-D
Important:
Do not fully
tighten all screws
until assembly is
complete.
B
A
1-D
B
4
A
2-D
Step 2
Use screws A ,metal
washer B and allen key
C to fix bank board 3 to
seat board 4 and chair
legs & .
1-D 2-D
Tighten all the screws.
Assembly is complete.
B
A
B
A
3
If you need help or have damaged or missing parts, call the
Argos Limited
489-499 Avebury Boulevard Saxon Gate West Central Milton Keynes Bucks,MK9 2NW
3
008004 654 30 :enilpleH remotsuC
