Argos 2745404 ASSEMBLY INSTRUCTIONS

Assembly Instructions - Please keep for future reference
Issue 5 - 20/05/14
MADE IN
BRITAIN
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 37.5cm
Depth - 40cm
Height - 58cm
New Hallingford - 3 Drawer Bedside
274/4917
266/4509
258/7693
266/2910
266/7379
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 14kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
• We do not recommend the use of power drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: If there is any chance of this unit being pulled over by children etc. it is recommended that the unit is secured to a wall using suitable fixings (not supplied).
• Dispose of all packaging carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
2

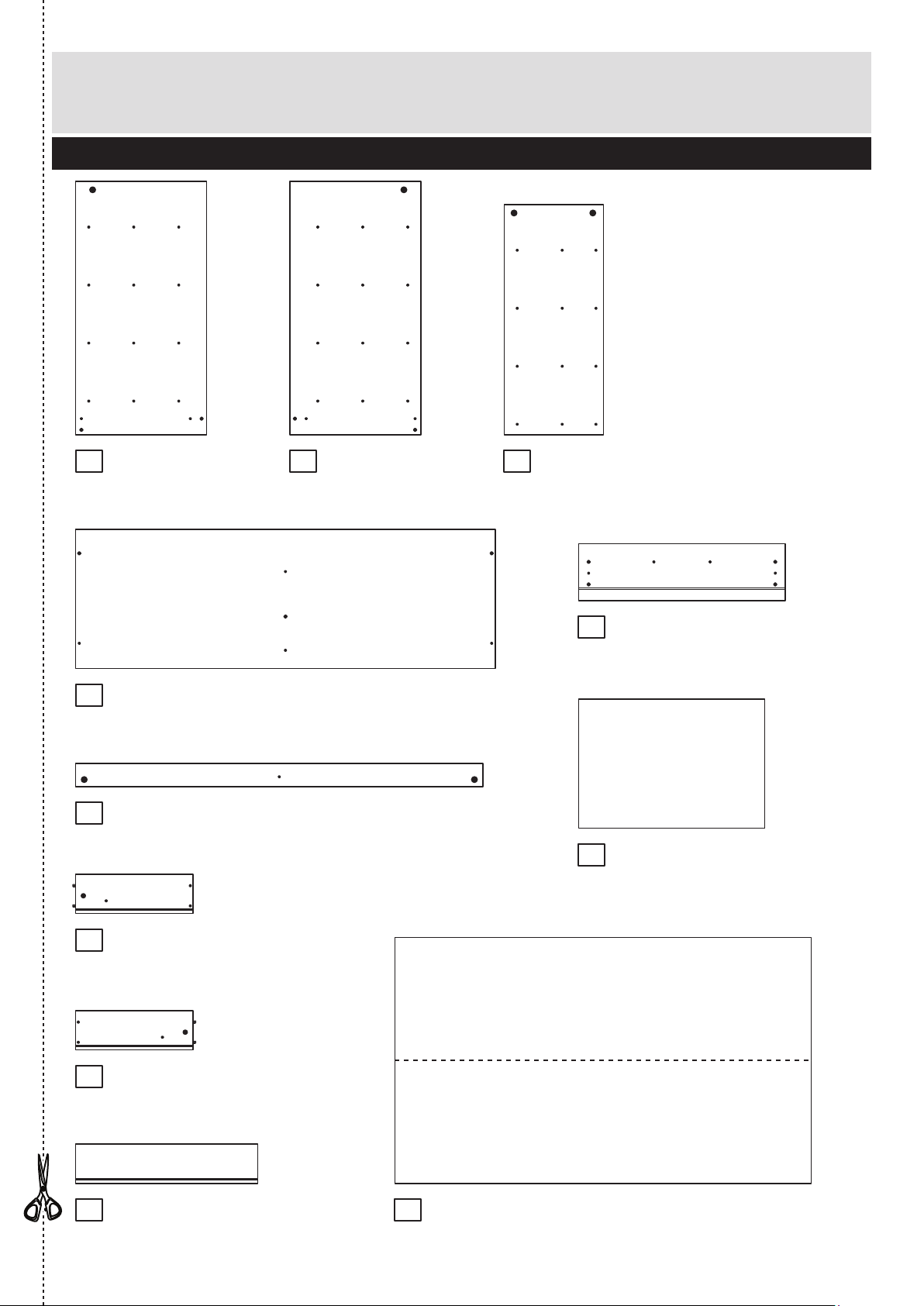

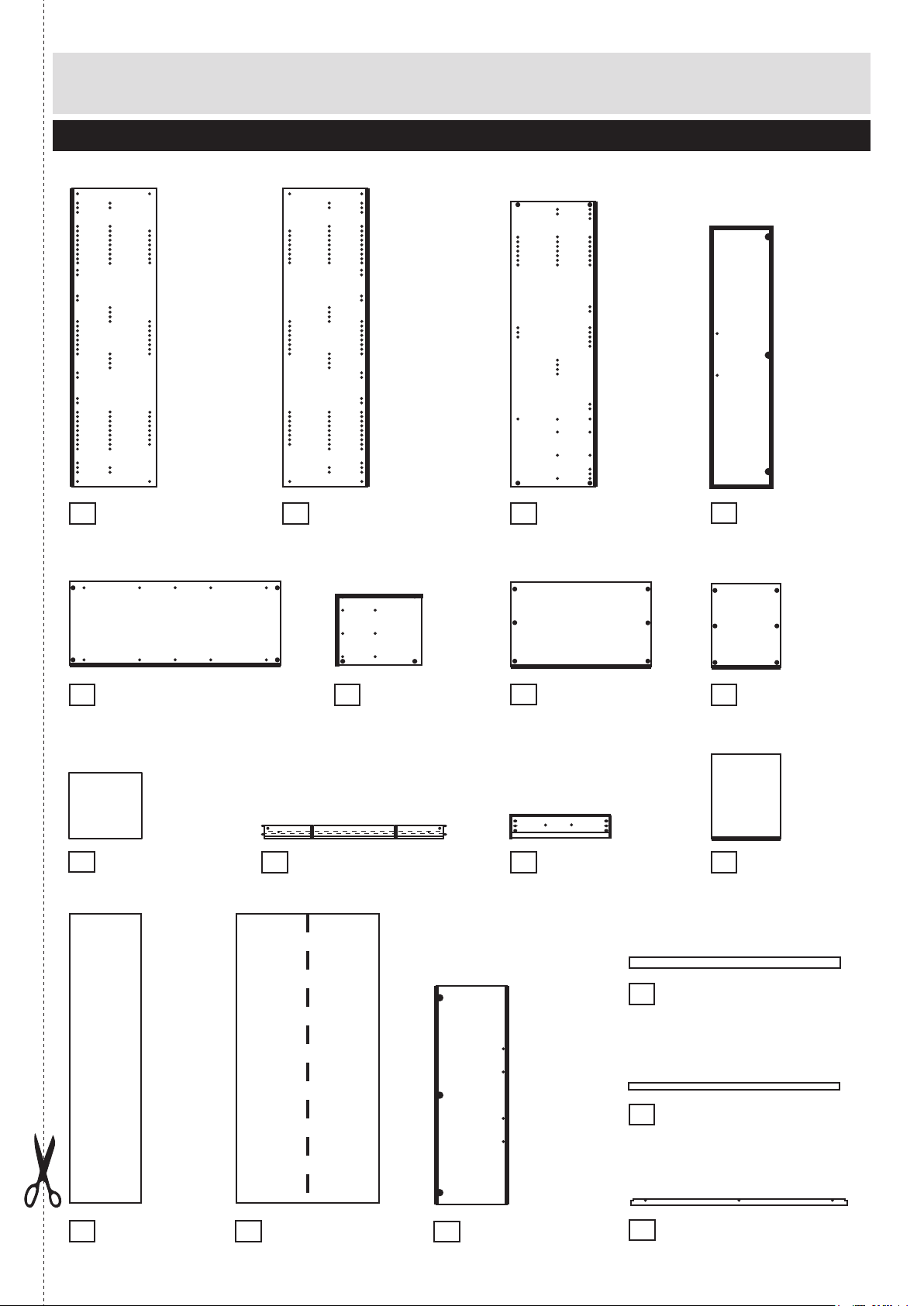

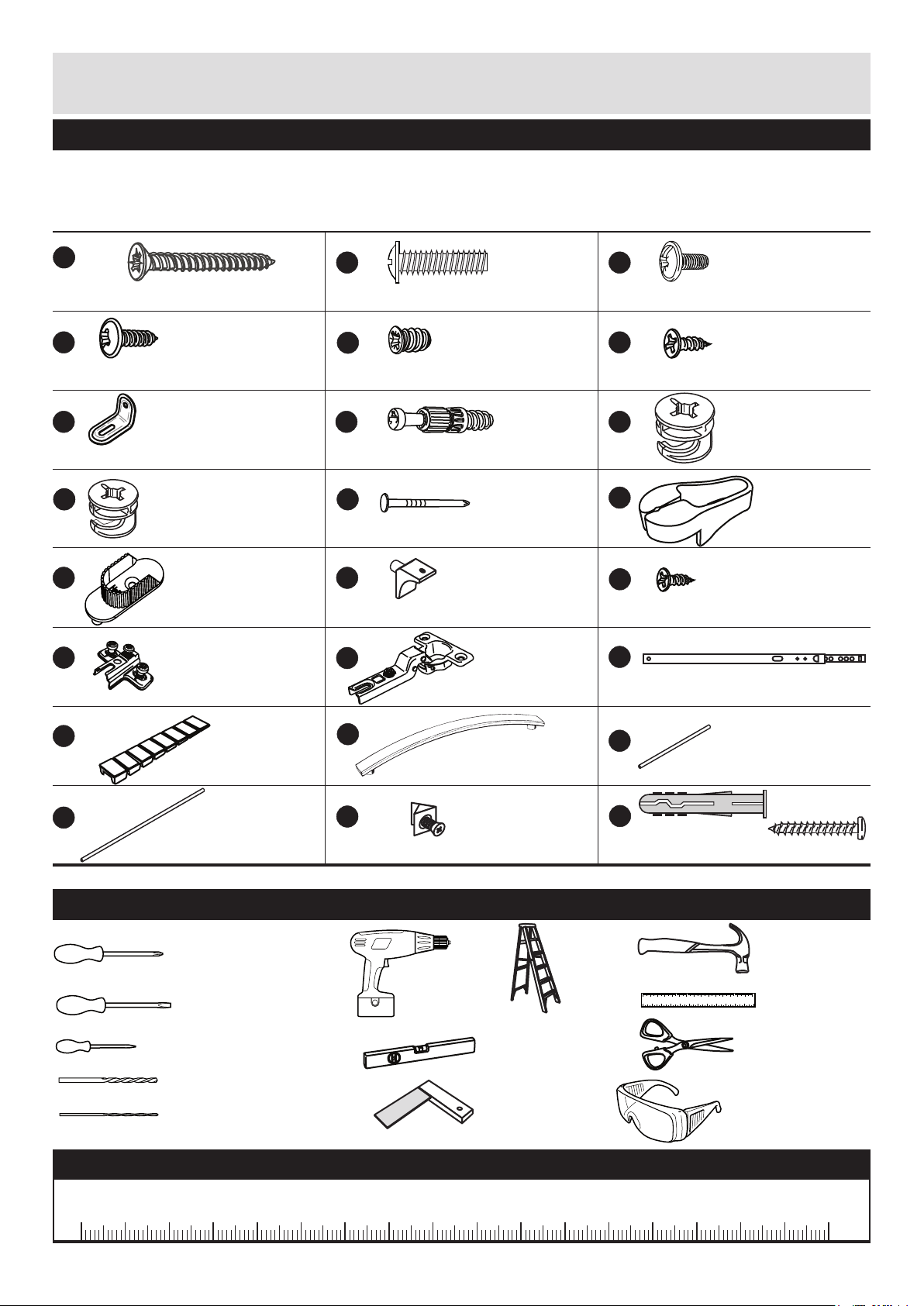

Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
1
Left Side (D2307A)
(556 x 372mm)
2
Right Side (D2308A)
(556 x 372mm)
3
4 5
86 7
9 10
Top (D2306A)
(375 x 396mm)
Back (X535-366)
(535 x 366mm)
Rail (D2310A)
(340 x 66mm) x 2
Drawer Front (D2309A)
(362 x 162mm) x 3
Drawer Base (T304-367)
(304 x 367mm) x 3
Drawer Back (W291-124)
(291 x 124mm) x 3
Left Drawer Side (W370-124LH)
(370 x 124mm) x 3
Right Drawer Side (W370-124RH)
(370 x 124mm) x 3
3
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Tools required
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws

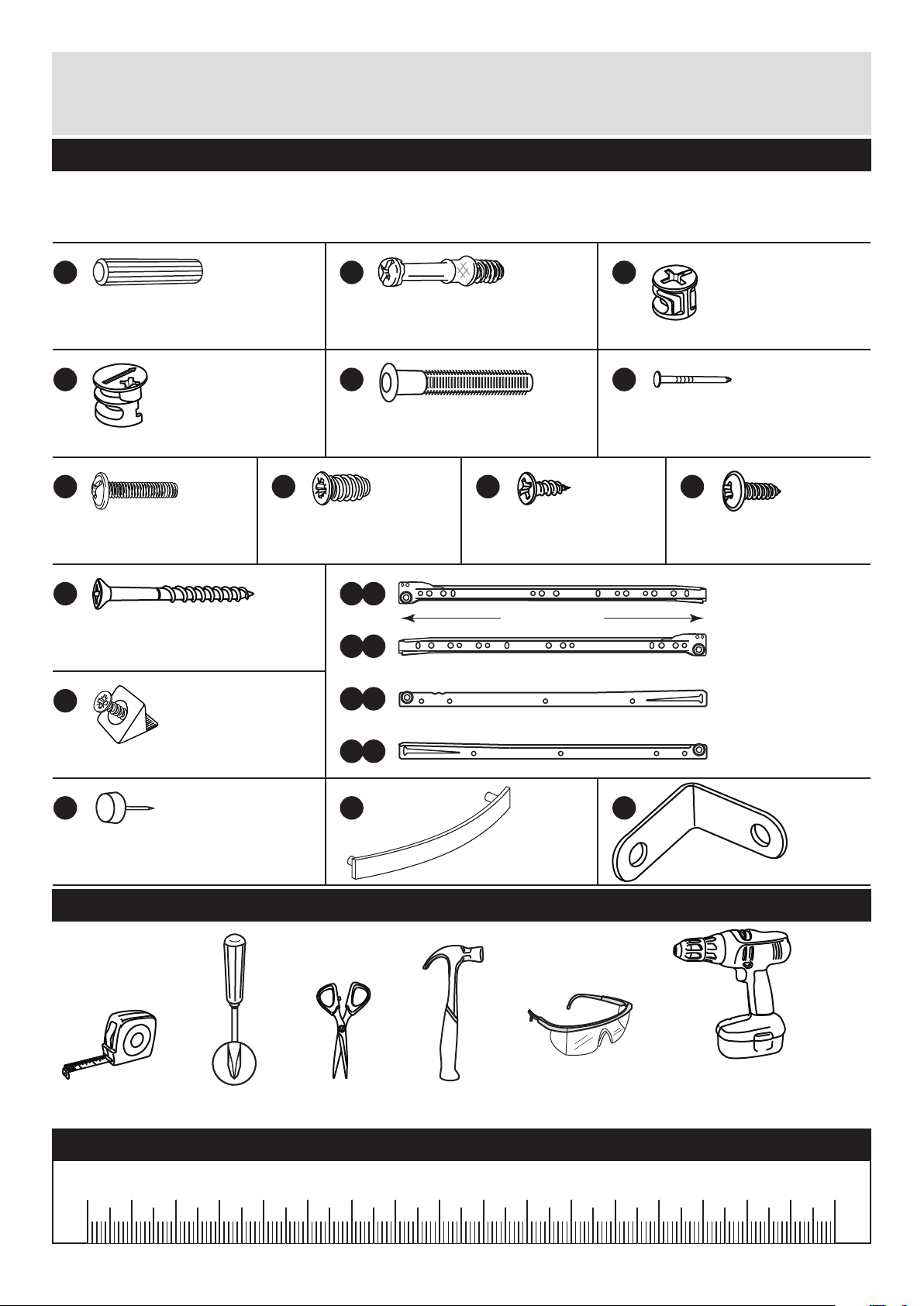

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
Rule Scissors Hammer
Eye protection (when using a hammer or drill)
Cross-head screwdriver
Electric drill (do not use for fitting screws)
B C
D E F
G H
Small locking nut (F3) x 6
Nail (F51) x 12
13mm Screw (F52) x 18 13mm Screw (F63) x 18
I
A
Wooden dowel (F22) x 6
19mm Screw (F461) x 6
Metal dowel (F901) x 12
Large locking nut (F900) x 6
Knock-in Peg (F171GY) x 12
K
R Runner (F160) x 3
b
L Runner (F161) x 3
K
c
L Runner (F159) x 3
K
a
R Runner (F162) x 3
K
d
350mm long
J
Handle (F278) x 3
M
Plastic Nail (F91) x 4
L
Wedgefix (F639) x 6
4

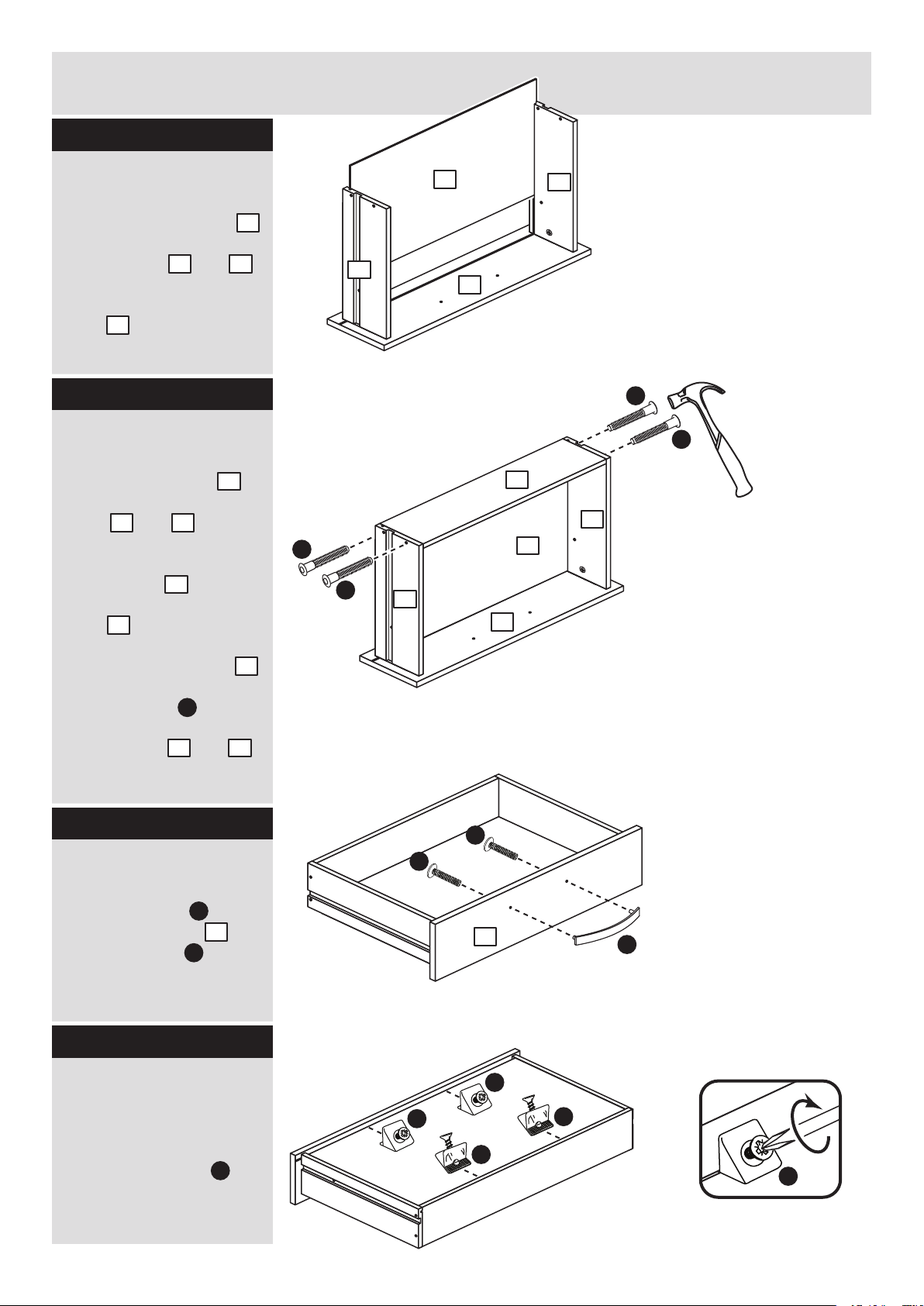

Step 1
Assembly Instructions
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
5
x 3
B
B
B
C
B
B
Groove
C
Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on either surface of the drawer sides. Make sure that the groove is on the inside, as shown.
5
x 3 x 3
x 3
Step 2

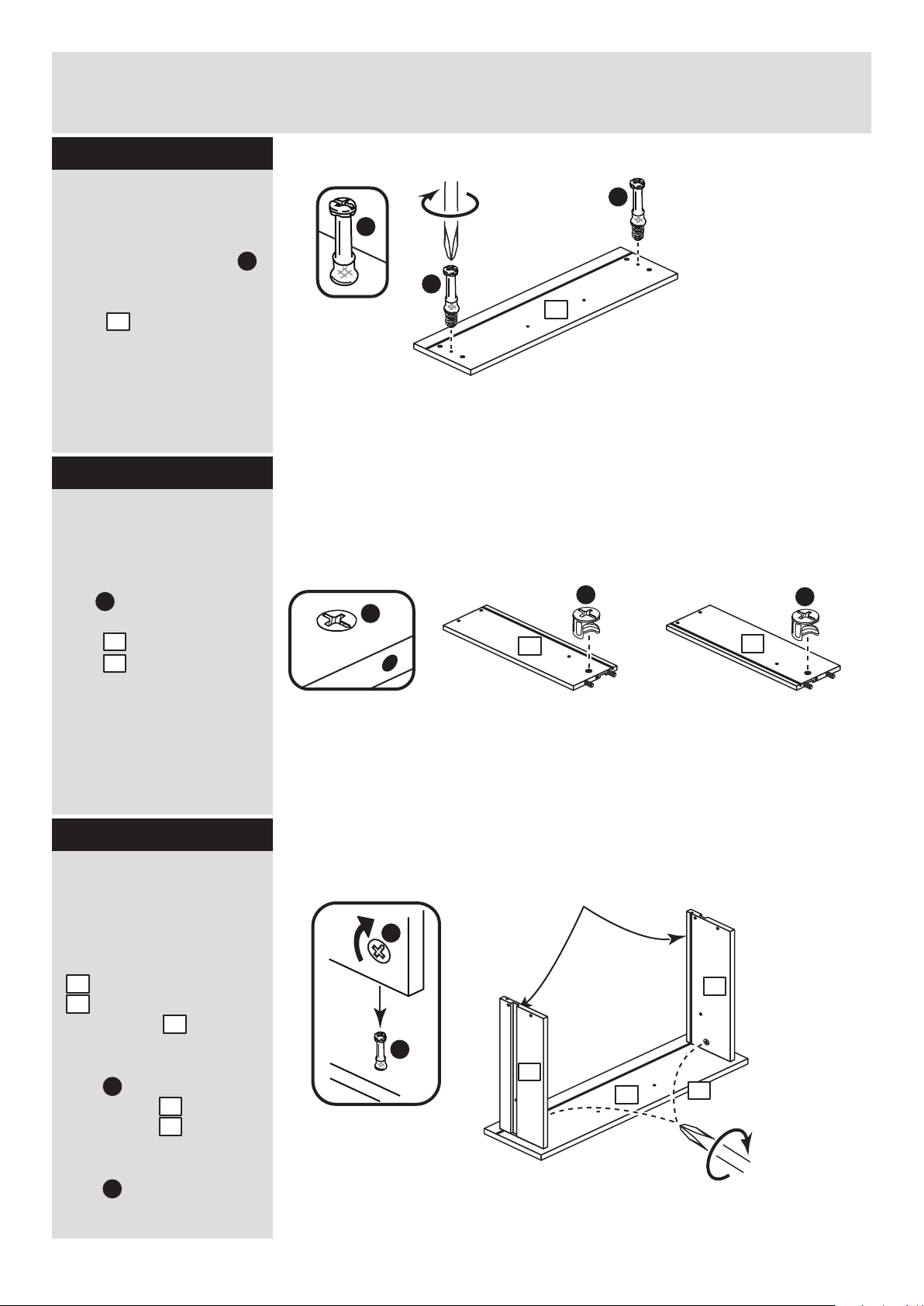

Prepare the 3 drawer fronts
Screw 2 metal dowels into the holes shown on the back of each drawer front .
Note: Tighten metal dowels up fully against the panels.
B
5
Prepare the drawer sides
Insert a small locking nut into the hole shown on the left drawer side and right drawer side .
Note: Arrow on locking nut must point towards hole in edge of panel.
Step 3
C
6
7
Attach the drawer sides to the drawer front
Push the left drawer side . and right drawer side . onto the back of the drawer front .
Turn the small locking nuts on the left drawer side and right drawer side .
Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.
6 7
5
C
6 7
C
C
C
6
7
6
7
Assembly Instructions
5
Step 4
Fit the drawer base
Slide the drawer base down the grooves in the drawer sides and and down into the groove in the drawer front .
Step 5
Fit the drawer back
Fit the drawer back between the drawer sides and .
Make sure that the drawer base fits into the groove in the drawer back .
Hold the drawer back in position and tap the knock-in pegs through the holes in the drawer sides and .
Step 6
9
6 7
5
8
6 7
9
8
8
E
6 7
Attach the handle
Attach a handle to each drawer front using 2 screws .
Step 7
J
G
5
E
E
E
J
5
G
G
x 3
x 3
x 3
L
L
L
Fit the wedgefixes
Turn the drawer assemblies over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws.
L
5
x 3
7
6
9
7
9
6
8
E
Assembly Instructions
6

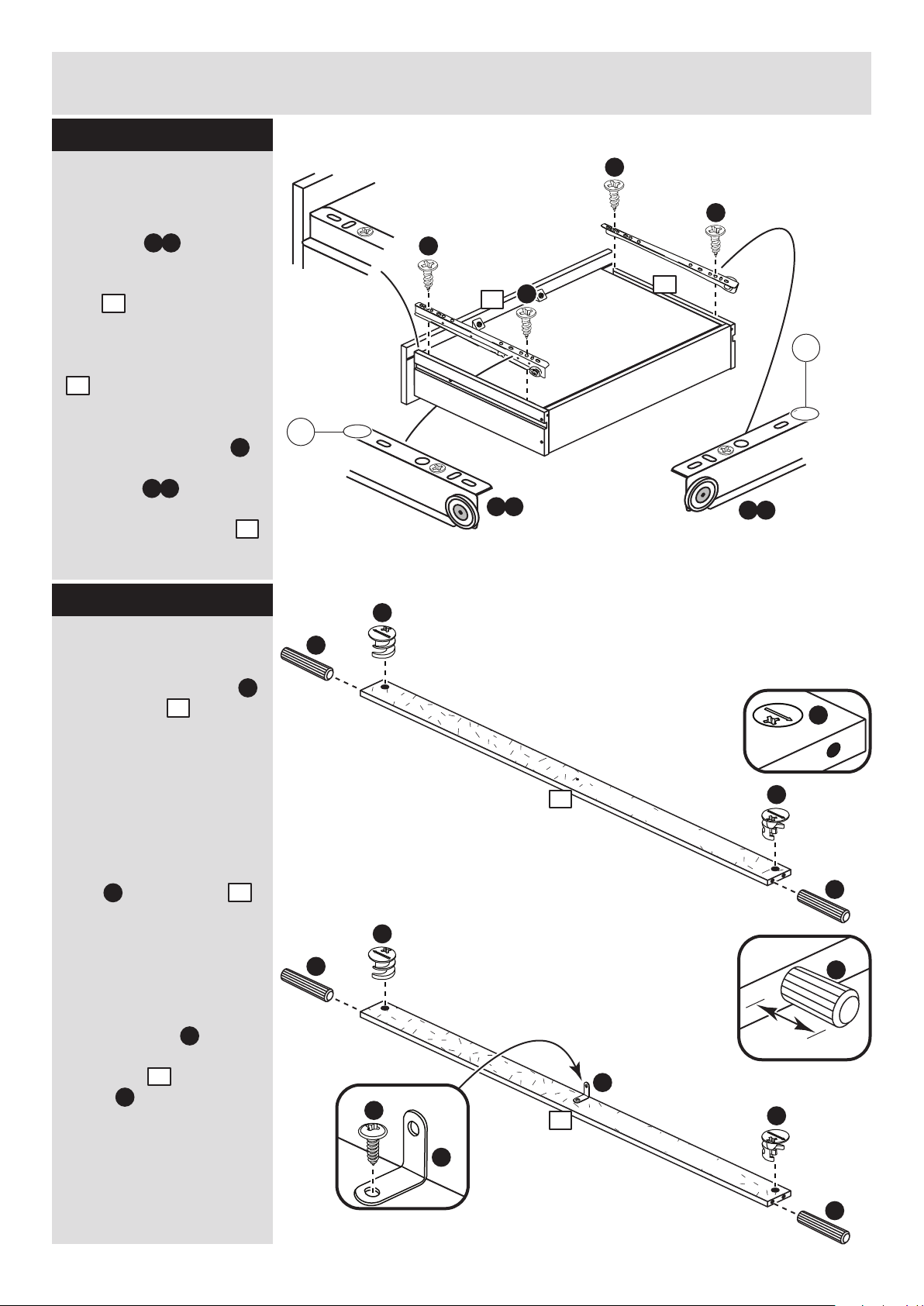

Step 8
Fit runners to the drawers
Turn the 3 drawer assemblies over.
Fit runner , marked with ‘R’, to the bottom edge of the right drawer side , as shown, making sure that it is pushed up against the back of the drawer front . . Use a bradawl to mark the fixing positions, then secure with 2 screws .
Fit runner , marked ‘L’, to the bottom edge of the left drawer side using the same method.
6
K d
7
5
I
K c
D
D
D
A
10mm
A

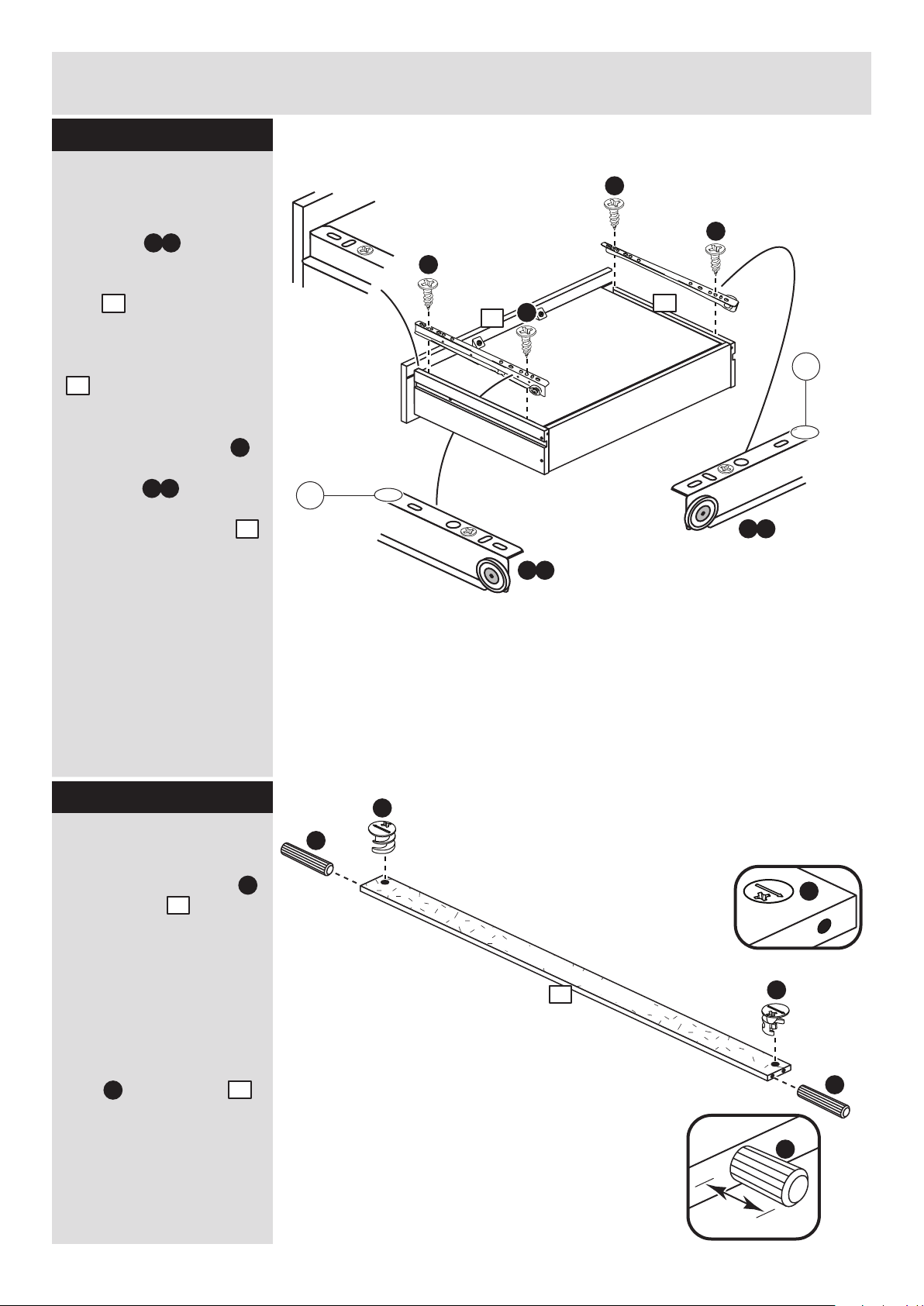

Prepare the 2 rails
Tap 2 wooden dowels into each rail .
Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
Insert 2 large locking nuts into each rail .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
A
A
Step 9
x 2
4
4
D
4
Plain
chipboard
surface
I
I
Runners must be
pushed up against
the drawer front
K d
R
R
I
I
L
K c
L
5
6
7
x 3
Finished
front edge
Finished
front edge
Assembly Instructions
7

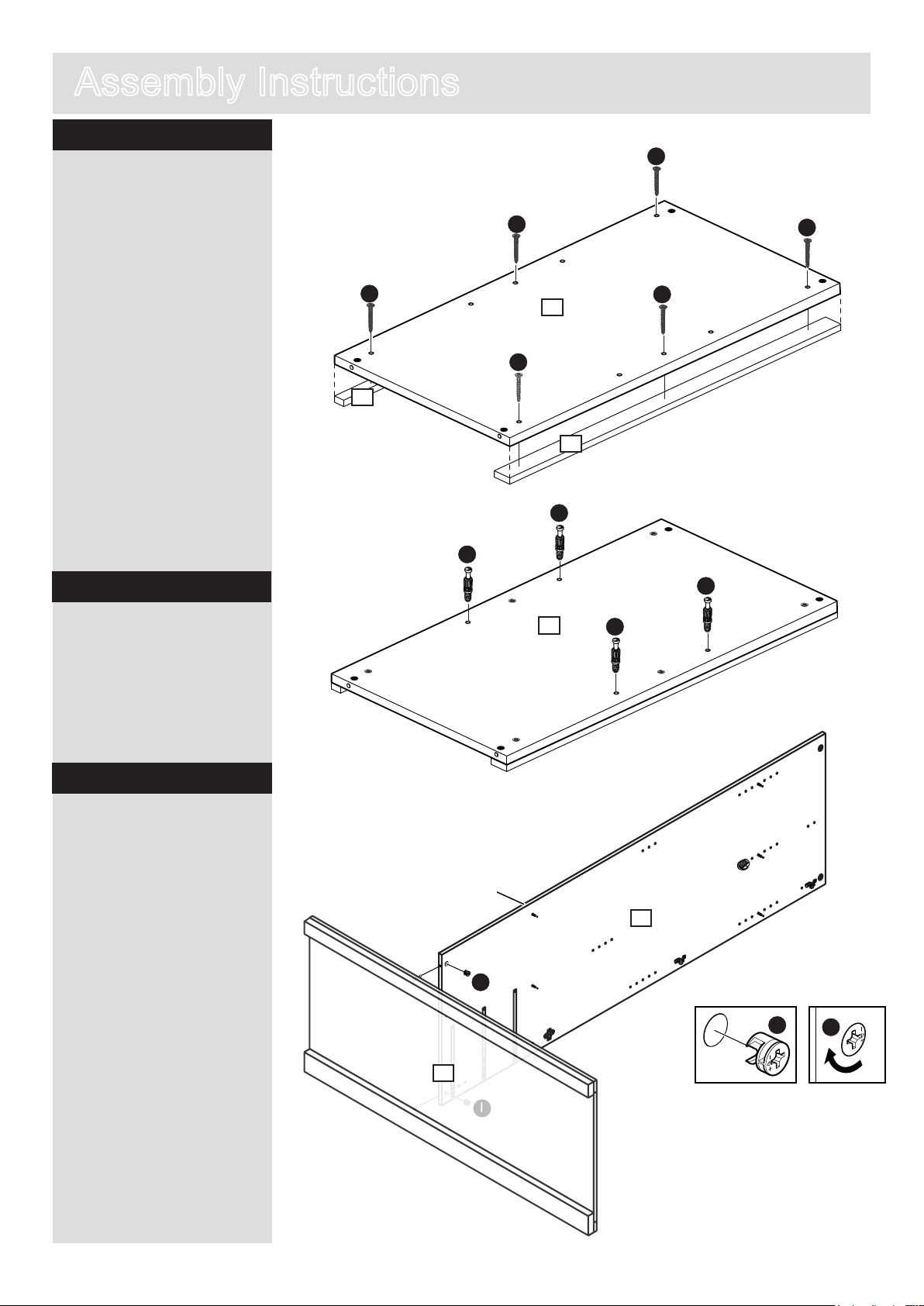

Step 10
H
K a
H
H
H
K a
H
H
H
K a
H
H
a:

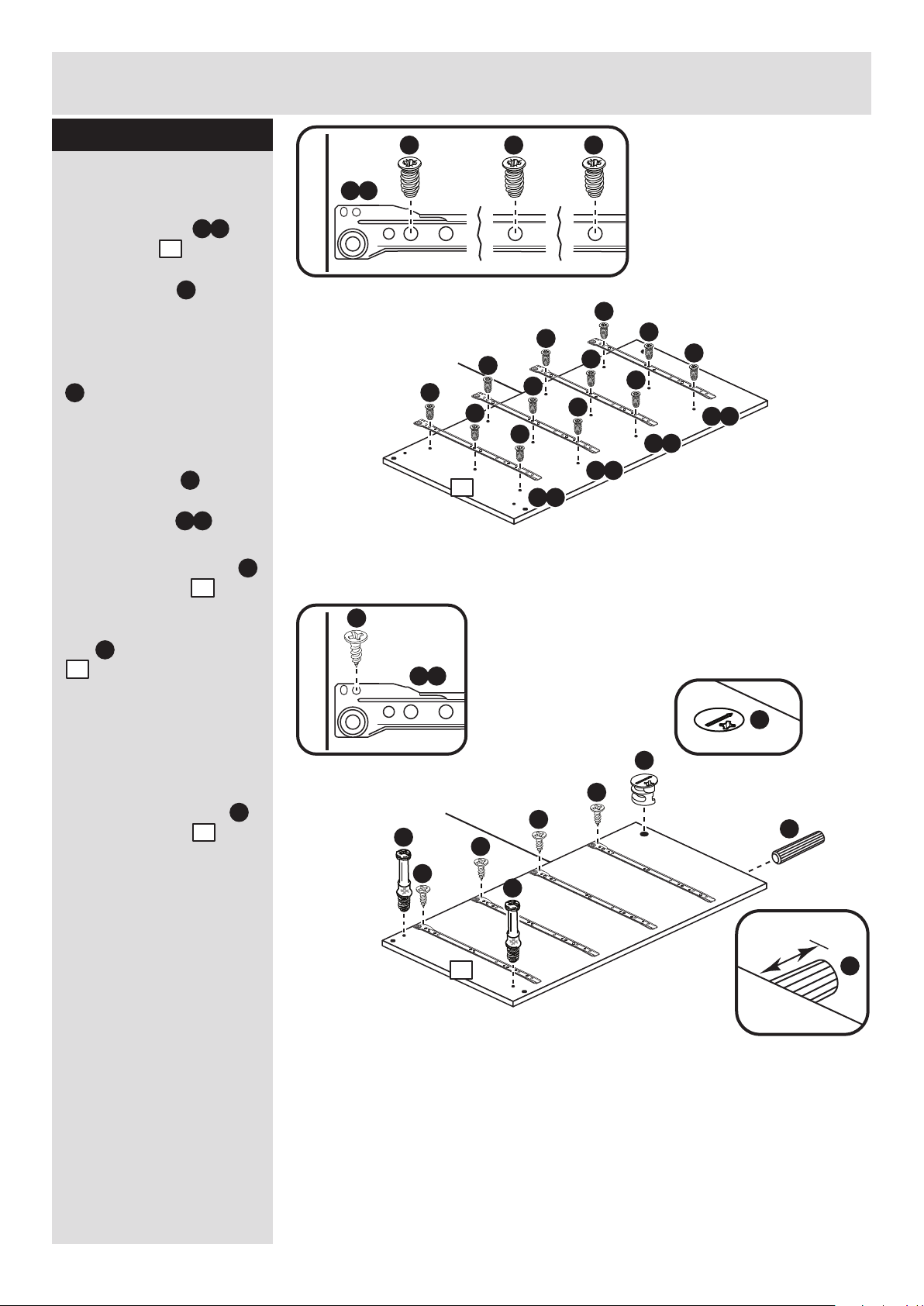

Prepare the left side
a: Fit 3 runners to
the left side .
The 1st screw uses the 2nd hole in from the front of the runner.
The 2nd and 3rd screws . use the holes that line up with the other panel holes.
b: Fit a screw into
the 2nd hole in at the top of the runners .
Screw 2 metal dowels into the left side .
Insert a large locking nut into the left side . . .
Tap a wooden dowel into the left side .
b:
B
D
1
1
K a
1
H
H
K a
H
Finished front edge
H
1st screw
2nd screw
H
3rd screw
K a
Finished front edge
I
I
K a
I
I
I
B
B
D
A
A
1
1
1
A
Assembly Instructions
8
Step 11

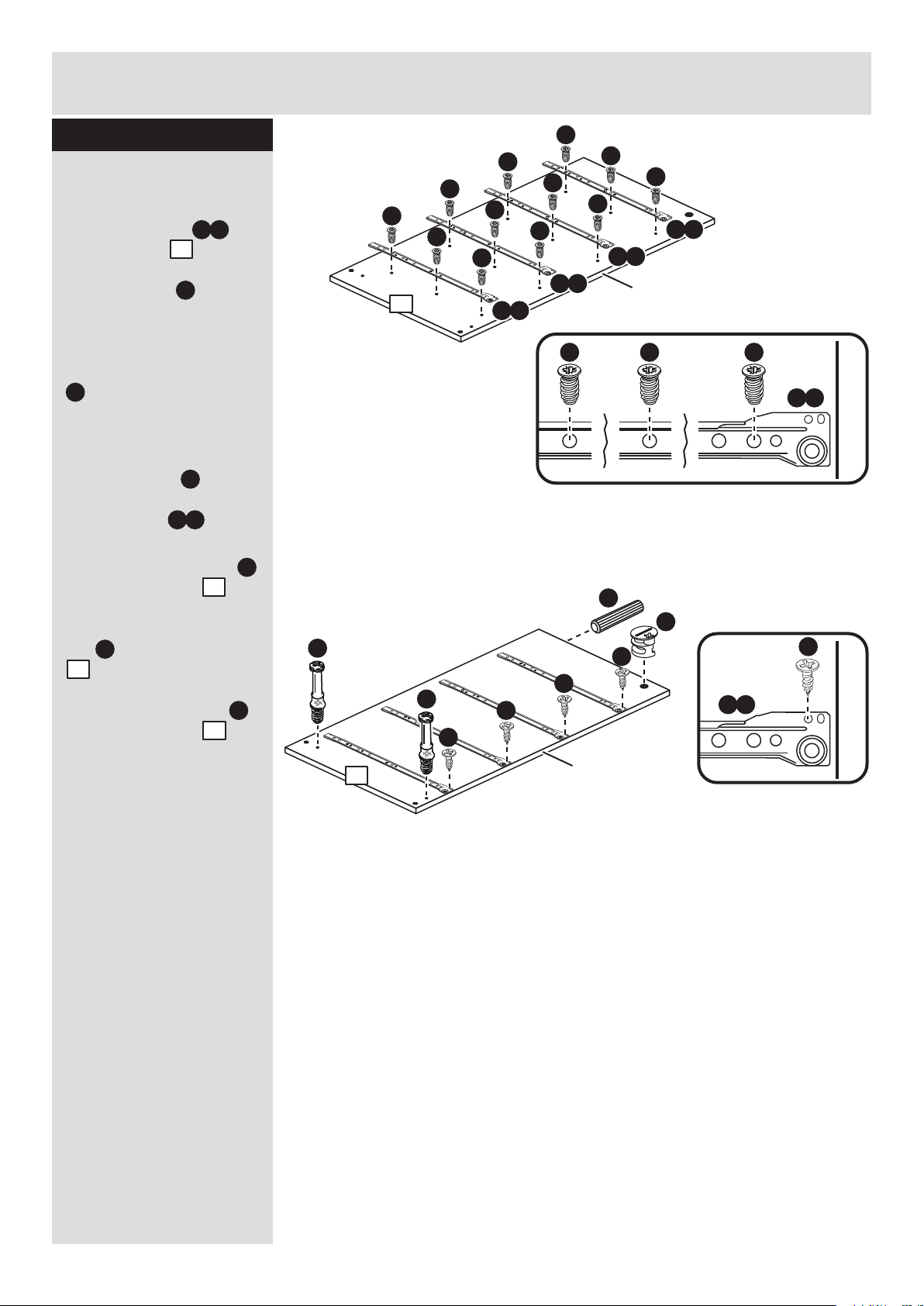

Prepare the right side
a: Fit 3 runners to
the right side .
The 1st screw uses the 2nd hole in from the front of the runner.
The 2nd and 3rd screws . use the holes that line up with the other panel holes.
b: Fit a screw into
the 2nd hole in at the top of the runner .
Screw 2 metal dowels into the right side .
Insert a large locking nut into the right side . .
Tap a wooden dowel into the right side .
B
D
2
2
K b
2
H
H
I
K b
K b
H
Finished front edge
H
1st screw
2nd screw
H
3rd screw
K b
Finished front edge
I
a:
b:
H
H
K b
H
H
H
K b
H
H
H
K b
H
I
I
I
D
B
B
Finished
front edge
Finished
front edge
A
2
2
2

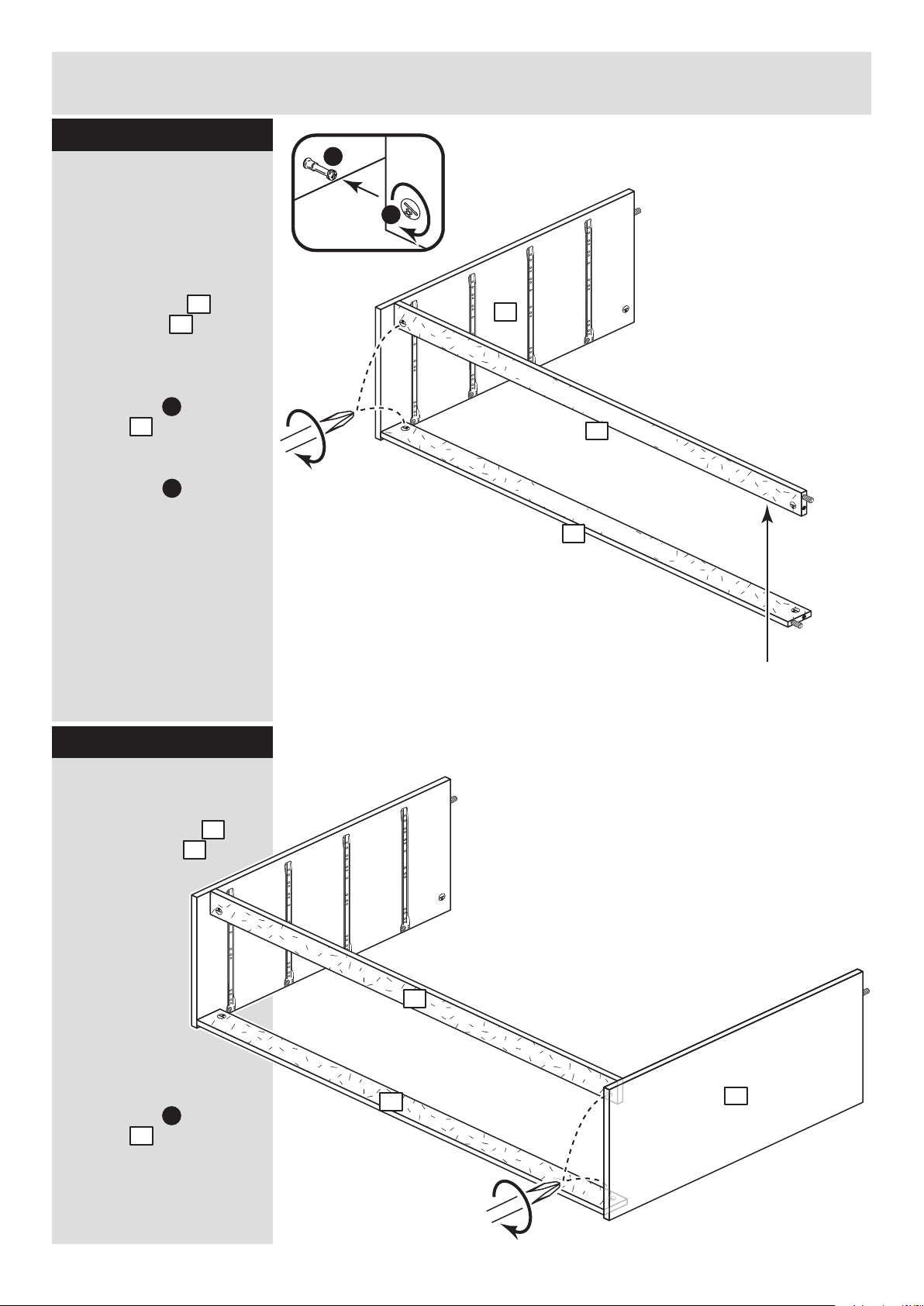

Join the right side and rails
Push the 2 rails onto the right side .
Use a screwdriver to tighten the 2 large locking nuts fitted to the rails .
Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
B
D
D
2
4
2
4
D
Step 12
Note: Support this rail until the left side has been fitted in the next step.
4
4
Assembly Instructions
9
Step 13
Fit the left side
Push the left side onto the 2 rails .
Use a screwdriver to tighten the 2 large locking nuts fitted to the rails .
D
4
1
1
4
4
B
B
Step 14
Prepare the top

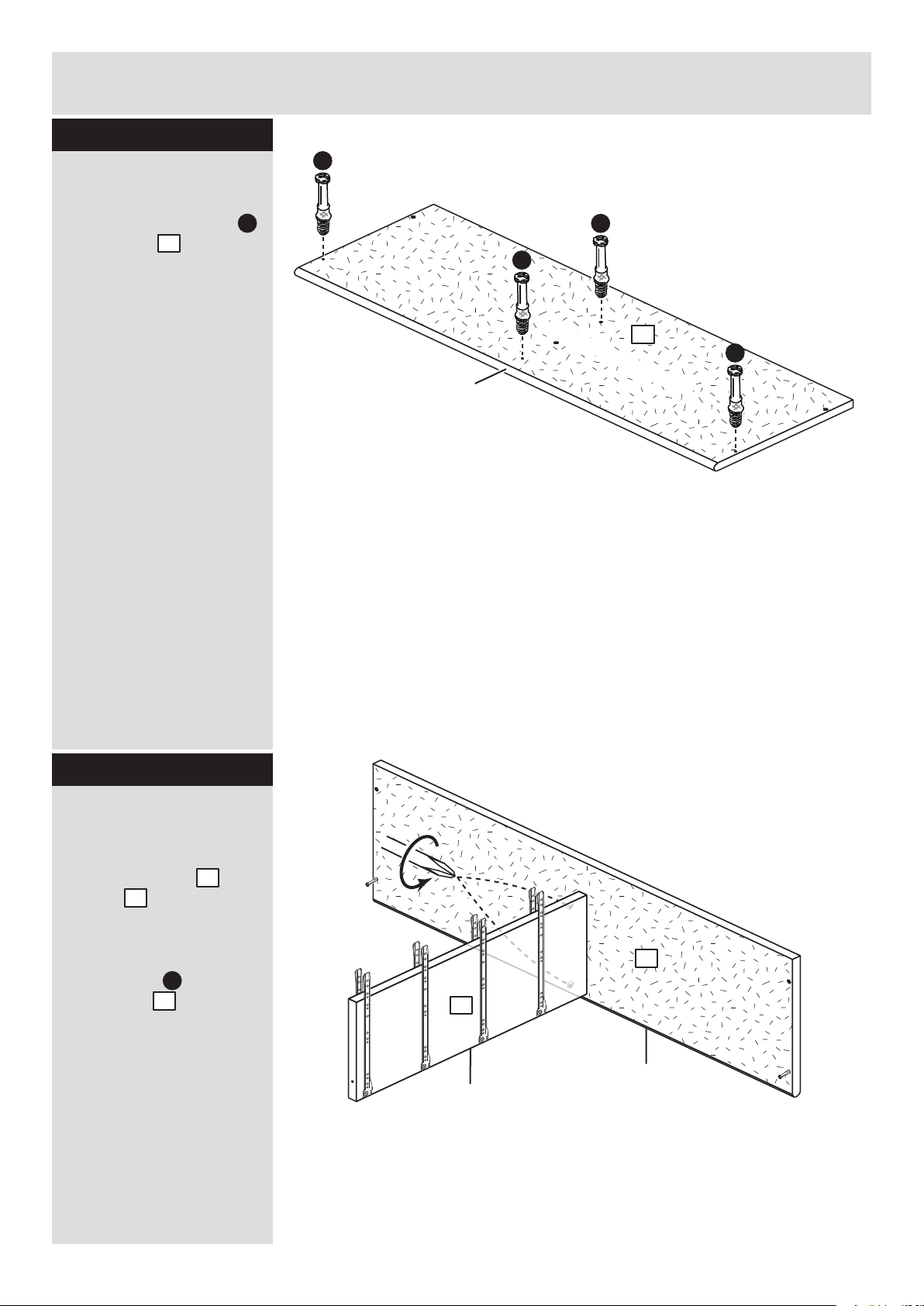

Screw 2 metal dowels into the top .
Step 15
B
3
Shaped
front edge
3
3
Fit the top
Push the top onto the 2 sides and .
Use a screwdriver to tighten the 2 large locking nuts fitted to the sides and .
D
3
1 2
1 2
1
2
4
Plain
chipboard
surface
Assembly Instructions
10
Step 16
Fit the back
a: Square up the unit by
making sure that measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the outside edges of the back .
Note: Nails should be spaced about 150mm apart.
Stand the unit up for the next step.
10
F
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
10
Warning: The unit is heavy. Lift with care.
y
y
x
x
b:
F
10
Step 17
Fit the 4 plastic nails
Tap 2 plastic nails into the bottom edge of each of the sides and . .
M
1
2
M
M
M
M
1
2
Assembly Instructions
11
Step 18
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers on the component pages)
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR2976

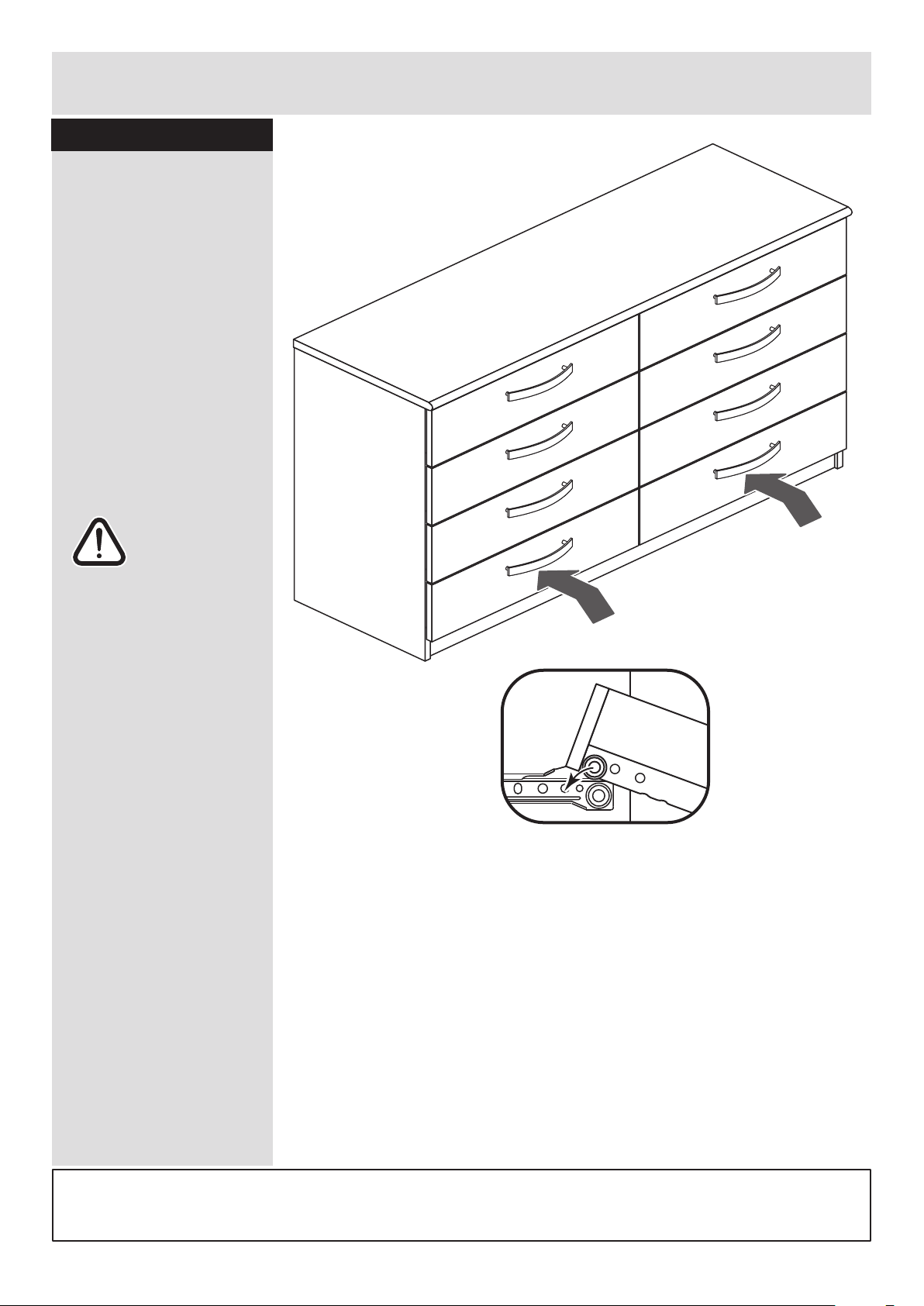

Fit the drawers
Slide the wheels of the runners fitted to the drawers, over the wheels of the runners fitted to the side panels and push the drawers into position.
Assembly is complete
Side
panel
Drawer
Assembly Instructions - Please keep for future reference
MADE IN
BRITAIN
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 119.5cm
New Hallingford - 4+4 Drawer Chest
Issue 6 - 14/08/14
Depth - 40cm
Height - 74.5cm
266/5508
268/9577
262/1638
245/7510
258/6625
272 825
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warning: This unit weighs approximately 41.5kgs. Please lift with care.
• Check you have all the components and tools listed on pages 2 and 3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.
• Parts of the assembly will be easier with 2 people.
• Make sure you have enough space to layout the parts before starting.
• Do not stand or put weight on the product, this could cause damage.
• Assemble the item as close to its final position (in the same room) as possible.
• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws, as this could damage the unit. Only use hand screwdrivers.
Safety note: If there is any chance of this unit being pulled over by children etc. it is recommended that the unit is secured to a wall using suitable fixings (not supplied).
• Dispose of all packaging carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
• From time to time check that there are no loose screws on this unit.
• This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
2
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
1
Left Side (D2312A)
(721 x 372mm)
Top (D2322A)
(1193 x 396mm)
2
Right Side (D2313A)
(721 x 372mm)
4
3
Upright (D2323A)
(655 x 282mm)
Rail (D2325A)
(1158 x 66mm) x 2
Drawer Back (W518-124)
(518 x 124mm) x 8
11
5
6
8
9
10
Drawer Front (D2324A)
(588 x 162mm) x 8
Drawer Base (T529-367)
(529 x 367mm) x 8
Back (X1184-700)
(1184 x 700mm)
7
Left Drawer Side (W370-124LH)
(370 x 124mm) x 8
Right Drawer Side (W370-124RH)
(370 x 124mm) x 8
3
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Tools required
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
Rule Scissors Hammer
Eye protection (when using a hammer or drill)
Cross-head screwdriver
Electric drill (do not use for fitting screws)
B C
D E F
G H
Small locking nut (F3) x 16
Nail (F51) x 26
13mm Screw (F52) x 48 13mm Screw (F63) x 48
I
A
Wooden dowel (F22) x 7
19mm Screw (F461) x 16
Metal dowel (F901) x 24
Large locking nut (F900) x 8
Knock-in Peg (F171GY) x 32
K
R Runner (F160) x 8
b
L Runner (F161) x 8
K
c
L Runner (F159) x 8
K
a
R Runner (F162) x 8
K
d
350mm long
J
Handle (F278) x 8
M
Plastic Nail (F91) x 5
L
Wedgefix (F639) x 32
4
Step 1
Assembly Instructions
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number
and the reference numbers below)
5
x 8
B
B
B
C
Step 2
B
B
Prepare the drawer fronts
Screw 2 metal dowels into the holes shown on the back of each drawer front .
Note: Tighten the metal dowels up fully against the panels.
B
5
Prepare the drawer sides
Insert a small locking nut into the hole shown on the left drawer side and right drawer side .
Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
Step 3
C
8
9
Attach the drawer sides to the drawer front
Push the left drawer side . and right drawer side . onto the back of the drawer front .
Turn the small locking nuts on the left drawer side and right drawer side .
Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.
9
8 9
5
C
8 9
Groove
8
C
Note: The locking nuts can be on either surface of the drawer sides. Make sure that the groove is on the inside, as shown.
5
x 8
8
C
Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer sides.
x 8 x 8
C
C
8
9
8
9
Assembly Instructions
5
Step 4
5
5
Fit the drawer base
Slide the drawer base down the grooves in the drawer sides and and down into the groove in the drawer front .
Step 5
Fit the drawer back
Fit the drawer back between the drawer sides and .
Make sure that the drawer base fits into the groove in the drawer back .
Hold the drawer back in position and tap the knock-in pegs through the holes in the drawer sides and .
Step 6
7
8 9
5
E
E
E
8
10
9
7
10
8 9
7
10
10
E
8 9

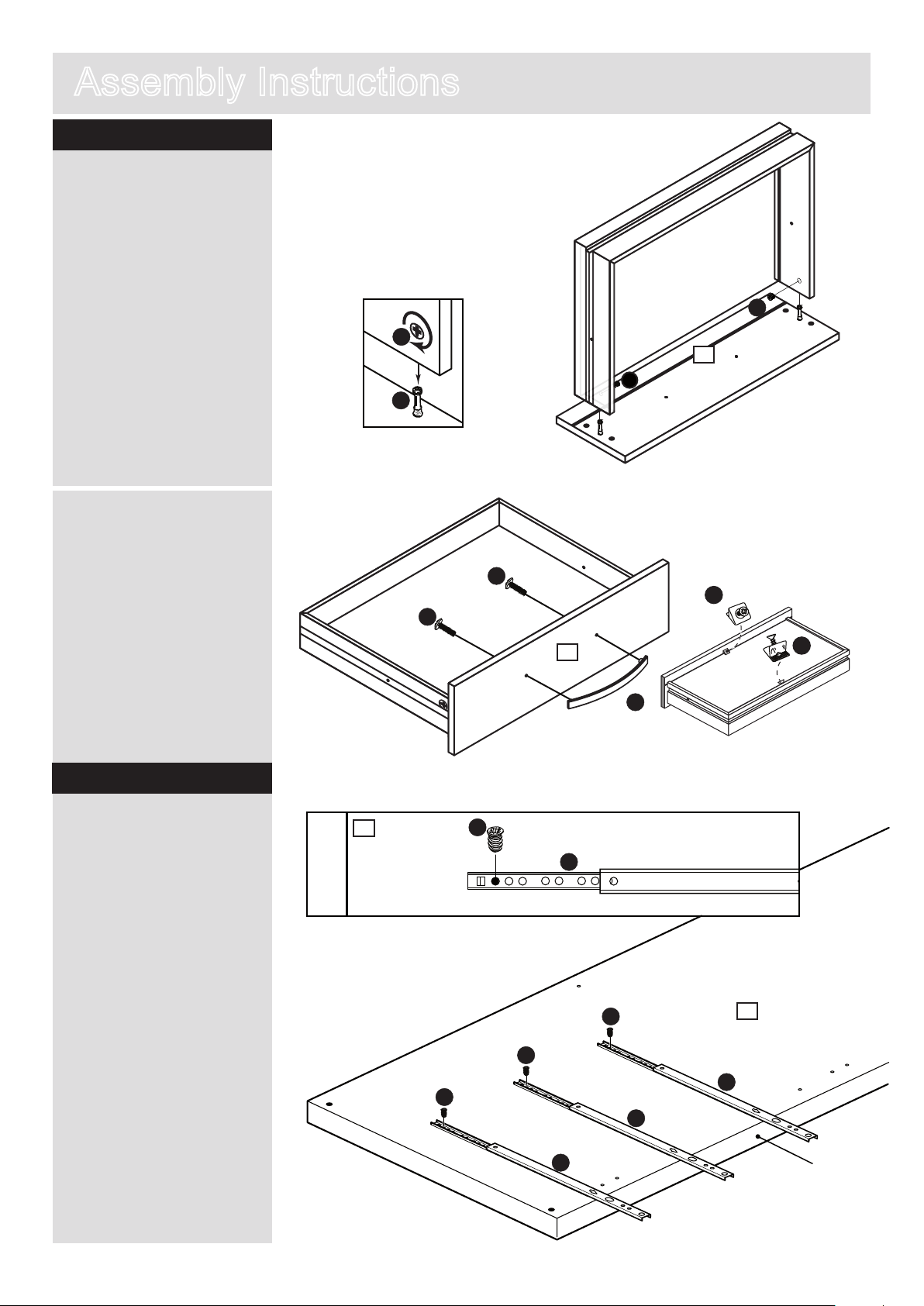

Attach the handles
Attach a handle to each drawer front using 2 screws .
J
G
5
x 8
x 8
x 8
x 8
Step 7
L
Fit the wedgefixes
Turn the drawer assemblies over and slide 4 wedgefixes into the front and back grooves, as shown, and tighten up the screws.
L
7
8
9
6
7
7
9
8
10
E
5
J
5
G
G
5
L
L
L
L
Loading...
+ 42 hidden pages
