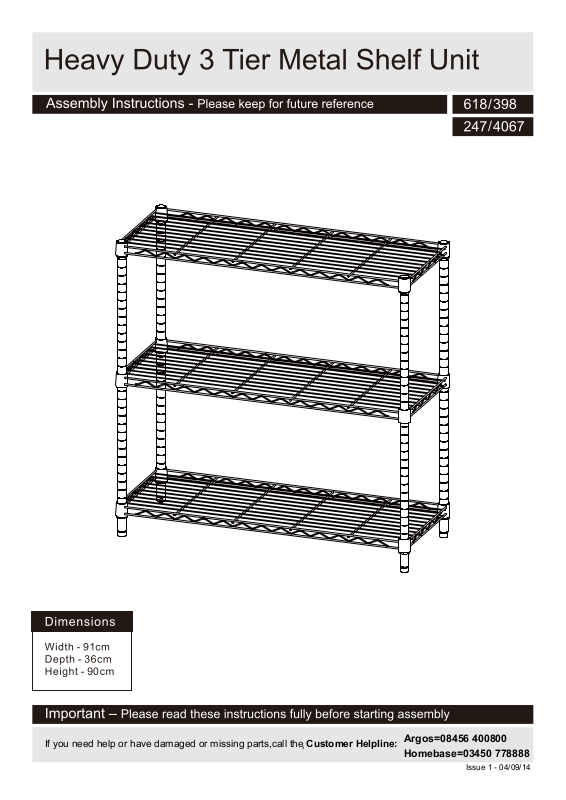

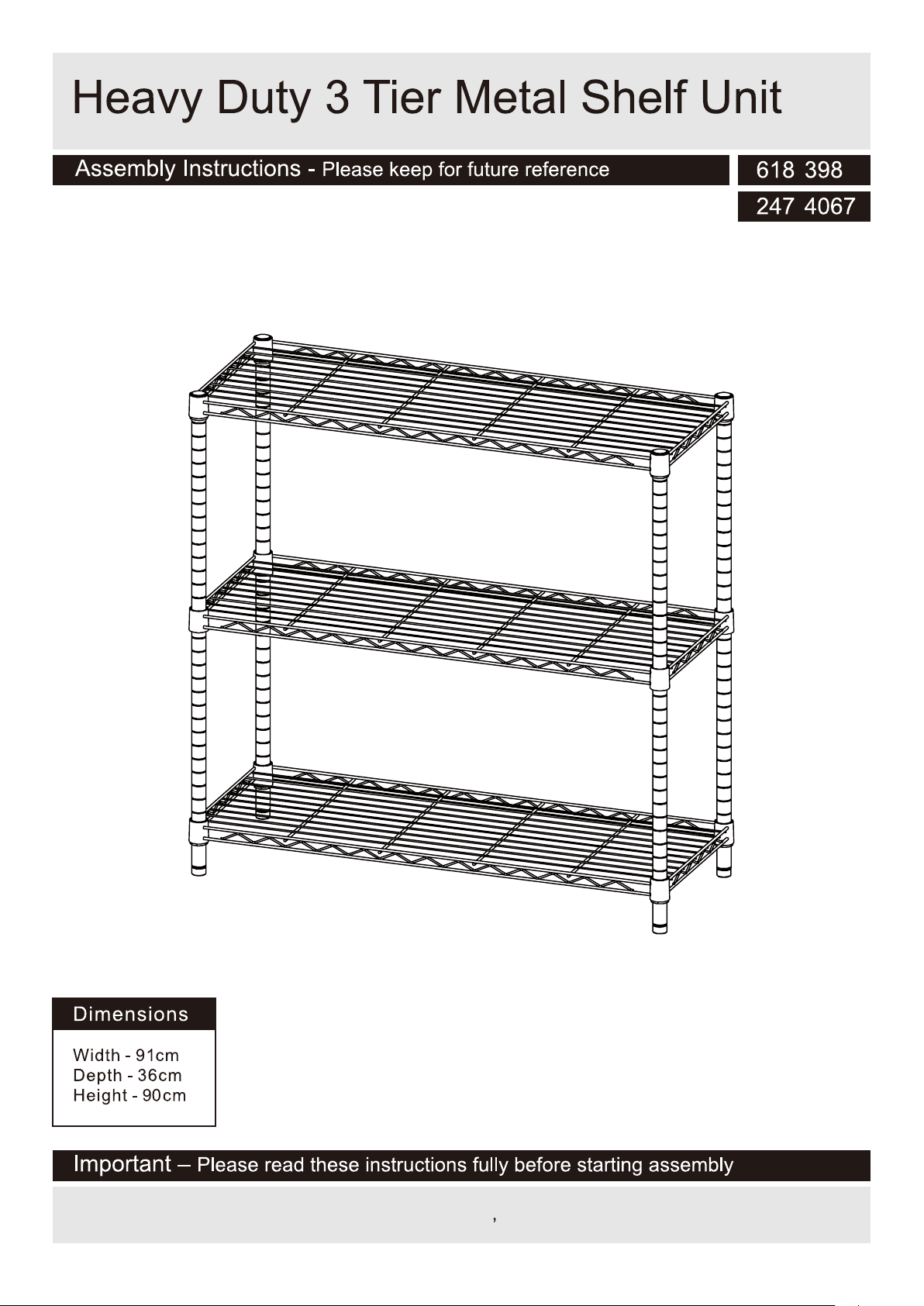

Page 1
/
/
If you need help or have damaged or missing parts,call the Customer Helpline:
Argos=08456 400800
Homebase=03450 778888
Issue 1 - 04/09/14
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
From time to time check that
there are no loose screws on
this 4-tier shelf.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
Handy Hints
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
1
Page 3
If you have damaged or missing components,
Components - Shelf
call the Customer Helpline:
Please check you have all the fittings listed below
Metal leg X 4
1
Shelf X3 (35x90cm)
2
Argos=08456 400800
Homebase=03450 778888
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
Feet x 4
B
B
Plastic locking caps x 24
C
Plastic stopper x 4
2
Page 4
Assembly Instructions
Step 1
Attaching plastic feet
Screw in feet into
metal
in fig1.
leg as shown
Repeat for other 3
lower legs
A
1
1
A
fig 1
Step 2
Attaching stopper
Insert plastic stopper
into metal leg
Repeat for other 3
metal l egs
1
C
C
1
fig 2
3
Page 5
Assembly Instructions
Step 3
Attaching shelf
Attach plastic caps
on to the metal l eg
as shown in fig 3.
Slide down base shelf
until it locks over
2
plastic caps .
Push shelf firm to secure.
B
B
1
1
1
2
B
B
1
1
1
B
fig 3
Step 4
Attaching shelf
Measure positon of
mid shelf required by
counting rings up from
b
ase shelf.
Fit plastic caps
as shown in fig 4
Repeat for other 2 shelves
Ensure all caps are fitted
to same height.
Slide down mid shelf
until it locks over
plastic caps
Push shelf firm to secure.
B
2
B
B
1
2
1
1
1
fig 4
4
Page 6
Assembly Instructions
Step 5
Attaching shelf
p
Attach
to top ring of each leg .
Fit top shelf unit it
locks over plastic caps.
Push shelf firm to secure.
lastic caps
2
B
1
Step 6
B
B
2
B
B
f
iig5
Storage rack now fully
assembled.
Adjust feet for correct
level.
Warning:
Maximum safe loading:
55kgs per shelf
Adjust feet
for correct level.
fiig6
If you need help or have damaged or missing parts,call the Customer Helpline:
5
Argos=08456 400800
Homebase=03450 778888
