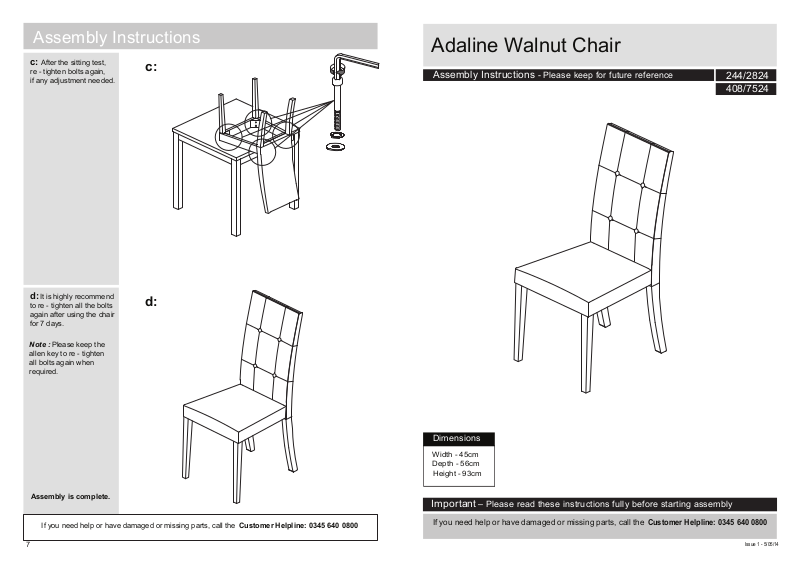

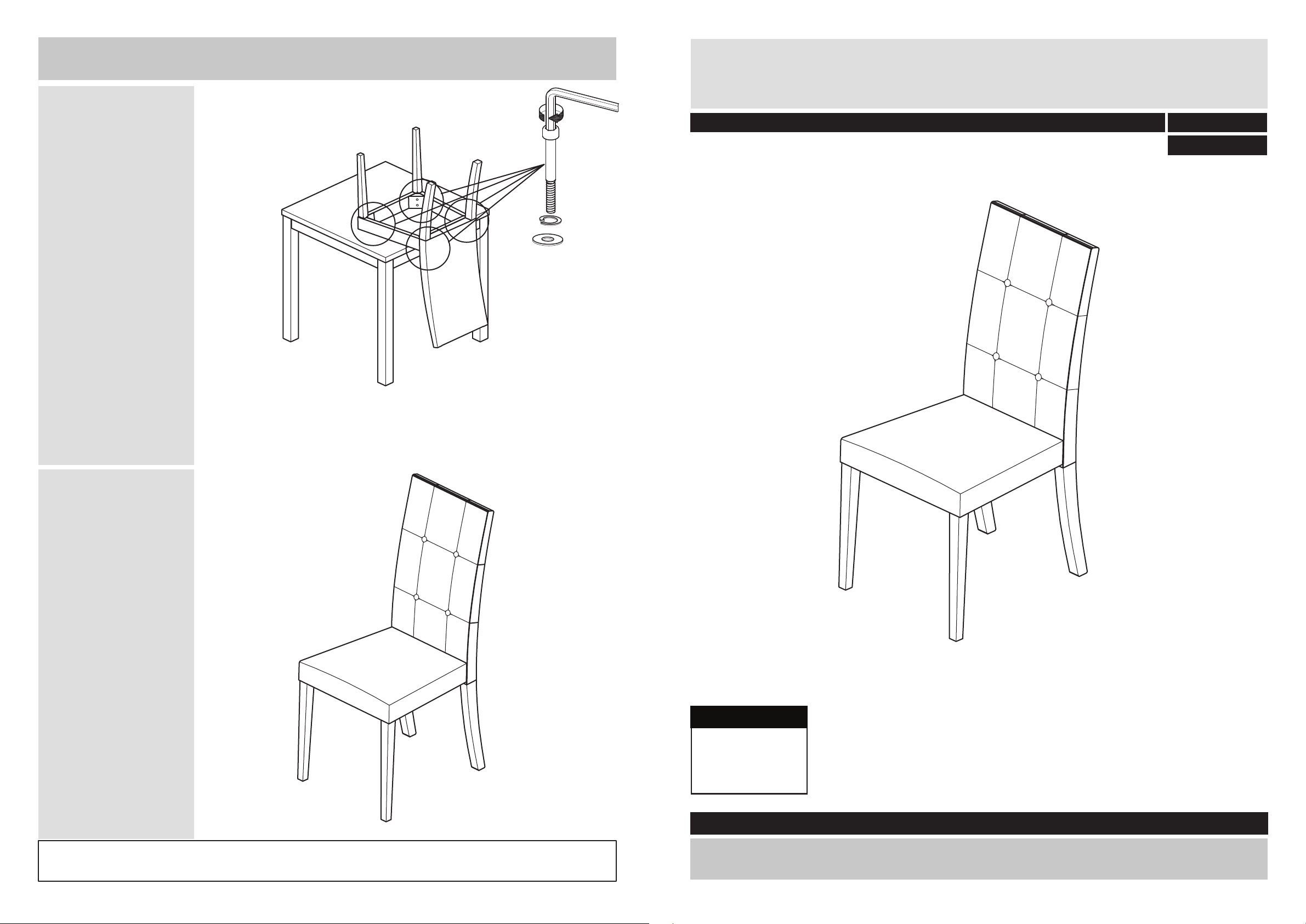

Page 1
Assembly Instructions
c:
After the sitting test,
re - tighten bolts again,
if any adjustment needed.
c:
Adaline Walnut Chair
Assembly Instructions - Please keep for future reference
244/2824
408/7524
d:
It is highly recommend
to re - tighten all the bolts
again after using the chair
for 7 days.
Note : Please keep the
allen key to re - tighten
all bolts again when
required.
d:
Dimensions
Width - 45cm
Depth - 56cm
Height - 93cm
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 640 0800
7
Important
If you need help or have damaged or missing parts, call the
– Please read these instructions fully before starting assembly
Customer Helpline: 0345 640 0800
Issue 1 - 5/05/14

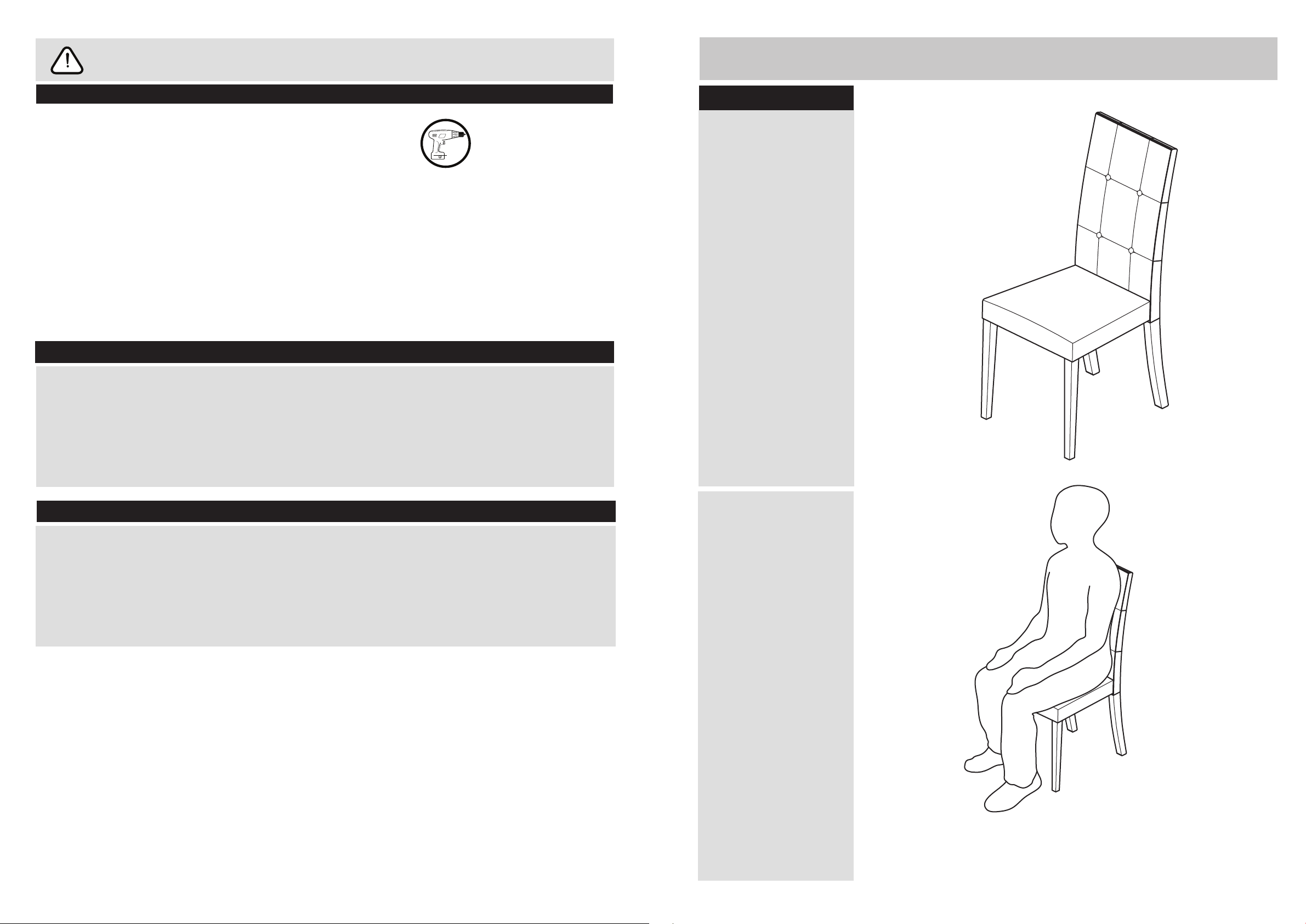

Page 2
Safety and Care Advice
Assembly Instructions
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product during assembly,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Do not stand on the chair.
• Do not use the chair as step
ladder
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• Dispose of all packaging
carefully and responsibly.
• Maximum safe weight of
user: 110 Kgs.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Step 2
Note : Stand the chair on
a level floor.
Tightly screw all bolts.
a:
Note : Step 2 is essential
to prevent the chair from
wobbling caused by
uneven legs.
a:
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts.
• Reguraly check and ensure
that all bolts and fittings are
tightend properly.
Sit on the chair to
b:
level the legs.
b:
1
6

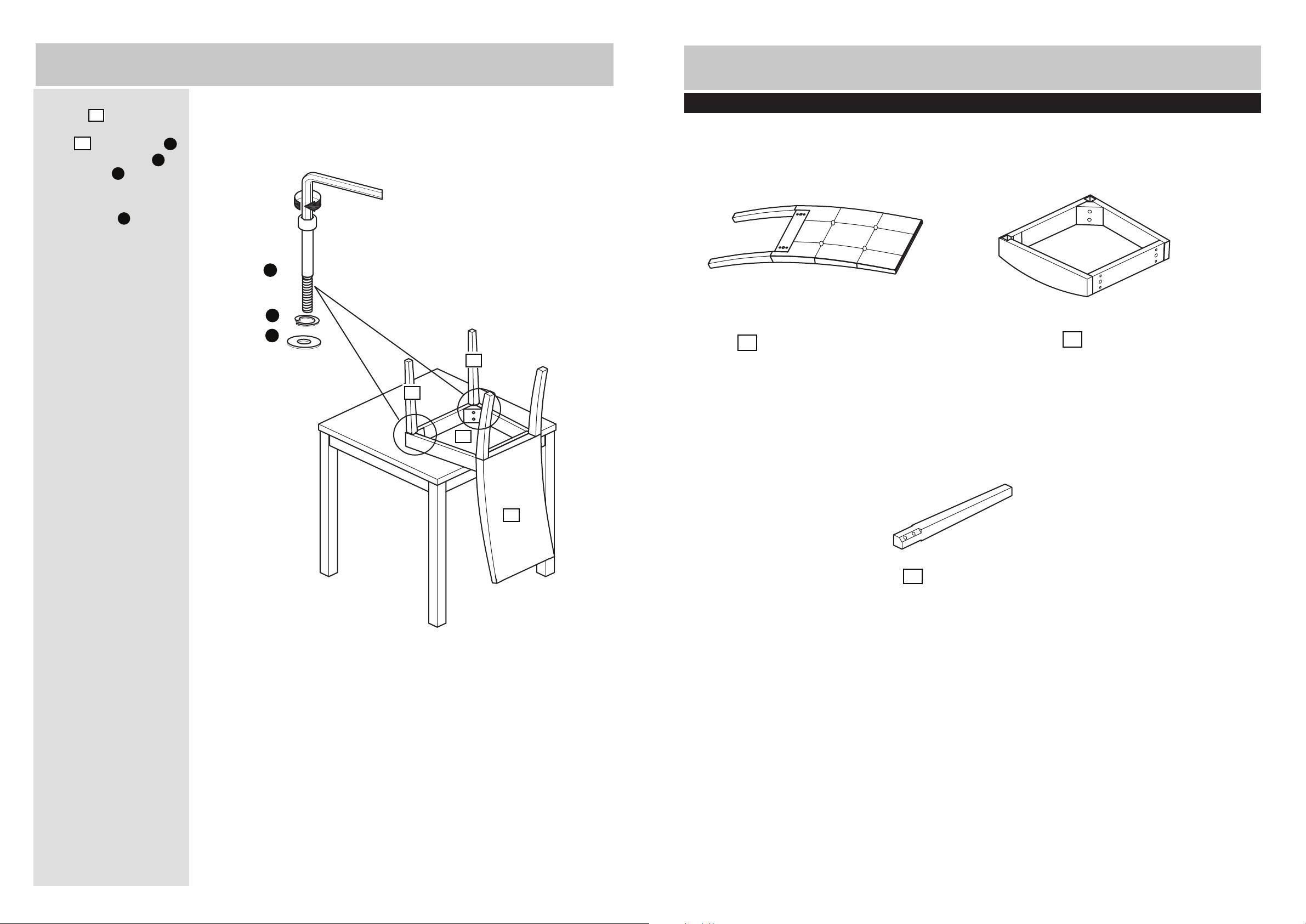

Page 3
Assembly Instructions
Turn over the chair.
c:
Put legs into front
corners of the seat
frame . Insert bolts
with spring washers
and washers into each
of the 2 holes in the front
corners. Tighten bolts
with allen key .
3
2
2
C
E
A
B
c:
A
B
If you have damaged or missing components,
Components - Parts
call the
Customer Helpline: 0345 640 0800
Please check you have all the parts listed below
Note :The quantities below are the correct amount to complete the assembly of 1 chair.
Do not fully tighten.
C
3
3
2
1
Chair back x 1
1
3
Leg x 2
2
Seat x 1
5
2

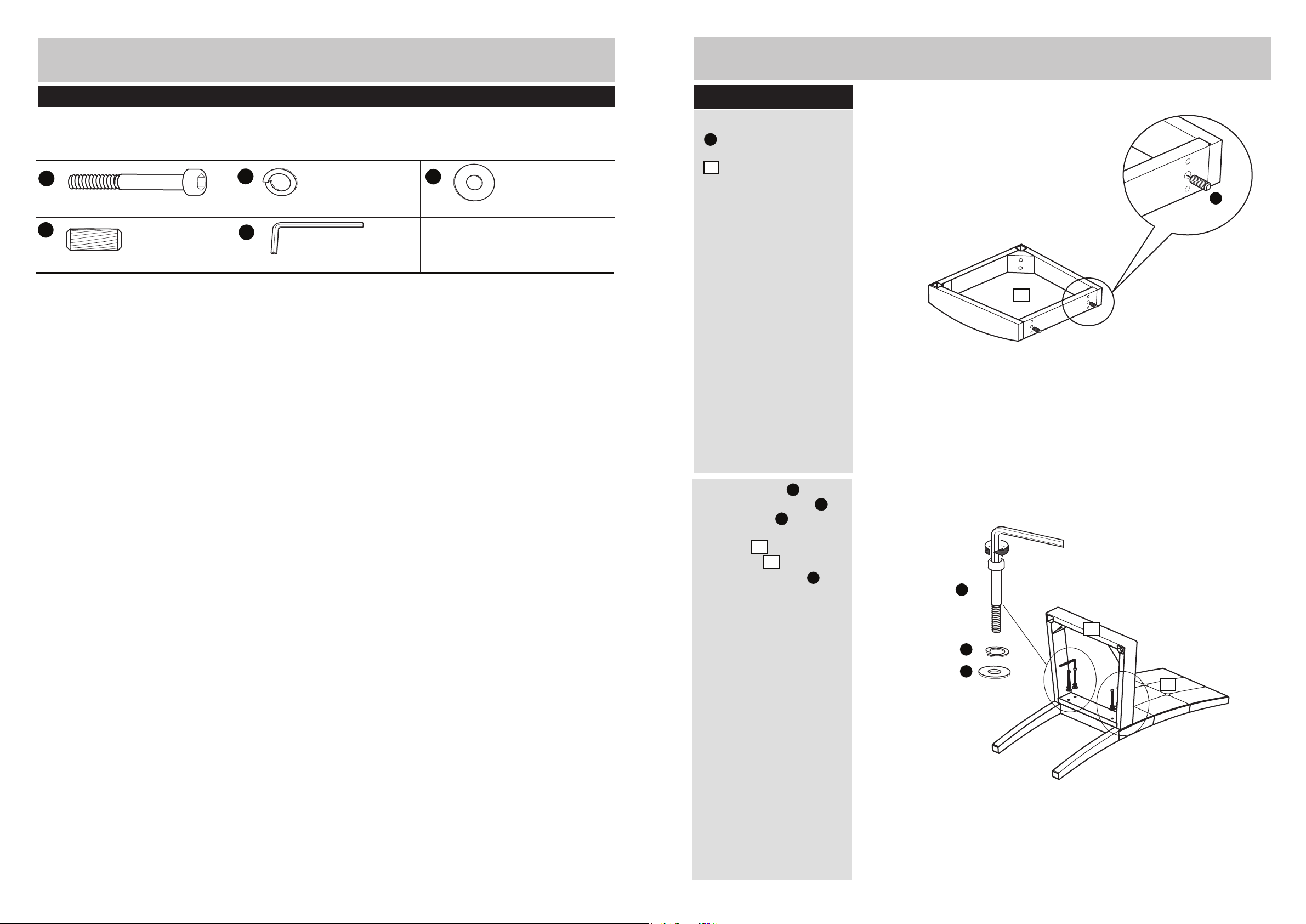

Page 4
Components -
Fittings
Assembly Instructions
Please check you have all the fittings listed below
Note :The quantities below are the correct amount to complete the assembly of 1 chair. In some cases more
fittings may be supplied than are required.
A
Bolt x 8
D
Wooden dowel x 2
B
Spring washer x 8
E
Allen key x 1
C
Washer x 8
Step 1
a:
Insert wooden dowels
into each centre hole
D
in the back of the seat
2
.
a:
D
2
Insert bolts
b:
with spring washers
and washers through
the holes at the back of
the seat into the
chair back . Tighten
bolts with allen key .
Do not fully tighten.
A
B
C
2
1
E
b:
A
2
B
C
1
3
4
