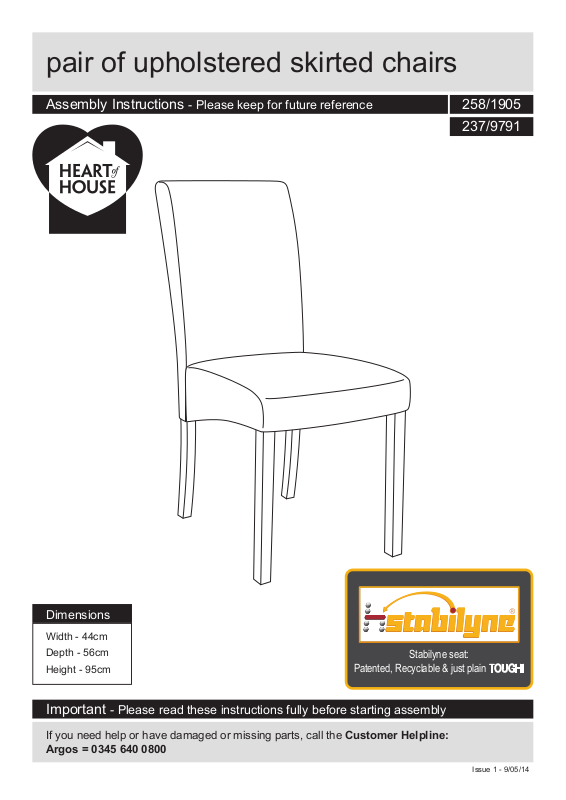

pair of upholstered skirted chairs
Assembly Instructions - Please keep for future reference 258/1905
237/9791
Dimensions
Width - 44cm
Depth - 56cm
Height - 95cm
Important
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
- Please read these instructions fully before starting assembly
Patented, Recyclable & just plain TOUGH!
Stabilyne seat:
Issue 1 - 9/05/14
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product, this
could cause damage.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Do not stand on the chair.
• Do not use the chair as a step
ladder.
• Unit weight: 6.1 kgs.
• Maximum safe weight of user:
110kgs.
• From time to time check that
there are no loose screws on
this unit.
• To reduce the
likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the
bolts.
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
1
Page 3
If you have damaged or missing components, call the
Components - Parts
Customer Helpline: Argos = 0345 640 0800
Please check you have all the parts listed below

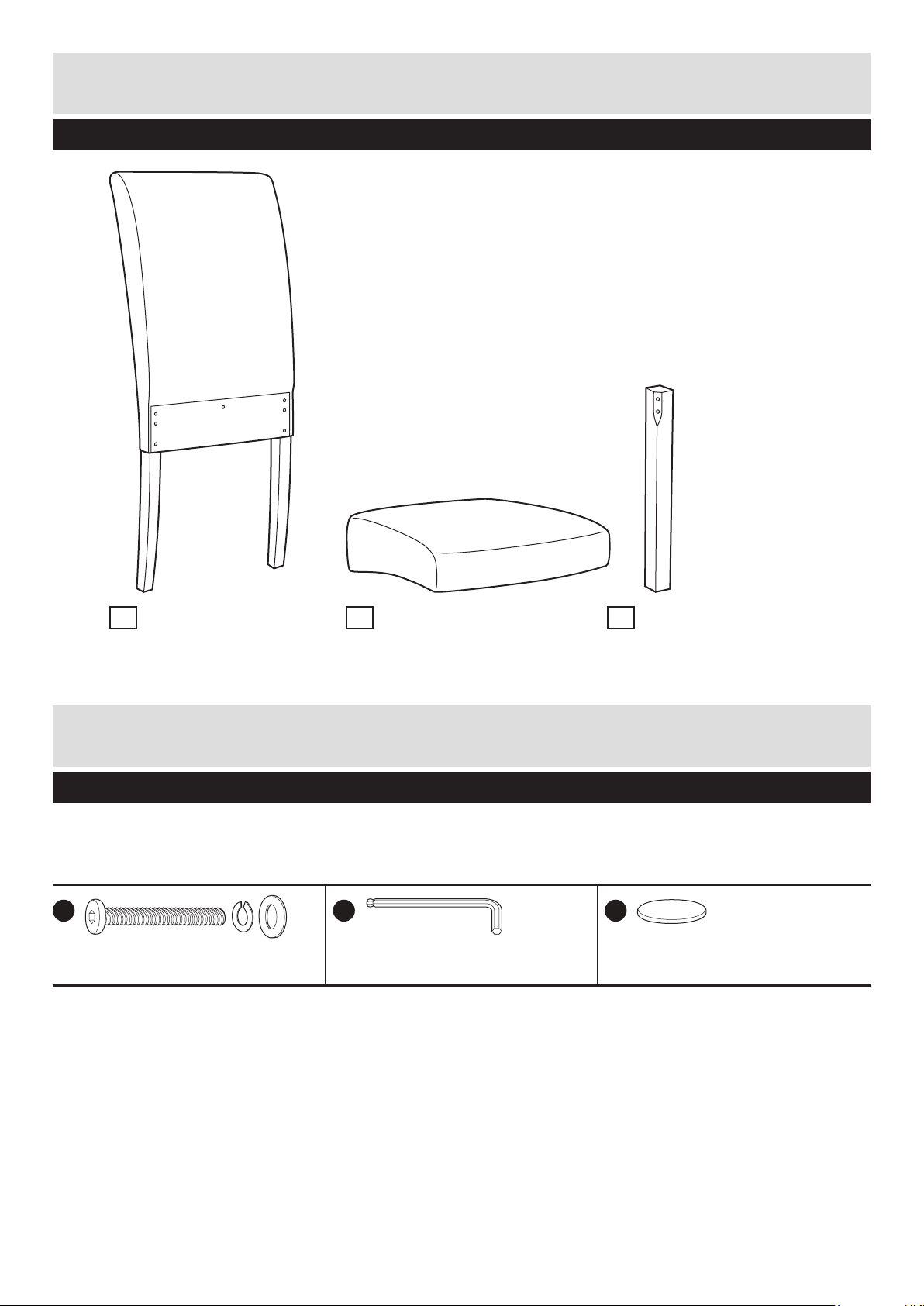

Backrest
1 Seat
(36 x 12 x 95cm)
2 Leg x 2
(44 x 41.5 x 17cm)
3
(3 x 3 x 43cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
M6 x 50mm Bolt with
spring washer & flat washer x 11
B
Allen key x 1
C
Foot pad x 4
2
Page 4
Assembly Instructions
Assembly Instructions
Step 1

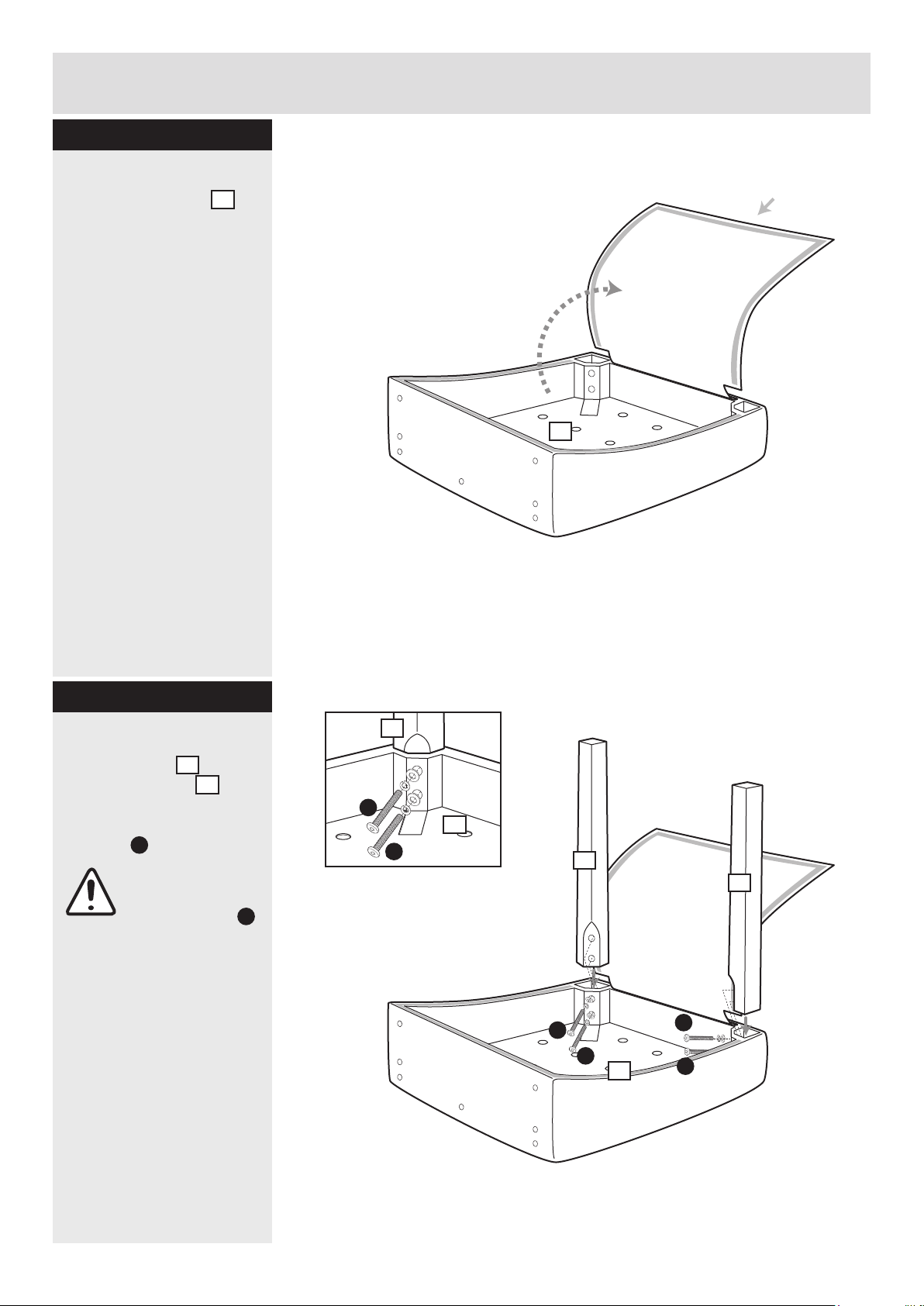

Opening cloth cover
Place the backrest on
a flat protected surface.
Carefully peel off bottom
cloth cover of seat by
pulling the cloth from the
back side of the seat as
shown.
2
Cloth cover
2
Step 2
Attaching legs
Insert the legs into the
holes of the seat as
shown and fix using bolts
with spring washers & flat
washers .
A
Important:
Fasten bolts
using allen key
but do not fully
tighten at this
stage.
Use oval head of
allen key when
tigthening bolts
on corner
positions.
3
2
B
3
A
2
A
3
3
A
A
2
A
A
3
Page 5
Assembly Instructions
Step 3

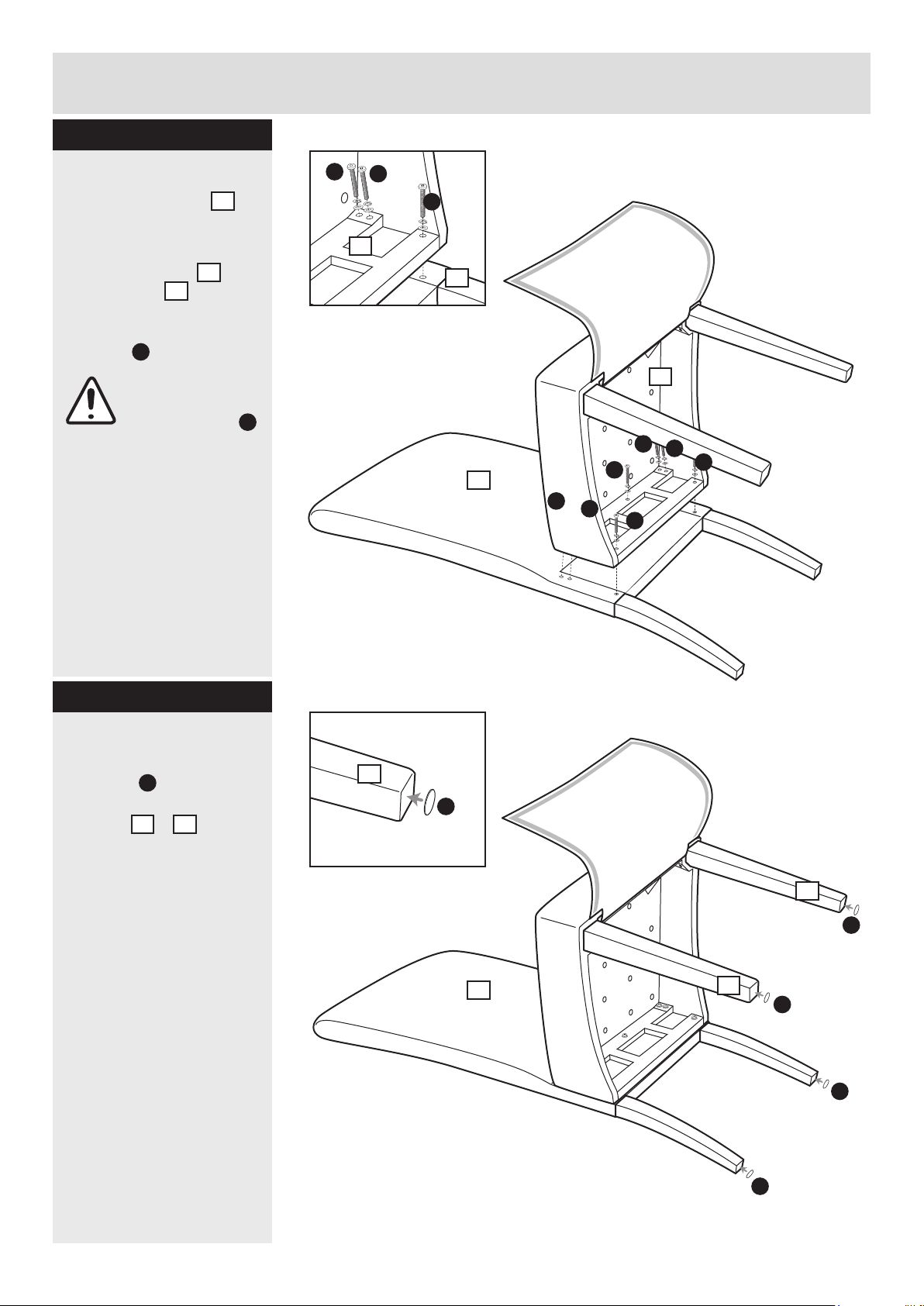

Attaching the seat
Place the backrest on
1
a flat protected surface
as shown.
Position the seat on
the backrest as
2
1
shown and fix using bolts
with spring washers & flat
washers .
A
Important:
Fasten bolts
using allen key
B
but do not fully
tighten at this
stage.
Use oval head of
allen key when
tigthening bolts
on corner
positions.
A
A
A
2
1
2
A
A
1
A
A
A
A
A
Step 4
Attaching foot pads
Remove backing from
foot pads and carefully
position on the bottom of
the legs & as
shown.
C
1 3
3
C
3
C
1
3
C
C
C
4
Page 6
Assembly Instructions
Step 5

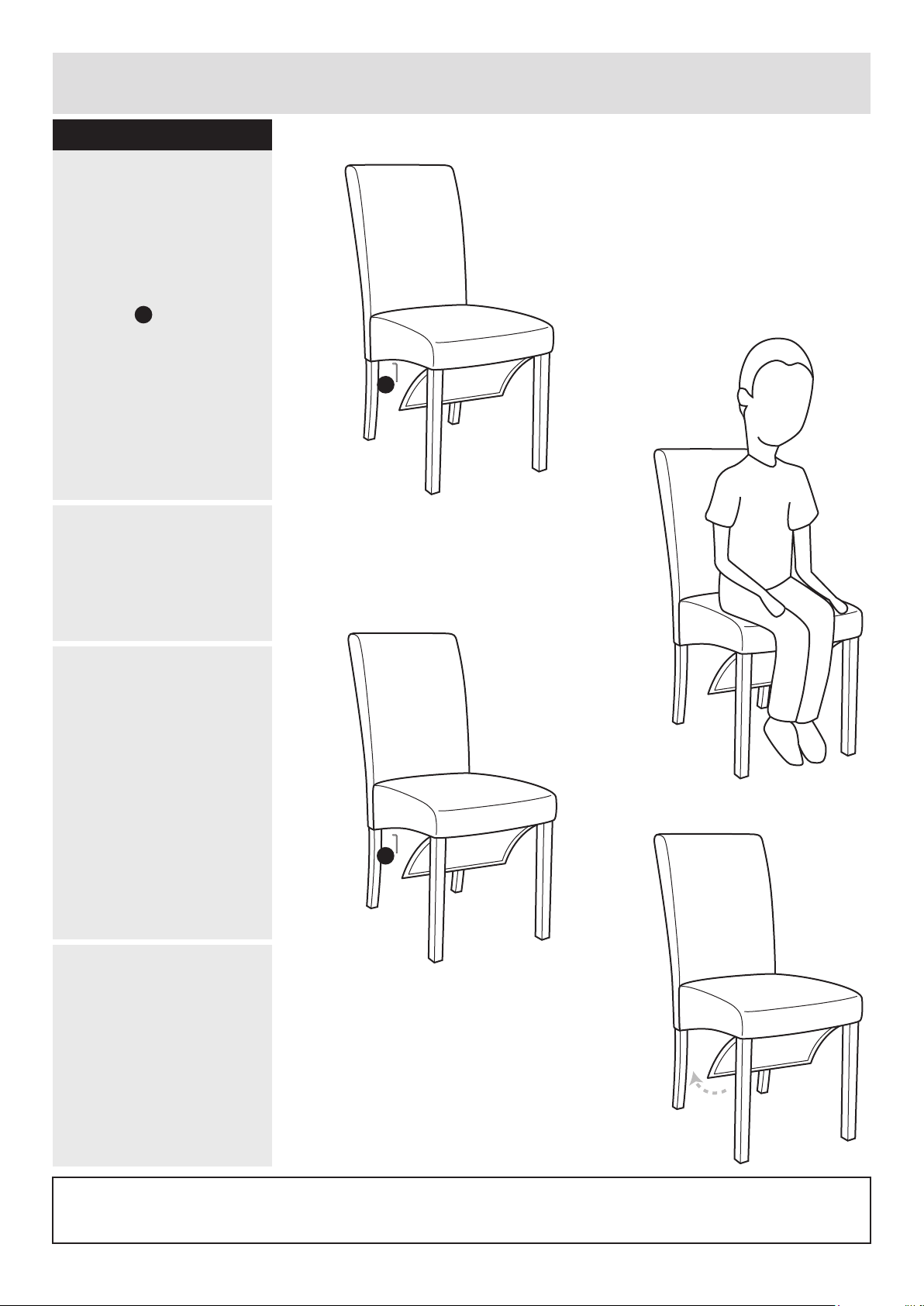

Aligning & securing the
legs
Carefully turn the chair
upright and place on a
flat surface.
a: Tighten all bolts using
allen key .
Note: Use oval head of
allen key when tigthening
bolts on corner positions.
Note: This step is
essential to prevent the
chair from wobbling due
to uneven legs.
B
b: Carefully sit on the
chair and make
adjustments to ensure
the legs are flat even on
the floor.
a:
B
b:
c: After the sitting test,
re-tighten bolts again if
any adjustment is
needed.
Note: It is highly
recommended to
re-tighten all bolts after
using the chair for 7
days.
Note: Keep allen key to
re-tighten bolts when
required.
d: Re-attaching the
bottom cloth cover
Re-attach the bottom
cloth cover as shown.
c:
B
d:
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
5
